STARTECH interface cards/adapter Internal M.2 (1M25-U3-M2-ADAPTER)
- Regular price
- 64.95$
- Sale price
- 64.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

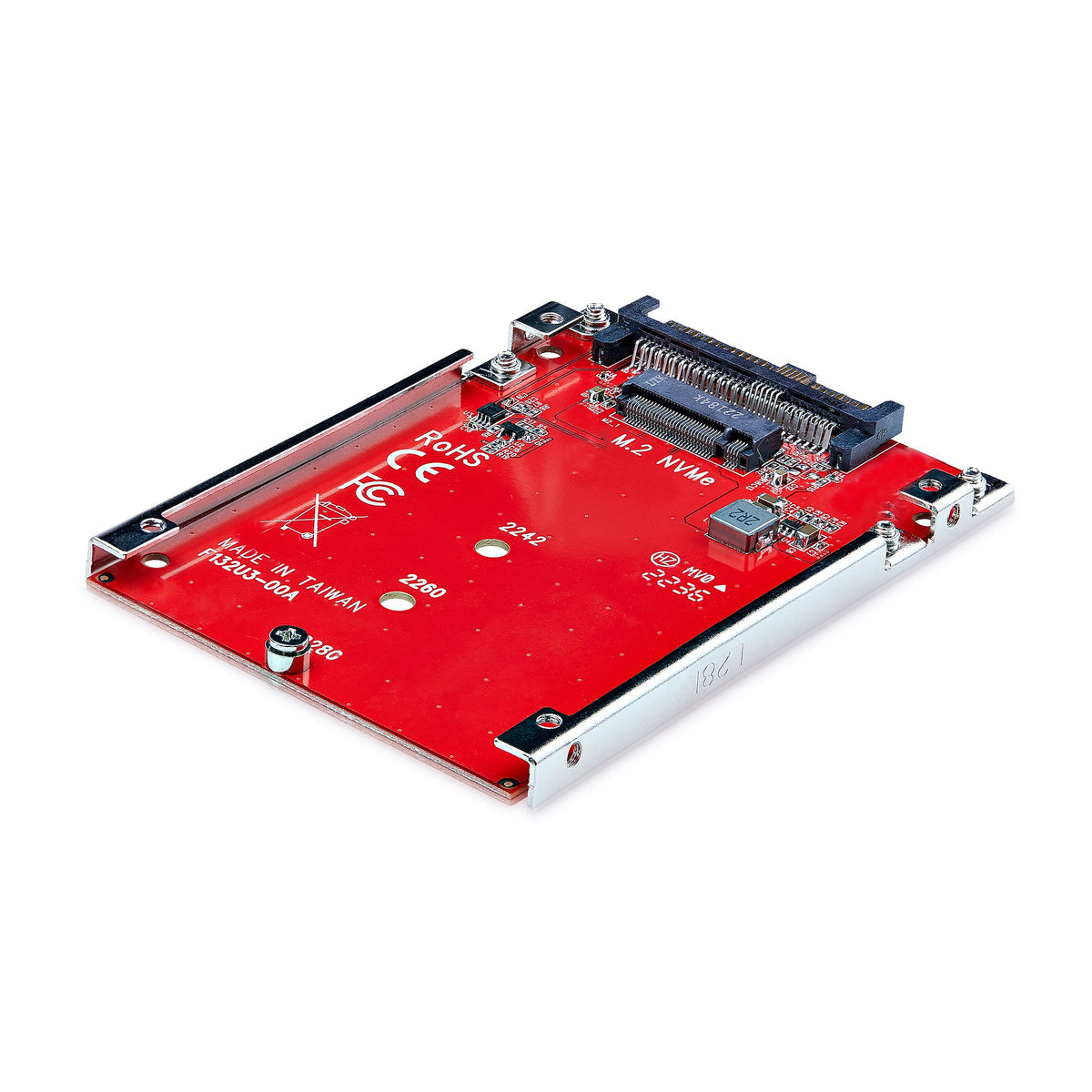

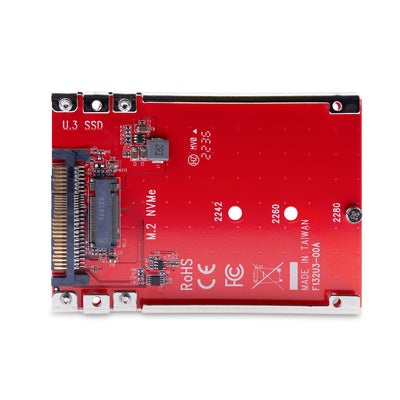

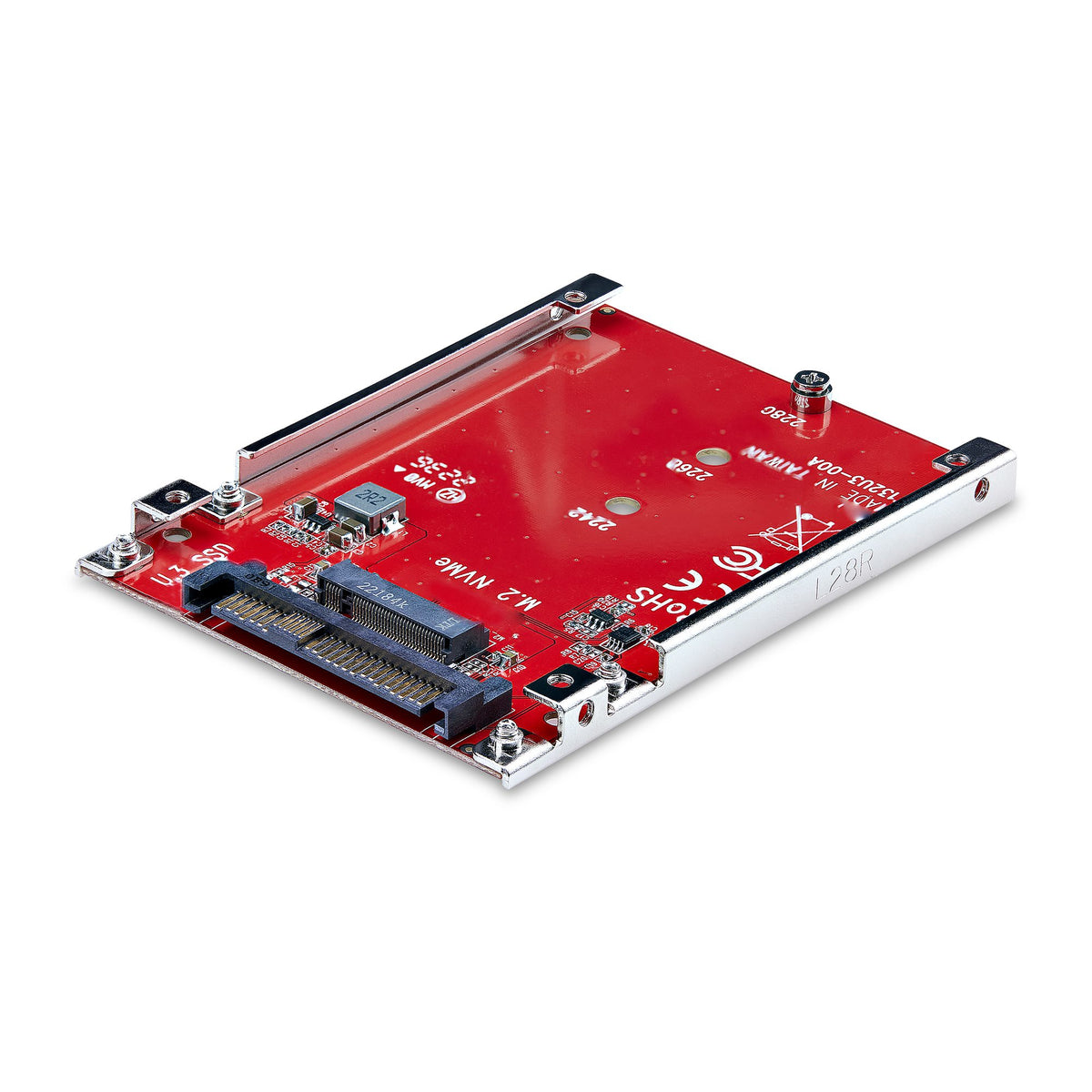

StarTech.com 1M25-U3-M2-ADAPTER interface cards/adapter Internal M.2
Brand:StarTech.com
Product name:M.2 to U.3 Adapter for M.2 NVMe SSDs, PCIe M.2 Drive to 2.5inch U.3 (SFF-TA-1001) Host Adapter/Converter, TAA Compliant - 2.5" Drive Form Factor
Product code:1M25-U3-M2-ADAPTER
EAN/UPC:
0065030900744
0065030900744, 065030900744
- COMPATIBILITY: This drive adapter is compatible with U.3 (SFF-TA-1001) host interfaces and PCIe M.2 NVMe/AHCI SSD drives only and does not support SATA/SAS/U.2 host controllers or SATA-based M.2 SSDs; M.2 to U.3 Adapter is TAA Compliant
- FULL PERFORMANCE: Change the form factor of a 2242, 2260, or 2280 M.2 NVMe drive while preserving the read and write speeds; No chipset design ensures no loss in performance when adapting to 2.5inch

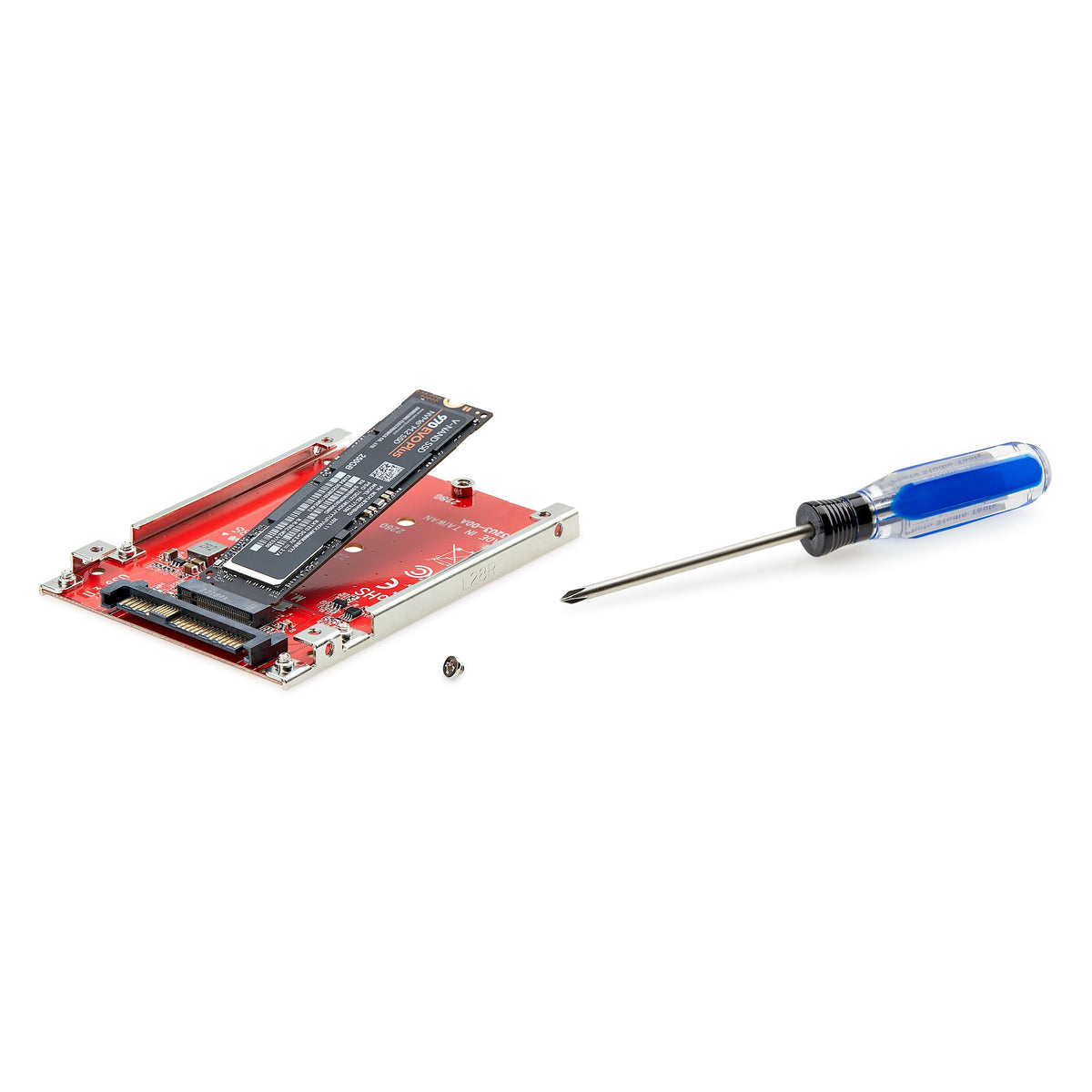

- HASSLE-FREE SETUP: M.2 to U.3 Host Adapter works with all operating systems including Windows, macOS, and Linux; M2 to U.3 Adapter requires no additional drivers or software; Includes drive and adapter mounting screws for an efficient installation
- VERSATILE M.2 NVME SUPPORT: Open frame design enables support for M.2 drives with larger heatsinks, and allows for better airflow; Supports PCIe 4.0 and lower drives; SFF-TA-1001 is not compatible with SATA/SAS/U.2 host controllers or SATA-based M.2 SSDs
- OUR ADVANTAGE: IT professionals' choice for over 30 years; This M2 to U.3 converter is backed for two years, including free 24/5 North America based multi-lingual technical assistance
Description

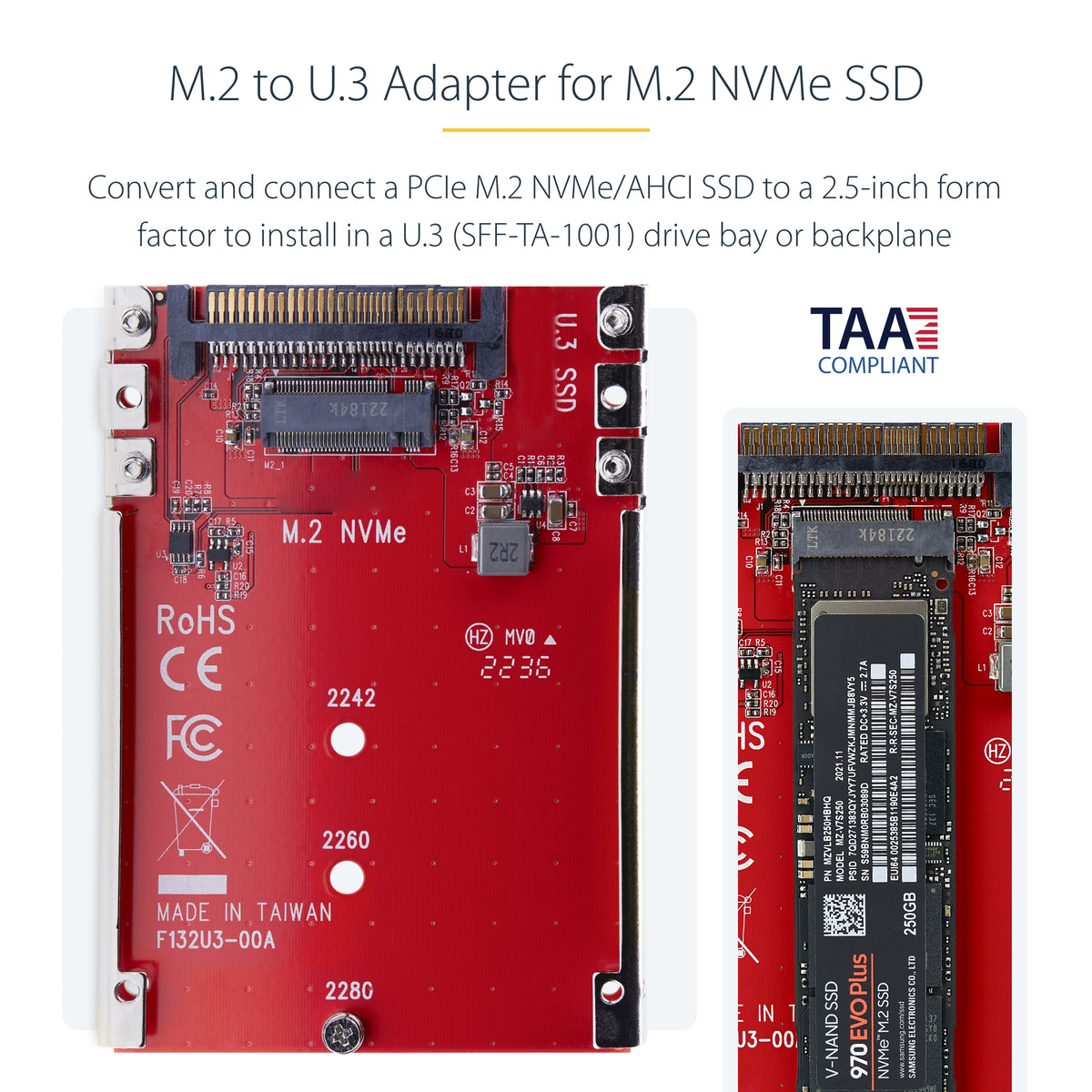

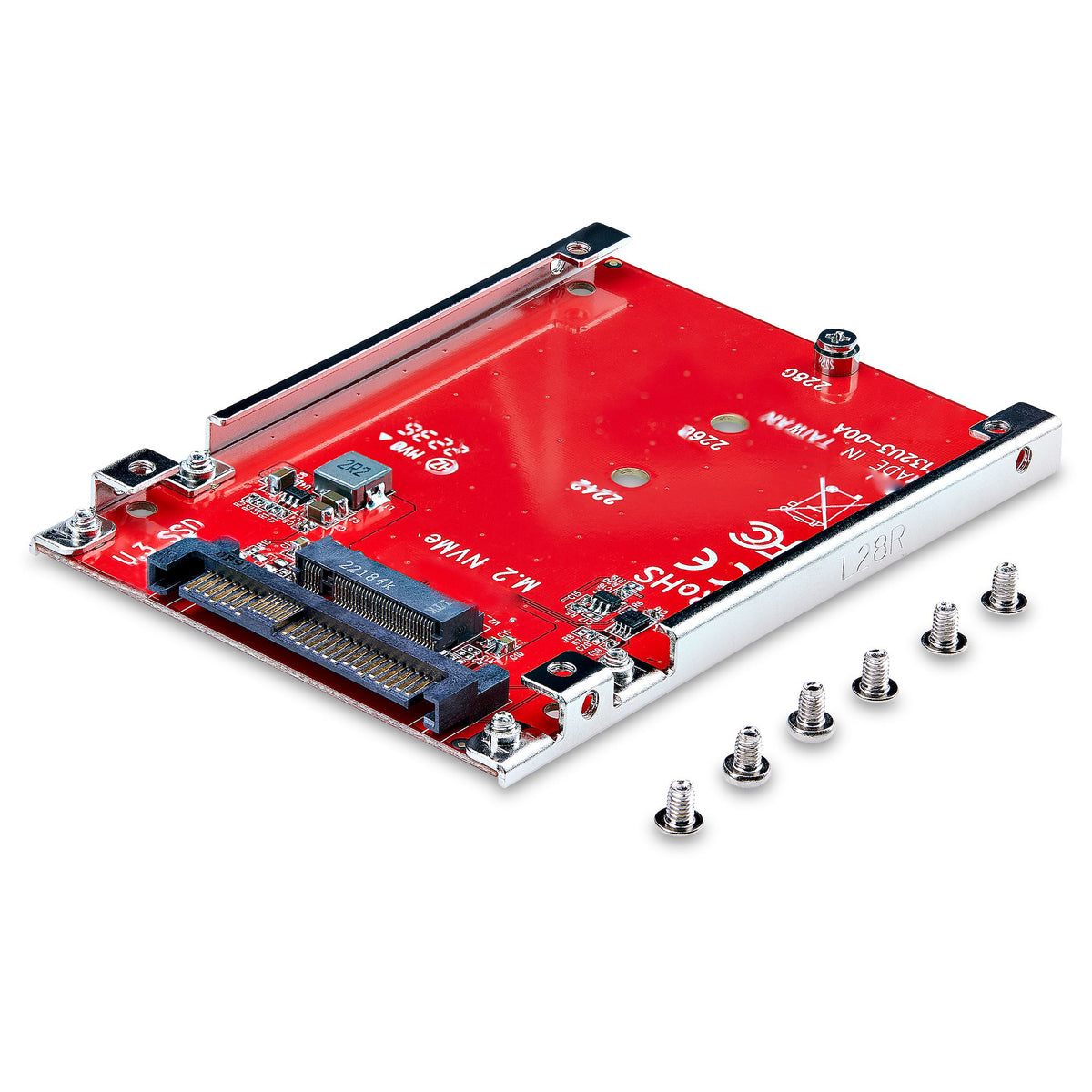

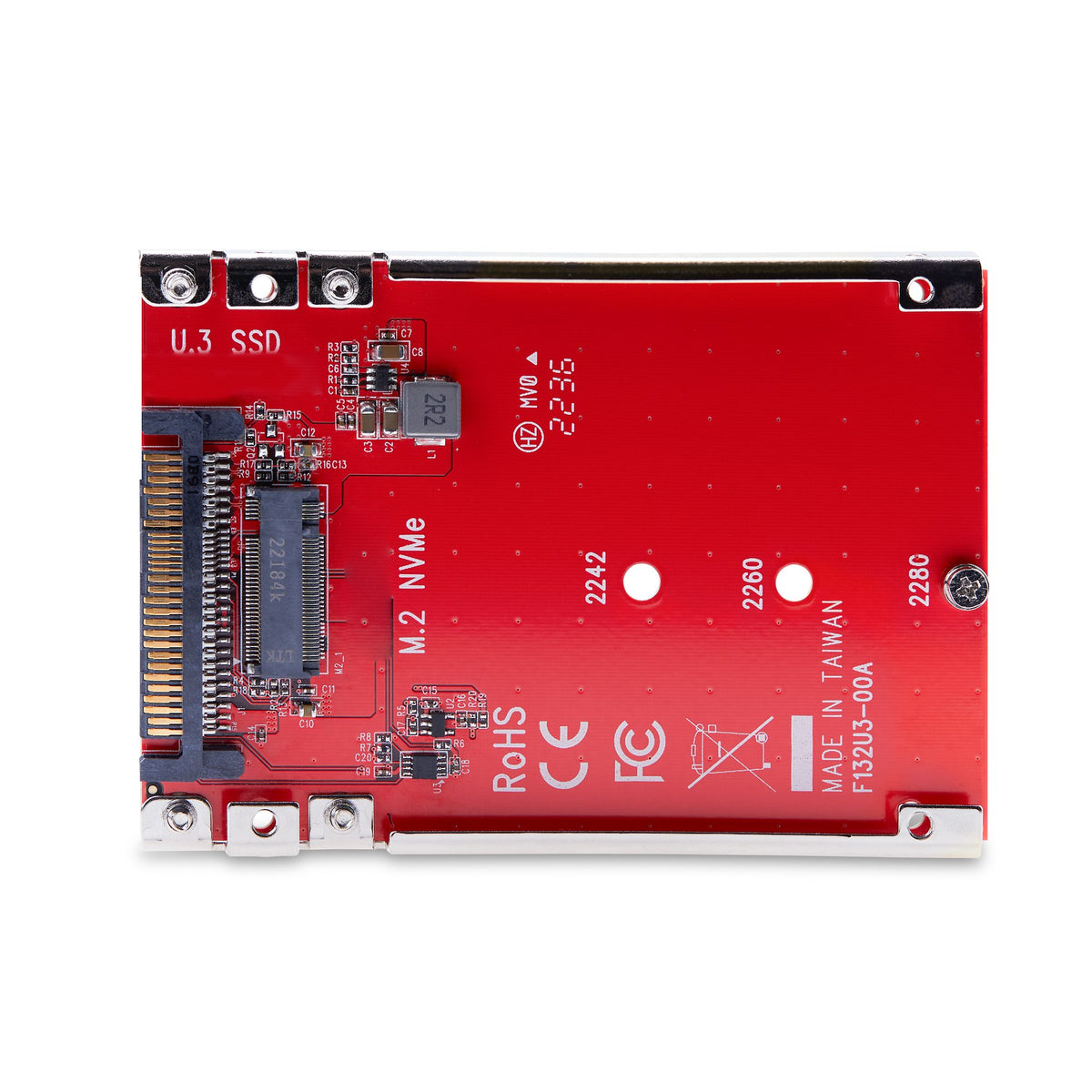

Connect an M.2 NVMe drive to a 2.5-inch U.3 (SFF-TA-1001) drive bay

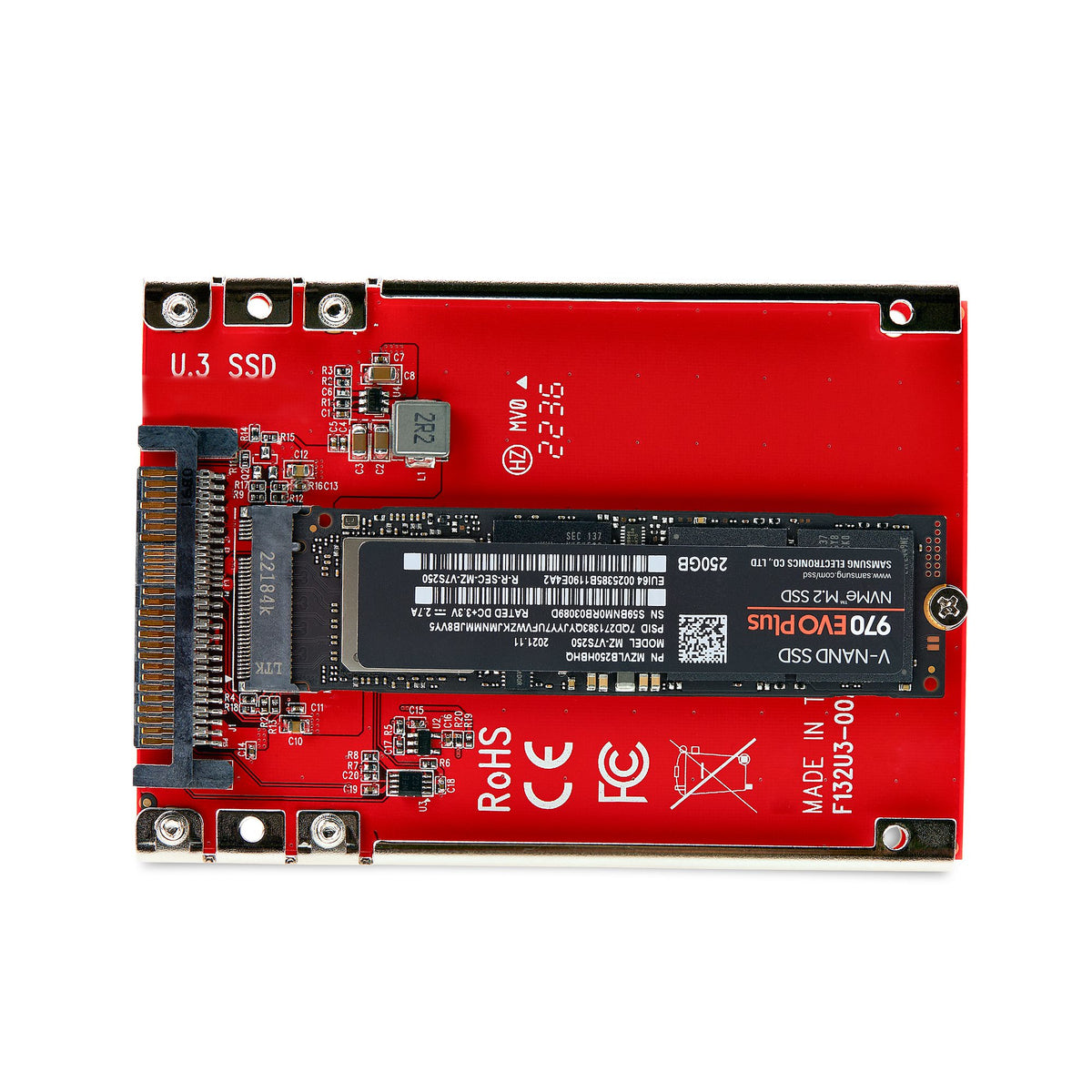

Convert and connect a PCIe M.2 NVMe/AHCI SSD to a 2.5inch form factor to install in a U.3 drive bay or backplane.
Adapt While Retaining Performance
Change the form factor of a 2242, 2260, or 2280 M.2 NVMe drive while maintaining PCIe Gen 4 read and write speeds. This adapter has been designed with no chipset to maintain performance when adapting an M.2 drive to a 2.5-inch form factor.
Hassle-Free Setup
The M.2 to U.3 Host Adapter is compatible with all operating systems, including Windows, macOS, and Linux. No additional drivers or software for installation and operation. The adapter includes M.2 drive and U.3 adapter mounting hardware.
Compatibility
The M.2 to U.3 Host Adapter is backward compatible with earlier versions of M.2 PCIe NVMe drives. It is not compatible with SATA or SAS host controllers, M.2 SATA SSDs, or U.2 host interfaces.
Convert and connect a PCIe M.2 NVMe/AHCI SSD to a 2.5inch form factor to install in a U.3 drive bay or backplane.
Adapt While Retaining Performance
Change the form factor of a 2242, 2260, or 2280 M.2 NVMe drive while maintaining PCIe Gen 4 read and write speeds. This adapter has been designed with no chipset to maintain performance when adapting an M.2 drive to a 2.5-inch form factor.
Hassle-Free Setup
The M.2 to U.3 Host Adapter is compatible with all operating systems, including Windows, macOS, and Linux. No additional drivers or software for installation and operation. The adapter includes M.2 drive and U.3 adapter mounting hardware.
Compatibility
The M.2 to U.3 Host Adapter is backward compatible with earlier versions of M.2 PCIe NVMe drives. It is not compatible with SATA or SAS host controllers, M.2 SATA SSDs, or U.2 host interfaces.
Specs
Ports & interfaces
Host interface
Interface that enables a host controller to communicate with a driver.
U.3
Output interface
The socket (port) where the output connectors are connected.
M.2
Features
S.M.A.R.T. support
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Power
Output voltage
3.3 V
Output current
5 A
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.
Yes
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Yes
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Weight & dimensions
Width
The measurement or extent of something from side to side.
70 mm
Depth
The distance from the front to the back of something.
100 mm
Height
The measurement of the product from head to foot or from base to top.
7 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
37 g
Logistics data
Quantity per master (outer) case
60 pc(s)
Master (outer) case width
497 mm
Master (outer) case length
387 mm
Master (outer) case height
329 mm
Design
Internal
The product is built in.
Product color
The colour e.g. red, blue, green, black, white.
Red
Purpose
What the product is used for.
PC
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
12368734 h
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 85 °C
Operating relative humidity (H-H)
15 - 90%
Technical details
Sustainability compliance
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS, Trade Agreements Act (TAA)
Packaging data
Quick installation guide
Package width
The distance from one side of the packaging to the other.
142 mm
Package depth
The distance from the front to the back of the packaging.
175 mm
Package height
The distance from the top to the bottom of the packaging.
33 mm
Package weight
Weight of the packaged product in gram.
100 g
