STARTECH InfiniBand/fibre optic cable LC LC/UPC Yellow (SPSMLCLC-OS2-1M)
- Regular price
- 30.95$
- Sale price
- 30.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

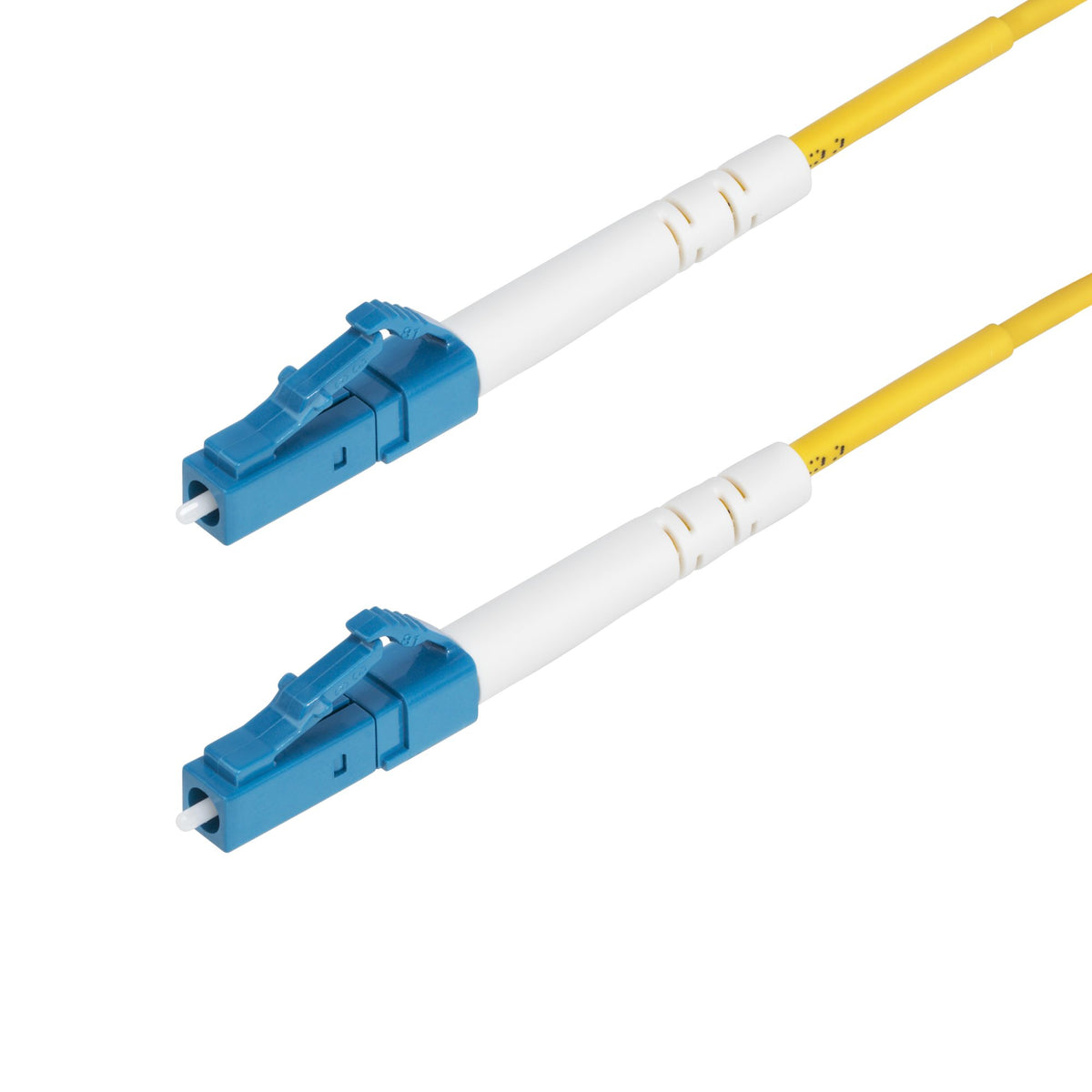

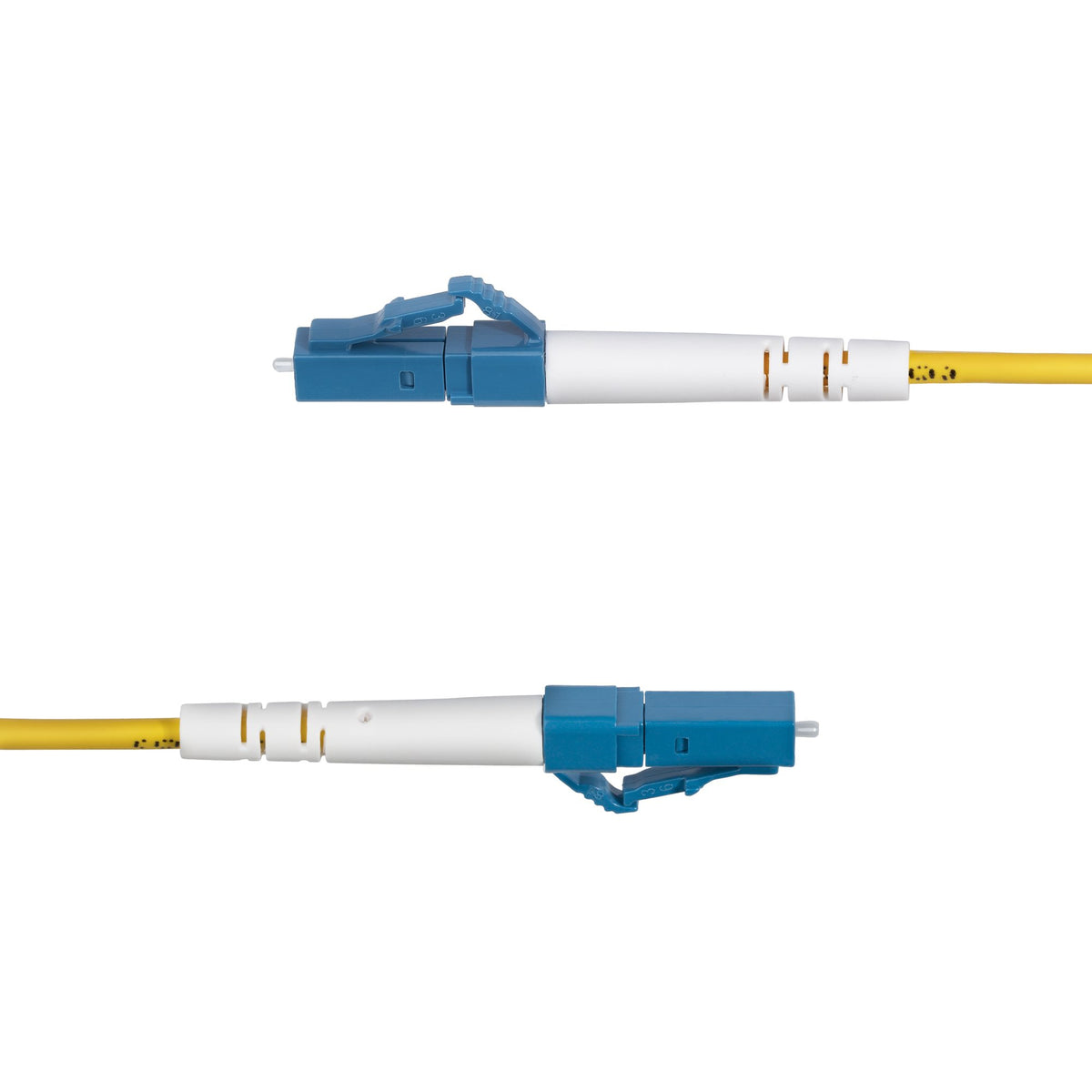

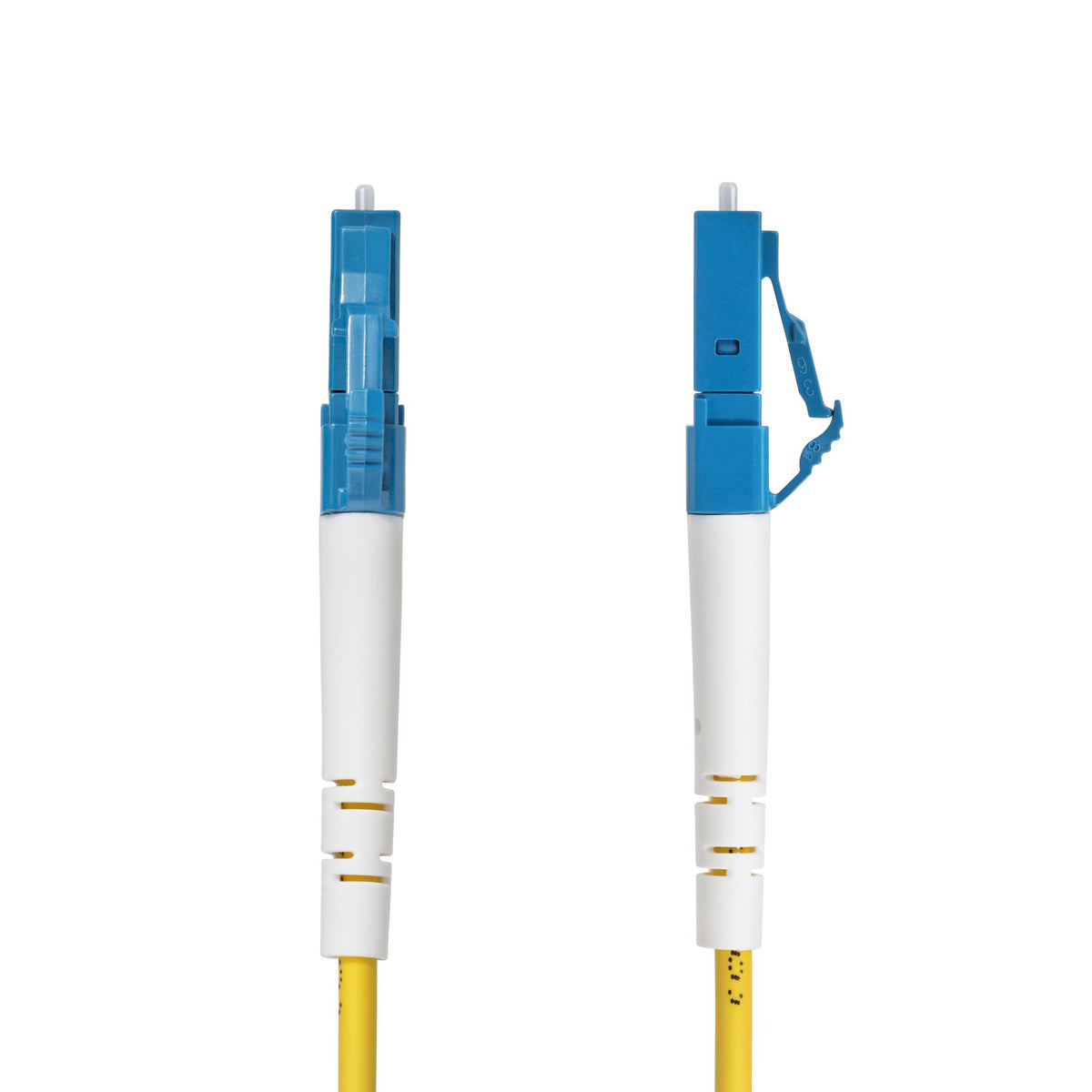

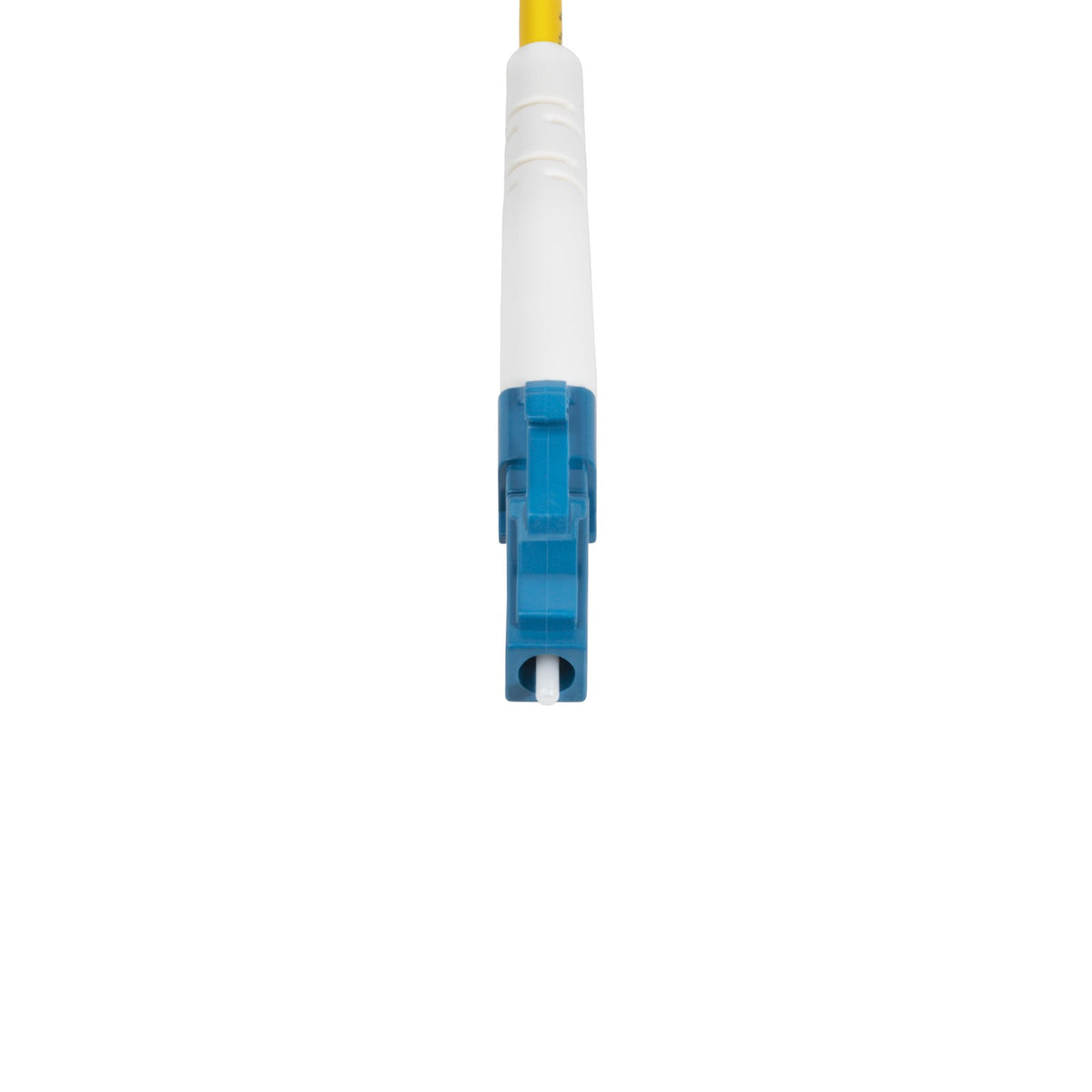

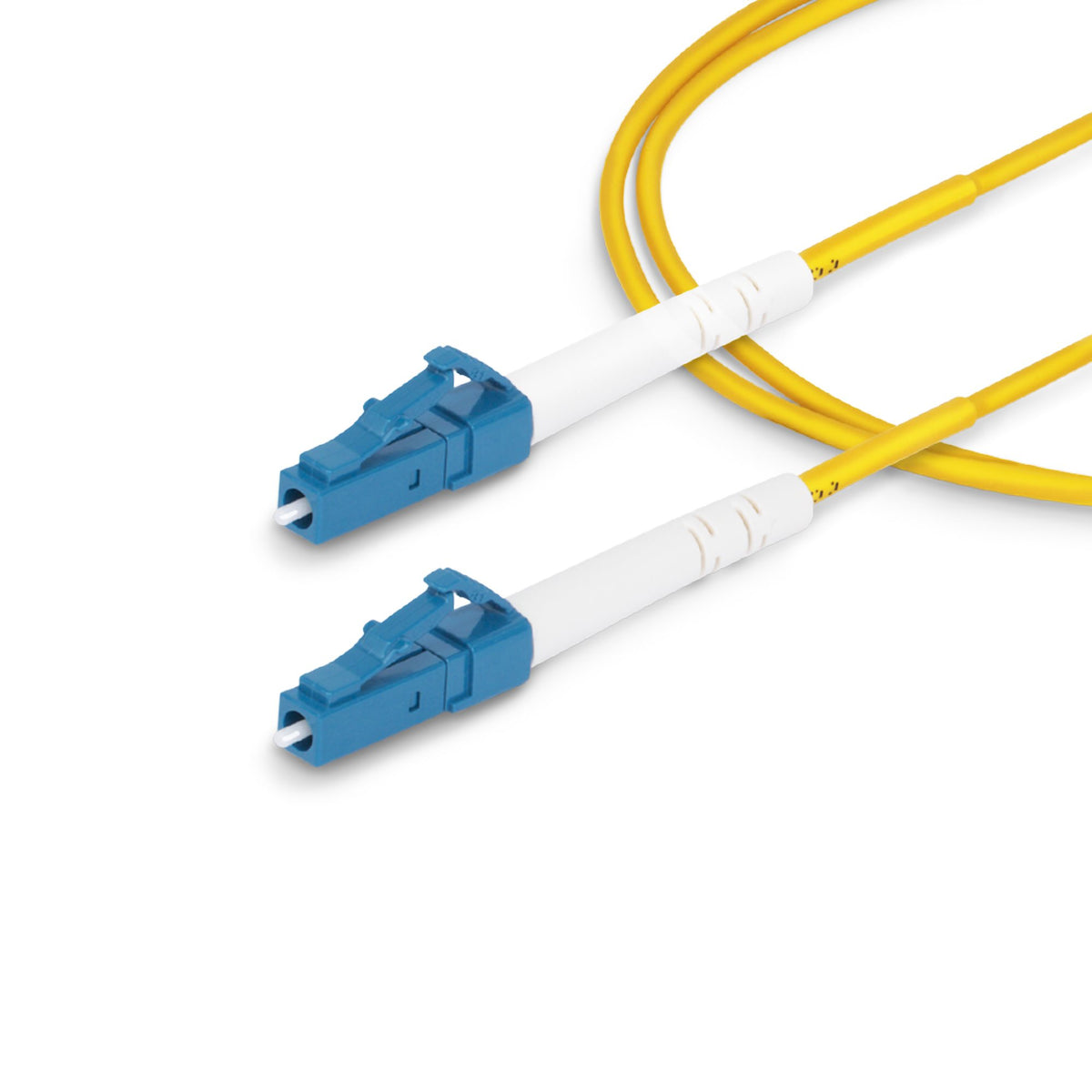

StarTech.com SPSMLCLC-OS2-1M InfiniBand/fibre optic cable LC LC/UPC Yellow
Brand:StarTech.com
Product name:1m (3.3ft) LC to LC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord
Product code:SPSMLCLC-OS2-1M
EAN/UPC:
0065030906647
0065030906647, 065030906647
- SIMPLEX OS2 CABLE: Single Mode Simplex OS2 Fiber Cable is immune to EMI and optimized for 40G/100Gbps networks; Supports bi-directional (BiDi) transmission over a single fiber; Ideal for space-constrained installations requiring minimal fiber count
- QUALITY CONSTRUCTION: LC/LC-UPC ends for improved return loss over PC polish; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 10mm
- SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 0.35dB/km outperforms industry standards
- COMPATIBILITY: Simplex Single Mode Fiber Patch Cord supports 40G/100G networks; Backward compatible with OS1; High micro-bend resistance facilitates tight bends in complex installations; Ideal for point-to-point setups or single-fiber NICs and SFPs
- SPECS: 1 meter (3.3 foot); OS2 Single Mode; LC/LC (UPC) Simplex; 100Gbps; 9/125um; 1260-1625nm Laser Optimized; Insertion Loss: ≤0.3dB; Return Loss: ≥55dB; Cable OD: 2mm; Bend Radius: 10mm (0.39in) loaded/unloaded
Description
Enhance the performance capabilities of CWDM applications over an OS2 fiber network
OS2 LC to LC Single Mode Simplex Fiber Optic Patch cable facilitates connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.
Compatibility
Connect to single-fiber networking devices including simplex patch panels, SFP transceivers, and fiber NICs. This 9/125µm OS2 simplex single mode fiber patch cord is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.
Engineered for Optimal Performance
Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to LC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.
LSZH Cable Jacket
Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.
OS2 LC to LC Single Mode Simplex Fiber Optic Patch cable facilitates connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.
Compatibility
Connect to single-fiber networking devices including simplex patch panels, SFP transceivers, and fiber NICs. This 9/125µm OS2 simplex single mode fiber patch cord is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.
Engineered for Optimal Performance
Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to LC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.
LSZH Cable Jacket
Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.
Specs
Features
Cable length
How long the cable is.
1 m
Fiber optic type
The standardised properties of the fiber optic cable.
OS2
Connector 1
This is the first connector in the device.
LC
Connector 2
This is the second connector in the device.
LC
Connector 1 gender
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2 gender
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
Male
Connector polish type
UPC
Cable type
Type of cable e.g. electicity cable, optical cable.
LC/UPC
Product color
The colour e.g. red, blue, green, black, white.
Yellow
Core diameter
The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.
9 µm
Cladding diameter
The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.
125 µm
Fiber mode structure
Single-mode
Wavelengths supported
1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
100 Gbit/s
Insertion loss
0,3 dB
Return loss
55 dB
Jacket material
Polypropylene, Low smoke zero halogen (LSZH)
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-20 - 60 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Weight & dimensions
Cable diameter
The distance from one side of the cable to the other, with a straight line going through the middle of the cable.
2 mm
Bending radius
1 cm
Packaging data
Package width
The distance from one side of the packaging to the other.
199 mm
Package depth
The distance from the front to the back of the packaging.
170 mm
Package height
The distance from the top to the bottom of the packaging.
16 mm
Package weight
Weight of the packaged product in gram.
12,4 g
Packaging content
Quantity per pack
1 pc(s)
Other features
Attenuation (max)
0,35 dB/km
Logistics data
Master (outer) case width
457 mm
Master (outer) case length
463 mm
Master (outer) case height
310 mm
Quantity per master (outer) case
650 pc(s)
