STARTECH InfiniBand/fibre optic cable 2 m MPO/MTP Violet (OM4MTP12BOFNP2M)
- Regular price
- 174.95$
- Sale price
- 174.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

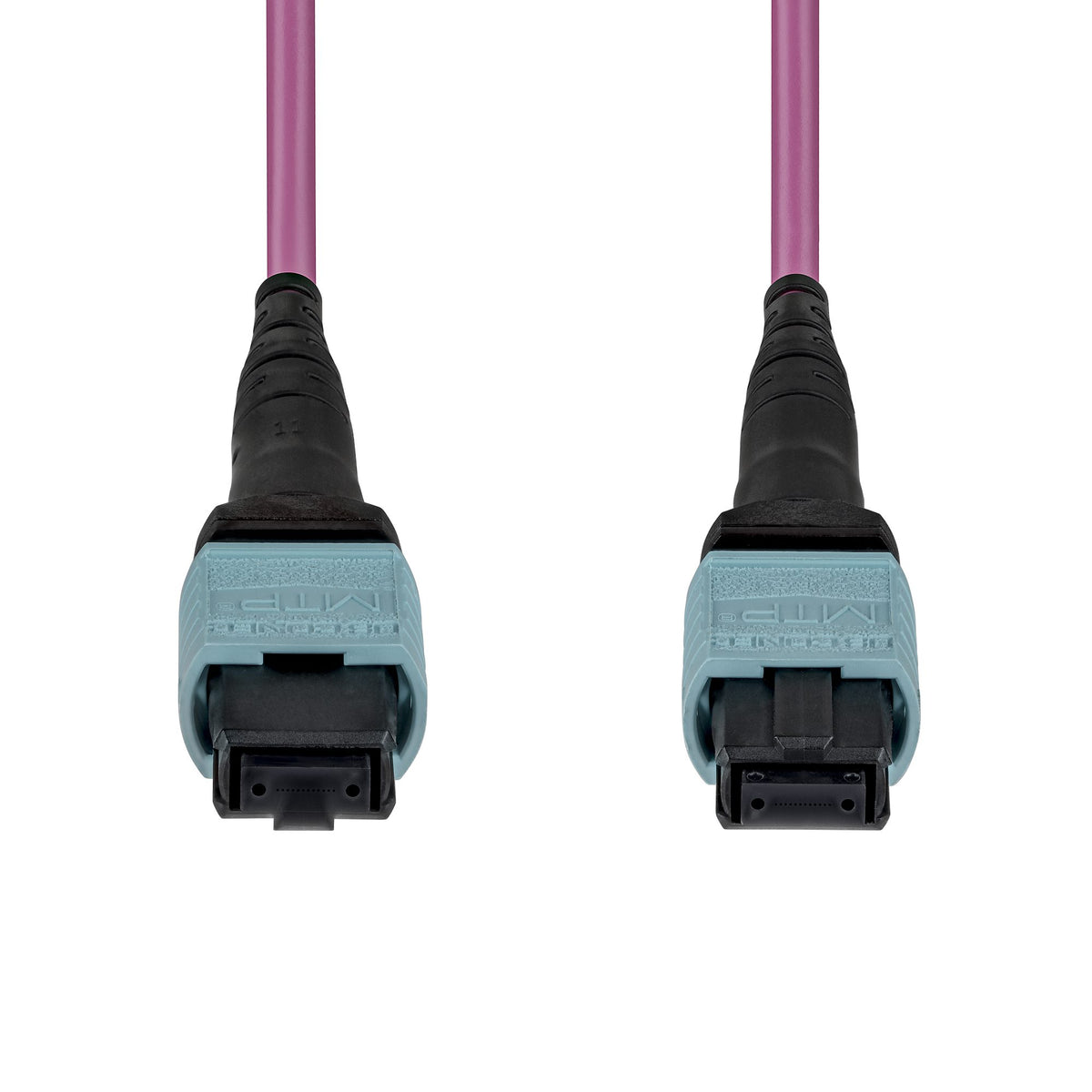

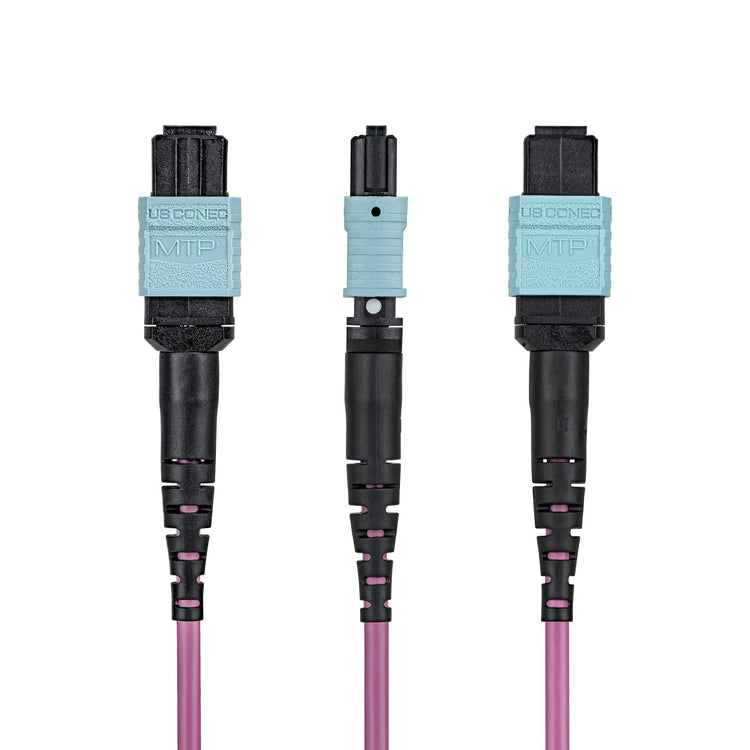

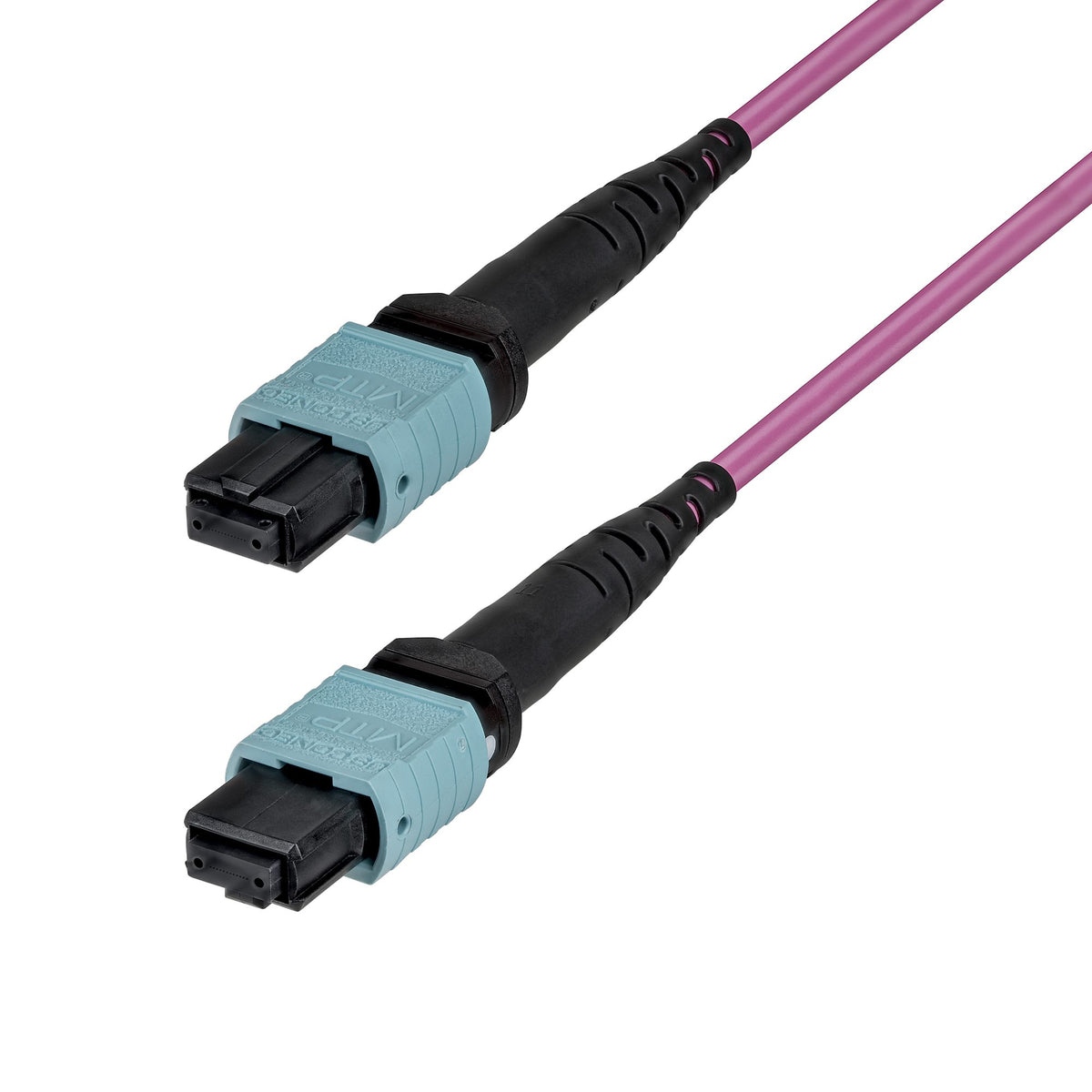

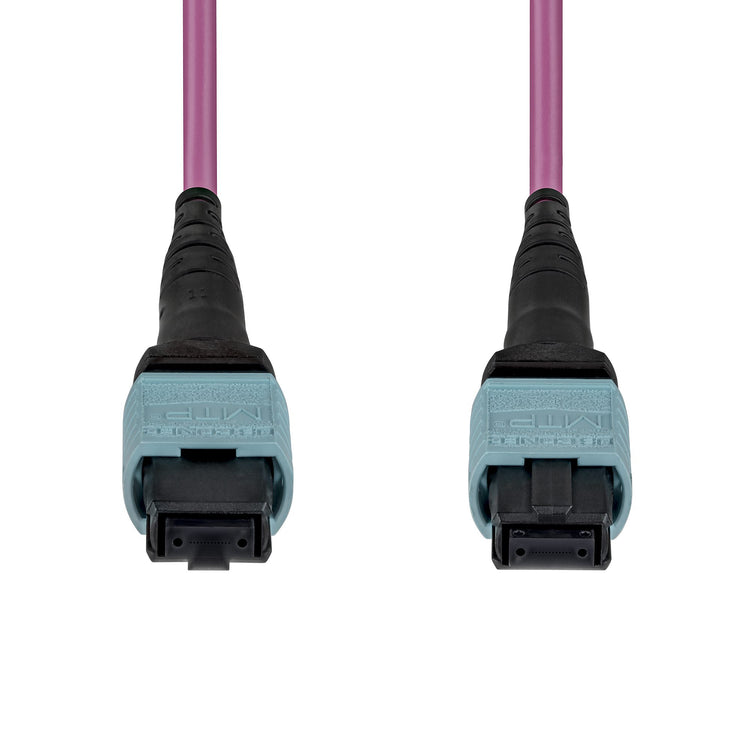

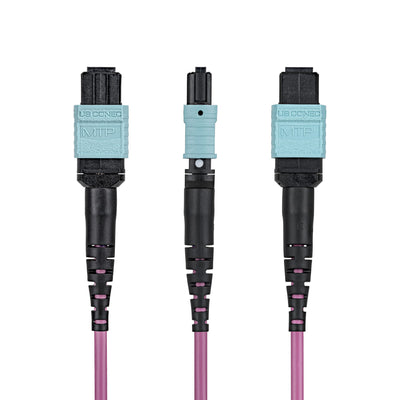

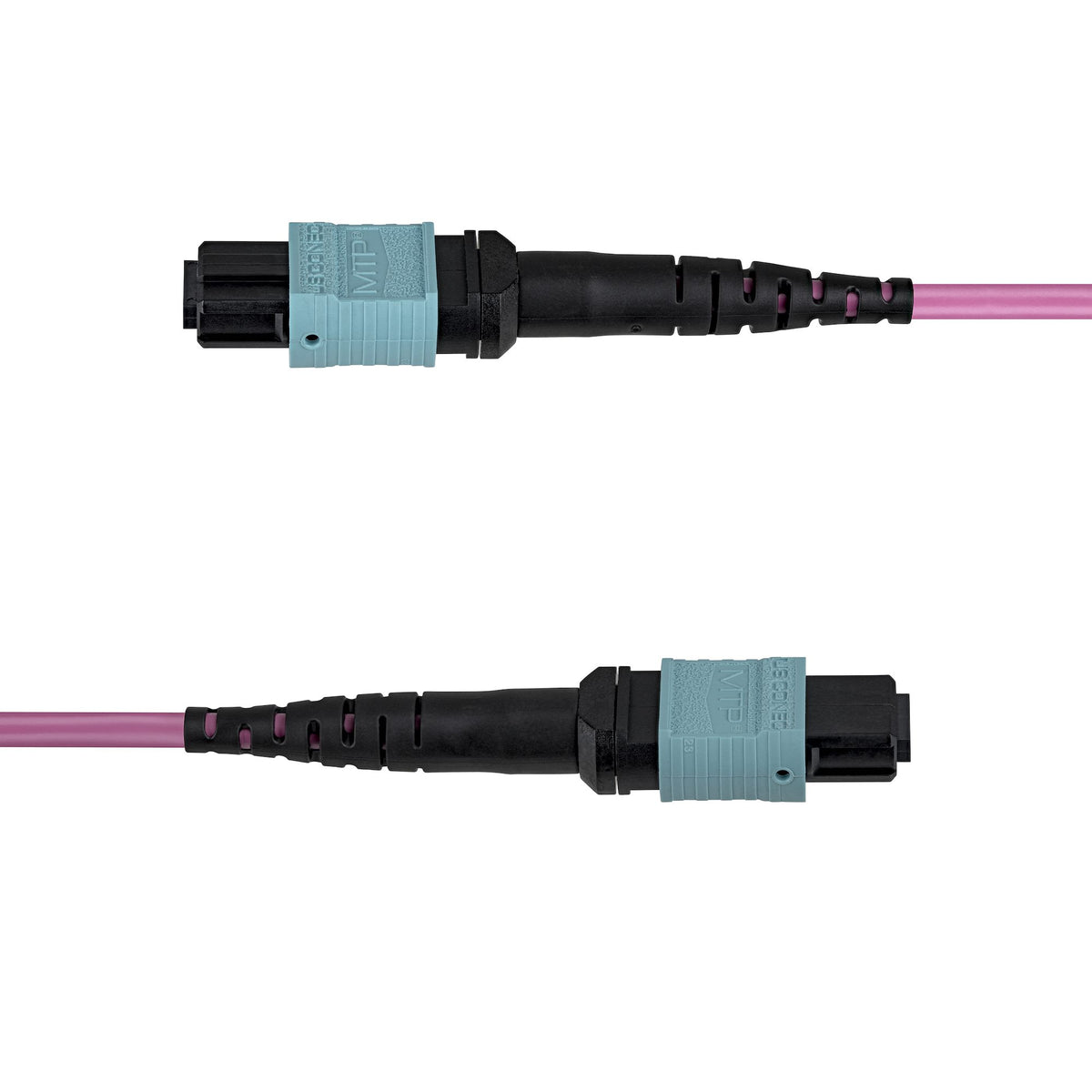

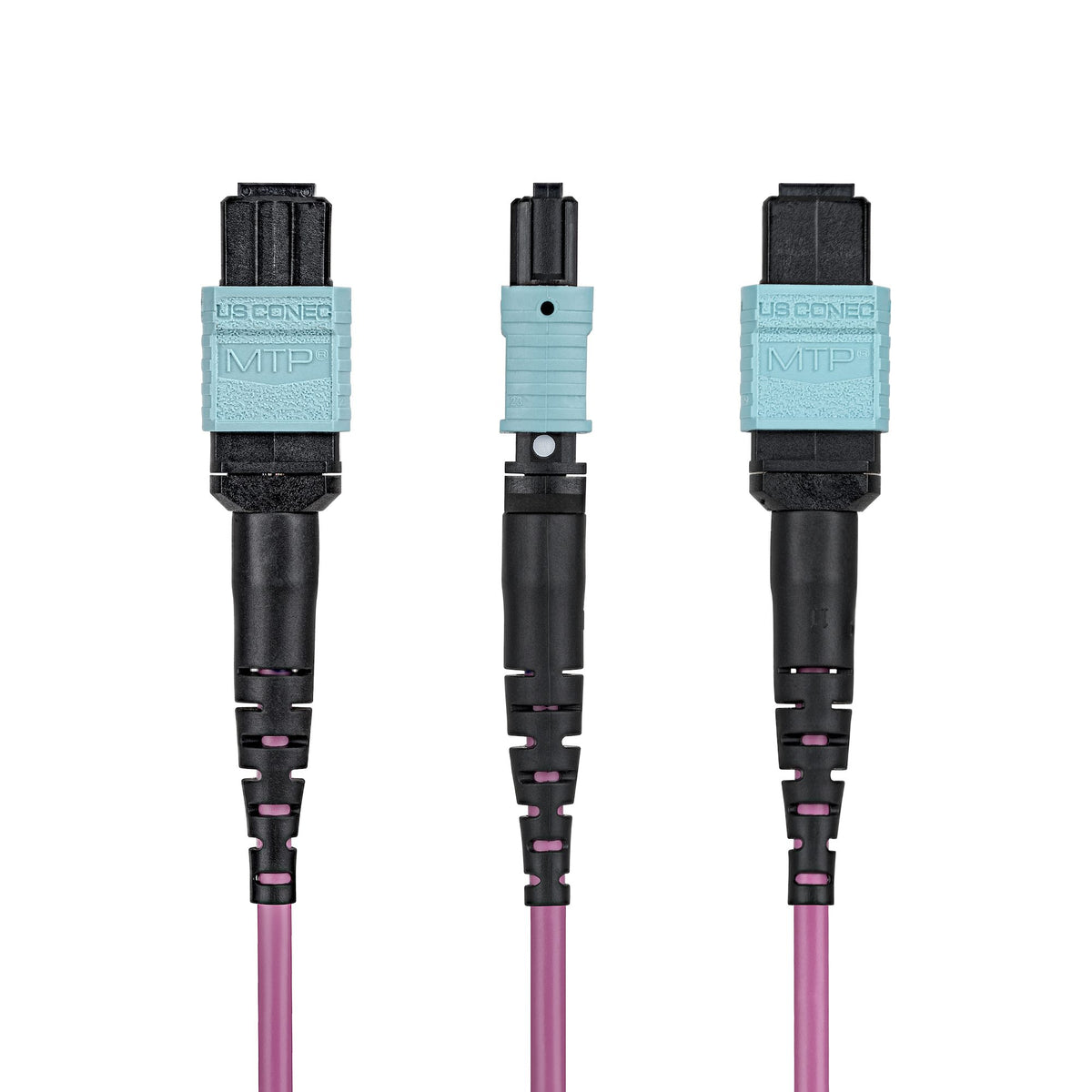

StarTech.com OM4MTP12BOFNP2M InfiniBand/fibre optic cable 2 m MPO/MTP Violet
Brand:StarTech.com
Product name:2m (6ft) MTP®/MPO Fiber Optic Cable, 12F Type-B, OM4 Multimode MTP/PC Female Fiber Patch Cable, 50/125µm, OFNP Plenum, MTP-12 Fiber Jumper Cord
Product code:OM4MTP12BOFNP2M
EAN/UPC:
0065030930390
0065030930390, 065030930390
- <b>Enable High-Density 100G Deployments</b>: Support 100G switch uplinks and server connectivity with 12-fiber OM4 MTP®/MPO cabling, optimized for scalable 40G/100G fiber architectures in high-density AI cluster interconnects and data hall deployments
- <b>Rated for Plenum Installations</b>: Route cabling through overhead and air-handling spaces with an OFNP Plenum-rated jacket designed to meet strict fire and low-smoke requirements; Erika Violet jacket is TIA-standardized for OM4, avoiding OM3/OM4 confusion with Aqua cables
- <b>Ensure Correct Fiber Polarity</b>: Type-B MTP® Elite connector configuration reverses fiber positions to align transmit and receive paths automatically, supporting reliable QSFP28 high-speed interconnects without additional crossover components
- <b>Optimize Structured Fiber Infrastructure</b>: Consolidate multiple duplex fiber runs into a high-density 12-fiber MTP/MPO backbone made with high quality Corning glass to simplify cable management, improve rack scalability, and support evolving 40G and 100G network architectures
- <b>The IT Pro's Choice</b>: Designed for reliability in edge, enterprise, and hyperscale data center deployments, our fiber optic cables are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
Description
Safely route high-density MTP/MPO fiber cabling in plenum spaces
This OM4 MTP®/MPO multimode fiber cable supports high-density 40G and 100G connections between switches and servers, helping reduce cable bulk and simplify routing across data hall racks. The 12-fiber design supports high-speed MTP®/MPO connectivity for multi-fiber network applications, while the Erika Violet jacket follows TIA standards to clearly distinguish OM4 from Aqua OM3 cabling.
Engineered for Reliable Multimode Performance
Constructed with OM4 50/125µm laser-optimized Corning glass, this cable delivers consistent high-bandwidth transmission for data center and backbone links. Type-B polarity MTP® Elite connector maintains proper transmit/receive alignment for multi-lane connections, ensuring reliable performance without additional crossover components. Each cable is individually tested for signal integrity.
Plenum-Rated for In-Building Installation
The OFNP plenum-rated jacket meets strict fire and low-smoke requirements, making it suitable for routing through air-handling spaces in commercial and enterprise environments, including data center and in-wall pathways.
Deploy in Scalable Fiber Networks
Designed for use with structured MTP®/MPO systems, including multi-fiber trunks, cassettes, and patching setups, this cable supports scalability for growing fiber networks and straightforward migration between 10G, 40G, and 100G infrastructure. The 12-fiber format enables high-density connectivity while reducing overall cable count for cleaner, more efficient installations.
This OM4 MTP®/MPO multimode fiber cable supports high-density 40G and 100G connections between switches and servers, helping reduce cable bulk and simplify routing across data hall racks. The 12-fiber design supports high-speed MTP®/MPO connectivity for multi-fiber network applications, while the Erika Violet jacket follows TIA standards to clearly distinguish OM4 from Aqua OM3 cabling.
Engineered for Reliable Multimode Performance
Constructed with OM4 50/125µm laser-optimized Corning glass, this cable delivers consistent high-bandwidth transmission for data center and backbone links. Type-B polarity MTP® Elite connector maintains proper transmit/receive alignment for multi-lane connections, ensuring reliable performance without additional crossover components. Each cable is individually tested for signal integrity.
Plenum-Rated for In-Building Installation
The OFNP plenum-rated jacket meets strict fire and low-smoke requirements, making it suitable for routing through air-handling spaces in commercial and enterprise environments, including data center and in-wall pathways.
Deploy in Scalable Fiber Networks
Designed for use with structured MTP®/MPO systems, including multi-fiber trunks, cassettes, and patching setups, this cable supports scalability for growing fiber networks and straightforward migration between 10G, 40G, and 100G infrastructure. The 12-fiber format enables high-density connectivity while reducing overall cable count for cleaner, more efficient installations.
Specs
Features
Cable length
How long the cable is.
2 m
Fiber optic type
The standardised properties of the fiber optic cable.
OM4
Cable shape
Round
Connector 1
This is the first connector in the device.
MPO/MTP
Connector 2
This is the second connector in the device.
MPO/MTP
Connector 1 gender
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2 gender
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
Male
Connector polish type
PC
Product color
The colour e.g. red, blue, green, black, white.
Violet
Core diameter
The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.
50 µm
Cladding diameter
The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.
125 µm
Fiber mode structure
Multi-mode
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
100 Gbit/s
Jacket material
Optical fiber non-conductive plenum (OFNP)
Polarity
B
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS, CE
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 70 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 70 °C
Weight & dimensions
Cable diameter
The distance from one side of the cable to the other, with a straight line going through the middle of the cable.
3 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
26 g
Packaging data
Package width
The distance from one side of the packaging to the other.
230 mm
Package depth
The distance from the front to the back of the packaging.
180 mm
Package height
The distance from the top to the bottom of the packaging.
15 mm
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Master (outer) case width
420 mm
Master (outer) case length
420 mm
Master (outer) case height
270 mm
Quantity per master (outer) case
110 pc(s)
