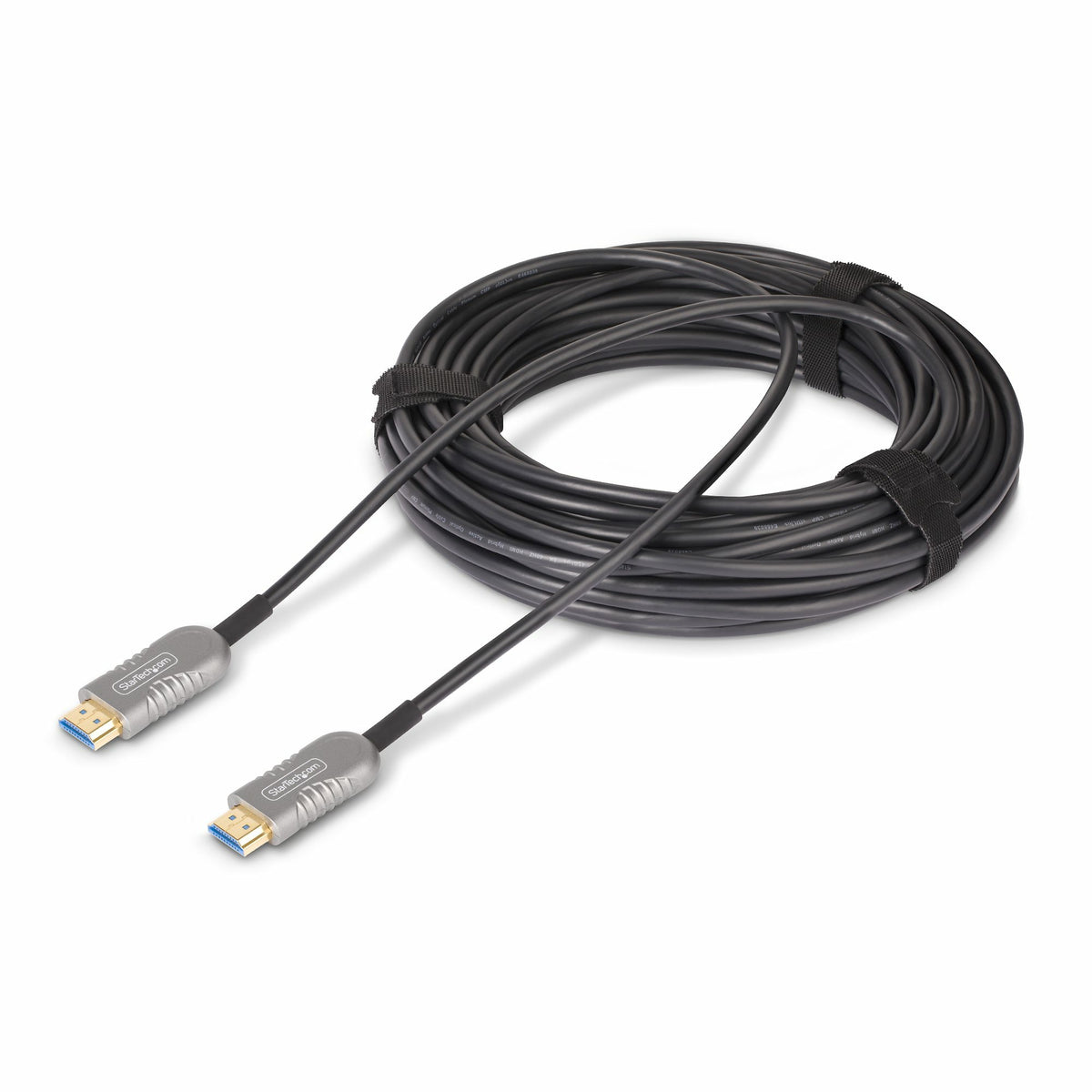

STARTECH HDMI cable 9,1 m HDMI Type A (Standard) Black, Silver (8K-A-30F-HDMI-CABLE)
- Regular price
- 216.95$
- Sale price
- 216.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com 8K-A-30F-HDMI-CABLE HDMI cable 9,1 m HDMI Type A (Standard) Black, Silver
Brand:StarTech.com
Product name:30ft (9.1m) HDMI 2.1 Hybrid Active Optical Cable (AOC), CMP Plenum Rated, 8K Ultra High Speed HDMI 2.1/2.0 Fiber Optic Cable, 48Gbps, 8K 60Hz/4K 120Hz, HDR10+/FRL/TMDS/eARC
Product code:8K-A-30F-HDMI-CABLE
EAN/UPC:
0065030903042
0065030903042, 065030903042
- <b>Designed for Long Range</b>: Enable HDMI runs beyond the limits of passive cables with an active optical HDMI 2.1 cable designed for 8K 60Hz HDR video; Deliver immersive sound quality with 32-channel audio, 7.1 surround, and DTS HD Master Audio pass-through
- <b>Plenum-Rated Hybrid Construction</b>: Install this cable in ceiling and plenum spaces where a CMP-rated, flame-resistant jacket is required; Hybrid fiber optic and copper construction greatly reduces EMI, and gold-plated connectors resist wear from frequent daily use
- <b>Identify Specs Instantly</b>: Etched HDMI 2.1 specs on each Quick ID connector remove guesswork, with clear Source and Display markings for correct unidirectional installation; Aramid fiber-reinforced inner construction is designed to withstand repeated bends

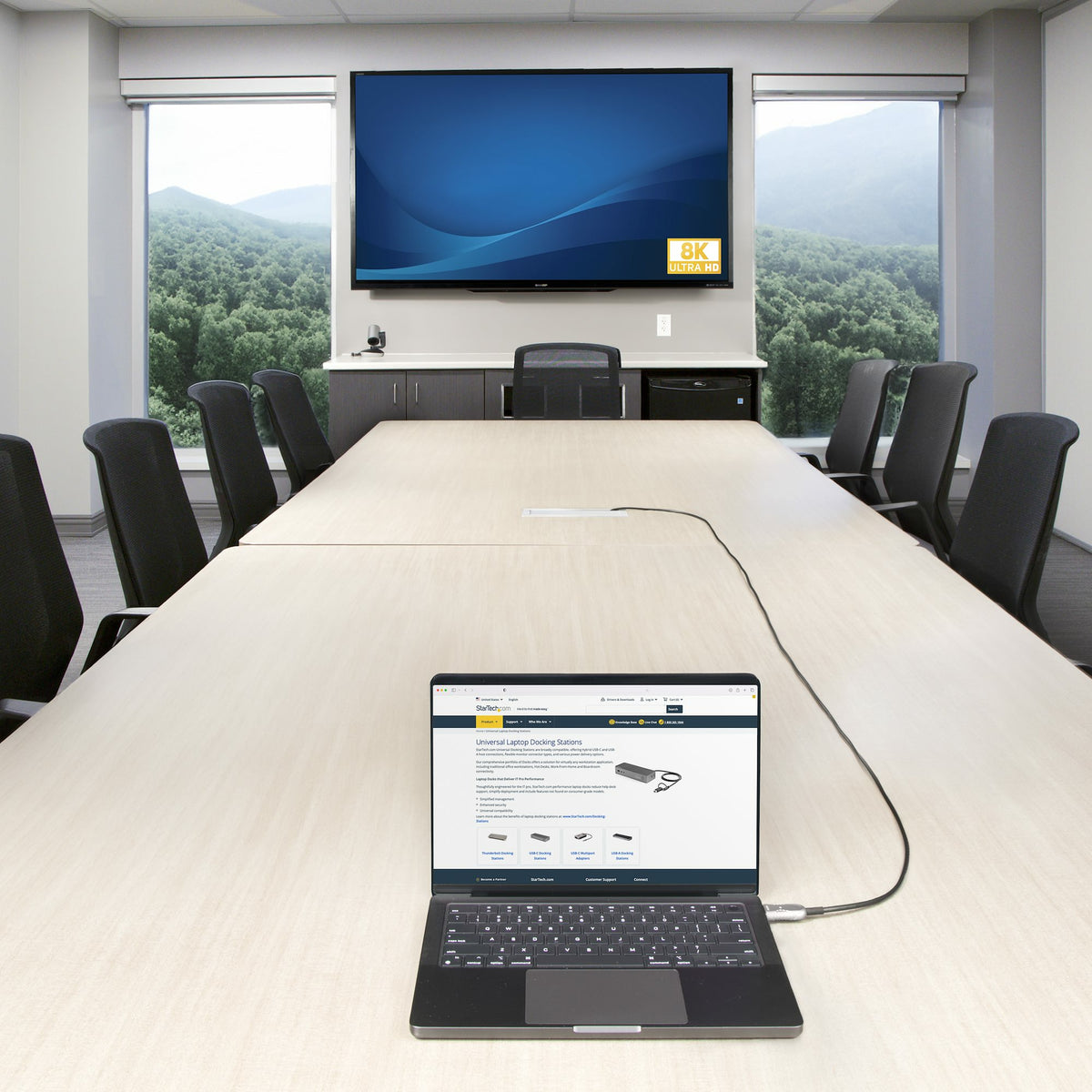

- <b>For Extended Runs</b>: Ensure stable video transmission across long distances in boardrooms and pro AV installations; Supports 8K 60Hz/4K 120Hz with HDR10+ and HDCP 2.3; Works with USB-C to HDMI adapters for laptops, including Apple M-series Pro and Max MacBooks
- <b>The IT Pro's Choice</b>: Our digital display cables are rigorously lab-tested for signal integrity, durability, and compatibility across HDMI, DisplayPort, USB-C, and legacy interfaces; Backed by free lifetime 24/5 multi-lingual technical assistance
Description
Reliably connect high-bandwidth HDMI 2.1 devices through plenum spaces
Route this Ultra High Speed HDMI® 2.1 Hybrid Active Optical Cable (AOC) through office plenum spaces for long distance transmission of 8K 60Hz video and high quality audio.
Hybrid AOC Construction
The HDMI 2.1 AOC incorporates a hybrid construction consisting of fiber optic cores and copper conductors. This enables the offloading of low-bandwidth signals (EDID/HDCP/eARC) to maintain high-bandwidth transmission of 8K 60Hz video over fiber. The fiber optic inner cores and shielded copper conductors greatly reduce EMI for optimal signal quality across longer distances.
Full-Featured HDMI 2.1
The 8K HDMI Fiber Optic Cable supports full HDMI 2.1 specifications:
• High Bit Rate 3 (HBR3) supports up to 48Gbps bandwidth for higher refresh rates
• High Dynamic Range (HDR10+) with 12-bit processing for higher contrast ratio and vibrant, cinematic picture quality
• Enhanced Audio Return Channel (eARC) for uncompressed 7.1 and 32-channel audio
• Display Stream Compression 1.2a (DSC) for maximum resolution output
• Forward Error Correction to manage data transmission errors
• High-Bandwidth Digital Content Protection (HDCP 2.3) for a secure connection between source and display
Flexible Plenum-Rated Cabling
This Plenum-Rated HDMI 2.1 Cable features a CMP-rated cable jacket with low-smoke and flame characteristics. It is ideal for use in plenum spaces in buildings (e.g., ceilings and in-wall installations). The optical fiber core is reinforced with Aramid strands for tensile strength, and is rated to withstand over 6,000 bending cycles at 120 degrees. This protects the cable from damage when routing through tight spaces requiring multiple bends.
The 4.6mm (0.18in) cable outer diameter is flexible and slimmer than typical passive HDMI cables, making it suitable for installation in space-constrained environments.

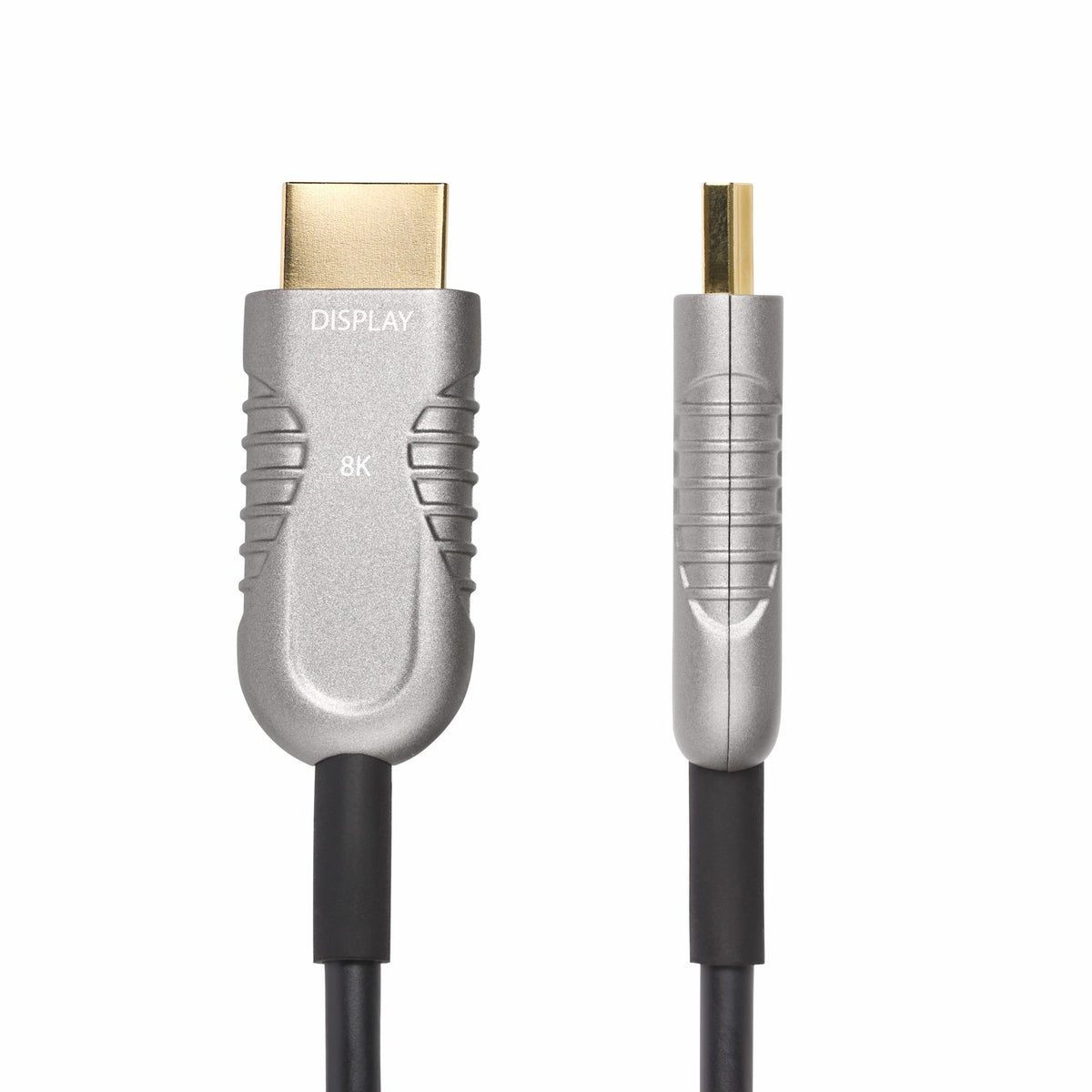

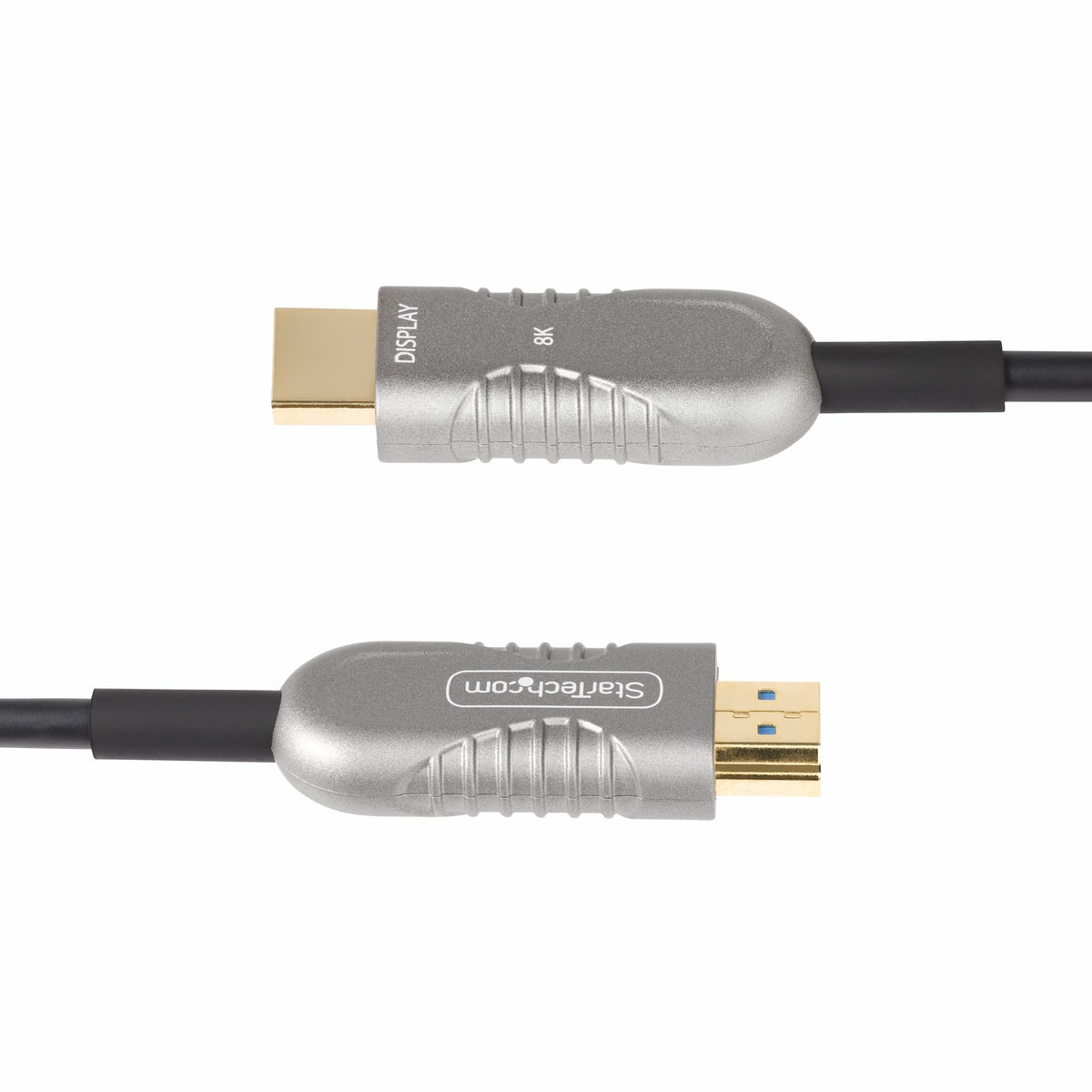

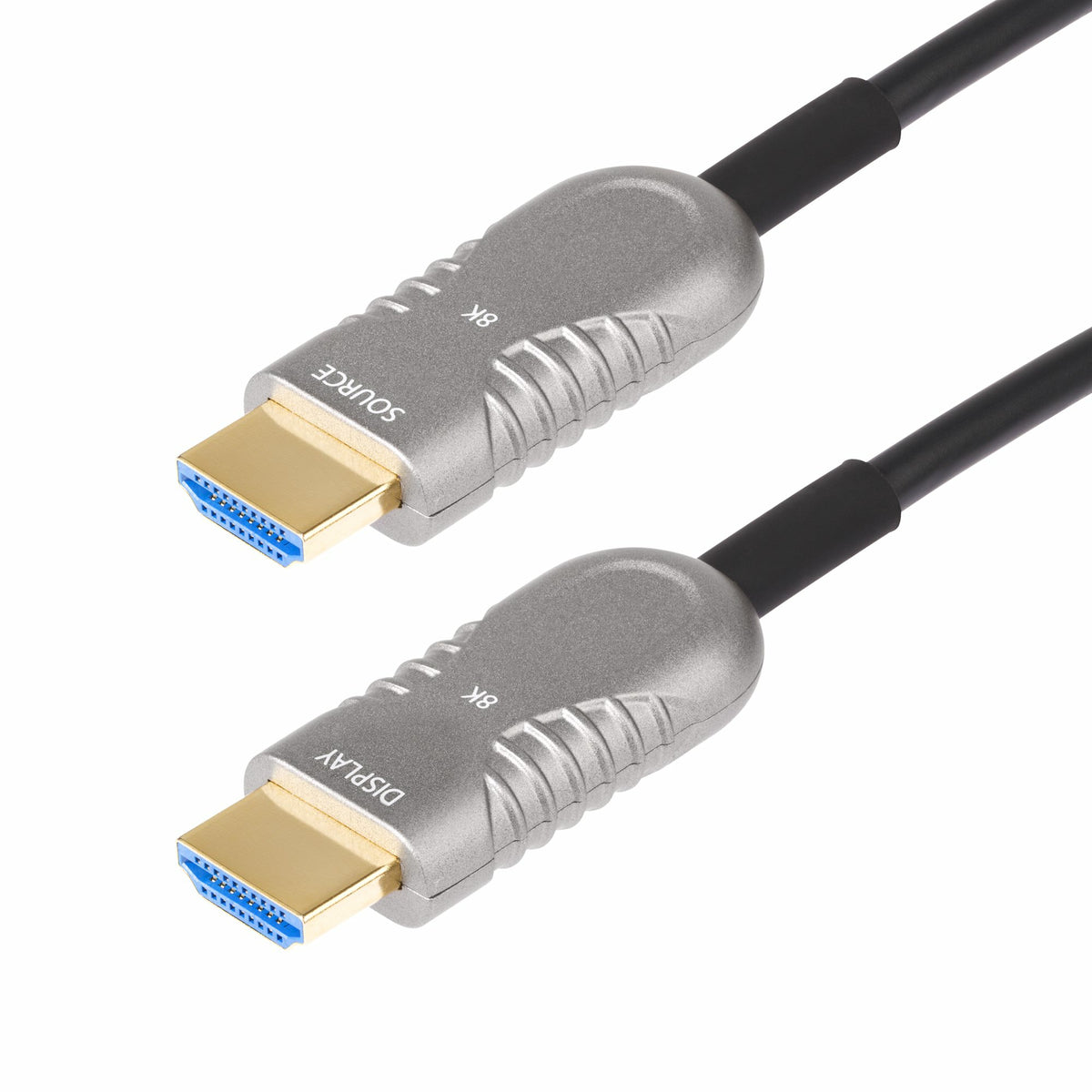

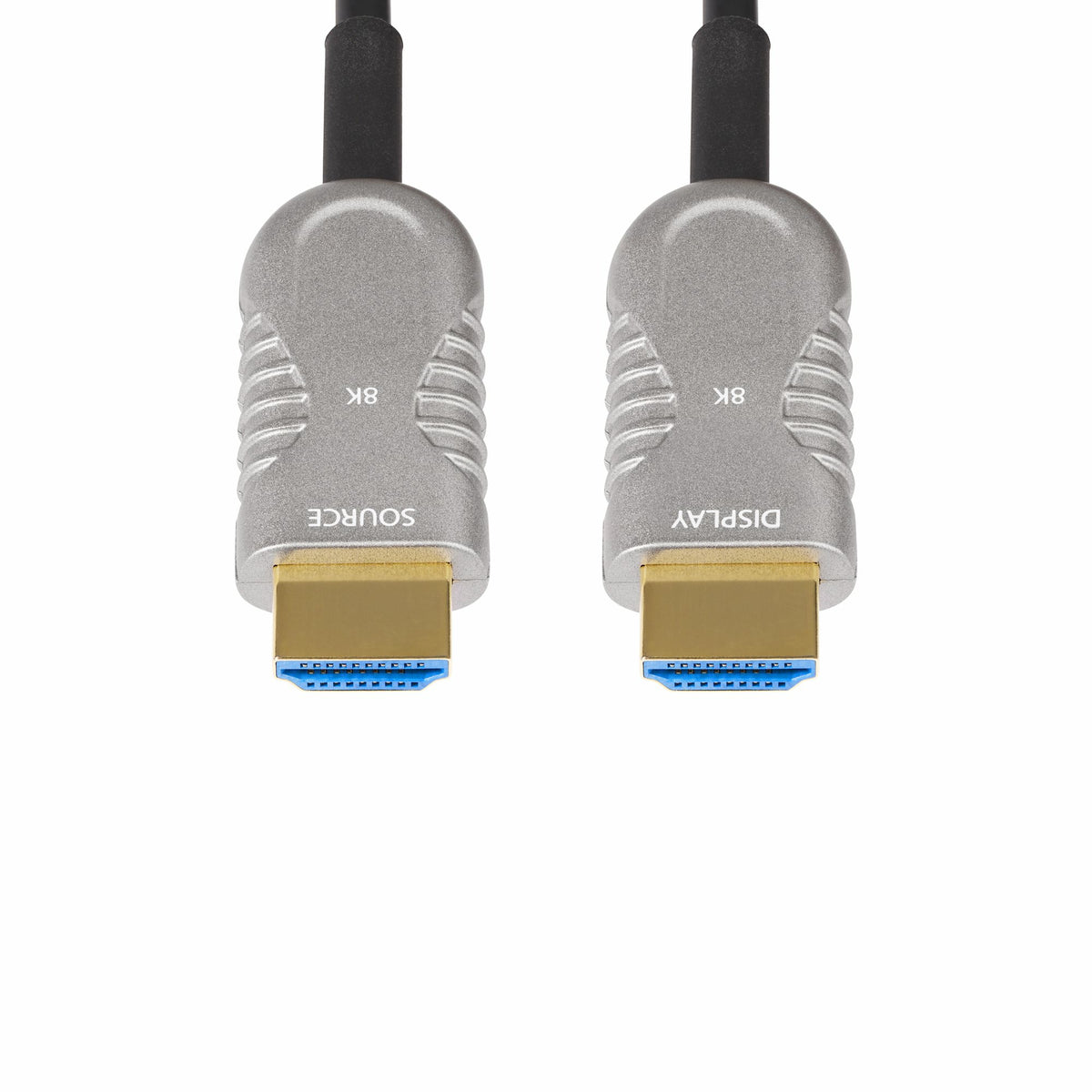

Please Note : This cable is unidirectional and must be installed in a specific direction. Please refer to the SOURCE and DISPLAY labels on the HDMI connectors to ensure that each end corresponds with the correct hardware.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Route this Ultra High Speed HDMI® 2.1 Hybrid Active Optical Cable (AOC) through office plenum spaces for long distance transmission of 8K 60Hz video and high quality audio.
Hybrid AOC Construction
The HDMI 2.1 AOC incorporates a hybrid construction consisting of fiber optic cores and copper conductors. This enables the offloading of low-bandwidth signals (EDID/HDCP/eARC) to maintain high-bandwidth transmission of 8K 60Hz video over fiber. The fiber optic inner cores and shielded copper conductors greatly reduce EMI for optimal signal quality across longer distances.
Full-Featured HDMI 2.1
The 8K HDMI Fiber Optic Cable supports full HDMI 2.1 specifications:
• High Bit Rate 3 (HBR3) supports up to 48Gbps bandwidth for higher refresh rates
• High Dynamic Range (HDR10+) with 12-bit processing for higher contrast ratio and vibrant, cinematic picture quality
• Enhanced Audio Return Channel (eARC) for uncompressed 7.1 and 32-channel audio
• Display Stream Compression 1.2a (DSC) for maximum resolution output
• Forward Error Correction to manage data transmission errors
• High-Bandwidth Digital Content Protection (HDCP 2.3) for a secure connection between source and display
Flexible Plenum-Rated Cabling
This Plenum-Rated HDMI 2.1 Cable features a CMP-rated cable jacket with low-smoke and flame characteristics. It is ideal for use in plenum spaces in buildings (e.g., ceilings and in-wall installations). The optical fiber core is reinforced with Aramid strands for tensile strength, and is rated to withstand over 6,000 bending cycles at 120 degrees. This protects the cable from damage when routing through tight spaces requiring multiple bends.
The 4.6mm (0.18in) cable outer diameter is flexible and slimmer than typical passive HDMI cables, making it suitable for installation in space-constrained environments.
Please Note : This cable is unidirectional and must be installed in a specific direction. Please refer to the SOURCE and DISPLAY labels on the HDMI connectors to ensure that each end corresponds with the correct hardware.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Video
Specs
Features
Cable length
How long the cable is.
9,1 m
Connector 1
This is the first connector in the device.
HDMI Type A (Standard)
Connector 2
This is the second connector in the device.
HDMI Type A (Standard)
Connector 1 gender
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2 gender
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
Male
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Product color
The colour e.g. red, blue, green, black, white.
Black, Silver
HDMI version
2.1
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
4096 x 2160, 7680 x 4320
Audio Return Channel (ARC)
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
HDCP version
2.3
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
48 Gbit/s
High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology
High Dynamic Range 10+ (HDR10 Plus)
Supported digital audio channels (uncompressed)
7.1, 32
Unidirectional
Maximum refresh rate
120 Hz
AWG wire size
28/30
Connector contacts plating
What the connector contacts are covered with (layer on top).
Gold
Cable rating
CMP
Cable type
Type of cable e.g. electicity cable, optical cable.
Round cable
Cable jacket material
Polyvinyl chloride (PVC)
Cable shielding
The protective layer for the cable, typically made of plastic.
Aluminum mylar foil
Color depth
12 bit
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 45 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Cable diameter
The distance from one side of the cable to the other, with a straight line going through the middle of the cable.
4,6 mm
Packaging data
Package width
The distance from one side of the packaging to the other.
227 mm
Package depth
The distance from the front to the back of the packaging.
237 mm
Package height
The distance from the top to the bottom of the packaging.
42 mm
Package weight
Weight of the packaged product in gram.
400 g
Quantity per pack
1 pc(s)
Logistics data
Master (outer) case width
482 mm
Master (outer) case length
432 mm
Master (outer) case height
269 mm
Quantity per master (outer) case
20 pc(s)
