STARTECH fiber optic adapter SC 10 pc(s) Green (SIMPLEXSCAPCF)
- Regular price
- 23.95$
- Sale price
- 23.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

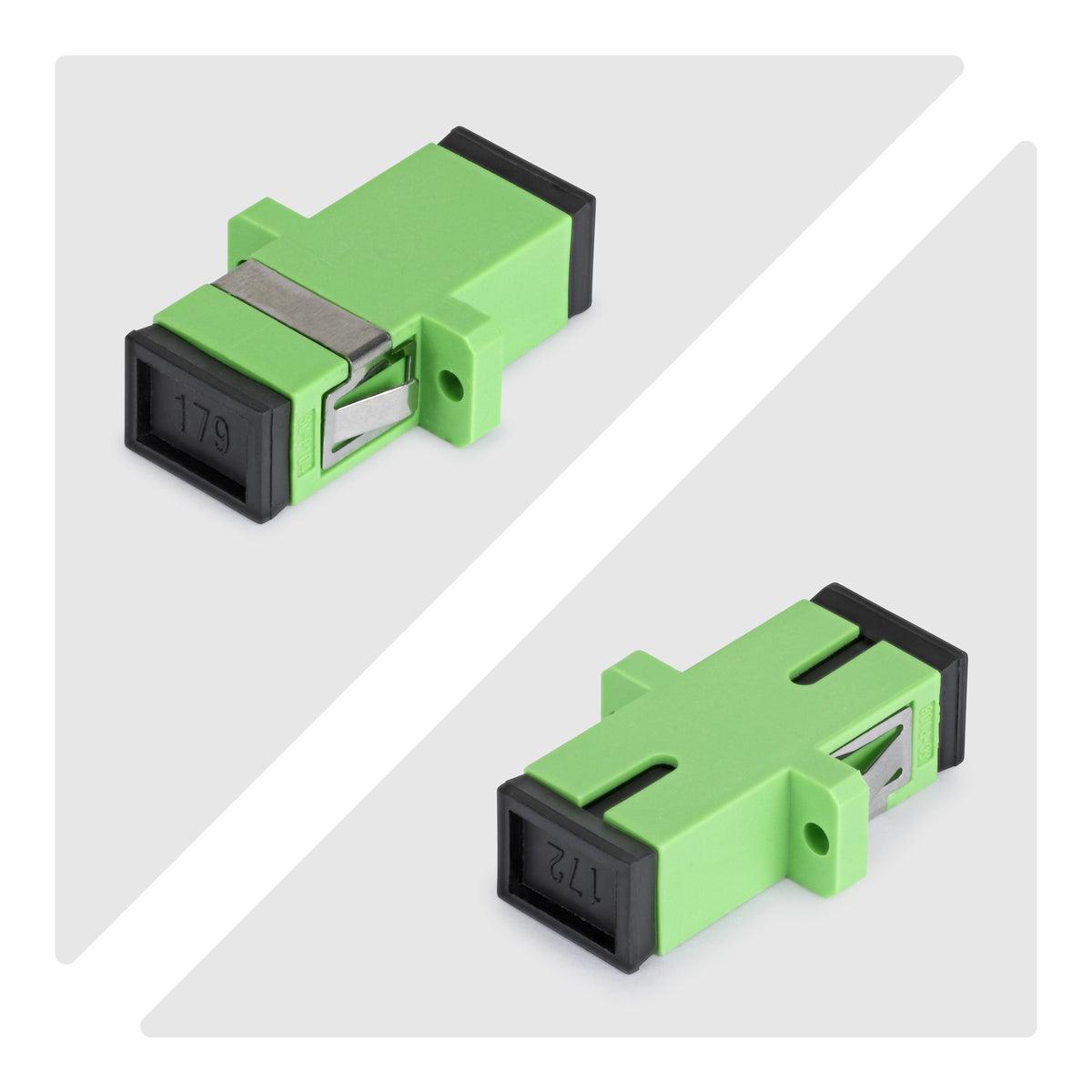

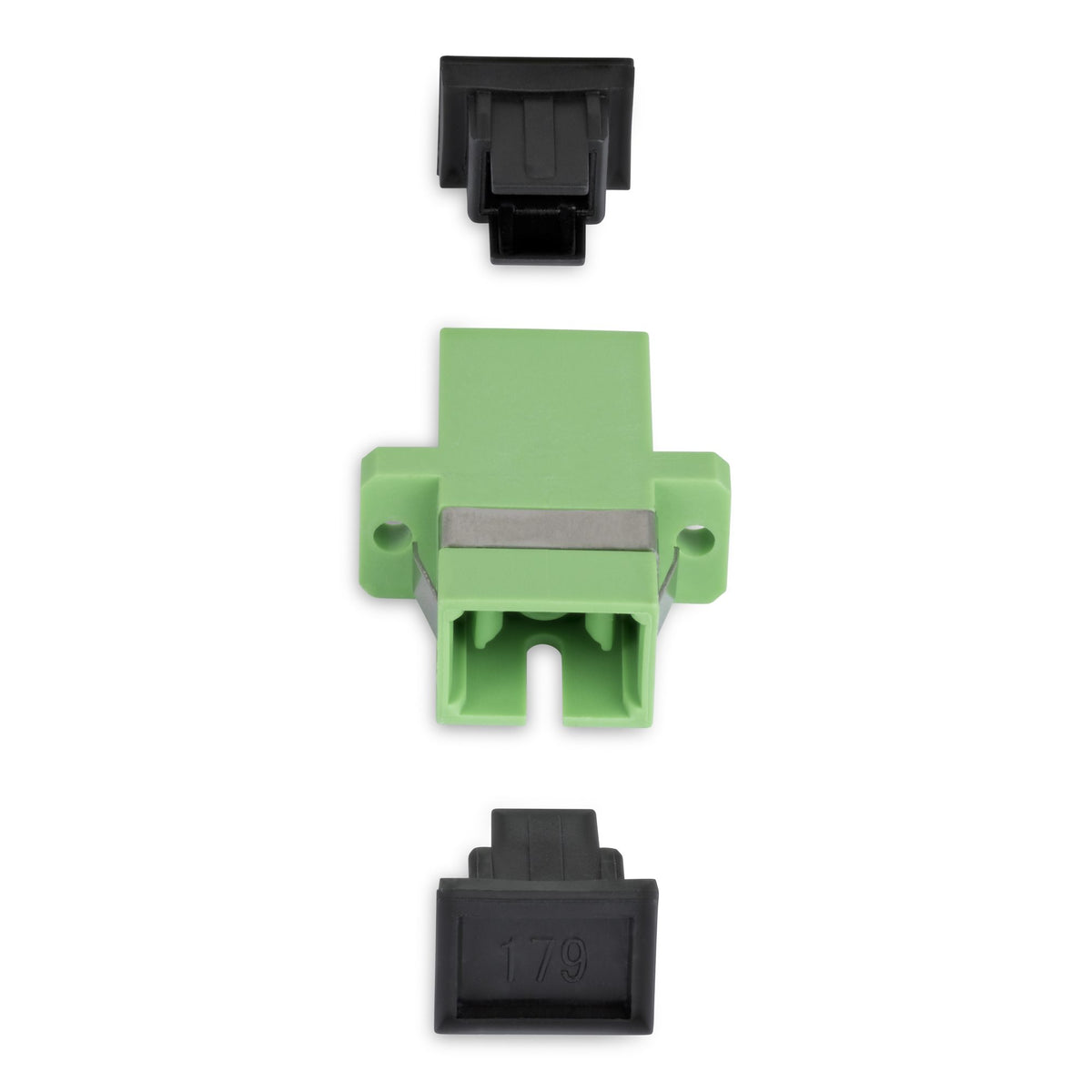

StarTech.com SIMPLEXSCAPCF fiber optic adapter SC 10 pc(s) Green
Brand:StarTech.com
Product name:SC to SC Coupler 10 Pack, OS2 Single Mode SC Fiber Optic Coupler with Flange, SC/APC Simplex Adapter
Product code:SIMPLEXSCAPCF
EAN/UPC:
0065030937504
0065030937504, 065030937504
- <b>Extend Multiple SC Connections</b>: Deploy faster and more organized with a 10-pack of flanged SC/APC simplex fiber couplers, ideal for fiber distribution panels and enclosures in large-scale installations
- <b>Reliable, High-Speed Performance</b>: Engineered for 1/10/40/100Gbps transmission with low 0.2dB insertion loss and precision mating, this coupler maintains peak signal integrity and exceeds TIA-568 B.3 standards; Optimized for Single Mode laser sources
- <b>Flanged Design for Secure Mounting</b>: Secure the SC coupler into fixed panel mounts with the screw-in flanged body to eliminate port movement and ensure a stable physical connection point in high-density or permanent installations
- <b>Single Mode Compatibility</b>: Pair with SC simplex fiber cables with APC polished ends for optimal signal clarity and minimal return loss; Supports OS2/OS1 single mode connections over 9/125μm cores at standard 1260-1625nm wavelengths
- <b>The IT Pro's Choice</b>: Operations managers and network technicians rely on our network accessories for high-speed performance and end-to-end signal integrity; Engineered for reliable connections that minimize downtime, and backed by free lifetime 24/5 multi-lingual technical assistance
Description

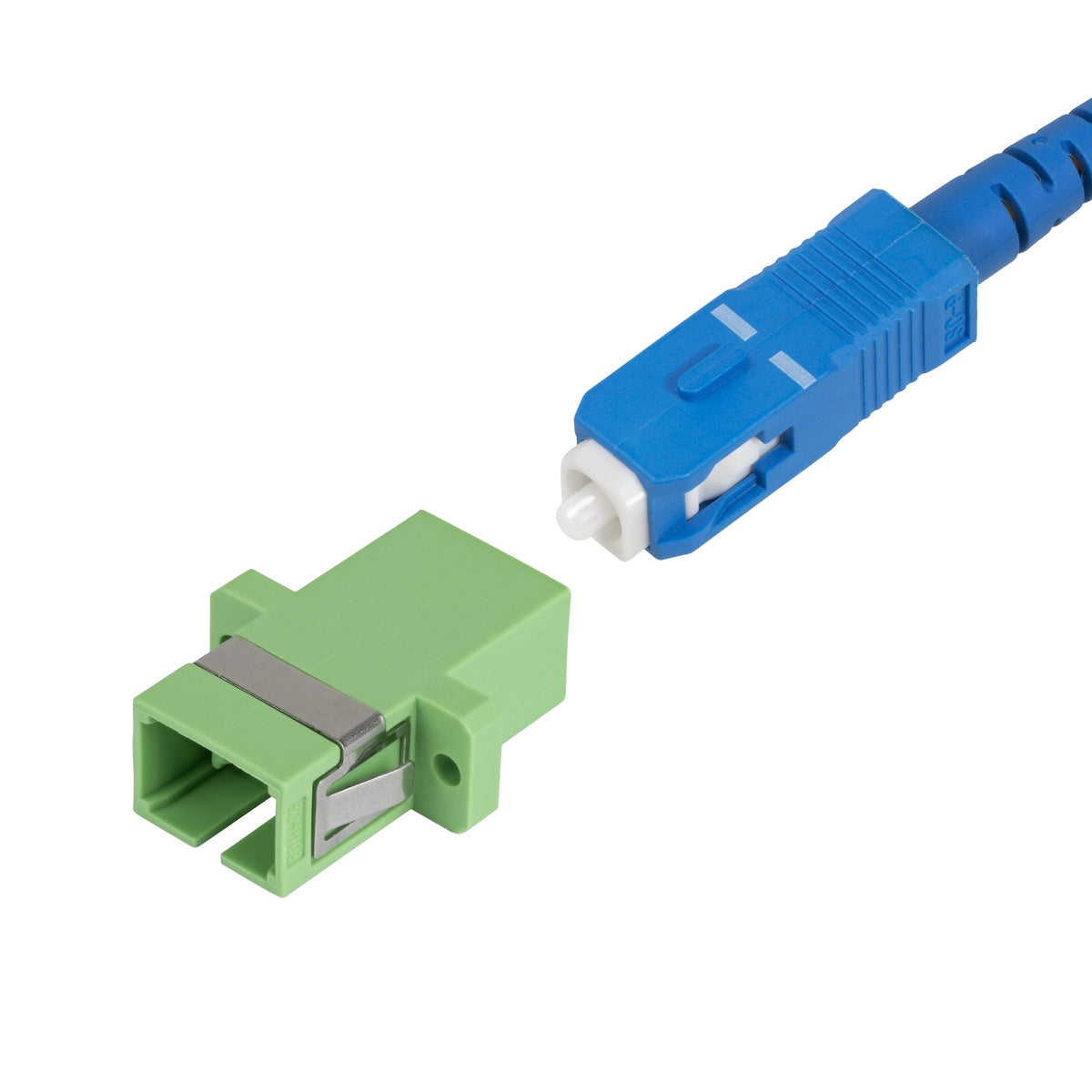

Connect two Single Mode SC/APC fiber cables or add an SC interface in a fiber breakout cassette

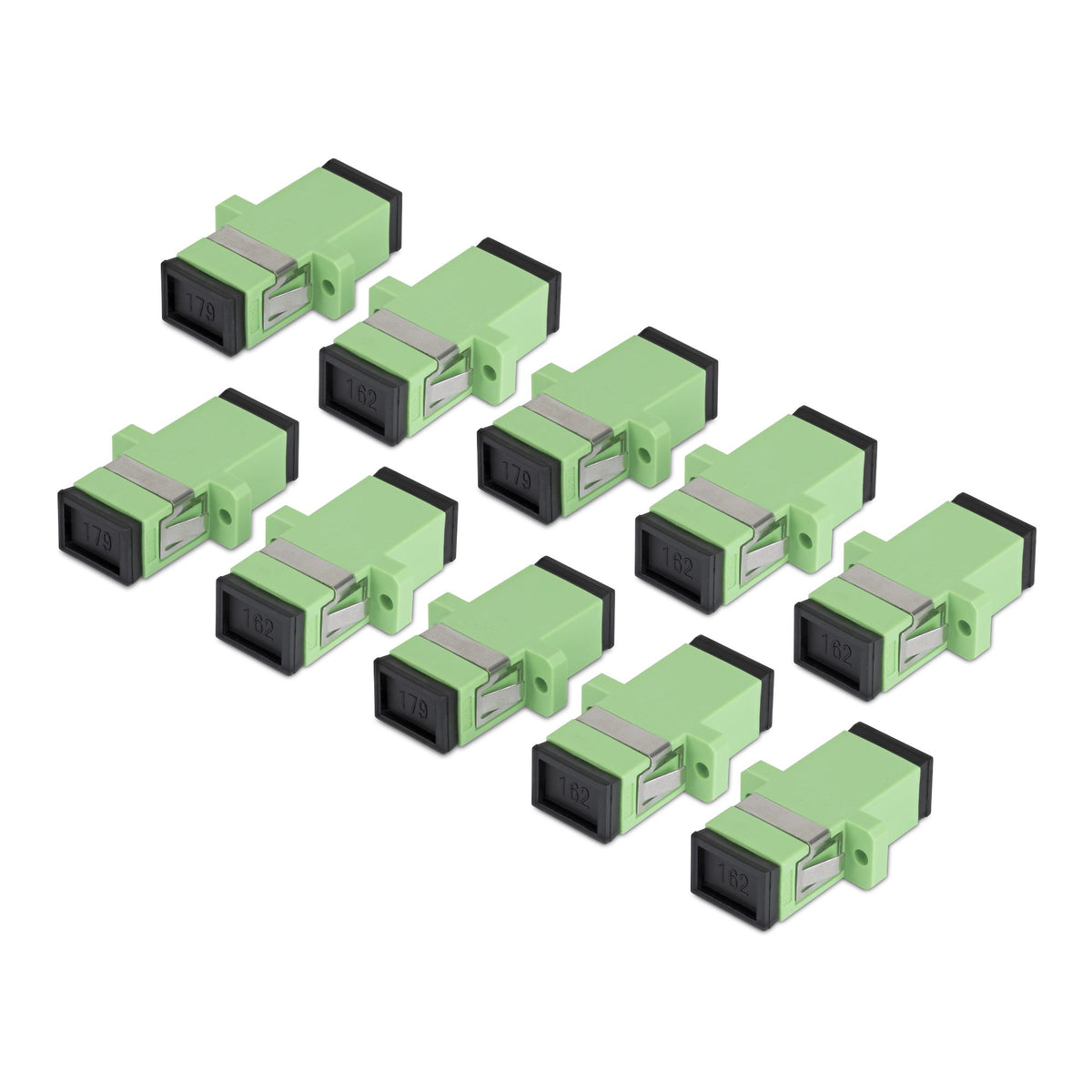

This 10-Pack of Single Mode SC fiber couplers is a practical solution for supporting multiple installations. Join two SC simplex connections in a fiber distribution panel or enclosure.

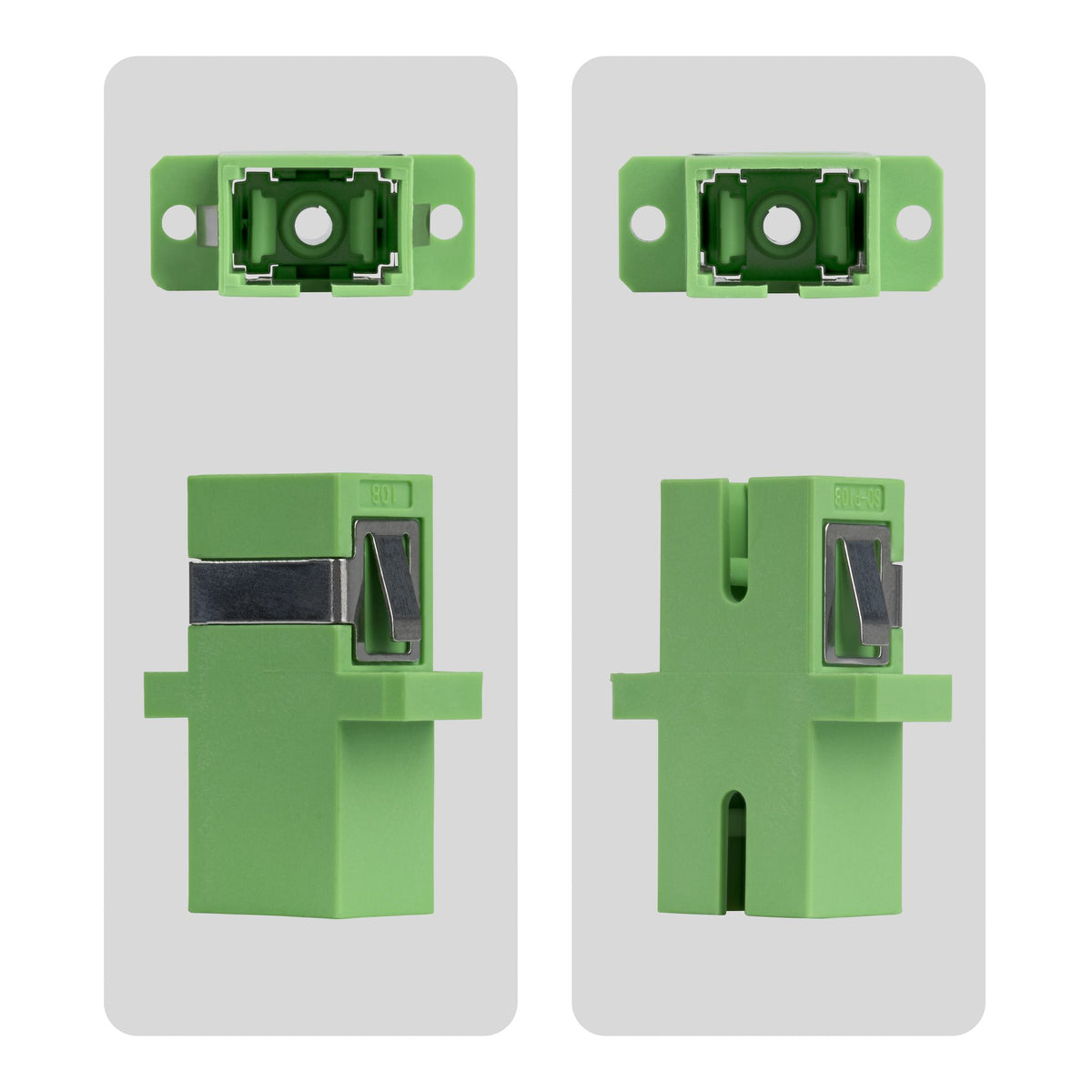

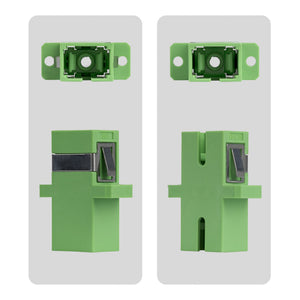

Flanged Design for Secure Mounting
The SC Fiber Coupler features a flanged body for secure placement in fixed installations, ensuring a stable connection point within fiber enclosures and mounting panels. It supports Single Mode SC simplex fiber cables and is compatible with OS1/OS2 (9/125µm) fiber core/cladding. This 10 Pack is ideal for fast deployment in enterprise networks and fiber infrastructure.
Built for Reliable Performance
The Single Mode SC/SC Fiber Coupler features a durable ABS housing and ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.
This 10-Pack of Single Mode SC fiber couplers is a practical solution for supporting multiple installations. Join two SC simplex connections in a fiber distribution panel or enclosure.
Flanged Design for Secure Mounting
The SC Fiber Coupler features a flanged body for secure placement in fixed installations, ensuring a stable connection point within fiber enclosures and mounting panels. It supports Single Mode SC simplex fiber cables and is compatible with OS1/OS2 (9/125µm) fiber core/cladding. This 10 Pack is ideal for fast deployment in enterprise networks and fiber infrastructure.
Built for Reliable Performance
The Single Mode SC/SC Fiber Coupler features a durable ABS housing and ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.
Specs
Features
Number of connectors
The quantity of ports (sockets) where external devices can be connected to this product.
2
Connector type
The type of connector e.g. USB.
SC
Duplex
Product color
The colour e.g. red, blue, green, black, white.
Green
Fiber mode structure
Single-mode
Category
OS2
Logistics data
Master (outer) case width
420 mm
Master (outer) case length
420 mm
Master (outer) case height
270 mm
Quantity per master (outer) case
150 pc(s)
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE
Weight & dimensions
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
4 g
Packaging data
Quantity per pack
10 pc(s)
Package width
The distance from one side of the packaging to the other.
160 mm
Package depth
The distance from the front to the back of the packaging.
140 mm
Package height
The distance from the top to the bottom of the packaging.
10 mm
Package weight
Weight of the packaged product in gram.
6 g
