STARTECH fiber optic adapter LC/APC 10 pc(s) Green (DUPLEXLCAPCNOF)
- Regular price
- 46.95$
- Sale price
- 46.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
StarTech.com DUPLEXLCAPCNOF fiber optic adapter LC/APC 10 pc(s) Green
Brand:StarTech.com
Product name:LC to LC Coupler 10 Pack, OS2 Single Mode SC Footprint LC Fiber Optic Coupler without Flange, LC/APC Duplex Adapter
Product code:DUPLEXLCAPCNOF
EAN/UPC:
0065030928199
0065030928199, 065030928199
- <b>Extend Multiple LC Connections</b>: Deploy faster and more organized with a 10-pack of LC/APC duplex couplers in a flangeless SC-format housing, ideal for fiber splice cassettes and distribution panels in large-scale installations
- <b>Reliable, High-Speed Performance</b>: Engineered for 1/10/40/100Gbps transmission with low 0.2dB insertion loss and precision mating, this coupler maintains peak signal integrity and exceeds TIA-568 B.3 standards; Optimized for Single Mode laser sources
- <b>Quick Installation</b>: Flangeless snap-in design enables fast, tool-free placement in fiber cassettes or assemblies with SC duplex slots; Connects internal LC terminations to external LC patch cords for serviceable, low-loss links across fiber network infrastructure
- <b>Single-Mode Compatibility</b>: Pair with LC fiber cables with APC polished ends for optimal signal clarity and minimal return loss; Supports OS2/OS1 single-mode connections over 9/125μm cores at standard 1260-1625nm wavelengths
- <b>The IT Pro's Choice</b>: Operations managers and network technicians rely on our network accessories for high-speed performance and end-to-end signal integrity; Engineered for reliable connections that minimize downtime, and backed by free lifetime 24/5 multi-lingual technical assistance
Description

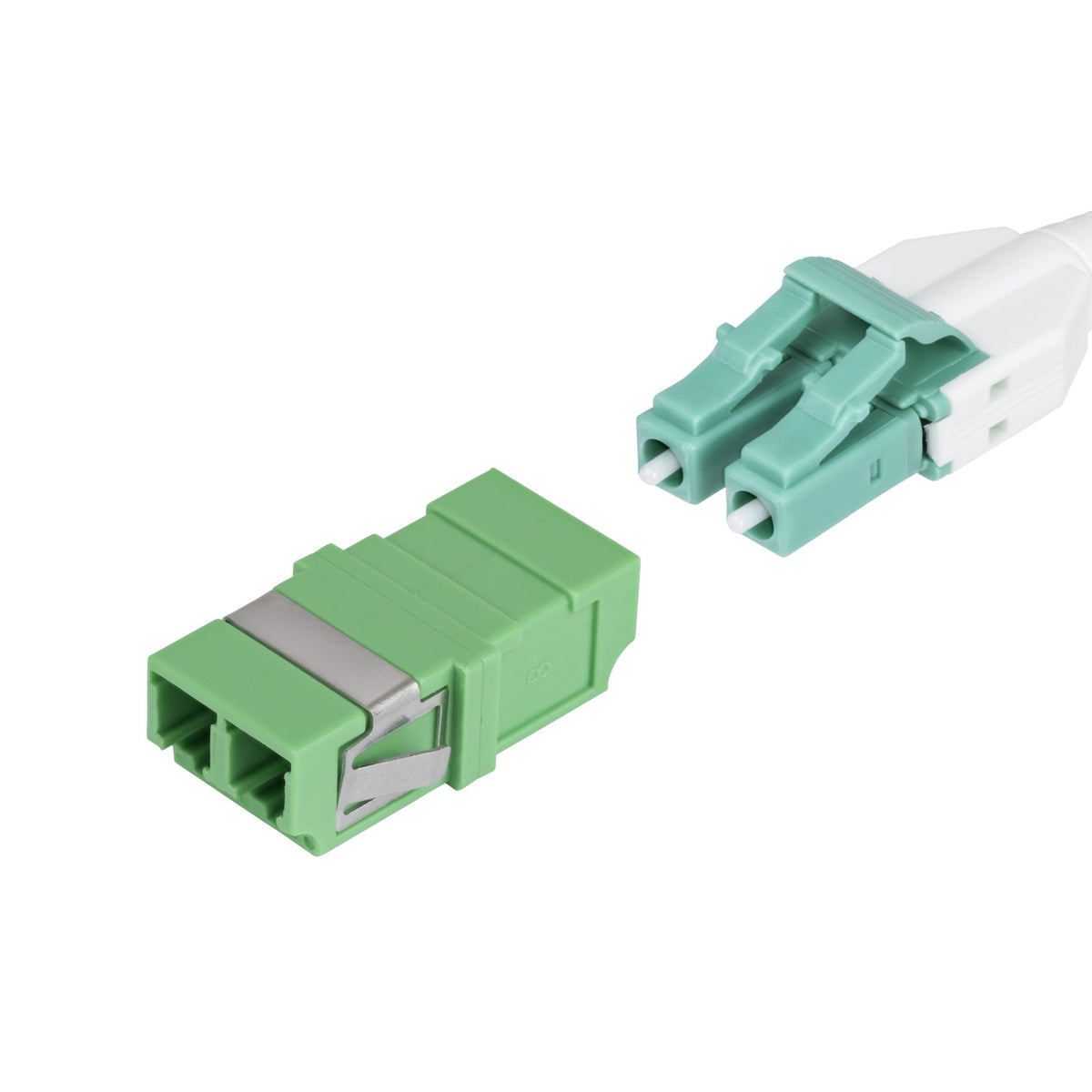

Connect two Single Mode LC/APC fiber cables or add an LC interface in a fiber breakout cassette

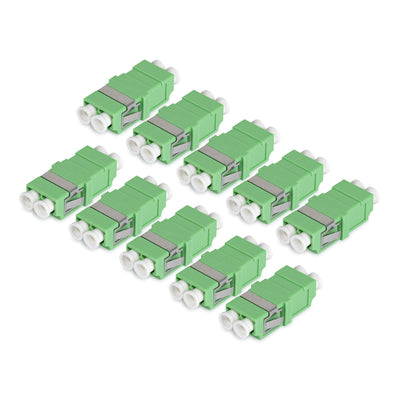

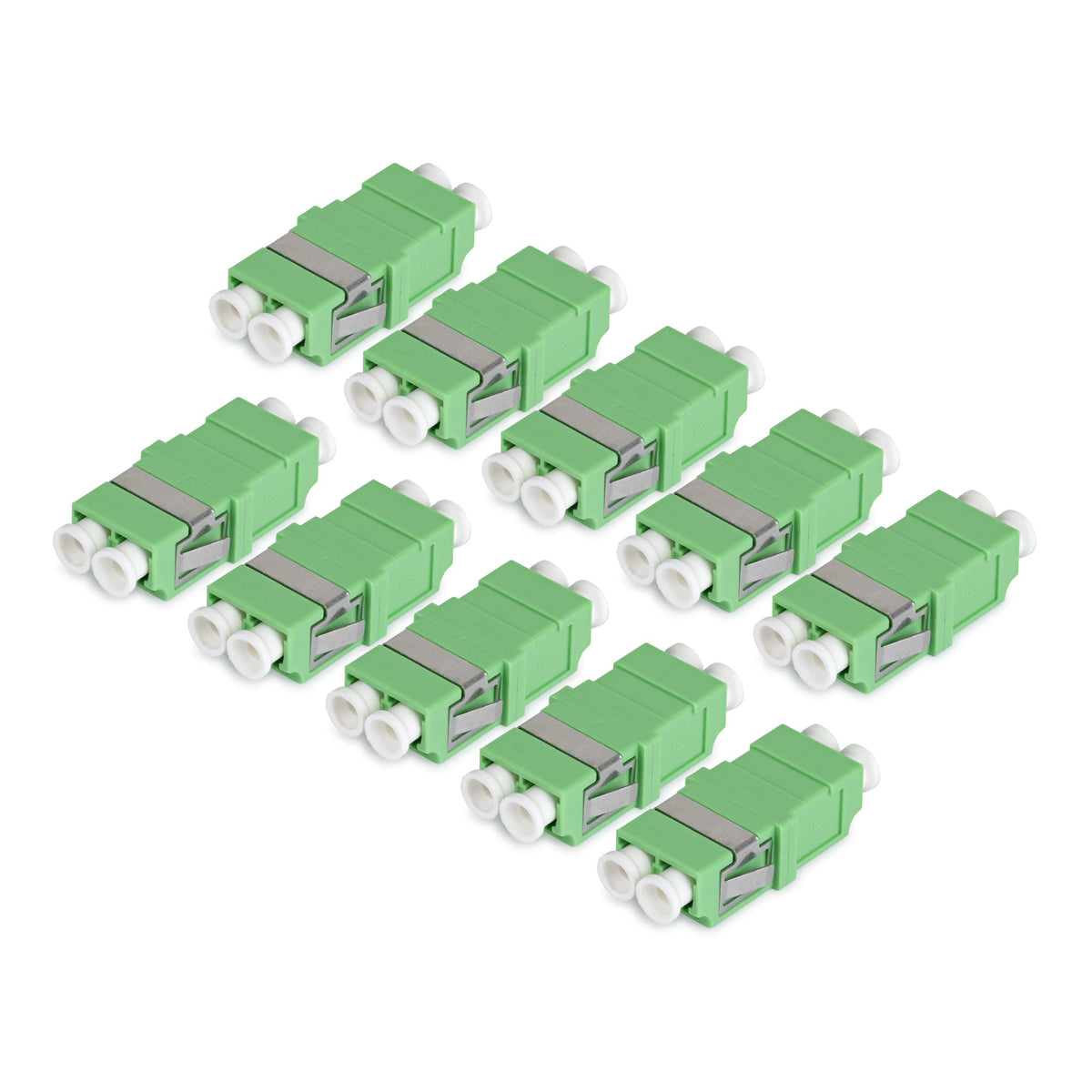

This 10-Pack of flangeless Single Mode LC couplers is a practical solution for supporting multiple installations. Join two LC Duplex connections in a fiber splice cassette or distribution panel.
Toolless Installation for Quick Setup
The LC Fiber Coupler supports Single Mode LC fiber cables. It is compatible with OS1/OS2 (9/125µm) fiber core/cladding. The coupler features toolless setup to simplify installation into fiber panels and modular assemblies. This 10 Pack is ideal for fast deployment in enterprise networks and fiber infrastructure.
Built for Reliable Performance
The Single Mode LC/LC Fiber Coupler features a durable PBT housing and zirconia ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.
This 10-Pack of flangeless Single Mode LC couplers is a practical solution for supporting multiple installations. Join two LC Duplex connections in a fiber splice cassette or distribution panel.
Toolless Installation for Quick Setup
The LC Fiber Coupler supports Single Mode LC fiber cables. It is compatible with OS1/OS2 (9/125µm) fiber core/cladding. The coupler features toolless setup to simplify installation into fiber panels and modular assemblies. This 10 Pack is ideal for fast deployment in enterprise networks and fiber infrastructure.
Built for Reliable Performance
The Single Mode LC/LC Fiber Coupler features a durable PBT housing and zirconia ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.
Specs
Features
Number of connectors
The quantity of ports (sockets) where external devices can be connected to this product.
2
Connector type
The type of connector e.g. USB.
LC/APC
Duplex
Product color
The colour e.g. red, blue, green, black, white.
Green
Fiber mode structure
Single-mode
Category
OS2
Logistics data
Master (outer) case width
420 mm
Master (outer) case length
420 mm
Master (outer) case height
270 mm
Quantity per master (outer) case
150 pc(s)
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE
Weight & dimensions
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
4 g
Packaging data
Quantity per pack
10 pc(s)
Package width
The distance from one side of the packaging to the other.
160 mm
Package depth
The distance from the front to the back of the packaging.
140 mm
Package height
The distance from the top to the bottom of the packaging.
10 mm
Package weight
Weight of the packaged product in gram.
6 g
