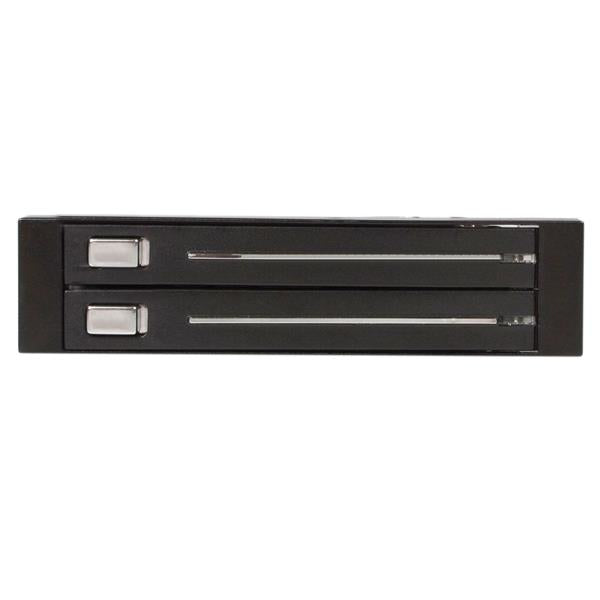

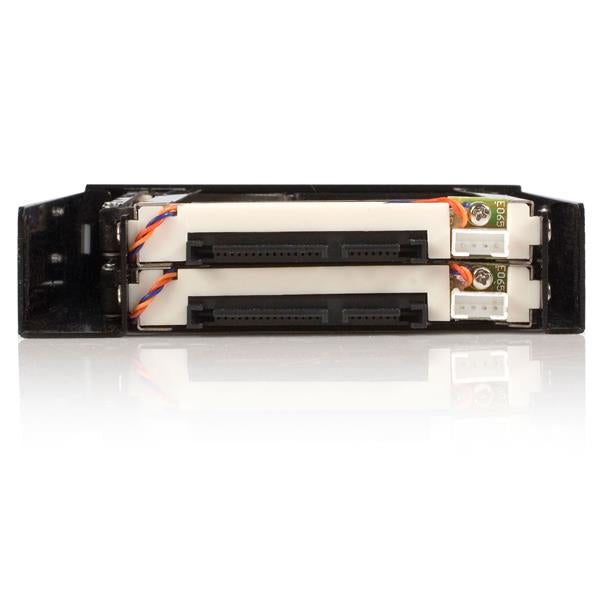

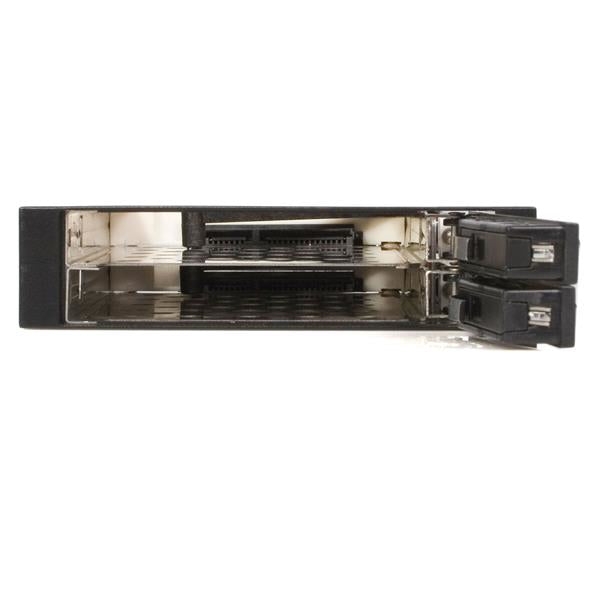

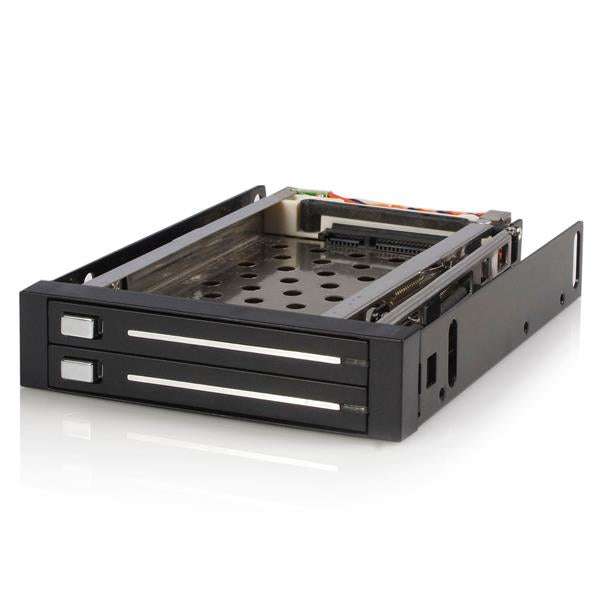

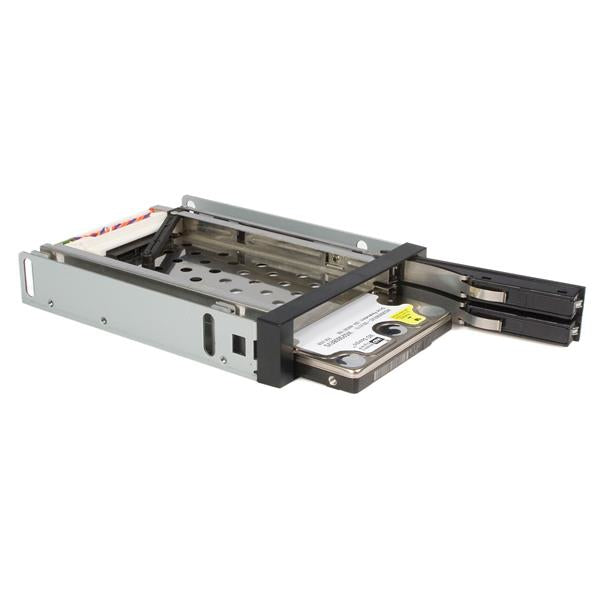

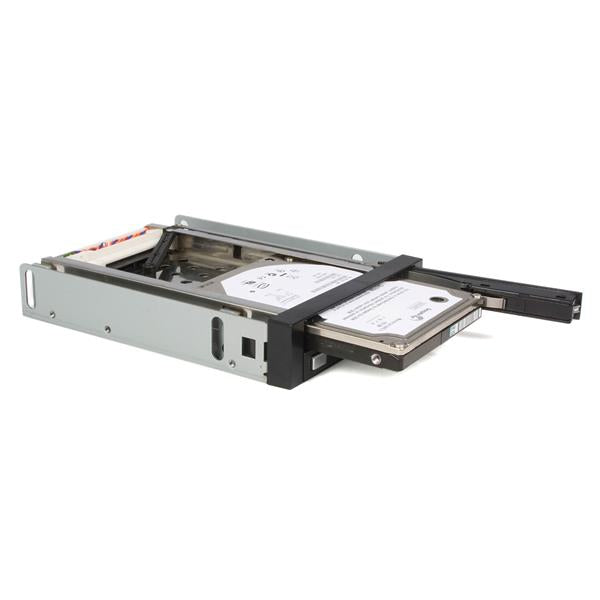

STARTECH drive bay panel 8,89 cm (3.5") Bezel panel Black (HSB220SAT25B)
- Regular price
- 85.95$
- Sale price
- 85.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
StarTech.com HSB220SAT25B drive bay panel 8,89 cm (3.5") Bezel panel Black
Brand:StarTech.com
Product name:2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane
Product code:HSB220SAT25B
EAN/UPC:
0065030827980
0065030827980, 065030827980, 0102646330012, 102646330012
- INCREASED PRODUCTIVITY: The mobile rack backplane for 2.5in SATA III turns a single 3.5in bay into a hot-swappable interface for up to two 2.5" SATA hard drives (HDDs) and solid-state drives (SSDs)
- MAXIMUM COMPATIBILITY: The hot swap backplane for 2.5in SATA III can interface with SATA I/II/III SSDs and HDDs and does not require additional drivers or software - an ideal solution for technicians and IT professionals
- EASY TO USE: This trayless hot swap mobile rack backplane features dedicated front eject buttons and individual power and activity LEDs for each drive slot - Includes screw kit, LP4 to SATA, and SATA cables: 7-pin (data) and 15-pin (power)
- MAINTAIN OPTIMAL TEMPERATURE: To help prevent drive failure, the aluminum mobile rack backplane features an open-top design and vented slot divider for maximum passive heat dissipation
- DURABILITY: Aluminum construction with 50,000+ insertion rating for maximum durability and performance - Includes two plastic protective film sheets for the bottom side of the hard drives
Description
Easy, trayless removal and insertion of dual 2.5in SATA hard drives from single 3.5in bay
This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay.
Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.
With support for SATA HDD speeds up to 6.0 Gbps, this backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.
This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay.
Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.
With support for SATA HDD speeds up to 6.0 Gbps, this backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.
Specs
Features
Size (imperial)
Physical dimension.
8,89 cm (3.5")
Type
Characteristics of the device.
Bezel panel
Product color
The colour e.g. red, blue, green, black, white.
Black
Number of HDDs supported
The total number of hard drives that can be used in/with this product.
2
HDD size
The amount of data that the hard drive can store.
2.5"
HDD interface
The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI.
Serial ATA, Serial ATA II, Serial ATA III
Material
The material from which a thing is or can be made e.g. wood, plastic.
Aluminium
Supported storage drive heights
9.5 mm
LED indicators
Activity, Power
Certification
CE, FCC, REACH
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Logistics data
Quantity per master (outer) case
32 pc(s)
Master (outer) case width
366 mm
Master (outer) case length
432 mm
Master (outer) case height
280 mm
Harmonized System (HS) code
84733080
Weight & dimensions
Width
The measurement or extent of something from side to side.
102 mm
Depth
The distance from the front to the back of something.
134 mm
Height
The measurement of the product from head to foot or from base to top.
24 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
286 g
Packaging data
Package width
The distance from one side of the packaging to the other.
128 mm
Package depth
The distance from the front to the back of the packaging.
170 mm
Package height
The distance from the top to the bottom of the packaging.
52 mm
Package weight
Weight of the packaged product in gram.
481 g

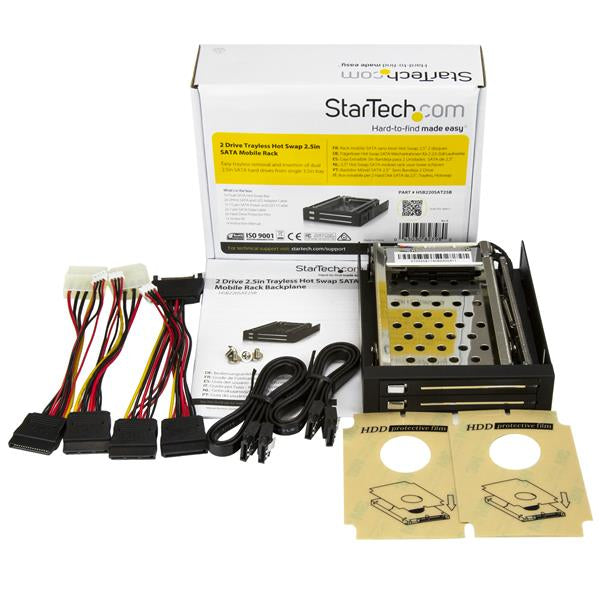

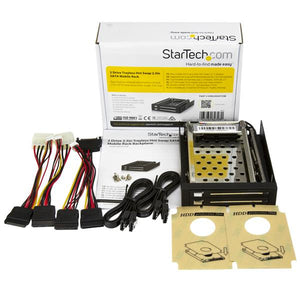

Packaging content
Cables included
SATA
Screws included
Manual
