STARTECH drive bay panel 13,3 cm (5.25") Carrier panel Black (HSB1SATSASBA)
- Regular price
- 65.95$
- Sale price
- 65.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

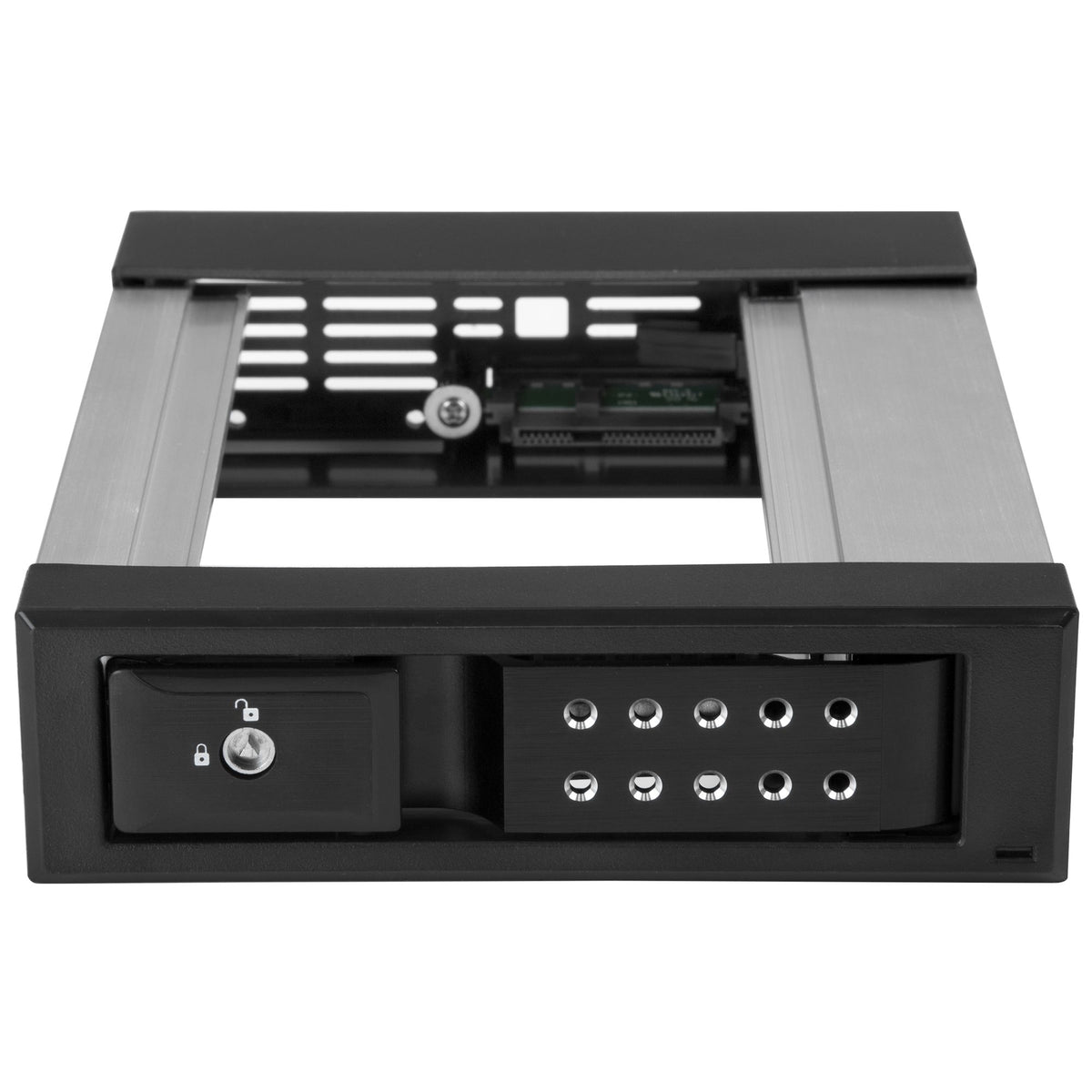

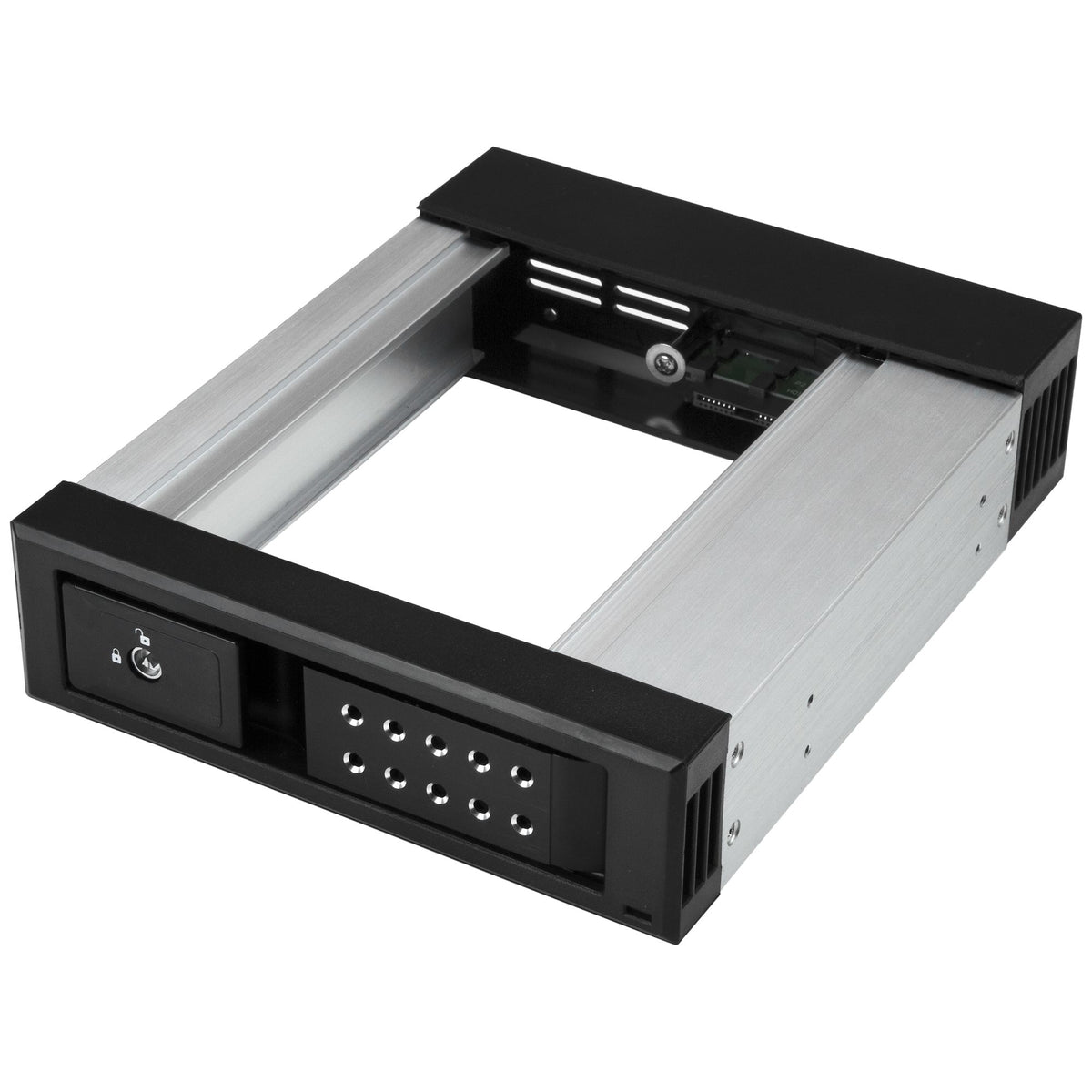

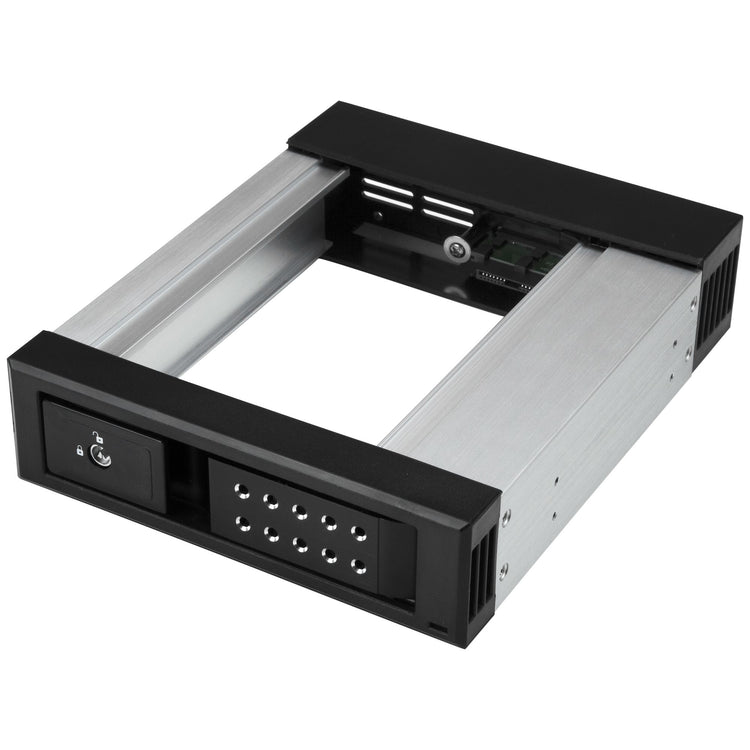

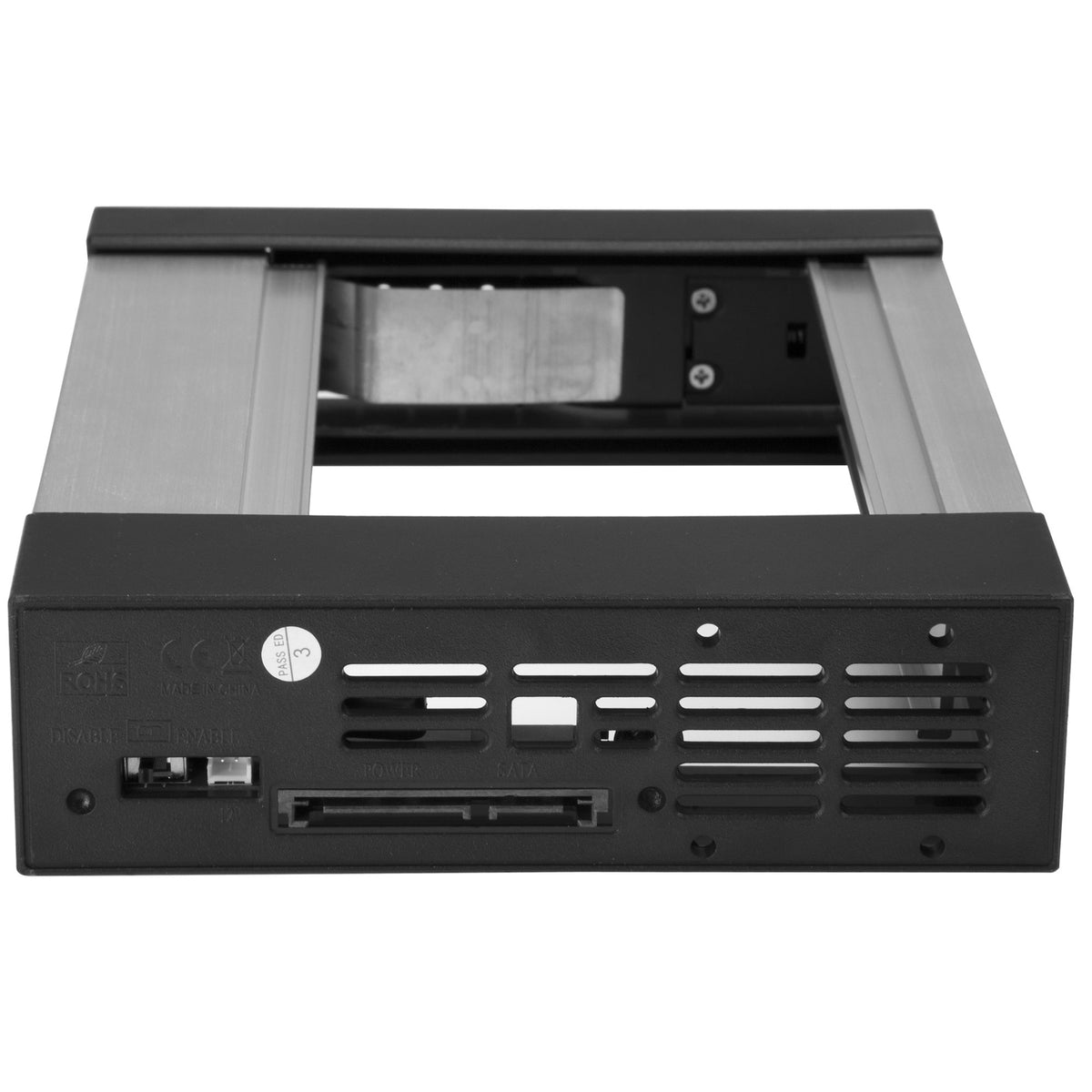

StarTech.com HSB1SATSASBA drive bay panel 13,3 cm (5.25") Carrier panel Black
Brand:StarTech.com
Product name:5.25 to 3.5 Hard Drive Hot Swap Bay - For 3.5" SATA/SAS Drives - Trayless - Aluminum
Product code:HSB1SATSASBA
EAN/UPC:
0065030872317
0065030872317, 065030872317
- VERSATILE FUNCTIONALITY: This hard drive bay for 3.5in SATA/SAS drives is ideal for IT professionals looking to for quickly swap, replace, or transport hard drives (HDDs) and solid-state drives (SSDs) between various systems and locations

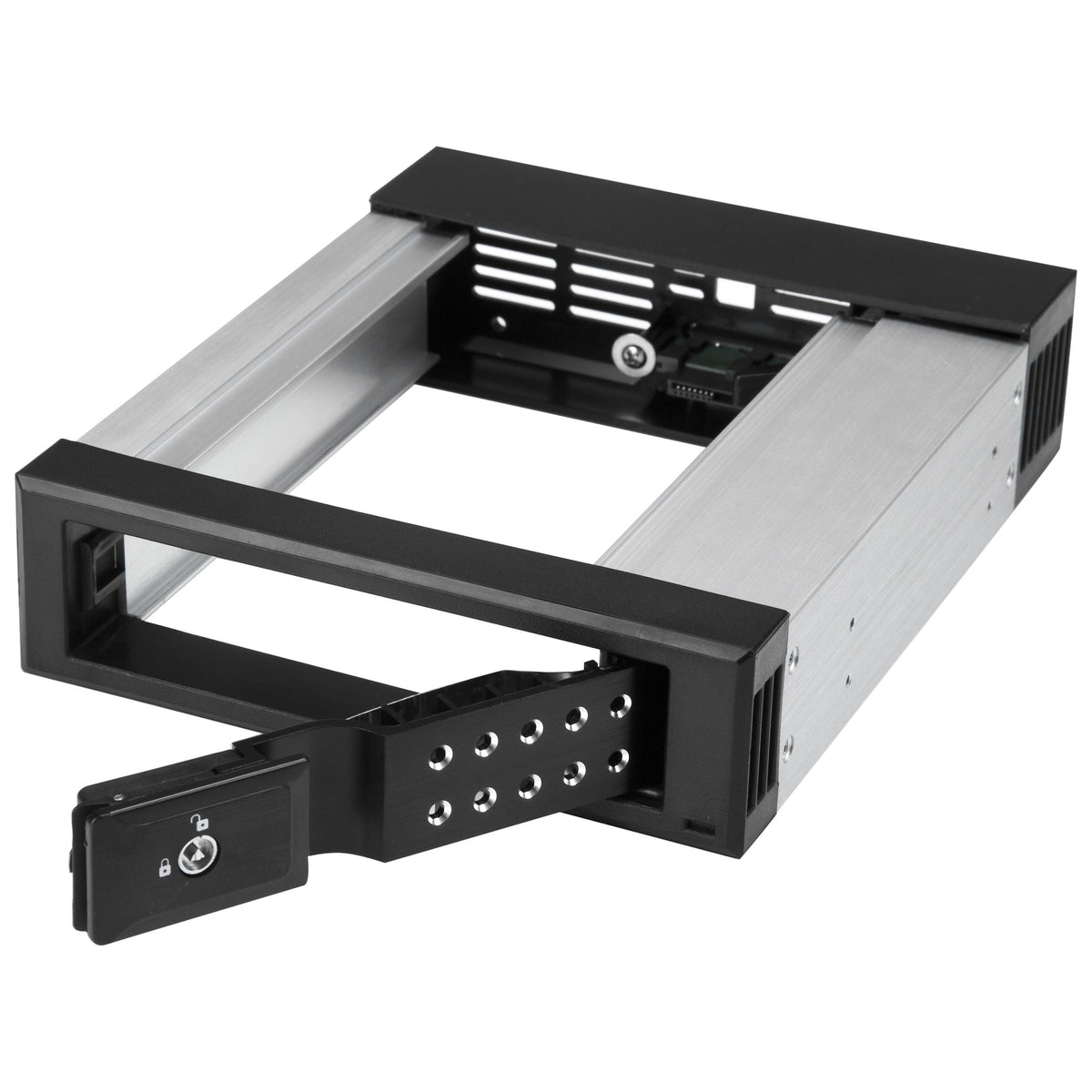

- EASY TO USE: This 5.25in to 3.5in hard drive hot swap bay features a trayless design, creating a convenient solution for drive maintenance and interchangeability between multiple systems - Includes SATA data cable
- SMART AND SECURE DESIGN: The aluminum hot swap hard drive bay provides a protective backplane with a durable aluminum housing that offers ventilation for proper air flow and heat dissipation - Features Power/Activity LED and lockable drive door w/ keys
- FAST SPEEDS: To maximize the performance of your drives, the removable hard drive bay supports SAS I/II & SATA I/II/III, providing data transfer speeds up to 6Gbps with a compatible controller
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this hard drive bay is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
Description
Hot-swap drives with ease, using this trayless mobile backplane for desktop PCs or servers

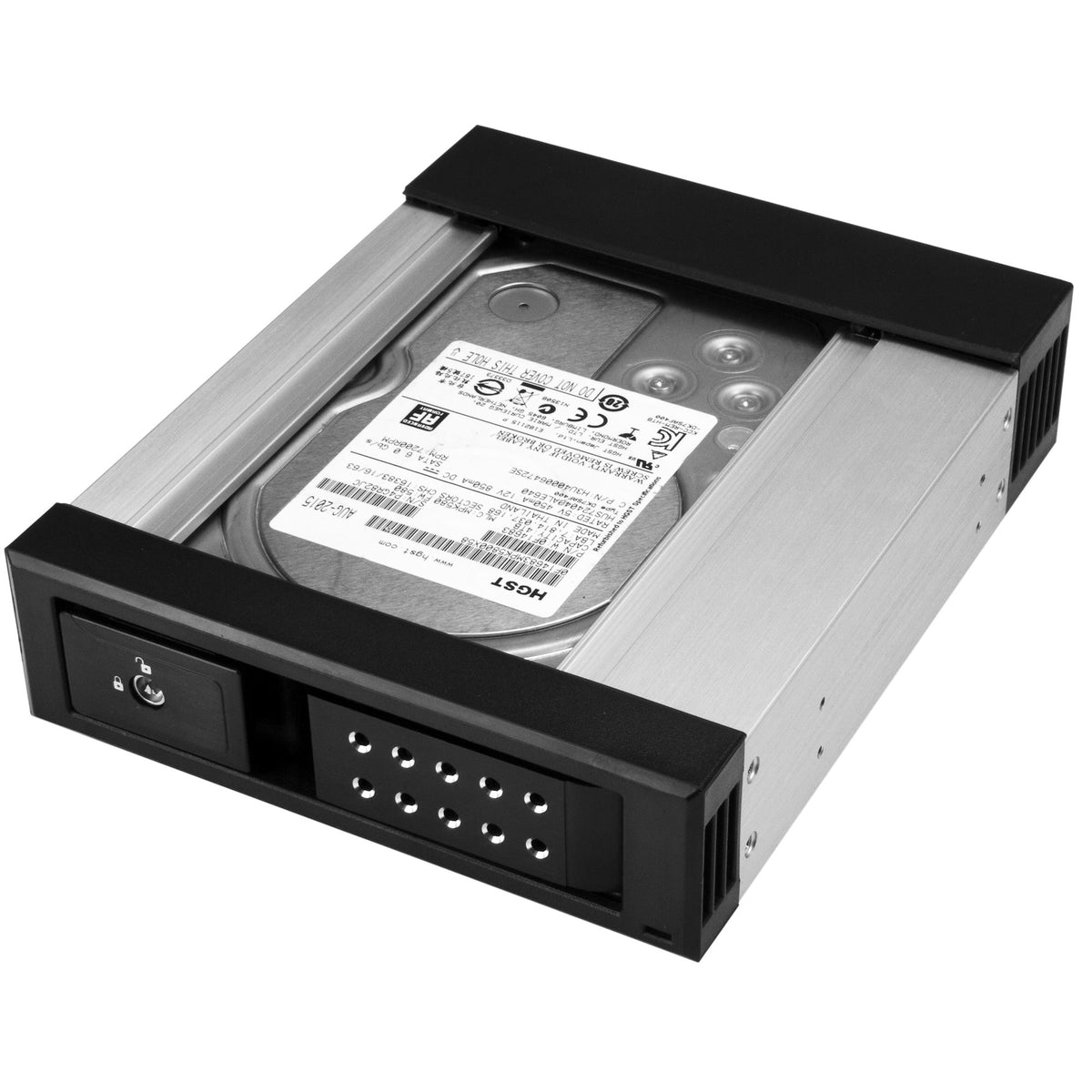

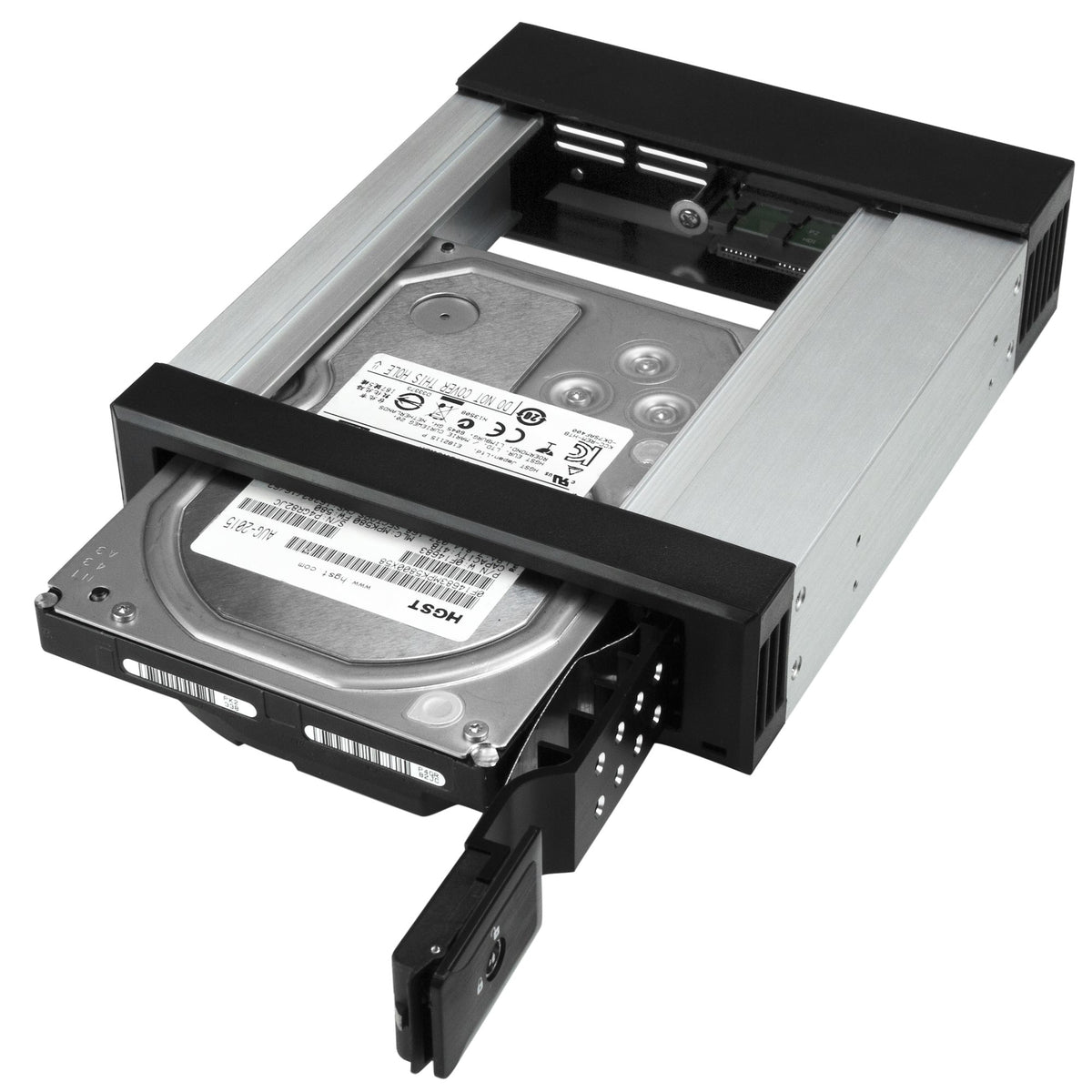

This removable hard drive hot-swap bay makes it easy to swap 3.5” SATA or SAS drives in and out of your server or desktop computer, using an available 5.25” front drive bay. It features a trayless design that saves you installation time and enables you to insert or remove drives as needed, creating a convenient solution for drive maintenance and interchangeability of data between multiple systems.
Hot-swap drives easily
This hot-swap bay/mobile rack is ideal for IT professionals, such as system administrators or computer operators, for quickly swapping, replacing, or transporting drives between various systems and locations. With support for both SATA and SAS 3.5” drives, it saves valuable time in environments where storage drives need to be replaced or removed regularly, such as in server rooms and data centers.
Valuable drive protection
The hot-swap bay provides a protective backplane with a durable aluminum housing that offers ventilation to ensure proper air flow and heat dissipation. To safeguard your data, you can lock the drive bay door to prevent unauthorized access to your drive.
Fast data transfers
To maximize the speed and performance of your drives, the mobile rack supports SAS I and II and SATA I, II and III, providing data transfer speeds up to 6Gbps when paired with a compatible controller.
The HSB1SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
This removable hard drive hot-swap bay makes it easy to swap 3.5” SATA or SAS drives in and out of your server or desktop computer, using an available 5.25” front drive bay. It features a trayless design that saves you installation time and enables you to insert or remove drives as needed, creating a convenient solution for drive maintenance and interchangeability of data between multiple systems.
Hot-swap drives easily
This hot-swap bay/mobile rack is ideal for IT professionals, such as system administrators or computer operators, for quickly swapping, replacing, or transporting drives between various systems and locations. With support for both SATA and SAS 3.5” drives, it saves valuable time in environments where storage drives need to be replaced or removed regularly, such as in server rooms and data centers.
Valuable drive protection
The hot-swap bay provides a protective backplane with a durable aluminum housing that offers ventilation to ensure proper air flow and heat dissipation. To safeguard your data, you can lock the drive bay door to prevent unauthorized access to your drive.
Fast data transfers
To maximize the speed and performance of your drives, the mobile rack supports SAS I and II and SATA I, II and III, providing data transfer speeds up to 6Gbps when paired with a compatible controller.
The HSB1SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specs
Features
Size (imperial)
Physical dimension.
13,3 cm (5.25")
Type
Characteristics of the device.
Carrier panel
Product color
The colour e.g. red, blue, green, black, white.
Black
Number of HDDs supported
The total number of hard drives that can be used in/with this product.
1
Maximum HDD capacity
10 TB
HDD size
The amount of data that the hard drive can store.
3.5"
HDD interface
The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI.
Serial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS)
Material
The material from which a thing is or can be made e.g. wood, plastic.
Aluminium
Supported storage drive heights
26.1 mm
Hot-swap
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
0 fan(s)
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
6 Gbit/s
LED indicators
Activity, Power
Key lock
Sustainability
Sustainability compliance
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
Logistics data
Quantity per master (outer) case
20 pc(s)
Master (outer) case width
643 mm
Master (outer) case length
340 mm
Master (outer) case height
281 mm
Harmonized System (HS) code
84733080
Weight & dimensions
Width
The measurement or extent of something from side to side.
146 mm
Depth
The distance from the front to the back of something.
179 mm
Height
The measurement of the product from head to foot or from base to top.
39 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
336 g
Packaging data
Package width
The distance from one side of the packaging to the other.
201 mm
Package depth
The distance from the front to the back of the packaging.
155 mm
Package height
The distance from the top to the bottom of the packaging.
48 mm
Package weight
Weight of the packaged product in gram.
412 g

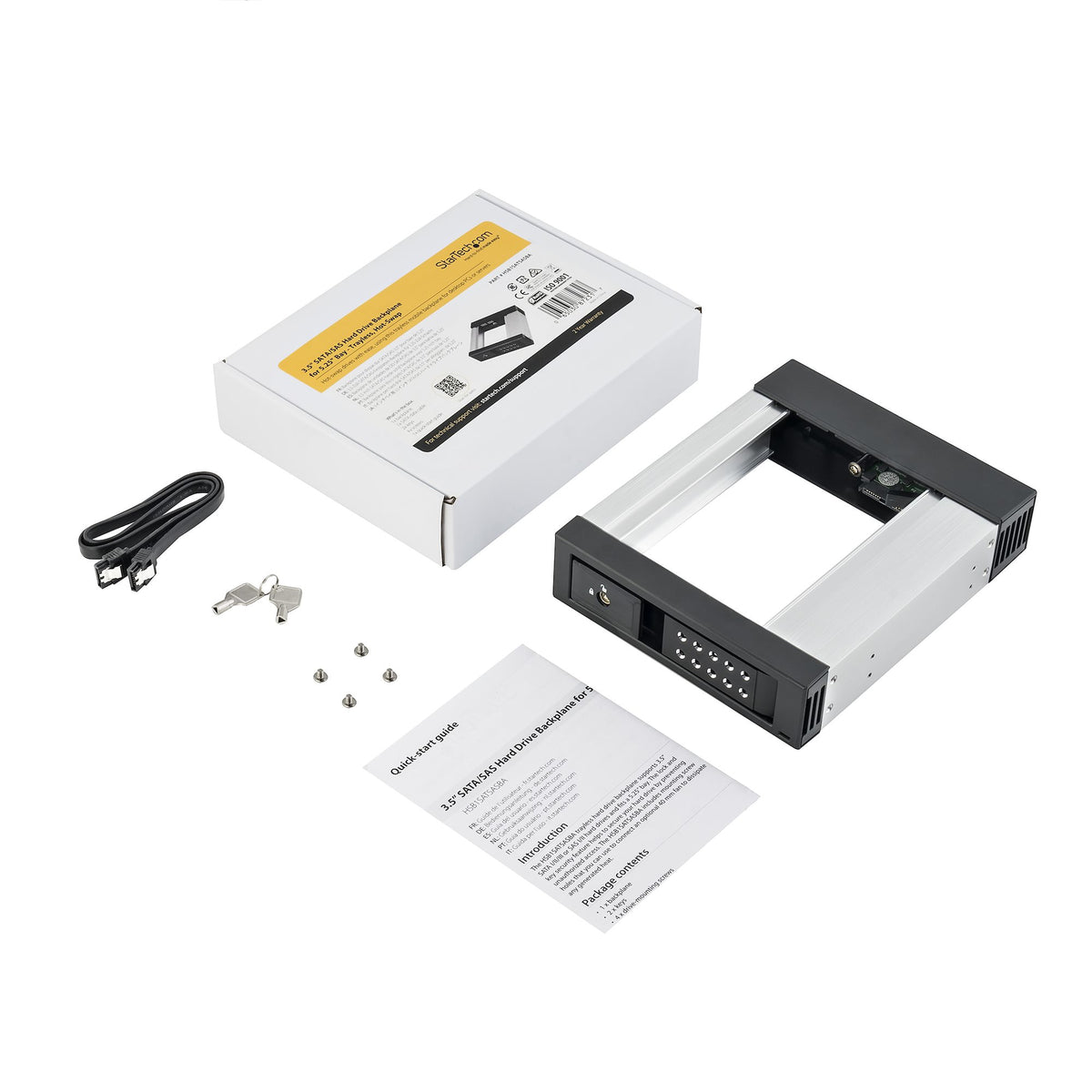

Packaging content
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Cables included
SATA
Screws included
Number of lock keys included
2 pc(s)
Number of screws
4
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Operating relative humidity (H-H)
5 - 85%
Storage relative humidity (H-H)
5 - 95%
