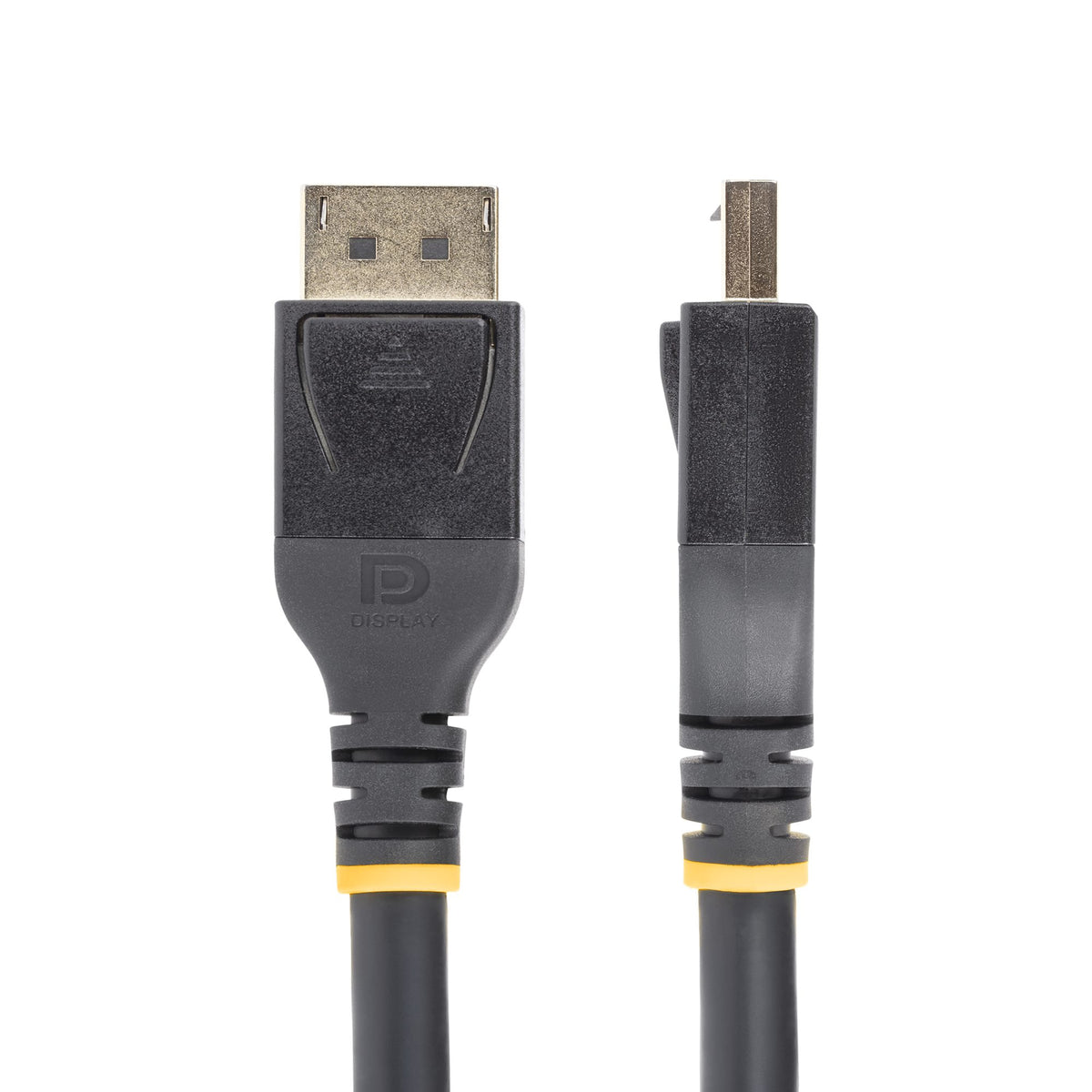

STARTECH DisplayPort cable 15,3 m Black (DP14A-15M-DP-CABLE)
- Regular price
- 183.95$
- Sale price
- 183.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

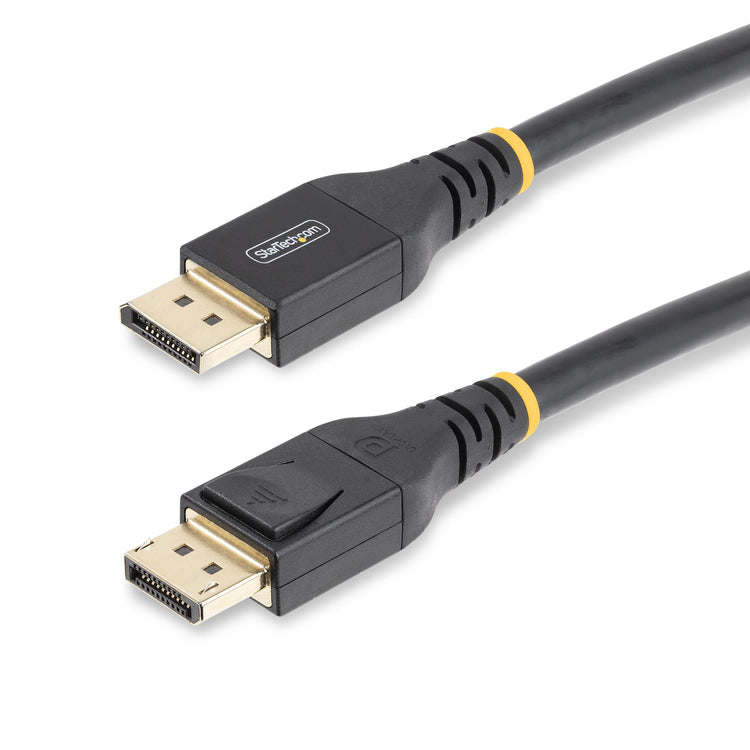

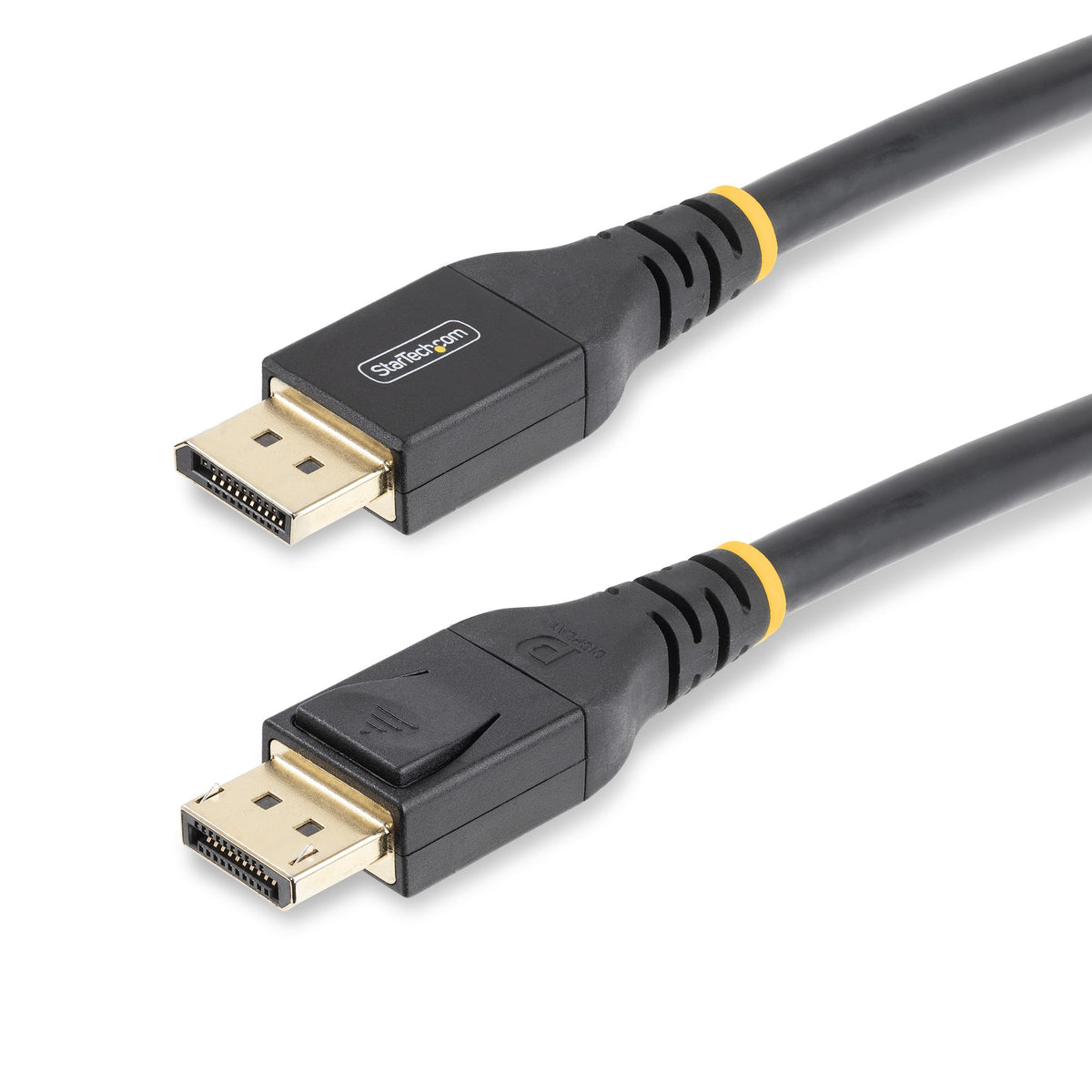

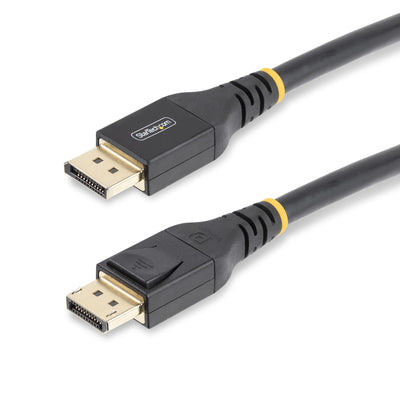

StarTech.com DP14A-15M-DP-CABLE DisplayPort cable 15,3 m Black
Brand:StarTech.com
Product name:15.2m (50ft) Active DisplayPort 1.4 Cable, DP8K DisplayPort Cable w/HBR3, HDR10, MST, DSC 1.2, HDCP 2.2, 8K 60Hz, 4K 120Hz - DP 1.4 Cable M/M
Product code:DP14A-15M-DP-CABLE
EAN/UPC:
0065030899970
0065030899970, 065030899970

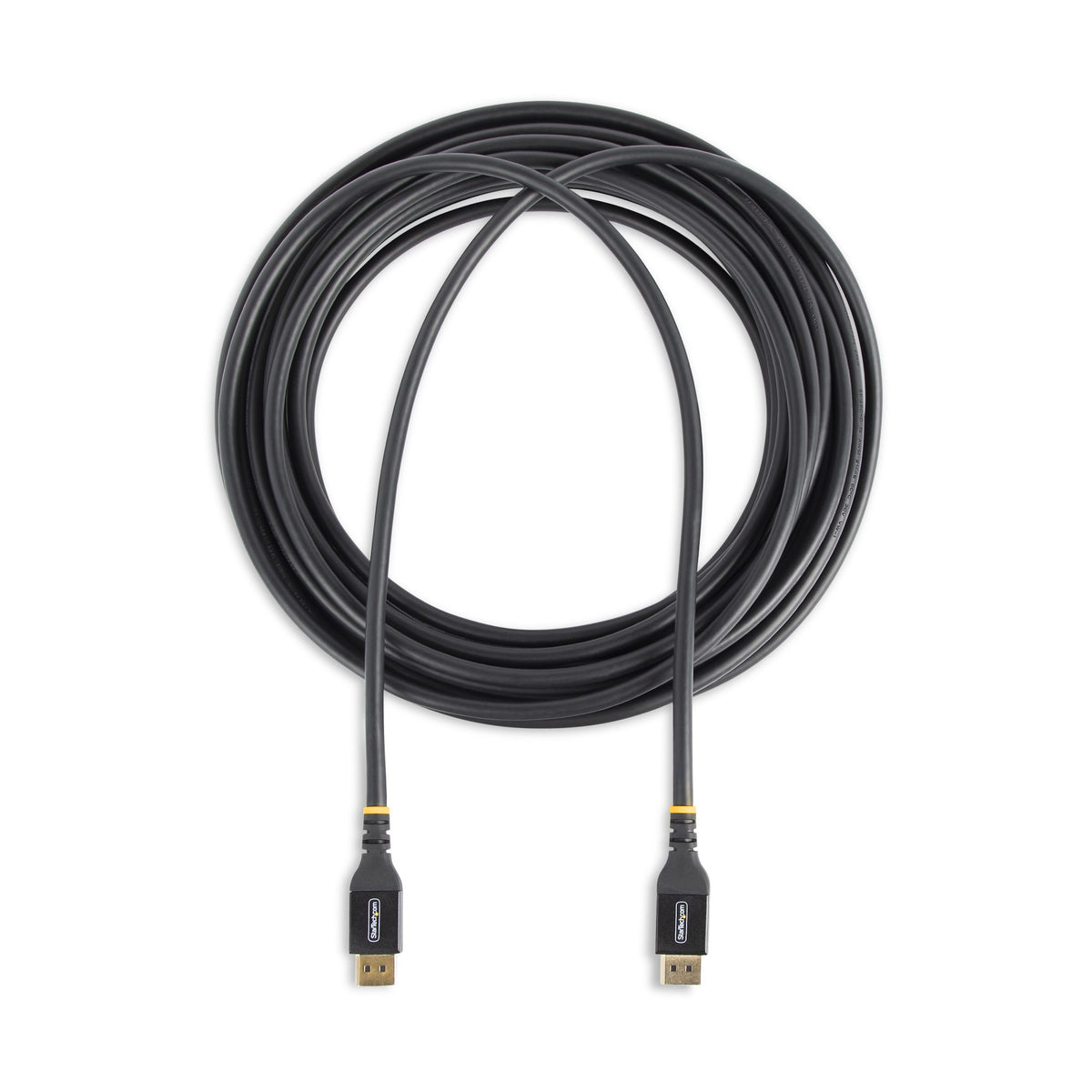

- DESIGNED FOR LONG RANGE: 50ft (15.2m) Active DisplayPort 1.4 Cable delivers 8K video beyond the length of passive cables; Integrated self-powered signal booster enables consistent performance without the need for a DP booster or external power source

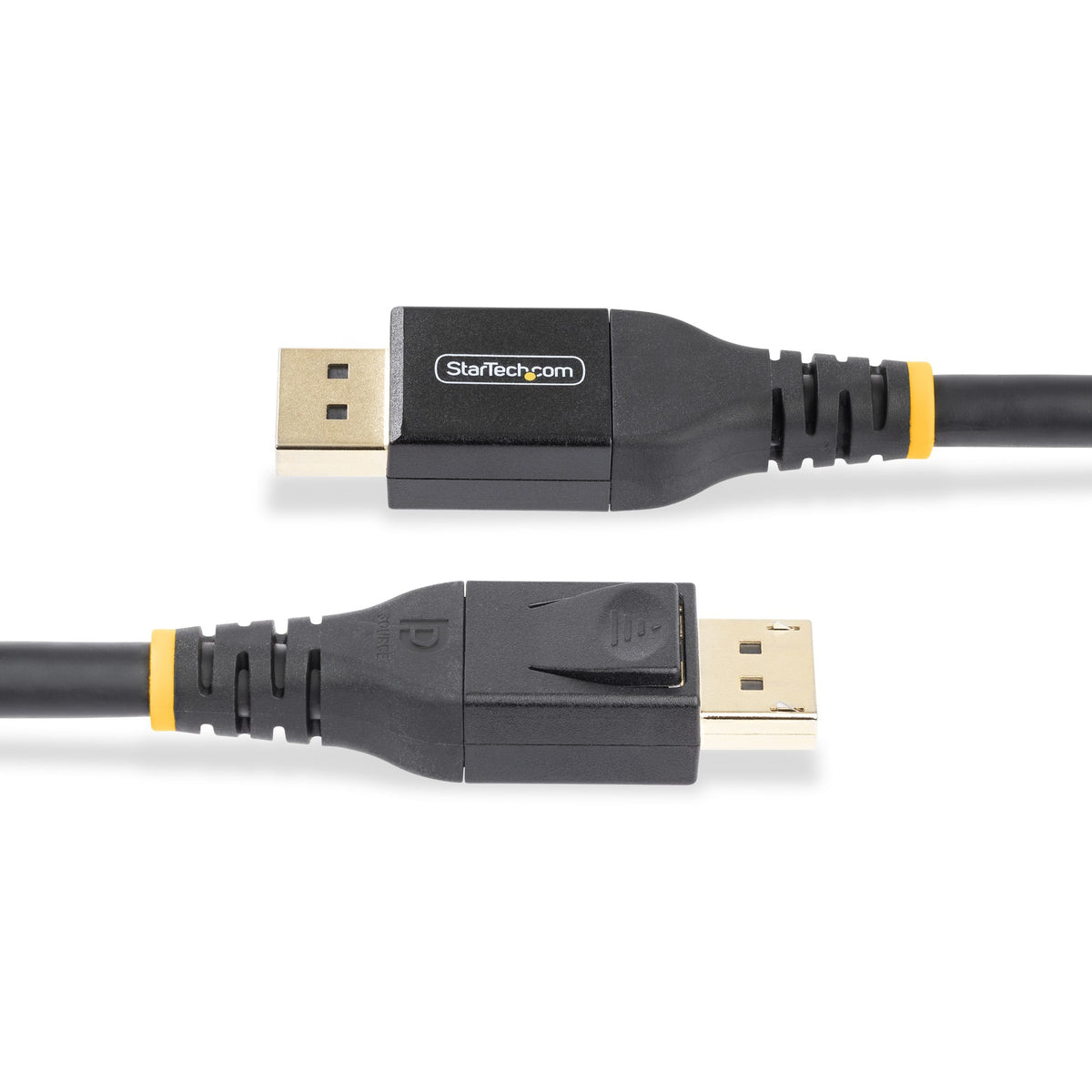

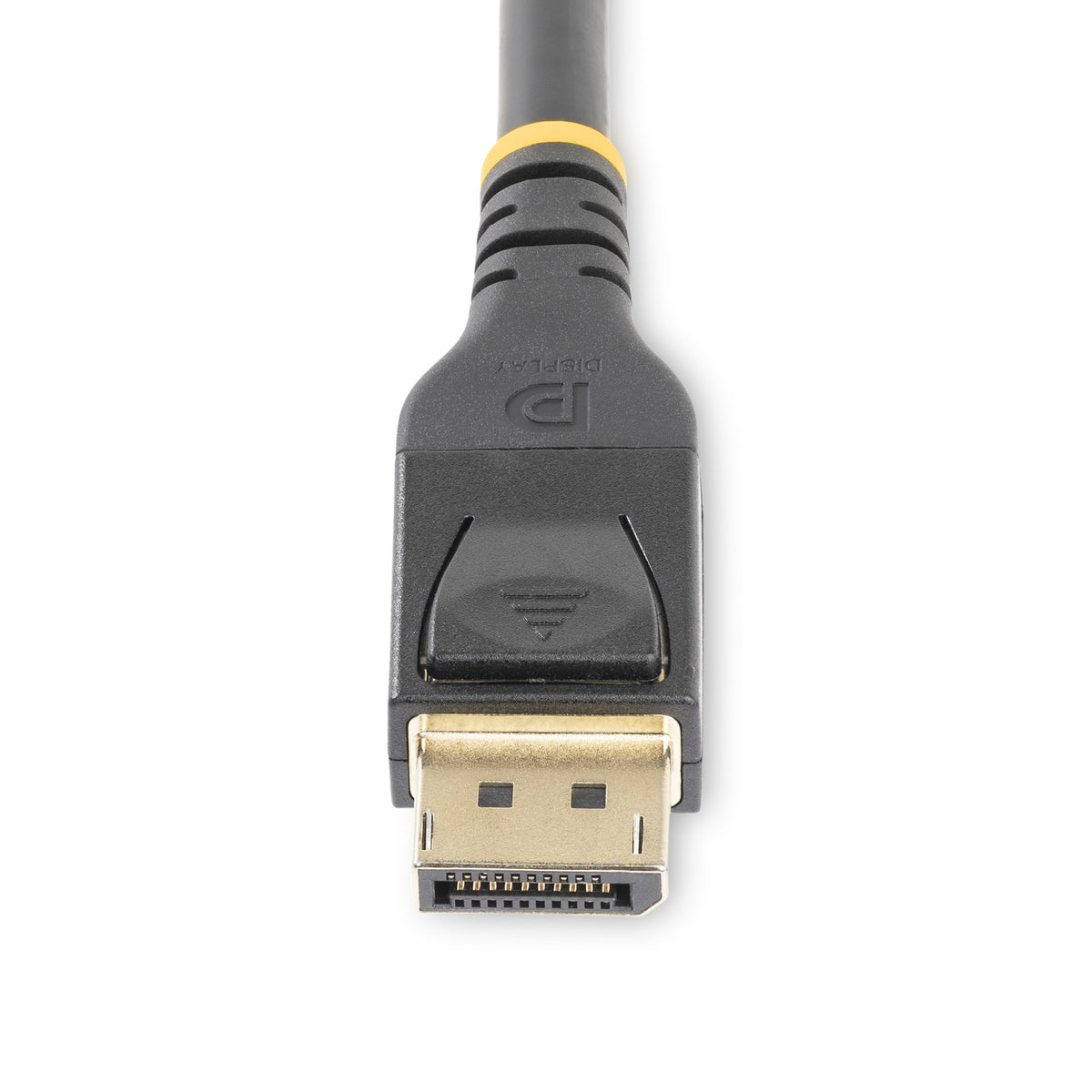

- DURABLE CONSTRUCTION: Latching gold-plated connectors with robust strain reliefs to prevent accidental disconnects; TPE outer cable jacket is flexible, non-toxic, halogen-free, and RoHS compliant; Shielded cable and connector for enhanced EMI protection
- VERSATILE INSTALLATION: This active DP 1.4 cable is unidirectional, with conveniently labeled connectors for source and display; 7.5mm Cable O.D. is identical to passive cables and improves flexibility; VW-1 Fire rated jacket enhances flame resistance

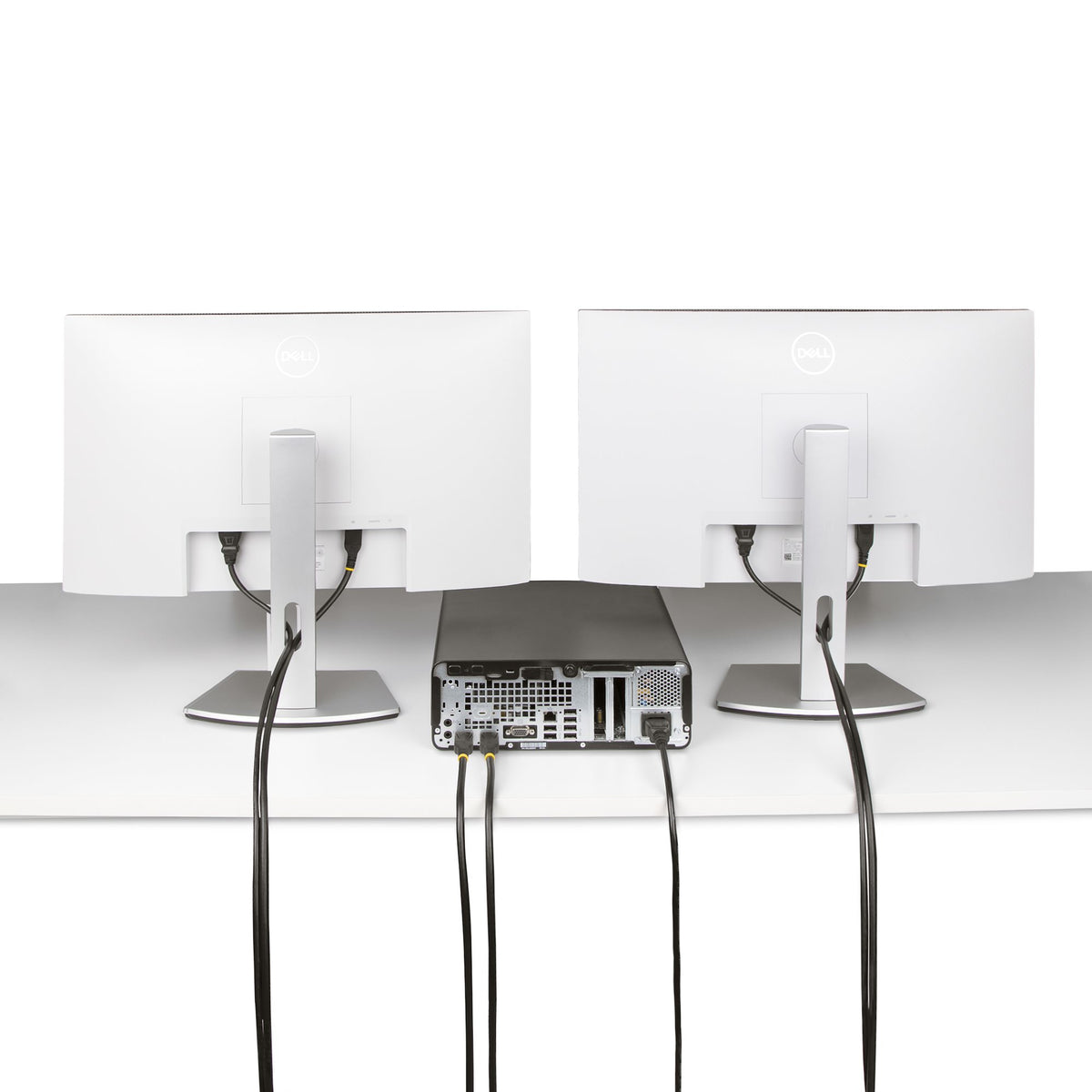

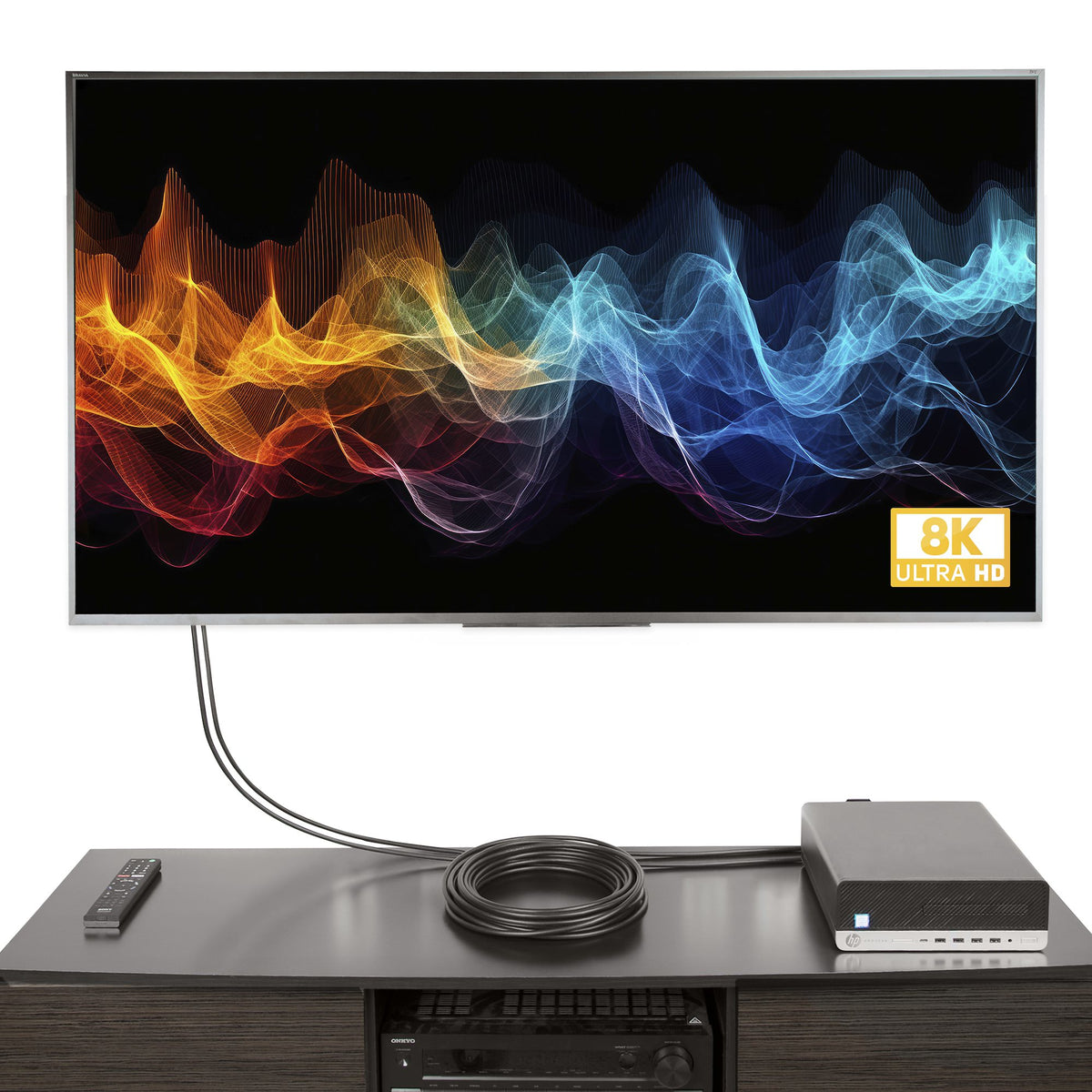

- APPLICATIONS: Ideal for high resolution 8K displays; Up to 120Hz refresh rate at 4K resolution; Suitable for high performance GPUs and AV workstations; Supports MST multi-monitor daisy chains; Connect a DP monitor to a UHD docking station
- SPECS: Black; 15.2m (50ft); Unidirectional cable; DP8K supports HBR3/HDR10/MST/DSC 1.2/HDCP 2.2; 8K 60Hz, 4K 120Hz, 1440p 240Hz w/DSC; Backward Compatible w/ DP 1.3/1.2; Cable O.D.: 7.5mm; Gold-Plated Connectors; Rugged TPE Jacket w/Aluminum Mylar Shield
Description
Facilitate a longer 8K connection without requiring an external power source
Connect a 4K/8K DisplayPort 1.4-enabled monitor to a source or MST-enabled hub, using this Active DisplayPort 1.4 Cable. The active signal booster ensures reliable audio and 8K video output at up to 50ft (15.2m) without a DisplayPort repeater and external power source. This active DP 1.4 cable is unidirectional with conveniently labeled connectors for source and display to simplify setup.
Durable Design
This long DisplayPort cable features a flexible TPE outer jacket to reduce wear from corner bends and long cable runs. Robust strain reliefs enable soft and flexible bends, for convenient positioning of the cable. The latching DP connectors are gold plated for improved conductivity and anti-tarnish properties, and attaches securely to the device to prevent accidental disconnection.
Supported DisplayPort 1.4 Features:
This 8K DisplayPort cable supports all DP 1.4 features:
• Resolutions up to 8K 60Hz, 4K 120Hz, 1440p 240Hz with a compatible DP source and display
• HDCP 2.2 support
• High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps
• High Dynamic Range 10 (HDR10)
• Display Stream Compression 1.2 (DSC 1.2)
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with 5K 60Hz, 4K 120Hz and previous DP versions
The Active DP Cable is constructed with aluminum-mylar shielding to minimize EMI interference for clear and reliable audio/video output. This DP cable is designed for long-term reliability, and is the ideal solution for setting up boardrooms, video walls, and TV signage.
Connect a 4K/8K DisplayPort 1.4-enabled monitor to a source or MST-enabled hub, using this Active DisplayPort 1.4 Cable. The active signal booster ensures reliable audio and 8K video output at up to 50ft (15.2m) without a DisplayPort repeater and external power source. This active DP 1.4 cable is unidirectional with conveniently labeled connectors for source and display to simplify setup.
Durable Design
This long DisplayPort cable features a flexible TPE outer jacket to reduce wear from corner bends and long cable runs. Robust strain reliefs enable soft and flexible bends, for convenient positioning of the cable. The latching DP connectors are gold plated for improved conductivity and anti-tarnish properties, and attaches securely to the device to prevent accidental disconnection.
Supported DisplayPort 1.4 Features:
This 8K DisplayPort cable supports all DP 1.4 features:
• Resolutions up to 8K 60Hz, 4K 120Hz, 1440p 240Hz with a compatible DP source and display
• HDCP 2.2 support
• High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps
• High Dynamic Range 10 (HDR10)
• Display Stream Compression 1.2 (DSC 1.2)
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with 5K 60Hz, 4K 120Hz and previous DP versions
The Active DP Cable is constructed with aluminum-mylar shielding to minimize EMI interference for clear and reliable audio/video output. This DP cable is designed for long-term reliability, and is the ideal solution for setting up boardrooms, video walls, and TV signage.
Specs
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
What the connector contacts are covered with (layer on top).
Gold
DisplayPort version
1.4
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
7680 x 4320 pixels
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
3840 x 2160, 7680 x 4320
Maximum refresh rate
144 Hz
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
HDCP version
2.2
Display Stream Compression (DSC)
Display Stream Compression (DSC) version
1.2
Cable length
How long the cable is.
15,3 m
Connector 1
This is the first connector in the device.
DisplayPort
Connector 2
This is the second connector in the device.
DisplayPort
Connector 1 gender
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2 gender
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
Male
Product color
The colour e.g. red, blue, green, black, white.
Black
Cable material
The material e.g. copper, steel from which the cable is made.
Copper
Cable shielding
The protective layer for the cable, typically made of plastic.
Aluminum mylar foil
Jacket material
Thermoplastic elastomer (TPE)
AWG wire size
24/28
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
25,92 Gbit/s
Bandwidth
32400 MB/s
HBR3 support
Multi-Stream Transport (MST)
Fire-resistance rating
VW-1
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Operating relative humidity (H-H)
0 - 85%
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Sustainability
Sustainability compliance
Weight & dimensions
Cable diameter
The distance from one side of the cable to the other, with a straight line going through the middle of the cable.
7,5 mm
Packaging data
Package width
The distance from one side of the packaging to the other.
346 mm
Package depth
The distance from the front to the back of the packaging.
286 mm
Package height
The distance from the top to the bottom of the packaging.
63 mm
Package weight
Weight of the packaged product in gram.
1 kg
Logistics data
Master (outer) case width
411 mm
Master (outer) case length
341 mm
Master (outer) case height
283 mm
Quantity per master (outer) case
8 pc(s)
