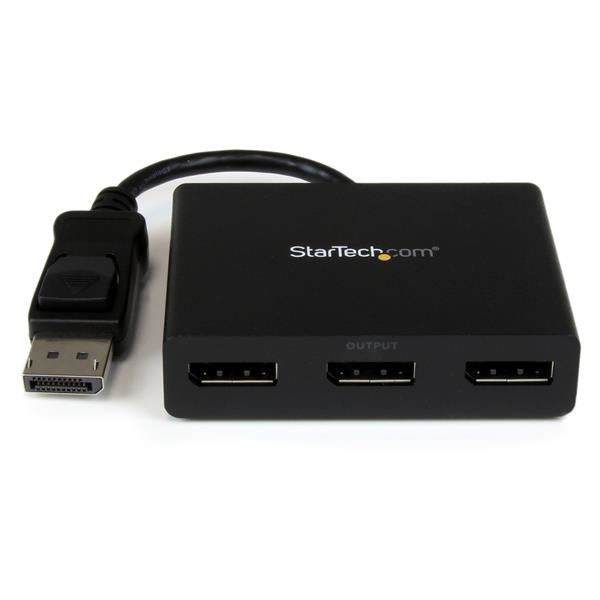

STARTECH .com video splitter DisplayPort 3x DisplayPort (MSTDP123DP)
- Regular price
- 77.95$
- Sale price
- 77.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

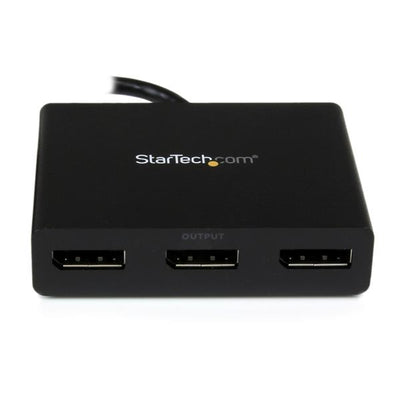

StarTech.com MSTDP123DP video splitter DisplayPort 3x DisplayPort
Brand:StarTech.com
Product name:3-Port Multi Monitor Adapter - DisplayPort 1.2 MST Hub to Dual 4K 30Hz & 1x 1080p - Video Splitter for Extended Desktop Mode on Windows PCs Only - DP to 3x DP Monitors
Product code:MSTDP123DP
EAN/UPC:
0065030851886
0065030851886, 065030851886, 0650308518860, 650308518860, 0724627116912, 724627116912
- MULTI-MONITOR CONFIGURATION: Triple-Monitor DisplayPort 1.2 MST Hub drives up to 2x 4K 30Hz (UHD) + 1x 1080p 60Hz DisplayPort monitors using a DP video port on a Windows desktop PC or laptop; Not compatible with macOS
- NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows computer; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
- HARDWARE COMPATIBILITY: Host system must support DP 1.2 / HBR2 / MST; Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays;

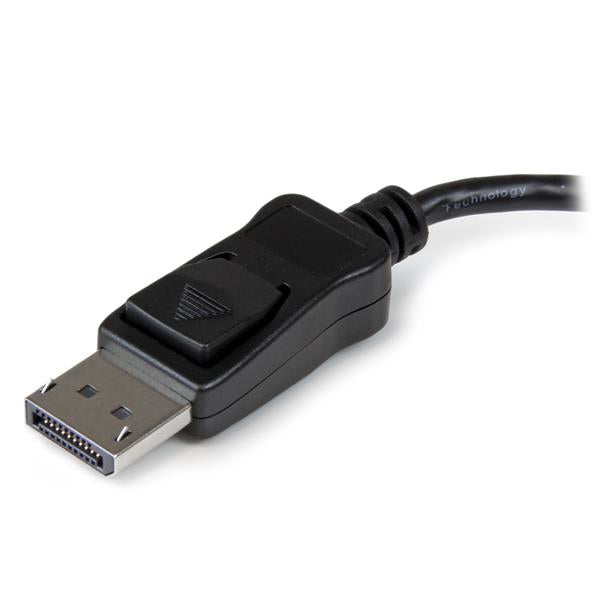

- EASY TO USE: Extend your desktop at your workstation in the office/home office; Latching DisplayPort connector ensures a reliable connection and prevents accidental disconnection; Not compatible with HDMI output ports; Universal Power Adapter included
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the 3-Port DisplayPort Multi-Monitor Adapter
Description
Use this adapter to connect three independent displays to a single DP 1.2 port
This MST hub lets you connect three monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.

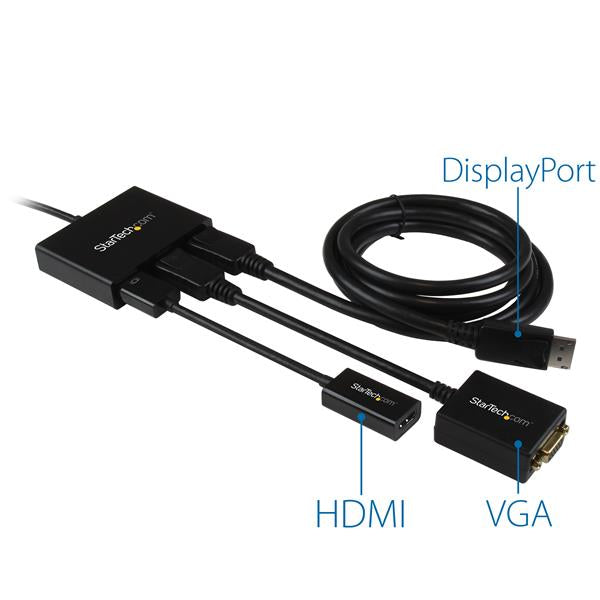

Connect to any display
With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.

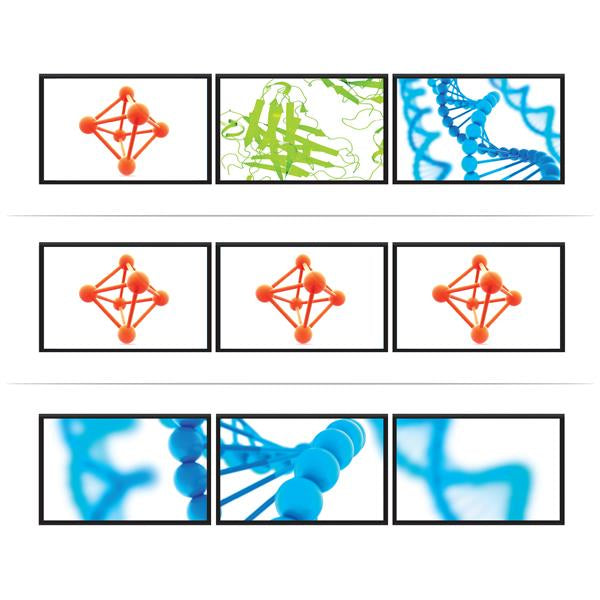

Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Enjoy amazing video quality, without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MSTDP123DP will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTDP123DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.
Average Resolution Bandwidth Allocation
1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%
Note: Exceeding 100% will reduce functionality.
Examples of Supported Resolution Configurations
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Total % of Bandwidth
1920x1200 @60hz (30%)
1920x1200 @60hz (30%)
1920x1200 @60hz (30%)
90%
2560x1440 @60hz (35%)
2560x1440 @60hz (35%)
1920x1200 @60hz (30%)
100%
2560x1600 @60hz (38%)
2560x1600 @60hz (38%)
1920x1080 @60hz (22%)
98%
3840x2160 @30hz (38%)
2560x1600 @60hz (38%)
1920x1080 @60hz (22%)
98%
3840x2160 @30hz (38%)
3840x2160 @30hz (38%)
1920x1080 @60hz (22%)
98%
Examples of Unsupported Resolution Configurations
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Total % of Bandwidth
2560x1600 @60hz (38%)
2560x1600 @60hz (38%)
1920x1200 @60hz (30%)
106%
3840x2160 @30hz (38%)
2560x1600 @60hz (38%)
1920x1200 @60hz (30%)
106%
3840x2160 @30hz (38%)
2560x1600 @60hz (38%)
2560x1440 @60hz (35%)
111%
3840x2160 @30hz (38%)
3840x2160 @30hz (38%)
3840x2160 @30hz (38%)
114%
The StarTech.com Advantage
This MST hub lets you connect three monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.
Connect to any display
With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Enjoy amazing video quality, without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MSTDP123DP will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTDP123DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.
Average Resolution Bandwidth Allocation
1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%
Note: Exceeding 100% will reduce functionality.
Examples of Supported Resolution Configurations
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Total % of Bandwidth
1920x1200 @60hz (30%)
1920x1200 @60hz (30%)
1920x1200 @60hz (30%)
90%
2560x1440 @60hz (35%)
2560x1440 @60hz (35%)
1920x1200 @60hz (30%)
100%
2560x1600 @60hz (38%)
2560x1600 @60hz (38%)
1920x1080 @60hz (22%)
98%
3840x2160 @30hz (38%)
2560x1600 @60hz (38%)
1920x1080 @60hz (22%)
98%
3840x2160 @30hz (38%)
3840x2160 @30hz (38%)
1920x1080 @60hz (22%)
98%
Examples of Unsupported Resolution Configurations
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Total % of Bandwidth
2560x1600 @60hz (38%)
2560x1600 @60hz (38%)
1920x1200 @60hz (30%)
106%
3840x2160 @30hz (38%)
2560x1600 @60hz (38%)
1920x1200 @60hz (30%)
106%
3840x2160 @30hz (38%)
2560x1600 @60hz (38%)
2560x1440 @60hz (35%)
111%
3840x2160 @30hz (38%)
3840x2160 @30hz (38%)
3840x2160 @30hz (38%)
114%
The StarTech.com Advantage
Specs
Ports & interfaces
Video port type
The type of socket in the device for connecting a video e.g. SCART.
DisplayPort
Video out
3x DisplayPort
Video ports quantity
The number of ports (sockets) for video input or output.
3
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
110 - 240 V
Input current
0.5 A
Output voltage
5 V
Output current
3 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
15 W
Packaging data
Package width
The distance from one side of the packaging to the other.
229 mm
Package depth
The distance from the front to the back of the packaging.
155 mm
Package height
The distance from the top to the bottom of the packaging.
55 mm
Package weight
Weight of the packaged product in gram.
409 g
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 45 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 70 °C
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case width
340 mm
Master (outer) case length
500 mm
Master (outer) case height
230 mm
Quantity per master (outer) case
10 pc(s)
Features
Product color
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Plastic
Cable length
How long the cable is.
0,19 m
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Certification
REACH, CE, FCC
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Weight & dimensions
Width
The measurement or extent of something from side to side.
78 mm
Depth
The distance from the front to the back of something.
386 mm
Height
The measurement of the product from head to foot or from base to top.
20 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
99 g

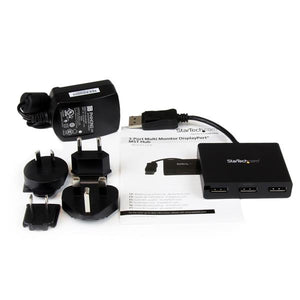

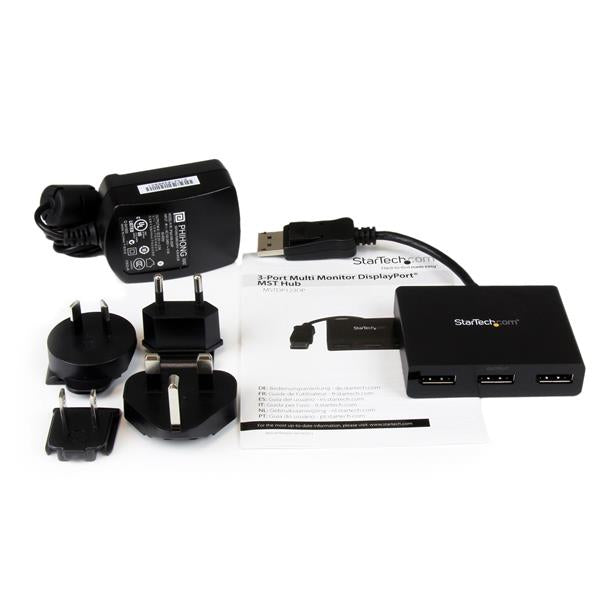

Packaging content
Manual
AC adapter included
Included power plug types
AU, EU, NA, UK
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
