STARTECH .com video splitter DisplayPort 3x DisplayPort (MST14DP123DP)
- Regular price
- 66.95$
- Sale price
- 66.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
StarTech.com MST14DP123DP video splitter DisplayPort 3x DisplayPort
Brand:StarTech.com
Product name:3-Port DisplayPort 1.4 Splitter, DisplayPort to 3x DP Multi-Monitor Adapter, Triple 4K Computer MST Hub, USB Bus-Powered - Windows Only
Product code:MST14DP123DP
EAN/UPC:
0065030884051
0065030884051, 065030884051

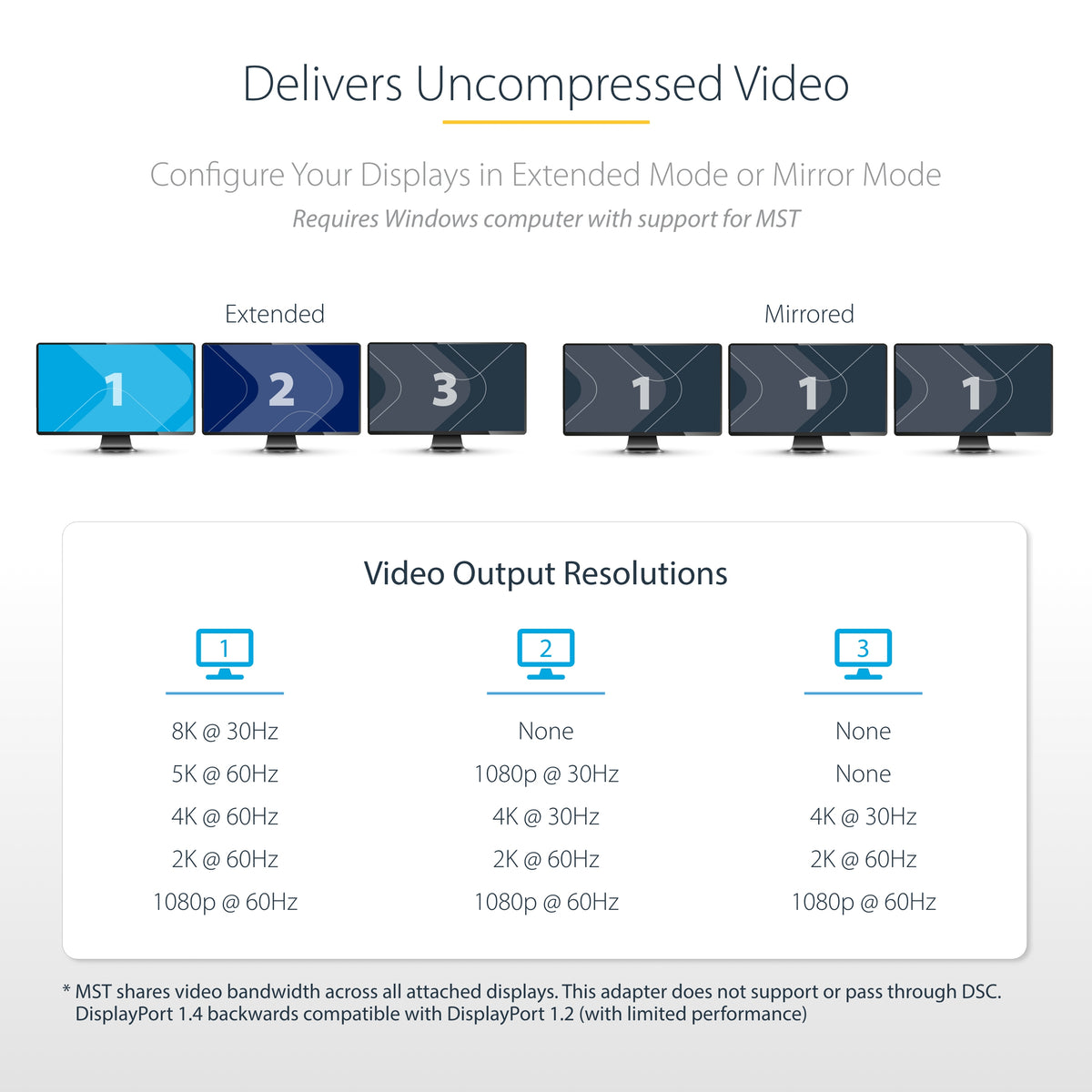

- MULTI-MONITOR CONFIGURATION: Triple-Monitor DisplayPort 1.4 MST Hub drives up to 2x 4K 30Hz (UHD) + 1x 4K 60Hz DisplayPort monitors using a DP video port on a Windows desktop PC or laptop; Not compatible with macOS
- NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows computer; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
- HARDWARE COMPATIBILITY: Host system must support DP 1.4 / HBR3 / MST; Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays;

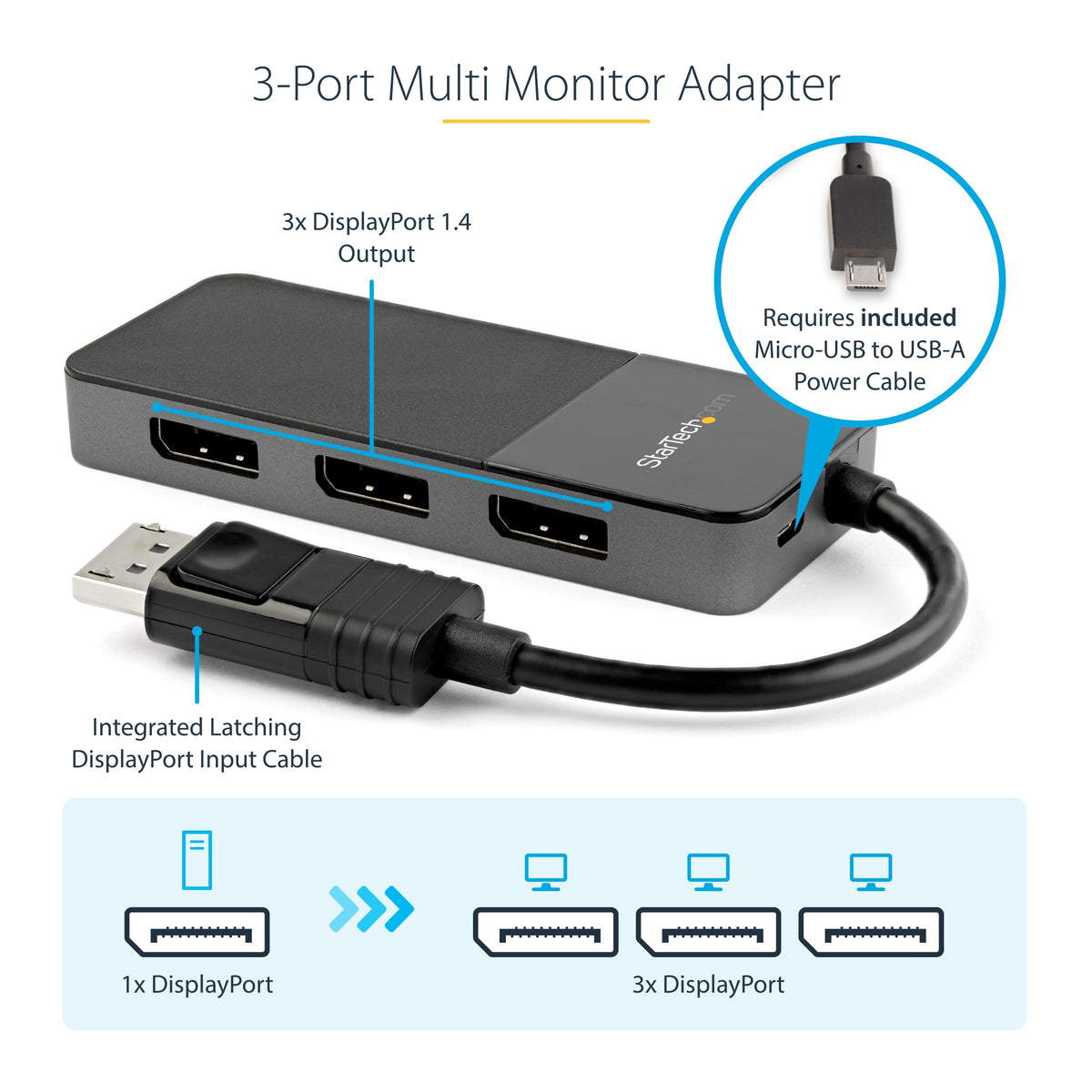

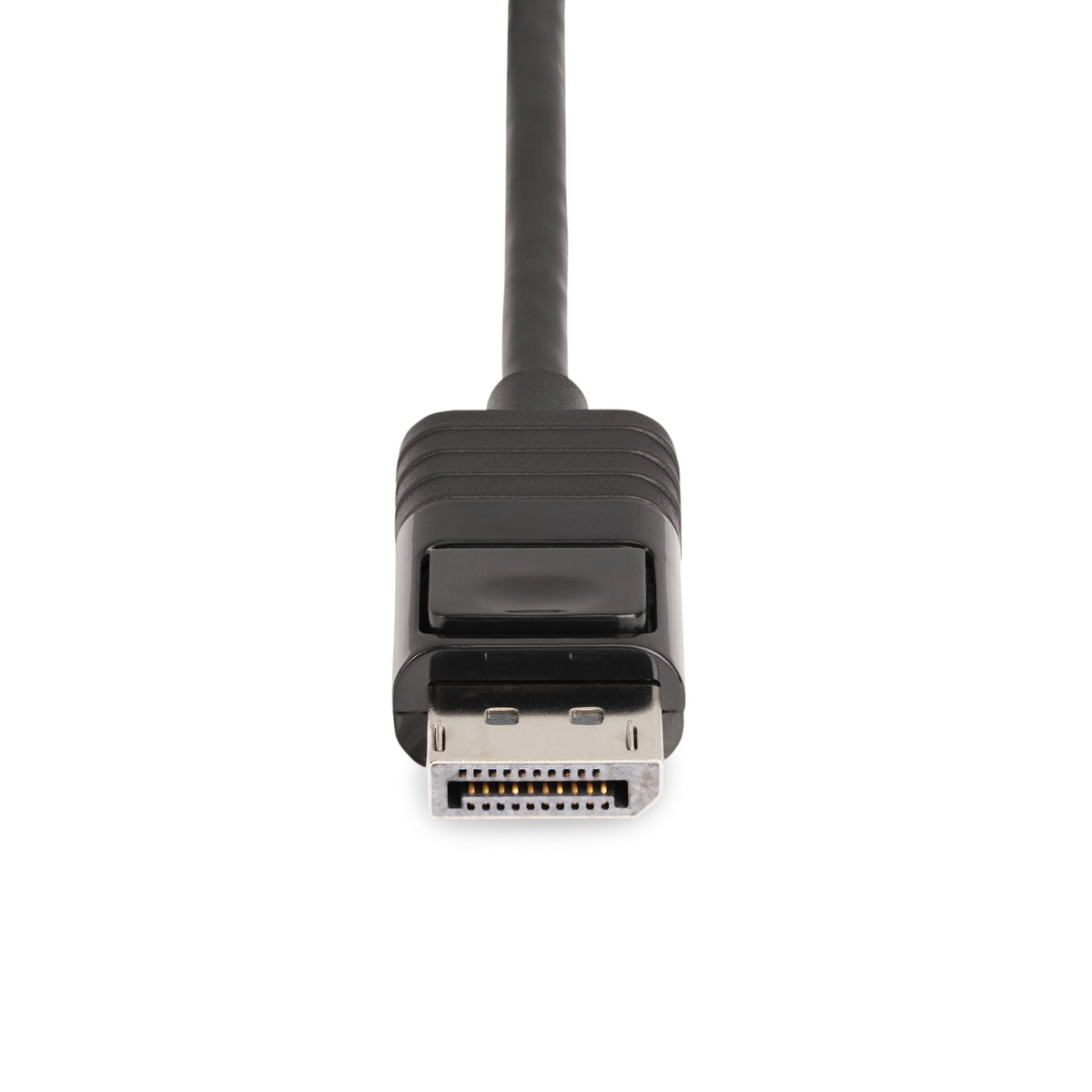

- EASY TO USE: Extend your desktop at your workstation in the office/home office; Latching DisplayPort connector ensures a reliable connection and prevents accidental disconnection; Not compatible with HDMI output ports; USB Power Cable included
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the 3-Port DisplayPort Multi-Monitor Adapter
Description
3 x 4K | Multi-Monitor Video Splitter | Windows® | HDR
This 3-port DisplayPort MST hub lets you create a high-performance workstation by connecting three DisplayPort monitors to your DisplayPort device, helping to increase and maximize your productivity. The multi-monitor splitter supports High Dynamic Range (HDR) and provides sharper images with enhanced video.
Incredible Picture Quality
Supporting four times the resolution of 4K, this DP 1.4 MST hub delivers the stunning quality of UHD at resolutions up to 7680×4320 at 30Hz on a single monitor and supports multi-monitor applications at lower resolutions and refresh rates, enabling a dynamic work environment whether you're in the office, at home or traveling.
Both your source and destination must support DisplayPort 1.4 in order to achieve maximum resolution (8K 30Hz).
Lower resolutions and refresh rates may also be supported.
Multi-Tasking Made Easy

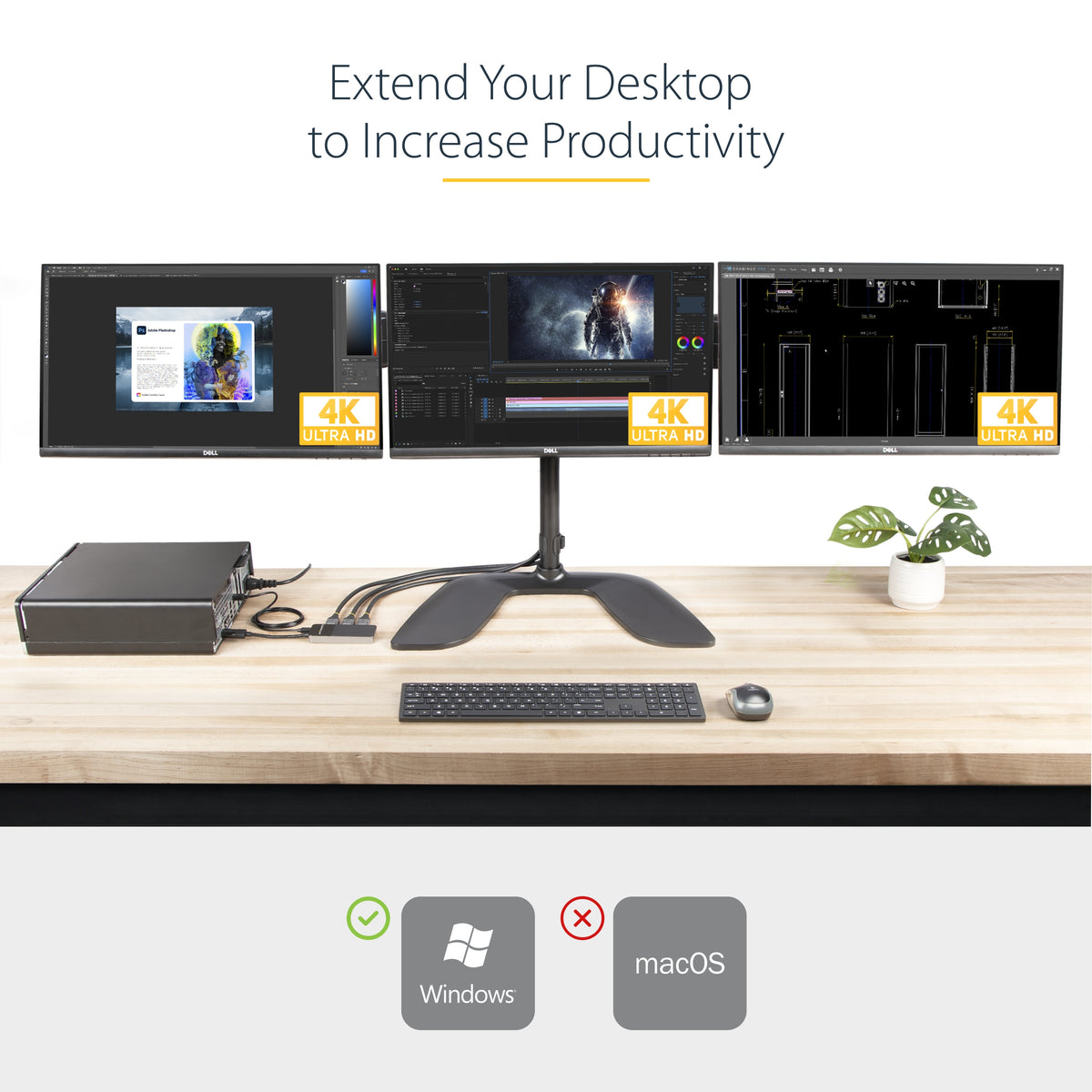

This DisplayPort to 3x DisplayPort MST hub enables you to connect three displays to your DP computer, making multi-tasking much easier. Using this multi-monitor video splitter, you can mirror your display onto multiple monitors, stream independent content to each display or extend your screen to create a video wall effect.
Hassle-Free Setup

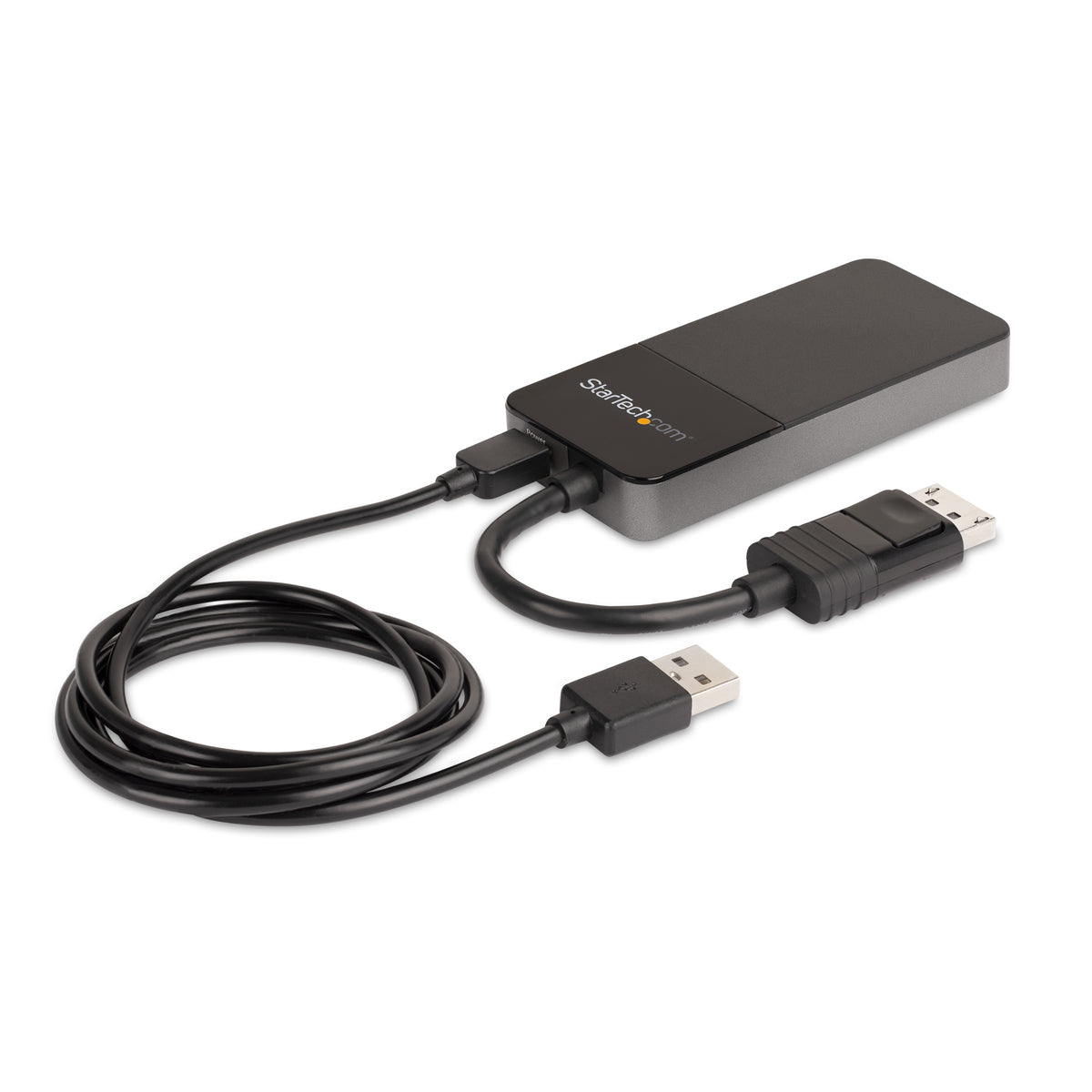

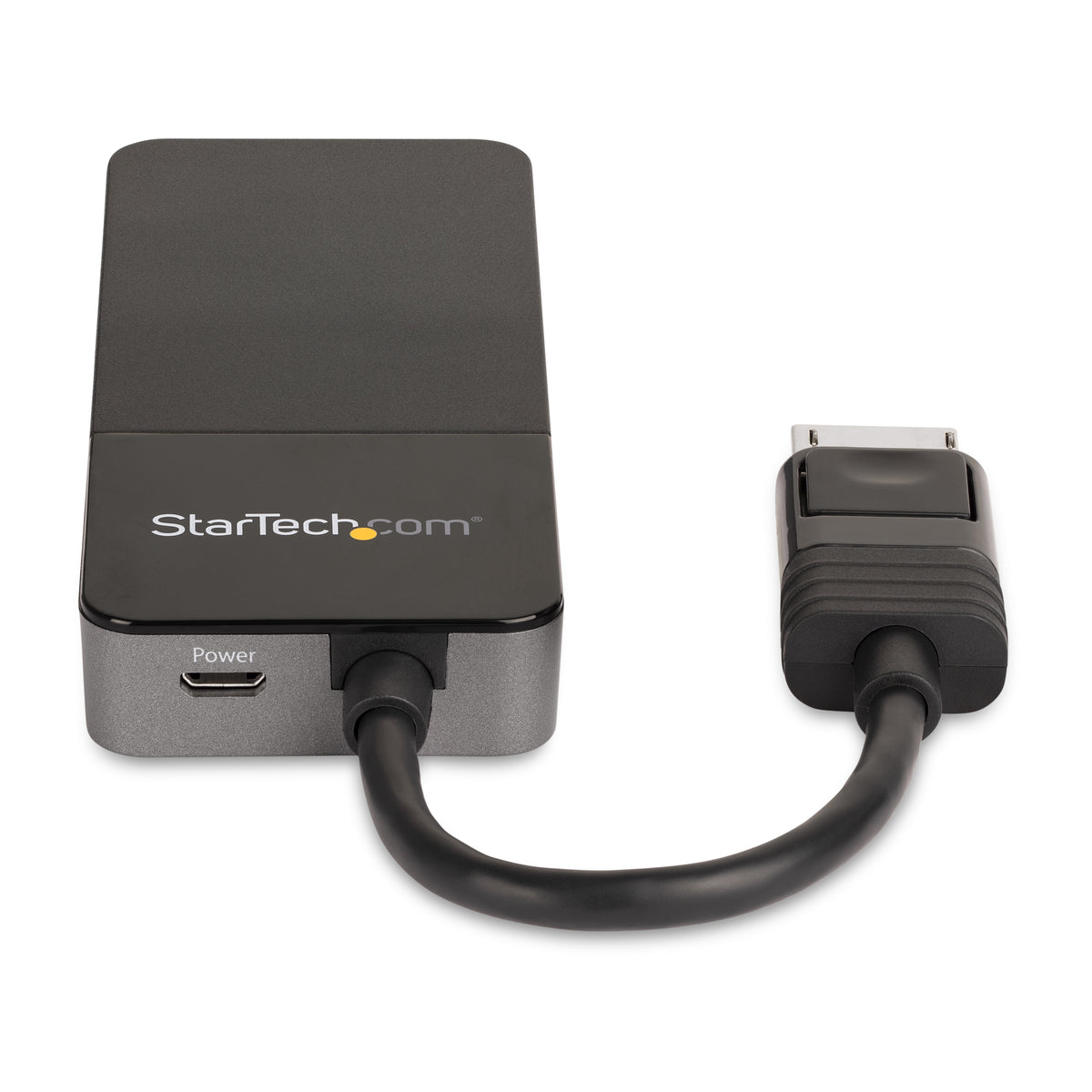

Multi-stream transport offers an easy setup, by natively working on any Windows device. It offers plug-and-play installation with no drivers or software required. Additionally, the DisplayPort MST hub is bus-powered (with the included micro-USB cable), creating an ultra-portable solution for business and IT professionals.
MST14DP123DP is backed by a StarTech.com 3-year warranty, and free lifetime technical support.
This 3-port DisplayPort MST hub lets you create a high-performance workstation by connecting three DisplayPort monitors to your DisplayPort device, helping to increase and maximize your productivity. The multi-monitor splitter supports High Dynamic Range (HDR) and provides sharper images with enhanced video.
Incredible Picture Quality
Supporting four times the resolution of 4K, this DP 1.4 MST hub delivers the stunning quality of UHD at resolutions up to 7680×4320 at 30Hz on a single monitor and supports multi-monitor applications at lower resolutions and refresh rates, enabling a dynamic work environment whether you're in the office, at home or traveling.
Both your source and destination must support DisplayPort 1.4 in order to achieve maximum resolution (8K 30Hz).
Lower resolutions and refresh rates may also be supported.
Multi-Tasking Made Easy
This DisplayPort to 3x DisplayPort MST hub enables you to connect three displays to your DP computer, making multi-tasking much easier. Using this multi-monitor video splitter, you can mirror your display onto multiple monitors, stream independent content to each display or extend your screen to create a video wall effect.
Hassle-Free Setup
Multi-stream transport offers an easy setup, by natively working on any Windows device. It offers plug-and-play installation with no drivers or software required. Additionally, the DisplayPort MST hub is bus-powered (with the included micro-USB cable), creating an ultra-portable solution for business and IT professionals.
MST14DP123DP is backed by a StarTech.com 3-year warranty, and free lifetime technical support.
Specs
Ports & interfaces
Video port type
The type of socket in the device for connecting a video e.g. SCART.
DisplayPort
Video out
3x DisplayPort
Video ports quantity
The number of ports (sockets) for video input or output.
3
Power
USB powered
The device can be powered via a USB connection.
Weight & dimensions
Width
The measurement or extent of something from side to side.
105 mm
Depth
The distance from the front to the back of something.
43 mm
Height
The measurement of the product from head to foot or from base to top.
14 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
55 g

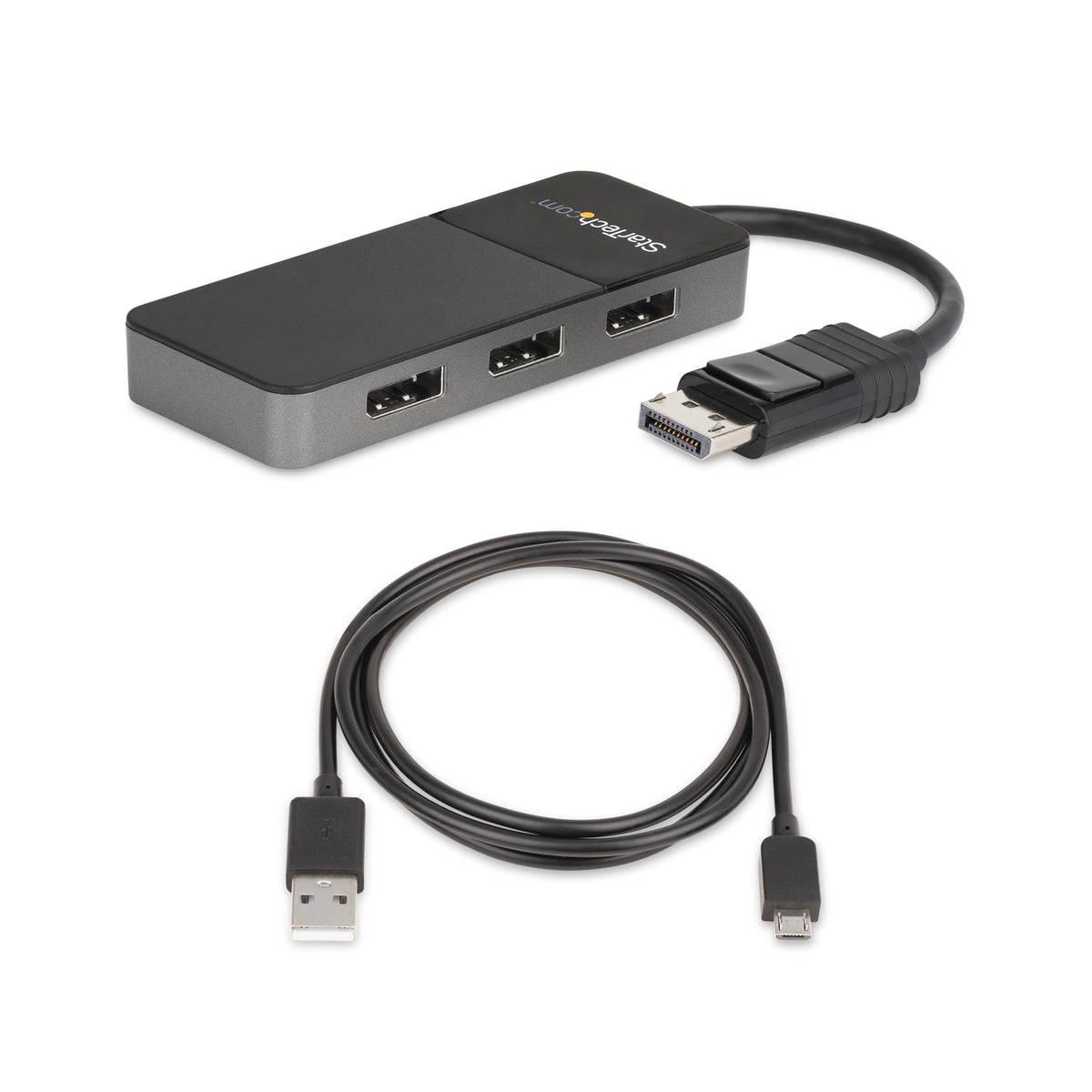

Packaging content
Cables included
Micro-USB
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-20 - 60 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 80 °C
Operating relative humidity (H-H)
5 - 90%
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case width
457 mm
Master (outer) case length
426 mm
Master (outer) case height
424 mm
Quantity per master (outer) case
200 pc(s)
Features
Product color
The colour e.g. red, blue, green, black, white.
Black, Grey
Housing material
What the casing of the product is made of.
Plastic
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
7680 x 4320 pixels
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
8K Ultra HD
Maximum refresh rate
30 Hz
Certification
CE, FCC, REACH
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Packaging data
Package width
The distance from one side of the packaging to the other.
127 mm
Package depth
The distance from the front to the back of the packaging.
141 mm
Package height
The distance from the top to the bottom of the packaging.
26 mm
Package weight
Weight of the packaged product in gram.
132 g
Technical details
Maximum cable length
2 m
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
