STARTECH .com video splitter 2x HDMI (HDMI-SPLITTER-4K60UP)
- Regular price
- 98.95$
- Sale price
- 98.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

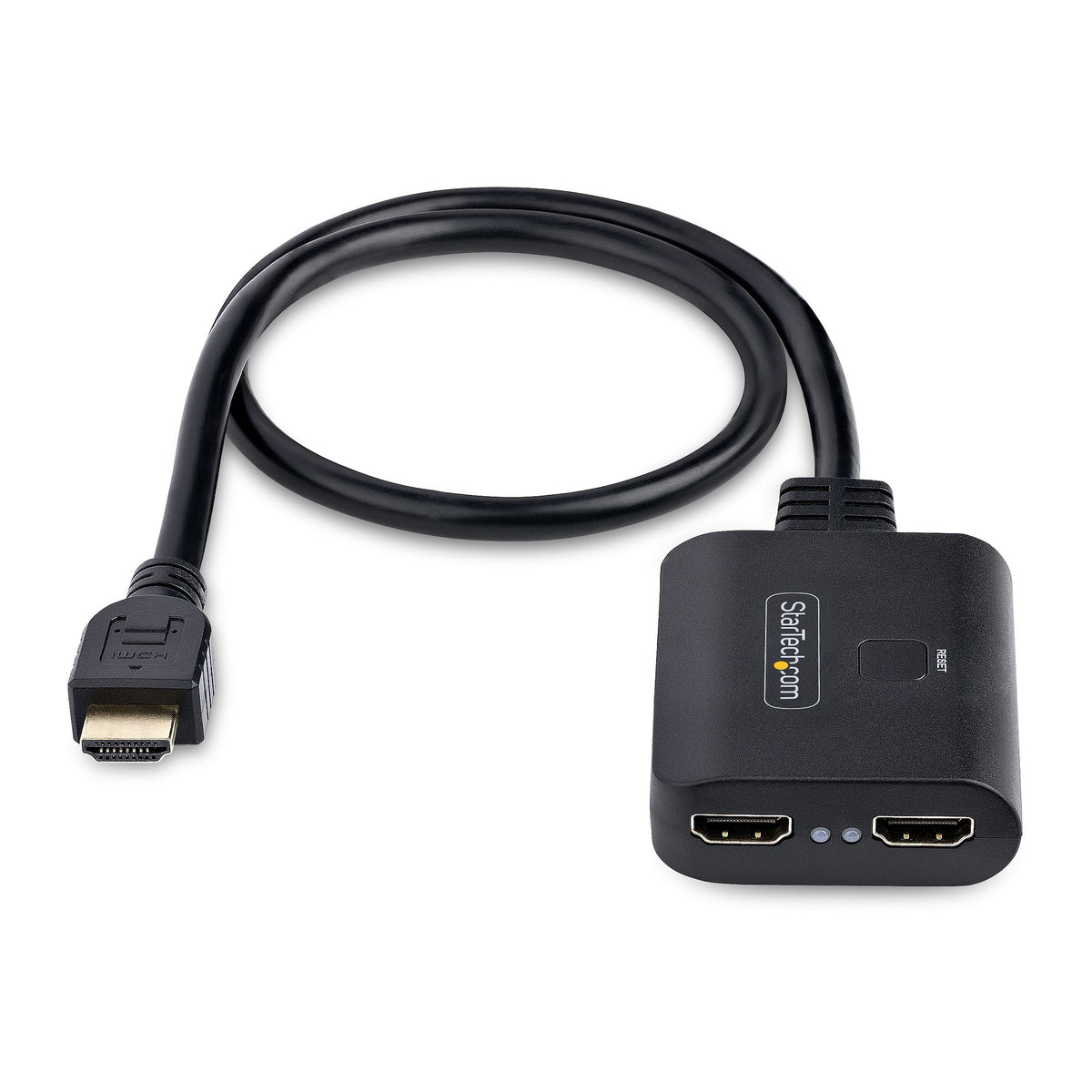

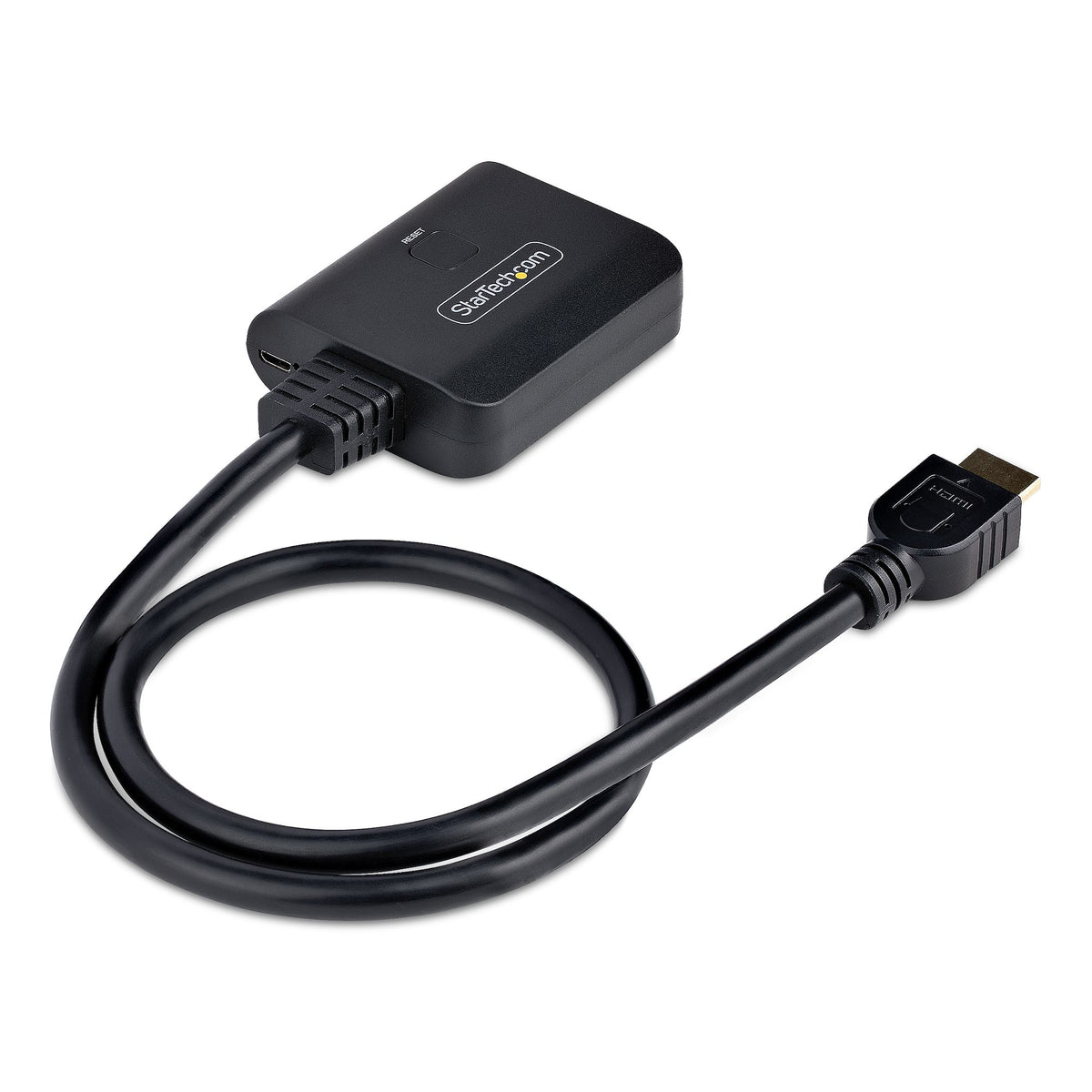

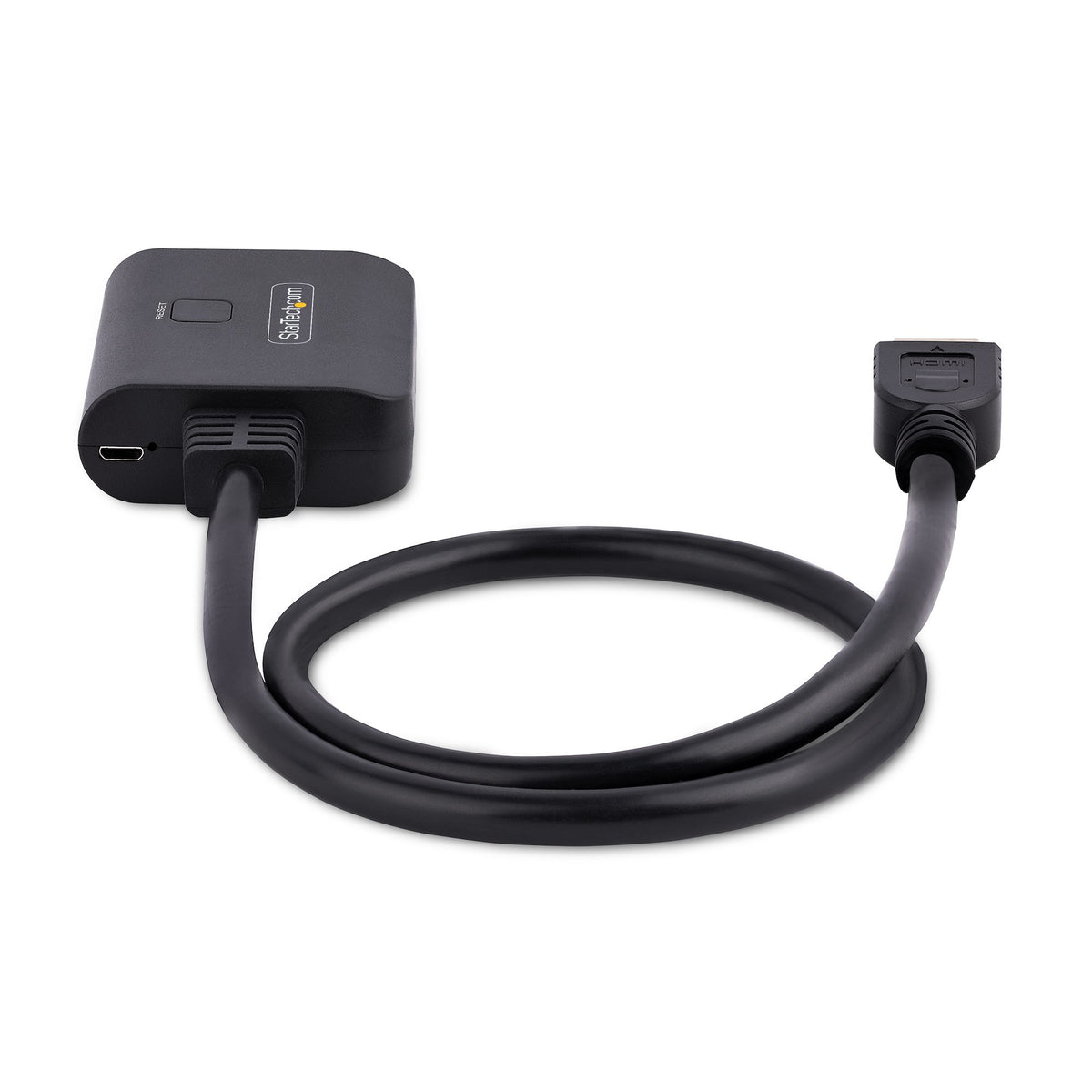

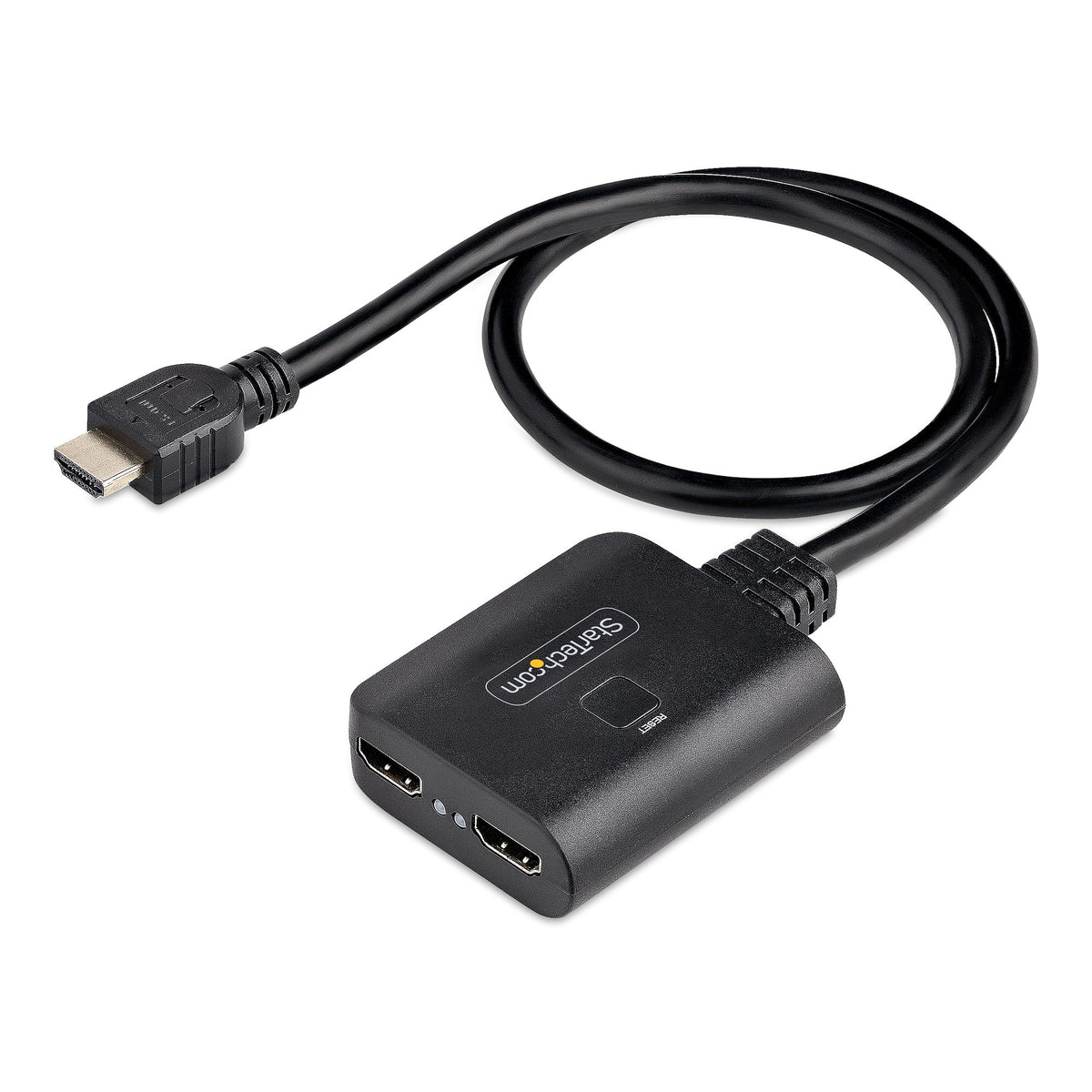

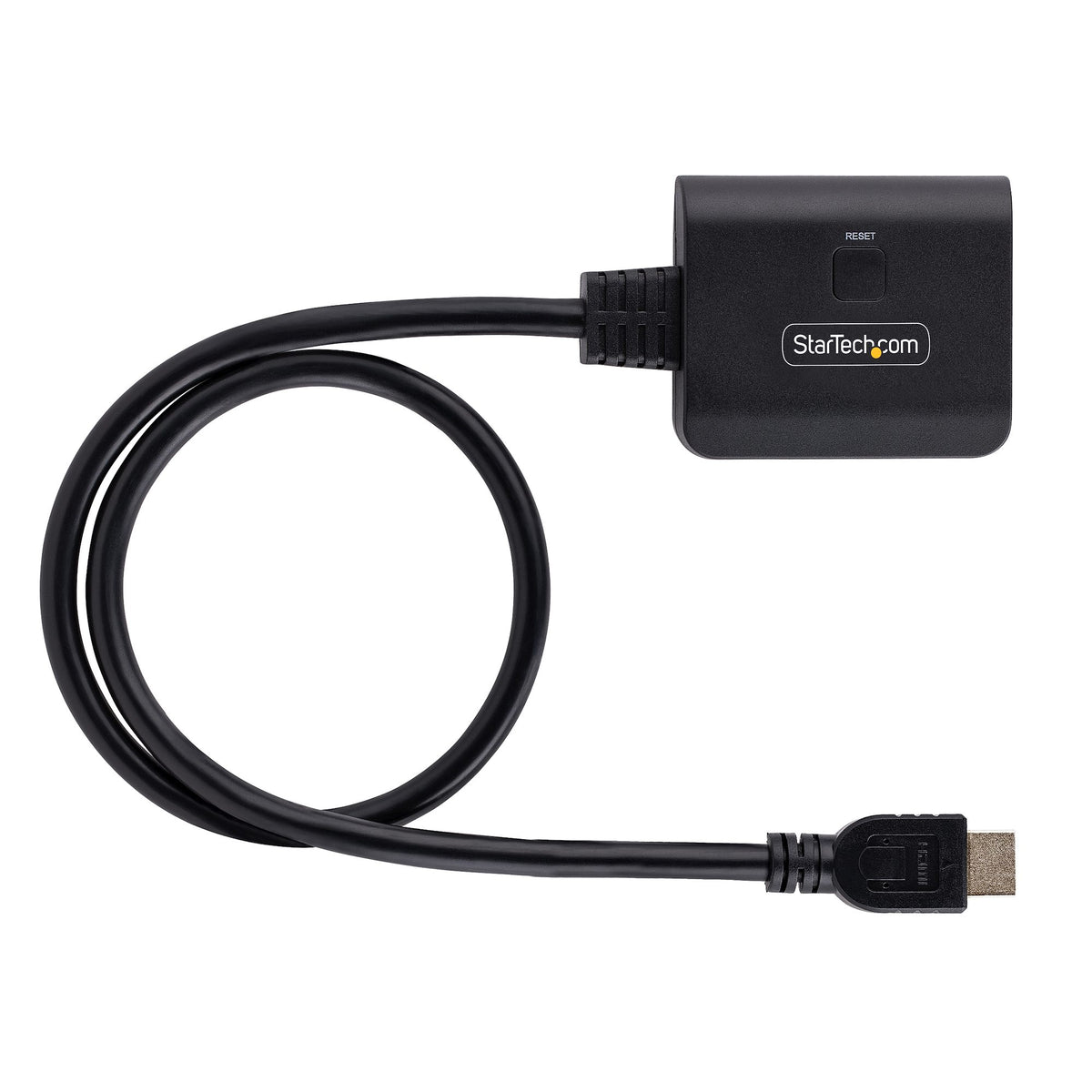

StarTech.com HDMI-SPLITTER-4K60UP video splitter 2x HDMI
Brand:StarTech.com
Product name:2-Port HDMI Splitter, 4K 60Hz HDMI 2.0 Video, 4K HDMI Splitter 1 In 2 Out, 1x2 HDMI Display/Output Splitter, HDR/HDCP, 20in (50cm) Built-in HDMI Cable
Product code:HDMI-SPLITTER-4K60UP
EAN/UPC:
0065030897556
0065030897556, 065030897556
- DUPLICATED HDMI DISPLAYS: 2-Port 4K 60Hz HDMI Splitter displays the same image from a single HDMI source on dual-HDMI displays; HDR; UHD; 4:4:4 chroma subsampling support; HDMI 2.0; 18Gbps (total) Bandwidth; 7.1ch Audio; HDCP 2.2/1.4
- AUTOMATIC DOWNSCALING: HDMI splitter clones EDID settings from output port 1 to port 2, providing the same resolution on both displays; Built-in downscaler auto-detects the resolutions of the connected displays, enabling 1080p and 4K output simultaneously
- POWER OPTIONS: 4K HDMI Splitter includes a 31inch (78cm) USB power cable to connect to the included USB wall charger; USB-A power cable can be connected to any available 5V 1A USB port; Max 5W power consumption
- EXTRA-LONG CABLE: 1x2 splitter features a 20in built-in HDMI cable to connect to the source device, reducing strain on ports/connectors; Supports passive HDMI cables up to 16ft (5m) or active cables/extenders (sold separately) to reach further distances
- USER-FRIENDLY DESIGN: 1 in 2 out HDMI splitter features a reset button for easy troubleshooting and EDID redetection, without the need of unplugging cables; 8kV air and 6kV contact ESD protection; Driverless and OS independent
Description
Send a 4K 60Hz HDMI signal to two separate displays simultaneously, powered with a nearby USB port
This 2-port HDMI splitter displays the same image from an HDMI video source onto two HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), HDCP content, and 7.1 channel audio.
4K 60Hz Resolution
This 2-way HDMI splitter supports up to 4K 60Hz resolution and 4:4:4 chroma subsampling. Display 4K content on both your 4K displays or downscale the resolution to 1080p to support monitors with different resolutions, thanks to the built-in scaler. Ideal for environments containing displays of mixed resolutions.
USB Powered

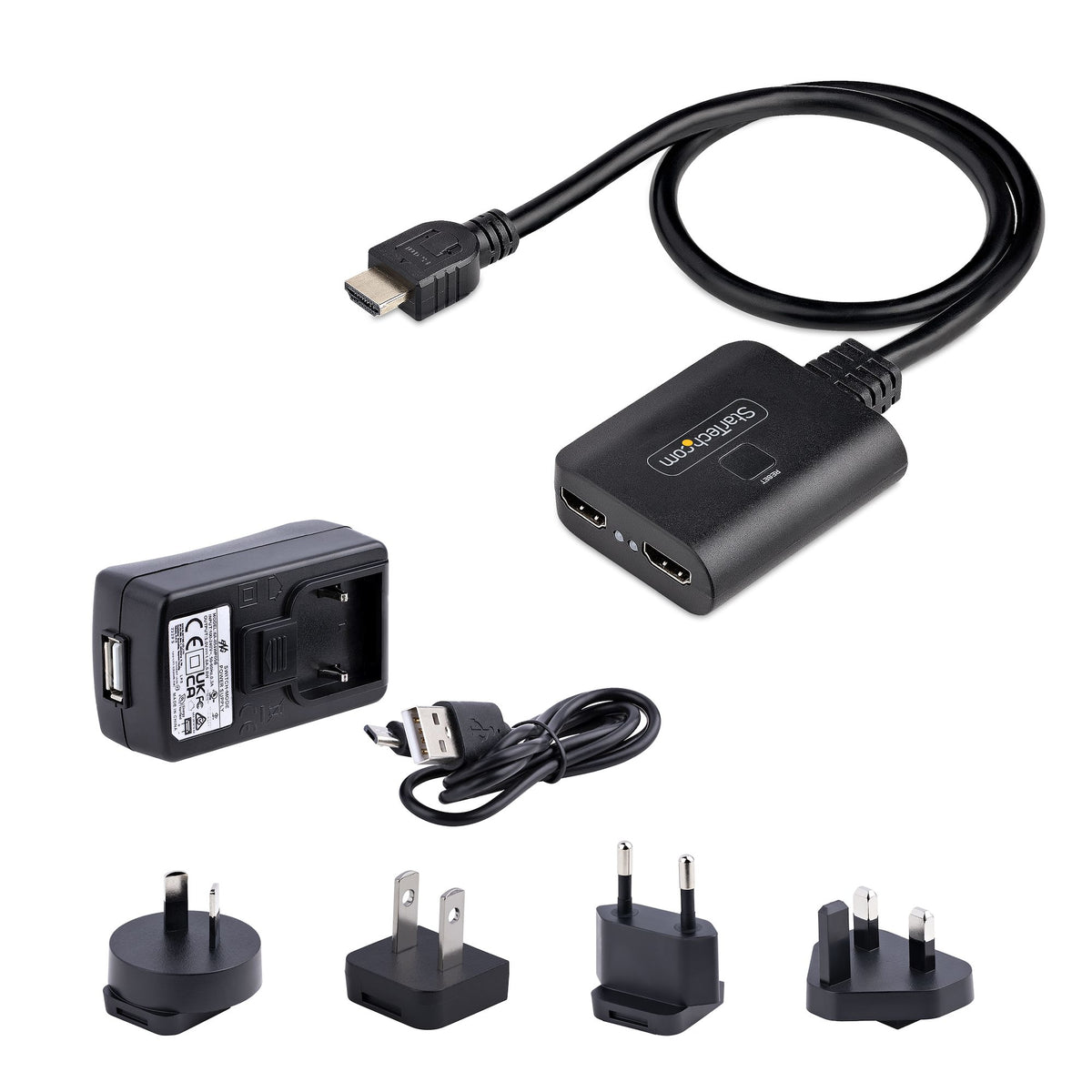

The splitter includes a 31inch (78cm) USB Micro-B to Type-A power cable and USB wall charger. If an outlet is not available or within reach, the USB power cable can be connected to a 5V 1A USB Type-A port.
Robust Installation Options
This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The reset button enables hassle-free hot plug EDID detection, without the need of unplugging cables. The splitter features 8kV air and 6kV contact Electrostatic Discharge (ESD) protection, suitable for installation in a variety of environments.
This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.
This 2-port HDMI splitter displays the same image from an HDMI video source onto two HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), HDCP content, and 7.1 channel audio.
4K 60Hz Resolution
This 2-way HDMI splitter supports up to 4K 60Hz resolution and 4:4:4 chroma subsampling. Display 4K content on both your 4K displays or downscale the resolution to 1080p to support monitors with different resolutions, thanks to the built-in scaler. Ideal for environments containing displays of mixed resolutions.
USB Powered
The splitter includes a 31inch (78cm) USB Micro-B to Type-A power cable and USB wall charger. If an outlet is not available or within reach, the USB power cable can be connected to a 5V 1A USB Type-A port.
Robust Installation Options
This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The reset button enables hassle-free hot plug EDID detection, without the need of unplugging cables. The splitter features 8kV air and 6kV contact Electrostatic Discharge (ESD) protection, suitable for installation in a variety of environments.
This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.
Specs
Ports & interfaces
Video port type
The type of socket in the device for connecting a video e.g. SCART.
HDMI
Video out
2x HDMI
HDMI version
2.0
Video ports quantity
The number of ports (sockets) for video input or output.
2
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Input current
0.3 A
Output voltage
5 V
Output current
1 A
USB powered
The device can be powered via a USB connection.
Weight & dimensions
Width
The measurement or extent of something from side to side.
55 mm
Depth
The distance from the front to the back of something.
65 mm
Height
The measurement of the product from head to foot or from base to top.
19 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
92 g
Packaging content
Manual
Cables included
USB Type-A to Micro-USB Type-B
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 70 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 80 °C
Operating relative humidity (H-H)
5 - 90%
Logistics data
Master (outer) case width
630 mm
Master (outer) case length
470 mm
Master (outer) case height
220 mm
Quantity per master (outer) case
30 pc(s)
Features
Product color
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Acrylonitrile butadiene styrene (ABS)
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
4096 x 2160 pixels
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
4K Ultra HD
Maximum operating distance
The maximum distance from which you can operate the device.
5 m
Maximum refresh rate
60 Hz
High Dynamic Range (HDR) supported
Cable length
How long the cable is.
0,5 m
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
18 Gbit/s
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Supported video modes
The video modes that can be displayed by the device.
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
LED indicators
Power
Packaging data
Package width
The distance from one side of the packaging to the other.
219 mm
Package depth
The distance from the front to the back of the packaging.
180 mm
Package height
The distance from the top to the bottom of the packaging.
52 mm
Package weight
Weight of the packaged product in gram.
168 g
Sustainability
Sustainability compliance
Technical details
Supported audio channels
7.1
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
