STARTECH .com video capturing device USB 3.2 Gen 1 (3.1 Gen 1) (UVCHDCAP)
- Regular price
- 170.95$
- Sale price
- 170.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com UVCHDCAP video capturing device USB 3.2 Gen 1 (3.1 Gen 1)
Brand:StarTech.com
Product name:HDMI to USB C Video Capture Device 1080p 60fps - UVC - External USB 3.0 Type-C Capture/Live Streaming - HDMI Audio/Video Recorder Adapter - Works with USB-C/USB-A/Thunderbolt 3 - TAA
Product code:UVCHDCAP
EAN/UPC:
0065030876025
0065030876025, 065030876025
- HD VIDEO CAPTURE: Bus-powered USB 3.0 capture device records HDMI video to USB-C, TB3, TB4 or USB-A computer with low-latency; 1080p 60fps, 3.5mm 2ch audio, HDMI pass-through, H.264 software encoding (MJPEG/MPEG-2/MPEG-4)
- USB VIDEO CLASS: UVC ensures an easy driverless setup, automatic install in Windows (8 & up), Mac (10.11 & up) & Linux (4.x LTS); Capture device is compatible with DirectShow & QuickTime applications
- APPLICATIONS: Experience HDMI playback while recording conference calls, camera feeds or live streaming at 1080p60 with Streamcatcher or 3rd party software (OBS); Live streaming on YouTube/platforms w/ RTSP, RTMP; Works with Teams & Zoom
- PORTABLE & DURABLE: Compact & lightweight aluminum screen recorder adapter is easy to carry from a media room, classroom or recording studio, so you can connect the device directly to a laptop/desktop
- COMPATIBILITY: External video capture card with included Stream Catcher software works with Windows; HDCP compliant, will not capture protected-content source video like Blu-rays or video output from a Mac
Description
HDMI® Recorder| USB 3.0 | USB Video Class | USB-A Cable Included
This HDMI® to USB-C™ video capture device lets you record HDMI video to your USB-C, USB-A or Thunderbolt™ 3 computer.
Easy Setup, Easy Capture
For hassle-free recording, you can install the HDMI capture device by simply connecting it to your computer. The capture device features USB Video Class (UVC), a video capture standard that's natively supported by Mac, Windows® and Linux®. Unlike other capture devices that require proprietary driver installation, UVC based capture devices install automatically for a truly plug-and-play solution. Also, with this recorder you're not limited to the included software; you can use any third-party software that uses UVC compatible frameworks such as Quicktime or DirectShow®.
Capture HD Video
Record 1080p video at 60fps (frames per second) from your Windows PC, gaming console, camera (and more) so you can save, share or edit your content. Capture meetings, presentations, conference calls and security footage directly to your computer.
Stream Your 1080p Content
Stream video over the web using Twitch™ or other third-party streaming platforms. With the included software or third-party UVC compatible software like Open Broadcaster Software (OBS), you can live broadcast video over the internet using third-party video streaming platforms.
Note: This device is HDCP compliant, and will not capture copy protected video, such as Blu-rays or the video output of Mac computers. However, this device will capture video to Mac computers and will capture non-encrypted video.
The StarTech.com Advantage
This HDMI® to USB-C™ video capture device lets you record HDMI video to your USB-C, USB-A or Thunderbolt™ 3 computer.
Easy Setup, Easy Capture
For hassle-free recording, you can install the HDMI capture device by simply connecting it to your computer. The capture device features USB Video Class (UVC), a video capture standard that's natively supported by Mac, Windows® and Linux®. Unlike other capture devices that require proprietary driver installation, UVC based capture devices install automatically for a truly plug-and-play solution. Also, with this recorder you're not limited to the included software; you can use any third-party software that uses UVC compatible frameworks such as Quicktime or DirectShow®.
Capture HD Video
Record 1080p video at 60fps (frames per second) from your Windows PC, gaming console, camera (and more) so you can save, share or edit your content. Capture meetings, presentations, conference calls and security footage directly to your computer.
Stream Your 1080p Content
Stream video over the web using Twitch™ or other third-party streaming platforms. With the included software or third-party UVC compatible software like Open Broadcaster Software (OBS), you can live broadcast video over the internet using third-party video streaming platforms.
Note: This device is HDCP compliant, and will not capture copy protected video, such as Blu-rays or the video output of Mac computers. However, this device will capture video to Mac computers and will capture non-encrypted video.
The StarTech.com Advantage
Specs
Performance
Product color
The colour e.g. red, blue, green, black, white.
Black, Silver
Internal
The product is built in.
Host interface
Interface that enables a host controller to communicate with a driver.
USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max)
1920 x 1080 pixels
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Mstar MST3363CNK-170
Ports & interfaces
USB port
The device features a socket into which a USB cable can be plugged.
USB connector type
The type of USB connector/port that this product has.
USB Type-B
USB version
Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.
3.2 Gen 1 (3.1 Gen 1)
HDMI in
Port (socket) for HDMI input.
1
Number of HDMI outputs
Port (socket) for HDMI output.
1
Audio (L/R) in
The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable).
1
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
Weight & dimensions
Width
The measurement or extent of something from side to side.
60 mm
Depth
The distance from the front to the back of something.
92 mm
Height
The measurement of the product from head to foot or from base to top.
23 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
86 g

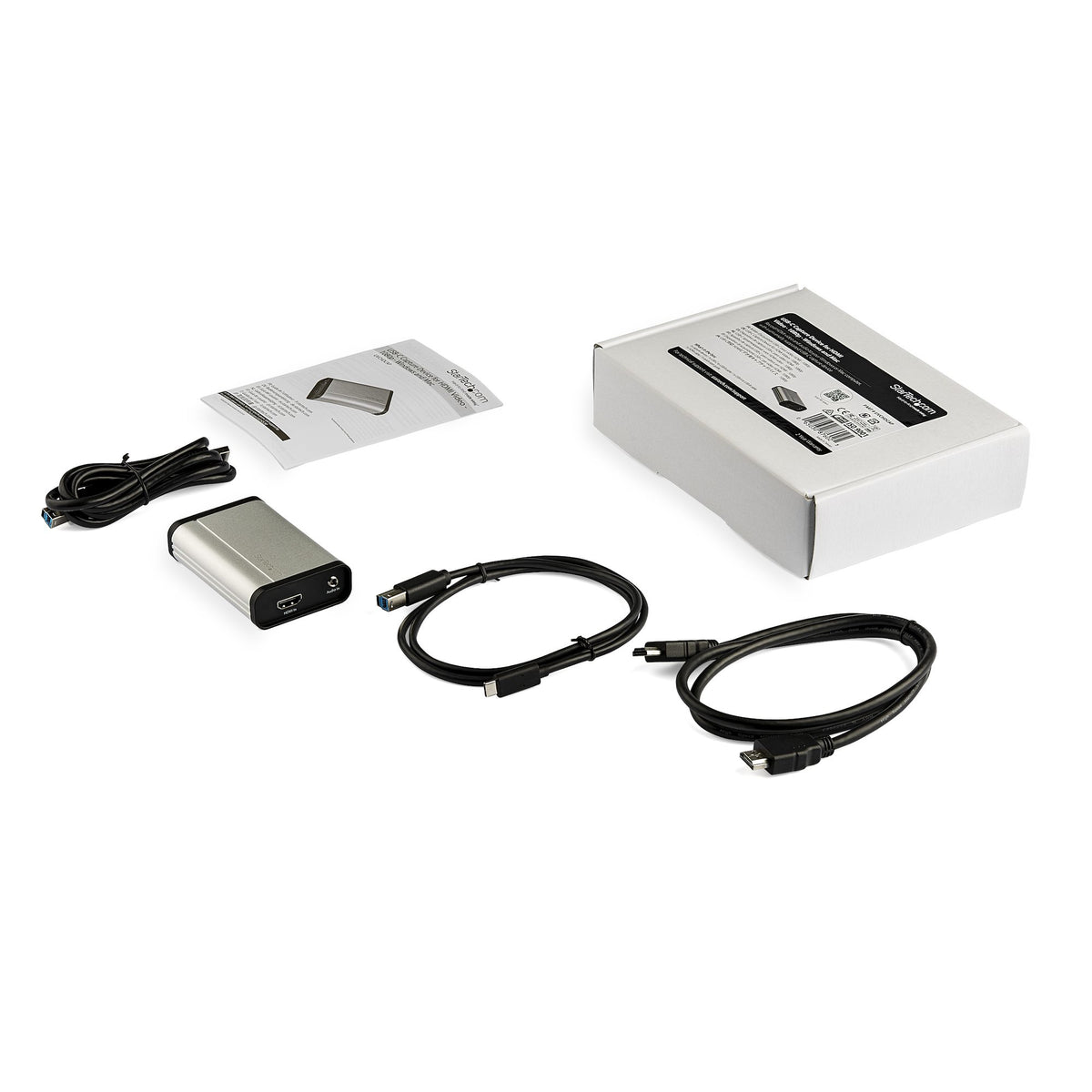

Packaging content
Cables included
HDMI, USB
User guide
Logistics data
Quantity per master (outer) case
48 pc(s)
Master (outer) case length
470 mm
Harmonized System (HS) code
85176990
Video
Supported resolutions
1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600
Maximum frame rate
This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz).
60 fps
Supported video modes
The video modes that can be displayed by the device.
1080p
Audio
Audio support
Supported audio channels
2
Power
Power supply type
The type of power supply which this product uses.
USB
Software
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility
Product can be used with Apple Mac software and/or hardware.
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-5 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Other features
Master (outer) case width
470 mm
Master (outer) case height
470 mm
Packaging data
Package weight
Weight of the packaged product in gram.
470 g
Package height
The distance from the top to the bottom of the packaging.
215 mm
Package width
The distance from one side of the packaging to the other.
470 mm
Package depth
The distance from the front to the back of the packaging.
215 mm
