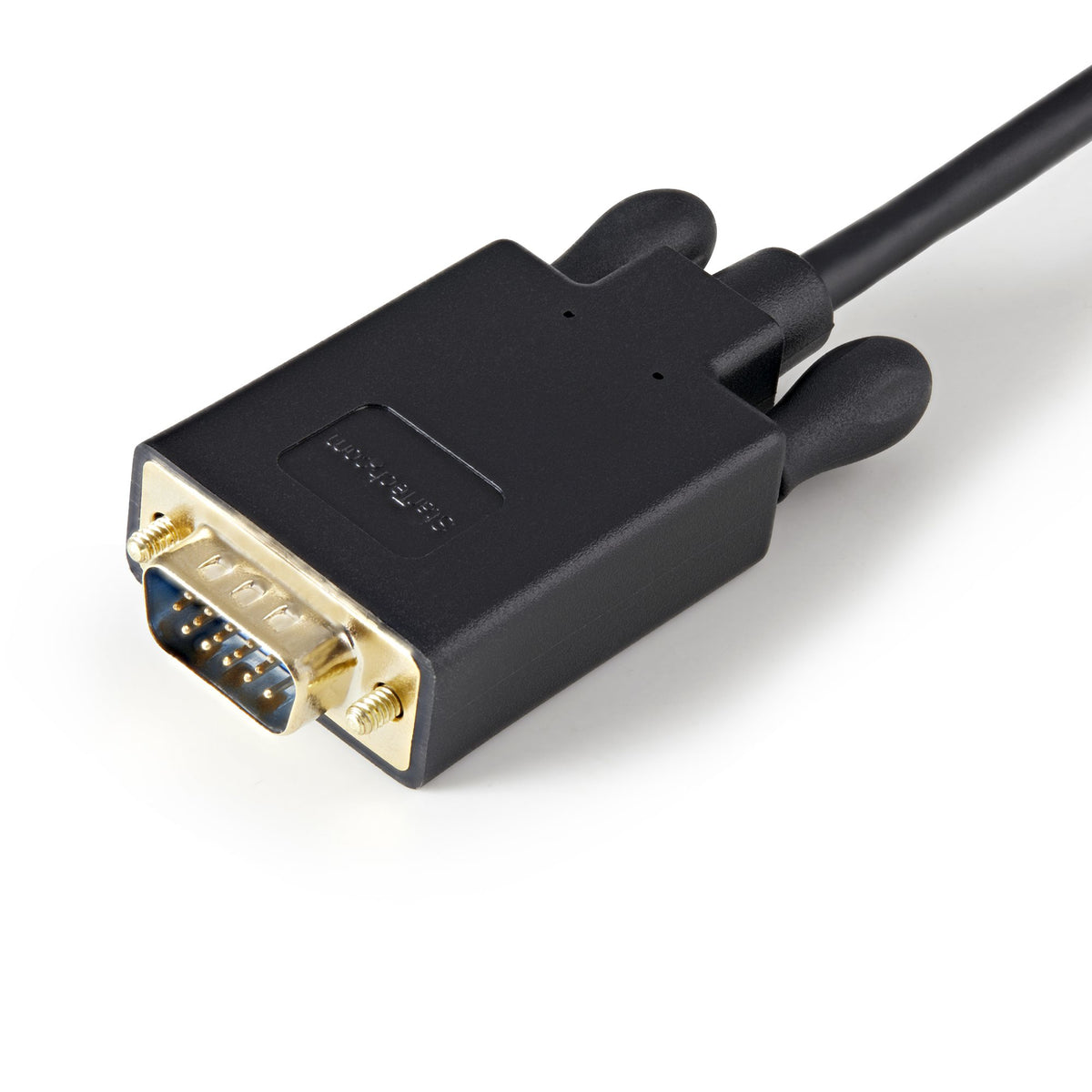

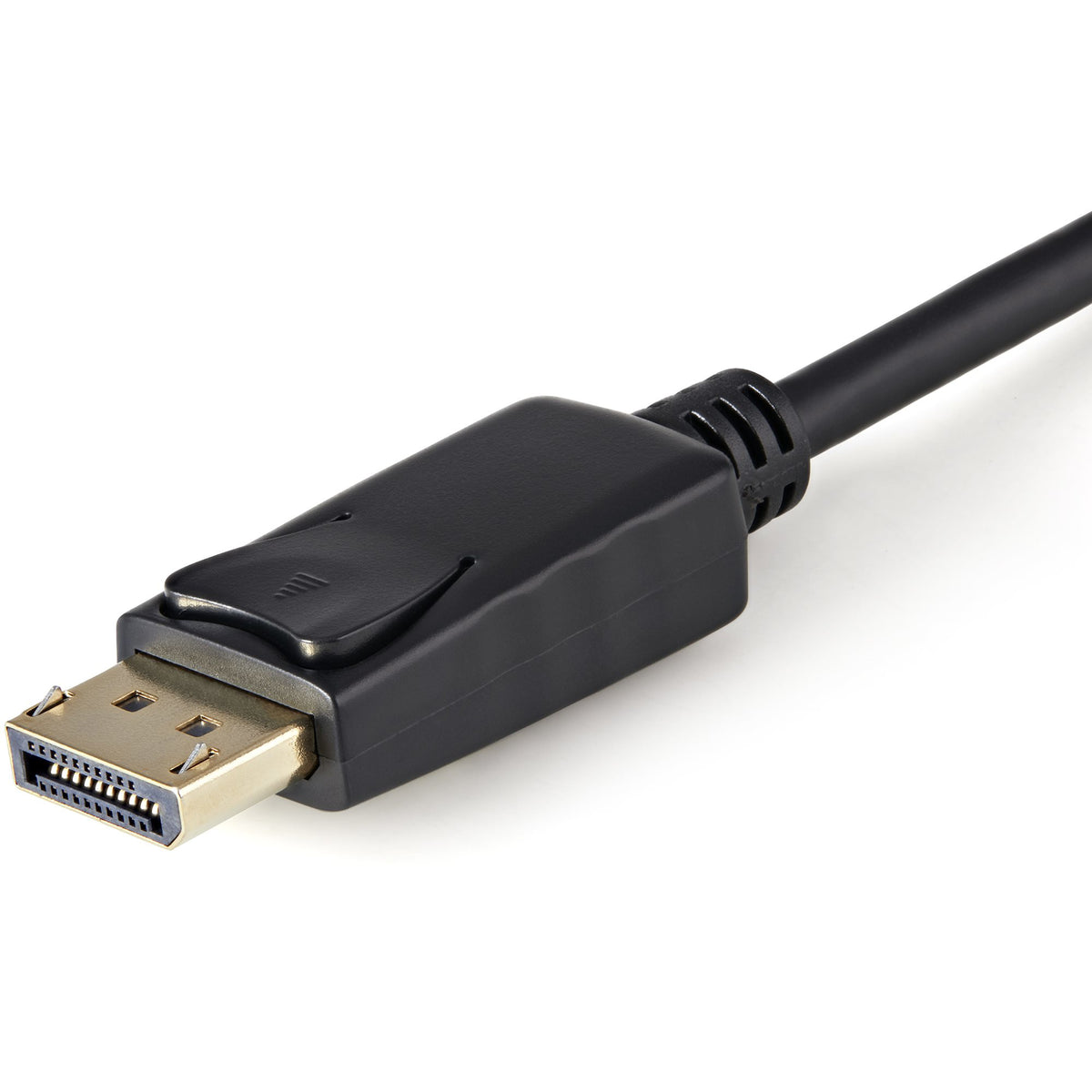

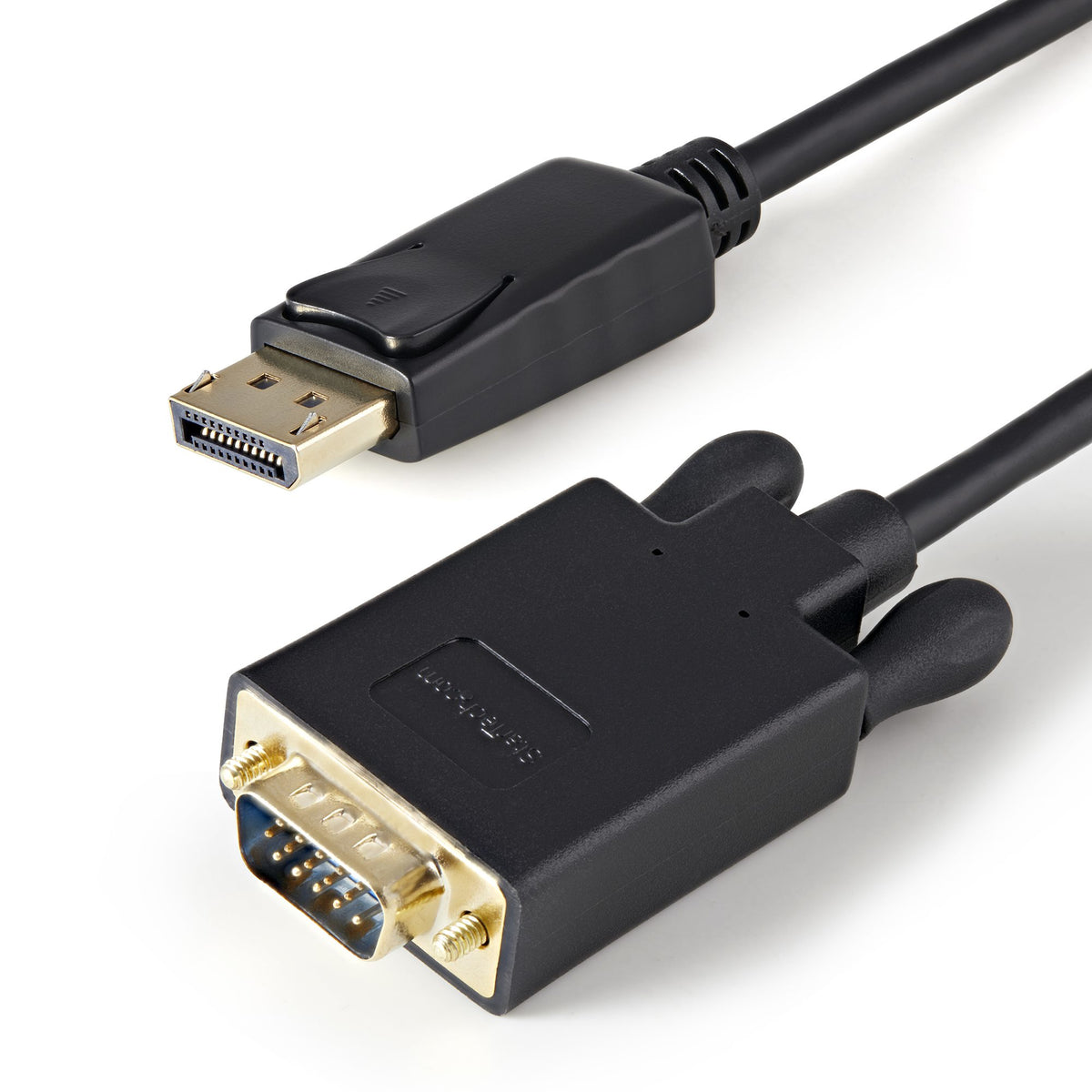

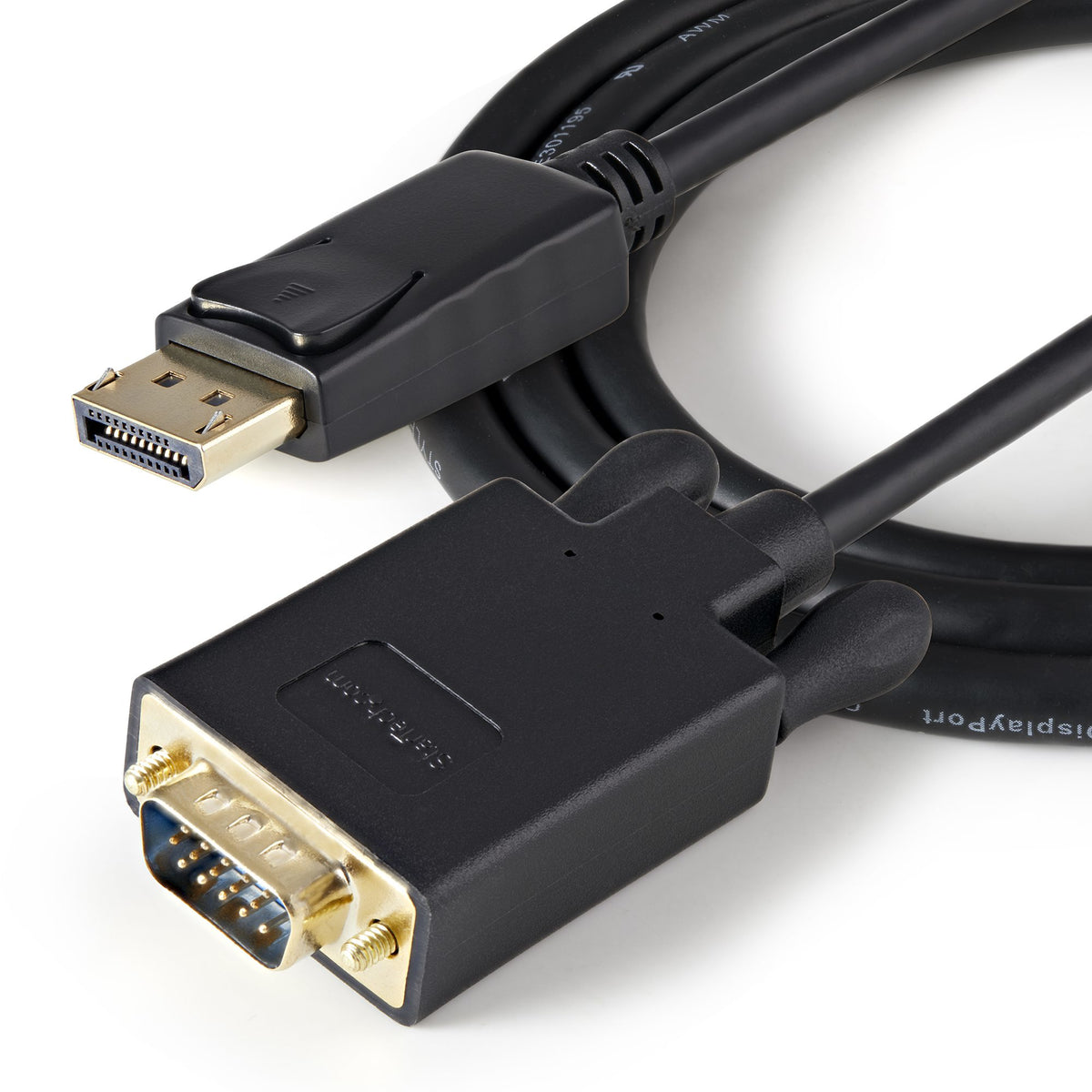

STARTECH .com video cable adapter 0,91 m DisplayPort VGA (D-Sub) Black (DP2VGAMM3B)
- Regular price
- 36.95$
- Sale price
- 36.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
StarTech.com DP2VGAMM3B video cable adapter 0,91 m DisplayPort VGA (D-Sub) Black
Brand:StarTech.com
Product name:3ft (91cm) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Converter - Latching DP Connector
Product code:DP2VGAMM3B
EAN/UPC:
0065030852456
0065030852456, 065030852456, 0014445675709, 014445675709
- DISPLAYPORT TO VGA CABLE: 3ft (1m) DisplayPort 1.2 (HBR2) adapter cable lets you connect a single VGA display supporting 2048x1280, 1920x1200 & 1920x1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display
- COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- INTEGRATED DISPLAY CABLE: Adapter cable has a slim & flexible design w/ adapter chip built into VGA connector reducing clutter & providing a tidy install at your desk workstation in the office or home office
- LATCHING DISPLAYPORT & SCREW LOCKING VGA: Latching DP connector ensures a solid host connection, and chip built into VGA connector minimizes signal loss / Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection
- EASY TO USE: With no software or drivers required, the DP to VGA video converter cable/cord works with any OS including macOS, Windows & Ubuntu / DP Source to VGA Monitor/Display/Projector/ DisplayPort Male to VGA Male Cable
Description
Connect a DisplayPort-equipped PC to a nearby VGA monitor/Projector, with a short 3 foot cable
The DP2VGAMM3B active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a nearby VGA monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.
The DP2VGAMM3B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The DP2VGAMM3B active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a nearby VGA monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.
The DP2VGAMM3B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Specs
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Cable length
How long the cable is.
0,91 m
Connector 1
This is the first connector in the device.
DisplayPort
Connector 2
This is the second connector in the device.
VGA (D-Sub)
Connector 1 gender
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2 gender
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
Male
DisplayPort version
1.2
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
2048 x 1280 pixels
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280
Maximum refresh rate
60 Hz
HBR2 support
Product color
The colour e.g. red, blue, green, black, white.
Black
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Analogix - 9832
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Converter type
Active video converter
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 60 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 70 °C
Operating relative humidity (H-H)
40 - 85%
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
Weight & dimensions
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
79 g
Width
The measurement or extent of something from side to side.
40 mm
Depth
The distance from the front to the back of something.
915 mm
Height
The measurement of the product from head to foot or from base to top.
15 mm
Packaging data
Package width
The distance from one side of the packaging to the other.
200 mm
Package depth
The distance from the front to the back of the packaging.
220 mm
Package height
The distance from the top to the bottom of the packaging.
15 mm
Package weight
Weight of the packaged product in gram.
90 g
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Harmonized System (HS) code
84733080
Master (outer) case width
420 mm
Master (outer) case length
440 mm
Master (outer) case height
420 mm
Quantity per master (outer) case
200 pc(s)
