STARTECH .com video cable adapter 0,37 m DisplayPort DVI-D Black (DP2DVID2)
- Regular price
- 88.95$
- Sale price
- 88.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

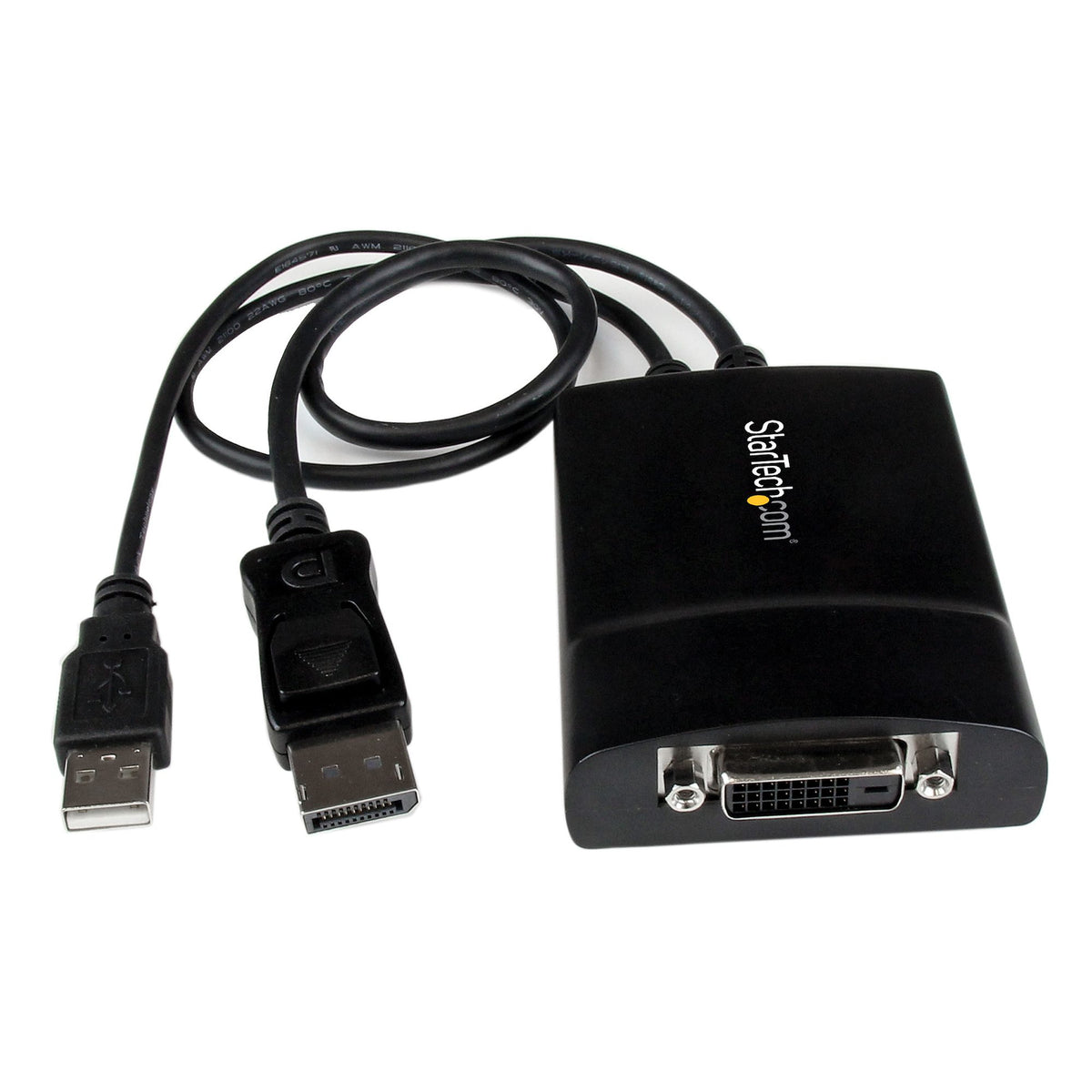

StarTech.com DP2DVID2 video cable adapter 0,37 m DisplayPort DVI-D Black
Brand:StarTech.com
Product name:DisplayPort to DVI Dual Link Active Adapter - DisplayPort to DVI-D Adapter Video Converter 2560x1600 60Hz - DP 1.2 to DVI Monitor - USB Powered - Latching DP Connector
Product code:DP2DVID2
EAN/UPC:
0065030848749
0065030848749, 065030848749, 0650308487494, 650308487494, 5054533447035

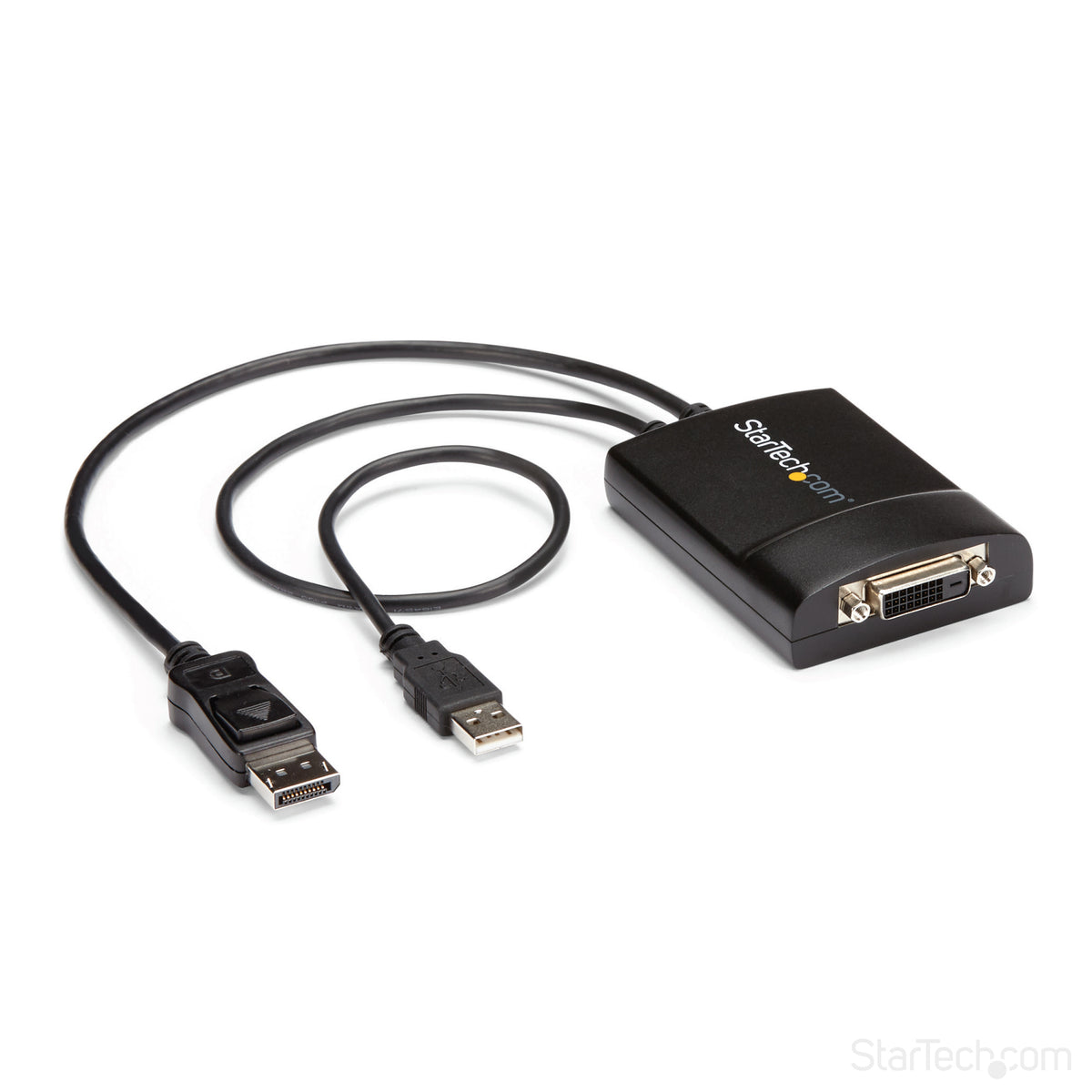

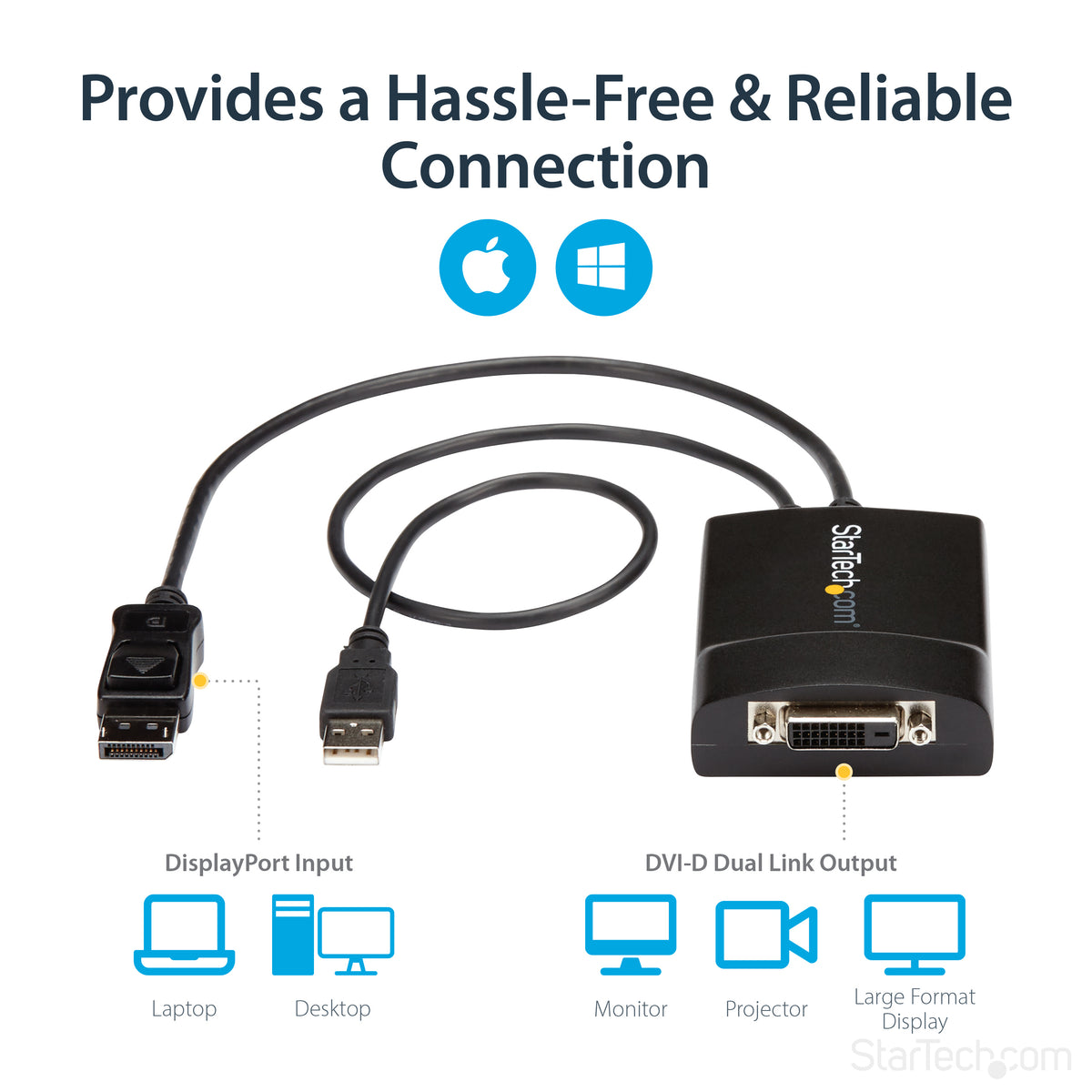

- DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D dual-link adapter connects a DVI display supporting 2560x1600 60Hz (dual-link) or 1920x1200/1080p 120Hz (single-link); HDCP compliant; / 15" (37cm) attached cable / USB-Powered / EDID pass-through

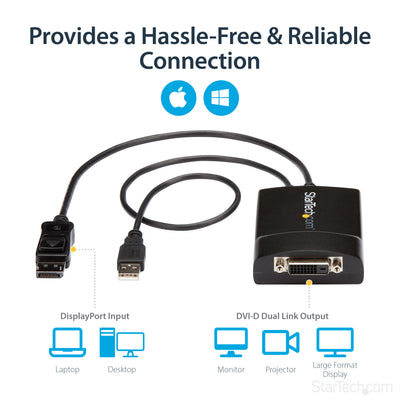

- COMPATIBILITY: Active video converter supports DP (single mode) or DP++ (multi-mode) source including workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector or add a second display to your workstation / Compact design /Tested w/ DVI cables up to 25ft / Supports widescreen/ultrawide & Apple Cinema Display HD / Ideal for digital signage

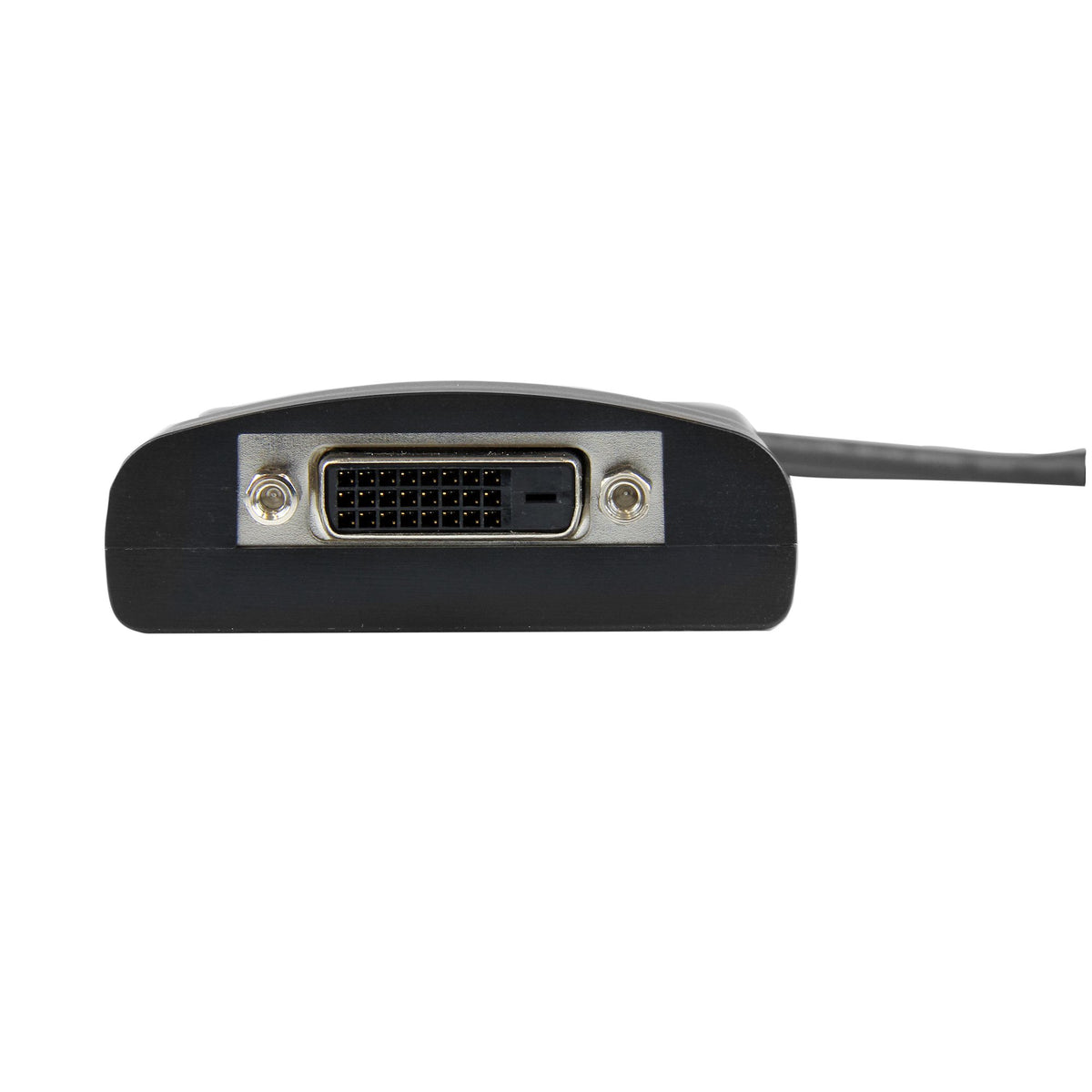

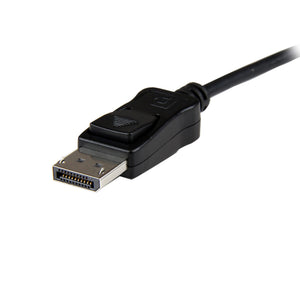

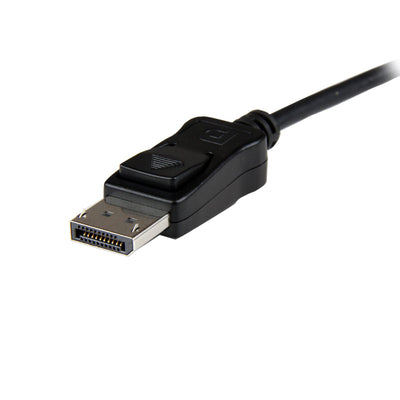

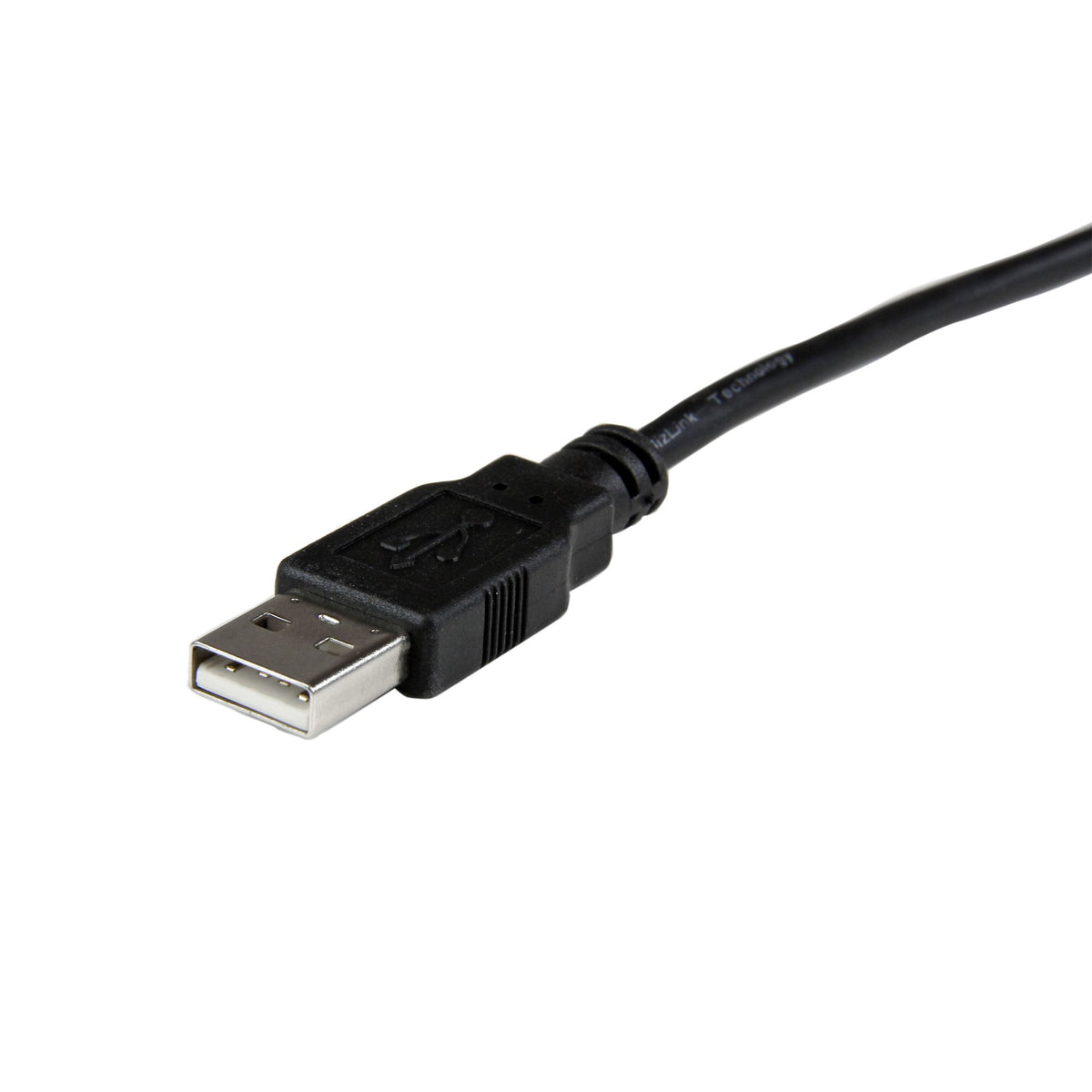

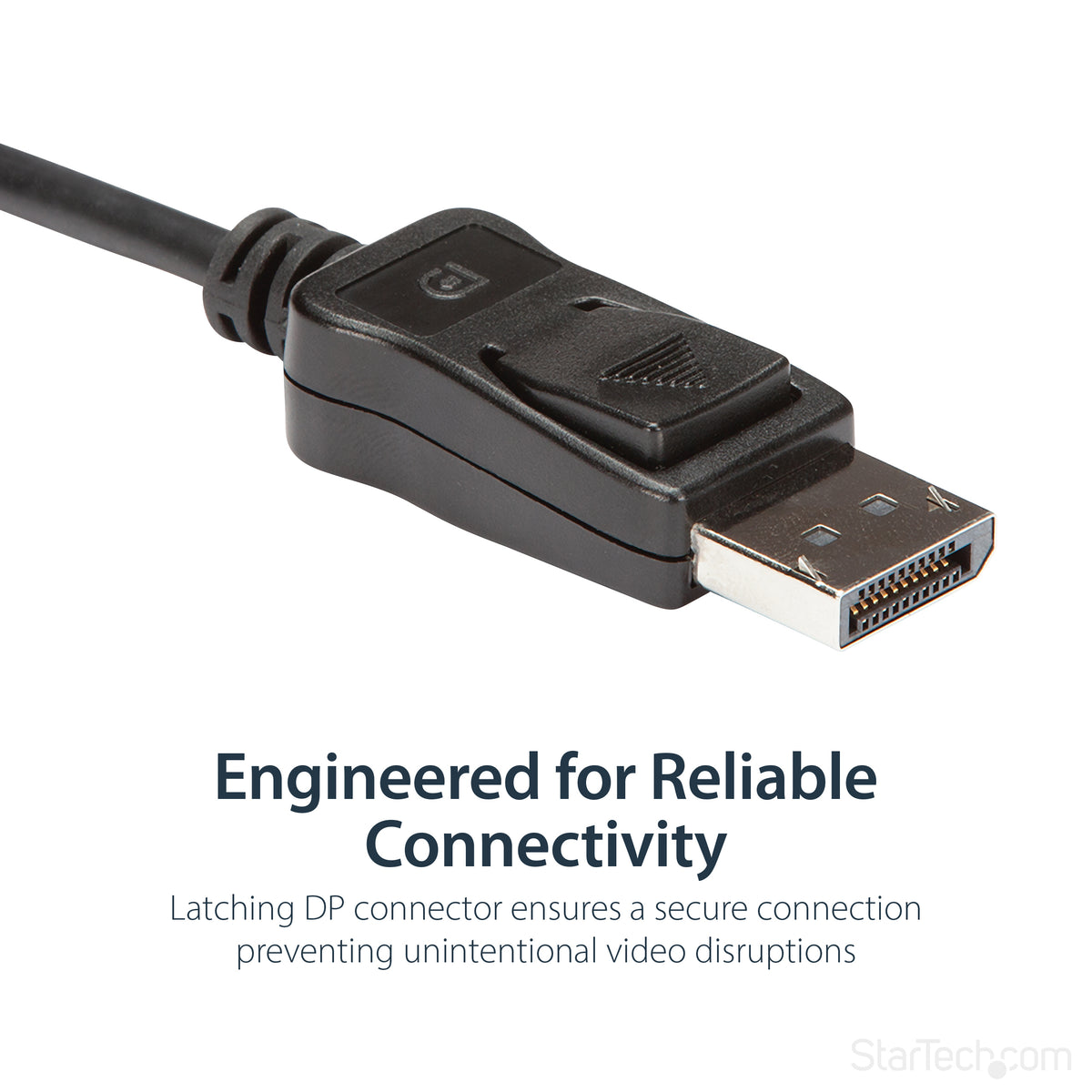

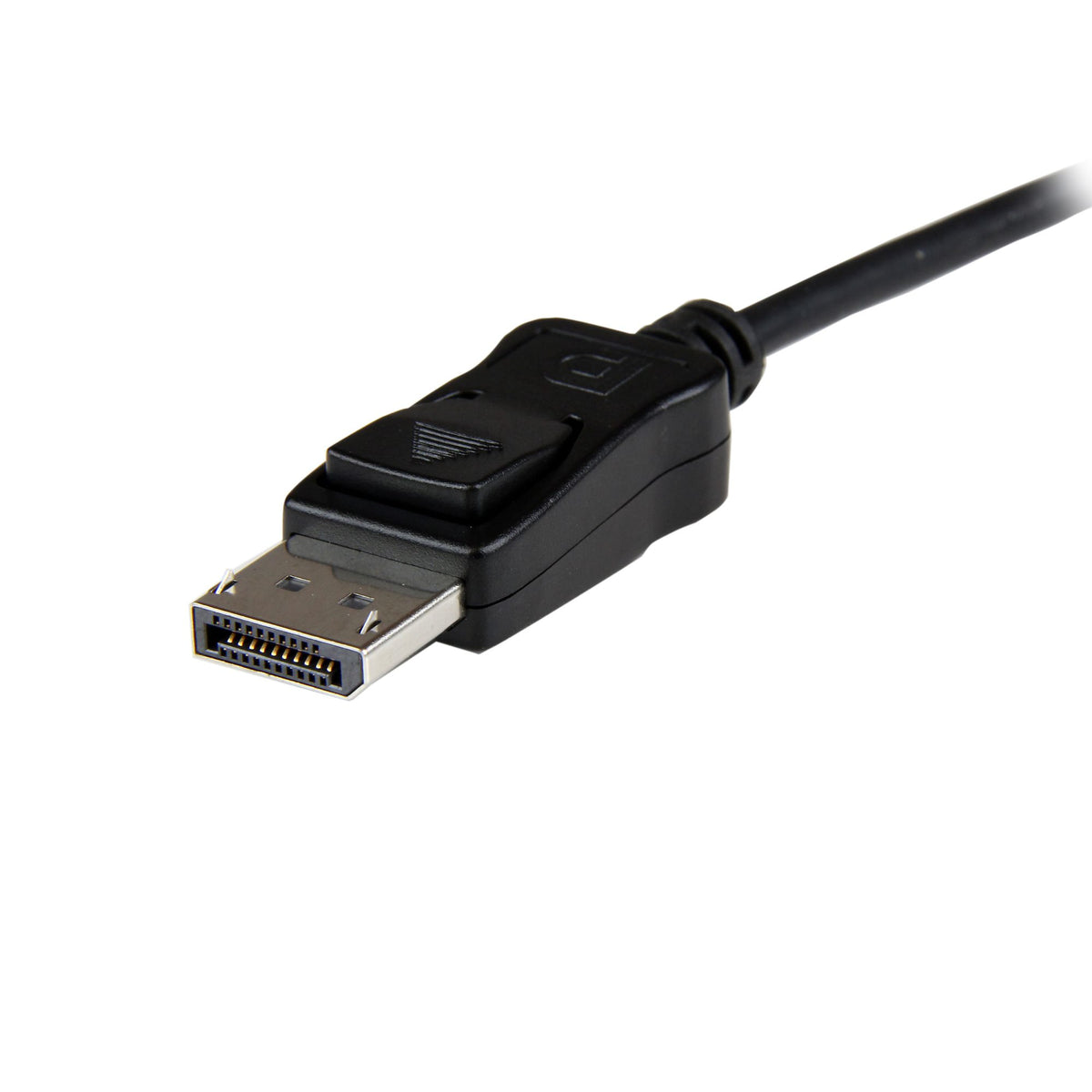

- LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching nickel-plated DP connector with gold-plated contacts ensure a solid host connection / Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection / 18" (46cm) USB cable

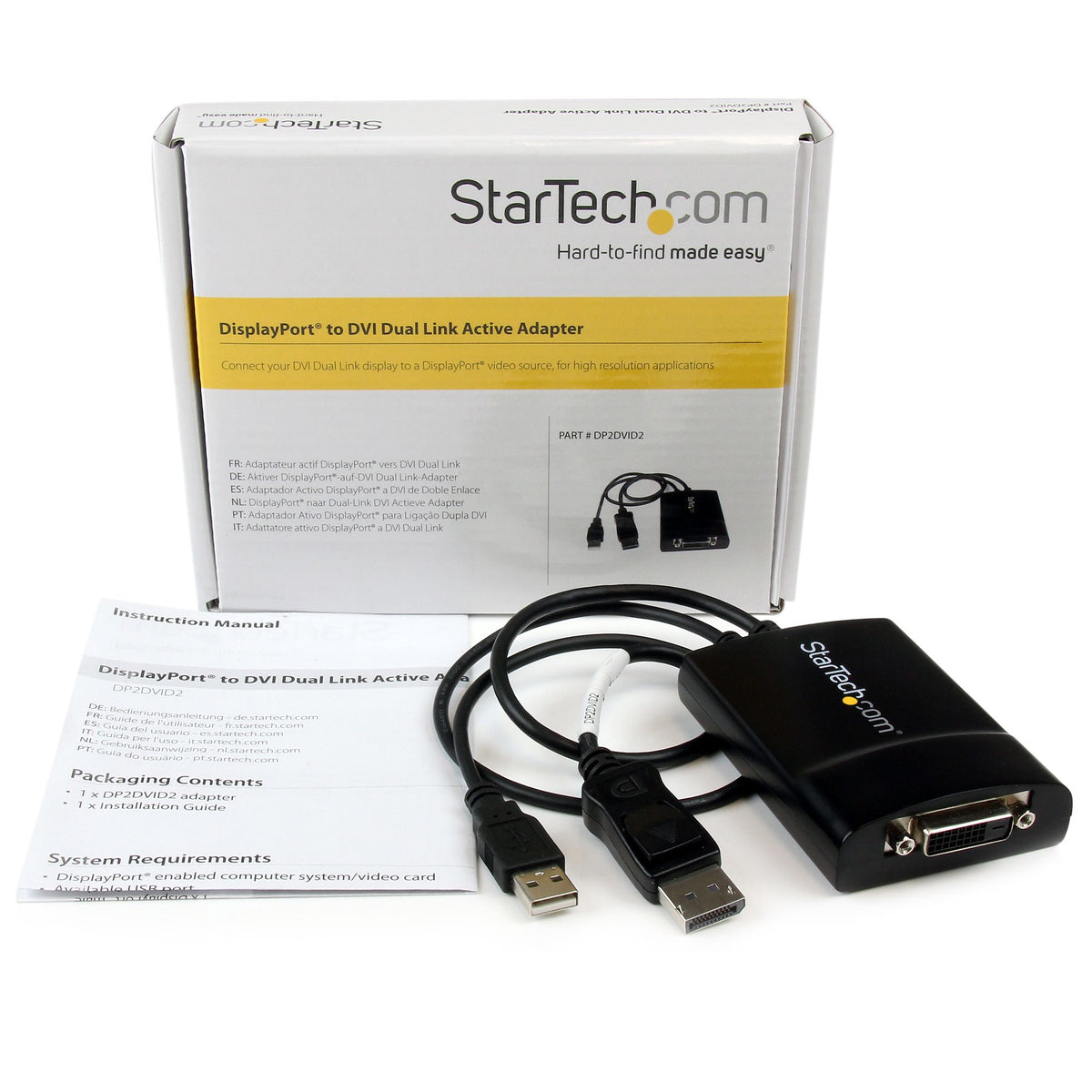

- EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works with any OS; DisplayPort male to DVI female adapter dongle
Description
Connect your DVI Dual Link display to a DisplayPort® video source, for high resolution applications

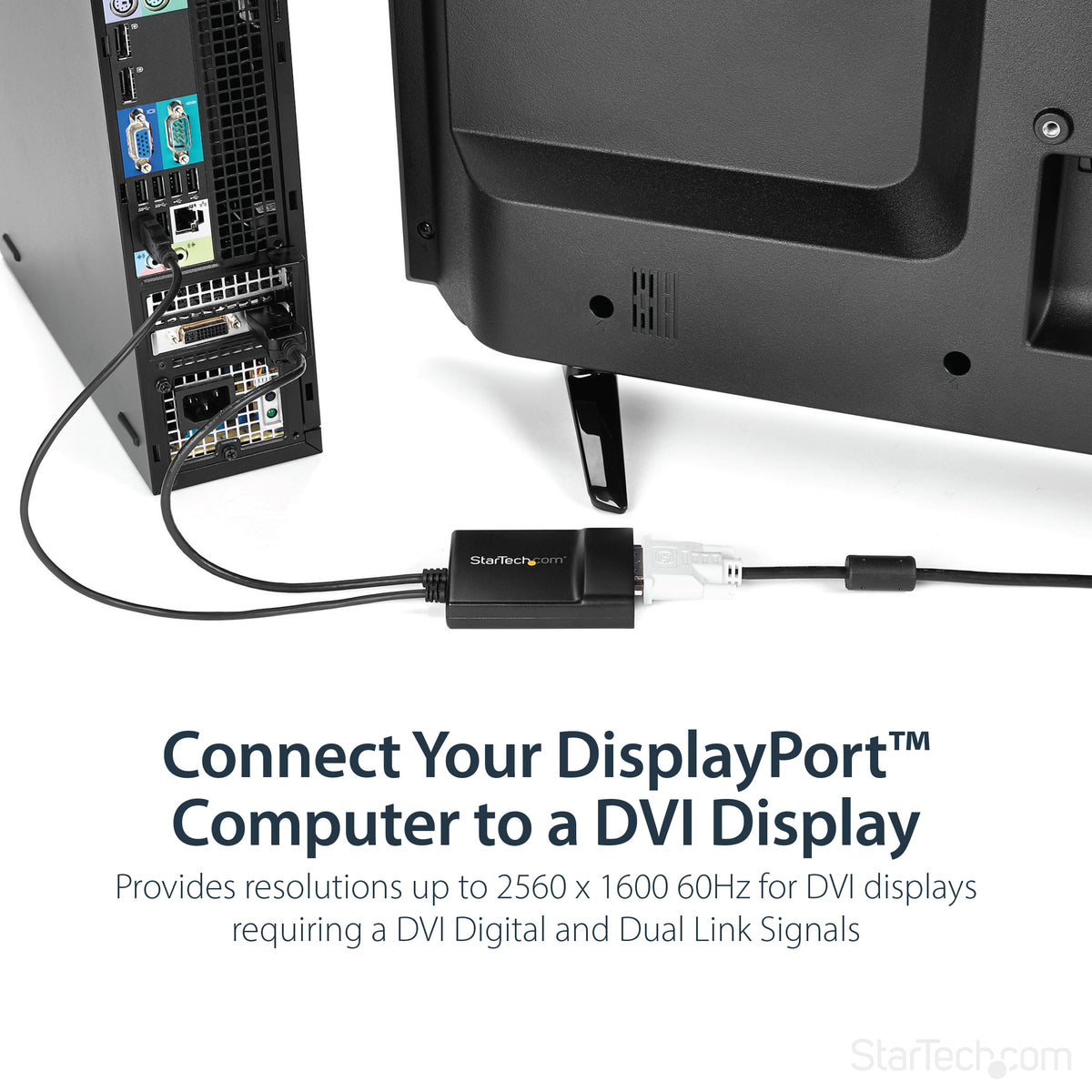

The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Back by StarTech.com 3-year warranty, with free lifetime technical support.
The StarTech.com Advantage
The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Back by StarTech.com 3-year warranty, with free lifetime technical support.
The StarTech.com Advantage
Specs
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Power source
What is providing power for the product e.g. mains electricity.
USB
Cable length
How long the cable is.
0,37 m
Connector 1
This is the first connector in the device.
DisplayPort
Connector 2
This is the second connector in the device.
DVI-D
Connector 1 gender
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2 gender
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
Female
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
DisplayPort version
1.2
Dual Link DVI
A dual-link DVI interface sends data over both of the DVI links to the monitor, and this is how higher resolutions are achieved. With dual-link DVI, a resolution of 2048 x 1536 is possible.
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
2560 x 1600 pixels
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Maximum refresh rate
120 Hz
HBR2 support
Product color
The colour e.g. red, blue, green, black, white.
Black
Converter type
Active video converter
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 45 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 70 °C
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
Weight & dimensions
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
160 g
Width
The measurement or extent of something from side to side.
64 mm
Depth
The distance from the front to the back of something.
549 mm
Height
The measurement of the product from head to foot or from base to top.
22 mm
Packaging data
Package width
The distance from one side of the packaging to the other.
174 mm
Package depth
The distance from the front to the back of the packaging.
143 mm
Package height
The distance from the top to the bottom of the packaging.
35 mm
Package weight
Weight of the packaged product in gram.
232 g
Logistics data
Harmonized System (HS) code
84733080
Master (outer) case width
337 mm
Master (outer) case length
497 mm
Master (outer) case height
220 mm
Quantity per master (outer) case
28 pc(s)
