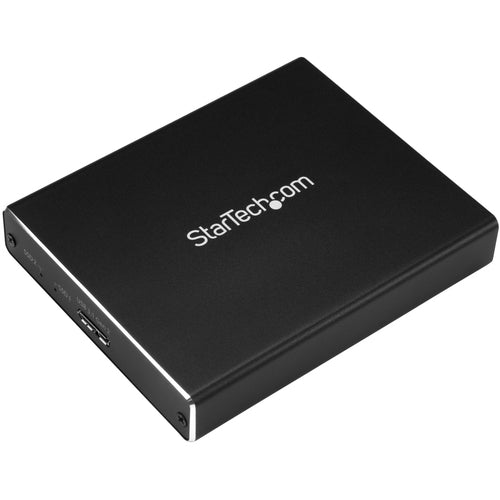

STARTECH .com storage drive enclosure SSD enclosure Black M.2 (SM22BU31C3R)
- Regular price
- 85.95$
- Sale price
- 85.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

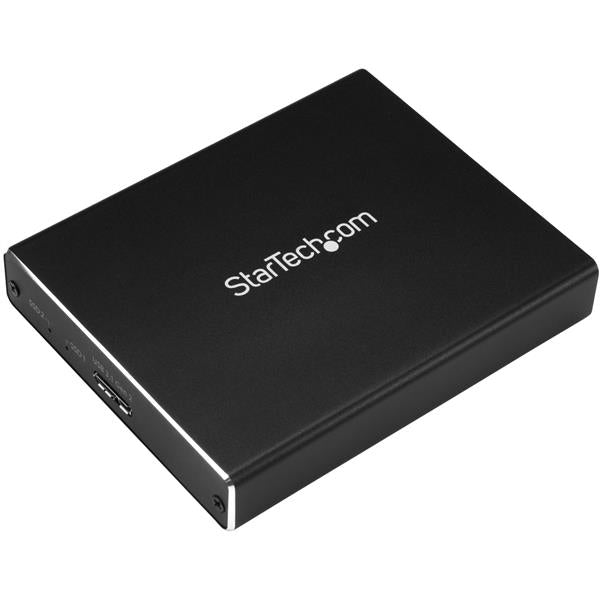

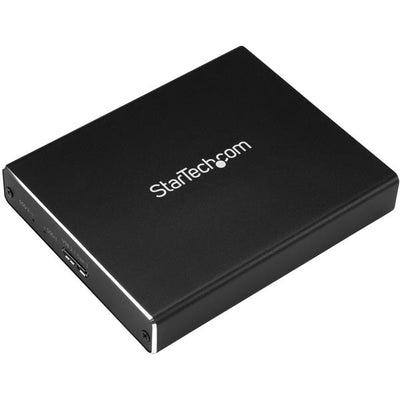

StarTech.com SM22BU31C3R storage drive enclosure SSD enclosure Black M.2
Brand:StarTech.com
Product name:Dual-Slot Drive Enclosure for M.2 SATA SSDs - USB 3.1 (10Gbps) - RAID - TAA
Product code:SM22BU31C3R
EAN/UPC:
0065030870757
0065030870757, 065030870757

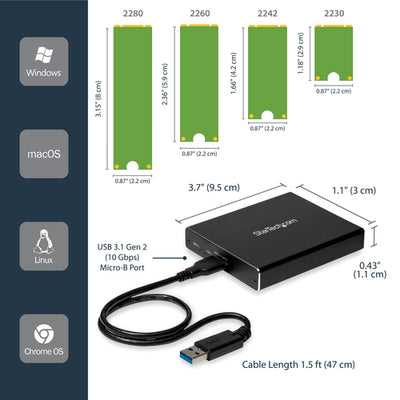

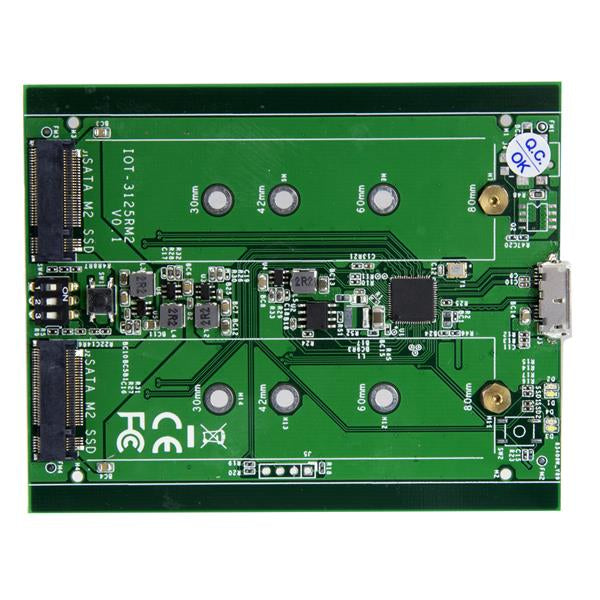

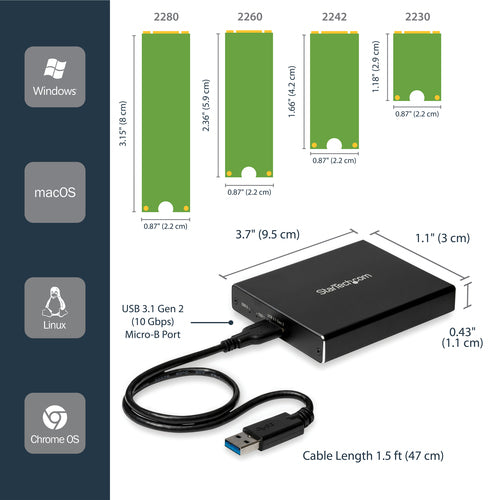

- ADD EXTERNAL STORAGE: This laptop hard drive enclosure supports all common M.2 SATA SSDs (solid state drives), and enables you to mount multiple drive sizes: 2230, 2242, 2260, 2280; NOTE: Not compatible with M.2 NVMe or AHCI PCI Express SSDs
- ENHANCED PERFORMANCE: This dual M.2 SATA RAID enclosure ensures easy access to your files for data migration and backup; Select from RAID 0, RAID 1, SPAN (BIG), and JBOD to configure your backup mode; SSD TRIM to prolong drive lifespan and performance

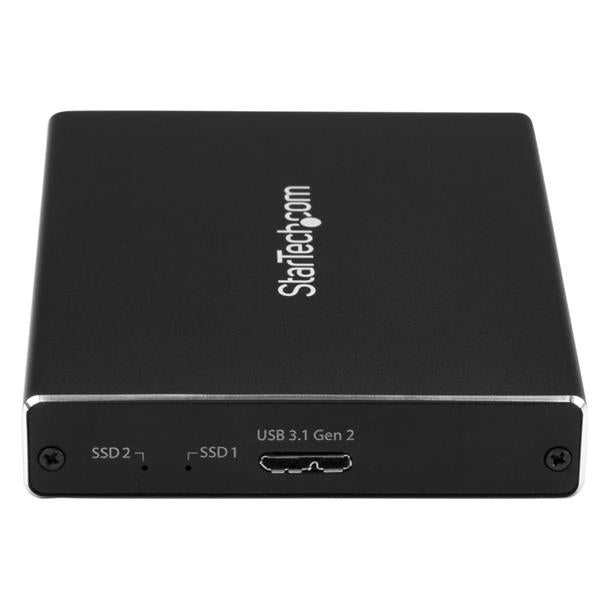

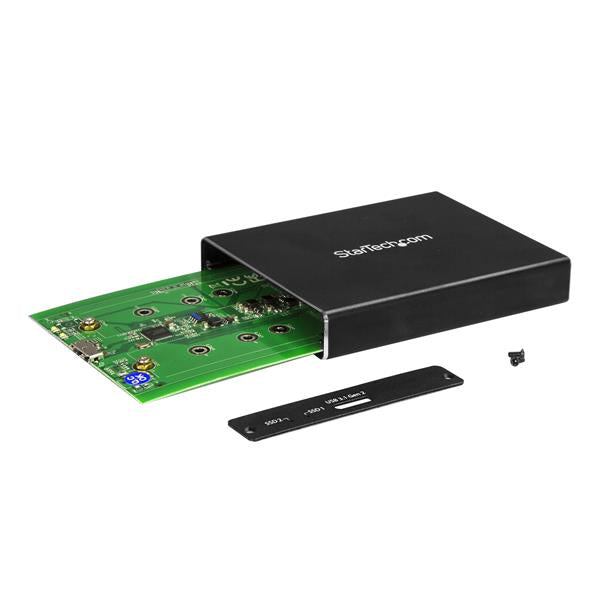

- DURABLE ALUMINUM: With this robust SATA M.2 external enclosure, your drive is encased in a durable and robust aluminum and plastic housing; Independent activity & status LEDs for each drive

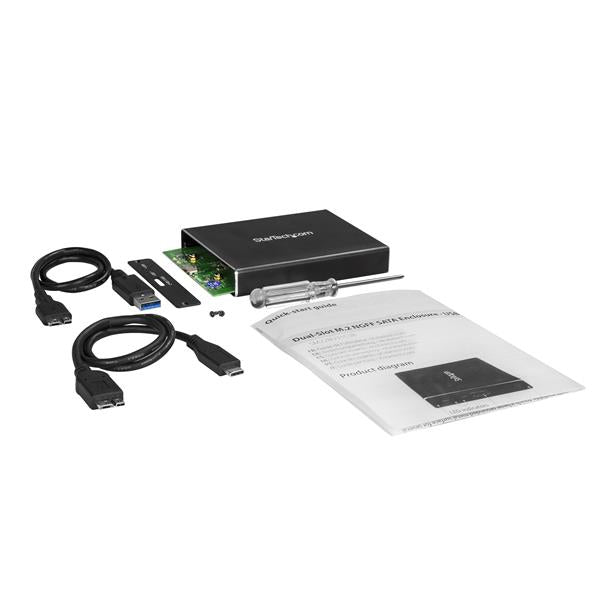

- MAXIMUM COMPATIBILITY: Includes 18.5in (47cm) USB Type-C host cable for newer USB-C enabled devices; Also includes 18.5in (47cm) USB Type-A host cable to ensure backward compatibility with USB 3.0/2.0 devices; Mounting screws and screwdriver included
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this TAA compliant dual-slot M.2 SATA RAID enclosure is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
Description

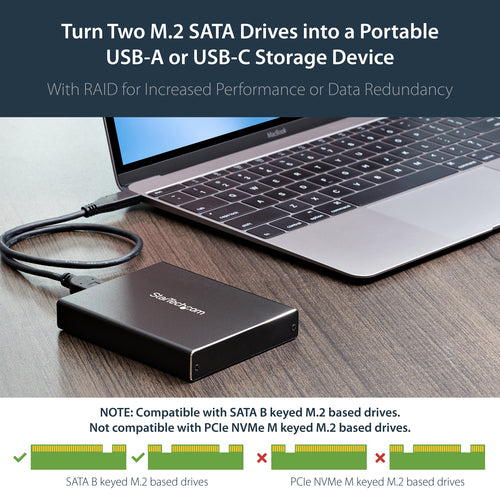

Turn two M.2 SATA drives into ultra-fast, portable storage with RAID for increased performance or redundancy
This dual M.2 SATA enclosure with RAID makes it easy to add ultra-fast, portable external storage to your USB-C™ or USB-A enabled laptop, tablet, smartphone or desktop computer. Its multiple RAID modes provide increased capacity, improved performance, or data redundancy.
Access your external data at greater speeds
Quickly access, transfer, and backup your files wherever you go. This dual-slot M.2 RAID enclosure enables you to easily access your data by creating a high-performance, ultra-portable storage solution using two M.2 (NGFF) SATA SSDs. It’s ideal for creative professionals, such as photographers and videographers, as well as professionals in corporate, educational and government sectors who need fast access to important data files, while out in the field or back at the office.

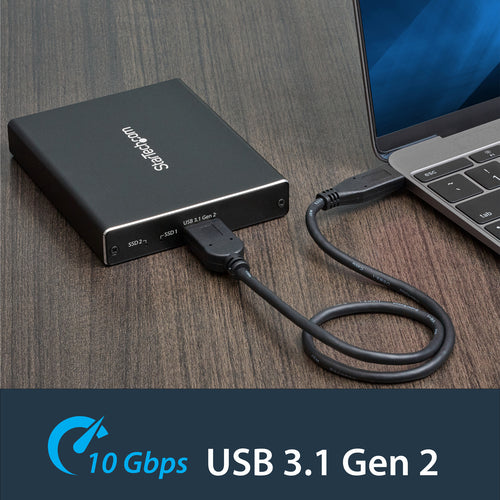

The RAID enclosure enables you to leverage the speed of your M.2 (NGFF) SATA drives by taking advantage of USB 3.1 Gen 2, with data transfer rates of up to 10Gbps. It ensures easy access to your files for data migration and data backups so that you can safeguard important data at all times.
Increase performance and data redundancy
With multiple RAID options, the M.2 RAID enclosure enables you to gain increased storage size, performance, or redundancy. You can enjoy the peace of mind of knowing your files are continually backed up, or take advantage of greater speed and capacity offered by a combined solution. The enclosure supports RAID 0, RAID 1, Spanning, and JBOD, enabling you to choose your preferred backup mode. It also supports SSD TRIM to prolong drive lifespan and performance.
Make your data more portable
The dual M.2 SATA enclosure provides a highly portable storage solution. With its compact design, you can tuck it away inside your laptop bag or carrying case and take it anywhere - to the office, the lab, or for mobile use, so that you can access your data wherever you go. Engineered with a solid aluminum housing, the dual-slot M.2 SATA enclosure helps to safeguard your data wherever you go.
The M.2 SATA RAID enclosure is powered directly from the USB port on your device, so no external power is required. It comes with two USB cables (USB-C to Micro-B and USB-A to Micro-B) for flexible use with the latest laptops and tablets equipped with a USB-Type C™ port as well as legacy devices. The enclosure is OS independent, with no additional software or driver installation required, and is compatiIt’s also compatible with a Thunderbolt™ 3 USB-C port.

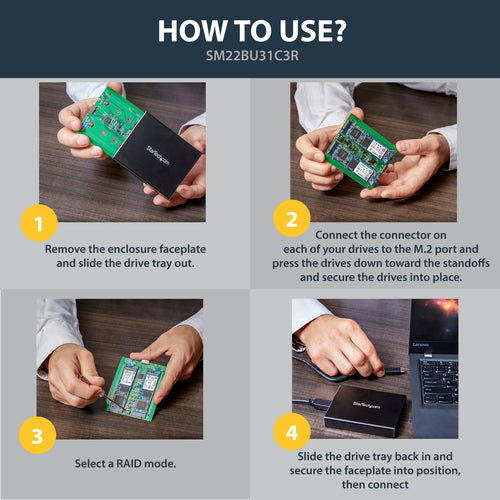

The SM22BU31C3R includes all required drive installation tools and hardware and is backed by a StarTech.com 2-year warranty and free lifetime technical support.
This dual M.2 SATA enclosure with RAID makes it easy to add ultra-fast, portable external storage to your USB-C™ or USB-A enabled laptop, tablet, smartphone or desktop computer. Its multiple RAID modes provide increased capacity, improved performance, or data redundancy.
Access your external data at greater speeds
Quickly access, transfer, and backup your files wherever you go. This dual-slot M.2 RAID enclosure enables you to easily access your data by creating a high-performance, ultra-portable storage solution using two M.2 (NGFF) SATA SSDs. It’s ideal for creative professionals, such as photographers and videographers, as well as professionals in corporate, educational and government sectors who need fast access to important data files, while out in the field or back at the office.
The RAID enclosure enables you to leverage the speed of your M.2 (NGFF) SATA drives by taking advantage of USB 3.1 Gen 2, with data transfer rates of up to 10Gbps. It ensures easy access to your files for data migration and data backups so that you can safeguard important data at all times.
Increase performance and data redundancy
With multiple RAID options, the M.2 RAID enclosure enables you to gain increased storage size, performance, or redundancy. You can enjoy the peace of mind of knowing your files are continually backed up, or take advantage of greater speed and capacity offered by a combined solution. The enclosure supports RAID 0, RAID 1, Spanning, and JBOD, enabling you to choose your preferred backup mode. It also supports SSD TRIM to prolong drive lifespan and performance.
Make your data more portable
The dual M.2 SATA enclosure provides a highly portable storage solution. With its compact design, you can tuck it away inside your laptop bag or carrying case and take it anywhere - to the office, the lab, or for mobile use, so that you can access your data wherever you go. Engineered with a solid aluminum housing, the dual-slot M.2 SATA enclosure helps to safeguard your data wherever you go.
The M.2 SATA RAID enclosure is powered directly from the USB port on your device, so no external power is required. It comes with two USB cables (USB-C to Micro-B and USB-A to Micro-B) for flexible use with the latest laptops and tablets equipped with a USB-Type C™ port as well as legacy devices. The enclosure is OS independent, with no additional software or driver installation required, and is compatiIt’s also compatible with a Thunderbolt™ 3 USB-C port.
The SM22BU31C3R includes all required drive installation tools and hardware and is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specs
Storage
Number of storage drives supported
How many storage drives can be fit into the product at once.
2
Storage drive size
The size of the storage drive, given in inches ('').
M.2
Supported storage drive interfaces
M.2, Serial ATA, Serial ATA II, Serial ATA III
Supported storage drive lengths
80 mm
RAID levels
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
0, 1, BIG, JBOD
Maximum storage capacity
The maximum amount of data that can be stored in the device.
2 TB
Design
Product type
The sub-category of the product.
SSD enclosure
Product color
The colour e.g. red, blue, green, black, white.
Black
Material
The material from which a thing is or can be made e.g. wood, plastic.
Aluminium
LED indicators
Yes
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
0 fan(s)
Certification
CE, FCC
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 60 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Packaging content
Cables included
USB
Screws included
Screwdriver included
Manual
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Logistics data
Harmonized System (HS) code
84733080
Master (outer) case width
487 mm
Master (outer) case length
543 mm
Master (outer) case height
337 mm
Quantity per master (outer) case
100 pc(s)
Ports & interfaces
USB connectivity
The product has USB connector.
USB version
Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.
3.2 Gen 2 (3.1 Gen 2)
USB connector type
The type of USB connector/port that this product has.
Micro-USB B
USB connector gender
Female
USB ports quantity
1
Integrated USB cable
Performance
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
10 Gbit/s
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
ASMedia - ASM1352R
UASP support
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
35000 h
Port multiplier
Power
Power source type
What the power source is.
USB
Weight & dimensions
Width
The measurement or extent of something from side to side.
80 mm
Depth
The distance from the front to the back of something.
100 mm
Height
The measurement of the product from head to foot or from base to top.
15 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
96 g
Package width
The distance from one side of the packaging to the other.
131 mm
Package depth
The distance from the front to the back of the packaging.
162 mm
Package height
The distance from the top to the bottom of the packaging.
32 mm
Package weight
Weight of the packaged product in gram.
195 g
