STARTECH .com storage drive docking station USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black (SDOCK4U313)
- Regular price
- 291.95$
- Sale price
- 291.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com SDOCK4U313 storage drive docking station USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black
Brand:StarTech.com
Product name:4-Bay USB to SATA Hard Drive Docking Station, USB 10Gbps, External 2.5" & 3.5" SSD / HDD Dock, SATA III, Hot-Swap Hard Drive Bay, Top-Loading
Product code:SDOCK4U313
EAN/UPC:
0065030870672
0065030870672, 065030870672
- HARD DRIVE DOCKING STATION: This 4-bay hard drive dock delivers instant access to up to four 2.5/3.5" SATA hard drives for file backup, imaging, or data transfer over USB 3.2 Gen 2 (10 Gbps). Tool-less design enables quick hot-swapping.
- DRIVE COMPATIBILITY: Supports 2.5/3.5" SATA HDDs & SSDs of any capacity / OS Independent / Backwards compatible w/ SATA I/II / IDE adapter (SAT2IDEADP) sold separately / Includes 3ft USB A/C cables and universal power adapter
- PERFORMANCE: Independently-powered SATA controllers enable drive hot swapping without interrupting other drive bays that are in use. Dual 60mm fans maintain optimal drive temperature for reliability and performance.
- SPECS: 4-Bay Hard Drive Dock / SATA I/II/III (1.5/3/6 Gbps) / USB 3.2 Gen 2 (10 Gbps) Host Connection / Dual 60mm Fans / Tool-less/Tray-less Design / Hot-Swappable Drive Bays / Top-Loading/Toaster-Style with Eject Buttons / LED Activity Lights
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this Quad-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance
Description
External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA I/II/III
This 4-bay SATA HDD docking station lets you access up to four solid-state drives or hard drives simultaneously over USB 10Gbps, and hot swap drives with ease. Ideal for IT professionals, the docking station provides large data capacity and fast file transfers, helping you manage your workflow more efficiently.
Save time accessing and managing your data
When you're managing a large number of drives, the HDD/SSD docking station saves you time. Quickly dock and swap your drives for disk imaging, data recovery from failing drives, data backups, or other tasks.
The hard drive docking station also has SMART support, for accessing important drive information such as hours in use, number of power cycles, and disk health.
Fast data transfers
With USB 3.2 Gen 2, the HDD docking station lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
Convenient compatibility
The hard drive docking station includes a USB Type-C cable, for connecting to USB-C equipped laptops and devices, and a USB Type-A cable, for backward compatibility with your existing USB 3.0, 2.0 and 1.x devices.
The docking station also works with 2.5" and 3.5" IDE hard drives, mSATA drives and M.2 drives using a compatible StarTech.com adapter:
IDE hard drives: Use StarTech.com adapter SAT2IDEADP SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks
mSATA drives: Use StarTech.com adapter SAT32MSAT257 mSATA SSD to 2.5in SATA Adapter Converter
M.2 drives: Use StarTech.com adapter SAT32M225 M.2 NGFF SSD to 2.5in SATA Adapter Converter
This 4-bay SATA HDD docking station lets you access up to four solid-state drives or hard drives simultaneously over USB 10Gbps, and hot swap drives with ease. Ideal for IT professionals, the docking station provides large data capacity and fast file transfers, helping you manage your workflow more efficiently.
Save time accessing and managing your data
When you're managing a large number of drives, the HDD/SSD docking station saves you time. Quickly dock and swap your drives for disk imaging, data recovery from failing drives, data backups, or other tasks.
The hard drive docking station also has SMART support, for accessing important drive information such as hours in use, number of power cycles, and disk health.
Fast data transfers
With USB 3.2 Gen 2, the HDD docking station lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
Convenient compatibility
The hard drive docking station includes a USB Type-C cable, for connecting to USB-C equipped laptops and devices, and a USB Type-A cable, for backward compatibility with your existing USB 3.0, 2.0 and 1.x devices.
The docking station also works with 2.5" and 3.5" IDE hard drives, mSATA drives and M.2 drives using a compatible StarTech.com adapter:
IDE hard drives: Use StarTech.com adapter SAT2IDEADP SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks
mSATA drives: Use StarTech.com adapter SAT32MSAT257 mSATA SSD to 2.5in SATA Adapter Converter
M.2 drives: Use StarTech.com adapter SAT32M225 M.2 NGFF SSD to 2.5in SATA Adapter Converter
Specs
Hard drive
Storage media type
Type of storage medium, like flash, hard disk drive, etc.
HDD, SSD
Storage drive interface
Where the storage device links with other parts of the product, or an external device.
Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported
The sizes of storage drives that can be used with the product.
2.5,3.5"
Number of storage drives supported
How many storage drives can be fit into the product at once.
4
Maximum storage capacity
The maximum amount of data that can be stored in the device.
10 TB
Ports & interfaces
Host interface
Interface that enables a host controller to communicate with a driver.
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) ports quantity
1
Features
Product colour
The colour e.g. red, blue, green, black, white.
Black
Material
The material from which a thing is or can be made e.g. wood, plastic.
Plastic
Maximum data transfer rate
10 Gbit/s
Hot-swap
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
S.M.A.R.T. support
TRIM support
Number of connectivity cycles
10000
LED indicators
Activity, Power
UASP support
Cooling
Built-in fan
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
2 fan(s)
Fan diameter
The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
6 cm
Bearing type
Sleeve bearing
Power
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
78 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Input current
2 A
Output voltage
12 V
Output current
6.5 A
Weight & dimensions
Width
The measurement or extent of something from side to side.
171 mm
Depth
The distance from the front to the back of something.
291 mm
Height
The measurement of the product from head to foot or from base to top.
87 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1 kg
Packaging data
Package width
The distance from one side of the packaging to the other.
170 mm
Package depth
The distance from the front to the back of the packaging.
340 mm
Package height
The distance from the top to the bottom of the packaging.
210 mm
Package weight
Weight of the packaged product.
2.4 kg

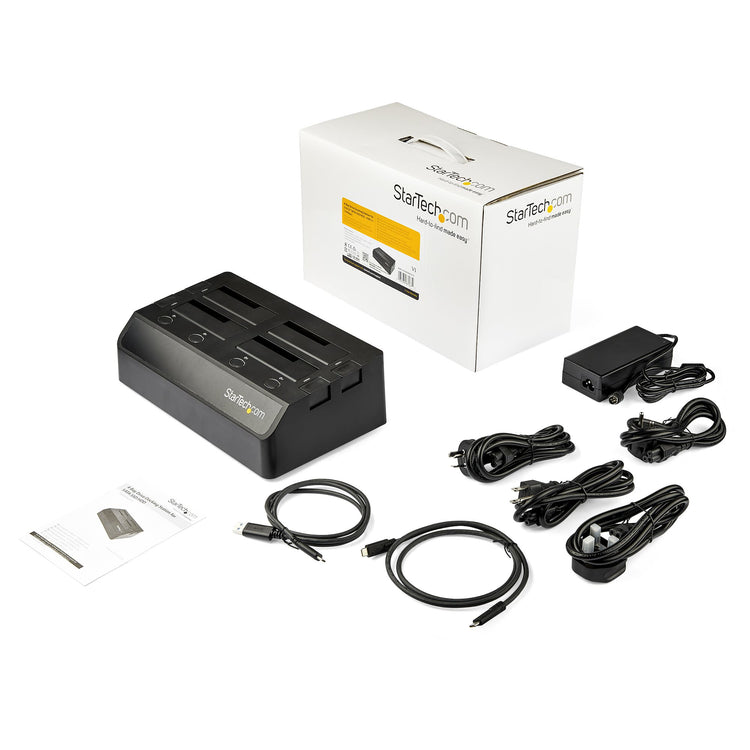

Packaging content
AC adapter included
Cables included
USB, USB Type-C
Included power plug types
ANZ, EU, JP, NA, UK
Quick installation guide
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
5 - 35 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 50 °C
Operating relative humidity (H-H)
20 - 80%
Other features
Noise level
The amplitude level of the undesired background noise, usually measured in decibels (db).
19.04 dB
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
VIA Labs - VL820, VIA Labs - VL715
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
30000 h
Compliance certificates
CE, RoHS
Logistics data
Harmonized System (HS) code
84733080
Master (outer) case width
354 mm
Master (outer) case length
356 mm
Master (outer) case height
470 mm
Products per master (outer) case
4 pc(s)
