STARTECH .com signage display mount 190,5 cm (75") Black (FPCEILBTB)
- Regular price
- 451.95$
- Sale price
- 451.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com FPCEILBTB signage display mount 190,5 cm (75") Black
Brand:StarTech.com
Product name:Dual TV Ceiling Mount - Back-to-Back Heavy Duty Hanging Dual Screen Mount with Adjustable Telescopic Pole - Tilt/Swivel/Rotate - VESA Bracket for 32”-75" Displays
Product code:FPCEILBTB
EAN/UPC:
0065030880671
0065030880671, 065030880671
- BACK TO BACK DUAL 75" TV CEILING MOUNT: Heavy-duty VESA compatible ceiling mount supports displays up to 75" (110lb/50kg) per screen, including curved TVs; Height adjustable pole, 41.7" - 61.4" (106cm - 156cm) from ceiling

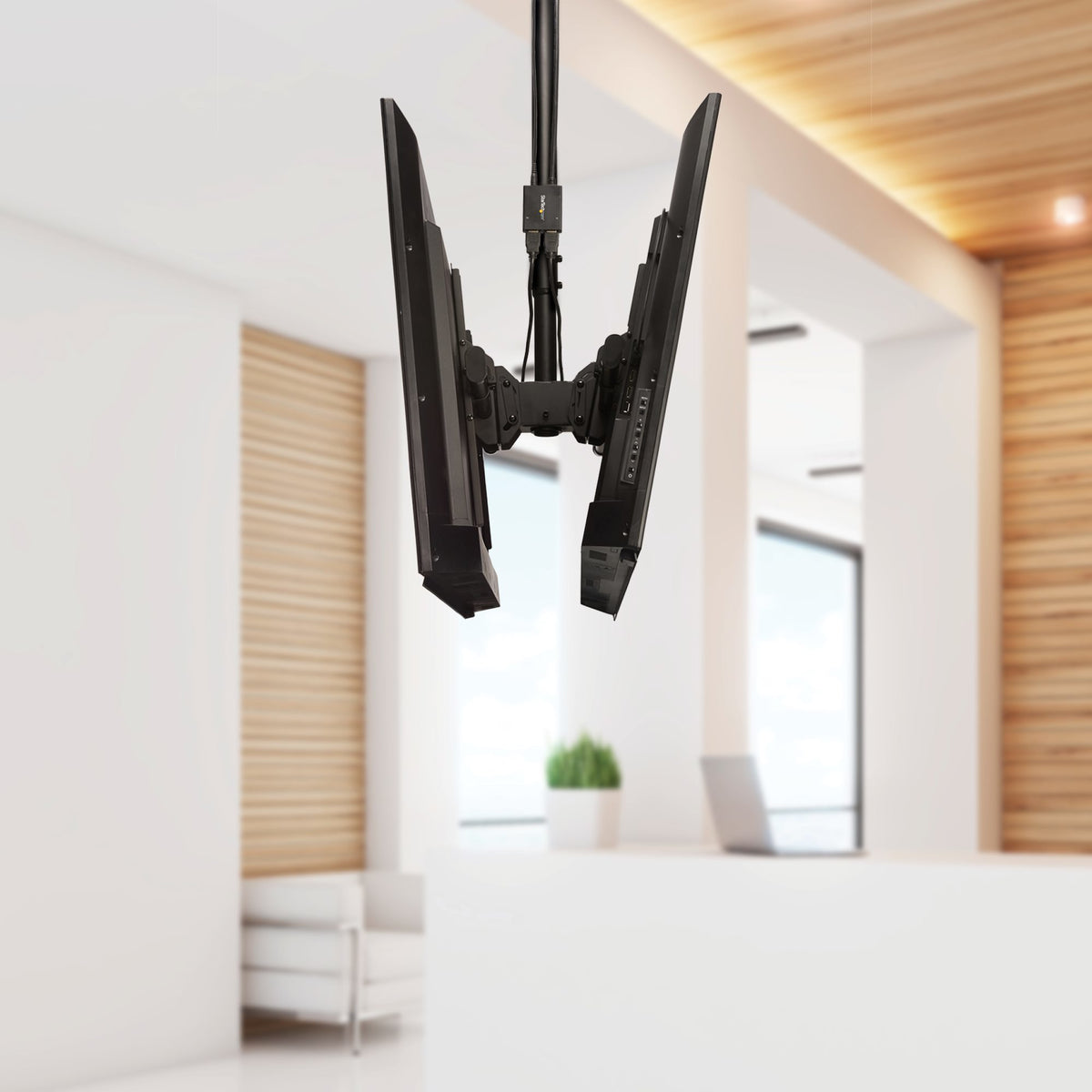

- WIDE RANGE OF MOTION: Ceiling TV mount allows for both displays to be swiveled 360° around the telescopic pole, and individually rotated +/-3° & tilted +5/-20°; TV position secured w/ provided tools
- VERSATILE INSTALLATION: Adjustable mounted ceiling bracket for multiple screens allows the pole to be adjusted and secured +/-60 degrees for angled/sloped/slanted ceilings to ensure displays are level
- COMPATIBILITY: Universal hanging TV ceiling mount supports LG, Samsung, Sony, and Sharp TVs among others (screws/spacers incl) & VESA hole patterns of 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
- TIDY AESTHETIC: The double television ceiling mount for two large displays provides a hook-and-mount design for easy setup and integrated cable management; ideal for digital signage applications
Description
Dual Display Mount | Full Motion | For 32" to 75" Displays

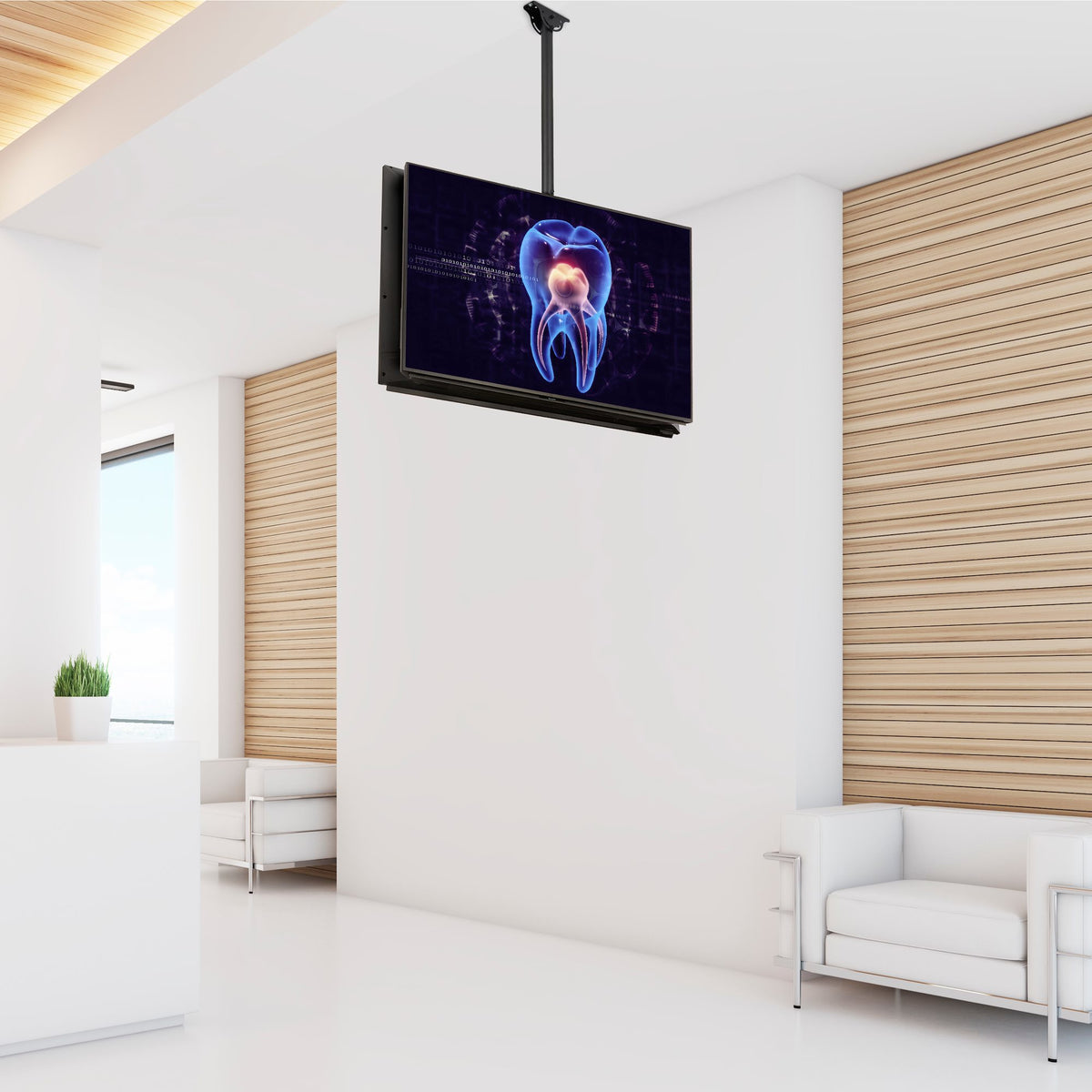

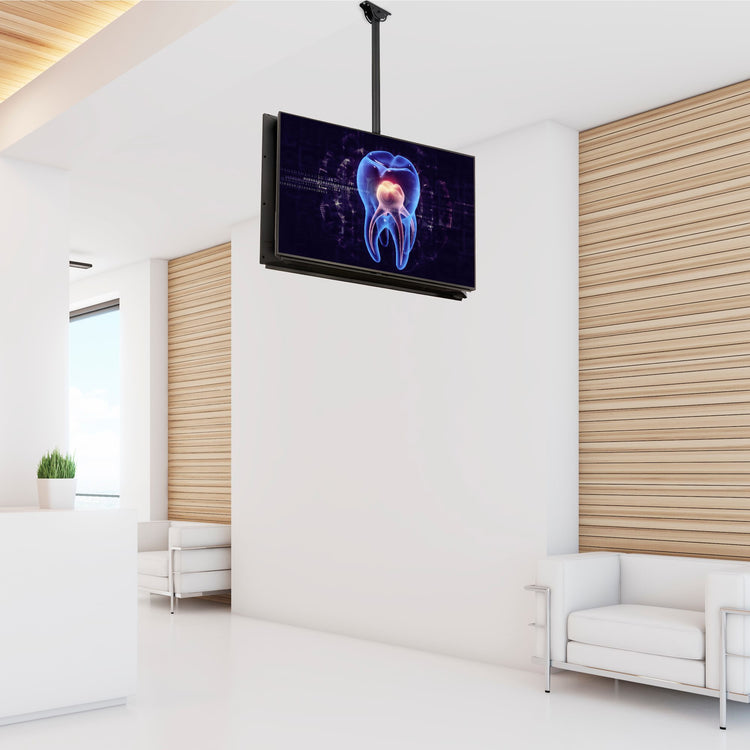

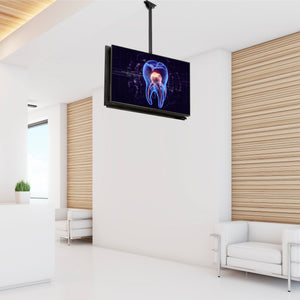

Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.

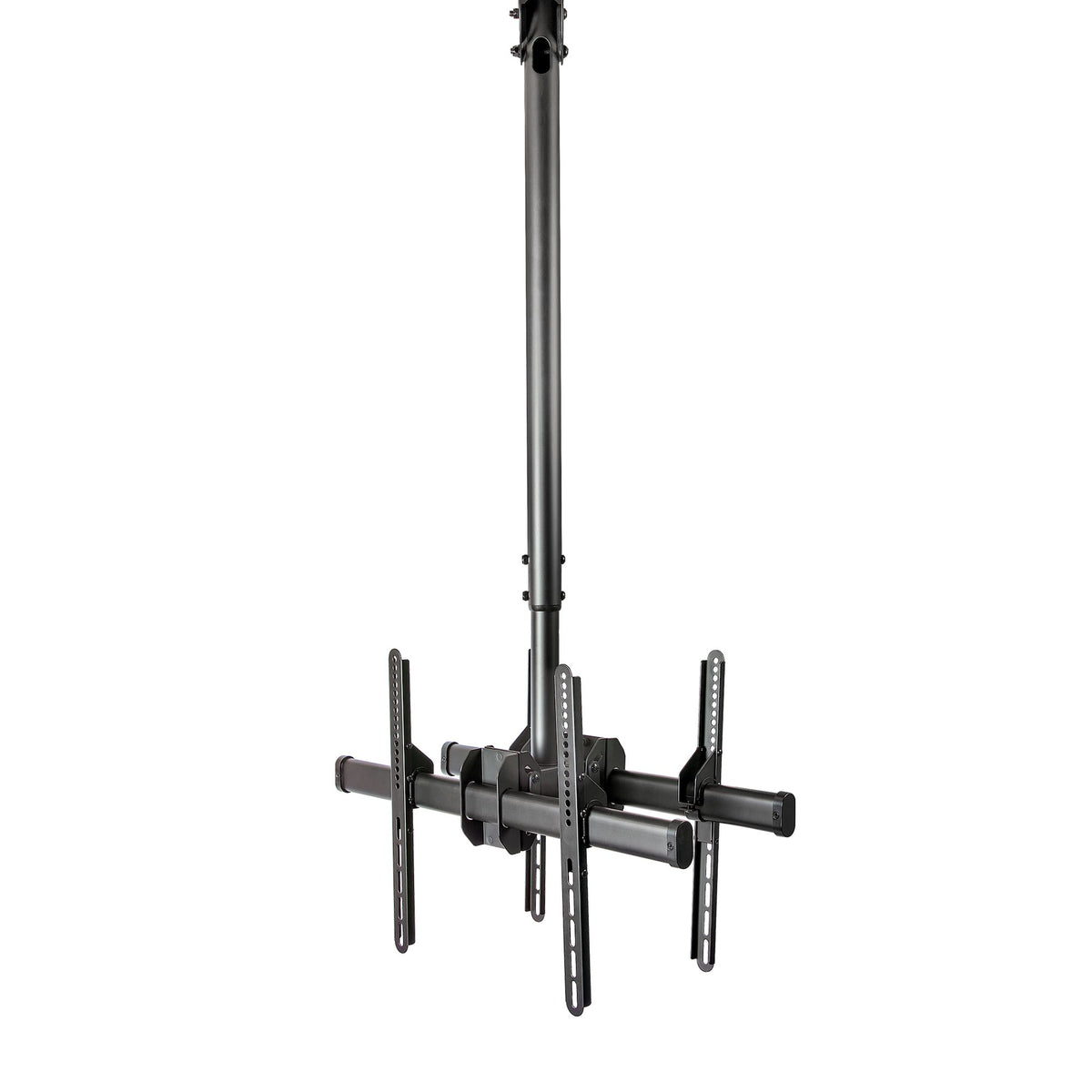

Back-to-Back TV Mount
The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.

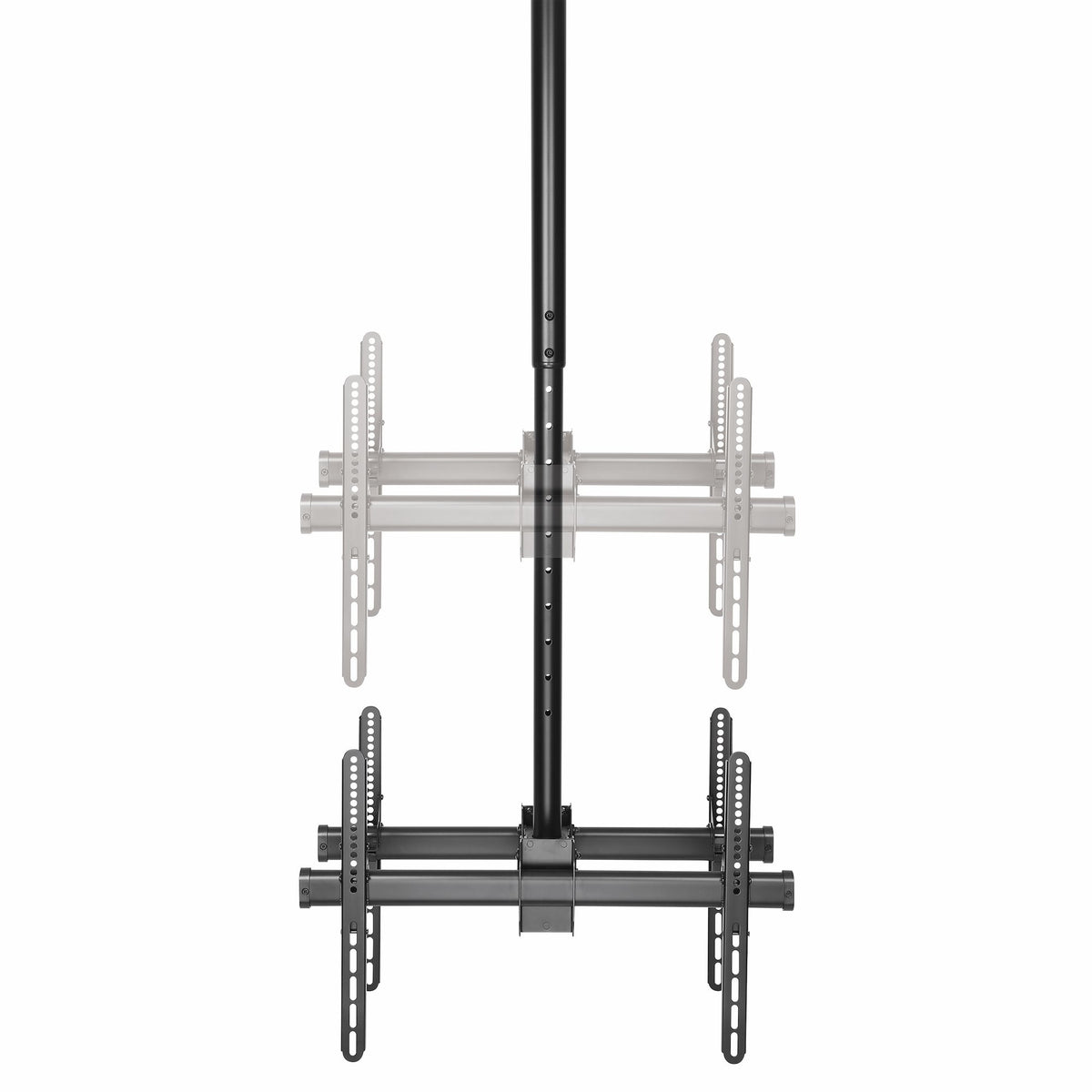

Adjustable Height
With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).
Easy Screen Adjustment

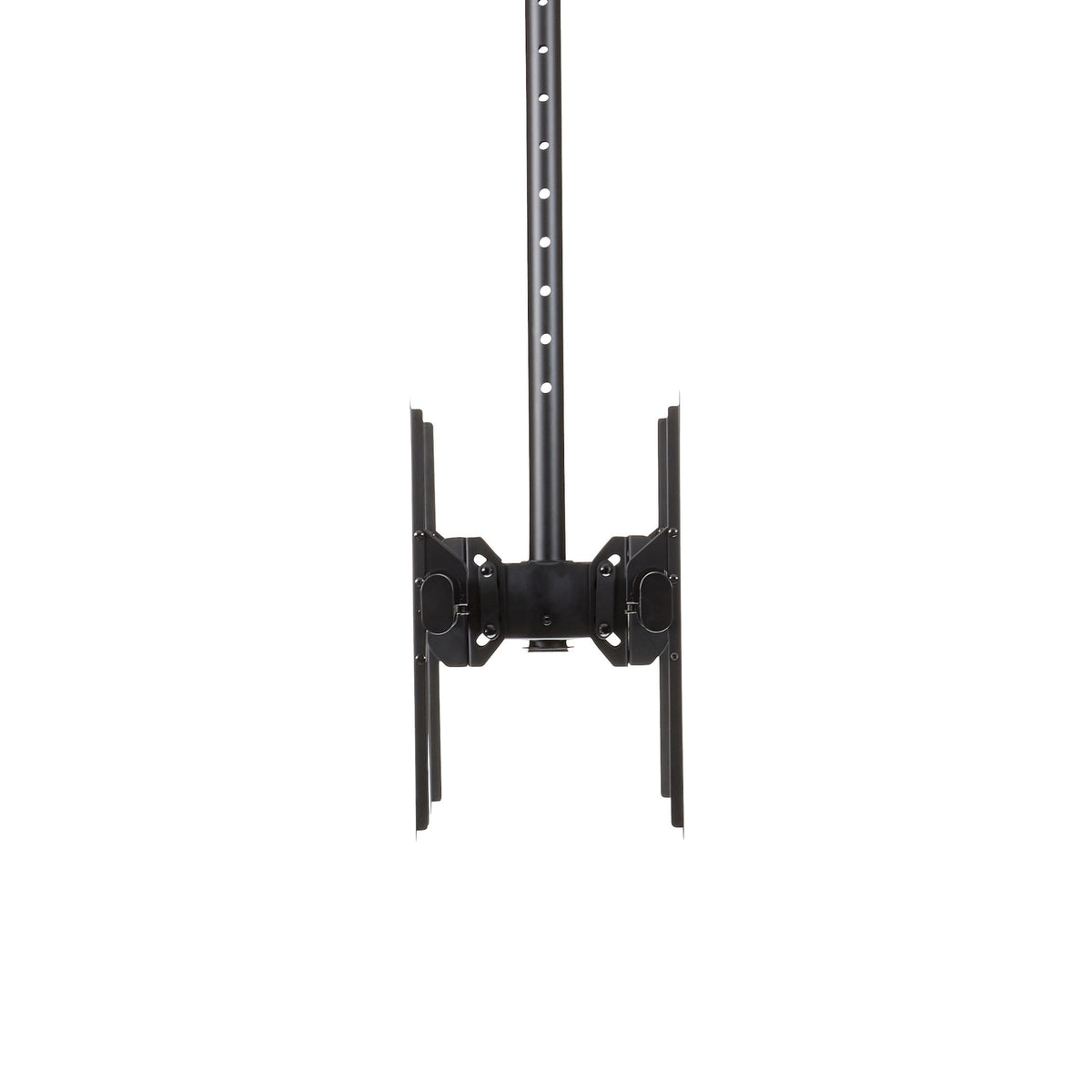

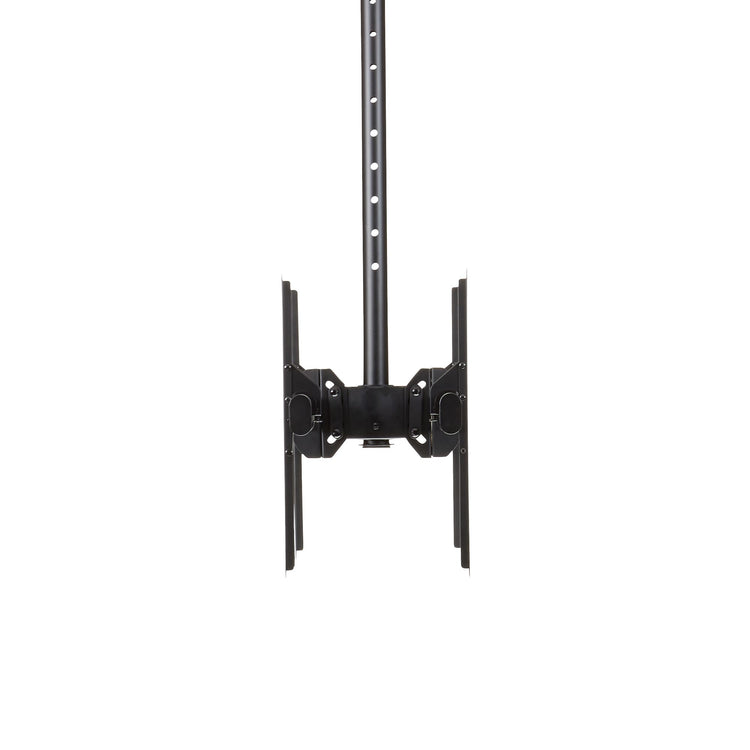

For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.

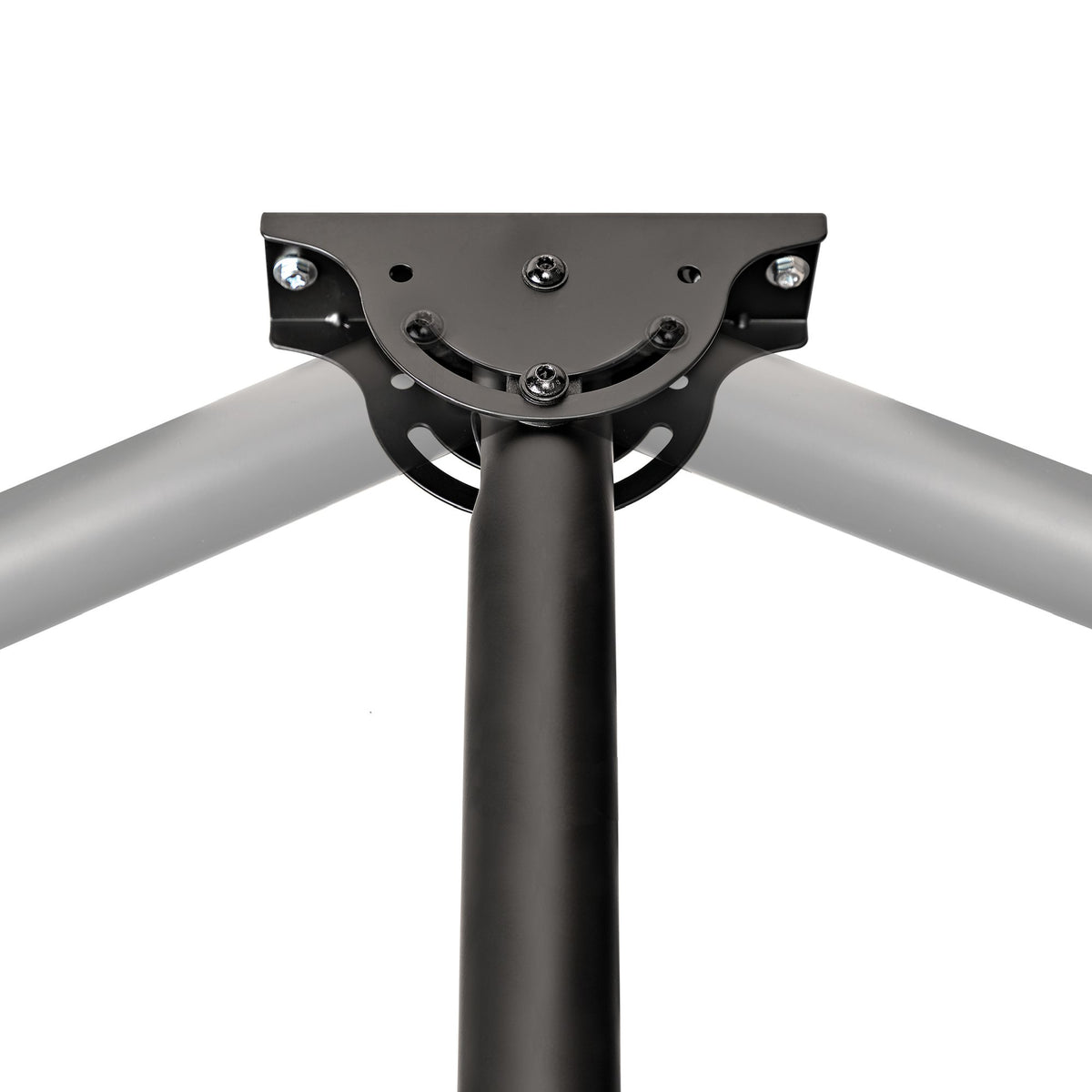

Swivels to Suit Your Ceiling
The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.
Simple Setup and Cable Management

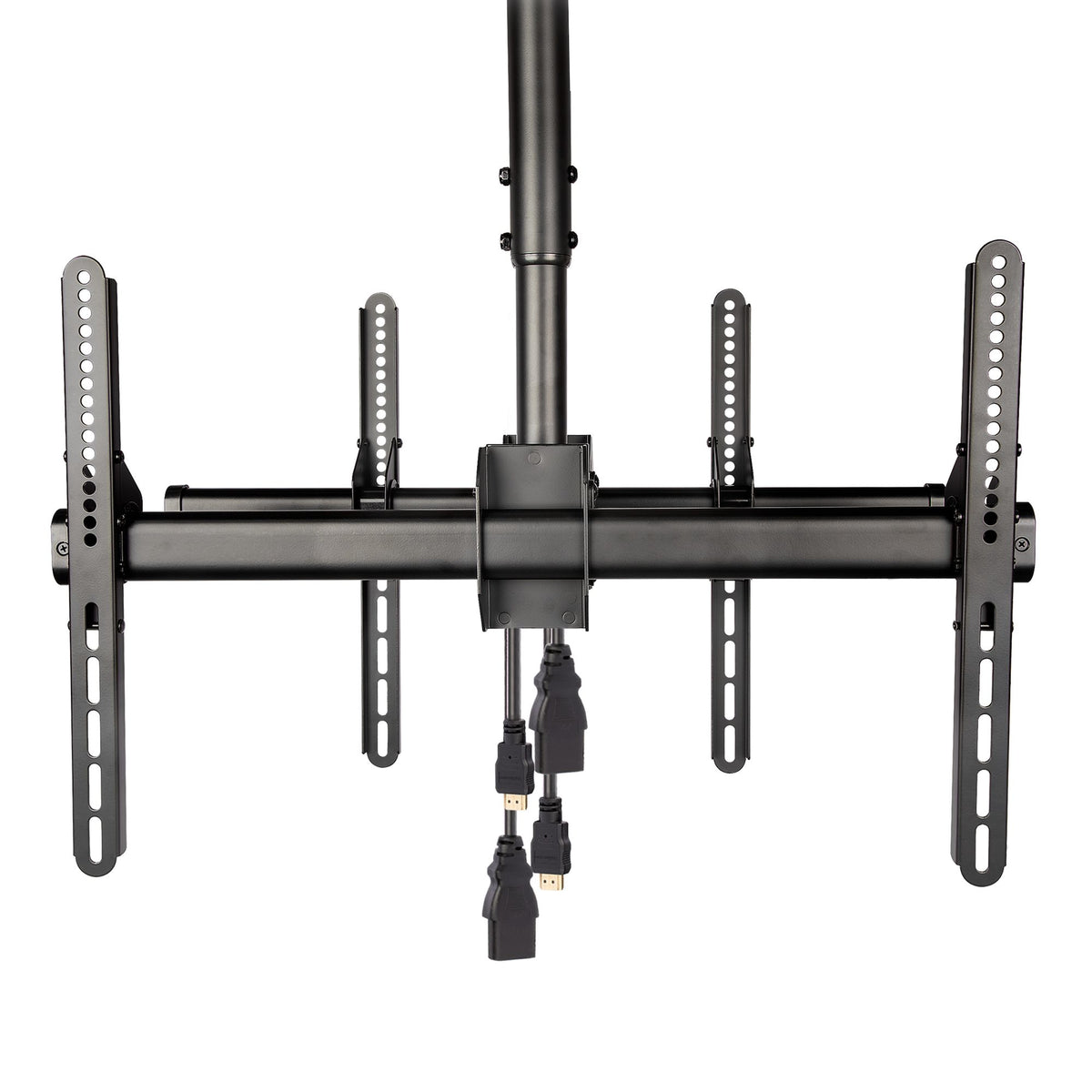

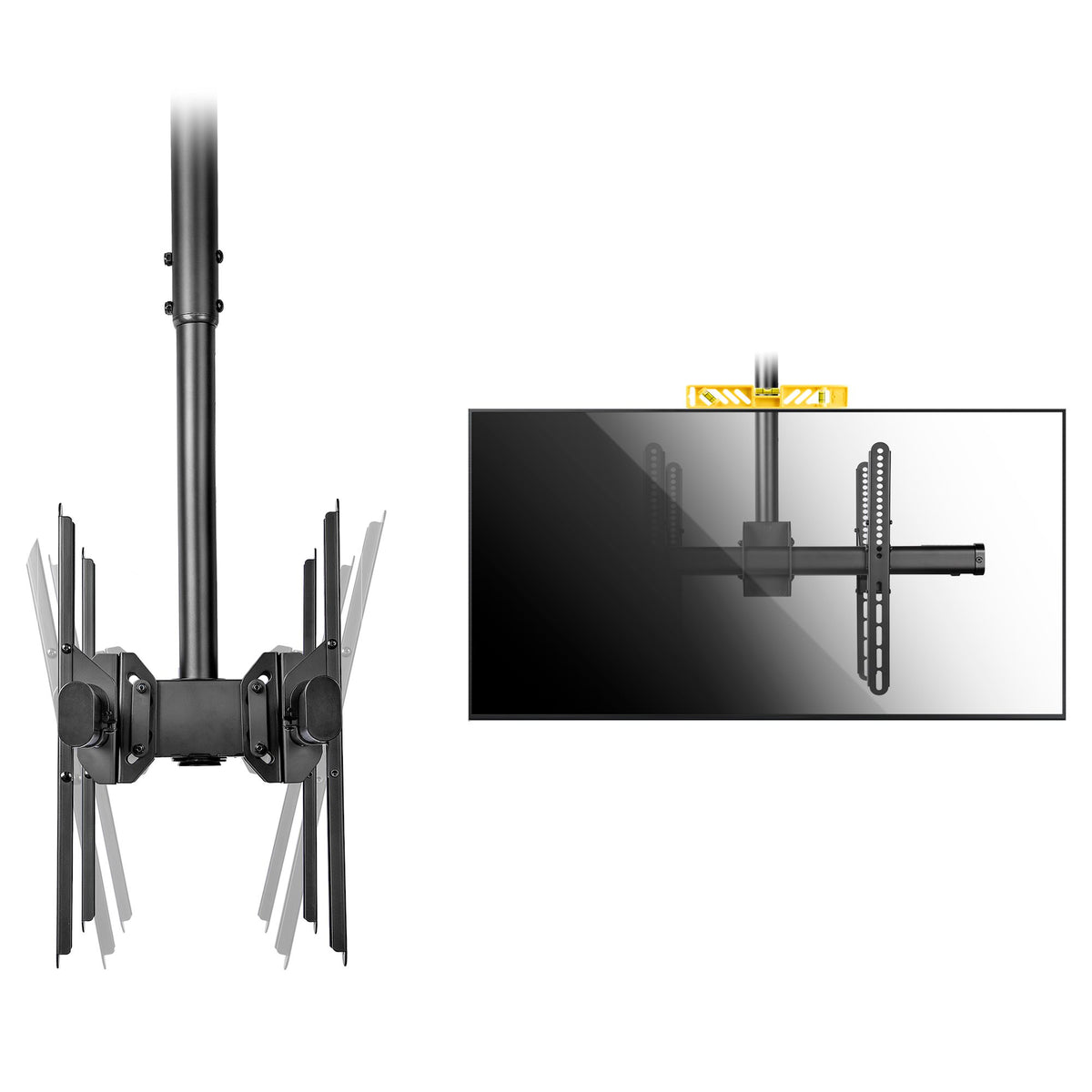

The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.
Back-to-Back TV Mount
The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.
Adjustable Height
With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).
Easy Screen Adjustment
For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.
Swivels to Suit Your Ceiling
The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.
Simple Setup and Cable Management
The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Video
Specs
Mounting
Maximum weight capacity
The maximum weight that the product is designed to hold/store.
90 kg
Minimum screen size
The minimum screen size which can be used with this product.
81,3 cm (32")
Number of displays supported
The number of displays that can be used with this product.
2
Maximum weight capacity (per display)
45 kg
Maximum screen size
The maximum screen size which can be used with this product.
190,5 cm (75")
Mounting type
Type of mounting e.g. wall mounting.
Ceiling
Minimum VESA mount
200 x 200 mm
Maximum VESA mount
600 x 400 mm
Panel mounting interface
The product can be used wih VESA mounting interfaces.
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Weight & dimensions
Width
The measurement or extent of something from side to side.
165 mm
Depth
The distance from the front to the back of something.
680 mm
Depth (max)
68 cm
Height
The measurement of the product from head to foot or from base to top.
835 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
9,8 kg
Technical details
Sustainability compliance
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
Logistics data
Harmonized System (HS) code
85299097
Master (outer) case width
345 mm
Master (outer) case length
960 mm
Master (outer) case height
312 mm
Quantity per master (outer) case
2 pc(s)
Ergonomics
Height adjustment
The part of the device that can be adjusted to change the height.
Height adjustment range
1060 - 1560 mm
Tilt angle range
-20 - 5°
Swivel angle range
-180 - 180°
Angle of rotation
360°
Adjustable
The product is adjustable to cater for different sizes/positions.
Design
Product color
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Steel
Anti-theft function
Packaging data
Package width
The distance from one side of the packaging to the other.
934 mm
Package depth
The distance from the front to the back of the packaging.
317 mm
Package height
The distance from the top to the bottom of the packaging.
153 mm
Package weight
Weight of the packaged product in gram.
10,8 kg

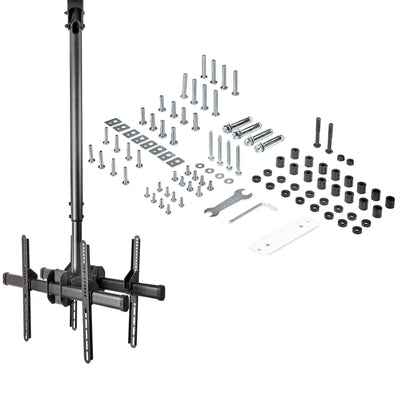

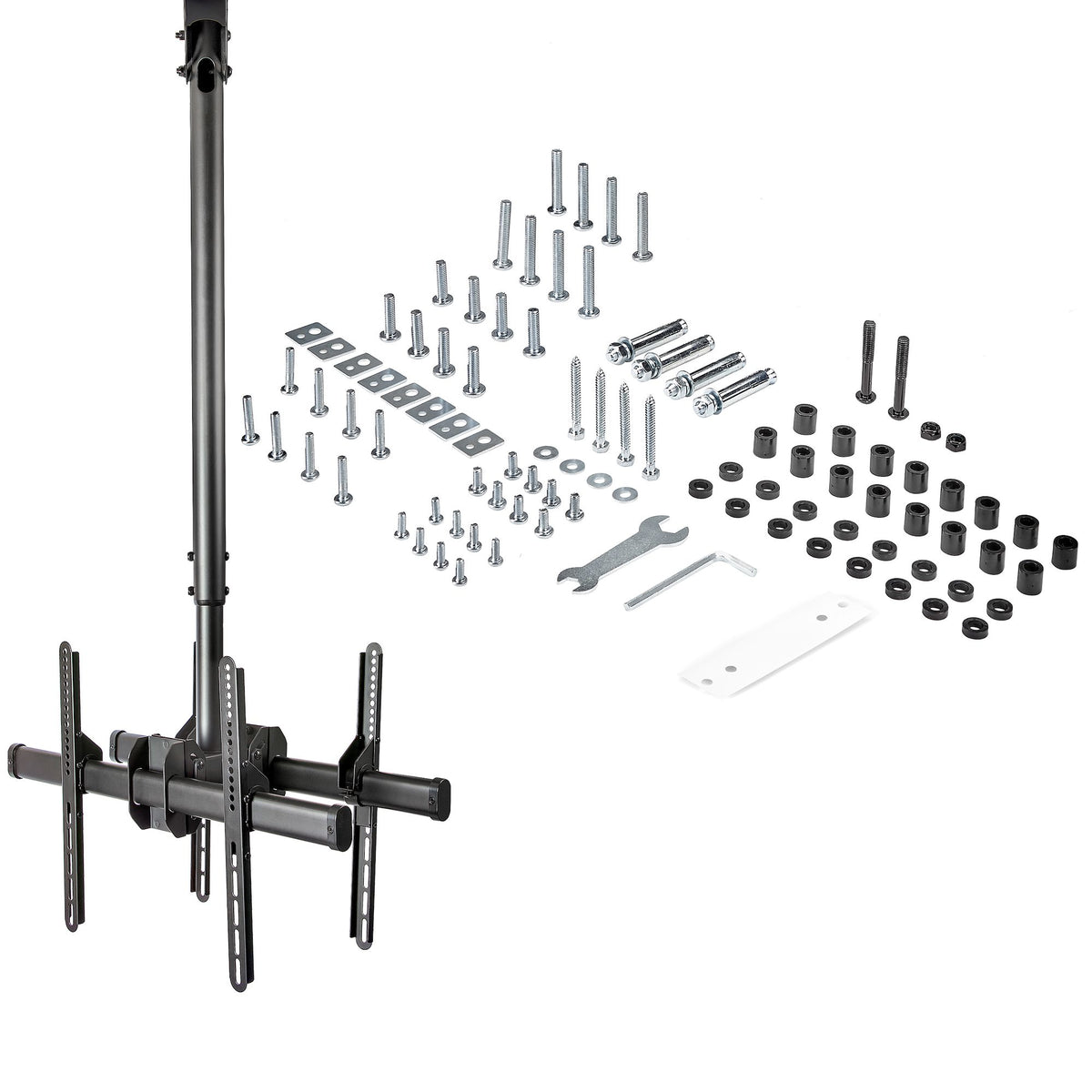

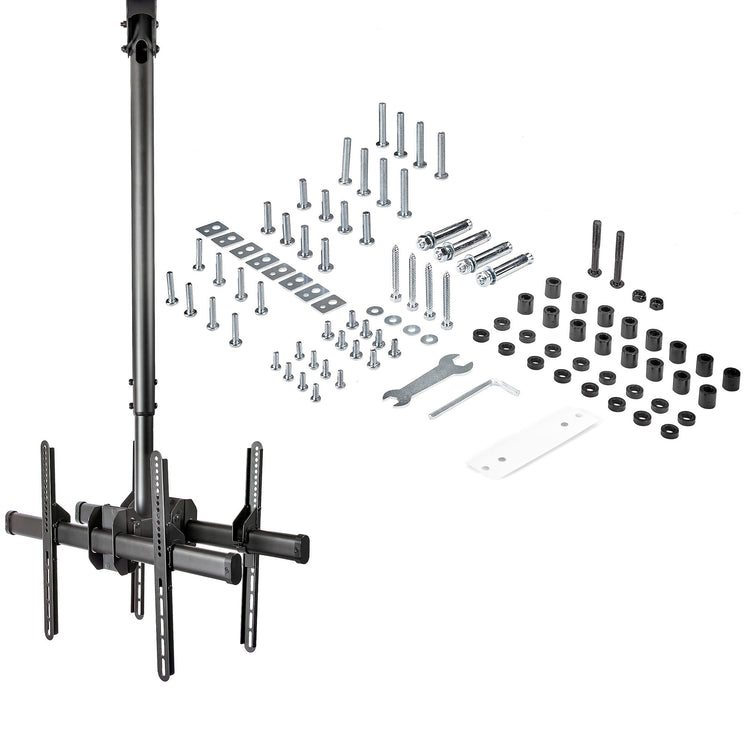

Packaging content
Manual
Screws included
Number of screws
46
Wrench included
Nuts included
Number of nuts
2
Washers included
Number of washers included
12
Spacer included
Number of spacers included
32
