STARTECH .com rack console 48,3 cm (19") 1280 x 1024 pixels Steel Black 1U (RKCONS1908K)
- Regular price
- 2,344.95$
- Sale price
- 2,344.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com RKCONS1908K rack console 48,3 cm (19") 1280 x 1024 pixels Steel Black 1U
Brand:StarTech.com
Product name:8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 19" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support
Product code:RKCONS1908K
EAN/UPC:
0065030872508
0065030872508, 065030872508
- TECH SPECIFICATIONS: Rackmount KVM Console, 19" Active Matrix TFT LCD Monitor, 1280 x 1024, 8 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
- PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan
- INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 23.8" [60.5 cm] to 35" [89 cm] (incl. mounting hardware)
- HEAVY DUTY: LCD KVM drawer has durable steel construction and heavy duty rail design that supports frequent use in operating environments from 0C to 40C (32F to 104F) with an MTBF of 50,000 hours
- TESTED & PROVEN: This OS independent rack console is universally compatible w/ leading servers and backed by a StarTech.com 2-year warranty and free lifetime 24/5 multilingual technical support
Description
Control your server or KVM switch from a centralized LCD KVM drawer
This rack-mount KVM console provides complete keyboard, monitor and mouse control for eight computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This 8-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard (QWERTY) for intuitive control and an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile rack-mount LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.
Clutter-free monitoring

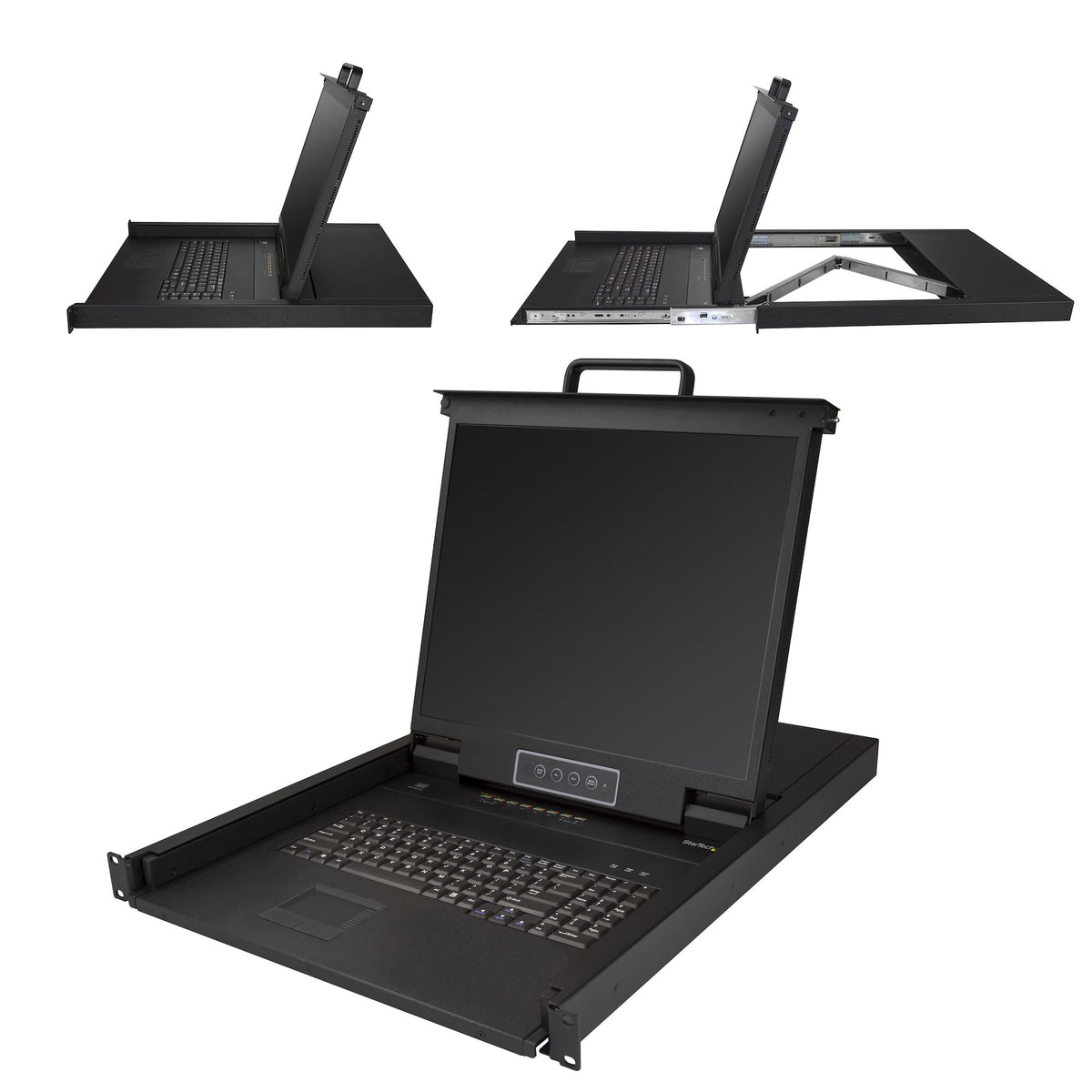

The console slides out from 1U of rack space, enabling you to easily monitor and control eight servers and even more if connecting through a KVM switch. The rackmount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration

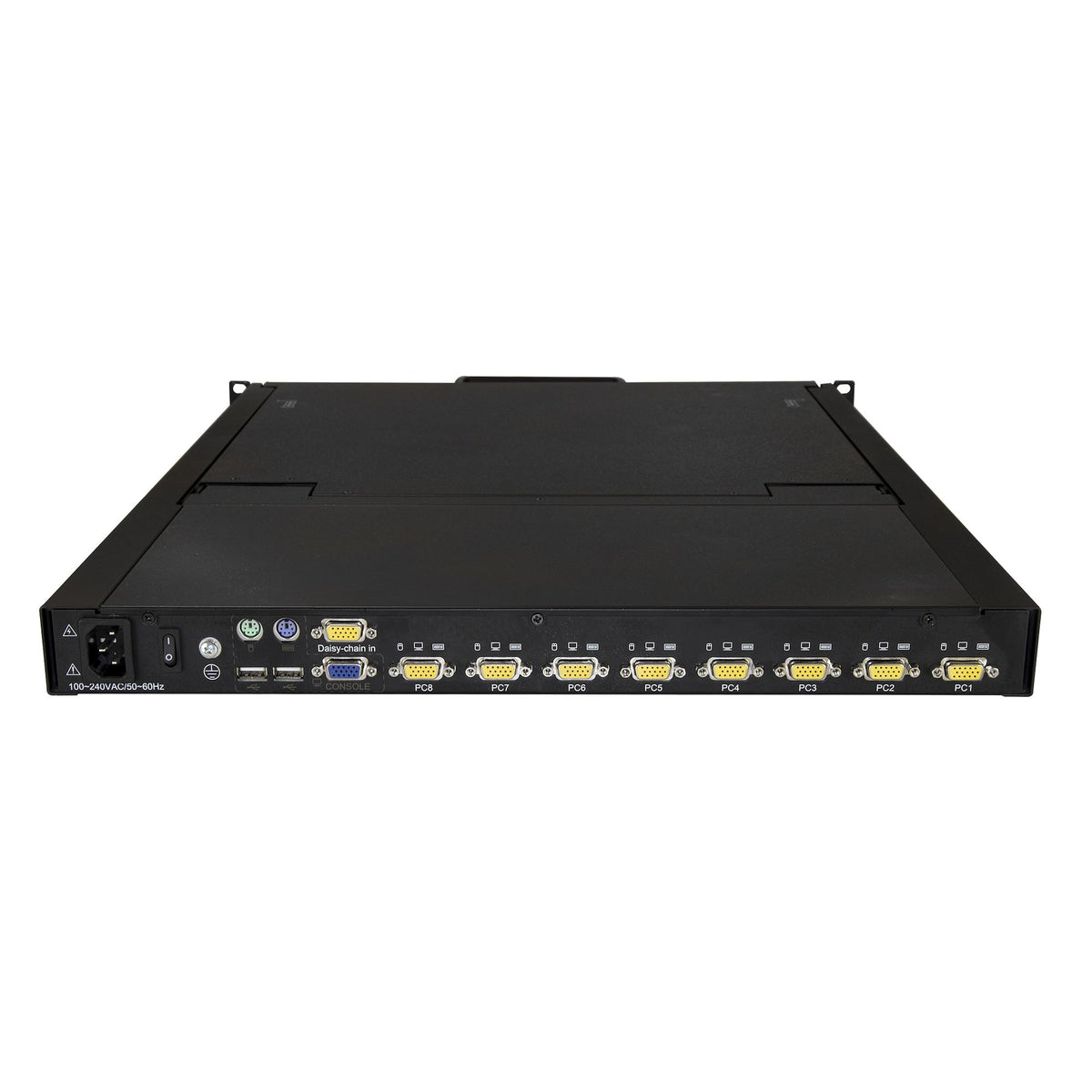

The rackmount LCD features an 8-port KVM module, which enables you to connect it directly to eight servers. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
The RKCONS1908K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
This rack-mount KVM console provides complete keyboard, monitor and mouse control for eight computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This 8-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard (QWERTY) for intuitive control and an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile rack-mount LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.
Clutter-free monitoring
The console slides out from 1U of rack space, enabling you to easily monitor and control eight servers and even more if connecting through a KVM switch. The rackmount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rackmount LCD features an 8-port KVM module, which enables you to connect it directly to eight servers. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
The RKCONS1908K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specs
Display
Display diagonal
Size of the display for this product, measured diagonally, usually in inches.
48,3 cm (19")
Display resolution
The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
1280 x 1024 pixels
Display
The description of display that can includes display type, resolution, size etc.
TFT LCD
Display brightness
Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.
250 cd/m²
Contrast ratio (typical)
The difference in light intensity between the brightest white and the darkest black.
1000:1
Pixel pitch
This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.
0,264 x 0,264 mm
Display type
Type of display (screen) e.g. LCD.
LCD
Display number of colors
16.78 million colours
Color depth
8 bit
Ports & interfaces
VGA (D-Sub) ports quantity
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
9
Keyboard port type
The type of socket in the device for connecting a keyboard e.g. USB.
USB
Mouse port type
USB
Video port type
The type of socket in the device for connecting a video e.g. SCART.
VGA
USB 2.0 Type-A ports quantity
2
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Weight & dimensions
Width
The measurement or extent of something from side to side.
483 mm
Height
The measurement of the product from head to foot or from base to top.
43 mm
Depth
The distance from the front to the back of something.
643 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
13,4 kg
Mounting depth (min)
60,5 cm
Mounting depth (max)
89 cm
Logistics data
Master (outer) case width
780 mm
Master (outer) case length
629 mm
Master (outer) case height
189 mm
Quantity per master (outer) case
1 pc(s)
Technical details
Material
The material from which a thing is or can be made e.g. wood, plastic.
Steel
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
50000 h
Product color
The colour e.g. red, blue, green, black, white.
Black
Operating relative humidity (H-H)
10 - 80%
Audio support
Daisy chain
Key lock
IP control
Number of computers controlled
The amount of computers controlled by this device.
8
Sustainability certificates
UL ECOLOGO
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
Rack capacity
The spase that device fill in rack.
1U
Keyboard
Built-in touchpad
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
21 W
AC adapter input voltage
100 - 240 V
Input current
1.5 A
Packaging data
Package width
The distance from one side of the packaging to the other.
775 mm
Package depth
The distance from the front to the back of the packaging.
624 mm
Package height
The distance from the top to the bottom of the packaging.
189 mm
Package volume
19000 cm³

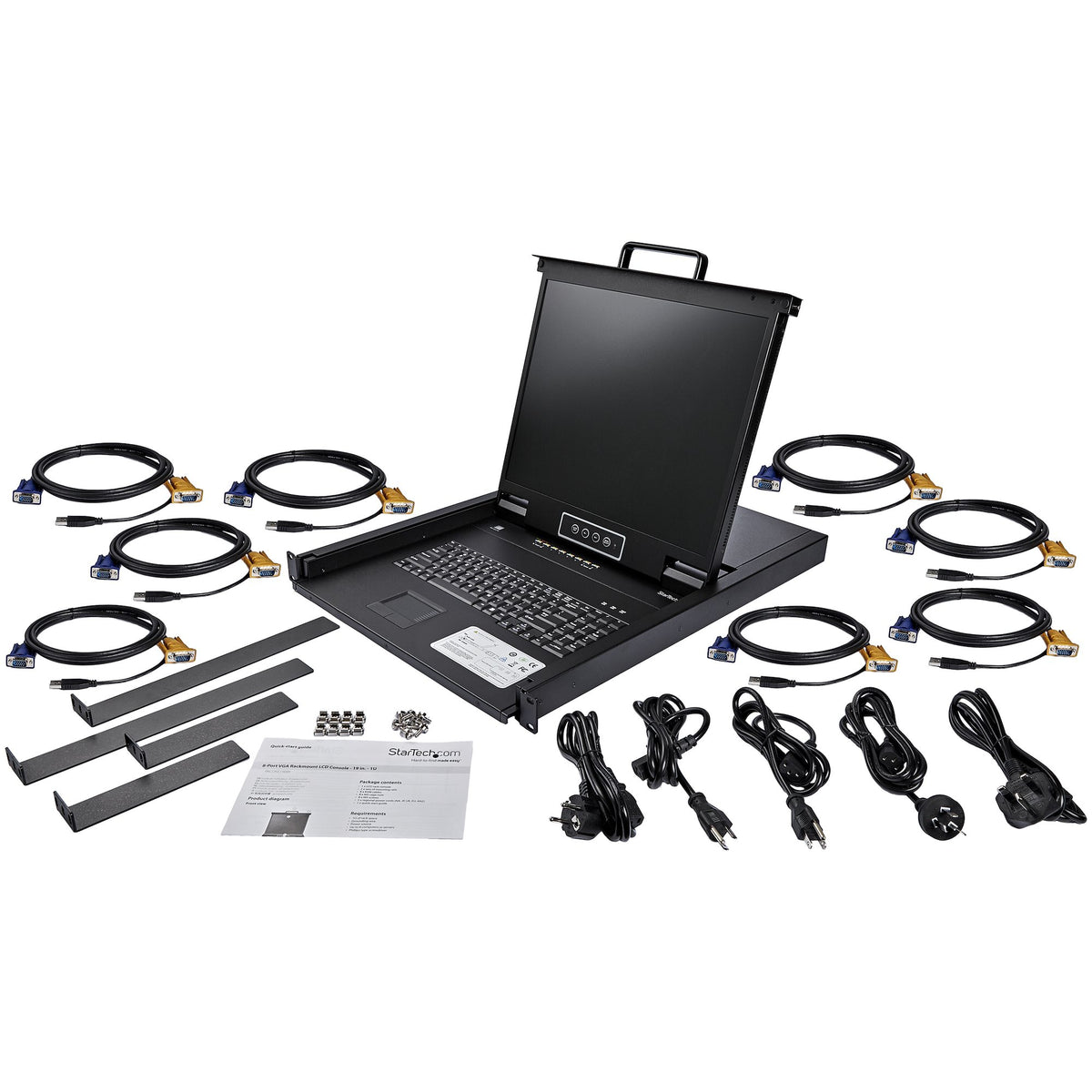

Packaging content
Cables included
KVM
Screws included
Number of screws
8
Mounting brackets included
Cage nuts included
Number of cage nuts
8
Included power plug types
ANZ, EU, JP, NA, UK
Quick installation guide
