STARTECH .com rack console 43,9 cm (17.3") 1920 x 1080 pixels Steel Black 1U (RKCONS17HD)
- Regular price
- 1,723.95$
- Sale price
- 1,723.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com RKCONS17HD rack console 43,9 cm (17.3") 1920 x 1080 pixels Steel Black 1U
Brand:StarTech.com
Product name:Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
Product code:RKCONS17HD
EAN/UPC:
0065030872478
0065030872478, 065030872478
- HIGH DEFINITION: Rackmount KVM console w/high-resolution widescreen (16:9) 1080p LCD panel is perfect for applications needing extra detail or substantial info on one screen E.g. IP camera monitoring
- WIDE COMPATIBILITY: This HD KVM console drawer works with virtually any KVM switch brand or model that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- VERSATILE INTERFACES: Rack mount monitor with 17.3" Active Matrix TFT 16:9 widescreen / 1U height / Single Port /Full keyboard + Trackpad / Integrated Power Supply / Supports VGA + USB
- MAX DURABILITY: Features durable steel housing and rails that withstand frequent use, rated to work in environments from 0 to 40 deg. C and a 44,230 hour MTBF with 24/5 Tech Support
- TESTED AND PROVEN: Our KVM consoles are backed by a 2 year warranty with 24/5 by multi-lingual tech support based in North America with free technical support for the life of the product
Description
Control your server or KVM switch from a centralized HD KVM console
Providing centralized control of your single PC or dozens of servers, this HD rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet. Connected to your servers through a separate KVM switch (sold separately), the LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.
High-Definition LCD Monitor
The 1080p KVM console’s monitor is 17.3” and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.
Clutter-Free Monitoring
The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Simple Setup

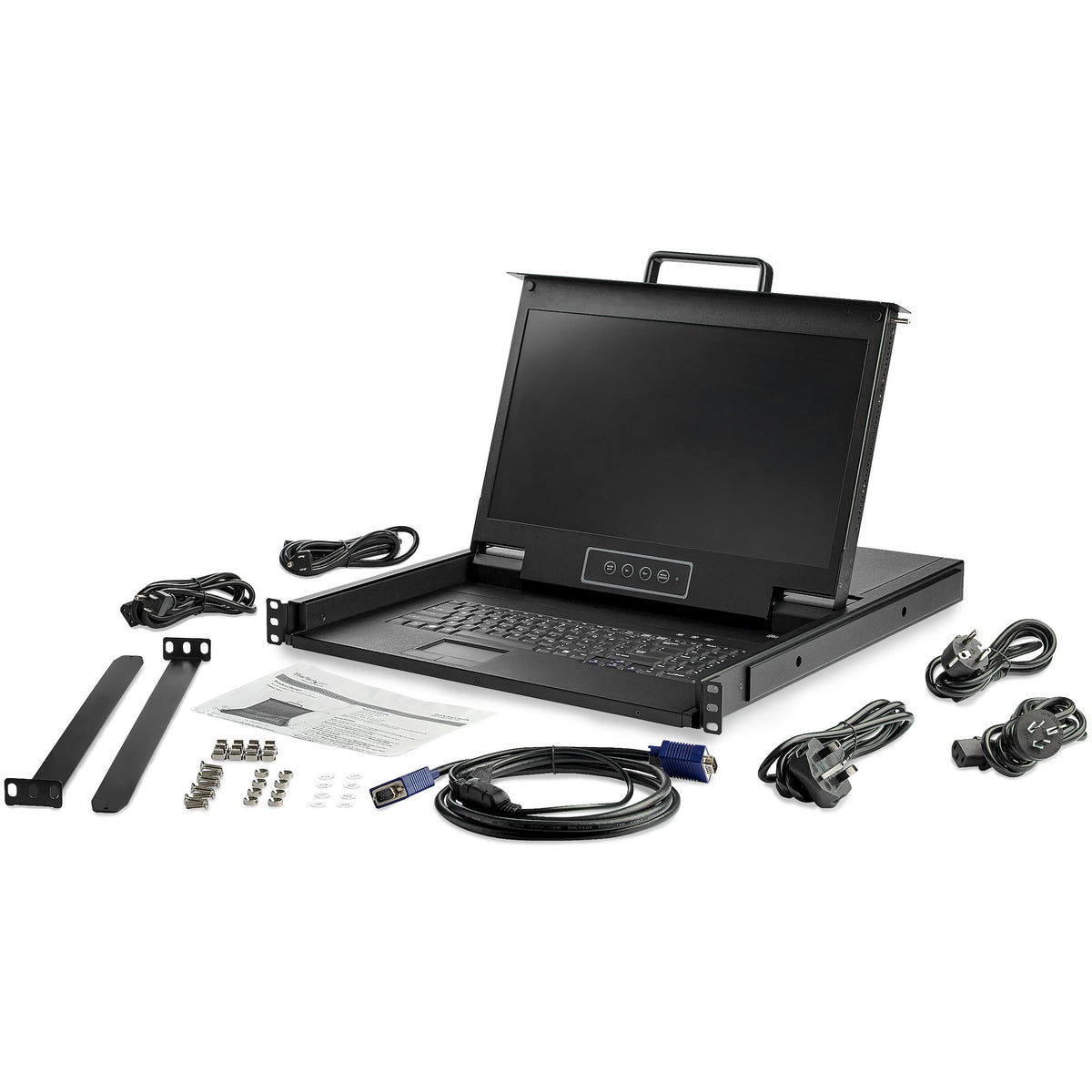

This single-port KVM console comes with everything you need to set up:
• 1 Audio Cable
• 1 Set of KVM Cables (VGA)
• 2 Rear Mounting Brackets
• M5 Cage Nuts and Screws
Cost Effective Solution
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display.
StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This rackmount KVM console is backed by a 2-year warranty and free lifetime technical support.
Providing centralized control of your single PC or dozens of servers, this HD rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet. Connected to your servers through a separate KVM switch (sold separately), the LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.
High-Definition LCD Monitor
The 1080p KVM console’s monitor is 17.3” and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.
Clutter-Free Monitoring
The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Simple Setup
This single-port KVM console comes with everything you need to set up:
• 1 Audio Cable
• 1 Set of KVM Cables (VGA)
• 2 Rear Mounting Brackets
• M5 Cage Nuts and Screws
Cost Effective Solution
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display.
StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This rackmount KVM console is backed by a 2-year warranty and free lifetime technical support.
Specs
Display
Display diagonal
Size of the display for this product, measured diagonally, usually in inches.
43,9 cm (17.3")
Display resolution
The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
1920 x 1080 pixels
Display
The description of display that can includes display type, resolution, size etc.
TFT LCD
Display brightness
Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.
300 cd/m²
Contrast ratio (typical)
The difference in light intensity between the brightest white and the darkest black.
800:1
Viewing angle, horizontal
Maximum horizontal angle at which a display can be viewed with acceptable visual performance.
170°
Viewing angle, vertical
Maximum vertical angle at which a display can be viewed with acceptable visual performance.
170°
Pixel pitch
This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.
0,1989 x 0,1989 mm
Aspect ratio
The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV.
16:9
Display type
Type of display (screen) e.g. LCD.
LCD
Display number of colors
262144 colours
Color depth
6 bit
Ports & interfaces
Video port type
The type of socket in the device for connecting a video e.g. SCART.
VGA
Certificates
Certification
CE, FCC, PSE, UL, REACH
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Weight & dimensions
Width
The measurement or extent of something from side to side.
483 mm
Height
The measurement of the product from head to foot or from base to top.
565 mm
Depth
The distance from the front to the back of something.
43 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
11,2 kg
Mounting depth (min)
51 cm
Mounting depth (max)
85 cm
Logistics data
Master (outer) case width
780 mm
Master (outer) case length
616 mm
Master (outer) case height
191 mm
Quantity per master (outer) case
1 pc(s)
Technical details
Material
The material from which a thing is or can be made e.g. wood, plastic.
Steel
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
50000 h
Product color
The colour e.g. red, blue, green, black, white.
Black
Operating relative humidity (H-H)
10 - 80%
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Audio support
Daisy chain
IP control
LED indicators
Power, Status
Cable length
How long the cable is.
1,8 m
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Rack capacity
The spase that device fill in rack.
1U
Keyboard
Built-in touchpad
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
13 W
AC adapter input voltage
100 - 240 V
Input current
1.5 A
Packaging data
Package weight
Weight of the packaged product in gram.
16 kg
Package width
The distance from one side of the packaging to the other.
780 mm
Package depth
The distance from the front to the back of the packaging.
616 mm
Package height
The distance from the top to the bottom of the packaging.
191 mm
Packaging content
Cables included
KVM
Screws included
Number of screws
8
Cage nuts included
Number of cage nuts
8
Included power plug types
ANZ, EU, JP, NA, UK
Quick installation guide
