STARTECH .com rack console 43,9 cm (17.3") 1920 x 1080 pixels Steel Black 1U (RKCOND17HD)
- Regular price
- 1,939.95$
- Sale price
- 1,939.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com RKCOND17HD rack console 43,9 cm (17.3") 1920 x 1080 pixels Steel Black 1U
Brand:StarTech.com
Product name:Dual Rail Rackmount KVM Console HD 1080p - Single Port DVI/VGA KVM w/17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables - USB Support - 44230 MTBF
Product code:RKCOND17HD
EAN/UPC:
0065030872515
0065030872515, 065030872515
- Flexible Design: Rackmount KVM console w/ dual rails that allow the screen & keyboard to be pulled in & out independently, perfect for system monitoring as needed and to be put away when not in use
- High Definition: Rack mount monitor w/high-resolution widescreen (16:9) 1080p LCD panel perfect for applications needing extra detail or substantial info on one screen E.g. IP camera monitoring
- Versatile Interfaces: 17.3" Active Matrix TFT 16:9 widescreen / Dual Rails / 1U height / Full keyboard + Trackpad / Integrated Power Supply / Front Facing USB Port / Supports VGA / DVI & USB
- Wide compatibility: Single port HD KVM console drawer works w/ any KVM switch brand or model that supports VGA or DVI and USB interfaces and conveniently slides into the server rack when not in use
- Max Durability: Features a durable steel housing design and rails to stand up to frequent use, rated to work in environments from 0 to 40 deg. C and a 44,230 hour MTBF with 24/5 Tech Support
Description
1080p Display | 17 Inch | 1U | DVI & VGA Interface | Cables Included
Providing centralized control of your single PC or dozens of servers, this dual rail rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet.
Dual Rail Design
The dual rail KVM console design maximizes space in your datacenter’s rack cabinets by allowing the LCD monitor and the keyboard/mouse to move separately from each other. You can tuck the keyboard away while the display stays active, allowing you to conveniently monitor your computer through closed glass or mesh rack cabinet doors.
High Definition LCD Monitor
The 1080p KVM console is 17.3” and LED back-lit, for low power consumption. It supports high definition resolutions up to 1920x1080 providing sharper video performance.
Digital & Analog Support
Whether you are running a multi-port KVM with an analog display or a single port KVM with a high definition display, this DVI/ VGA KVM console can support both signals.
Simple Setup

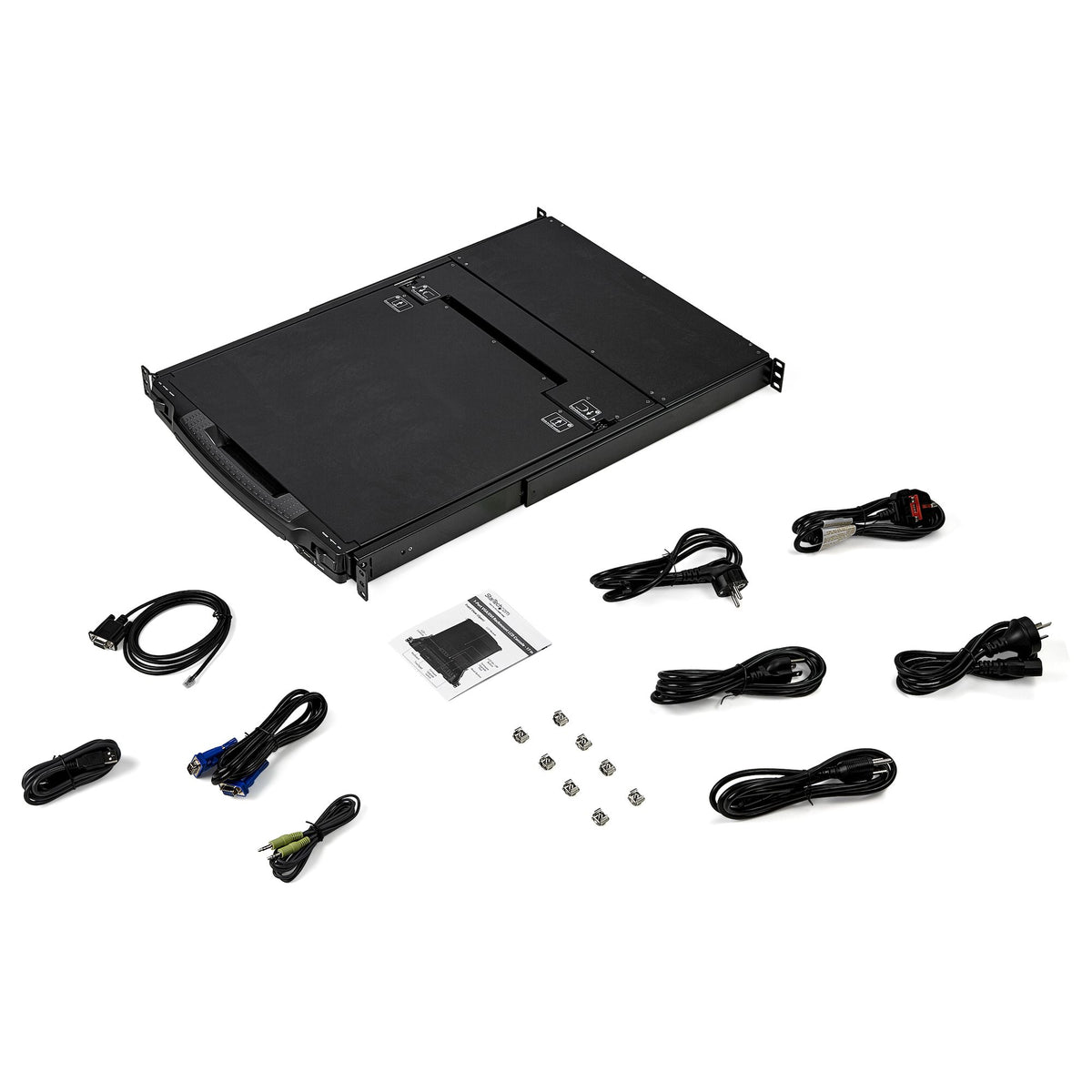

This KVM console comes with everything you need to set up:
✔ 1 Audio Cable
✔ 1 Set of KVM Cables (USB/VGA)
✔ 2 Rear Mounting Brackets
✔ M5 Cage Nuts and Screws
Once your KVM console is mounted to your rack, you can use the USB port on the front to easily connect any USB compatible peripheral such as a fingerprint scanner or mousethumb drive.
StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This dual rail KVM console is backed by a 2-year warranty and free lifetime technical support.
Providing centralized control of your single PC or dozens of servers, this dual rail rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet.
Dual Rail Design
The dual rail KVM console design maximizes space in your datacenter’s rack cabinets by allowing the LCD monitor and the keyboard/mouse to move separately from each other. You can tuck the keyboard away while the display stays active, allowing you to conveniently monitor your computer through closed glass or mesh rack cabinet doors.
High Definition LCD Monitor
The 1080p KVM console is 17.3” and LED back-lit, for low power consumption. It supports high definition resolutions up to 1920x1080 providing sharper video performance.
Digital & Analog Support
Whether you are running a multi-port KVM with an analog display or a single port KVM with a high definition display, this DVI/ VGA KVM console can support both signals.
Simple Setup
This KVM console comes with everything you need to set up:
✔ 1 Audio Cable
✔ 1 Set of KVM Cables (USB/VGA)
✔ 2 Rear Mounting Brackets
✔ M5 Cage Nuts and Screws
Once your KVM console is mounted to your rack, you can use the USB port on the front to easily connect any USB compatible peripheral such as a fingerprint scanner or mousethumb drive.
StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This dual rail KVM console is backed by a 2-year warranty and free lifetime technical support.
Specs
Display
Display diagonal
Size of the display for this product, measured diagonally, usually in inches.
43,9 cm (17.3")
Display resolution
The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
1920 x 1080 pixels
Display
The description of display that can includes display type, resolution, size etc.
TFT LCD
Display brightness
Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.
250 cd/m²
Contrast ratio (typical)
The difference in light intensity between the brightest white and the darkest black.
650:1
Viewing angle, horizontal
Maximum horizontal angle at which a display can be viewed with acceptable visual performance.
140°
Viewing angle, vertical
Maximum vertical angle at which a display can be viewed with acceptable visual performance.
120°
On Screen Display (OSD)
Pixel pitch
This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.
0,199 x 0,199 mm
Aspect ratio
The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV.
16:9
Display type
Type of display (screen) e.g. LCD.
LCD
Response time
The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)
8 ms
Display number of colors
262144 colours
Supported resolutions
1024x576
1152x648
1280x720
1366x76
1600x900
1920x1080
Keyboard
Hot keys
Certificates
Certification
CE, FCC, UL, REACH
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
19,4 W
AC adapter input voltage
100 - 240 V
Input current
1 A
Weight & dimensions
Width
The measurement or extent of something from side to side.
480 mm
Height
The measurement of the product from head to foot or from base to top.
44 mm
Depth
The distance from the front to the back of something.
727 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
13,6 kg
Mounting depth (min)
65 cm
Mounting depth (max)
100 cm
Logistics data
Master (outer) case width
680 mm
Master (outer) case length
840 mm
Master (outer) case height
133 mm
Quantity per master (outer) case
1 pc(s)
Technical details
Material
The material from which a thing is or can be made e.g. wood, plastic.
Steel
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
44230 h
Product color
The colour e.g. red, blue, green, black, white.
Black
Operating relative humidity (H-H)
0 - 80%
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
LED indicators
Yes
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Rack capacity
The spase that device fill in rack.
1U

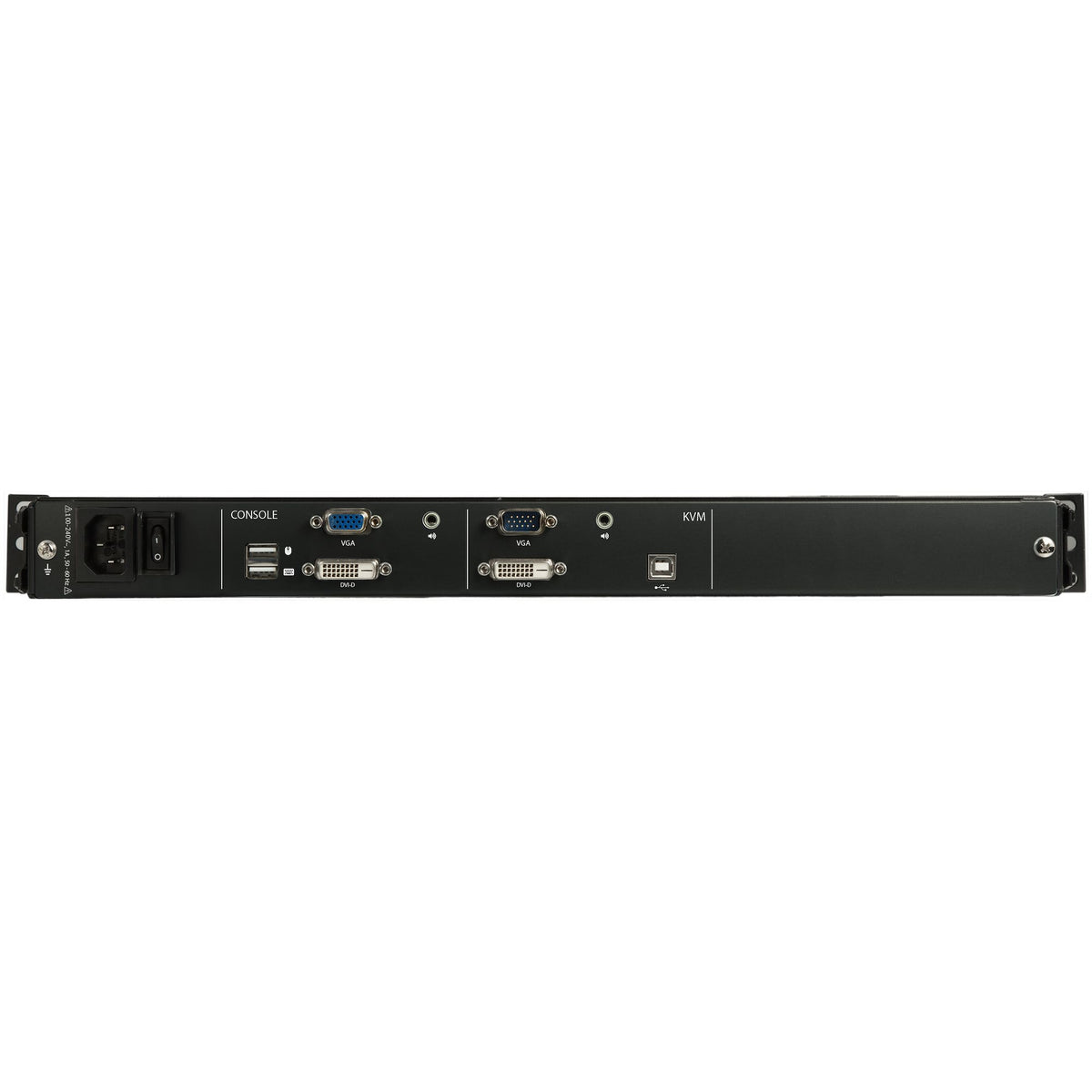

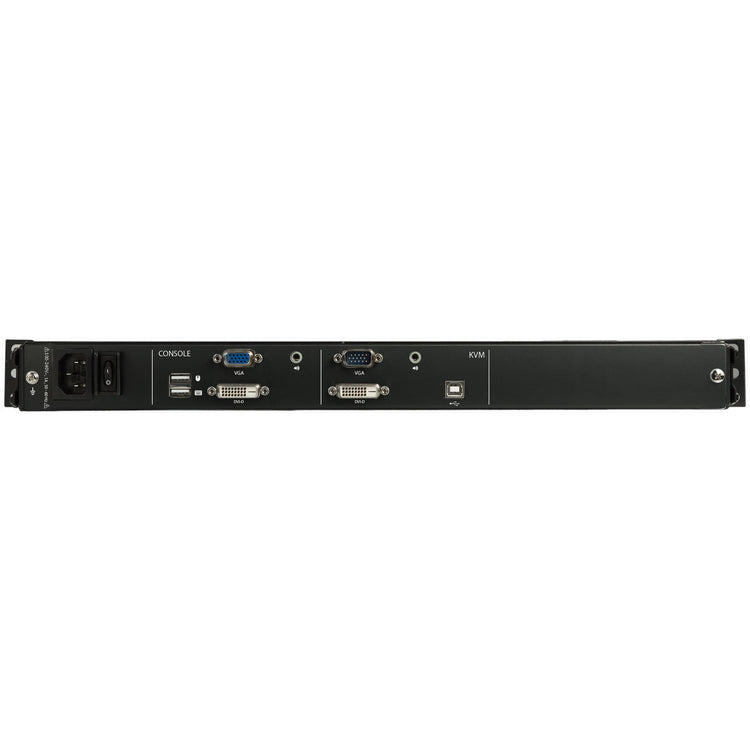

Ports & interfaces
3.5 mm (1/8-inch) out
3.5 mm (1/8-inch) in
DVI connector type
DVI-D
DVI input ports
1
DVI output ports
1
Keyboard port type
The type of socket in the device for connecting a keyboard e.g. USB.
USB
Mouse port type
USB
Video port type
The type of socket in the device for connecting a video e.g. SCART.
DVI/VGA
USB 2.0 Type-A ports quantity
2
USB 2.0 Type-B ports quantity
1
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Packaging data
Package weight
Weight of the packaged product in gram.
18,9 kg
Package width
The distance from one side of the packaging to the other.
680 mm
Package depth
The distance from the front to the back of the packaging.
840 mm
Package height
The distance from the top to the bottom of the packaging.
133 mm
Packaging content
Cables included
Audio (3.5mm), KVM
Screws included
Number of screws
8
Mounting brackets included
Cage nuts included
Number of cage nuts
8
Included power plug types
ANZ, EU, JP, NA, UK
Quick installation guide
