STARTECH .com rack cabinet Wall mounted rack Black (RACK-10U-14-BRACKET)
- Regular price
- 214.95$
- Sale price
- 214.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

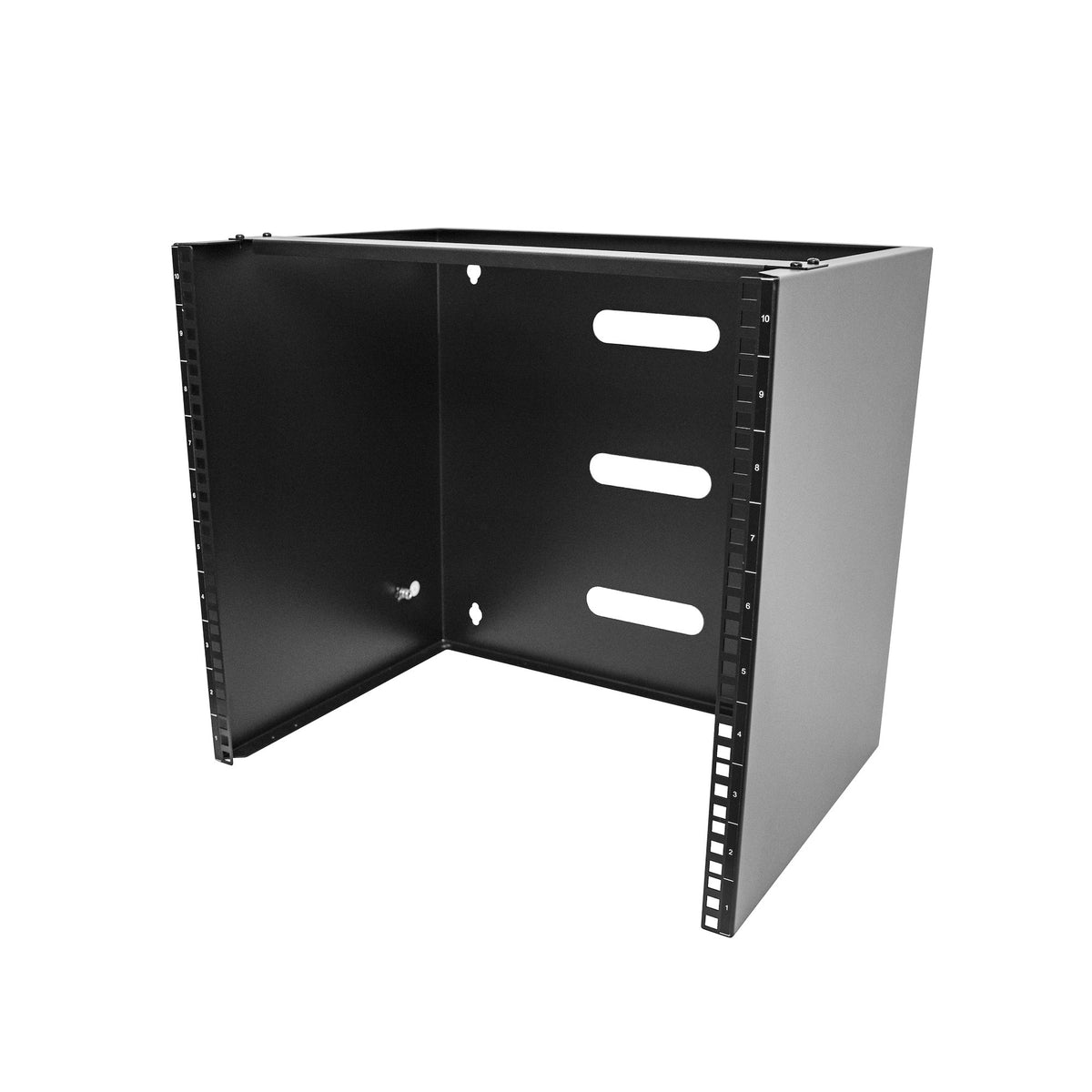

StarTech.com RACK-10U-14-BRACKET rack cabinet Wall mounted rack Black
Brand:StarTech.com
Product name:10U Wall Mount Network Rack - 14" (35.5cm) Deep (Low Profile), 19" Patch Panel Bracket for Shallow Server, IT Equipment, Network Switches - 77lbs/35kg Weight Cap., Black
Product code:RACK-10U-14-BRACKET
EAN/UPC:
0065030893893
0065030893893, 065030893893
- 10U WALL MOUNT RACK: This 19-inch wide low profile wall mounted rack has a maximum mounting depth of 14in (35.5cm), recommended for networking equipment up to 12in (30cm) deep, leaving 2in (5.5cm) for cable routing; Maximum weight capacity of 77lbs (35kg)

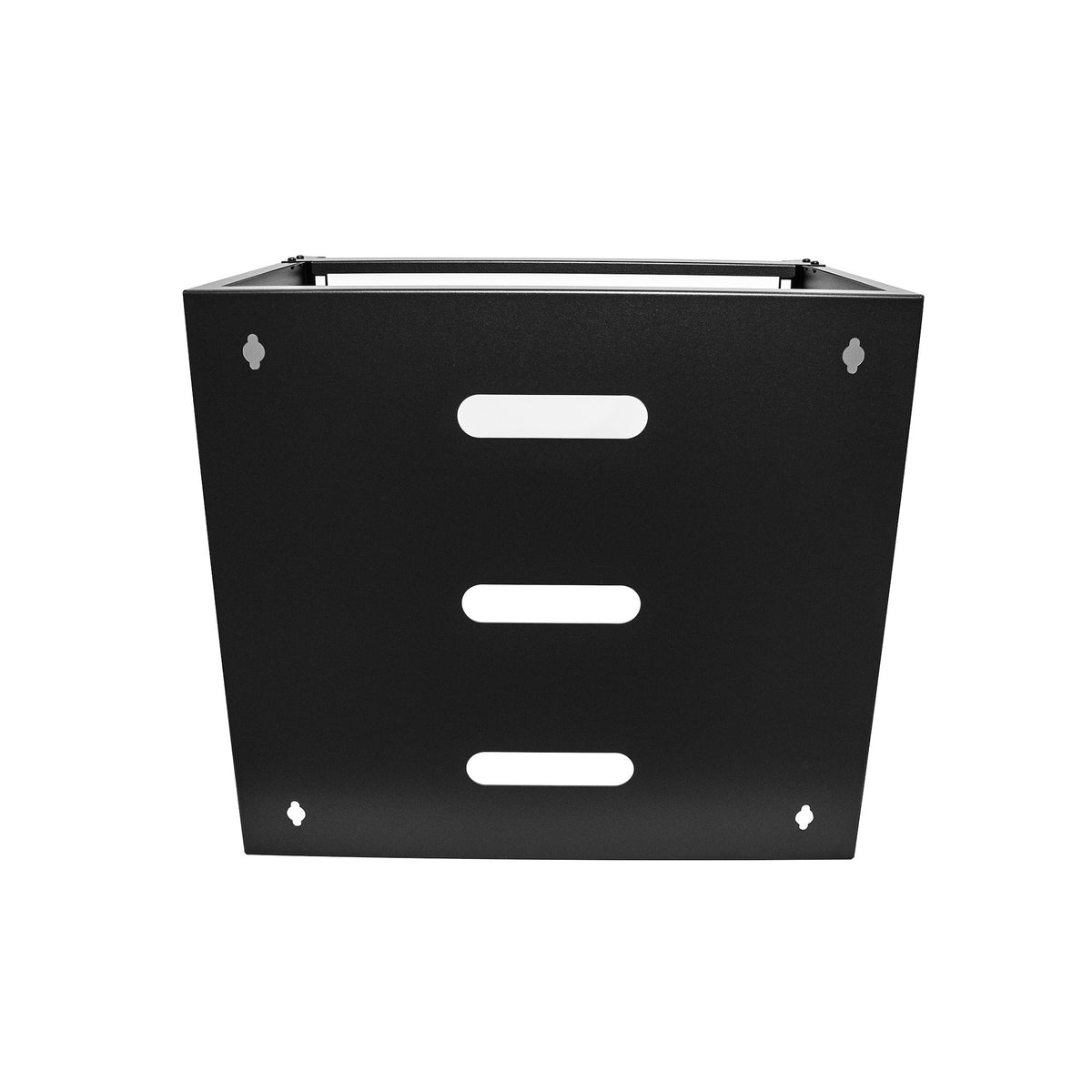

- EASY TO INSTALL: The 10U wall-mounting patch panel bracket ships fully assembled and comes with M6 screws and M6 square cage nuts for easier equipment installation; Includes wall mounting hardware; Predrilled wall mounting holes spaced 16"(40cm) apart

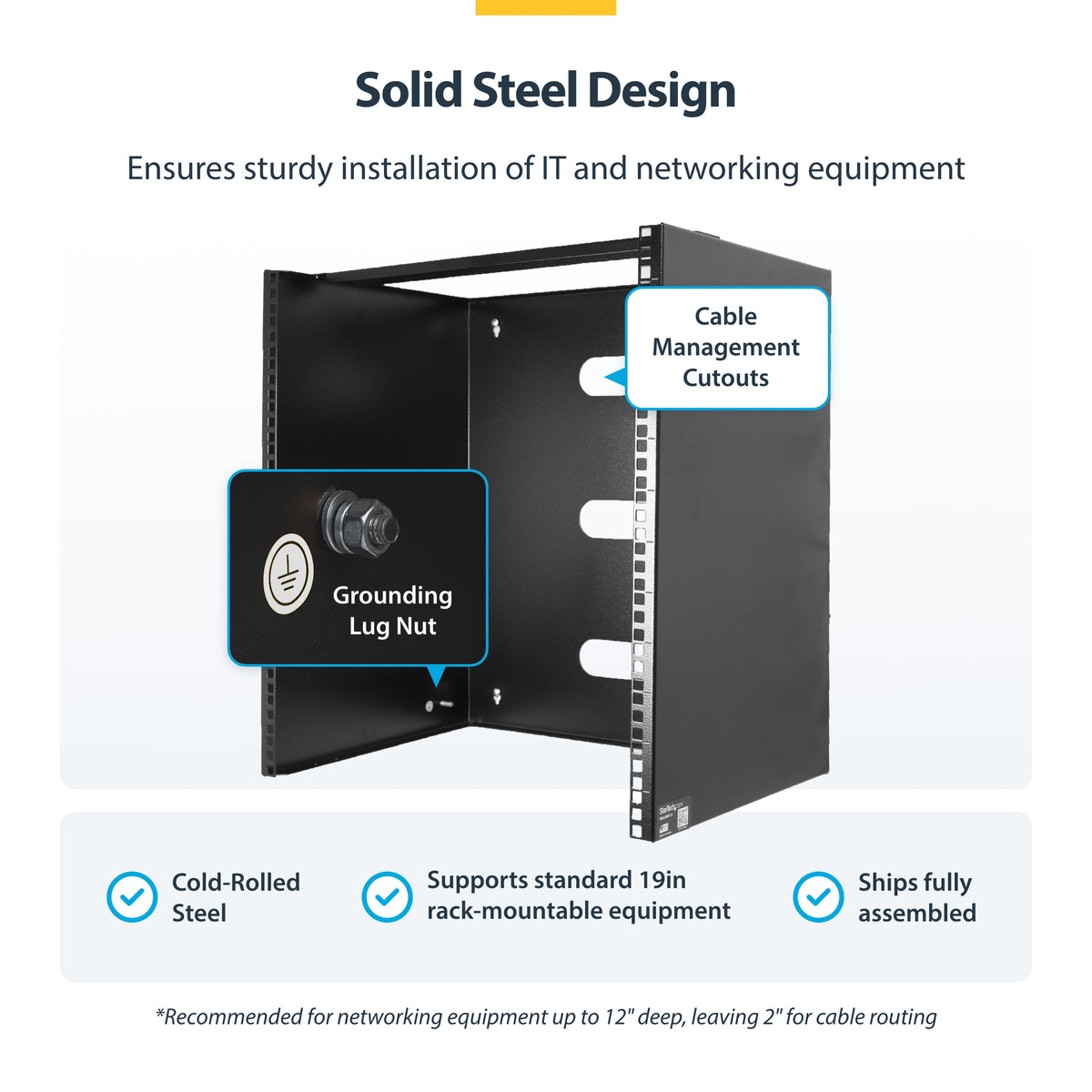

- COLD-ROLLED STEEL CONSTRUCTION: The wall mounting rack features a 1/16 in (1.5mm) thick solid steel design for ultimate durability and to ensure a safe and sturdy mounting solution
- EASY CABLE MANAGEMENT: Built with efficiency in mind; Small wall mount patch panel bracket has rear cable opening slot for in-wall cable routing in your network closet, server room, wiring closet, classroom
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 10U wall mount rack is backed for life, including free 24/5 multi-lingual technical assistance
Description

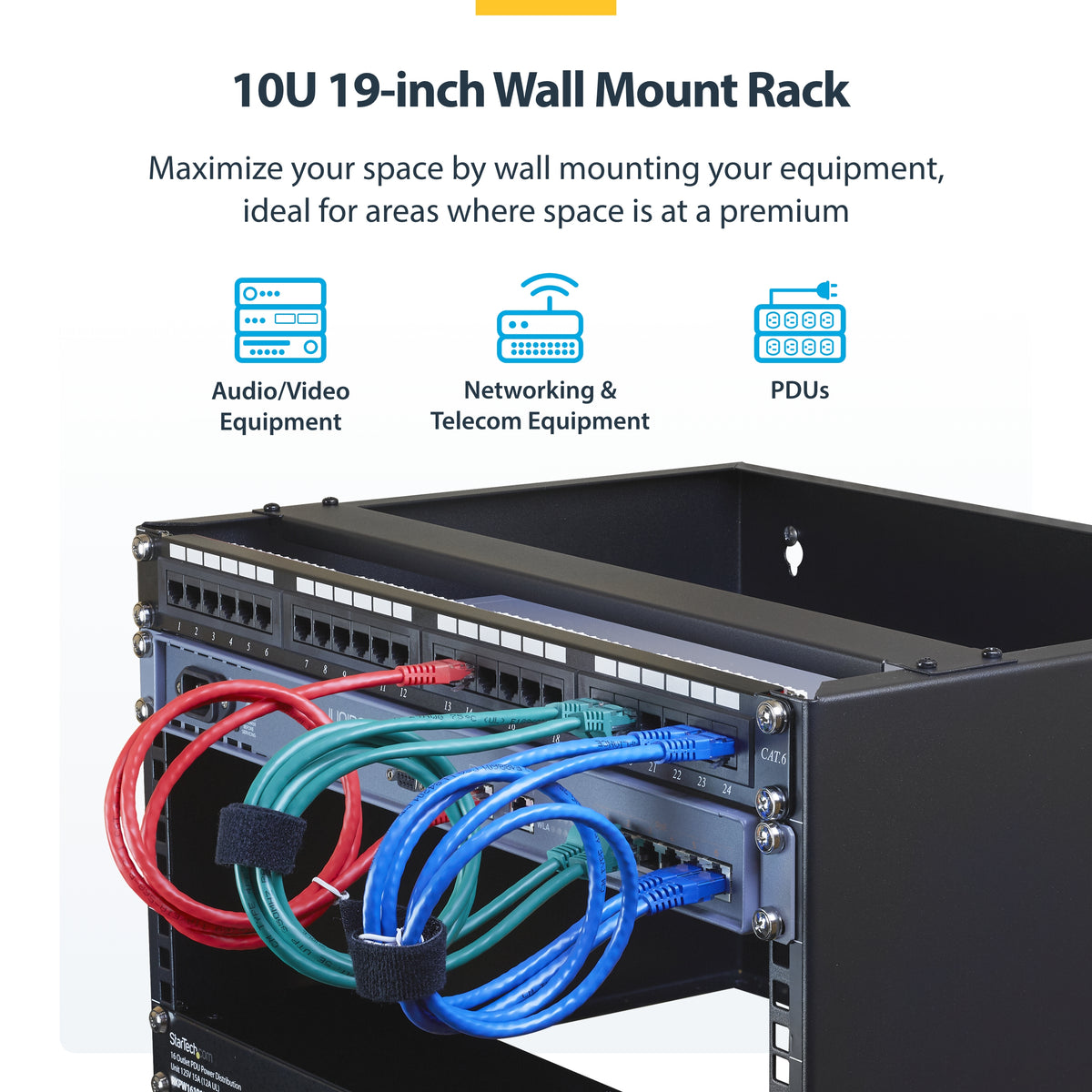

Mount your network equipment such as patch panels or switches to the wall
The 10U 14in deep wall mounting bracket for patch panels delivers a sturdy and dependable equipment storage option, allowing you to wall mount data/IT equipment for a more efficient and accessible operating environment. It's the perfect solution for areas where space is at a premium like SoHo (small office, home office) environment, or space limited server room because it doesn't take any floor space.
Sturdy Construction & Easy Installation

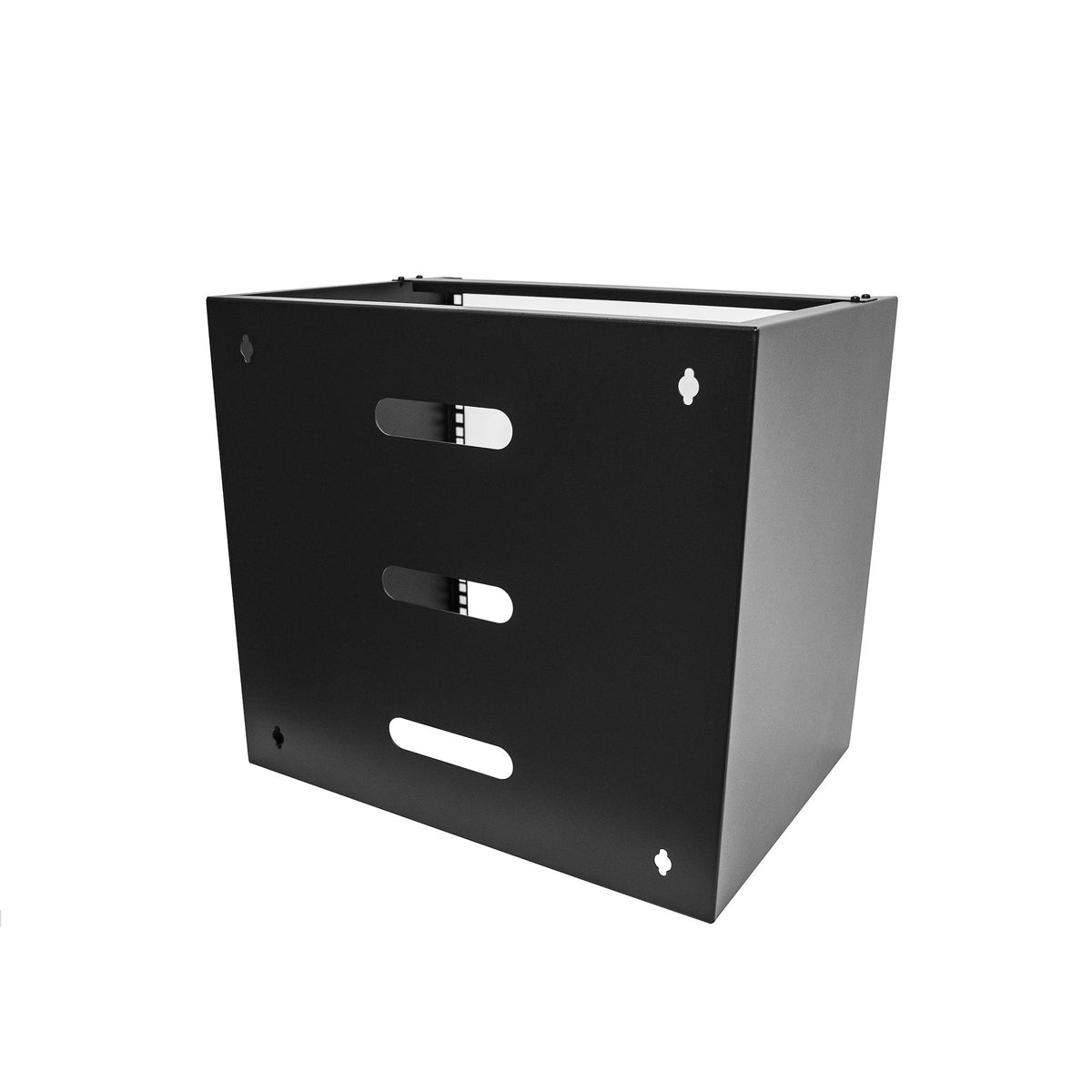

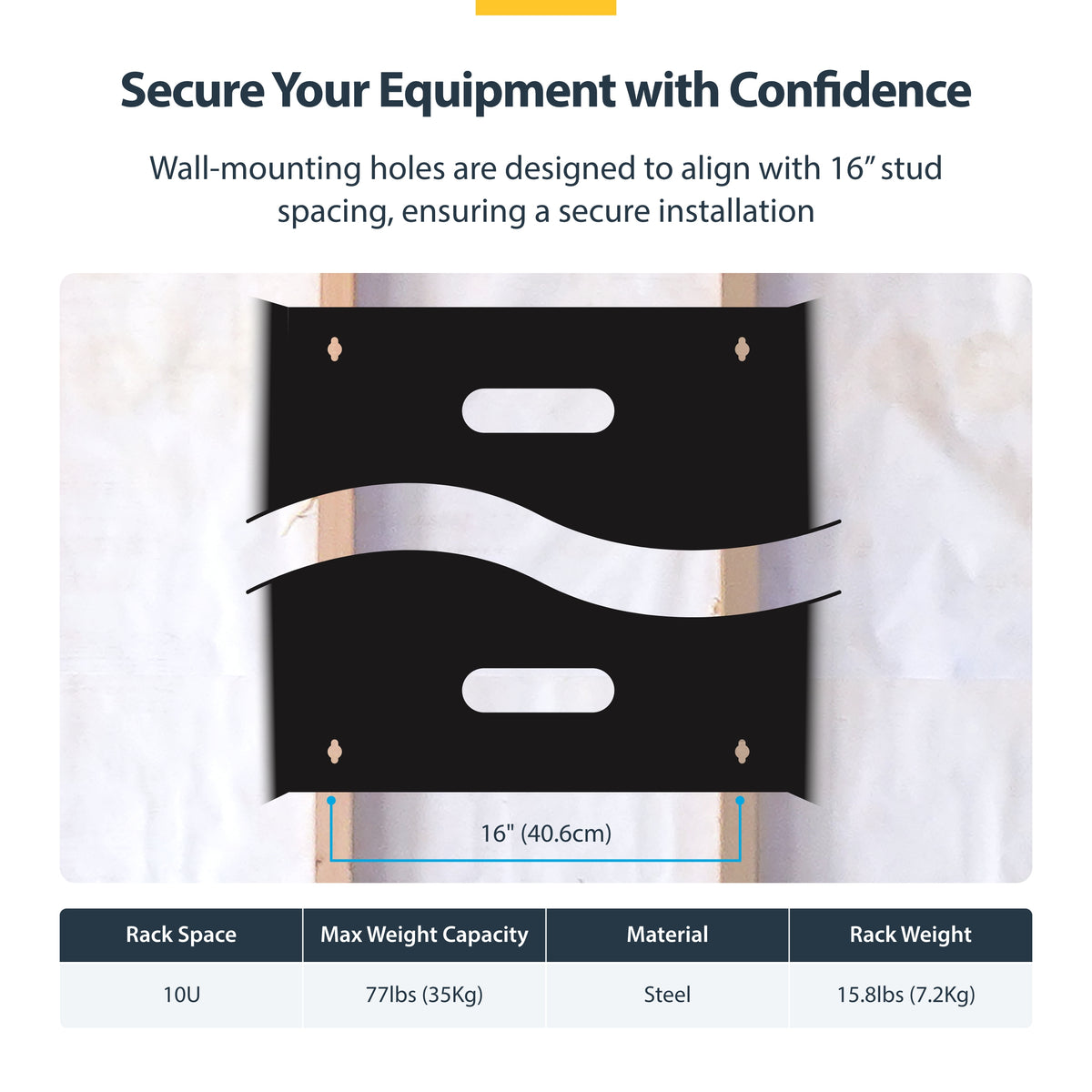

The mounting bracket features an all-steel design and is suitable for mounting patch panels, or other slim 19in equipment to a wall, and to organize cabling or equipment in your network closet, wiring closet, back office, or IDF. The sturdy steel construction is especially helpful for durability and stability. Also, because The open frame wall rack's mounting holes are positioned 16in. apart, allowing you a simple and secure wall-stud anchoring to your existing construction framework.
Includes Hardware

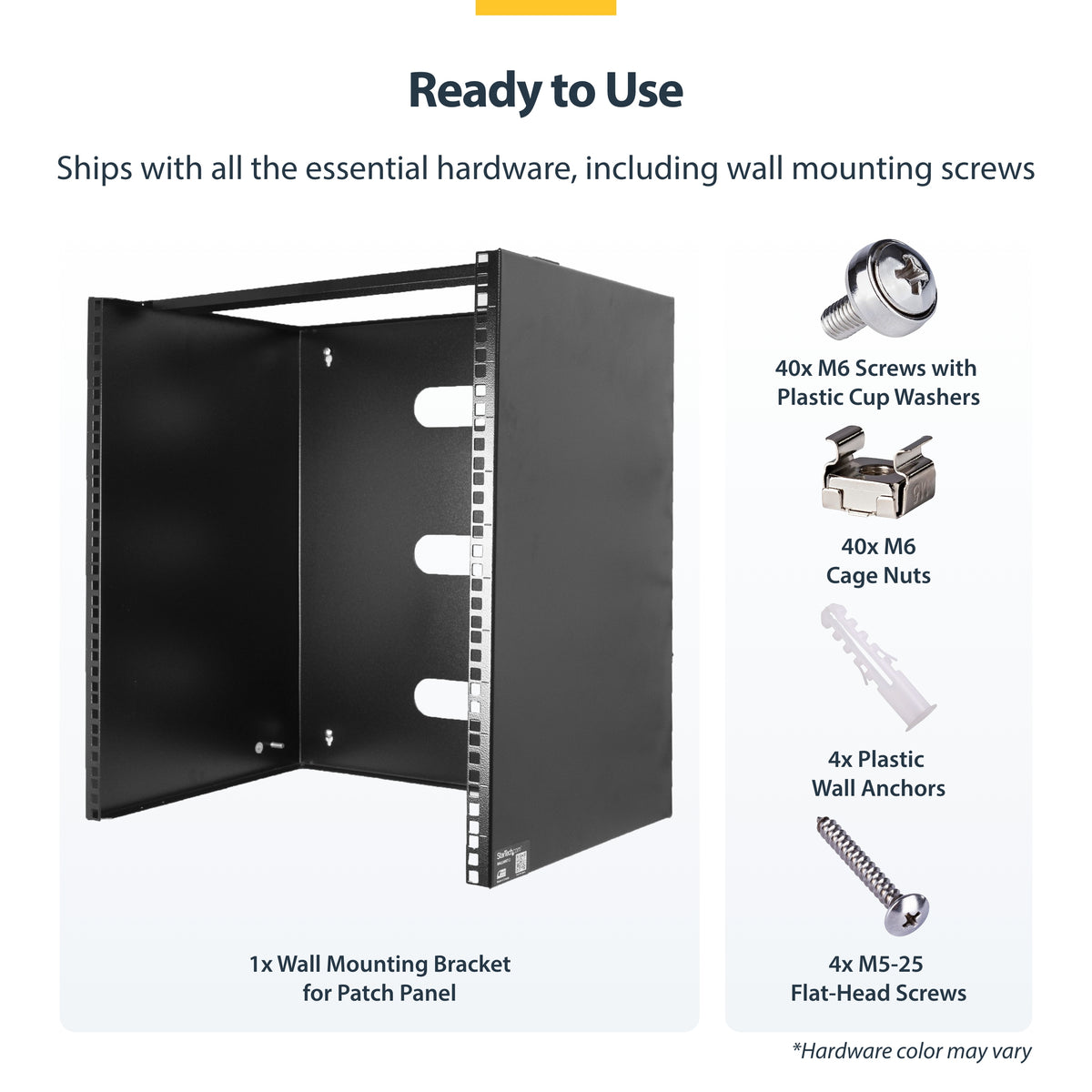

M6 square cage nuts and M6 screws are included with the wall-mount bracket, additionally, M5x25 mounting screws are included to save you the hassle of sourcing separate mounting hardware.
The 10U 14in deep wall mounting bracket for patch panels delivers a sturdy and dependable equipment storage option, allowing you to wall mount data/IT equipment for a more efficient and accessible operating environment. It's the perfect solution for areas where space is at a premium like SoHo (small office, home office) environment, or space limited server room because it doesn't take any floor space.
Sturdy Construction & Easy Installation
The mounting bracket features an all-steel design and is suitable for mounting patch panels, or other slim 19in equipment to a wall, and to organize cabling or equipment in your network closet, wiring closet, back office, or IDF. The sturdy steel construction is especially helpful for durability and stability. Also, because The open frame wall rack's mounting holes are positioned 16in. apart, allowing you a simple and secure wall-stud anchoring to your existing construction framework.
Includes Hardware
M6 square cage nuts and M6 screws are included with the wall-mount bracket, additionally, M5x25 mounting screws are included to save you the hassle of sourcing separate mounting hardware.
Specs
Features
Rack capacity
The spase that device fill in rack.
10U
Type
Characteristics of the device.
Wall mounted rack
Maximum weight capacity
The maximum weight that the product is designed to hold/store.
35 kg
Product color
The colour e.g. red, blue, green, black, white.
Black
Material
The material from which a thing is or can be made e.g. wood, plastic.
Steel
Product design
The creation of a plan or convention for the construction of an object or a system.
2-post
Mounting hole shape
Square
Logistics data
Master (outer) case width
425 mm
Master (outer) case length
500 mm
Master (outer) case height
520 mm
Quantity per master (outer) case
1 pc(s)

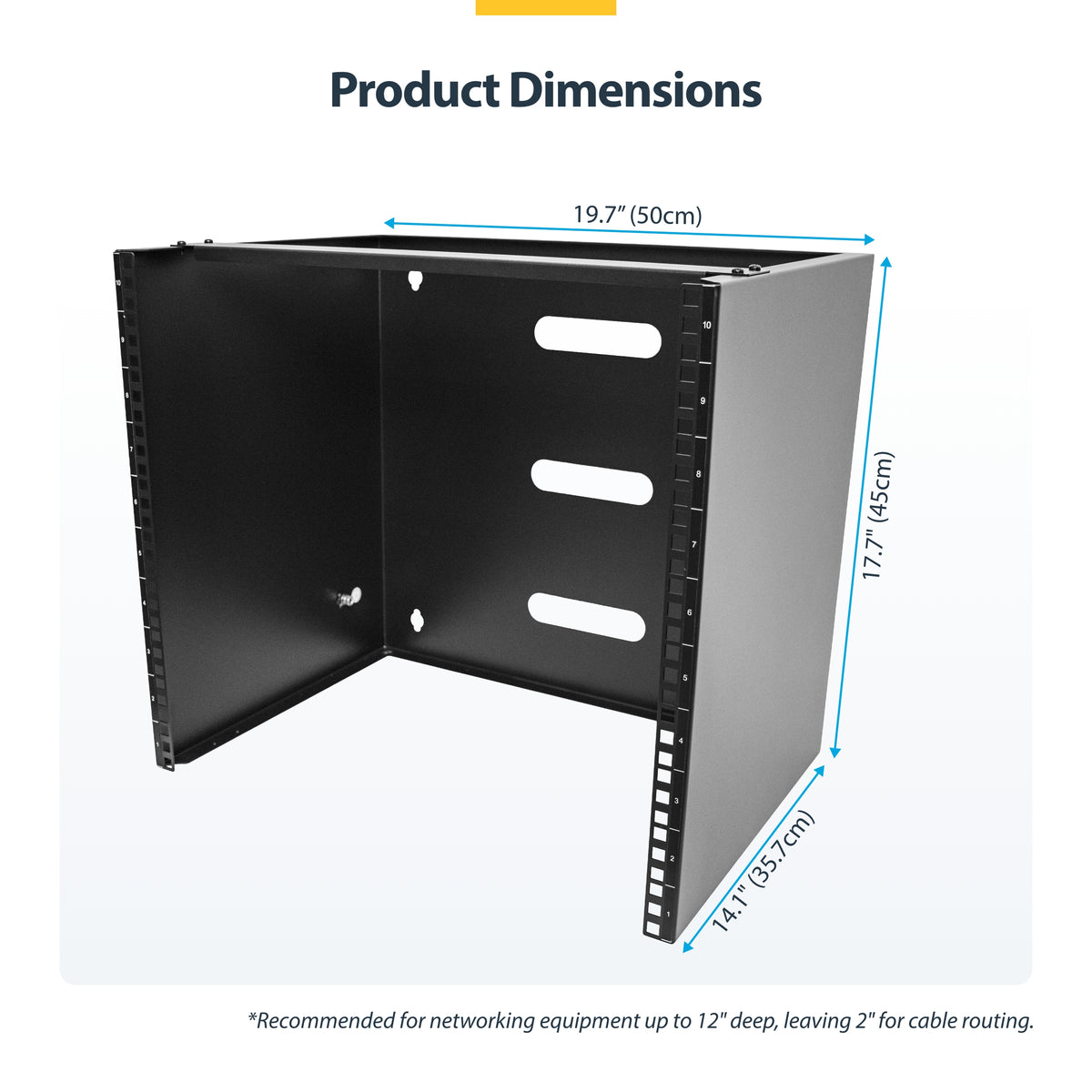

Weight & dimensions
Width
The measurement or extent of something from side to side.
498 mm
Depth
The distance from the front to the back of something.
356 mm
Height
The measurement of the product from head to foot or from base to top.
451 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
5 kg
Mounting depth (max)
30 cm
Packaging data
Nuts included
Number of nuts
40
Screws included
Number of screws
44
Number of washers included
40
Quick installation guide
Package width
The distance from one side of the packaging to the other.
425 mm
Package depth
The distance from the front to the back of the packaging.
500 mm
Package height
The distance from the top to the bottom of the packaging.
520 mm
Package weight
Weight of the packaged product in gram.
9,8 kg
