StarTech.com PM1115P3 print server Ethernet LAN White
Brand:StarTech.com
Product name:Ethernet to Parallel Network Print Server, 10/100Mbps LAN, WebUI Enabled, Centronics Ethernet Printer Server Adapter, Enhances Legacy Printer, TAA
Product code:PM1115P3
EAN/UPC:
0065030897716
0065030897716, 065030897716
- NETWORK PRINTER: Ethernet to parallel network print server converts a parallel printer into a network printer, adding remote printing & printer sharing across a network; Supports 10/100Mbps LAN networks, IPP, TCP/IP, LPR, RAW, Apple Talk, NetWare, & SMB
- DETAILED INSTALLATION STEPS: Perform initial setup following our user manual; Access the online FAQs and IT Pro Community for additional helpful tips and instructions. Compact Ethernet print server connects directly to Centronics (36-pin) port on a printer
- REVITALIZE LEGACY PRINTERS: Upgrade the functionality of legacy printers by adding wired network connectivity; Supports HP LaserJet, Epson, Canon, Lexmark, Brother; Also use with vinyl cutters and label printers; Ideal for office/government/education
- BROAD COMPATIBILITY: Parallel print server supports Windows, macOS, Linux; Setup through Windows software or Web interface for macOS/Linux; Windows Utility and WebUI for Network and protocol configuration, print status and queue, reset, firmware upgrade
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this parallel network print server is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
Description
Add and share a parallel printer to an existing Ethernet network
The Ethernet to Parallel Network Print Server converts a standard parallel printer into a network printer over a 10/100Mbps compatible network. Take advantage of remote printing or printer sharing while extending the life of legacy hardware by integrating it into modern network environments.
Network Printer
Enable printing support among multiple network-connected computers, maximizing the functionality of existing printers. The print server adapter supports 10 and 100Mbps Ethernet speeds with auto-negotiation.

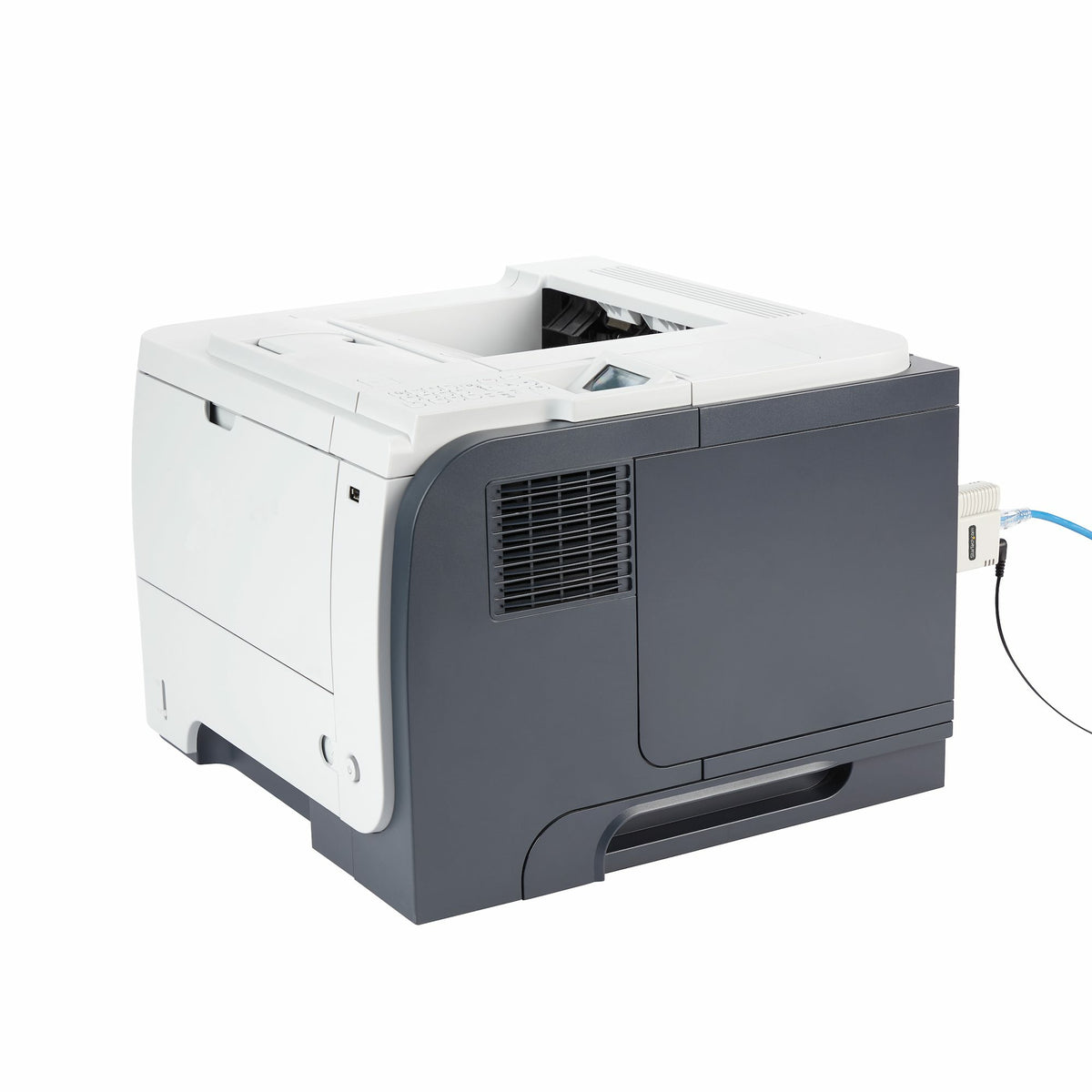

Place the printer at any convenient shared location allowing multiple users to access printing services without delays.
Connect a Parallel Printer

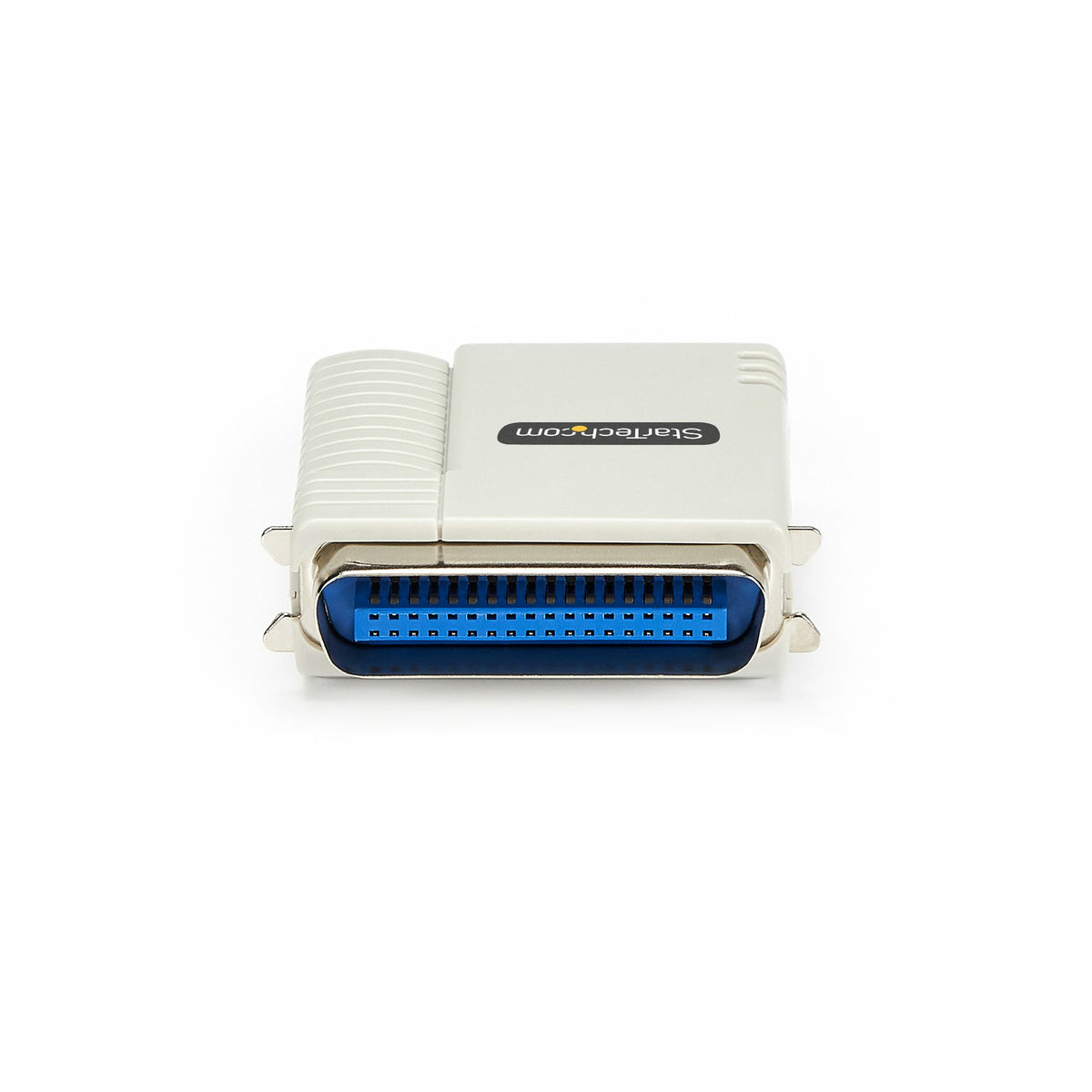

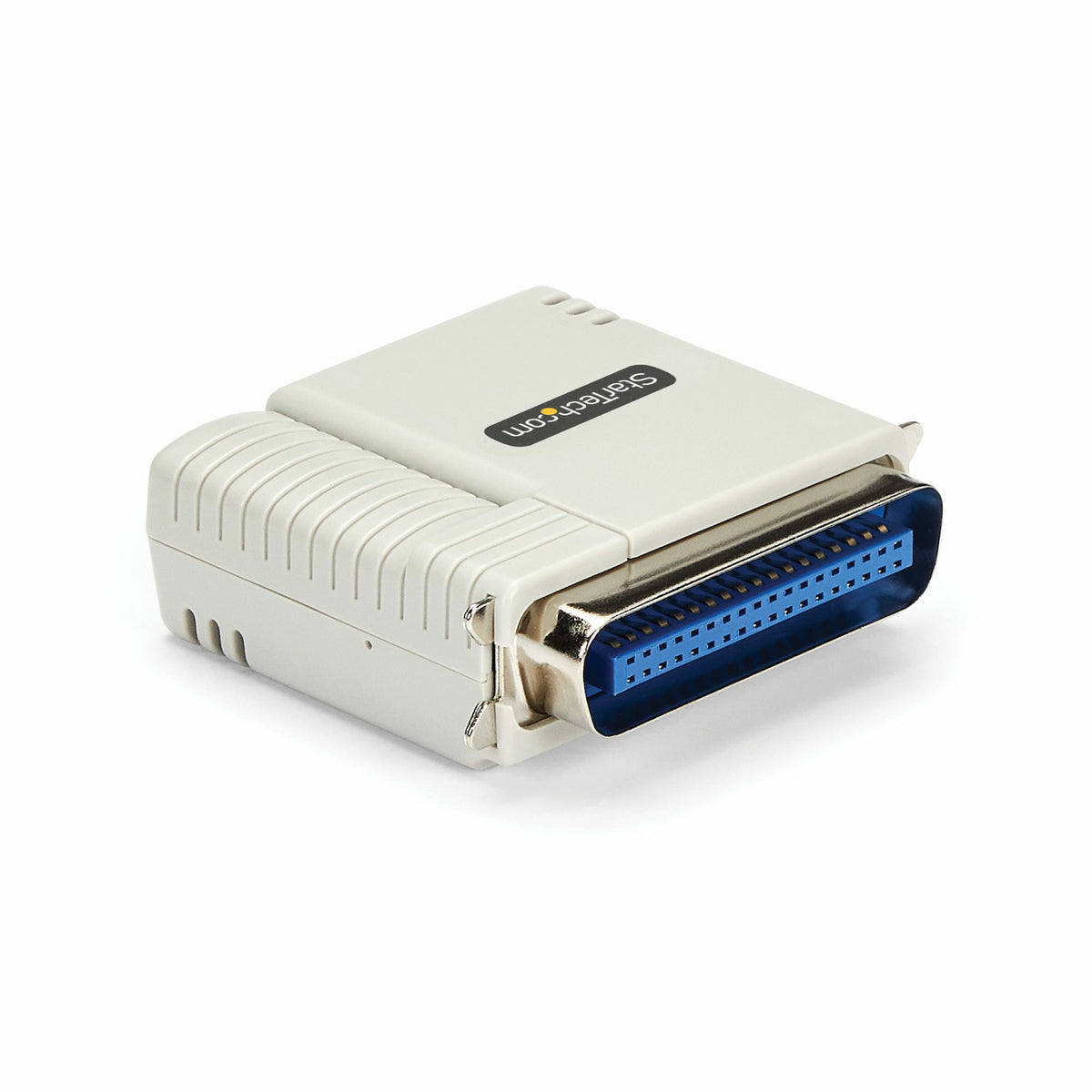

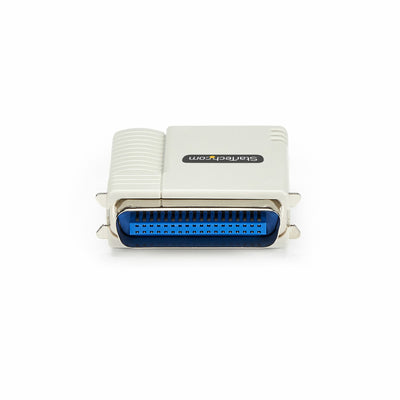

This compact Ethernet print server connects directly to the printer's Centronics port for a secure and discreet network solution. To configure and add the printer to the network, use the web interface from any operating system or the Windows®-based installation wizard. The print server also supports IPX, TCP/IP (LPR, IPP, RAW 9100), NetBEUI, AppleTalk, SNMP v1 and 2, SMB.
The Ethernet to Parallel Network Print Server converts a standard parallel printer into a network printer over a 10/100Mbps compatible network. Take advantage of remote printing or printer sharing while extending the life of legacy hardware by integrating it into modern network environments.
Network Printer
Enable printing support among multiple network-connected computers, maximizing the functionality of existing printers. The print server adapter supports 10 and 100Mbps Ethernet speeds with auto-negotiation.
Place the printer at any convenient shared location allowing multiple users to access printing services without delays.
Connect a Parallel Printer
This compact Ethernet print server connects directly to the printer's Centronics port for a secure and discreet network solution. To configure and add the printer to the network, use the web interface from any operating system or the Windows®-based installation wizard. The print server also supports IPX, TCP/IP (LPR, IPP, RAW 9100), NetBEUI, AppleTalk, SNMP v1 and 2, SMB.
Specs
Features
Internal
The product is built in.
Product color
The colour e.g. red, blue, green, black, white.
White

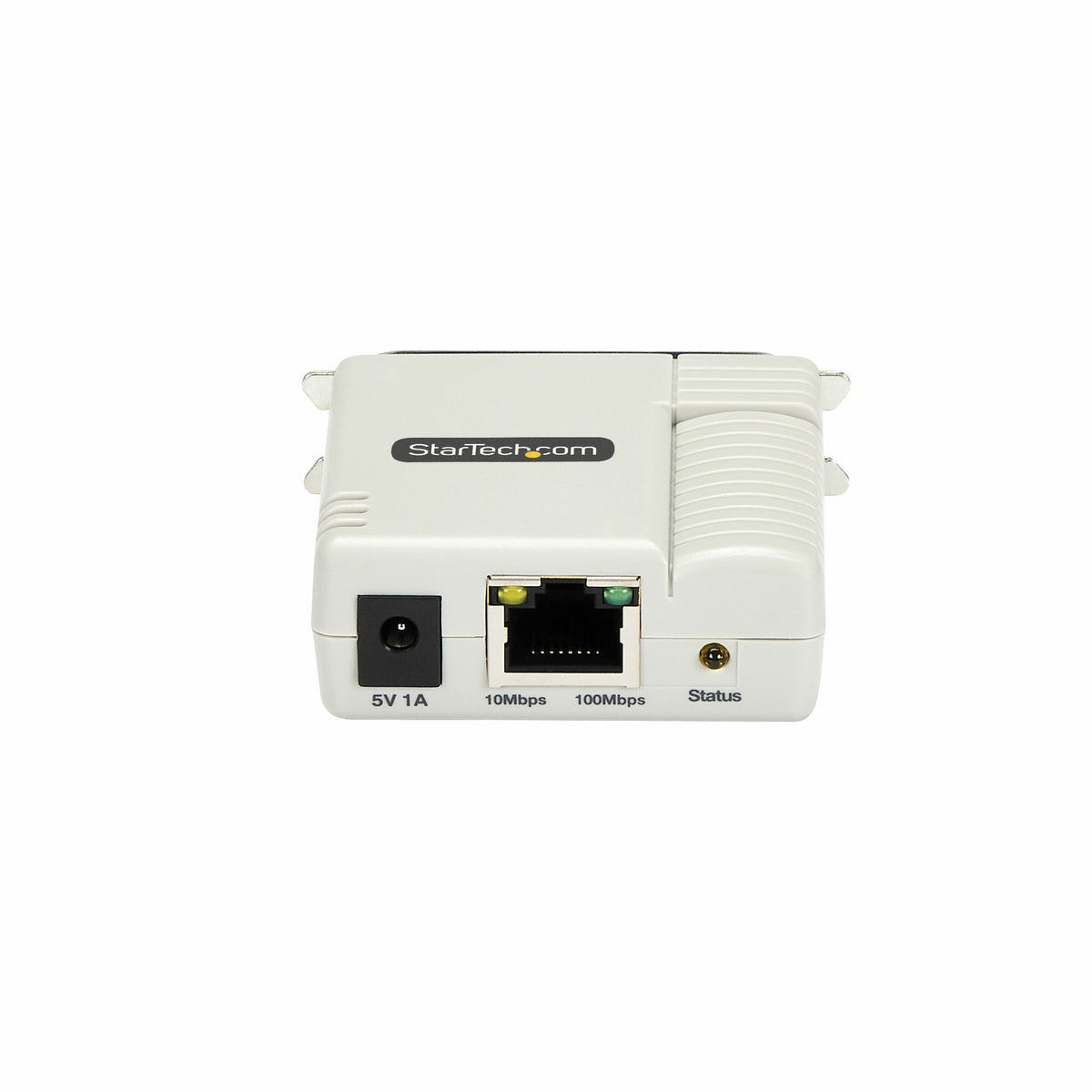

LED indicators
LAN, Status
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Parallel ports quantity
The number of parallel ports. Parallel ports, also known as printer ports, are a type of interface found on computers (personal and otherwise) for connecting peripherals. In computing, a parallel port is a parallel communication physical interface. Parallel ports were common in the 1980s and '90s (mostly conforming to industry standard IEEE 1284) but are now being replaced by USBs and other ports.
1
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Software
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Server operating systems supported
Windows Server 2016, Windows Server 2019
Packaging data
Package width
The distance from one side of the packaging to the other.
230 mm
Package depth
The distance from the front to the back of the packaging.
152 mm
Package height
The distance from the top to the bottom of the packaging.
68 mm
Package weight
Weight of the packaged product in gram.
252 g
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE
Logistics data
Master (outer) case width
489 mm
Master (outer) case length
380 mm
Master (outer) case height
355 mm
Quantity per master (outer) case
20 pc(s)
Network
Network connection type
The type of network connection e.g. Ethernet, Wi-Fi.
Ethernet LAN
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100 Mbit/s
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Input current
0.3 A
AC adapter output voltage
5 V
AC adapter output current
1 A
Weight & dimensions
Width
The measurement or extent of something from side to side.
52 mm
Depth
The distance from the front to the back of something.
56 mm
Height
The measurement of the product from head to foot or from base to top.
22 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
46 g

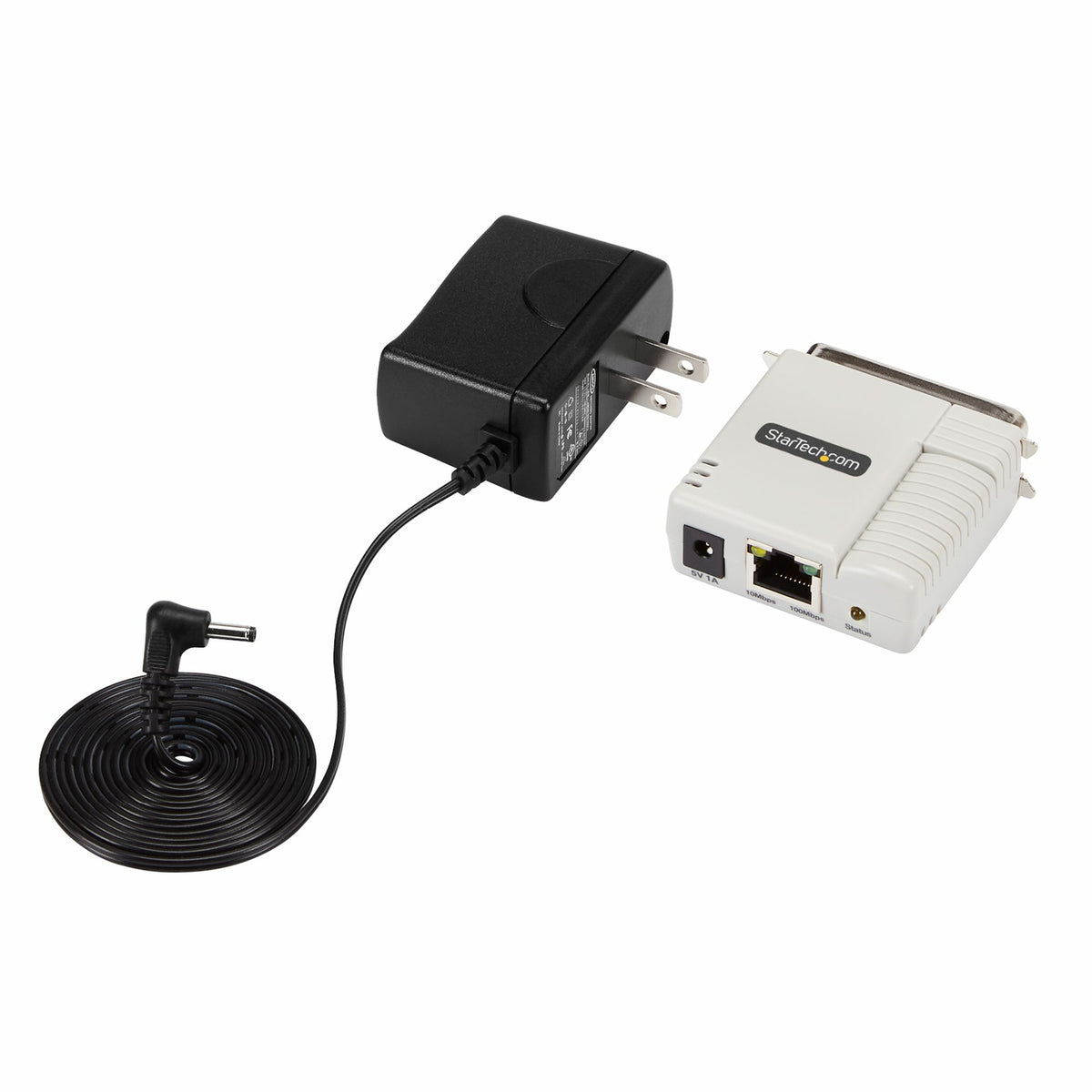

Packaging content
Manual
External power adapter
Operational conditions
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-5 - 65 °C
Storage relative humidity (H-H)
0 - 70%
