STARTECH .com power distribution unit (PDU) 12 AC outlet(s) 1U Black (12NM8-RACK-MOUNT-PDU)
- Regular price
- 218.95$
- Sale price
- 218.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com 12NM8-RACK-MOUNT-PDU power distribution unit (PDU) 12 AC outlet(s) 1U Black
Brand:StarTech.com
Product name:12-Outlet Horizontal Rack Mount Metered PDU, 1U Server Power Strip w/Surge Protector, 125V/15A, 8ft (2.4m) Power Cable, Power Distribution Unit, TAA
Product code:12NM8-RACK-MOUNT-PDU
EAN/UPC:
0065030902571
0065030902571, 065030902571

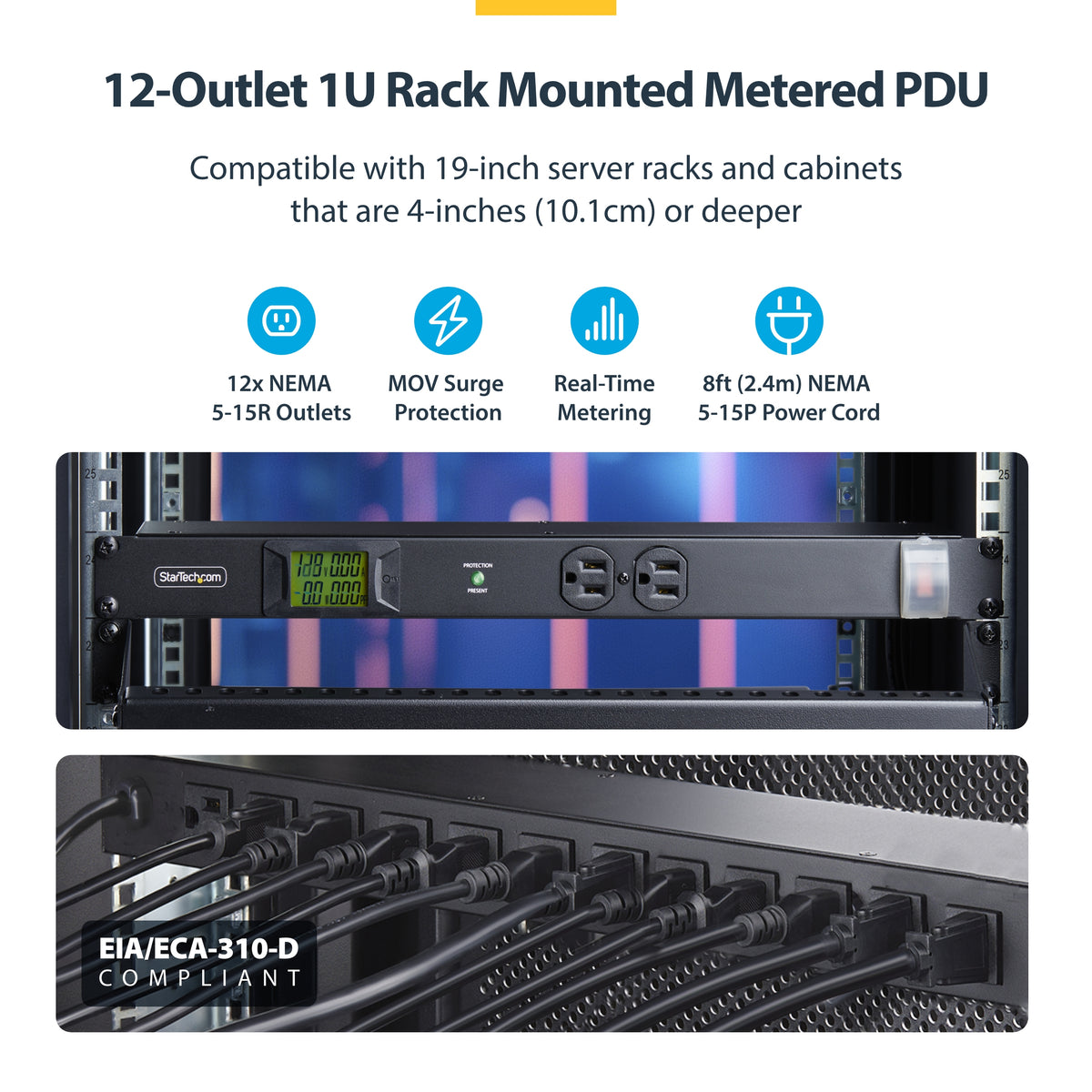

- 12-OUTLET 1U RACK MOUNTED METERED PDU: 12x NEMA 5-15R power outlets; 125V max and 15A circuit breaker; Built-in 8ft (2.4m) NEMA 5-15P power cord; Ideal power supply strip for 19" racks in server rooms/closets, data center, and testing labs
- METERED POWER DISTRIBUTION UNIT: Large-font display with optional backlight for real-time monitoring of key power parameters: voltage (V), current (A), wattage (W), and power factor (PF), which indicates the efficiency of the connected devices
- SURGE PROTECTOR: Self-tripping MOV design with mechanical trigger instantly cuts power during surges to protect connected devices; Includes LED status indicator, resettable 15A circuit breaker, and safety cover to prevent accidental resets
- RACK MOUNTABLE: 1U horizontal rackmount PDU for EIA-310-compliant 19-inch server racks/cabinets that are 4in (10.1cm) or deeper; Made of cold-rolled steel w/textured finish for sturdiness & long-lasting durability; 10x rear and 2x front electrical outlets
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA-compliant rack mount PDU is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Description
Add twelve power outlets to a 19in server rack or cabinet

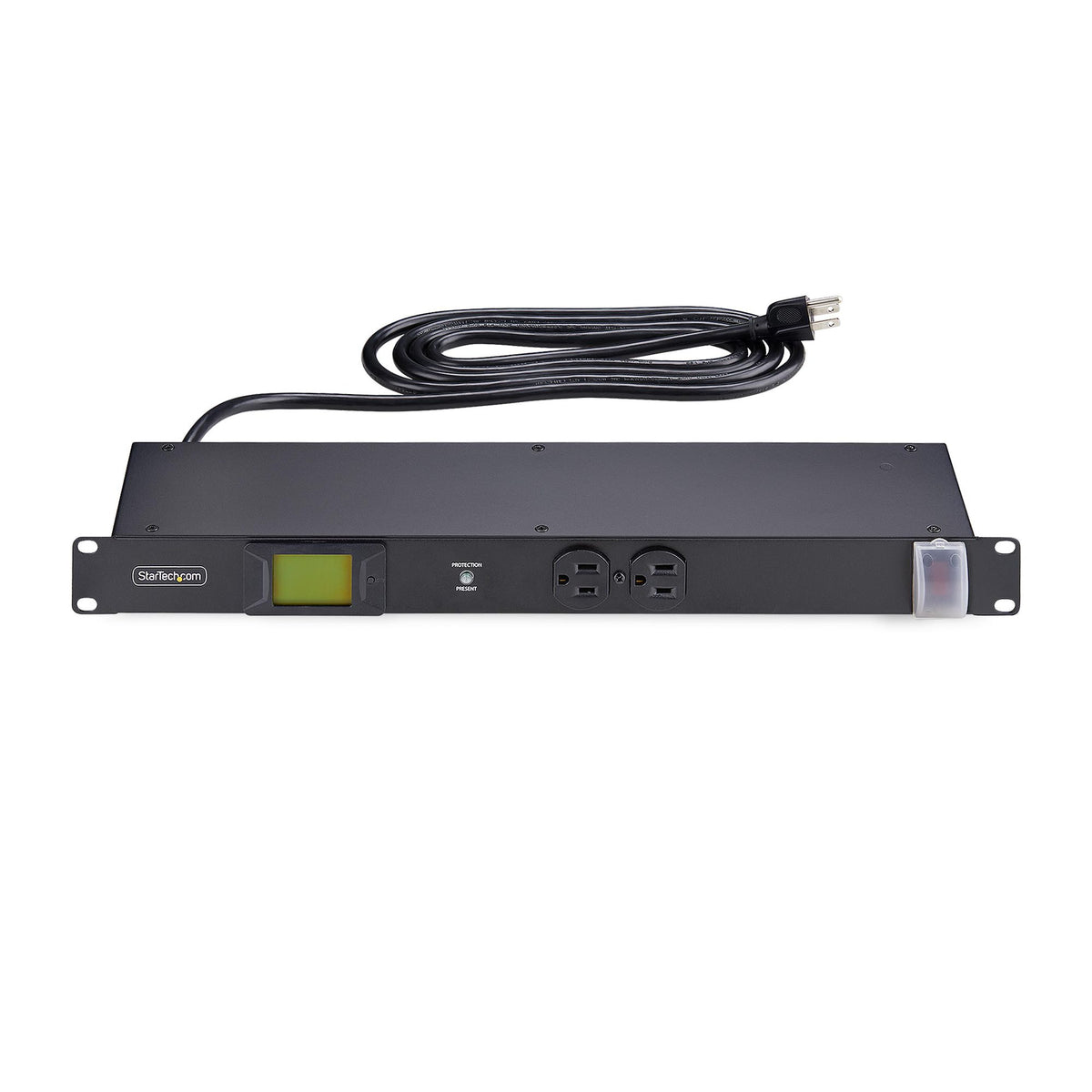

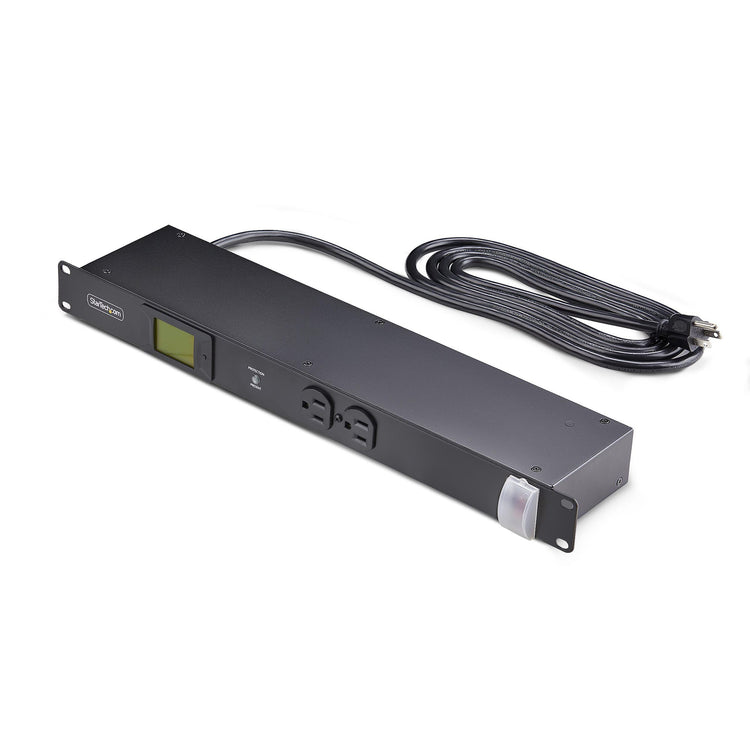

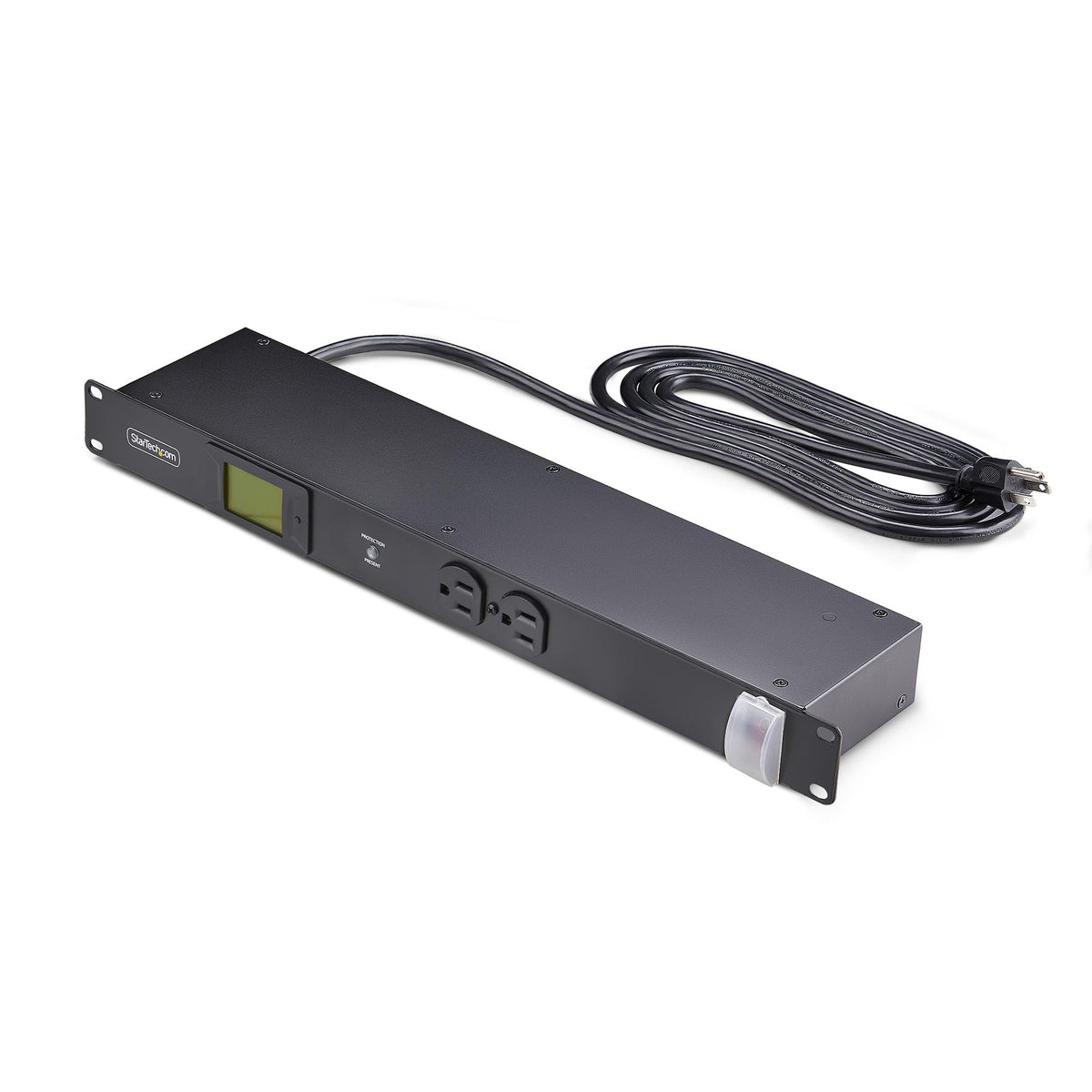

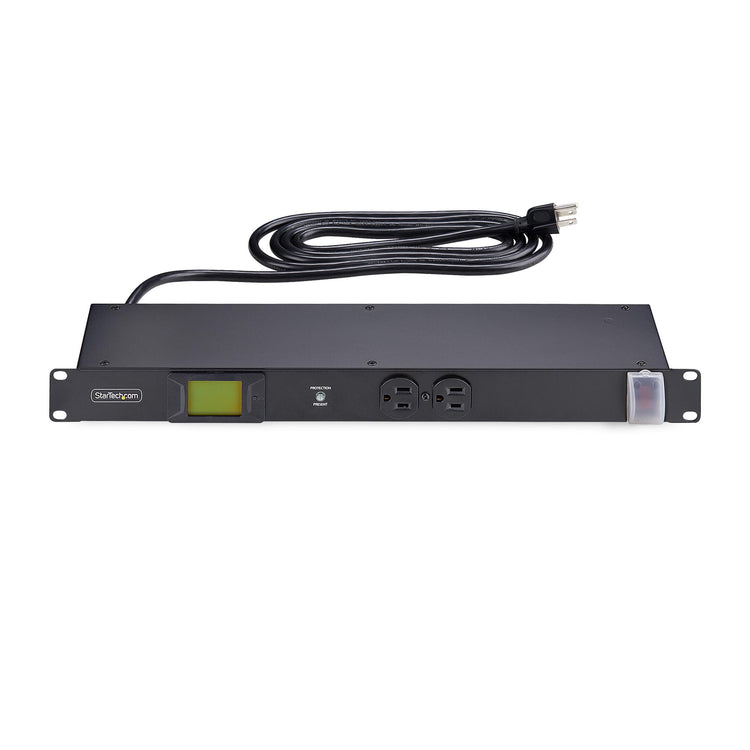

This 1U Rack Mount Metered PDU features a built-in 8ft (2.4m) NEMA 5-15P power cord and 12x NEMA 5-15R outlets, while the surge protection helps ensure the safe and stable operation of critical equipment. A large backlit LCD provides live readings of electrical parameters for connected devices.
Metered Power Distribution Unit
Metering is essential for maintaining equipment performance and stability by enabling real-time reads of key electrical parameters: voltage (V), current (Amp), wattage (W), and power factor (PF). The power factor indicates the efficiency of connected devices, with values closer to 1.0 being the most efficient. Monitoring enables early detection of potential issues, efficient load management, and insights for optimizing energy use.

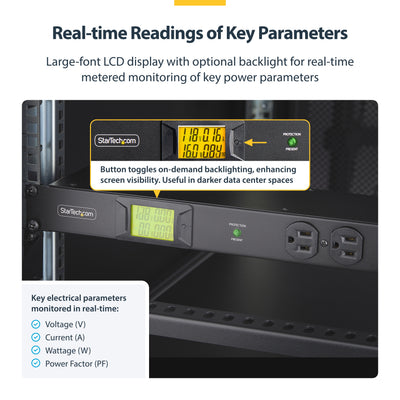

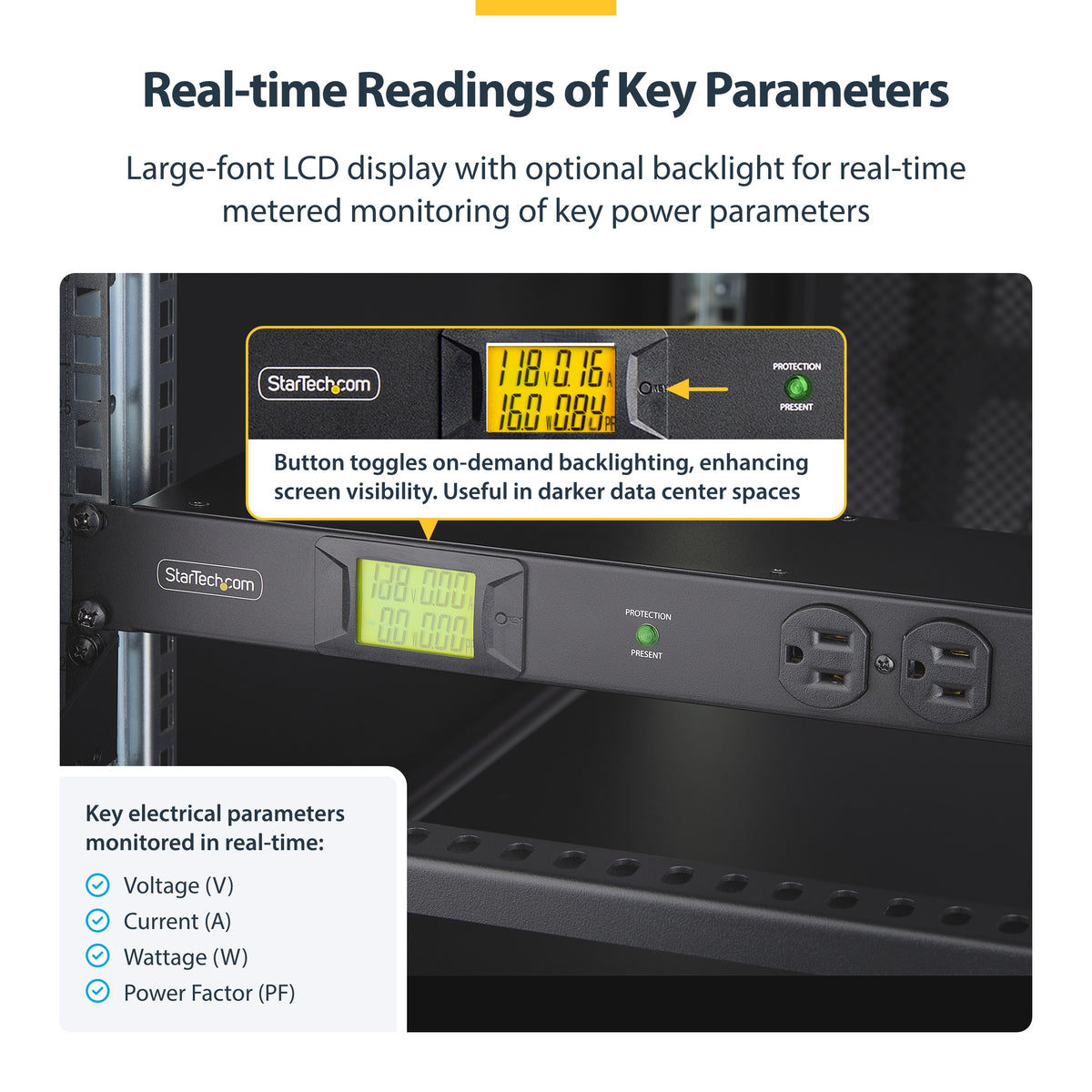

The large-font display provides real-time monitoring of key electrical parameters, while the on-demand backlight helps with visibility in dimly lit scenarios.
Enhanced Power Safety

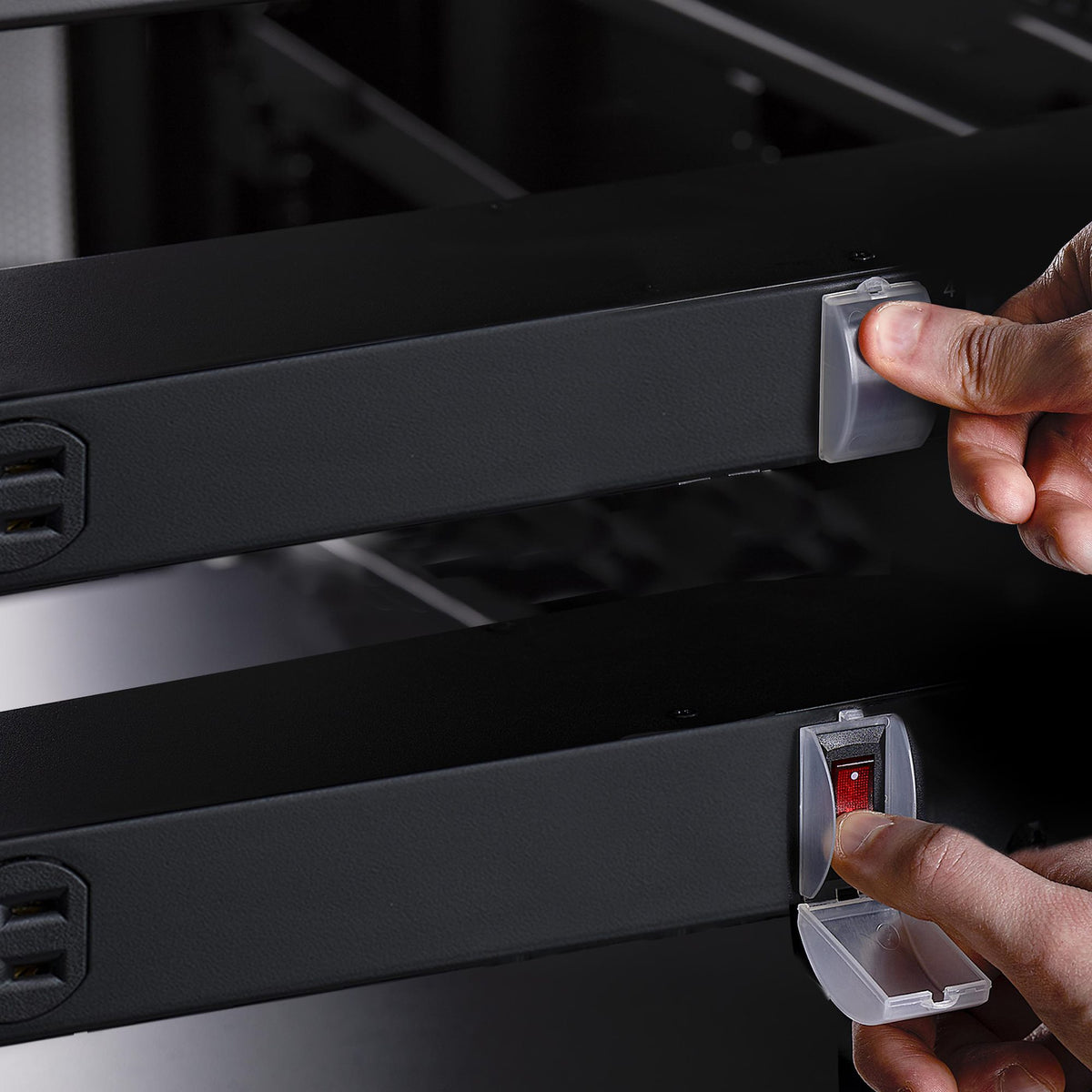

The robust 15A circuit breaker features a mechanical trigger that quickly responds to surges, providing essential protection for the connected. The resettable breaker has a safety cover that prevents unintentional resets. A bright LED indicator confirms active surge protection
Rack Mount Design

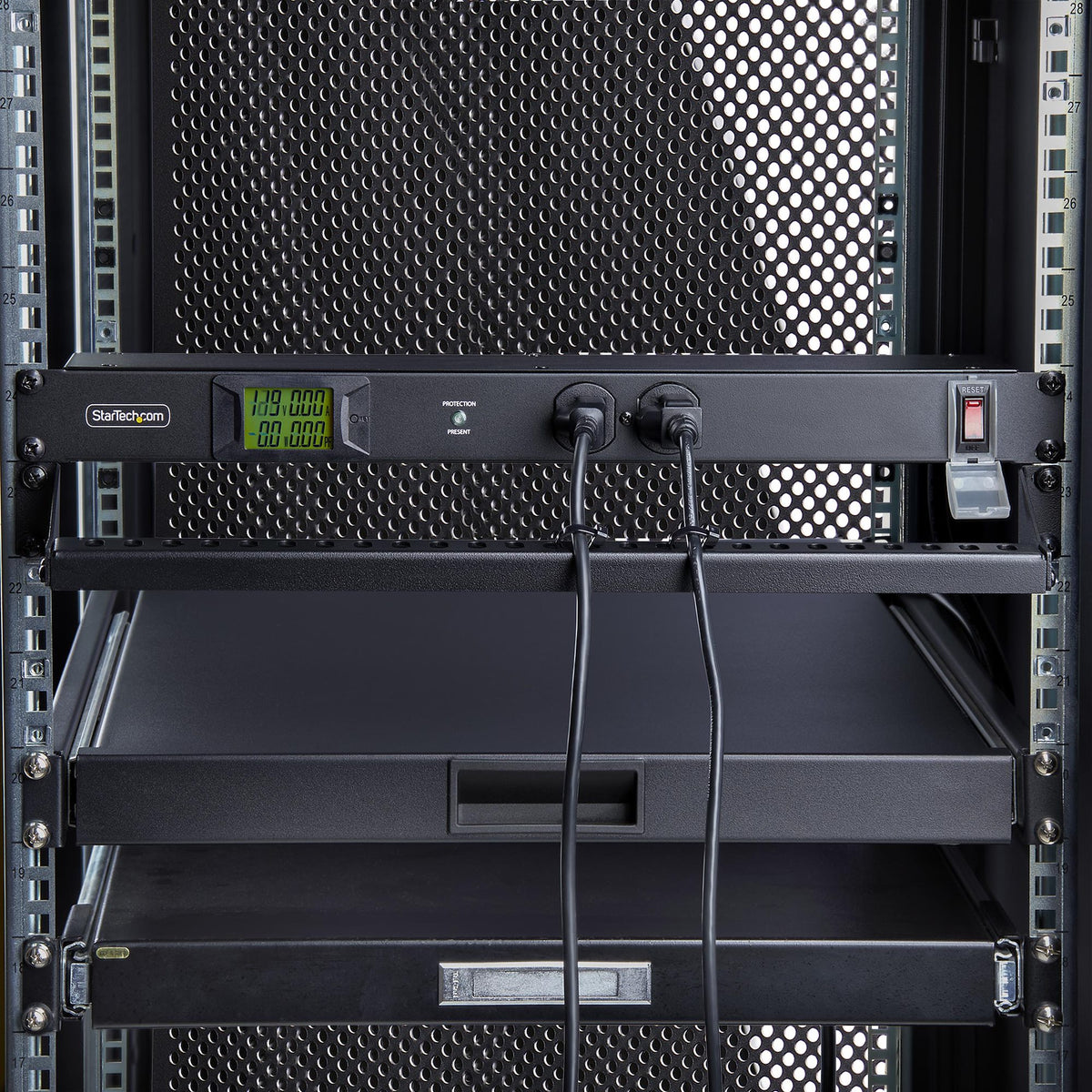

1U horizontal rackmount PDU is compatible with EIA-310-compliant 19-inch 2 or 4-post server racks or cabinets that are 4-inch (10.1cm) or deeper

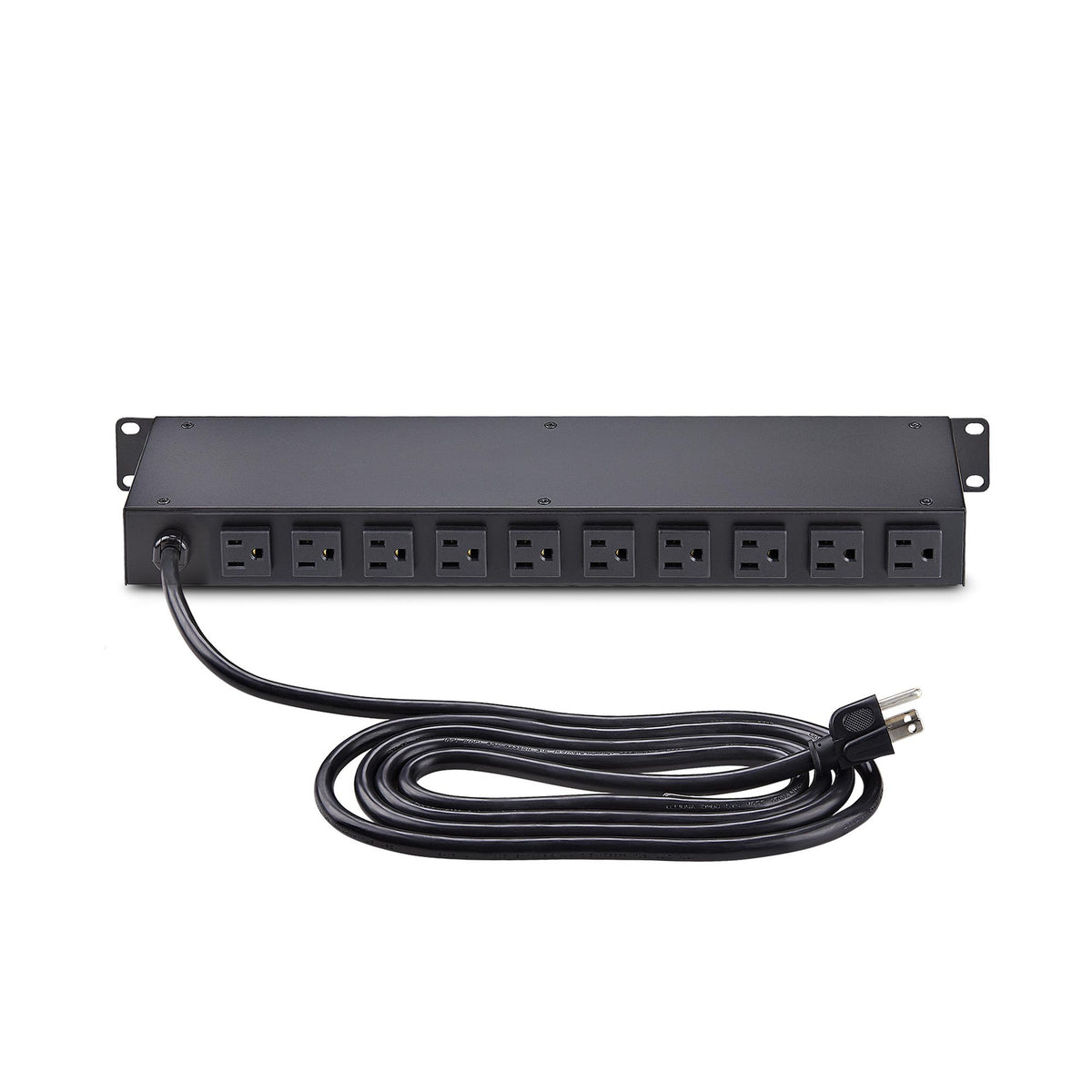

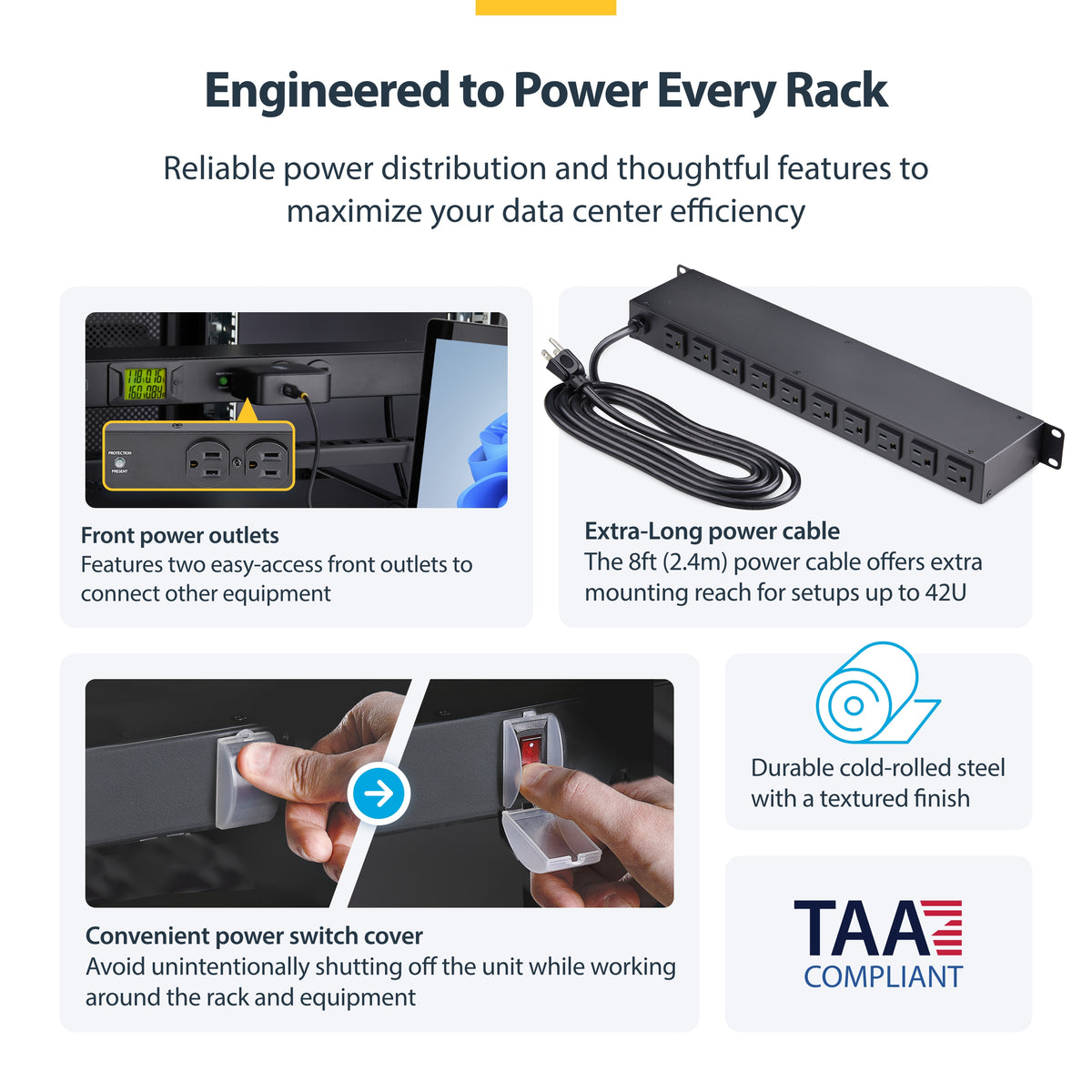

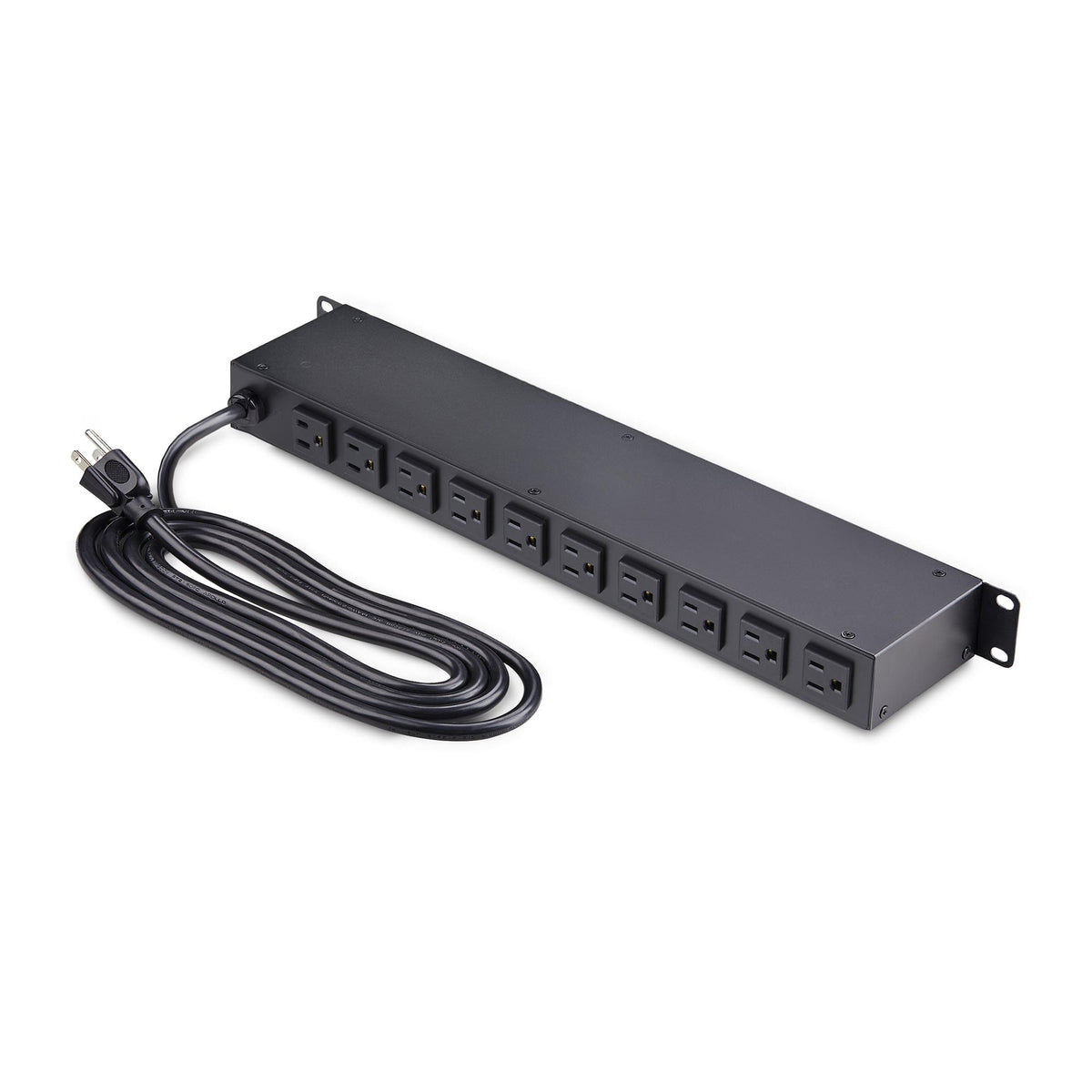

The TAA-compliant cabinet power strip is constructed from cold-rolled steel that ensures sturdiness and features a textured finish that enhances long-lasting durability. The PDU is equipped with a total of twelve electrical outlets, including ten positioned at the rear and two at the front, providing ample connectivity options for various devices in server rooms, data centers, and other professional environments.
This 1U Rack Mount Metered PDU features a built-in 8ft (2.4m) NEMA 5-15P power cord and 12x NEMA 5-15R outlets, while the surge protection helps ensure the safe and stable operation of critical equipment. A large backlit LCD provides live readings of electrical parameters for connected devices.
Metered Power Distribution Unit
Metering is essential for maintaining equipment performance and stability by enabling real-time reads of key electrical parameters: voltage (V), current (Amp), wattage (W), and power factor (PF). The power factor indicates the efficiency of connected devices, with values closer to 1.0 being the most efficient. Monitoring enables early detection of potential issues, efficient load management, and insights for optimizing energy use.
The large-font display provides real-time monitoring of key electrical parameters, while the on-demand backlight helps with visibility in dimly lit scenarios.
Enhanced Power Safety
The robust 15A circuit breaker features a mechanical trigger that quickly responds to surges, providing essential protection for the connected. The resettable breaker has a safety cover that prevents unintentional resets. A bright LED indicator confirms active surge protection
Rack Mount Design
1U horizontal rackmount PDU is compatible with EIA-310-compliant 19-inch 2 or 4-post server racks or cabinets that are 4-inch (10.1cm) or deeper
The TAA-compliant cabinet power strip is constructed from cold-rolled steel that ensures sturdiness and features a textured finish that enhances long-lasting durability. The PDU is equipped with a total of twelve electrical outlets, including ten positioned at the rear and two at the front, providing ample connectivity options for various devices in server rooms, data centers, and other professional environments.
Specs
Design
PDU types
A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP.
Metered
Rack capacity
The spase that device fill in rack.
1U
Mounting
What size the mounting head of the product is, to couple it with a camera.
Horizontal
Housing material
What the casing of the product is made of.
Steel
Product color
The colour e.g. red, blue, green, black, white.
Black
On/off switch
The button which is pressed to switch the device on or off.
Power
Nominal input voltage
The voltage which the manufacturer recommends that the device needs to operate normally.
120 V
Maximum current
The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge.
15 A
Nominal output voltage
The voltage which the manufacturer states that the device can produce.
120 V
Output voltage
125 V
Maximum total current draw per phase
15 A
Power protection features
Features that protect the device against power problems e.g. overload.
Surge protection
Surge energy rating
A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure.
1080 J
Circuit breaker
Packaging content
Manual
Logistics data
Master (outer) case width
570 mm
Master (outer) case length
206 mm
Master (outer) case height
355 mm
Quantity per master (outer) case
4 pc(s)
Ports & interfaces
AC outlets quantity
The number of sockets in the device where AC electrical power can be connected.
12 AC outlet(s)
Power plug
A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection.
NEMA 5-15P
AC outlet types
The type of outlet for AC electricity.
NEMA 5-15R
Features
LED indicators
Yes
Cable length
How long the cable is.
2,4 m
Management features
Monitoring
Current, Power, Voltage
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
Trade Agreements Act (TAA), cULus
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 50 °C
Operating relative humidity (H-H)
5 - 95%

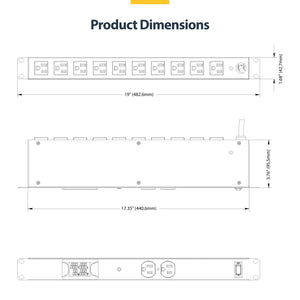

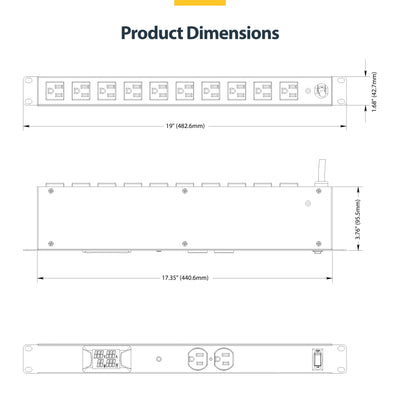

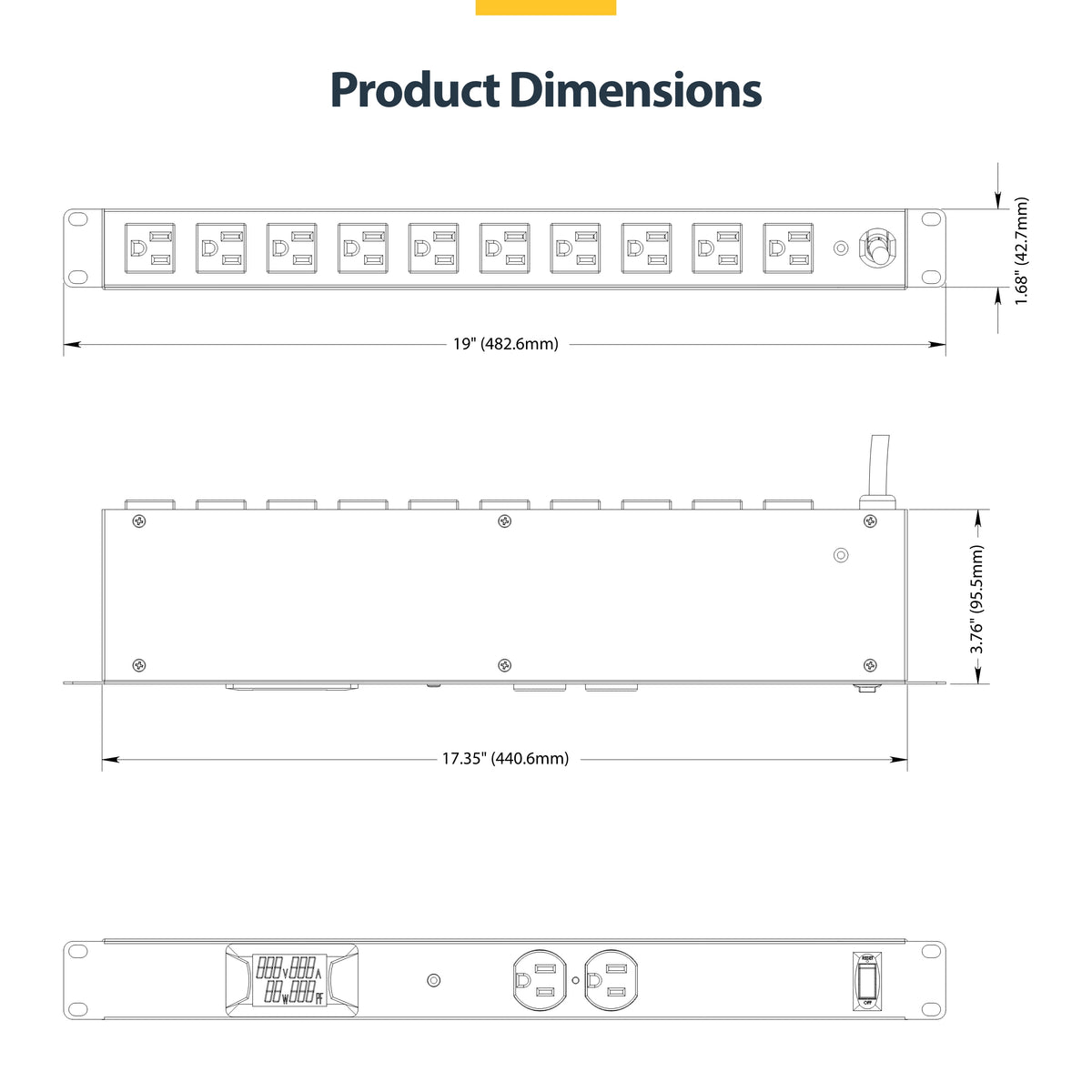

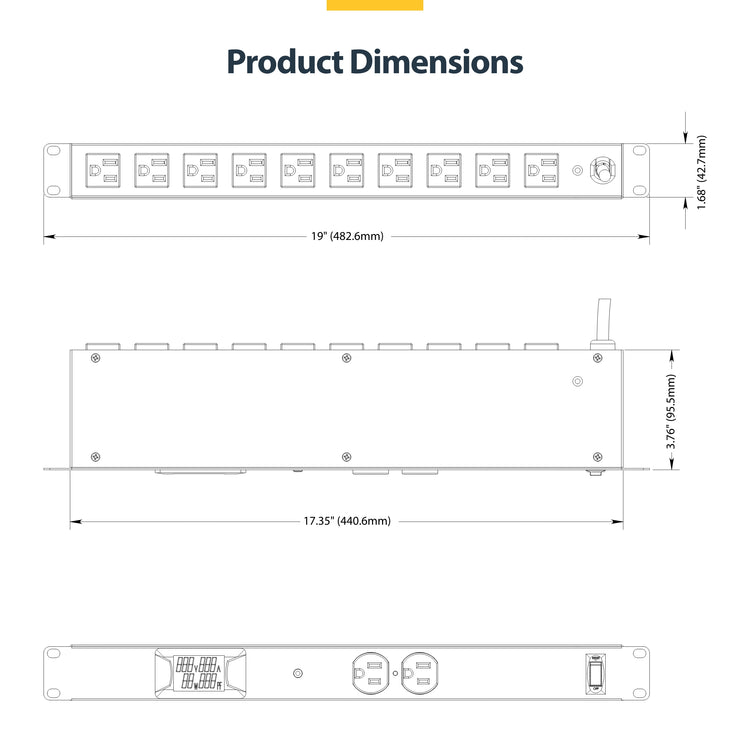

Weight & dimensions
Width
The measurement or extent of something from side to side.
483 mm
Depth
The distance from the front to the back of something.
96 mm
Height
The measurement of the product from head to foot or from base to top.
43 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
2 kg
Packaging data
Package weight
Weight of the packaged product in gram.
2,5 kg
Package width
The distance from one side of the packaging to the other.
560 mm
Package depth
The distance from the front to the back of the packaging.
190 mm
Package height
The distance from the top to the bottom of the packaging.
80 mm
