STARTECH .com PoE adapter 1.25 Gigabit Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet (AF212C-POE-INJECTOR)
- Regular price
- 80.95$
- Sale price
- 80.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
StarTech.com AF212C-POE-INJECTOR PoE adapter 1.25 Gigabit Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Brand:StarTech.com
Product name:1-Port 2.5GbE PoE+ Injector, 10M/100M/1G/2.5G Ethernet, PoE/PoE+ 802.3af/802.3at, 30W, Multi-Gigabit Unmanaged Midspan Inline Power Over Ethernet, TAA
Product code:AF212C-POE-INJECTOR
EAN/UPC:
0065030905787
0065030905787, 065030905787
- 2.5GbE POE INJECTOR: Multi-gigabit single port midspan PoE+ injector supports up to 2.5Gbps with auto-negotiation; TAA-compliant Power Sourcing Equipment supports up to 30W PoE/PoE+; Features level-4 ESD protection for reliable performance and durability
- NETWORK FLEXABILITY: Auto-negotiation between 2.5Gbps & 10/100/1000Mbps Ethernet; Deliver data/power to PoE devices up to 328ft/100m w/Cat5/5e/6/6a cabling; Unmanaged inline injector w/built-in LAN transformer for electrical isolation; 2K surge protection
- HASSLE-FREE INSTALLATION: Integrated anchor points for surface mounting; Streamline deployment without additional software/settings; Connect the PoE injector to the network (e.g., switch or router) & the remote PD via standard Cat5/e or Cat6/6a cabling
- APPLICATIONS: Enable data & power over a single RJ45 connection in high end enterprise access points such as high resolution IP cameras; Maintain existing network infrastructure while adding PoE functionality to support remote devices
- TECH SPECS: x2 RJ45 ports (data/data+power); 54VDC 0.6A output; 30W max output; Compliant with IEEE 802.3af and 802.3at; 10M/100M/1G/2.5G with auto negotiation; WoL/PXE/9K jumbo frames; Wall mountable; Dimensions 4x2.3x1.3-inch (100x58.4x33.4mm)
Description
Supply power and data to a remote Powered Device (PD) with this PoE/PoE+ injector
This 1-port 2.5GbE PoE+ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10Mbps, 100Mbps, 1Gbps, and 2.5Gbps. This TAA-compliant midspan inline injector can transmit network data and power up to 328ft (100m) for remote Powered Devices (PD).
Versatile PoE Injector
Multi-Gigabit single port PoE injector supports the IEEE 802.3af and 802.3at PSE standards, and delivers up to 30W output (54V DC, 0.6A). This enables seamless data and power transmission over Cat5/5e/6/6a to remote Powered Devices (PD) such as IP cameras, access control devices, remote kiosks (POSs), wireless access points (APs), PoE lighting, and digital signage. A built-in LAN Transformer reduces EMI to maintain strong, reliable signal strength across different environments.
Streamlined Cable Management
All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch-100x58.4x33.4 mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation. Integrated anchor points allow for surface and wall mounting.
This 1-port 2.5GbE PoE+ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10Mbps, 100Mbps, 1Gbps, and 2.5Gbps. This TAA-compliant midspan inline injector can transmit network data and power up to 328ft (100m) for remote Powered Devices (PD).
Versatile PoE Injector
Multi-Gigabit single port PoE injector supports the IEEE 802.3af and 802.3at PSE standards, and delivers up to 30W output (54V DC, 0.6A). This enables seamless data and power transmission over Cat5/5e/6/6a to remote Powered Devices (PD) such as IP cameras, access control devices, remote kiosks (POSs), wireless access points (APs), PoE lighting, and digital signage. A built-in LAN Transformer reduces EMI to maintain strong, reliable signal strength across different environments.
Streamlined Cable Management
All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch-100x58.4x33.4 mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation. Integrated anchor points allow for surface and wall mounting.
Video
Specs
Network
Ethernet interface type
1.25 Gigabit Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000,2500 Mbit/s
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Cable types supported
Cat5, Cat5e, Cat6, Cat6a
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Monolithic Power Systems - MP3924
Ports & interfaces
RJ-45 input ports
1
RJ-45 output ports
1
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 70 °C
Weight & dimensions
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
100 g
Packaging content

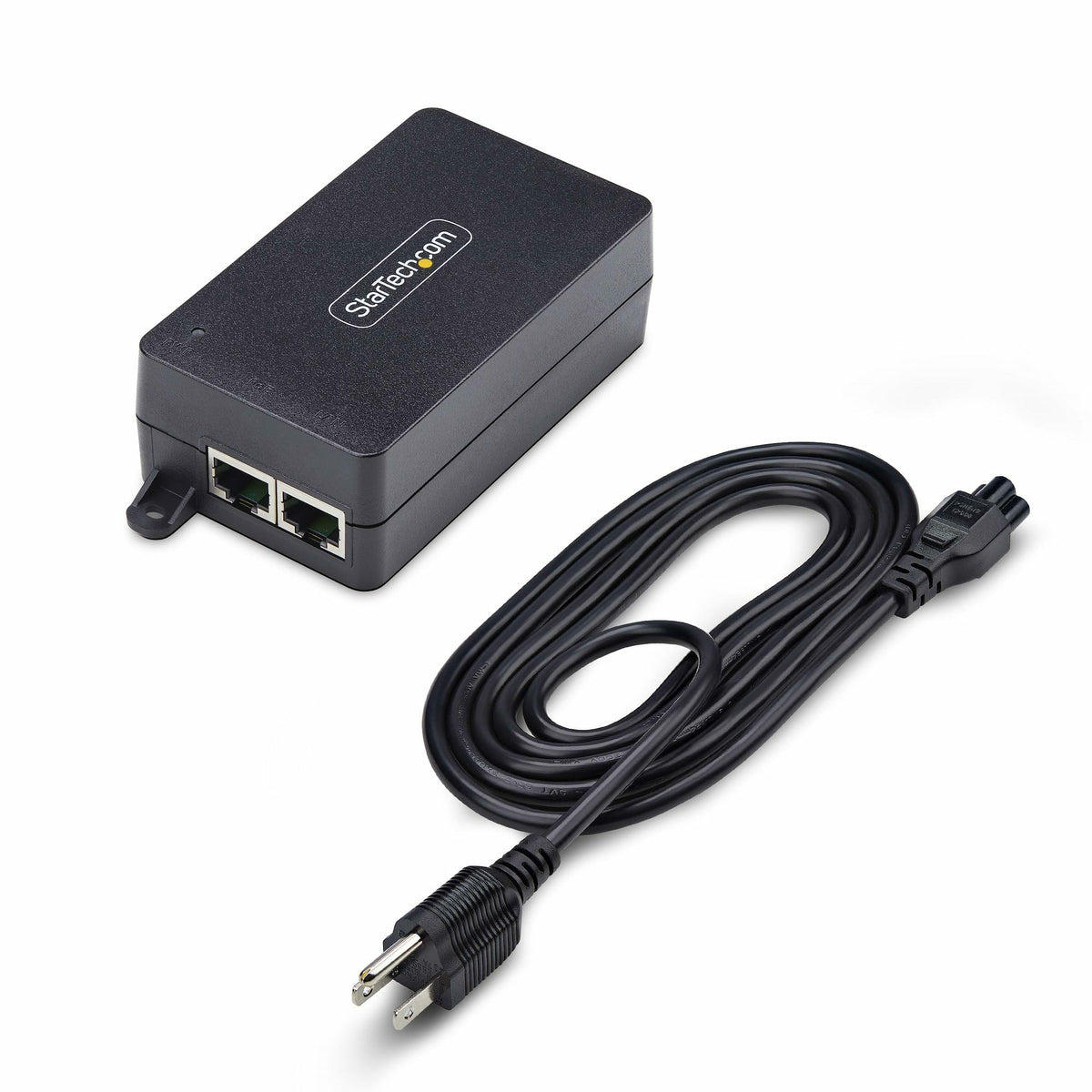

Power cord included
Quick installation guide
Logistics data
Master (outer) case width
520 mm
Master (outer) case length
285 mm
Master (outer) case height
455 mm
Quantity per master (outer) case
40 pc(s)
Features
Product color
The colour e.g. red, blue, green, black, white.
Black
Surge protection
Maximum operating distance
The maximum distance from which you can operate the device.
100 m
LED indicators
Power
Jumbo frames support
Jumbo frames
9000
Auto-negotiation
Power
AC adapter input voltage
100 - 240 V
Input current
0.8 A
AC adapter output voltage
54 V
Output current
0,6 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
32,4 W
Power over Ethernet (PoE) power per port
30 W
Surge protection voltage
2 kV
Packaging data
Package width
The distance from one side of the packaging to the other.
124 mm
Package depth
The distance from the front to the back of the packaging.
210 mm
Package height
The distance from the top to the bottom of the packaging.
51 mm
Package weight
Weight of the packaged product in gram.
364 g
