STARTECH .com network transceiver module Fiber optic 40000 Mbit/s SFP+ 850 nm (PLUS-SR-ST)
- Regular price
- 215.95$
- Sale price
- 215.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

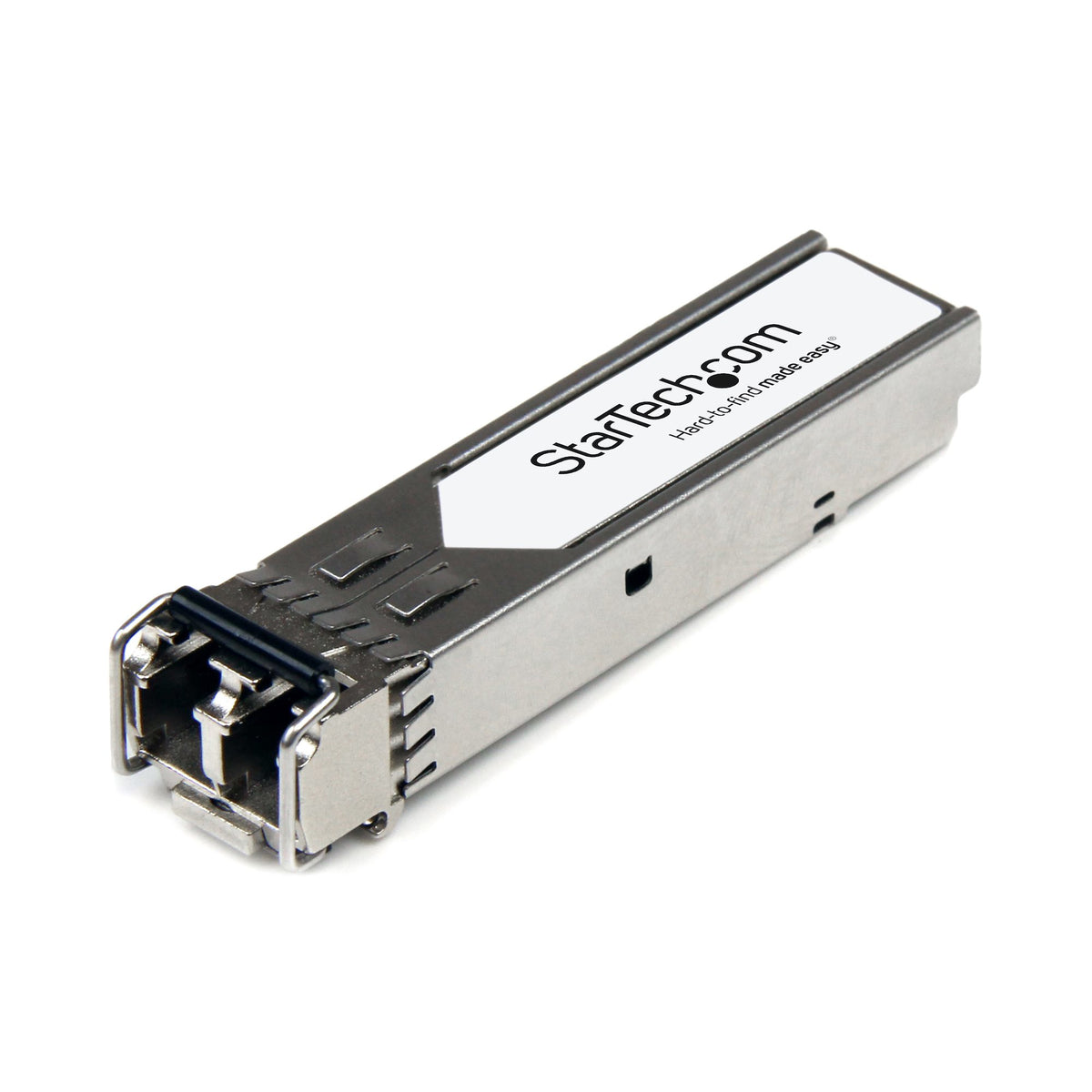

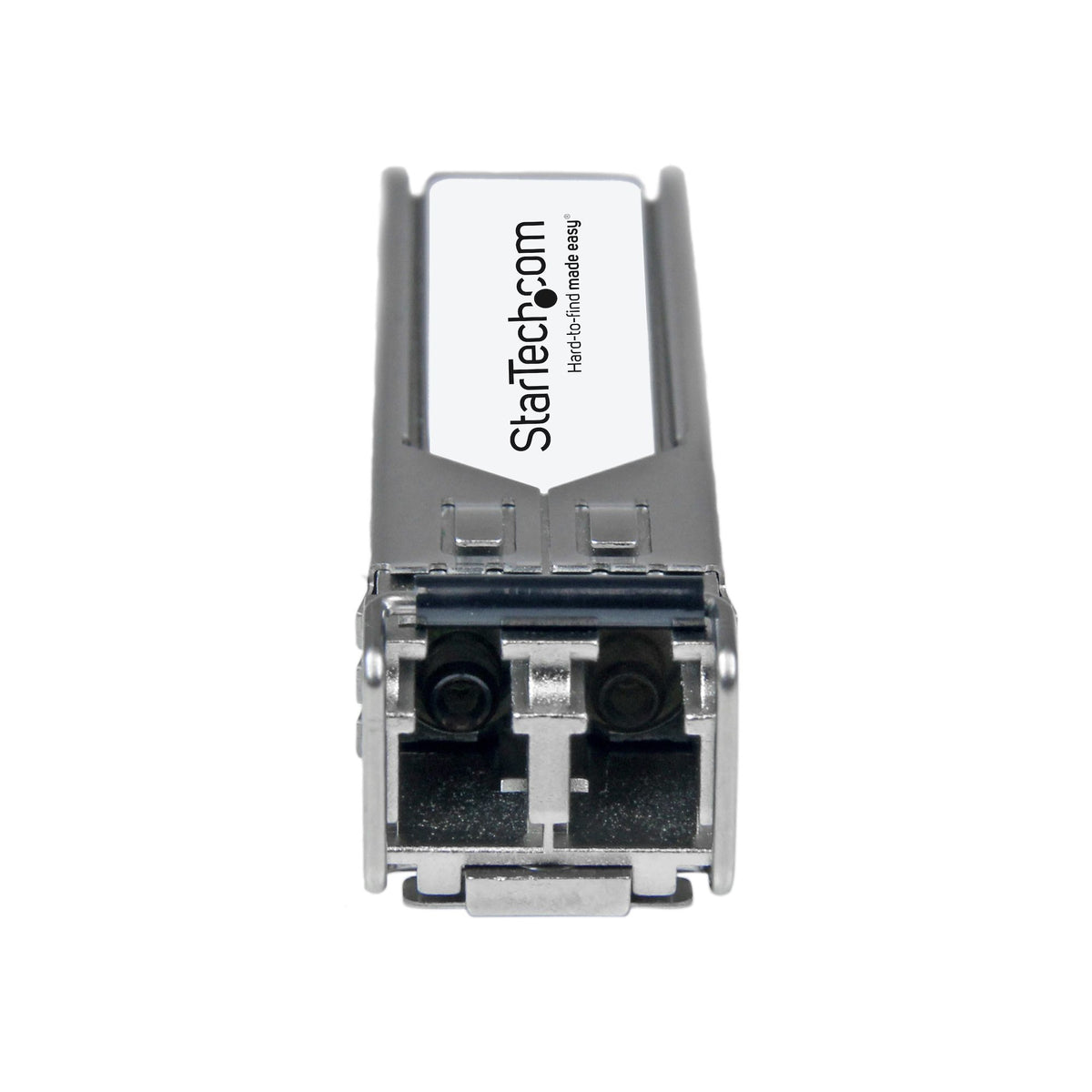

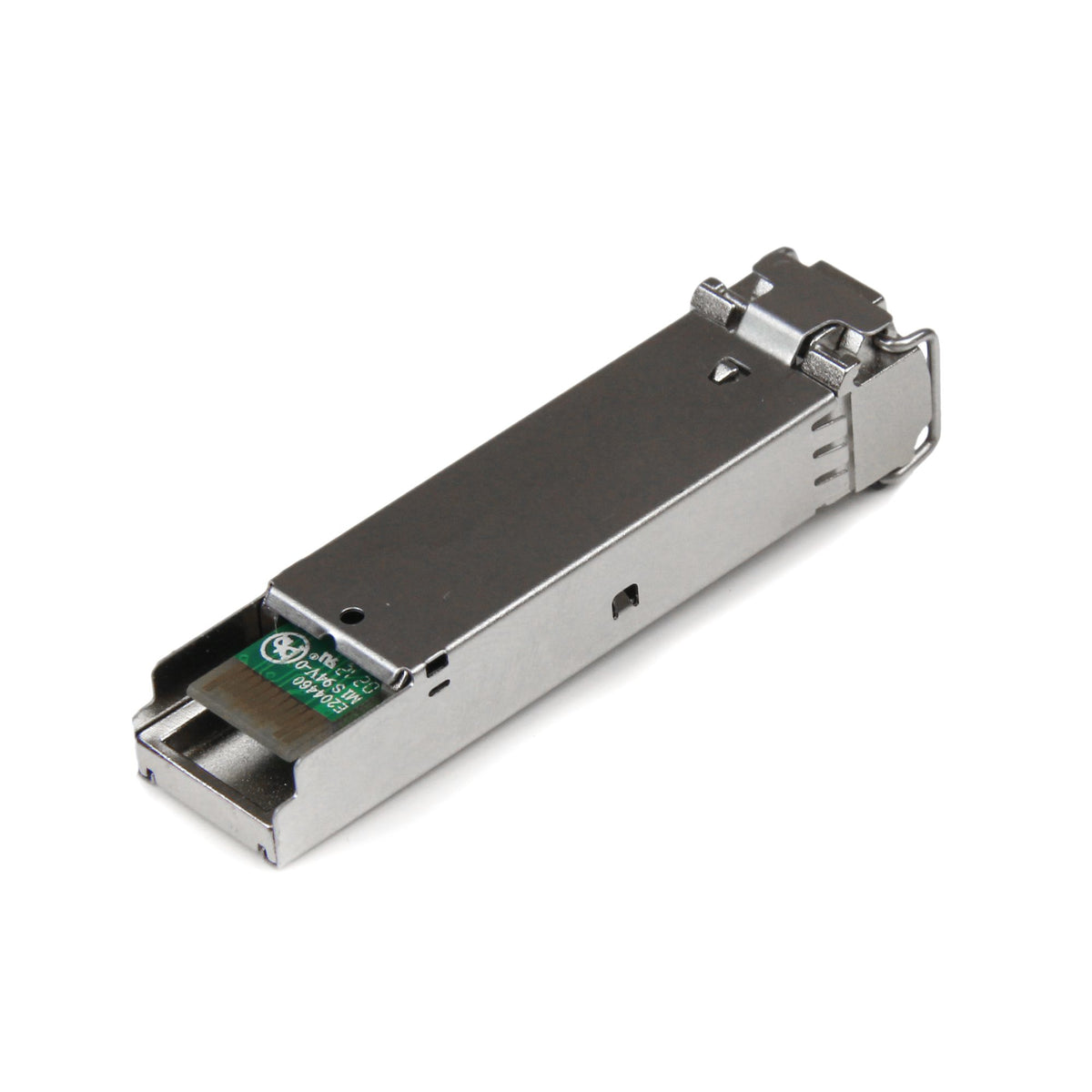

StarTech.com PLUS-SR-ST network transceiver module Fiber optic 40000 Mbit/s SFP+ 850 nm
Brand:StarTech.com
Product name:Palo Alto Networks PAN-SFP-PLUS-SR Compatible SFP+ Module, 10GBASE-SR, Multimode Fiber (MMF), 300m (984ft), LC, 850nm, 10 Gigabit Optic Transceiver
Product code:PLUS-SR-ST
EAN/UPC:
0065030885645
0065030885645, 065030885645
- PALO ALTO NETWORKS COMPATIBLE TRANSCEIVER: Equivalent to the Palo Alto Networks PAN-SFP-PLUS-SR MMF module; Programmed and tested to ensure seamless integration with Palo Alto switches and routers to deliver reliable 10G connectivity up to 300m (984ft)
- TECHNICAL SPECS: 10GBASE-SR / 10Gbps / Multi Mode (MMF) / LC Connector / 850nm / Digital Diagnostic Monitoring (DDM) / Distances up to 300m (984ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Palo Alto Networks routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Description
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty
The PLUS-SR-ST is a Palo Alto Networks PAN-SFP-PLUS-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto Networks brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 498,745,585 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
The PLUS-SR-ST is a Palo Alto Networks PAN-SFP-PLUS-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto Networks brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 498,745,585 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Specs
Performance
SFP transceiver type
Fiber optic
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
40000 Mbit/s
Interface type
SFP+
Multi-mode fiber (MMF) supported
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
LC
SFP transceiver standard
SR
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
300 m
Wavelength
The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
850 nm
Fiber ethernet cabling technology
10GBASE
Duplex system
A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.
Full
Digital Diagnostics Monitoring (DDM)
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Master (outer) case width
91 mm
Master (outer) case length
115 mm
Harmonized System (HS) code
85369010
Master (outer) case height
33 mm
Quantity per master (outer) case
1 pc(s)
Features
Product color
The colour e.g. red, blue, green, black, white.
Silver
Hot-swap
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
498745585 h
Brand compatibility
What other brands this brand can be used with.
Palo Alto Networks
Compatible products
Other products that can be used with this product.
PLUS-SR
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
1,3 W
Certificates
Certification
CE, FCC, UR
Weight & dimensions
Width
The measurement or extent of something from side to side.
58,4 mm
Depth
The distance from the front to the back of something.
13,9 mm
Height
The measurement of the product from head to foot or from base to top.
13,7 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
20 g
Packaging data
Package width
The distance from one side of the packaging to the other.
91 mm
Package depth
The distance from the front to the back of the packaging.
114 mm
Package height
The distance from the top to the bottom of the packaging.
33 mm
Package weight
Weight of the packaged product in gram.
50 g
