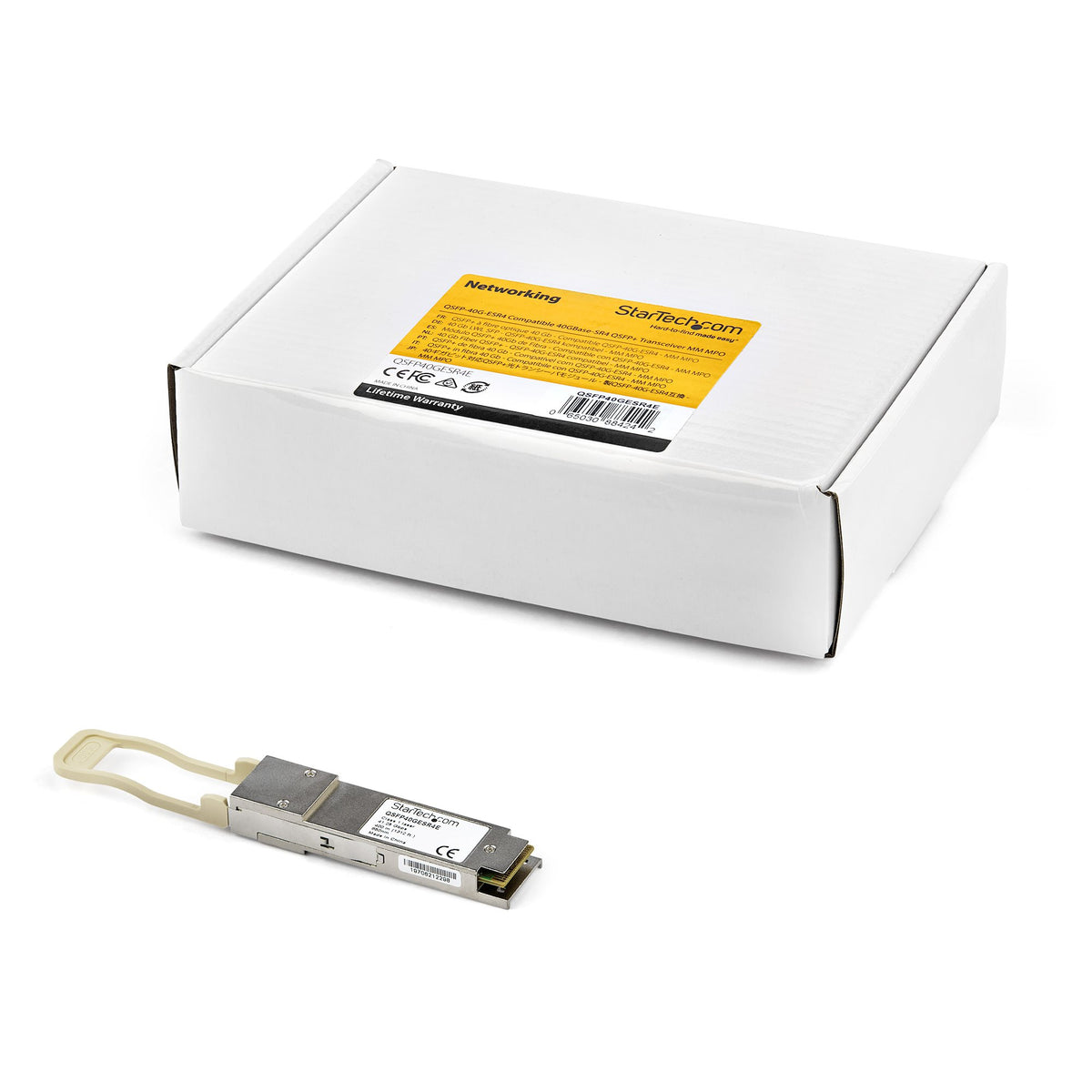

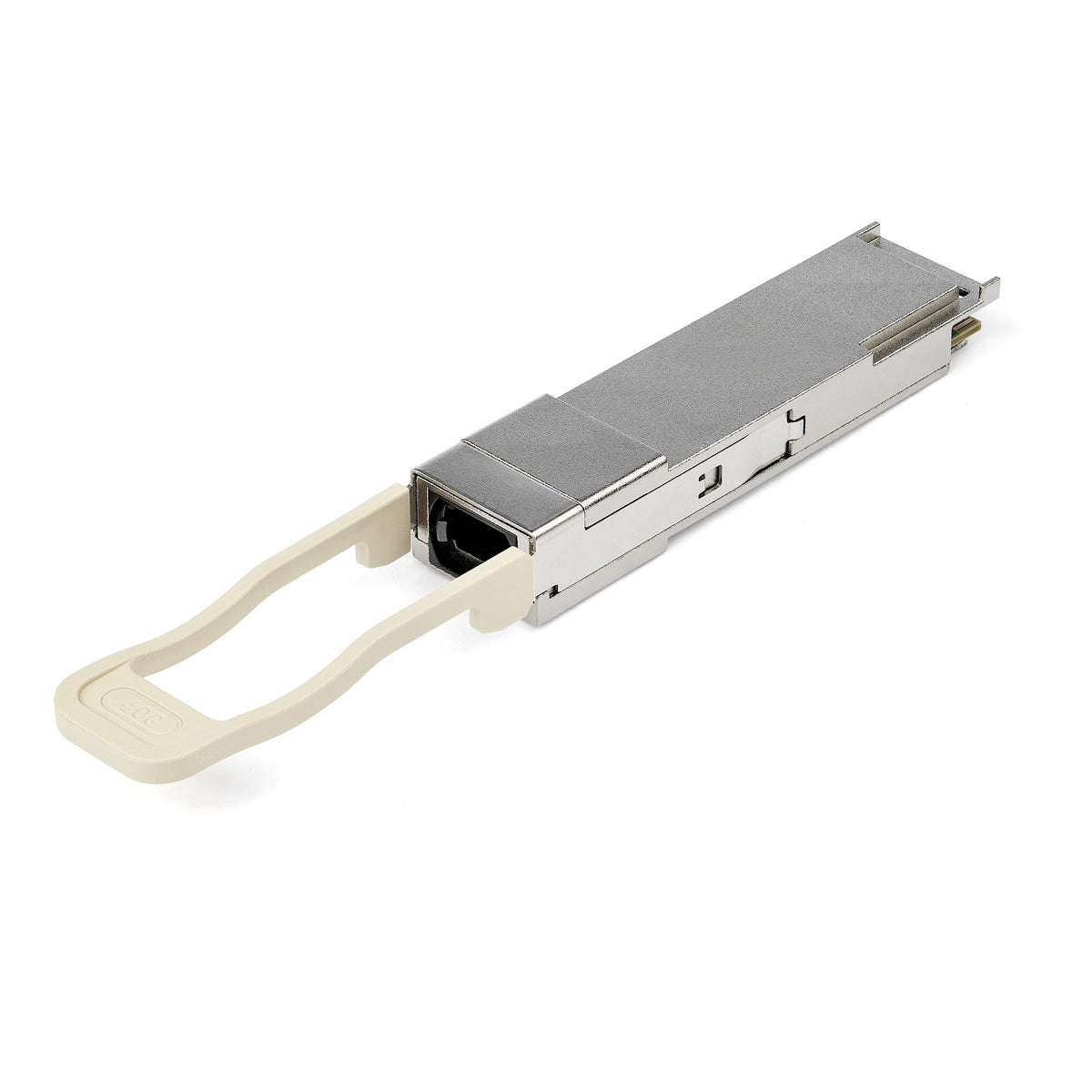

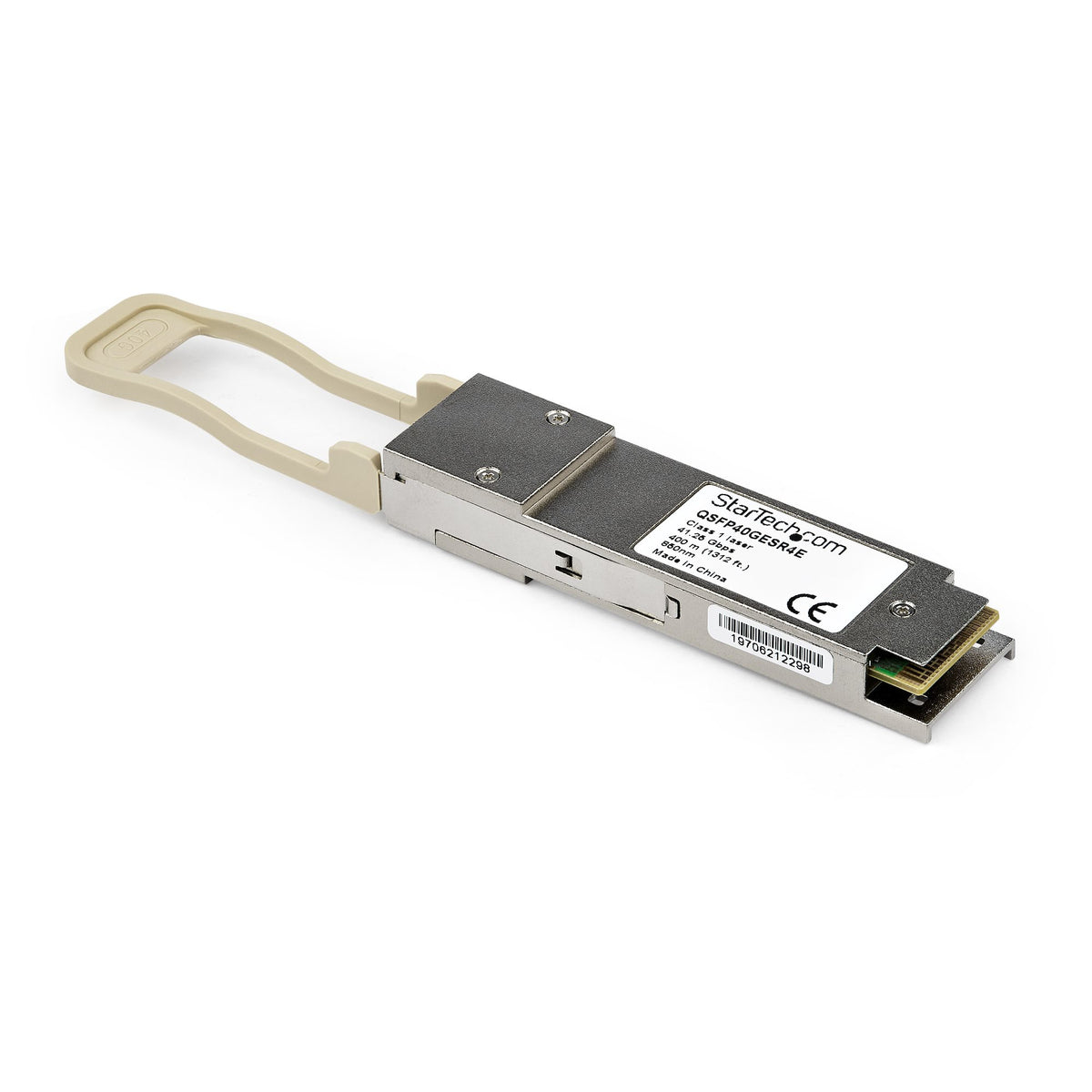

STARTECH .com network transceiver module Fiber optic 40000 Mbit/s QSFP+ 850 nm (QSFP40GESR4E)
- Regular price
- 65.95$
- Sale price
- 65.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
StarTech.com QSFP40GESR4E network transceiver module Fiber optic 40000 Mbit/s QSFP+ 850 nm
Brand:StarTech.com
Product name:Dell EMC QSFP-40G-ESR4 Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multimode Fiber MMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 400m - 850nm - DDM
Product code:QSFP40GESR4E
EAN/UPC:
0065030884242
0065030884242, 065030884242
- 100% DELL EMC QSFP-40G-ESR4 COMPATIBLE QSFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver reliable 40GbE connectivity
- TECHNICAL SPECS: 40GBASE-SR4 / 40Gbps / Multi Mode (MMF) / MPO Connector / 850nm / Digital Diagnostic Monitoring (DDM) / Distances up to 400m (1312ft.)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Dell EMC routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Description
40 Gbps | Multi Mode Fiber | MPO | 400 m (1312 ft.) | Lifetime Warranty
The QSFP40GESR4E is a Dell EMC QSFP-40G-ESR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 400 m (1312 ft.).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO
• Maximum Transfer Distance: 400 m (1312 ft.)
• MTBF: 45,017,120 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The QSFP40GESR4E is a Dell EMC QSFP-40G-ESR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 400 m (1312 ft.).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO
• Maximum Transfer Distance: 400 m (1312 ft.)
• MTBF: 45,017,120 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specs
Performance
SFP transceiver type
Fiber optic
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
40000 Mbit/s
Interface type
QSFP+
Multi-mode fiber (MMF) supported

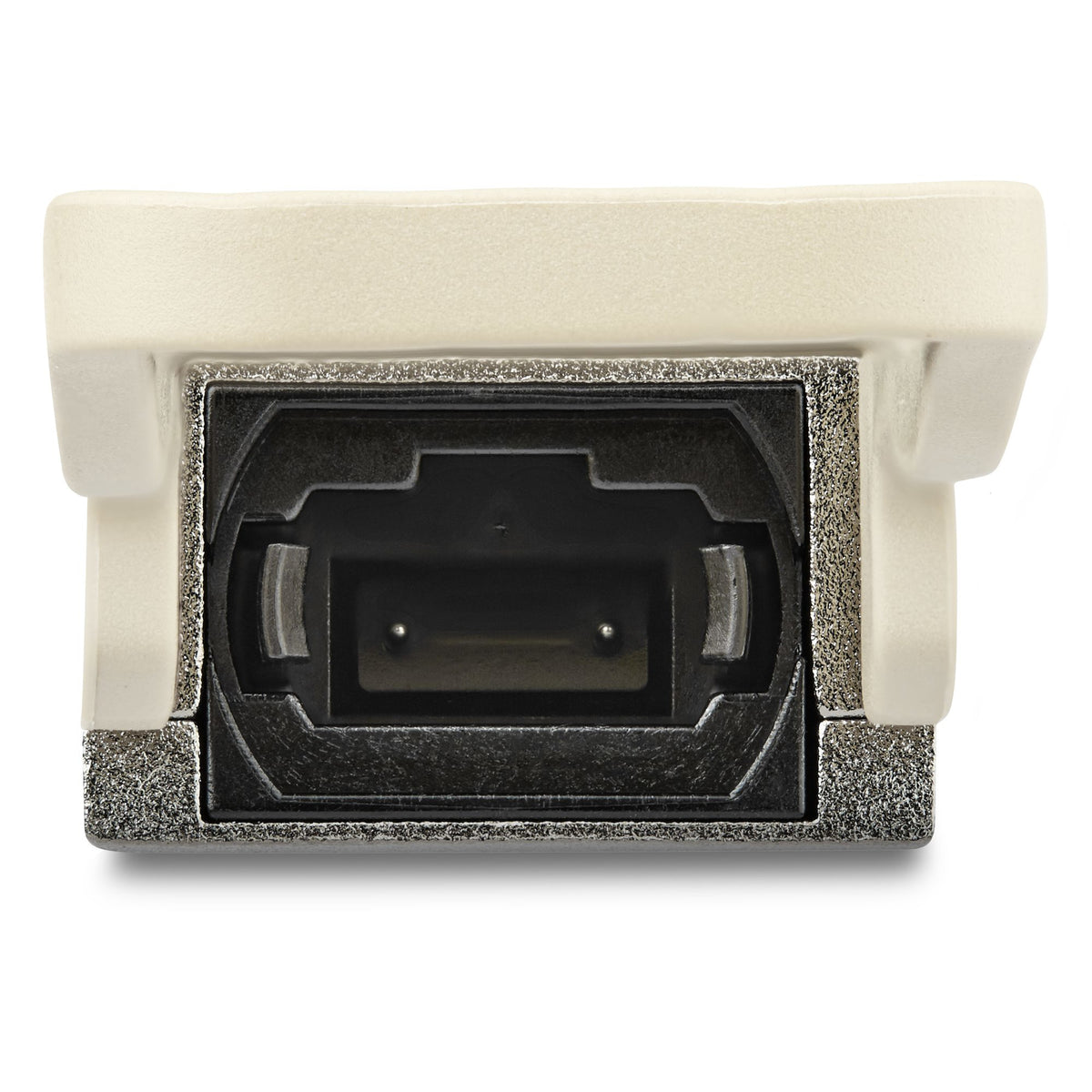

Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
MPO
SFP transceiver standard
SR4
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
400 m
Wavelength
The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
850 nm
Fiber ethernet cabling technology
40GBASE
Duplex system
A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.
Full
Digital Diagnostics Monitoring (DDM)
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Master (outer) case width
120 mm
Master (outer) case length
205 mm
Harmonized System (HS) code
85369010
Master (outer) case height
350 mm
Quantity per master (outer) case
0 pc(s)
Features
Product color
The colour e.g. red, blue, green, black, white.
Silver
Hot-swap
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
45017120 h
Brand compatibility
What other brands this brand can be used with.
Dell
Compatible products
Other products that can be used with this product.
QSFP-40G-ESR4
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Certification
CE, FCC, UL, REACH
Weight & dimensions
Width
The measurement or extent of something from side to side.
58,4 mm
Depth
The distance from the front to the back of something.
13,9 mm
Height
The measurement of the product from head to foot or from base to top.
12,6 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
40 g
Packaging data
Package width
The distance from one side of the packaging to the other.
120 mm
Package depth
The distance from the front to the back of the packaging.
205 mm
Package height
The distance from the top to the bottom of the packaging.
350 mm
Package weight
Weight of the packaged product in gram.
60 g
