STARTECH .com network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm (J9151E-ST)
- Regular price
- 280.95$
- Sale price
- 280.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

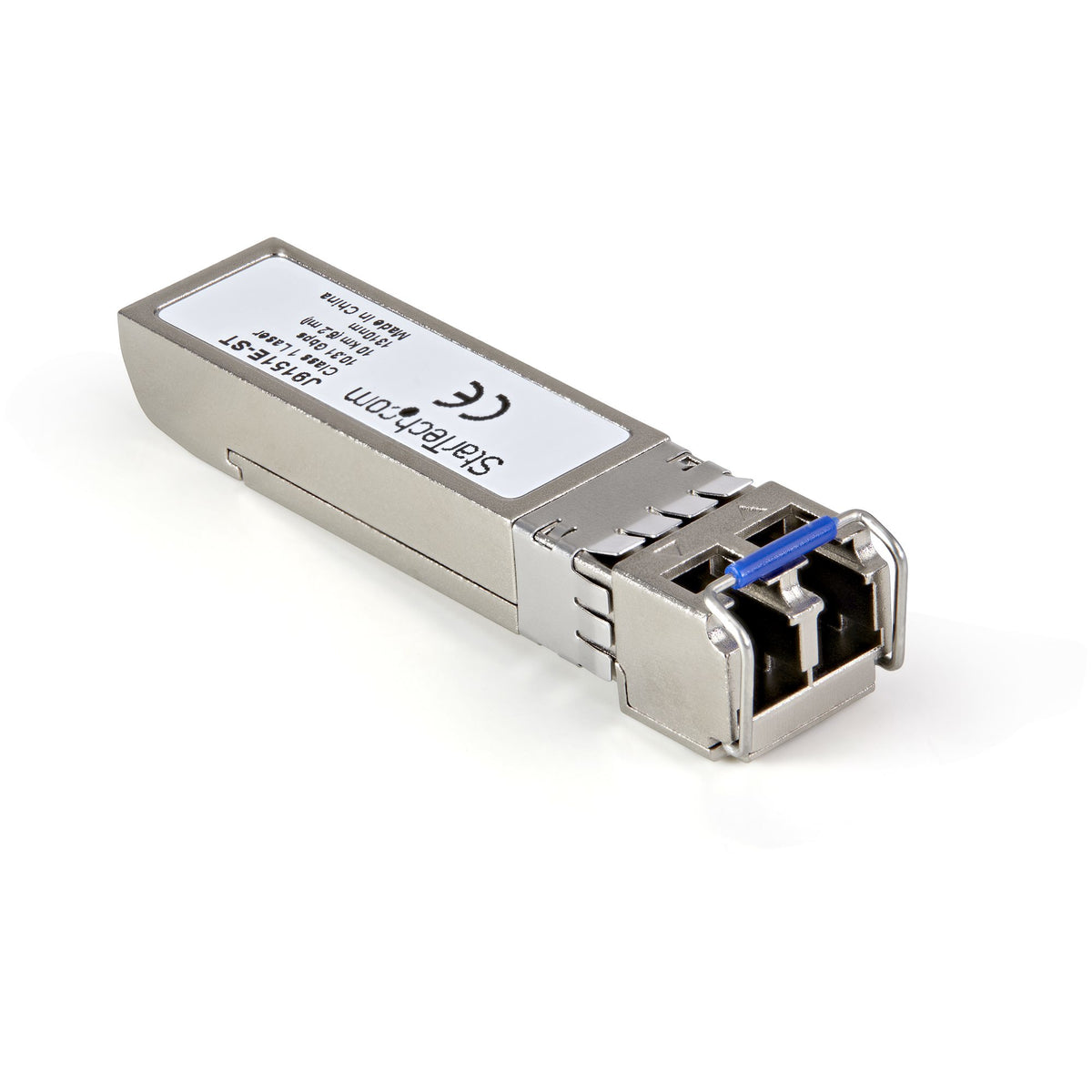

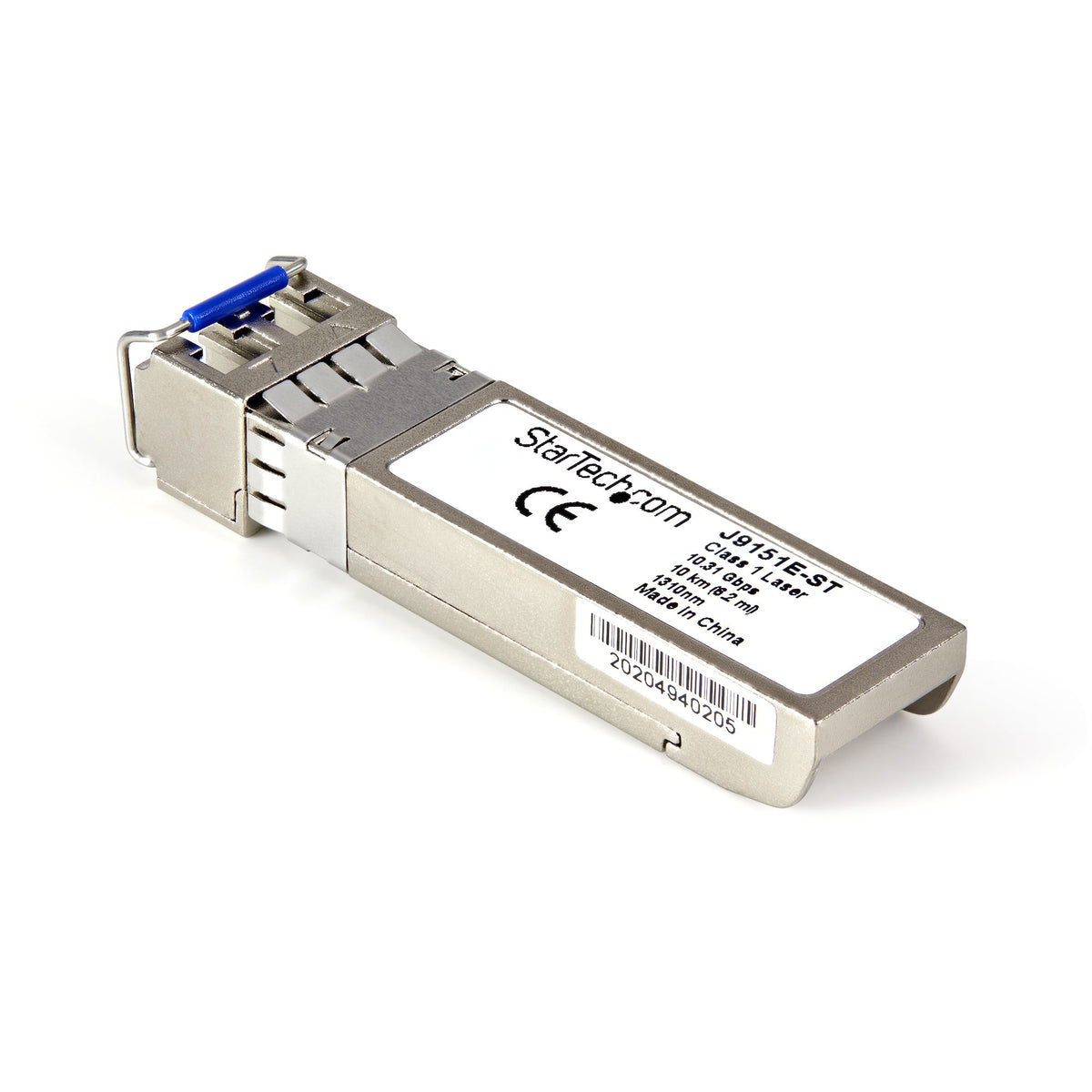

StarTech.com J9151E-ST network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Brand:StarTech.com
Product name:HPE J9151E Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE 2930F, 8325, 3810M
Product code:J9151E-ST
EAN/UPC:
0065030886345
0065030886345, 065030886345
- 100% HPE J9151E COMPATIBLE: Works with HPE switches like 2930F, 8325, 3810M, 5400zl, 5400R and others
- TECHNICAL SPECS: 10GBASE-LR / 10Gbps / Single Mode (SMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Description
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The J9151E-ST is a HPE J9151E compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,386,624,697 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
The J9151E-ST is a HPE J9151E compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,386,624,697 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
Specs
Performance
SFP transceiver type
Fiber optic
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
10000 Mbit/s
Interface type
SFP+
Single-mode fiber (SMF) supported
Multi-mode fiber (MMF) supported
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
LC
SFP transceiver standard
LR
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
10000 m
Wavelength
The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
1310 nm
Fiber ethernet cabling technology
10GBASE
Digital Diagnostics Monitoring (DDM)
Packaging data
Package width
The distance from one side of the packaging to the other.
93 mm
Package depth
The distance from the front to the back of the packaging.
114 mm
Package height
The distance from the top to the bottom of the packaging.
34 mm
Package weight
Weight of the packaged product in gram.
50 g
Features
Product color
The colour e.g. red, blue, green, black, white.
Silver
Hot-swap
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
1386624697 h
Brand compatibility
What other brands this brand can be used with.
HP
Compatible products
Other products that can be used with this product.
J9151E
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
1,3 W
Weight & dimensions
Width
The measurement or extent of something from side to side.
58,4 mm
Depth
The distance from the front to the back of something.
13,9 mm
Height
The measurement of the product from head to foot or from base to top.
13,7 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
21 g
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Master (outer) case width
90 mm
Master (outer) case length
115 mm
Harmonized System (HS) code
85369010
Master (outer) case height
31 mm
Quantity per master (outer) case
1 pc(s)
Country of origin
Country where the device is made. Aka Country of manufacture (COM).
China
