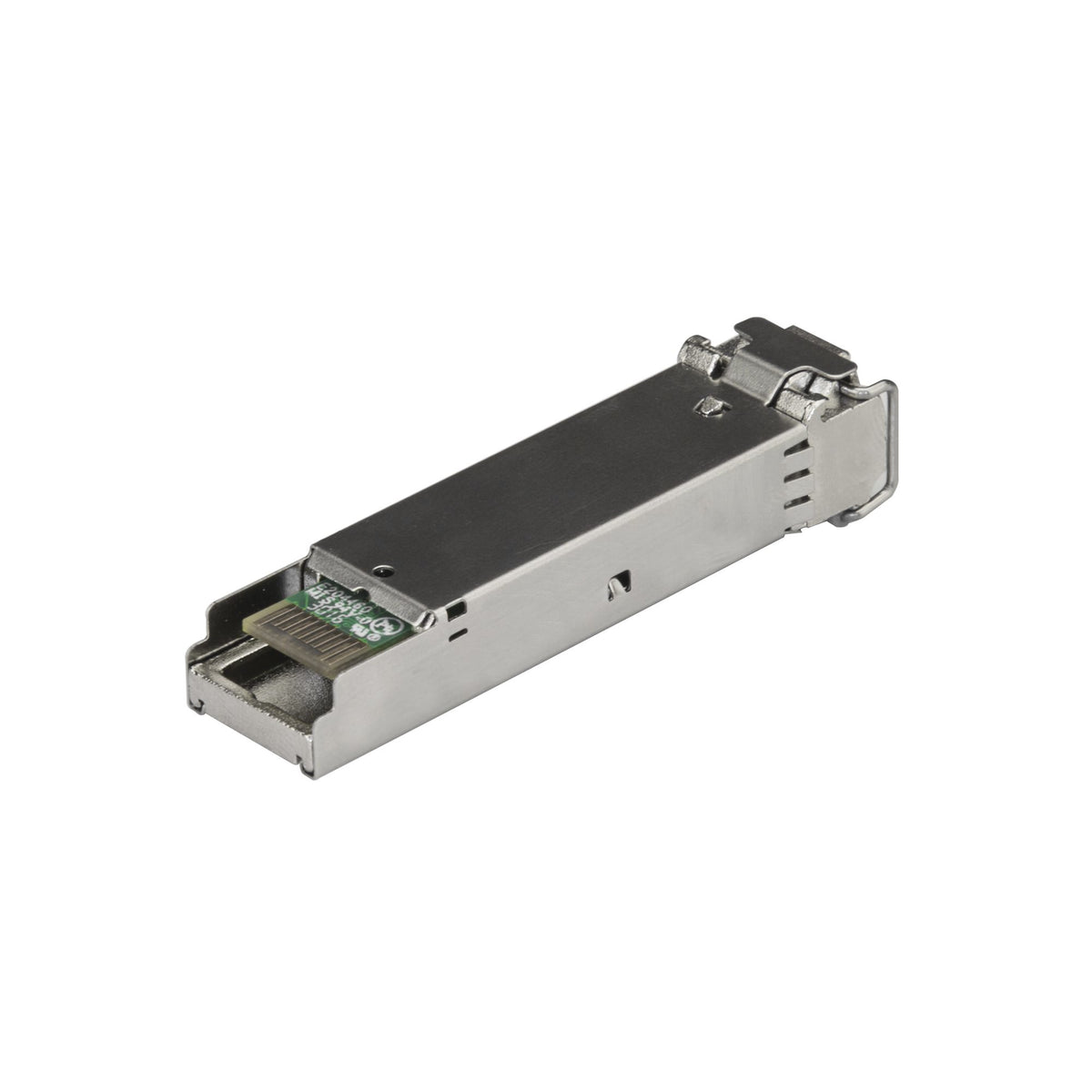

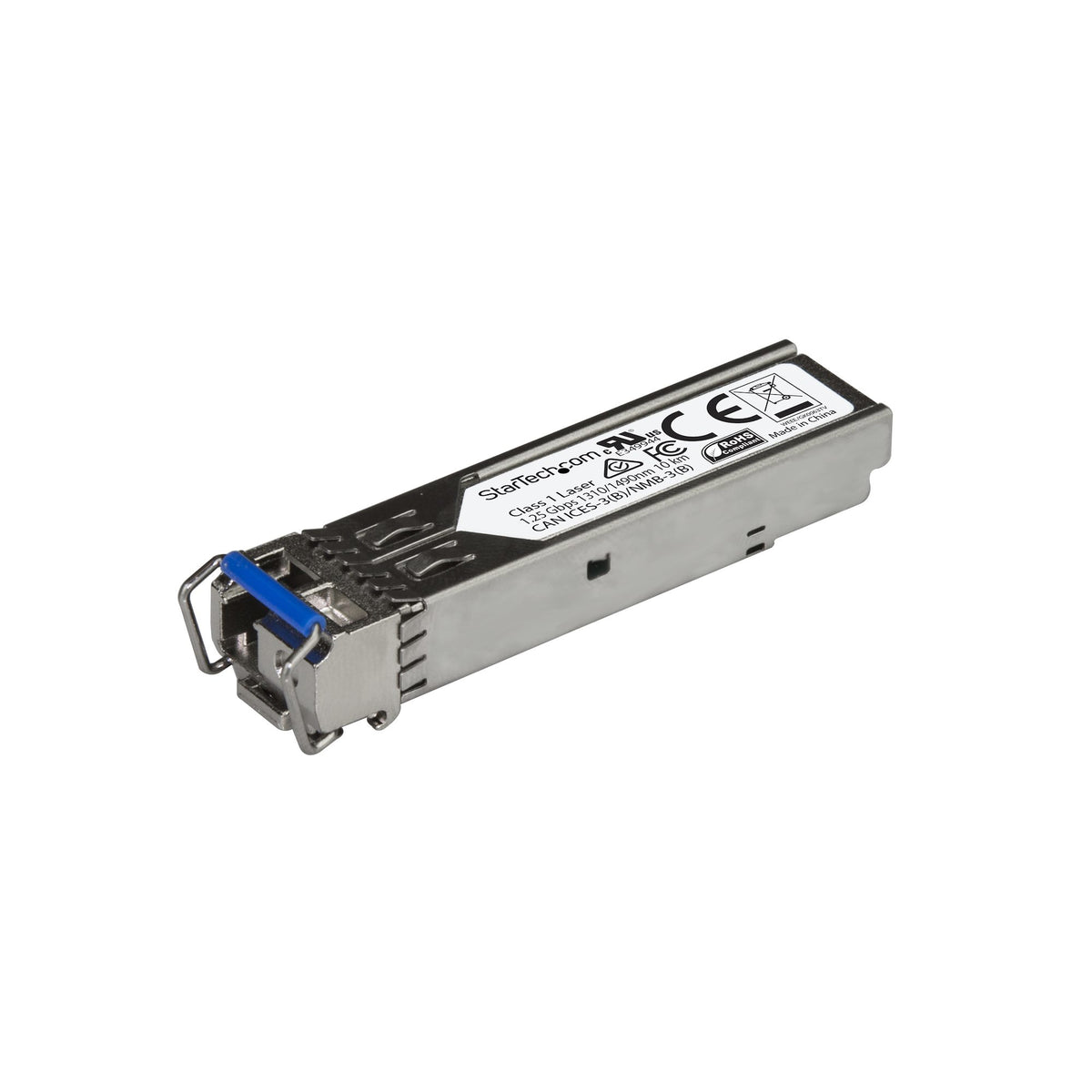

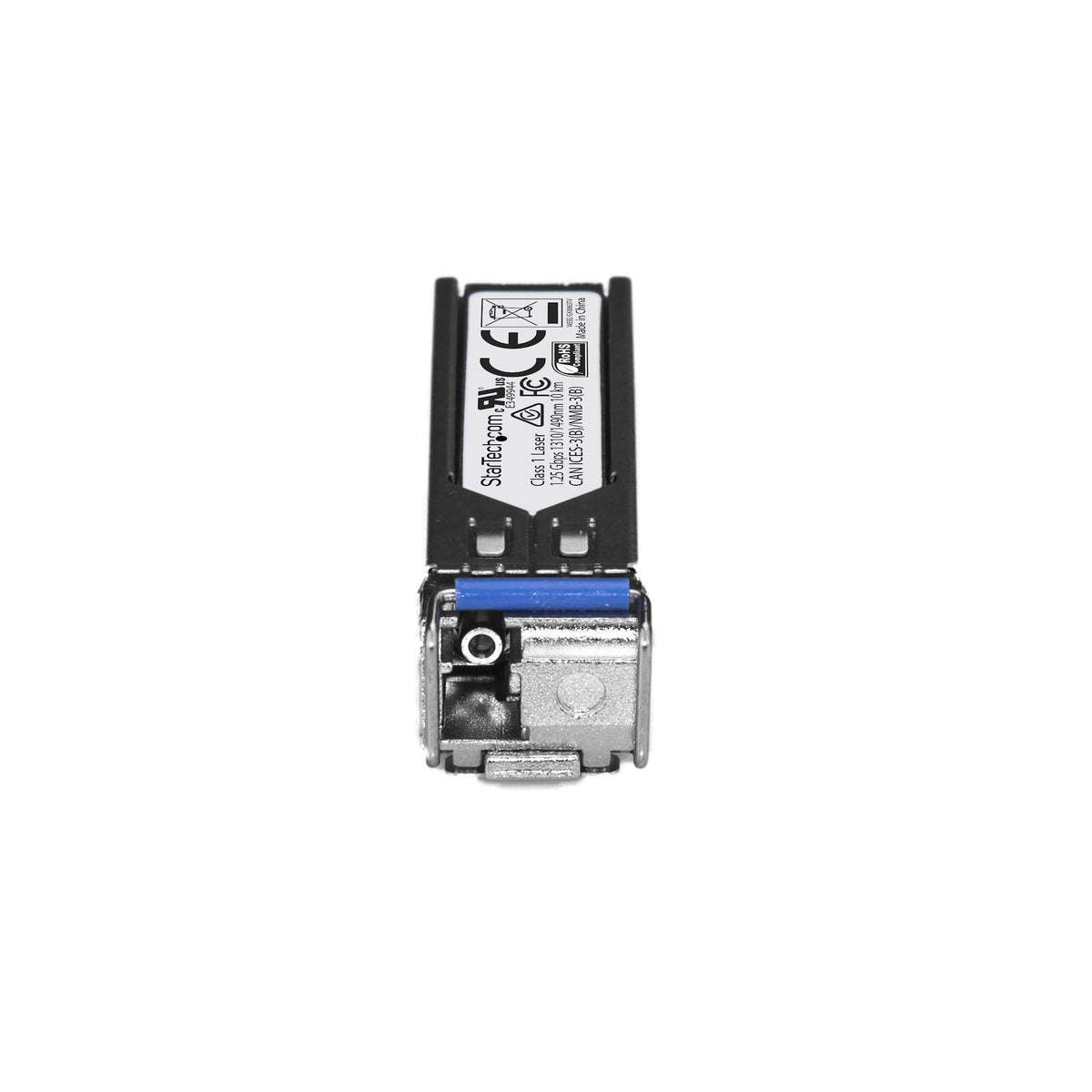

STARTECH .com network transceiver module Fiber optic 1000 Mbit/s SFP (SFPGE10KT3R5)
- Regular price
- 14.95$
- Sale price
- 14.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
StarTech.com SFPGE10KT3R5 network transceiver module Fiber optic 1000 Mbit/s SFP
Brand:StarTech.com
Product name:Juniper SFP-GE10KT13R15 Compatible SFP Module - 1000BASE-BX-U - 1GbE Gigabit Ethernet BiDi Fiber (SMF)
Product code:SFPGE10KT3R5
EAN/UPC:
0065030883900
0065030883900, 065030883900
- 100% JUNIPER SFP-GE10KT13R15 COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Juniper switches and routers to deliver reliable 1GbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 1000BASE-BX-U / 1Gbps / 10G Bi-Directional Upstream / Single Mode (SMF) / LC Connector / 1310nmTx/1550nmRx / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
- PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with Juniper routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Description
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The SFPGE10KT3R5 is a Juniper SFP-GE10KT3R5 compatible fiber transceiver module that has been designed, programmed, and tested to work with Juniper brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-BX10-U compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nmTx/1550nmRx
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 3,713,222 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The SFPGE10KT3R5 is a Juniper SFP-GE10KT3R5 compatible fiber transceiver module that has been designed, programmed, and tested to work with Juniper brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-BX10-U compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nmTx/1550nmRx
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 3,713,222 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specs
Performance
SFP transceiver type
Fiber optic
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
1000 Mbit/s
Interface type
SFP
Single-mode fiber (SMF) supported
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
LC
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
10000 m
Tx wavelength (max)
1310 nm
Rx wavelength (max)
1550 nm
Fiber ethernet cabling technology
1000BASE
Duplex system
A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.
Full
Digital Diagnostics Monitoring (DDM)
Packaging content
Quantity per pack
1 pc(s)
Packaging data
Package width
The distance from one side of the packaging to the other.
207 mm
Package depth
The distance from the front to the back of the packaging.
230 mm
Package height
The distance from the top to the bottom of the packaging.
15 mm
Package weight
Weight of the packaged product in gram.
80 g
Features
Product color
The colour e.g. red, blue, green, black, white.
Silver
Hot-swap
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
3713222 h
Brand compatibility
What other brands this brand can be used with.
Juniper
Compatible products
Other products that can be used with this product.
SFP-GE10KT13R15
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
1,3 W
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Certification
CE, FCC, UR, REACH
Weight & dimensions
Width
The measurement or extent of something from side to side.
14 mm
Depth
The distance from the front to the back of something.
65 mm
Height
The measurement of the product from head to foot or from base to top.
12 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
72 g
Logistics data
Master (outer) case width
344 mm
Master (outer) case length
295 mm
Harmonized System (HS) code
85369010
Master (outer) case height
255 mm
Quantity per master (outer) case
1 pc(s)
