STARTECH .com network media converter 1000 Mbit/s 850 nm Multi-mode Black (MCM1110MMLC)
- Regular price
- 130.95$
- Sale price
- 130.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com MCM1110MMLC network media converter 1000 Mbit/s 850 nm Multi-mode Black
Brand:StarTech.com
Product name:Multi-Mode (MM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to LC Converter, SFP Transceiver Included, 850nm, 550m - TAA
Product code:MCM1110MMLC
EAN/UPC:
0065030861465
0065030861465, 065030861465, 4053162878013
- <b>Extend Ethernet Over Distances</b>: Convert and extend a 10/100/1000 Mbps Ethernet signal to Gigabit multi-mode LC fiber, up to 550m (1800ft); For specialized edge, industrial / remote deployments requiring long-range, secure wired connectivity
- <b>Flexible Mounting</b>: Use as a compact standalone unit or mount to a wall, rack, DIN rail (ADJDINKIT) or chassis (MCM7-MEDIA-CHASSIS, MCM15-MEDIA-CHASSIS) for clean, professional integration into structured wiring closets, data centers, or server rooms
- <b>Reliable Performance Across Mixed Speeds</b>: Supports IEEE 802.3 standards, Jumbo Frames (up to 9K), full-duplex flow control, auto-negotiation, and auto MDI/MDI-X; Delivers plug-and-play setup and reduced packet loss across legacy and high-speed links
- <b>Deploy Efficiently in Compact, Power-Sensitive Spaces</b>: Operates at just 3.75W with 5V DC input via included power adapter or an optional chassis power supply, supporting 32°F to 122°F (0°C to 50°C) environments; Does not support PoE
- <b>The IT Pro's Choice</b>: Designed for reliability in edge and on-prem deployments, our media converters are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
Description
Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft
This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multimode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.
Cost-effective extension and dependable performance
The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.
Versatile connections for broad compatibility
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

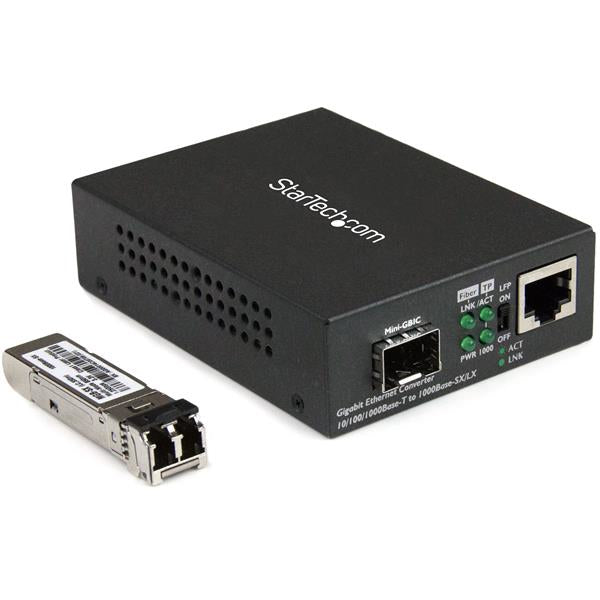

The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.
Easy installation and compact convenience
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.
This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multimode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.
Cost-effective extension and dependable performance
The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.
Versatile connections for broad compatibility
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.
Easy installation and compact convenience
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.
Video
Specs
Network
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
1000 Mbit/s
Converter input interface
A convertor changes one form of signal into another e.g. A/D Converter changes a signal from analog to digital. A convertor input interface is the place where a convertor connects to the product in order to input the converted signal.
1000Base-T, 100Base-TX, 10Base-T
Converter output interface
1000Base-LX, 1000Base-SX
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Data transfer rate
Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.
1000 Mbit/s
Jumbo frames support
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Duplex system
A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.
Full
Power
Input voltage
The voltage (V) which is required to power the product.
100 - 240 V
Input current
1 A
Output voltage
5 V
Output current
2 A
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
External power adapter
Power plug type
Type N
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Certification
CE, FCC, REACH, TAA
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case width
588 mm
Master (outer) case length
369 mm
Master (outer) case height
313 mm
Quantity per master (outer) case
20 pc(s)
Performance
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
550 m
Wavelength
The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
850 nm
Wavelength-division multiplexing (WDM)
Fiber mode structure
Multi-mode
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
50000 h
Features
Internal
The product is built in.
LED indicators
Activity, Link, Power
Product color
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Steel
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Fiber ports quantity
The number of sockets (ports) for fibers (cables).
1
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
LC
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Weight & dimensions
Width
The measurement or extent of something from side to side.
70 mm
Depth
The distance from the front to the back of something.
94 mm
Height
The measurement of the product from head to foot or from base to top.
26 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
201 g
Packaging content
Manual
Packaging data
Package width
The distance from one side of the packaging to the other.
286 mm
Package depth
The distance from the front to the back of the packaging.
138 mm
Package height
The distance from the top to the bottom of the packaging.
69 mm
Package weight
Weight of the packaged product in gram.
556 g
