STARTECH .com network card Internal Fiber 10000 Mbit/s (O1210I-NETWORK-CARD)
- Regular price
- 631.95$
- Sale price
- 631.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

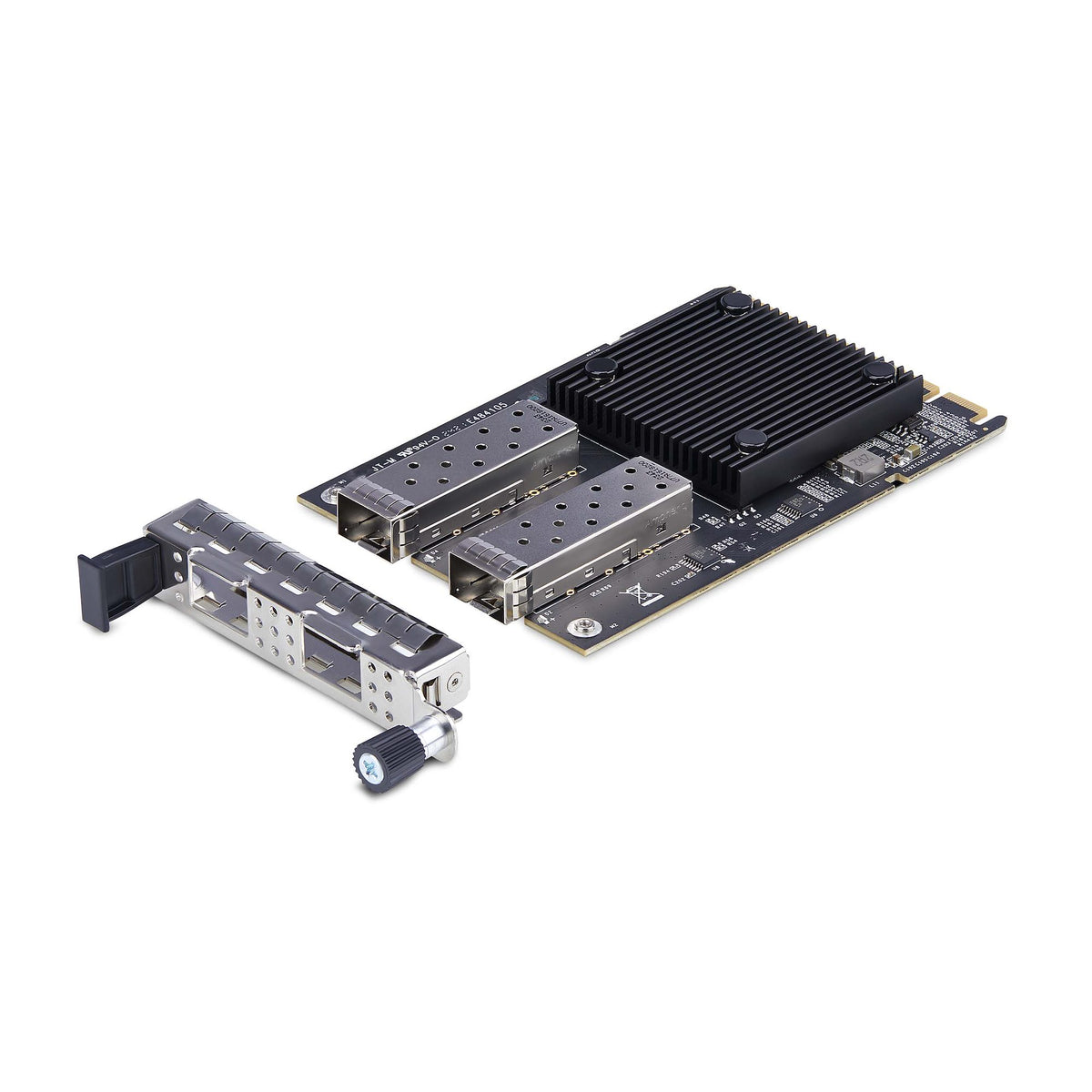

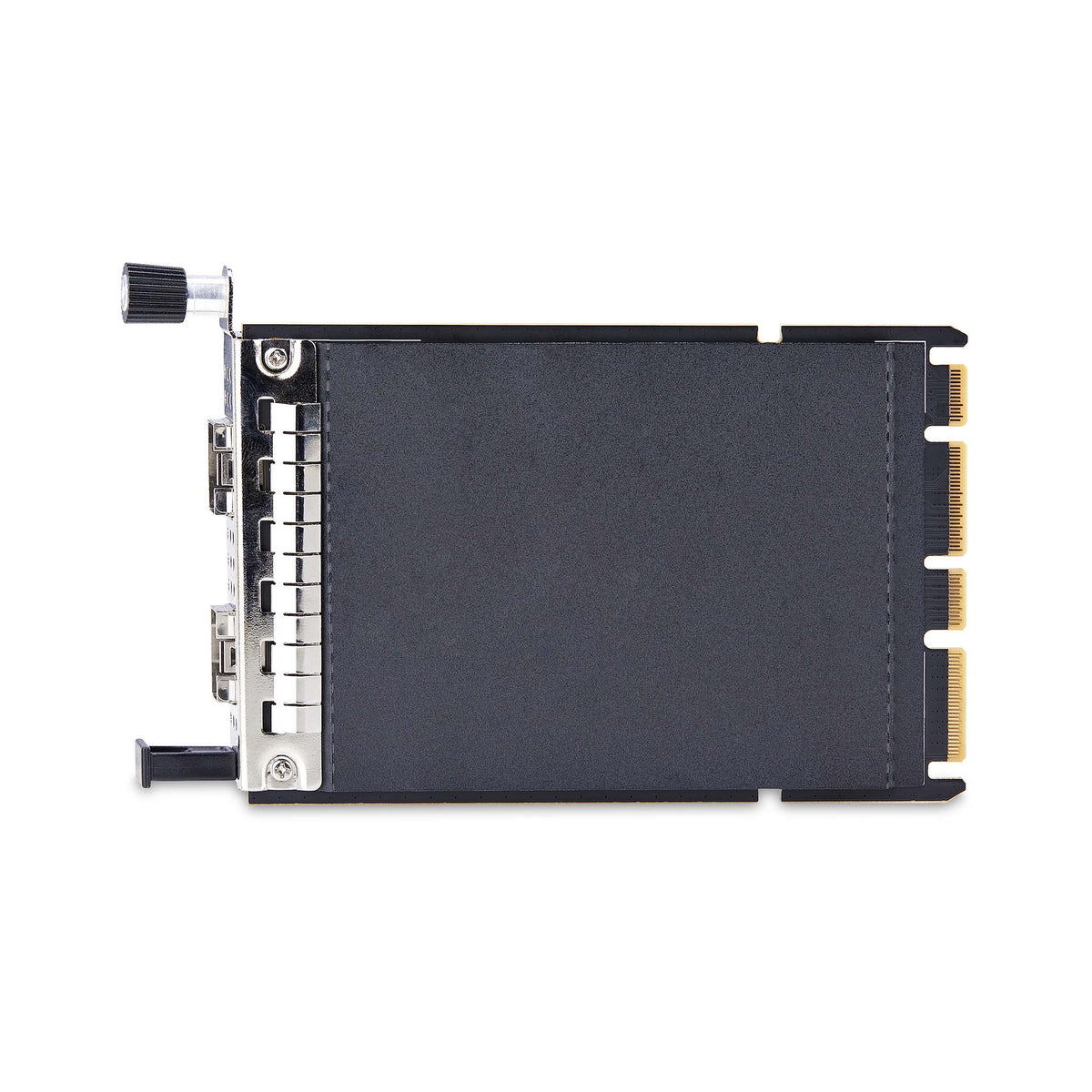

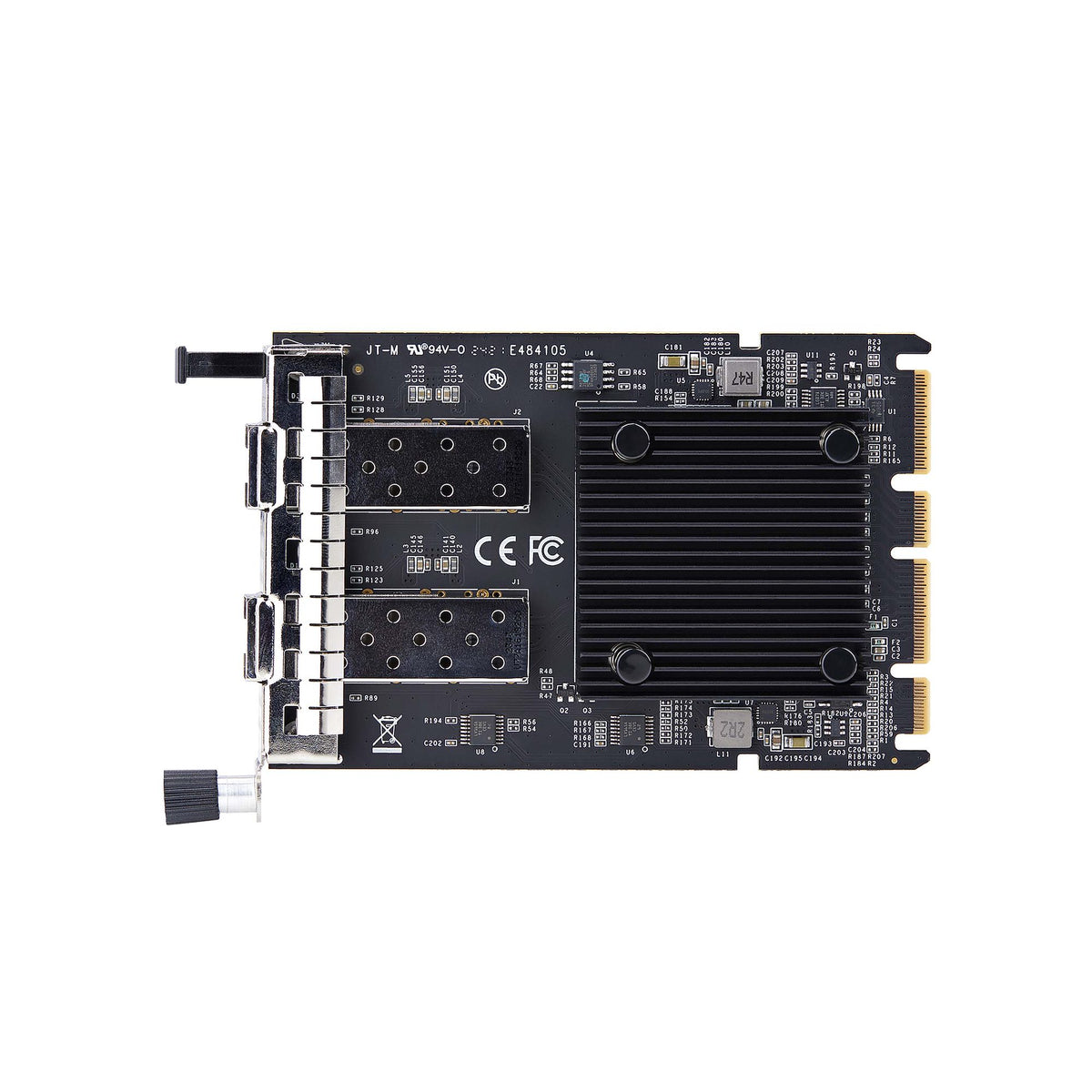

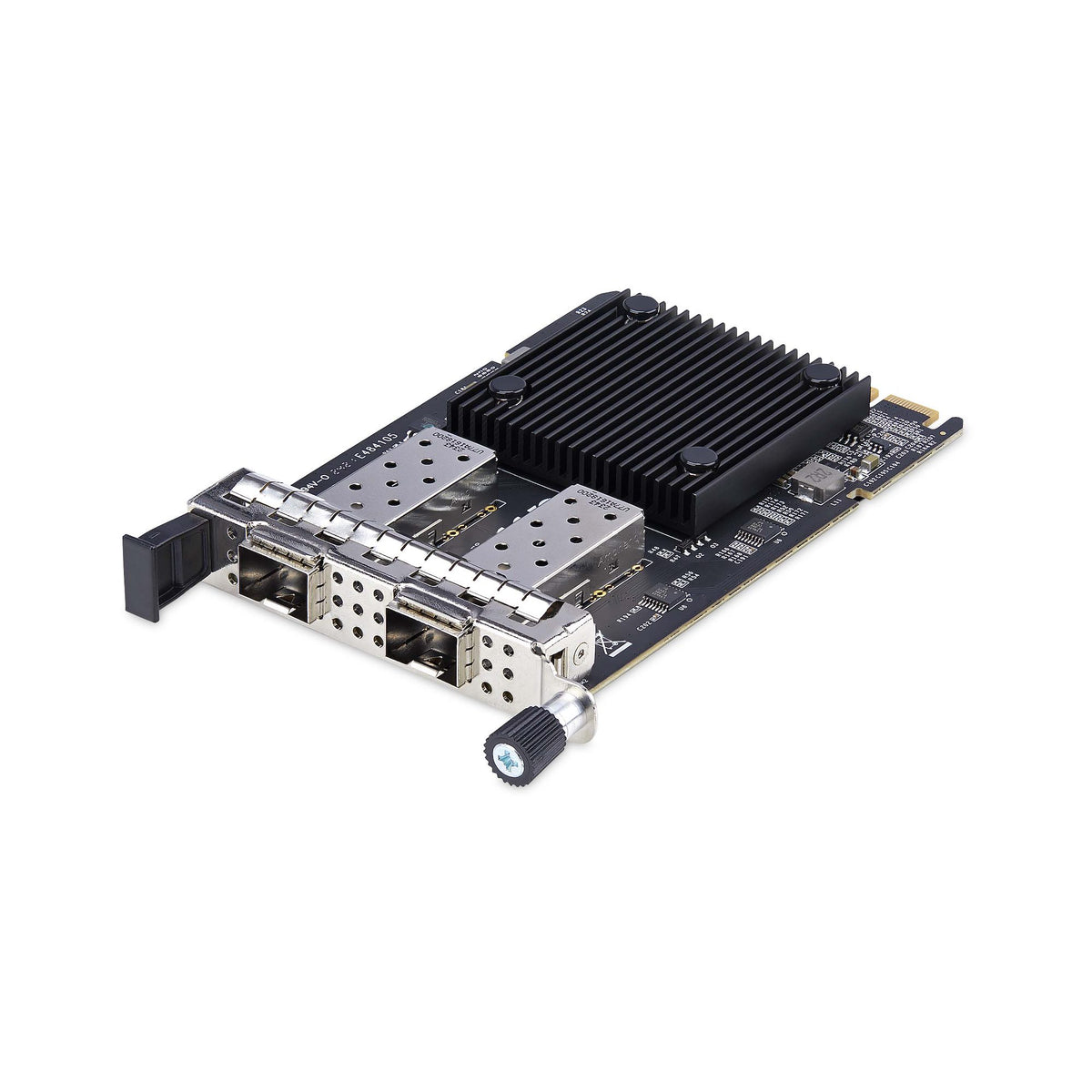

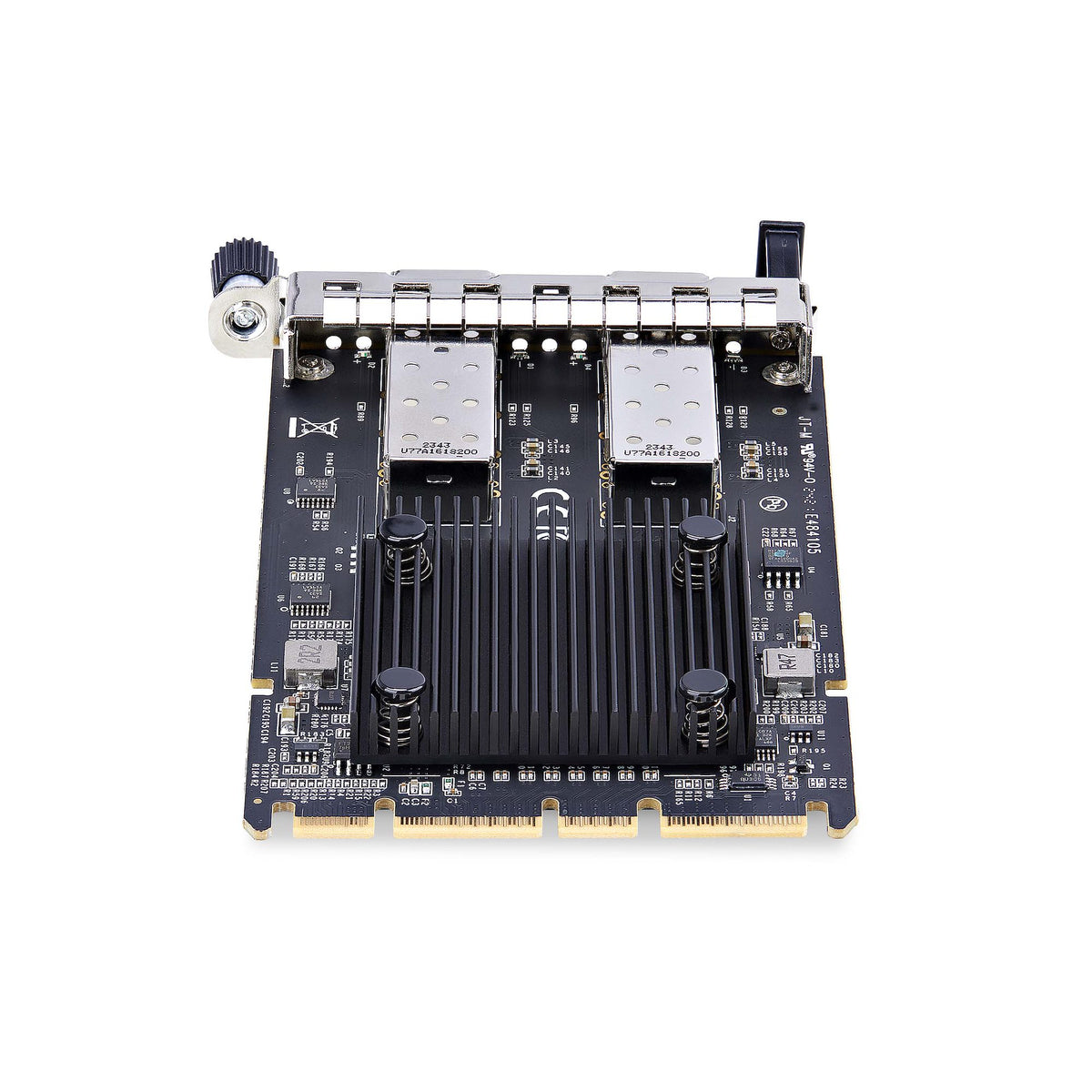

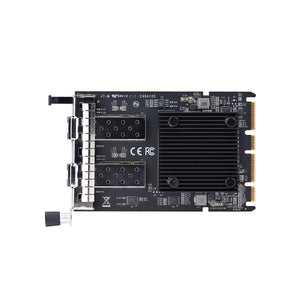

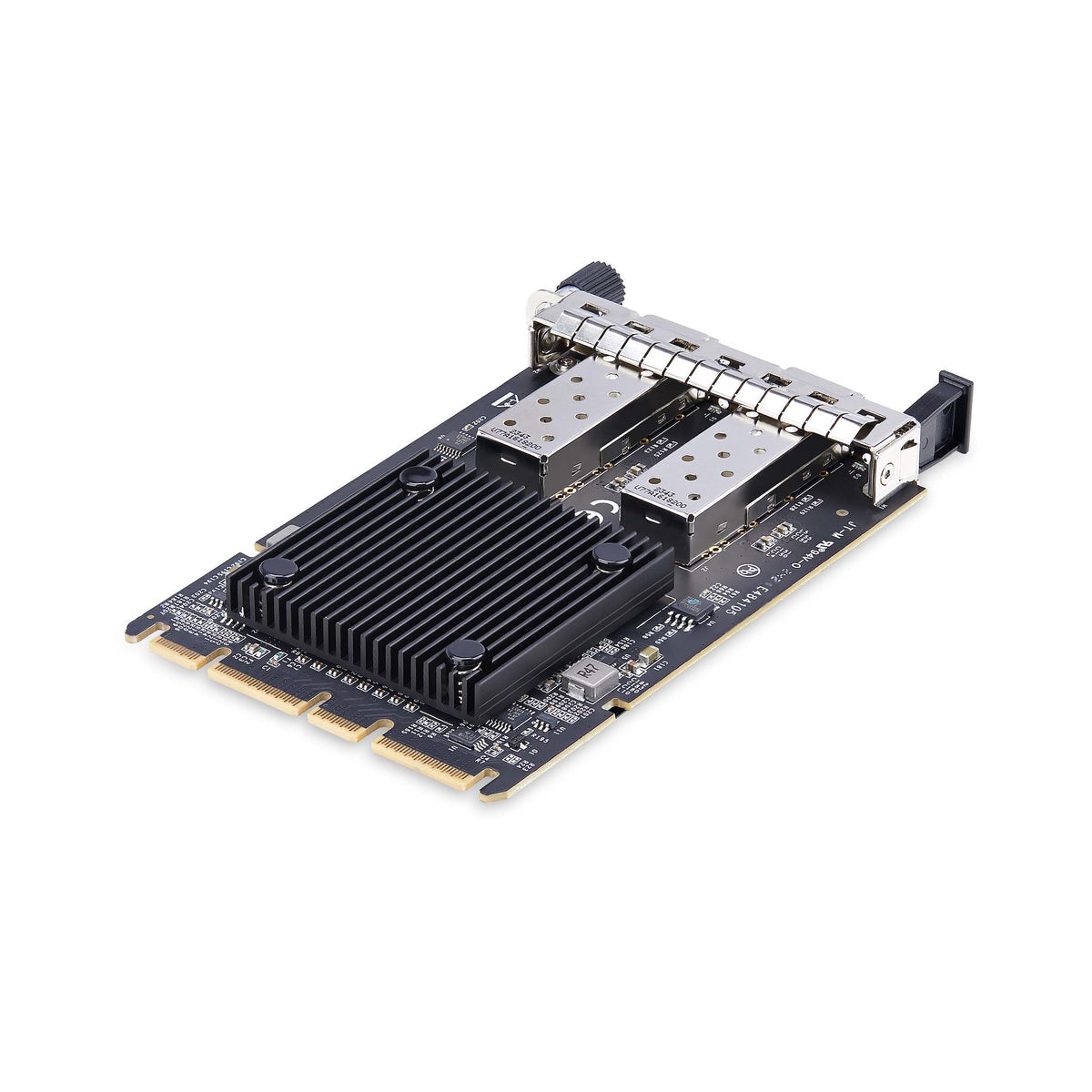

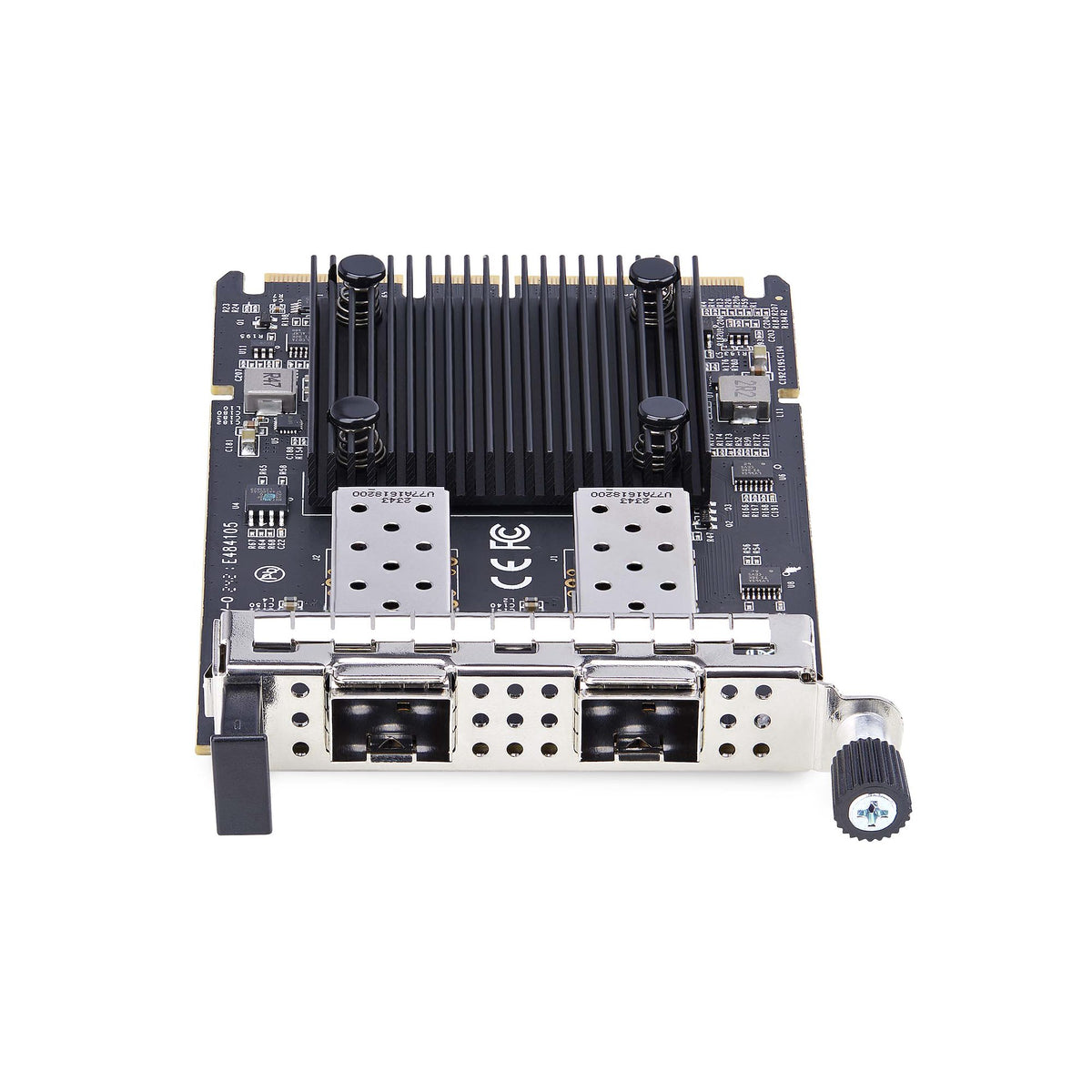

StarTech.com O1210I-NETWORK-CARD network card Internal Fiber 10000 Mbit/s
Brand:StarTech.com
Product name:2-Port 10Gbps SFP+ OCP 3.0 Server Network Card with Intel X710, SFF 4C+ Compatible, Dual-Port OCP NIC, Works with Windows & Linux
Product code:O1210I-NETWORK-CARD
EAN/UPC:
0065030900645
0065030900645, 065030900645
- 10G OCP NETWORK CARD: 10Gbps Network Interface Card w/Intel X710-BM2 Controller adds 2x open SFP+ slots to a server, enhancing connectivity options/network performance; Ideal for high-speed, low-latency connections (e.g., virtualization, cloud computing)
- REDUCED DOWNTIME: Network Adapter Card uses the OCP (Open Compute Project) 3.0 port (168-Pin 4C+), developed for servers to reduce size, increase port density, and provide hot-swappable capabilities for simplified maintenance and upgrades
- UNLOCKED SFP+ SLOTS: Works with any single-mode/multimode MSA-compliant or branded SFP or SFP+ modules, active optical cables (AOC), or direct attach copper cables (DAC); Optical fiber allows for longer cable runs than copper cabling while eliminating EMI
- COMPATIBILITY: Works with Windows Server 2012 & up, Windows 10 & up, and Linux; PCIe NIC is compatible with PCIe 3.0, 2.1, and 2.0; Supports 1000Base-T/SX/LX/EX and 10GBase-SR/LR/CR; <i>Note: 10Gbps Copper SFP+ modules are not supported</i>
- IT MANAGEMENT: Network Virtualization offloads reduce CPU overhead, enhancing virtualized network efficiency; PXE boot enables centralized OS deployment/updates; 9K jumbo frames for reduced packet overhead; VLAN support for efficient network management
Description
Enhance a server or workstation's capabilities with dual 10 Gigabit fiber or copper connectivity using the SFP transceivers of your choice
The 2-port 10Gbps OCP network interface card with the Intel X710-BM2 controller adds two open SFP+ slots to a server, increasing connectivity options and network performance.
OCP (Open Compute Project) Interface
The network adapter card uses the Open Compute Project (OCP) 3.0 (168-pin 4C+) connector, which was designed for servers to reduce size, increase port density, and provide hot-swappable capabilities for simplified maintenance and upgrades. The PCI Express Network Card is compatible with PCIe versions 3.0, 2.1, and 2.0.
10GbE and 1GbE SFP Support
This card supports 1000Base-T/SX/LX/EX and 10GBase-SR/LR/CR for various network configurations and distances. This is ideal for high-speed, low-latency connections such as those used in virtualization, data centers, and cloud computing. It works with any single-mode or multimode MSA-compliant or branded SFP or SFP+ module, active optical cable (AOC), or direct attach copper cable (DAC). Optical fiber allows longer cable runs than copper cabling while eliminating EMI.
Note: 10Gbps Copper SFP+ modules are not supported
Advanced Features
Network virtualization offloads reduce CPU overhead, increasing the efficiency of the virtualized network. PXE boot enables centralized OS deployment and updates. The card also supports 9K jumbo frames for reduced packet overhead and VLAN support for efficient network management. The card is compatible with Windows Server, Windows, and Linux.
The 2-port 10Gbps OCP network interface card with the Intel X710-BM2 controller adds two open SFP+ slots to a server, increasing connectivity options and network performance.
OCP (Open Compute Project) Interface
The network adapter card uses the Open Compute Project (OCP) 3.0 (168-pin 4C+) connector, which was designed for servers to reduce size, increase port density, and provide hot-swappable capabilities for simplified maintenance and upgrades. The PCI Express Network Card is compatible with PCIe versions 3.0, 2.1, and 2.0.
10GbE and 1GbE SFP Support
This card supports 1000Base-T/SX/LX/EX and 10GBase-SR/LR/CR for various network configurations and distances. This is ideal for high-speed, low-latency connections such as those used in virtualization, data centers, and cloud computing. It works with any single-mode or multimode MSA-compliant or branded SFP or SFP+ module, active optical cable (AOC), or direct attach copper cable (DAC). Optical fiber allows longer cable runs than copper cabling while eliminating EMI.
Note: 10Gbps Copper SFP+ modules are not supported
Advanced Features
Network virtualization offloads reduce CPU overhead, increasing the efficiency of the virtualized network. PXE boot enables centralized OS deployment and updates. The card also supports 9K jumbo frames for reduced packet overhead and VLAN support for efficient network management. The card is compatible with Windows Server, Windows, and Linux.
Specs
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Host interface
Interface that enables a host controller to communicate with a driver.
OCP 3.0
Interface
Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.
Fiber
Fiber ports quantity
The number of sockets (ports) for fibers (cables).
2
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
SFP+
Design
Component for
What this product is used as a part of (component for).
PC/Server
Product color
The colour e.g. red, blue, green, black, white.
Black
Internal
The product is built in.
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Intel® X710-BM2
LED indicators
Activity, Link
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 60 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Packaging data
Package width
The distance from one side of the packaging to the other.
146 mm
Package depth
The distance from the front to the back of the packaging.
217 mm
Package height
The distance from the top to the bottom of the packaging.
36 mm
Package weight
Weight of the packaged product in gram.
170 g
Network
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
10000 Mbit/s
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 1588, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae
Wake-on-LAN ready
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Jumbo frames support
Jumbo frames
9000
Fiber mode structure
Multi-mode, Single-mode
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Server operating systems supported
Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
Weight & dimensions
Width
The measurement or extent of something from side to side.
85 mm
Depth
The distance from the front to the back of something.
132 mm
Height
The measurement of the product from head to foot or from base to top.
15 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
104 g
Packaging content
Quick installation guide
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Logistics data
Master (outer) case width
370 mm
Master (outer) case length
440 mm
Master (outer) case height
315 mm
Quantity per master (outer) case
40 pc(s)
