STARTECH .com network card Internal Ethernet 10000 Mbit/s (ST10GSPEXNDP2)
- Regular price
- 252.95$
- Sale price
- 252.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

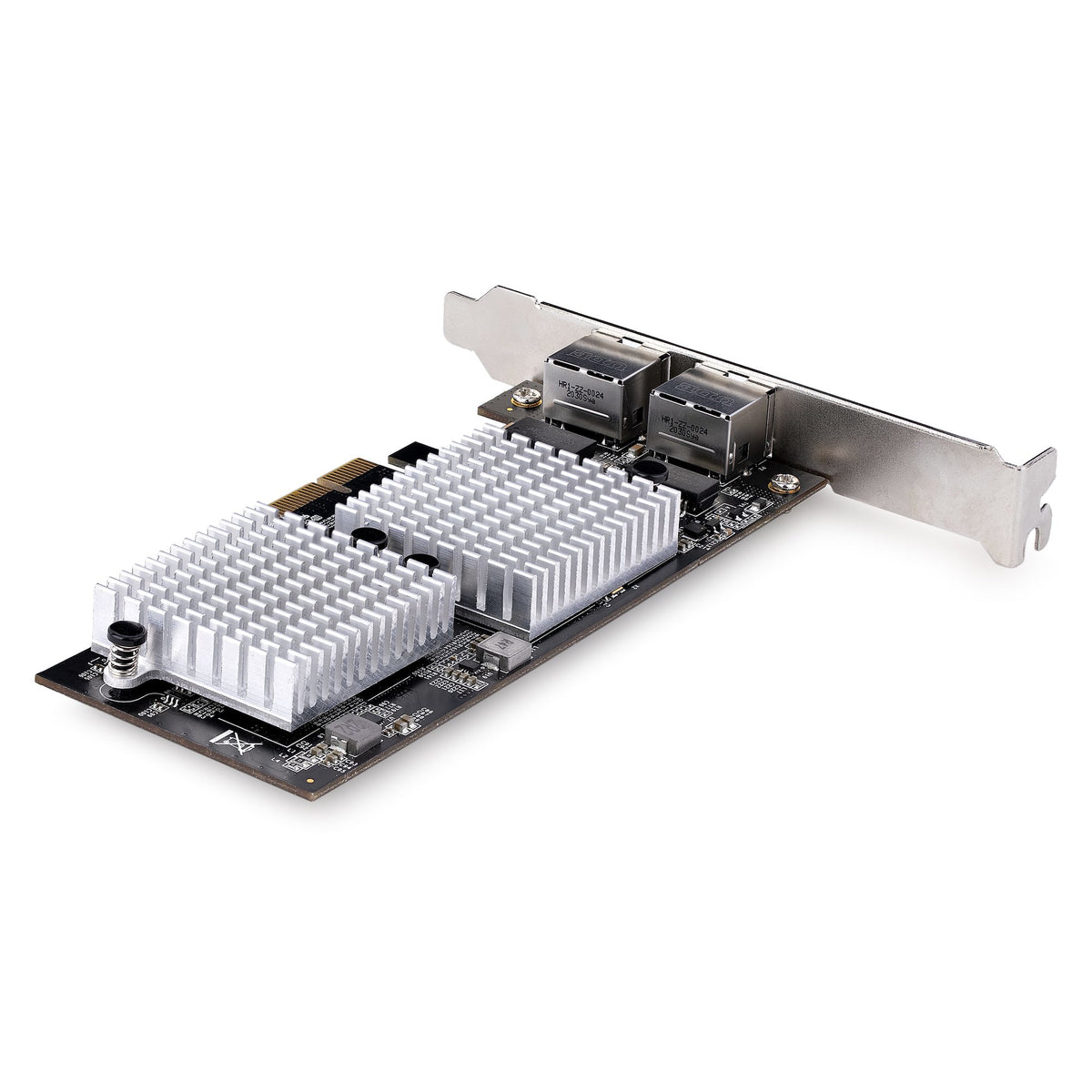

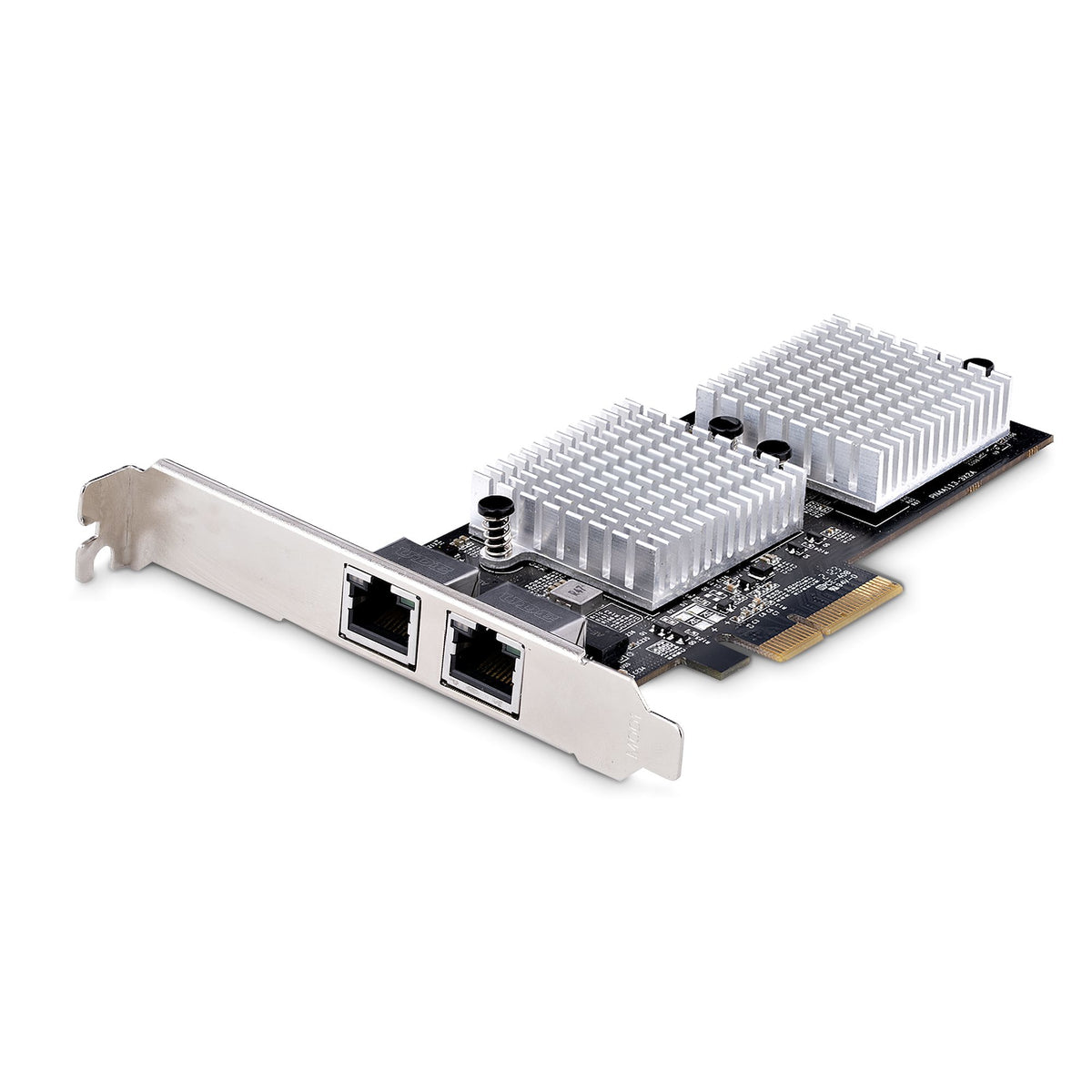

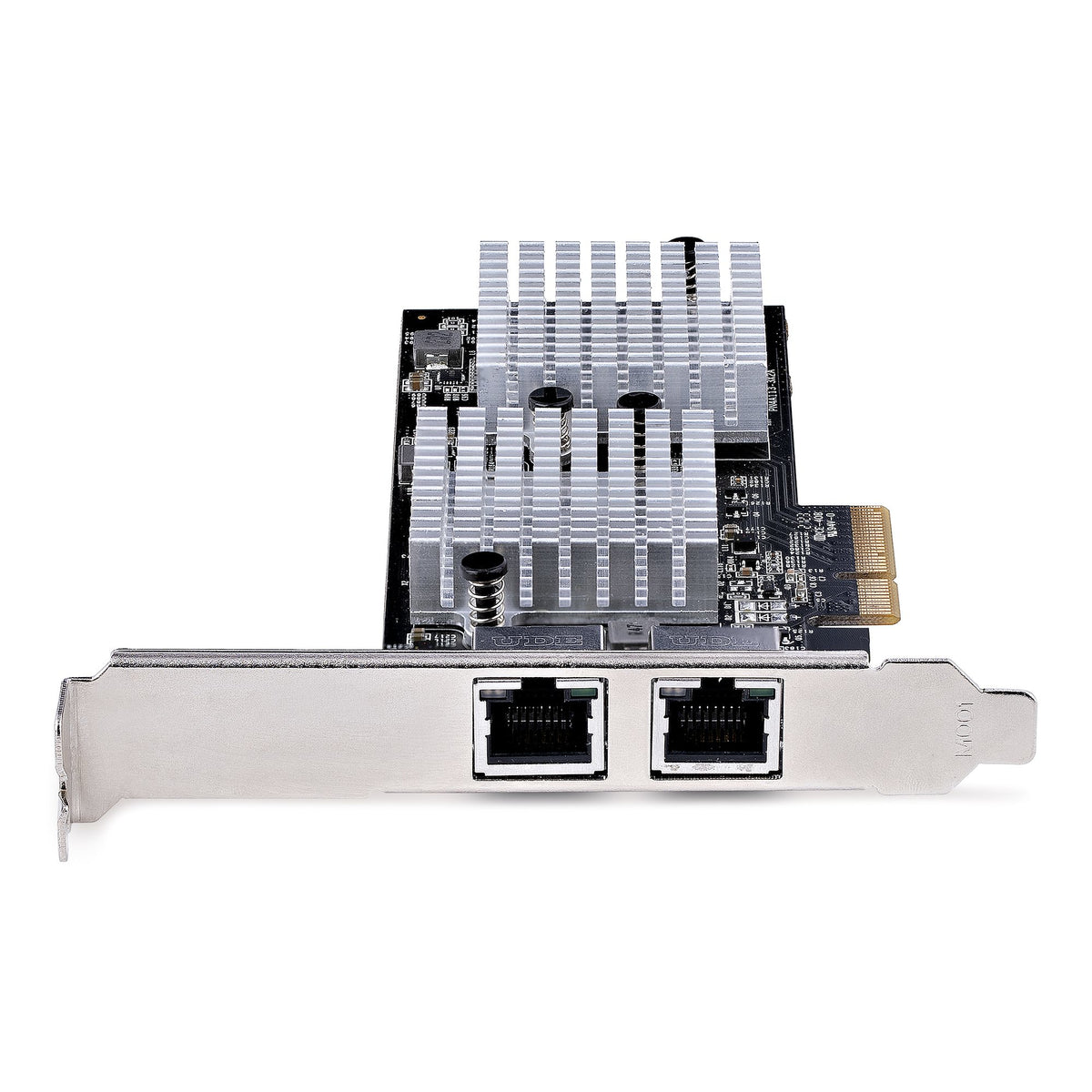

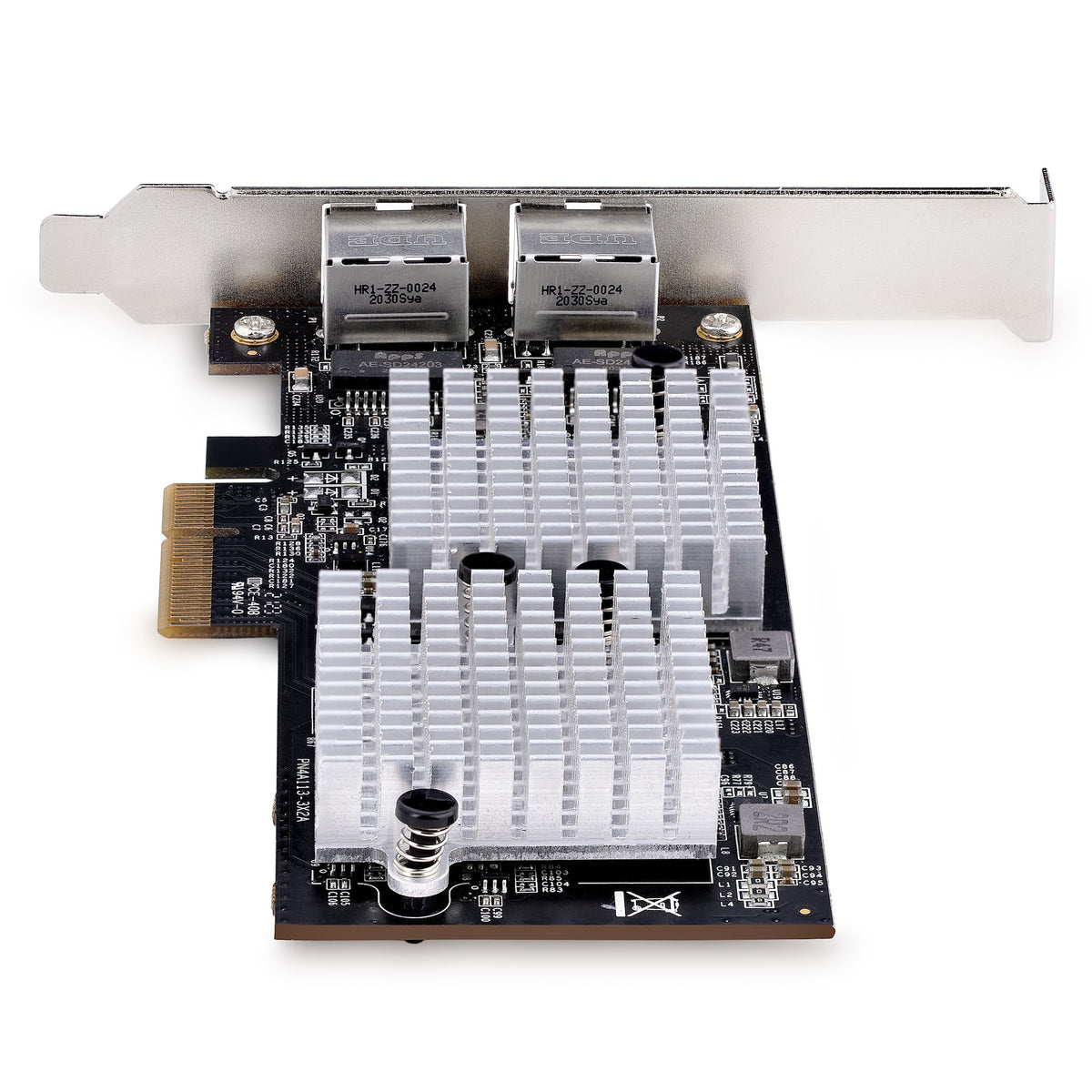

StarTech.com ST10GSPEXNDP2 network card Internal Ethernet 10000 Mbit/s
Brand:StarTech.com
Product name:2-Port 10GbE PCIe Network Adapter Card, Network Card for PCs/Servers, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T
Product code:ST10GSPEXNDP2
EAN/UPC:
0065030897693
0065030897693, 065030897693
- DUAL PORT 10G ETHERNET CARD: High-performance PCIe 10Gbps dual-port network card with dedicated Marvell chips; Leverage existing Cat5e/Cat6 cabling (or better); NBASE-T compatible (802.3bz); Independent Ethernet controllers for reliable performance
- IT MANAGEABILITY: PXE boot enabled to deployment speeds/updates; 16K jumbo frame for reduced packet overhead; Remotely boot a system using WoL; VLAN support for efficient network management
- MULTI-GIGABIT CONNECTIVITY: Network Interface Card supports auto negotiation; Supports 2.5/5Gbps speeds on Cat5e cabling, 10Gbps on Cat6/6a; NBase-T Ethernet Network Card features IP/TCP/UDP checksum offload, secure boot; PVP & AVB supported in macOS only
- COMPATIBILITY: Network Card for PC is compatible with Windows, Windows Server, and Linux; Six network speeds and included low-profile bracket widen the compatibility of the PCIe Network Card with full-height and small form factor (SFF) systems
- SPECIFICATIONS: 2x RJ45 Ports, Six-Speed NIC 10/5/2.5/1Gbps and 100/10Mbps (Independent controllers), 10GBASE-T and NBASE-T (2.5GBASE-T and 5GBASE-T), PCIe 3.0 x4, Marvell AQC113CS, 16K Jumbo Frames, VLAN Tagging, WoL, PXE boot, EEE, Secure Boot
Description
PXE Boot | PCIe 3.0 x4 | Marvell AQC113CS
Install this 2-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) with independent controllers into a server or computer to enable fast network speeds and enhanced network functionality by providing failover and redundancy protection to mission-critical servers/applications.
This Card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps with auto-negotiation for instant compatibility with new and legacy hardware. In addition, 10GBASE-T and NBASE-T (2.5GBASE-T/5GBASE-T) capabilities ensure compatibility with the latest network switches and access points manufactured by Cisco®; HPE®; and Aruba Networks®.
10GbE Network Speeds

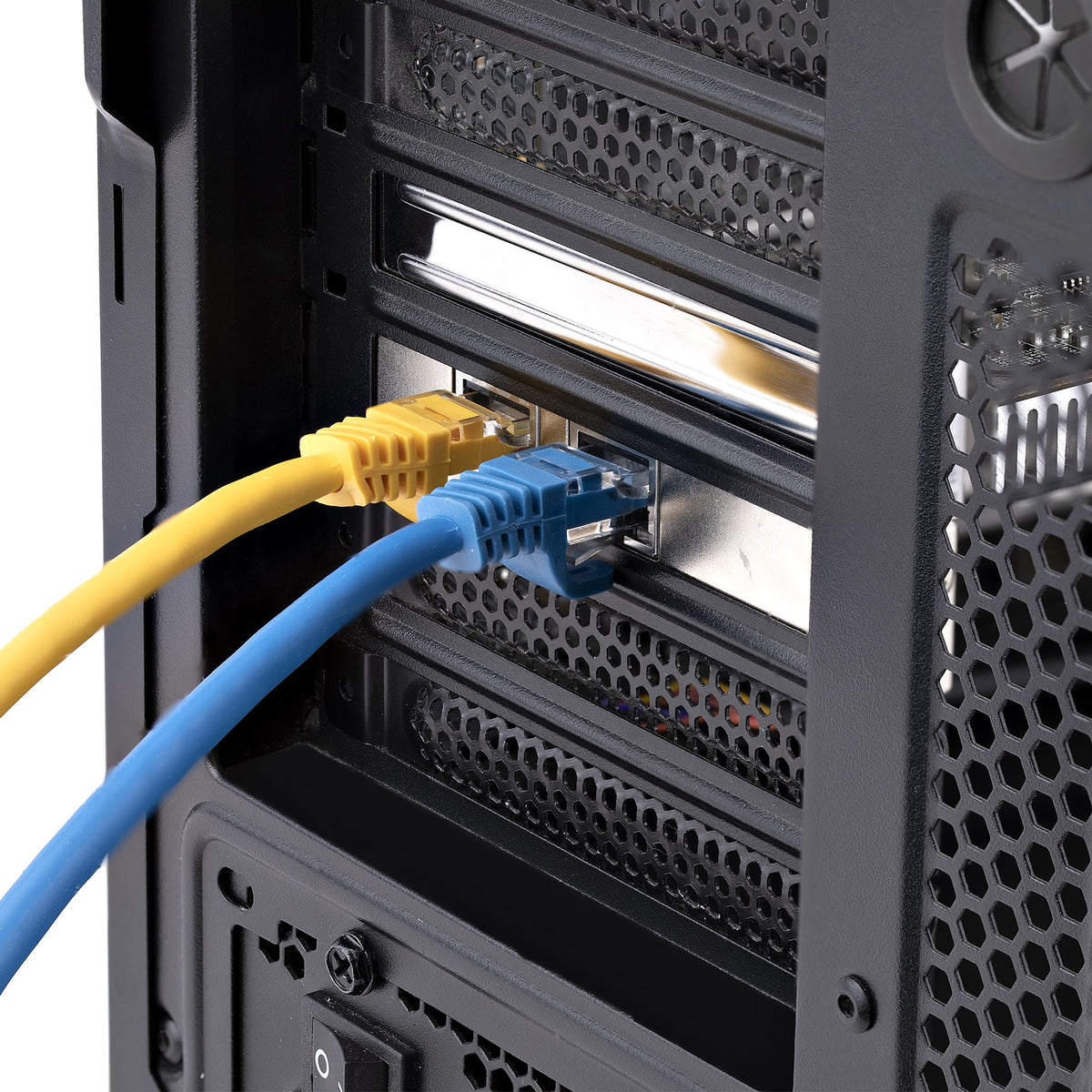

This PCIe Network Card enables access to two high-bandwidth ethernet connections. As a result, it reduces network degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and streaming online content. The Ethernet Network Card supports 10GBASE-T using existing Cat6 (or better) cable infrastructure.
Enhance Existing Hardware

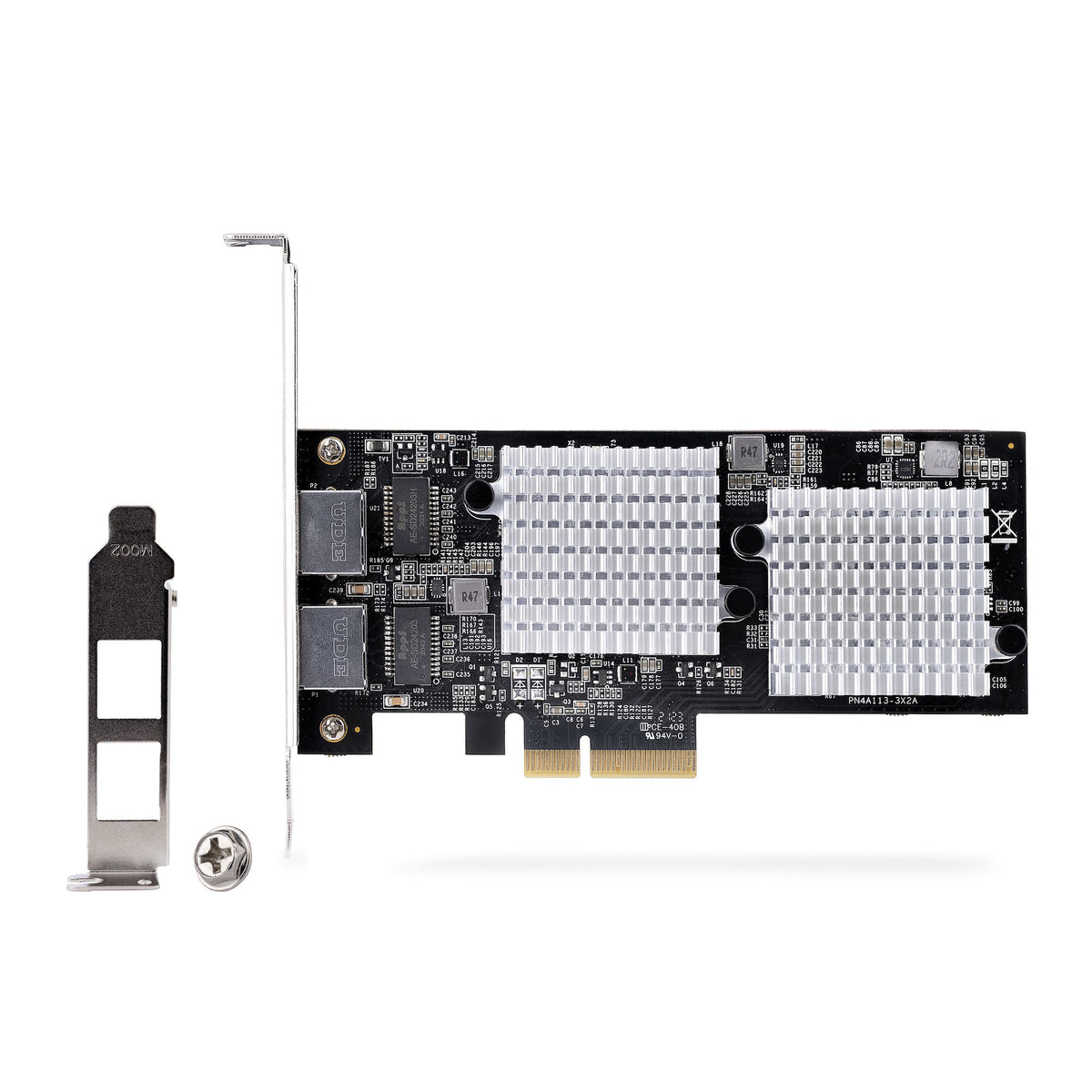

NBASE-T technology maximizes the capability of Cat5e copper infrastructure over distances of up to 100 meters. The Network Interface Card connects to a PCIe x4 3.0/4.0 (or higher) slot and comes with a full-height bracket preinstalled, and a low-profile bracket is included. This Card is compatible with Windows, Windows Server, and Linux operating systems.
Take advantage of advanced features such as load balancing in server or network equipment, bridging two different networks on one system, Audio Video Bridging (AVB), VLAN tagging (802.1Q), 16K-byte Jumbo Frames, full-duplex (FDX), UEFI Secure Boot (SB), and Preboot eXecution Environment (PXE).
Install this 2-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) with independent controllers into a server or computer to enable fast network speeds and enhanced network functionality by providing failover and redundancy protection to mission-critical servers/applications.
This Card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps with auto-negotiation for instant compatibility with new and legacy hardware. In addition, 10GBASE-T and NBASE-T (2.5GBASE-T/5GBASE-T) capabilities ensure compatibility with the latest network switches and access points manufactured by Cisco®; HPE®; and Aruba Networks®.
10GbE Network Speeds
This PCIe Network Card enables access to two high-bandwidth ethernet connections. As a result, it reduces network degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and streaming online content. The Ethernet Network Card supports 10GBASE-T using existing Cat6 (or better) cable infrastructure.
Enhance Existing Hardware
NBASE-T technology maximizes the capability of Cat5e copper infrastructure over distances of up to 100 meters. The Network Interface Card connects to a PCIe x4 3.0/4.0 (or higher) slot and comes with a full-height bracket preinstalled, and a low-profile bracket is included. This Card is compatible with Windows, Windows Server, and Linux operating systems.
Take advantage of advanced features such as load balancing in server or network equipment, bridging two different networks on one system, Audio Video Bridging (AVB), VLAN tagging (802.1Q), 16K-byte Jumbo Frames, full-duplex (FDX), UEFI Secure Boot (SB), and Preboot eXecution Environment (PXE).
Specs
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Host interface
Interface that enables a host controller to communicate with a driver.
PCI Express
Interface
Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.
Ethernet
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
2
PCI version
3.0
PCI Card form factor
Design of the PCI Card.
Full-height (low-profile)
Design
Component for
What this product is used as a part of (component for).
PC/Server
Product color
The colour e.g. red, blue, green, black, white.
Black
Internal
The product is built in.
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Marvell AQC113CS
LED indicators
Activity, Link, Status
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Server operating systems supported
Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Sustainability
Sustainability compliance
Weight & dimensions
Width
The measurement or extent of something from side to side.
20 mm
Depth
The distance from the front to the back of something.
145 mm
Height
The measurement of the product from head to foot or from base to top.
65 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
116 g
Packaging content
Mounting brackets included
Quick installation guide
Logistics data
Master (outer) case width
440 mm
Master (outer) case length
370 mm
Master (outer) case height
315 mm
Quantity per master (outer) case
40 pc(s)
Network
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
10000 Mbit/s
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000,2500,5000,10000 Mbit/s
Cabling technology
Type of cable technology performance.
10GBase-T
Wake-on-LAN ready
Auto MDIX IEEE
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Jumbo frames support
Jumbo frames
16000
VLAN tagging
Maximum operating distance
The maximum distance from which you can operate the device.
100 m
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
5 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Packaging data
Package width
The distance from one side of the packaging to the other.
148 mm
Package depth
The distance from the front to the back of the packaging.
215 mm
Package height
The distance from the top to the bottom of the packaging.
36 mm
Package weight
Weight of the packaged product in gram.
208 g
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE
