StarTech.com LANTESTPRO2 network cable tester UTP/STP cable tester Grey
Brand:StarTech.com
Product name:Network Cable Tester with Tone Probe Tool, Multi-Function RJ45 LAN Cable Tester for Continuity/PoE/NCV, Supports Cat5e/Cat6/Cat6a/Cat8 UTP/STP Ethernet Cables
Product code:LANTESTPRO2
EAN/UPC:
0065030902755
0065030902755, 065030902755
- MULTI-FUNCTION LAN CABLE TESTER: Test and measure cable length, PoE output, and wiring continuity with ease using this Multi-function Network Cable Tester; Features a backlit LCD for clear readings; Auto shut-off saves battery life for long-lasting use
- SIMPLIFY TROUBLESHOOTING: Quickly diagnose network cabling issues to identify crossed wires, shorts, and open circuits; Use Tone Probe to accurately trace cables in higher-density setups; Detect AC voltage with Non-Contact Voltage (NCV) detection
- WIDE COMPATIBILITY: Works with Cat5e, Cat6, Cat6a, and Cat8 RJ45 cables (UTP/STP) and supports non-PoE, PoE, and non-standard PoE devices; Capable of displaying network switch performance characteristics
- APPLICATIONS: Ideal for enterprise, industrial, or data center use; Portable for field testing in large facilities or cramped spaces; Check new installations for proper cable termination; Confirm PoE output before connecting devices to minimize downtime
- SPECS: Test Modes: Continuity, Cable Length (2.5m to 200m/8.2ft to 656ft), PoE (IEEE 802.3af/at), Non-Contact Voltage (NCV - Up to 1,000V), Port Flash/Switch Locator (10/100/1000Mbps); LED lamp (Main Tester/Tone Probe); Individual Mode LEDs (Tone Probe)
Description
Quickly diagnose network cabling issues and reduce downtime with this Multi-Function RJ45 Cable Tester
This Multi-function LAN Cable Tester is a practical tool for measuring cable length, assessing PoE output, and checking wiring continuity in network cables. Its backlit LCD display provides clear, instant readings, and the auto shut-off feature preserves battery life for long-lasting use.
Simplify RJ45 Cable Testing
Reduce troubleshooting time by quickly diagnosing network cabling issues with Continuity Testing to identify crossed wires, shorts, and open circuits. The Cable Tone Probe allows accurate tracing of cables, particularly in high-density setups. Non-Contact Voltage (NCV) detection helps identify AC voltage safely.
Multi-function Cable Diagnostics
Minimize delays by confirming PoE output before device connection. The PoE tester provides detailed pinout and voltage readings to ensure proper operation. Measure cable length (2.5m to 200m) and use the Port Flash/Switch Locator function to quickly trace and identify ports or switches. Compatible with Cat5e, Cat6, Cat6a, and Cat8 RJ45 cables, it supports both PoE and non-PoE devices.
Compact Form Factor
Ideal for on-site troubleshooting in enterprise, industrial, or data center environments, this portable tester reduces the need to carry multiple single-use tools. It is especially useful for field testing in remote locations, large facilities, or cramped spaces, streamlining network maintenance.
This Multi-function LAN Cable Tester is a practical tool for measuring cable length, assessing PoE output, and checking wiring continuity in network cables. Its backlit LCD display provides clear, instant readings, and the auto shut-off feature preserves battery life for long-lasting use.
Simplify RJ45 Cable Testing
Reduce troubleshooting time by quickly diagnosing network cabling issues with Continuity Testing to identify crossed wires, shorts, and open circuits. The Cable Tone Probe allows accurate tracing of cables, particularly in high-density setups. Non-Contact Voltage (NCV) detection helps identify AC voltage safely.
Multi-function Cable Diagnostics
Minimize delays by confirming PoE output before device connection. The PoE tester provides detailed pinout and voltage readings to ensure proper operation. Measure cable length (2.5m to 200m) and use the Port Flash/Switch Locator function to quickly trace and identify ports or switches. Compatible with Cat5e, Cat6, Cat6a, and Cat8 RJ45 cables, it supports both PoE and non-PoE devices.
Compact Form Factor
Ideal for on-site troubleshooting in enterprise, industrial, or data center environments, this portable tester reduces the need to carry multiple single-use tools. It is especially useful for field testing in remote locations, large facilities, or cramped spaces, streamlining network maintenance.
Specs
Features
Product type
The sub-category of the product.
UTP/STP cable tester
Test type
Continuity testing, PoE testing
Maximum cable length
200 m
Supported connectors
RJ-45
Ports quantity
The number of ports or external interfaces to which other equipment can be connected.
4
Built-in display
A display which is part of the product, so you do not need to attach another display.
Display type
Type of display (screen) e.g. LCD.
LCD
Product color
The colour e.g. red, blue, green, black, white.
Grey
Housing material
What the casing of the product is made of.
Acrylonitrile butadiene styrene (ABS)
Connector gender
To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male.
Female
Cable type
Type of cable e.g. electicity cable, optical cable.
Cat5e/Cat6/Cat6a/Cat8
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3af, IEEE 802.3at
On/off switch
The button which is pressed to switch the device on or off.
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-10 - 50 °C
Operating relative humidity (H-H)
20 - 90%
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 50 °C
Weight & dimensions
Width
The measurement or extent of something from side to side.
150 mm
Depth
The distance from the front to the back of something.
28 mm
Height
The measurement of the product from head to foot or from base to top.
210 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
410 g

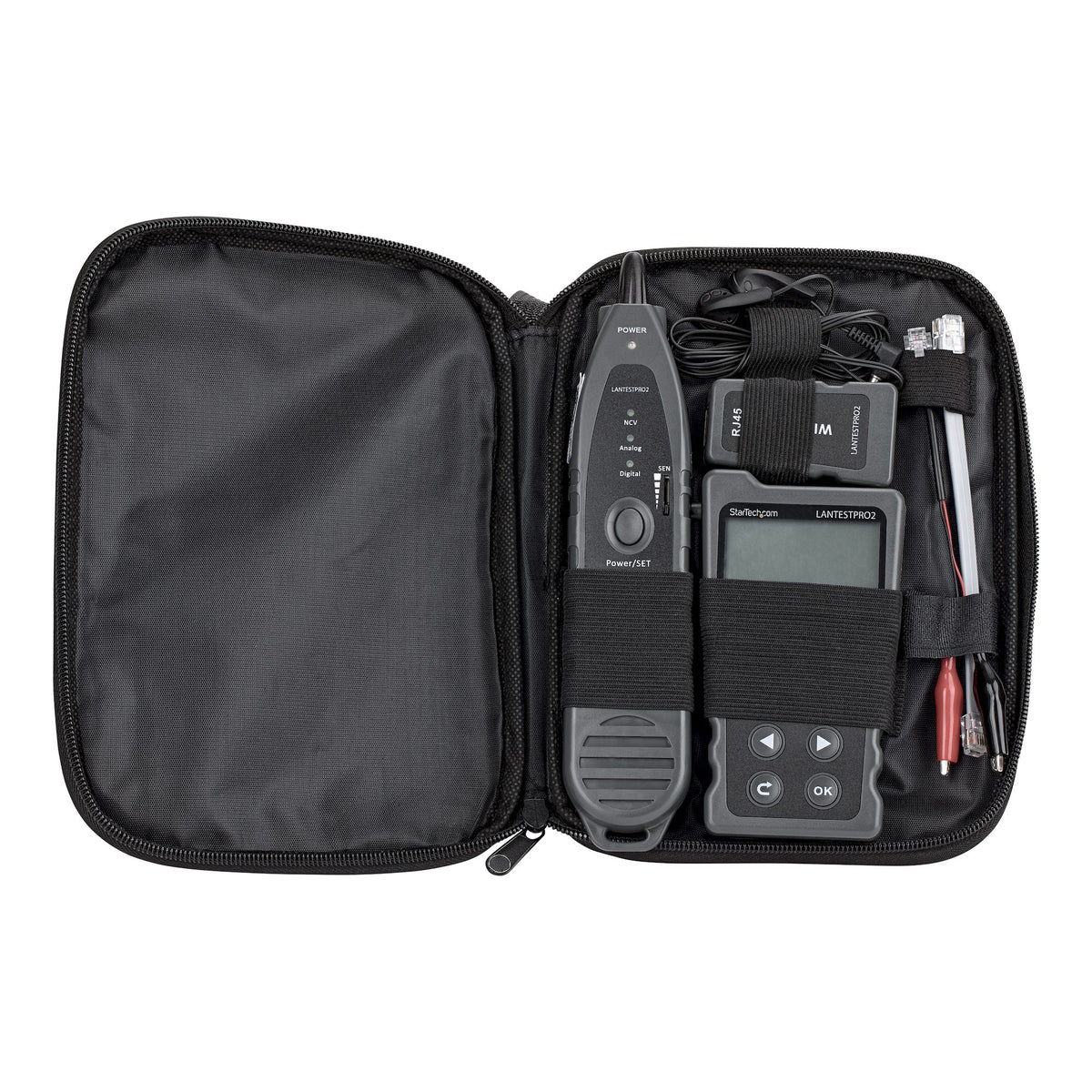

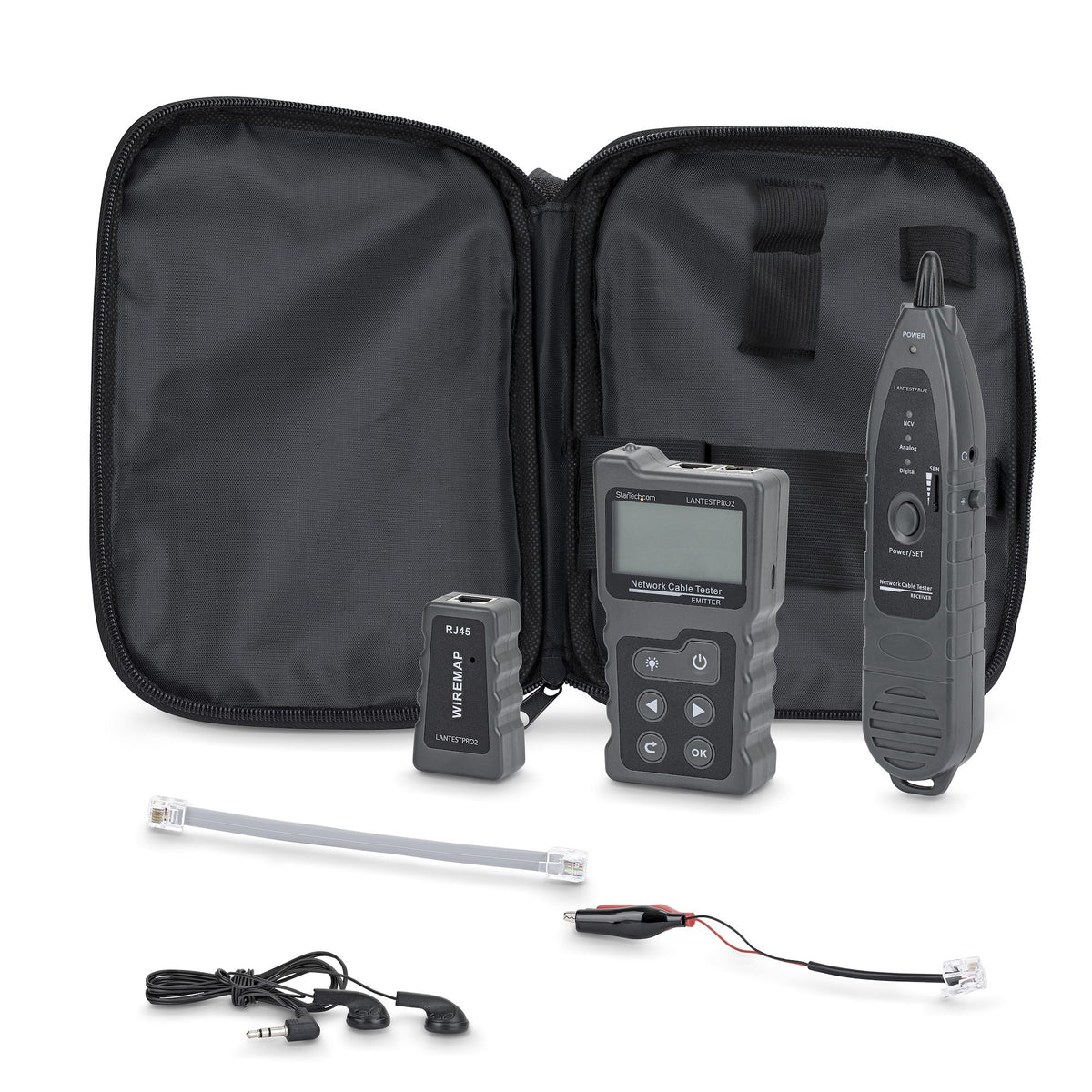

Packaging content
Cables included
LAN (RJ-45)
Storage pouch
Manual
Packaging data
Package width
The distance from one side of the packaging to the other.
165 mm
Package depth
The distance from the front to the back of the packaging.
45 mm
Package height
The distance from the top to the bottom of the packaging.
230 mm
Package weight
Weight of the packaged product in gram.
430 g
