STARTECH .com laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey (101N-USBC-DOCK)
- Regular price
- 255.95$
- Sale price
- 255.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com 101N-USBC-DOCK laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Brand:StarTech.com
Product name:Dual-Monitor USB-C Docking Station, DisplayPort & HDMI or VGA, Multi Monitor Dock up to 4K 60Hz - USB 3.2/3.1 (5Gbps) Type-C Dock - 7x USB Hub, 85W PD, Windows & ChromeOS
Product code:101N-USBC-DOCK
EAN/UPC:
0065030893985
0065030893985, 065030893985
- 7-PORT USB HUB: The dock features a wide variety of extra USB ports for device connectivity; 2x USB 3.2 Type-A (5Gbps) front facing ports, 1x USB 3.2 5Gbps Type-C front facing port, 4x USB 2.0 Type-A HID rear facing ports; Features Driverless installation
- FLEXIBLE MULTIMONITOR OUTPUT: Provides video versatility with DisplayPort (DP) 1.4, HDMI 2.0b and VGA display outputs; Choose between single or dual video; For dual video pair DP as the primary output with HDMI or VGA as the secondary output
- HIGH-PERFORMANCE VIDEO: Supports up to 2x 2560x1440 60Hz through DP & HDMI ports or single 4K 60Hz (Intel 11th Gen or higher with DP 1.4 Alt Mode & MST req. for max performance); 1080p VGA; MST utilizes laptop GPU for uncompressed video & low CPU usage
- DEVICE SECURITY: Includes USB-IF Certified 3.3ft (1m) Locking USB-C host cable; Locking USB-C host port; Mounting holes for optional bracket; K-slot and Nano Slot; USB Event Monitoring & Windows Layout utilities
- 85W POWER DELIVERY 3.0: The port replicator includes a fully spec'd power adapter that provides full power to laptop and peripheral devices unlike consumer docks that use SMART power; Front-facing power button to turn docking station on/off
Description

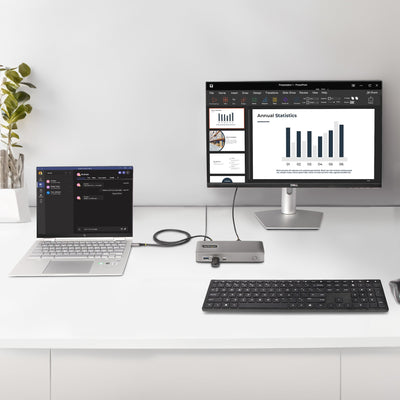

Turn a USB Type-C enabled laptop into a dual-monitor DisplayPort and HDMI or VGA workstation with 6 USB-A and 1 USB-C peripheral ports
This USB Type-C Docking Station expands the connectivity of a USB-C laptop, enabling support for dual monitors and adding seven downstream USB ports. The USB-C Dock features driverless installation. It's compatible with USB-C and Thunderbolt 3/4 computers and works with Windows and ChromeOS computers. The Dock features a locking USB-C host port and includes a USB-IF Certified 3.3ft (1m) locking host cable.

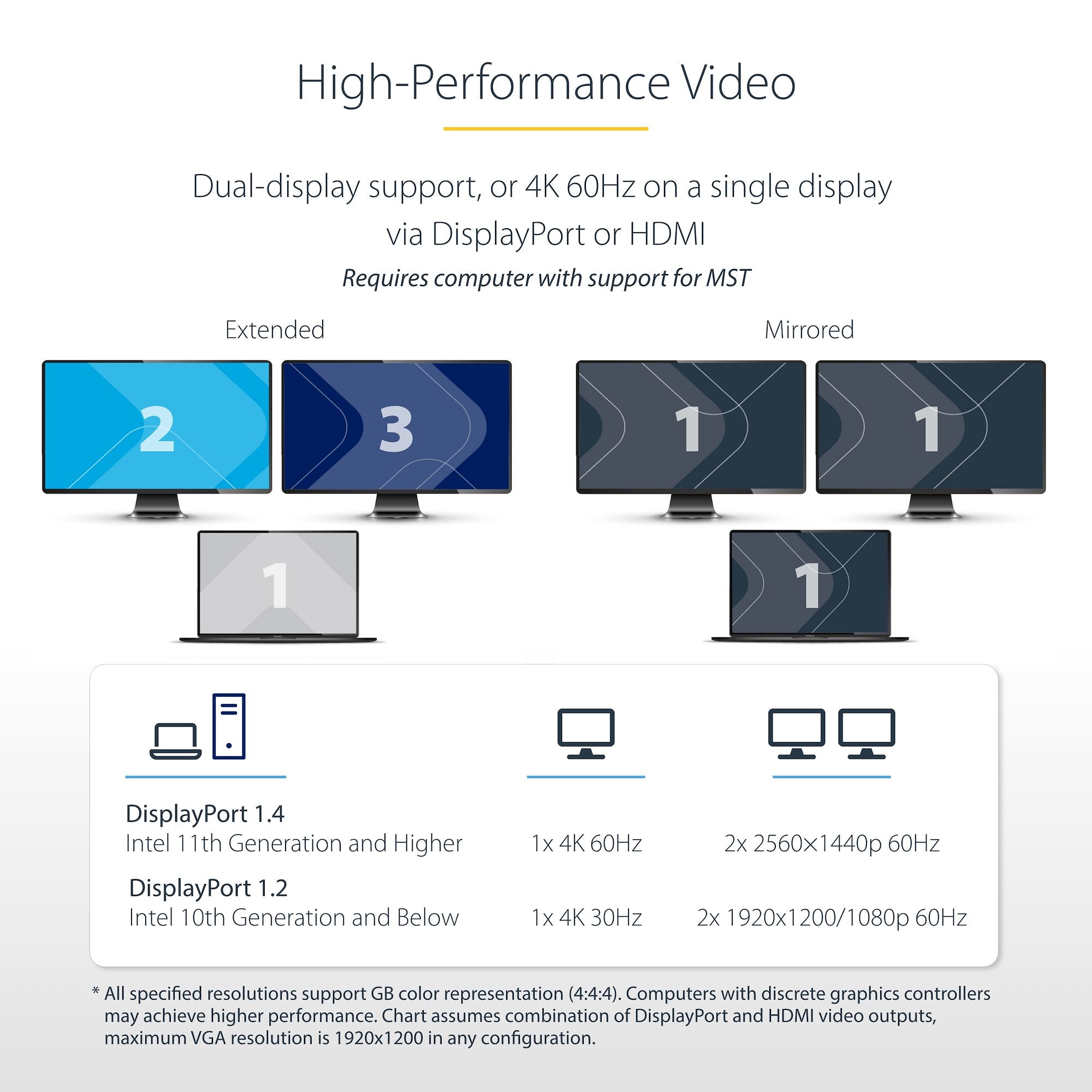

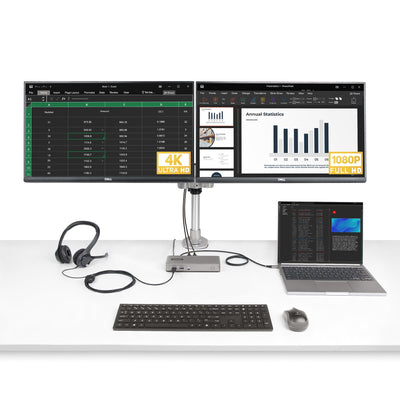

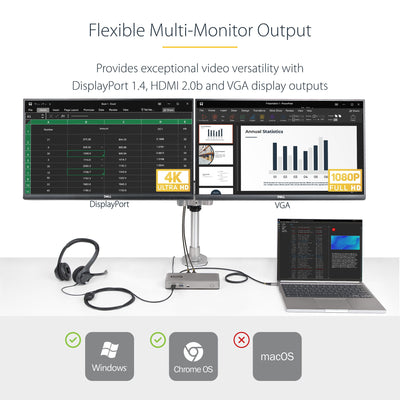

High-Performance Dual Video via MST
The docking station provides DisplayPort 1.4, HDMI 2.0b and VGA video outputs with support for dual or single video output configurations, creating a powerful workstation. It supports DP 1.4 Alt Mode with MST allowing for uncompressed video performance up to dual 2560x1440 at 60Hz, or single-4K 60Hz on the DisplayPort and HDMI video outputs. Connect a DisplayPort monitor and choose between HDMI or VGA for the second display. This provides users with the flexibility to enjoy dual-monitor functionality with different connectivity options, based on preference or available monitors.
Video performance, such as resolution and refresh rate across both monitors, is dependent upon the host computer and it's video controller. A source device with support for DisplayPort 1.4 and MST is required to achieve maximum performance. Please review the below chart and the specifications of your computer and displays to determine the expected video performance.
Platform
Single Monitor
Resolution
Dual Monitor
Resolution
DisplayPort 1.4
(Intel 11th Generation and Higher)
1x 4K 60Hz
2x 2560 x 1440p 60Hz
DisplayPort 1.2
(Intel 10th Generation and Below)
1x 4K 30Hz
2x 1920x1200/1080p 60Hz
Notes:
• All specified resolutions support RGB color representation (4:4:4)
• Computers with discrete graphics controllers may achieve higher performance
• Chart assumes combination of DisplayPort and HDMI video outputs, maximum VGA resolution is 1920x1200 in any configuration

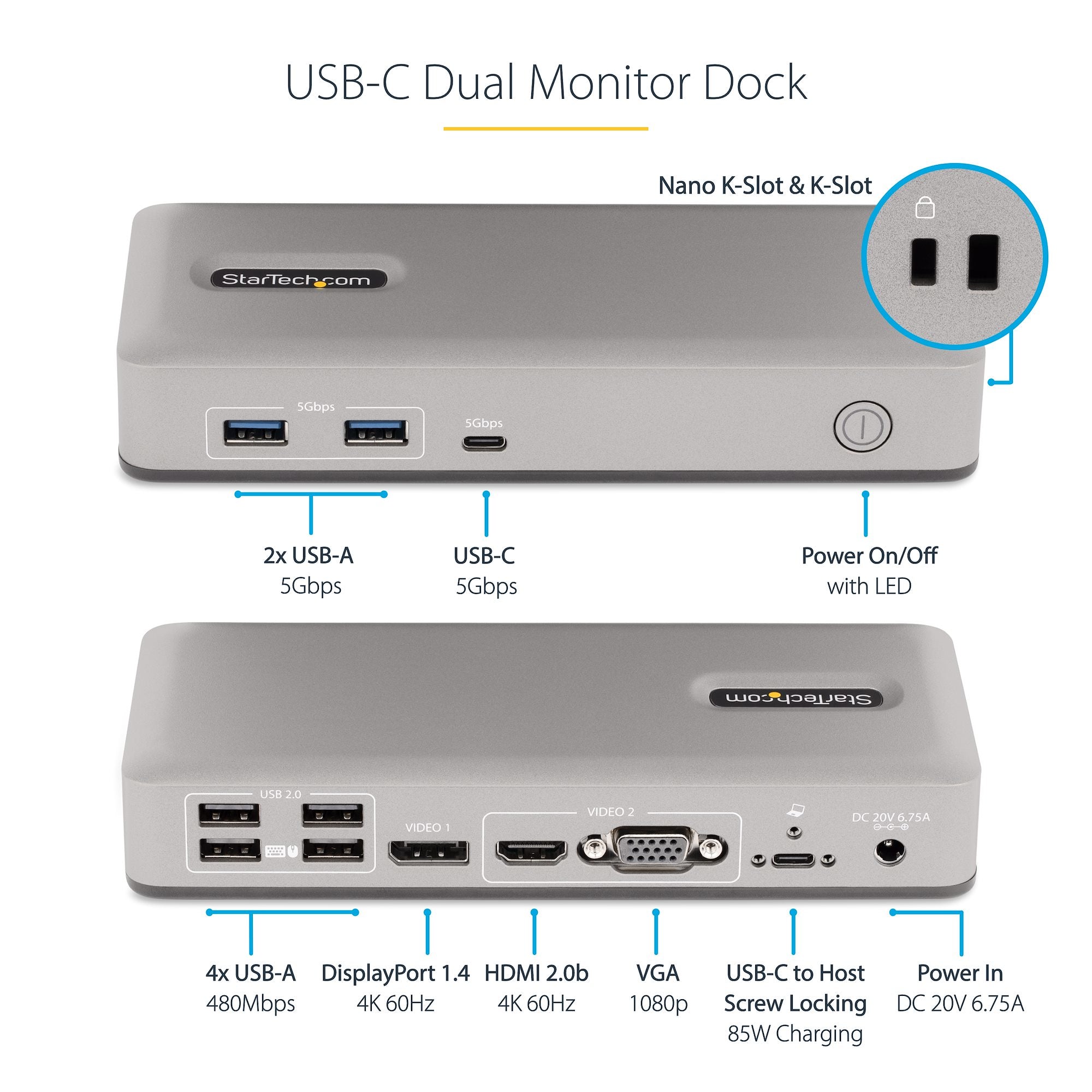

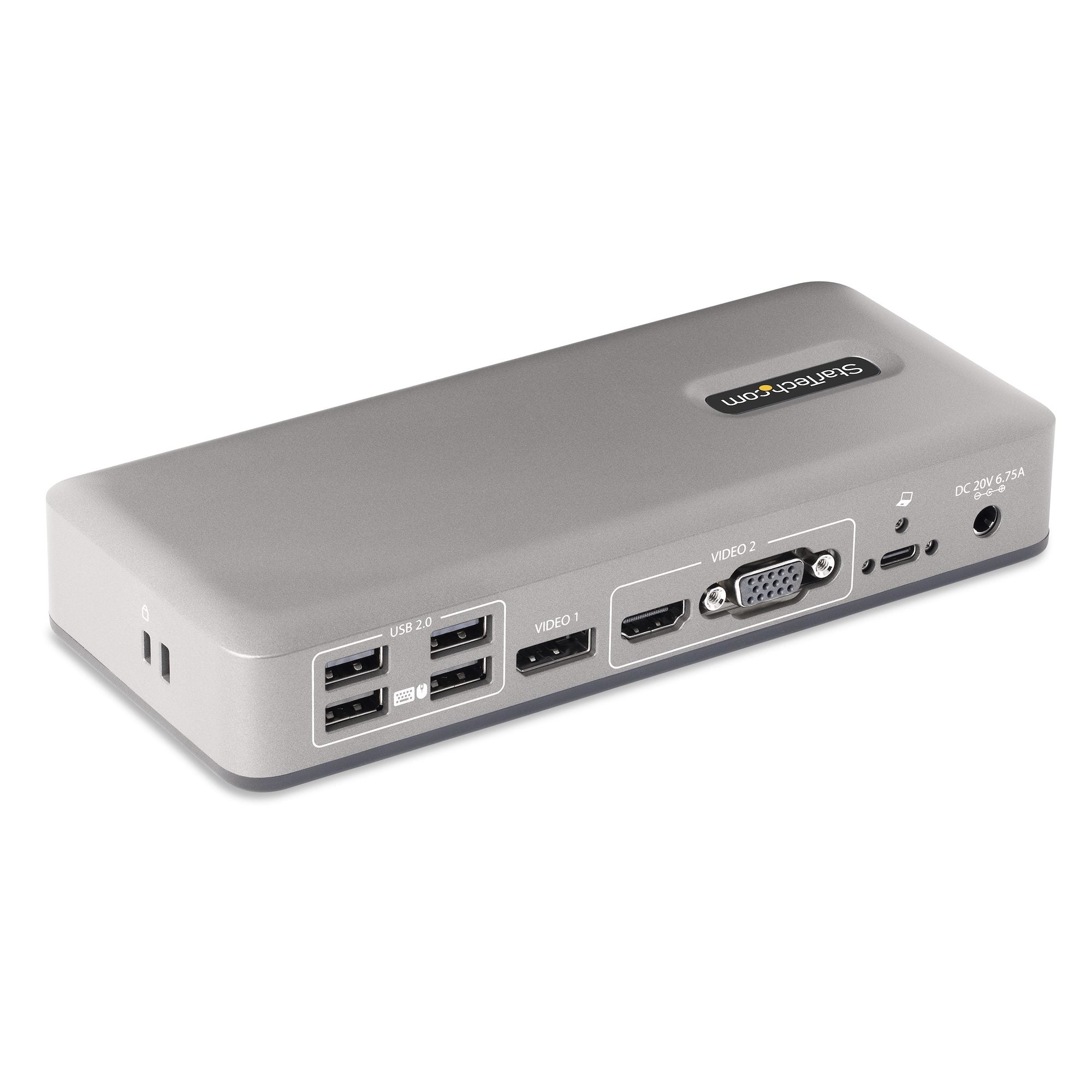

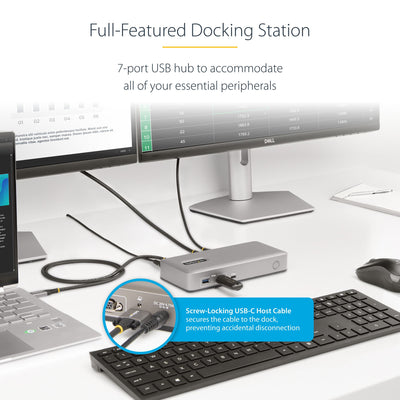

Full-Featured Docking Station with Built-in 7-Port USB Hub
Connect the docking station to the host computer's USB 3.2 Gen 1 (5Gbps) Type-C port to access a wide range of port connectivity and features, including seven downstream USB ports with a variety of speeds and connector types. The docking station features:
• 1x DisplayPort 1.4 port for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
• 1x HDMI 2.0b port with HDR for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
• 1x VGA port for connecting a Full High-Definition monitor with support for resolutions up to 1080p/1920x1200.
• 2x USB-A (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
• 4x USB-A (USB 2.0 480Mbps) ports for USB HID devices, such as a keyboard and mouse.
• 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.

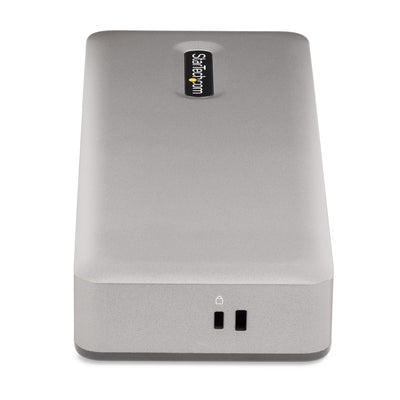

• 2x K-Slots (regular/nano) to tether the dock with a cable lock (sold separately) for security.
• Front facing Power Button to turn the dock on/off.

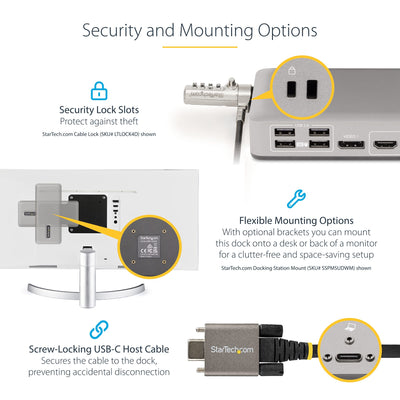

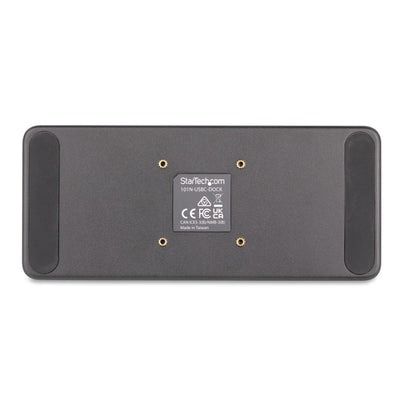

This dock is designed with a mounting pattern that enables it to be mounted when paired with StarTech.com mounting accessories (sold separately). With our mounting accessories, the dock can easily be attached to the VESA pattern on the back of a monitor, or to any flat surface, providing a clutter-free workspace. The mounting pattern ensures a secure fit, and the accessories are easy to install. The following mounts are compatible with this product:
• SSPMSUDWM - Docking Station Surface Mount
• SSPMSVESA - Docking Station VESA Mount

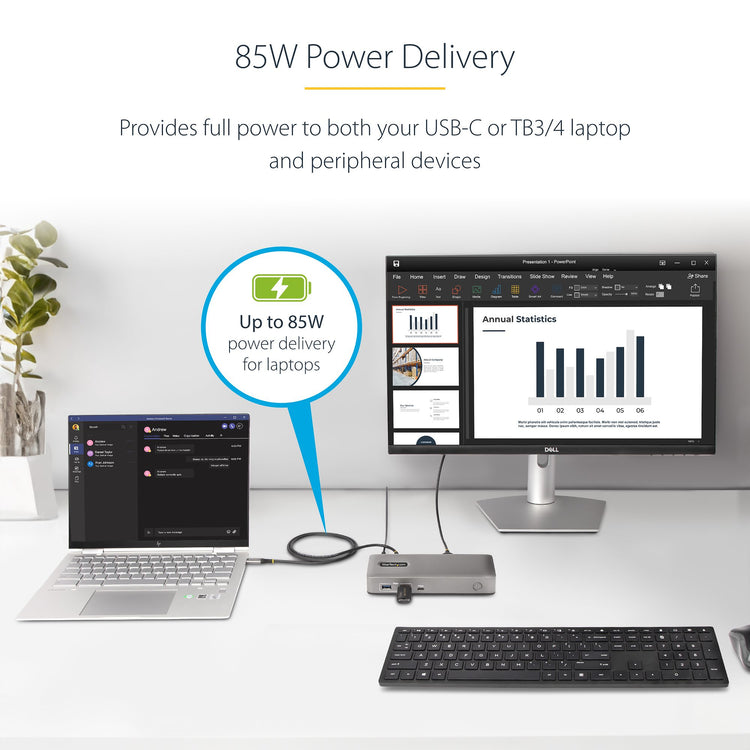

85W Power Delivery 3.0
The USB-C docking station supports 85W power delivery, facilitated by the included power adapter. With power delivery, users can confidently charge their devices while using the docking station. The provided power adapter ensures a consistent and stable power supply, allowing for uninterrupted productivity and device functionality.

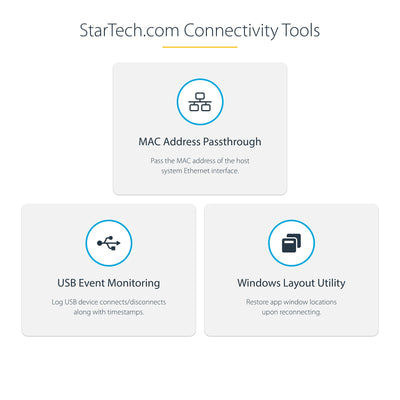

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : Setup and save custom windows layouts.
•
USB Event Monitoring Utility : Track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The StarTech.com Advantage
This USB Type-C Docking Station expands the connectivity of a USB-C laptop, enabling support for dual monitors and adding seven downstream USB ports. The USB-C Dock features driverless installation. It's compatible with USB-C and Thunderbolt 3/4 computers and works with Windows and ChromeOS computers. The Dock features a locking USB-C host port and includes a USB-IF Certified 3.3ft (1m) locking host cable.
High-Performance Dual Video via MST
The docking station provides DisplayPort 1.4, HDMI 2.0b and VGA video outputs with support for dual or single video output configurations, creating a powerful workstation. It supports DP 1.4 Alt Mode with MST allowing for uncompressed video performance up to dual 2560x1440 at 60Hz, or single-4K 60Hz on the DisplayPort and HDMI video outputs. Connect a DisplayPort monitor and choose between HDMI or VGA for the second display. This provides users with the flexibility to enjoy dual-monitor functionality with different connectivity options, based on preference or available monitors.
Video performance, such as resolution and refresh rate across both monitors, is dependent upon the host computer and it's video controller. A source device with support for DisplayPort 1.4 and MST is required to achieve maximum performance. Please review the below chart and the specifications of your computer and displays to determine the expected video performance.
Platform
Single Monitor
Resolution
Dual Monitor
Resolution
DisplayPort 1.4
(Intel 11th Generation and Higher)
1x 4K 60Hz
2x 2560 x 1440p 60Hz
DisplayPort 1.2
(Intel 10th Generation and Below)
1x 4K 30Hz
2x 1920x1200/1080p 60Hz
Notes:
• All specified resolutions support RGB color representation (4:4:4)
• Computers with discrete graphics controllers may achieve higher performance
• Chart assumes combination of DisplayPort and HDMI video outputs, maximum VGA resolution is 1920x1200 in any configuration
Full-Featured Docking Station with Built-in 7-Port USB Hub
Connect the docking station to the host computer's USB 3.2 Gen 1 (5Gbps) Type-C port to access a wide range of port connectivity and features, including seven downstream USB ports with a variety of speeds and connector types. The docking station features:
• 1x DisplayPort 1.4 port for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
• 1x HDMI 2.0b port with HDR for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
• 1x VGA port for connecting a Full High-Definition monitor with support for resolutions up to 1080p/1920x1200.
• 2x USB-A (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
• 4x USB-A (USB 2.0 480Mbps) ports for USB HID devices, such as a keyboard and mouse.
• 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
• 2x K-Slots (regular/nano) to tether the dock with a cable lock (sold separately) for security.
• Front facing Power Button to turn the dock on/off.
This dock is designed with a mounting pattern that enables it to be mounted when paired with StarTech.com mounting accessories (sold separately). With our mounting accessories, the dock can easily be attached to the VESA pattern on the back of a monitor, or to any flat surface, providing a clutter-free workspace. The mounting pattern ensures a secure fit, and the accessories are easy to install. The following mounts are compatible with this product:
• SSPMSUDWM - Docking Station Surface Mount
• SSPMSVESA - Docking Station VESA Mount
85W Power Delivery 3.0
The USB-C docking station supports 85W power delivery, facilitated by the included power adapter. With power delivery, users can confidently charge their devices while using the docking station. The provided power adapter ensures a consistent and stable power supply, allowing for uninterrupted productivity and device functionality.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : Setup and save custom windows layouts.
•
USB Event Monitoring Utility : Track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The StarTech.com Advantage
Specs
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Host interface
Interface that enables a host controller to communicate with a driver.
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
1
USB Power Delivery (USB PD)
USB Power Delivery revision
3.0
USB Power Delivery up to
85 W
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
HDMI version
2.0b
VGA (D-Sub) ports quantity
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
DisplayPorts quantity
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
1
DisplayPort version
1.4
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
USB Type-C DisplayPort Alternate Mode
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Performance
Card reader integrated
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
5 Gbit/s
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Maximum refresh rate
60 Hz
Cable lock slot
Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type
Kensington
Product colour
The colour e.g. red, blue, green, black, white.
Grey
LED indicators
Power
UASP support
Housing material
What the casing of the product is made of.
Plastic
Power
Power source type
What the power source is.
DC
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Input current
2.37 A
Output voltage
20 V
Output current
6.75 A
Power consumption (max)
The maximum amount of power used by the device.
135 W
Compatible power plug types
US
Software
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Other operating systems supported
ChromeOS
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Sustainability
Sustainability compliance
Weight & dimensions
Width
The measurement or extent of something from side to side.
185 mm
Depth
The distance from the front to the back of something.
80 mm
Height
The measurement of the product from head to foot or from base to top.
31 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
275 g
Packaging data
Package width
The distance from one side of the packaging to the other.
107 mm
Package depth
The distance from the front to the back of the packaging.
222 mm
Package height
The distance from the top to the bottom of the packaging.
130 mm
Package weight
Weight of the packaged product.
1 kg

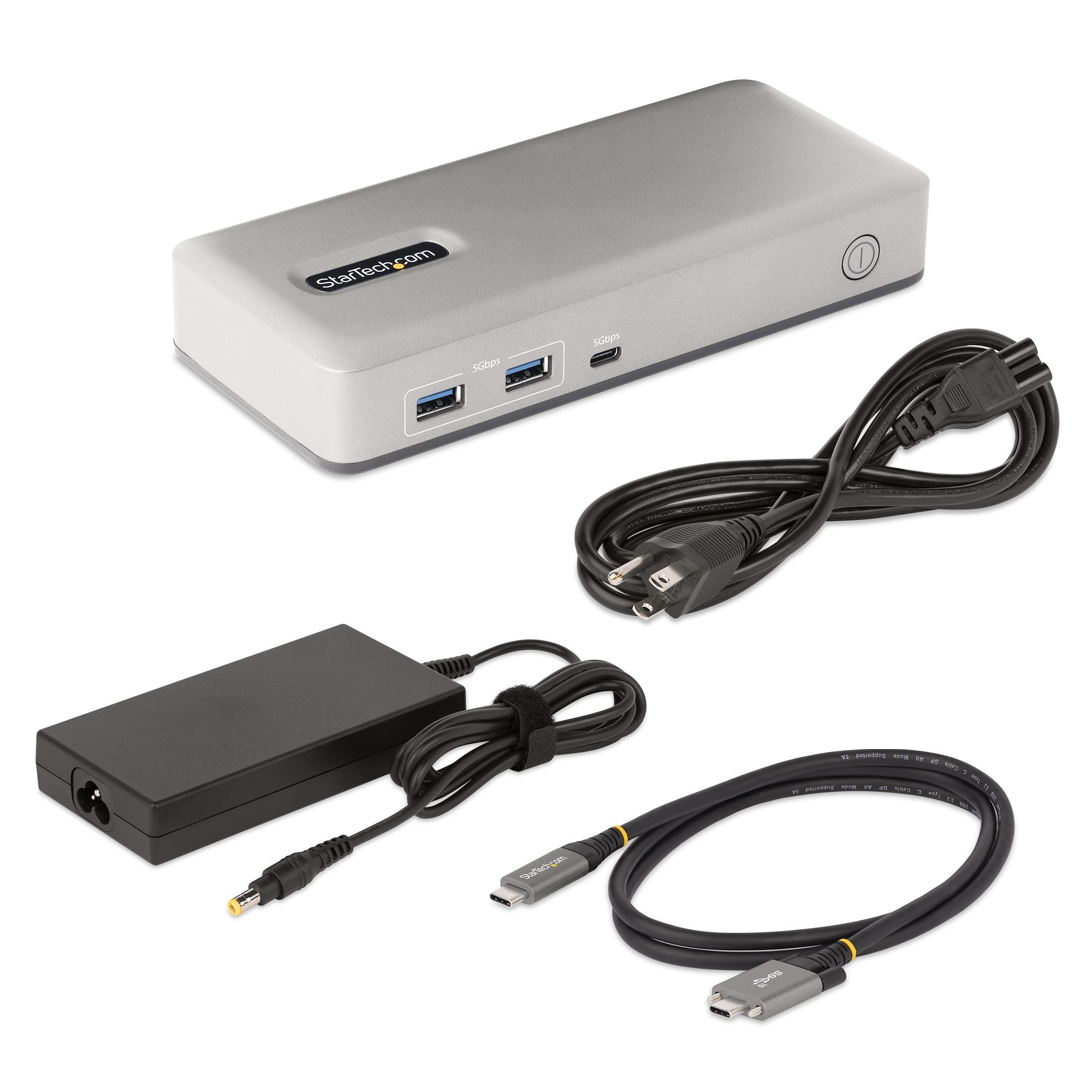

Packaging content
Cables included
USB Type-C
AC adapter included
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Technical details
Compliance certificates
CE, RoHS, Trade Agreements Act (TAA)
Logistics data
Products per master (outer) case
12 pc(s)
Master (outer) case width
345 mm
Master (outer) case length
455 mm
Master (outer) case height
282 mm
Other features
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Realtek - RTD2142, Realtek - RTS5450M, Realtek - RTS5451, Realtek - RTS5411S, Terminus - FE1.1s
