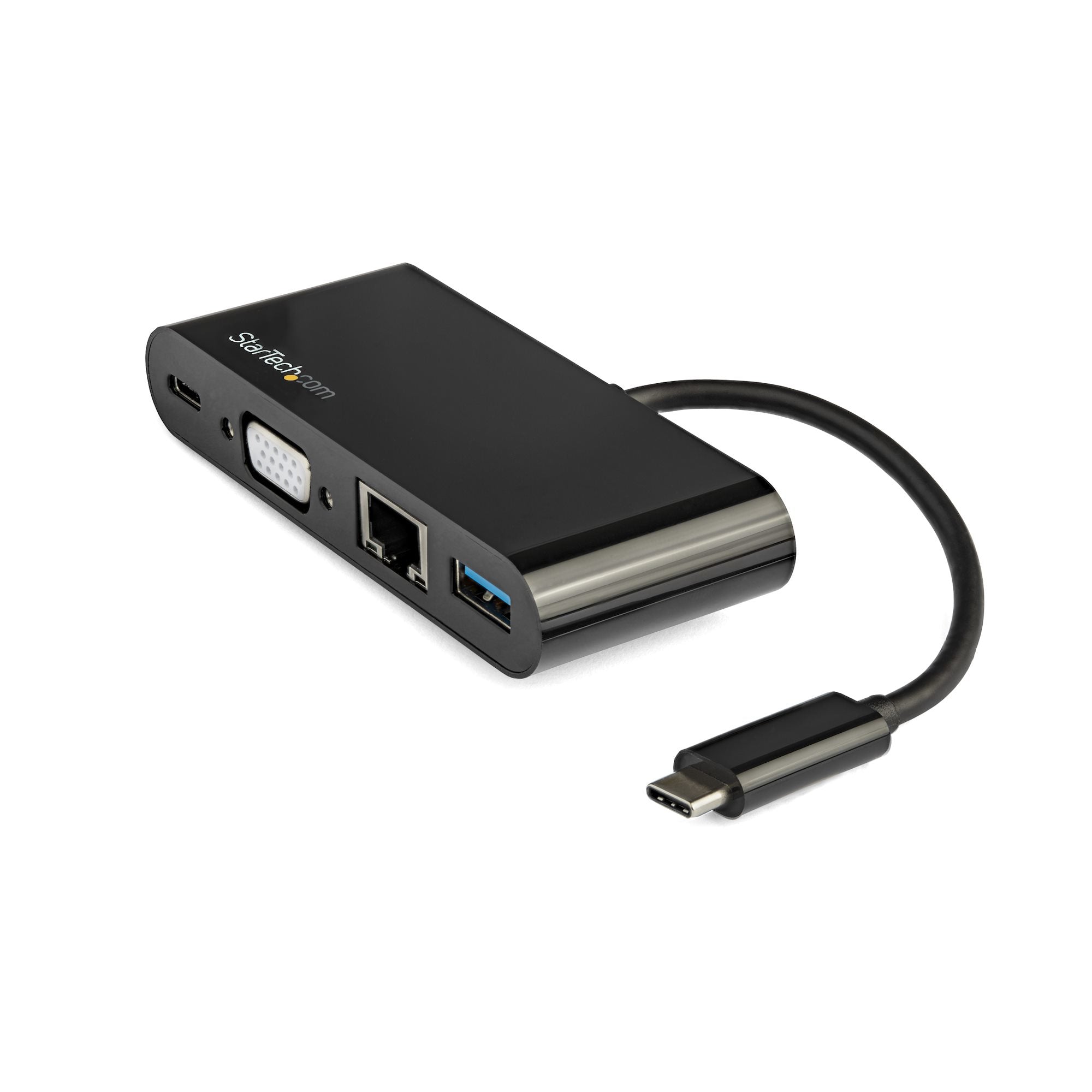

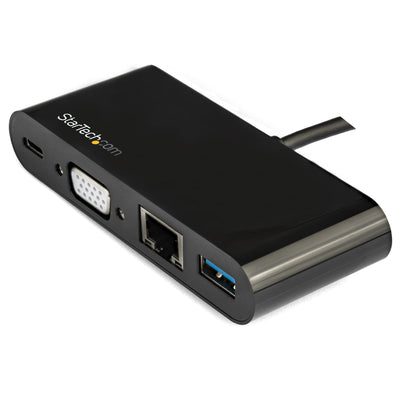

STARTECH .com laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black (DKT30CVAGPD)
- Regular price
- 86.95$
- Sale price
- 86.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
StarTech.com DKT30CVAGPD laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
Brand:StarTech.com
Product name:USB C Multiport Adapter - Mini USB-C Dock w/ Single Monitor VGA 1080p Video - 60W Power Delivery Passthrough - USB 3.1 Gen 1 Type-A 5Gbps, Gigabit Ethernet - Docking Station
Product code:DKT30CVAGPD
EAN/UPC:
0065030879163
0065030879163, 065030879163

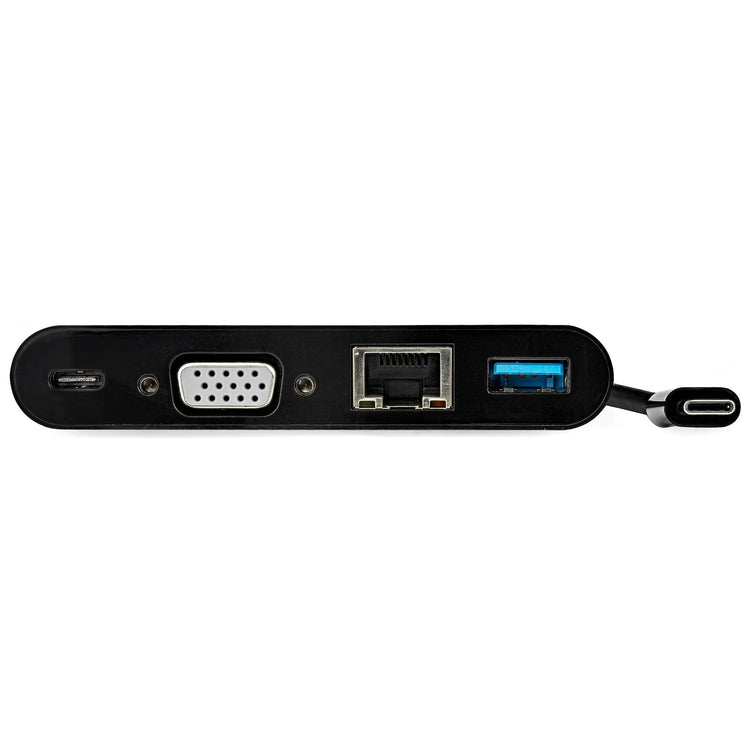

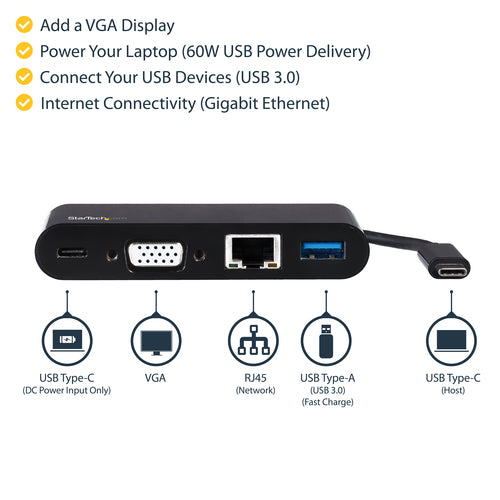

- 4-IN-1 USB-C MULTIPORT ADAPTER: USB-C mini dock with 1080p VGA video output, Gigabit Ethernet (GbE), 1x 5Gbps USB Type-A 3.0 (BC 1.2) 1.5A fast-charge port & 60W Power Delivery passthrough charging
- DESIGNED FOR PORTABILITY: Compact USB-C multiport adapter is ideally suited for on-the-go users, work from home, office workstations & boardrooms where only older VGA displays/projectors are available
- POWERED BY LAPTOP OR EXTERNAL ADAPTER: The dock can be USB bus powered or with a USB-C power adapter; Charge the laptop via PD Passthrough w/ your USB-C power adapter (7W for dock, 53W for charging)

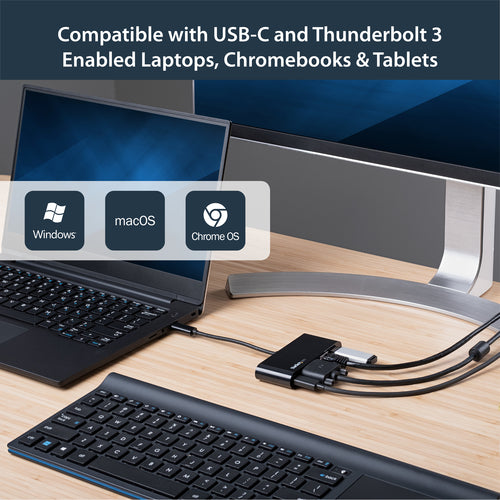

- DEVICE COMPATIBILITY: Portable USB-C docking station is compatible w/ USB-C and Thunderbolt 3 laptops, ultrabooks, USB-C chromebooks, and phones for brands such as HP, Dell, Lenovo, and Macbooks
- WIDE OPERATING SYSTEM COMPATIBILITY: With automatic driver setup, this all-in-one USB-C travel dock (USB 3.0/USB 3.1 Gen 1 SuperSpeed 5Gbps) supports operating systems incl Windows, macOS, ChromeOS
Description
Power and charge your laptop, and create a workstation by connecting to a VGA monitor, GbE, and a USB 3.0 device

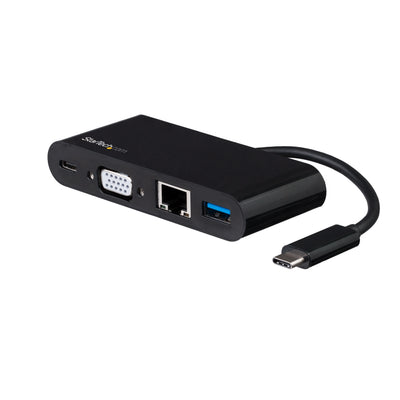

Expand the connectivity of your USB-C™ laptop with this USB-C VGA multiport adapter. It connects to your USB-C or Thunderbolt™ 3 port to add VGA video output, a USB 3.0 (Type-A) port with Fast-Charge capability plus a Gigabit Ethernet network connection. Mac, Windows® and Chrome OS™ compatible, it’s the ideal accessory for your MacBook, laptop, tablet, Chromebook, smartphone or other USB-C device (with support for DisplayPort Alt Mode).
Connect to a VGA monitor to give presentations
This USB-C adapter lets you connect your USB-C laptop or device to an external VGA monitor or projector to give engaging presentations in the boardroom, classroom, or meeting room. It supports HD video resolutions up to 1920 x 1200p @ 60Hz.
Create a portable workstation
Compact and durable, the USB-C multiport adapter is ideal for mobile use, eliminating the need to carry multiple adapters with you. Set up a workstation with a Gigabit Ethernet port and a USB 3.0 port to connect an existing USB device, or fast-charge your smartphone or tablet. The adapter features a USB-C port that supports USB Power Delivery 2.0 (60W) so you can use your laptop’s USB-C power adapter to power both your laptop and the multiport adapter.
Fast and easy setup

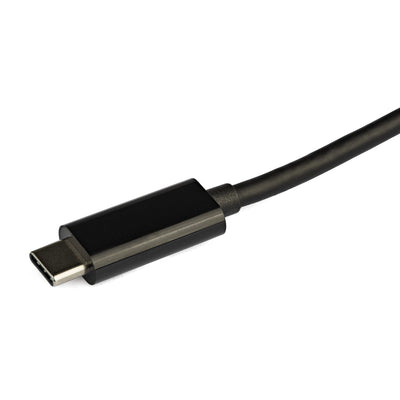

The adapter features an attached cable (5.6 in. / 143 mm) to ensure easy setup and supports plug-and-play installation, with no additional software or drivers required.
The DKT30CVAGPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Expand the connectivity of your USB-C™ laptop with this USB-C VGA multiport adapter. It connects to your USB-C or Thunderbolt™ 3 port to add VGA video output, a USB 3.0 (Type-A) port with Fast-Charge capability plus a Gigabit Ethernet network connection. Mac, Windows® and Chrome OS™ compatible, it’s the ideal accessory for your MacBook, laptop, tablet, Chromebook, smartphone or other USB-C device (with support for DisplayPort Alt Mode).
Connect to a VGA monitor to give presentations
This USB-C adapter lets you connect your USB-C laptop or device to an external VGA monitor or projector to give engaging presentations in the boardroom, classroom, or meeting room. It supports HD video resolutions up to 1920 x 1200p @ 60Hz.
Create a portable workstation
Compact and durable, the USB-C multiport adapter is ideal for mobile use, eliminating the need to carry multiple adapters with you. Set up a workstation with a Gigabit Ethernet port and a USB 3.0 port to connect an existing USB device, or fast-charge your smartphone or tablet. The adapter features a USB-C port that supports USB Power Delivery 2.0 (60W) so you can use your laptop’s USB-C power adapter to power both your laptop and the multiport adapter.
Fast and easy setup
The adapter features an attached cable (5.6 in. / 143 mm) to ensure easy setup and supports plug-and-play installation, with no additional software or drivers required.
The DKT30CVAGPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Host interface
Interface that enables a host controller to communicate with a driver.
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
1
USB Power Delivery (USB PD)
USB Power Delivery up to
60 W
VGA (D-Sub) ports quantity
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
Microphone in
The socket where a microphone is connected to the device.
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
10G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
Performance
Card reader integrated
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
5 Gbit/s
Maximum digital resolution
1920 x 1200 pixels
Product colour
The colour e.g. red, blue, green, black, white.
Black
UASP support
Housing material
What the casing of the product is made of.
Plastic
Certification
CE, FCC, REACH
Power
Power source type
What the power source is.
USB
Software
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility
Product can be used with Apple Mac software and/or hardware.
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported
ChromeOS
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 45 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 80 °C
Operating relative humidity (H-H)
10 - 85%

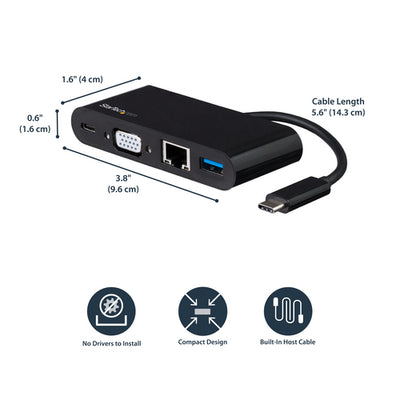

Weight & dimensions
Width
The measurement or extent of something from side to side.
40 mm
Depth
The distance from the front to the back of something.
96 mm
Height
The measurement of the product from head to foot or from base to top.
16 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
49 g
Packaging data
Package width
The distance from one side of the packaging to the other.
140 mm
Package depth
The distance from the front to the back of the packaging.
172 mm
Package height
The distance from the top to the bottom of the packaging.
30 mm
Package weight
Weight of the packaged product.
125 g

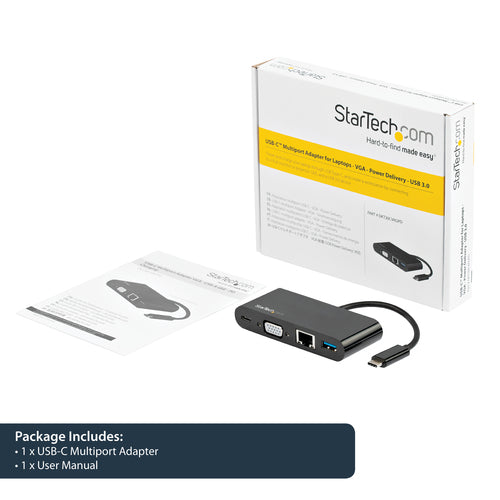

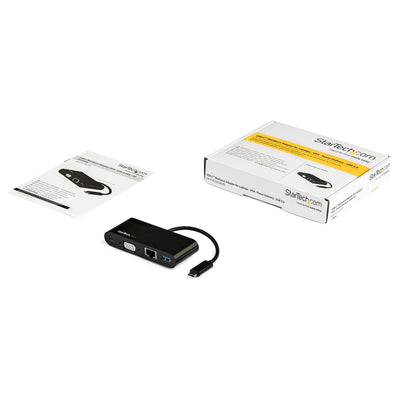

Packaging content
Manual
Technical details
Compliance certificates
RoHS
Logistics data
Products per master (outer) case
60 pc(s)
Master (outer) case width
330 mm
Master (outer) case length
530 mm
Master (outer) case height
310 mm
Harmonized System (HS) code
84733020
Other features
Cable length
How long the cable is.
0.143 m
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
VIA Labs - VL100, VIA Labs - VL813, NXP - PTN3355, Realtek - RTL8153
