STARTECH .com laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-B Black (USB3SDOCKHD)
- Regular price
- 127.95$
- Sale price
- 127.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

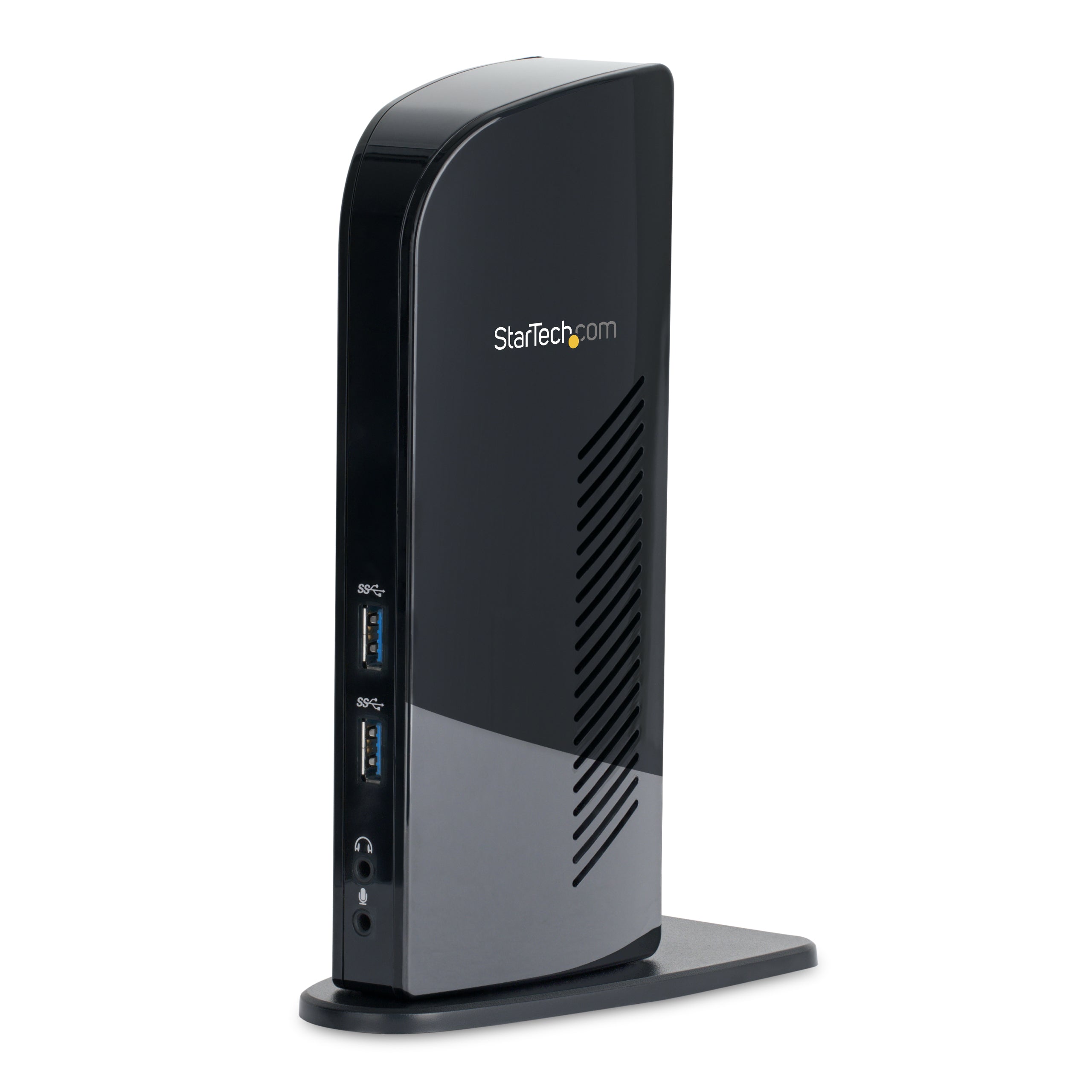

StarTech.com USB3SDOCKHD laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-B Black
Brand:StarTech.com
Product name:Dual Monitor USB 3.0 Docking Station with HDMI - DVI - 6 x USB Ports~Dual Monitor USB 3.0 Laptop Docking Station with HDMI & DVI/VGA, 6x USB-A Hub, GbE, Audio, Universal Type-A Dock - Windows/macOS/ChromeOS
Product code:USB3SDOCKHD
EAN/UPC:
0065030847674
0065030847674, 065030847674, 0132017931487, 132017931487, 0021111226509, 021111226509, 0734911347090, 734911347090, 5704174275657
- UNIVERSAL DOCKING STATION: USB 3.0 docking station dual monitor features built-in 1x HDMI and 1x DVI monitor outputs; DVI to VGA adapter included for compatibility with VGA monitors; 1920 x 1200p maximum resolution on two displays
- INCREASED PRODUCTIVITY: This dual monitor universal docking station for laptops combines 4x USB 2.0 ports, 2x USB 3.2 Gen 1 (5Gbps) hub ports, headphone & microphone audio jack, and a Gigabit Ethernet RJ45 port into a single IT-grade dock
- UPRIGHT DESIGN: The high performance, all black, upright dock features a slim & sleek design that is the perfect addition to any home or office workstation; The dock enhances your laptop's capabilities while taking up little desk space
- UNIVERSAL COMPATIBILITY: Compatible with Windows, macOS, & Chrome OS v55+, enabling extended dual displays on Laptops, Ultrabooks, Chromebooks and MacBooks that feature a USB-A host connection; Supports HDMI, DVI and VGA monitors
- CONNECTIVITY TOOLS: Optimize the performance and security of this USB 3.0 docking station, using the included MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities (available for download)
Description
Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and Audio

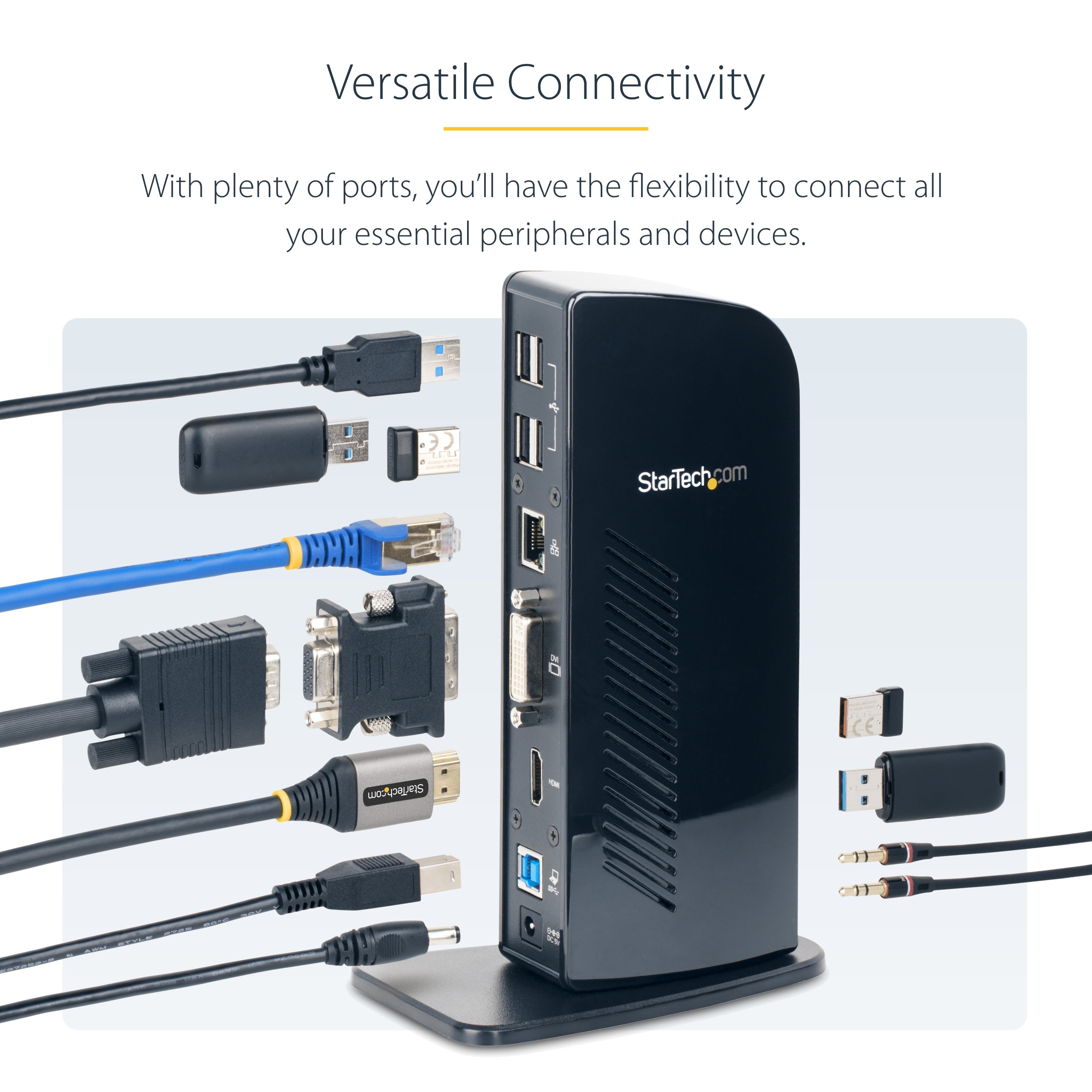

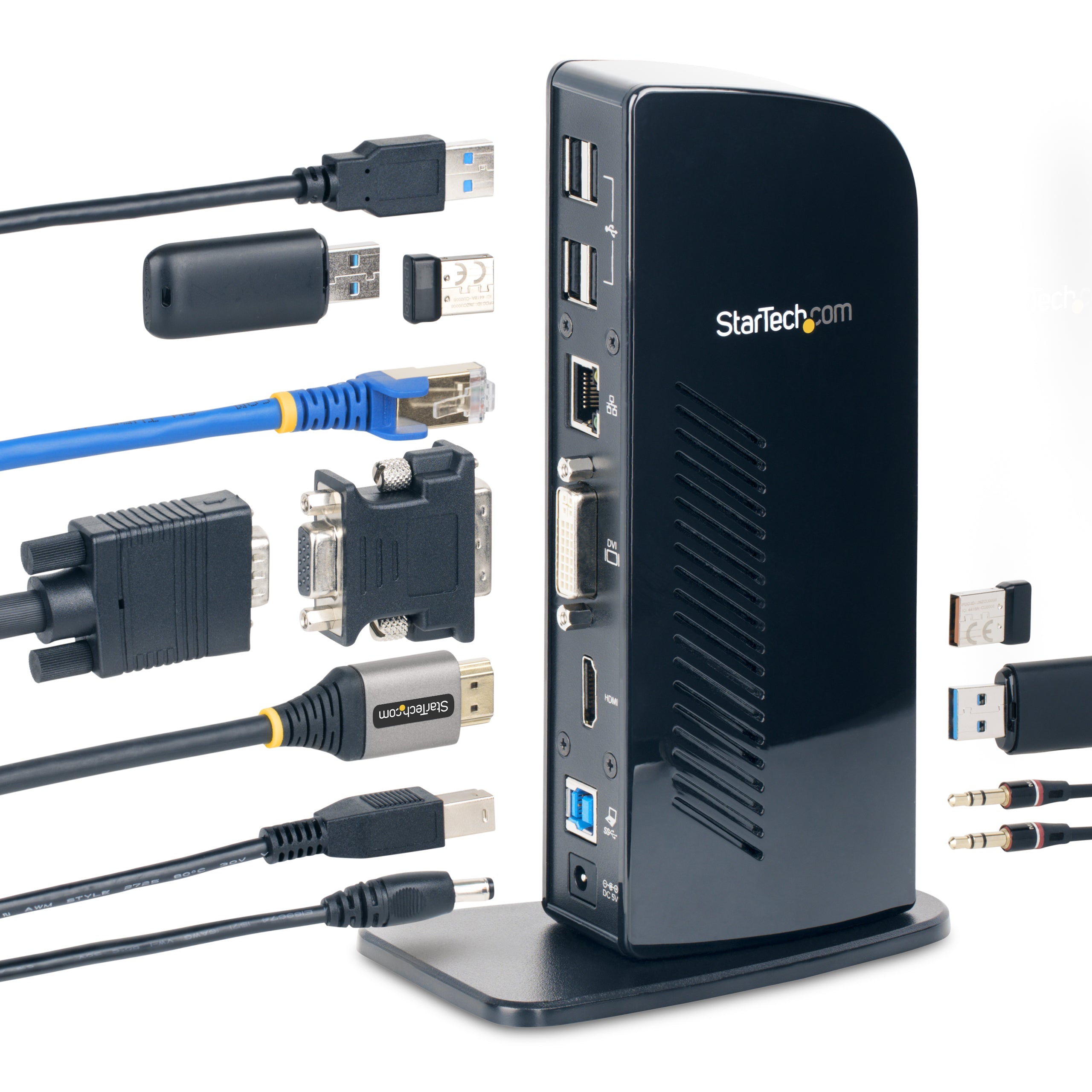

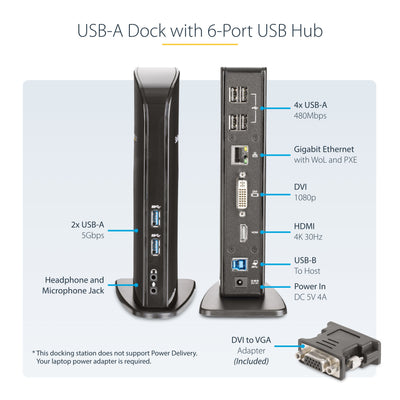

This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.

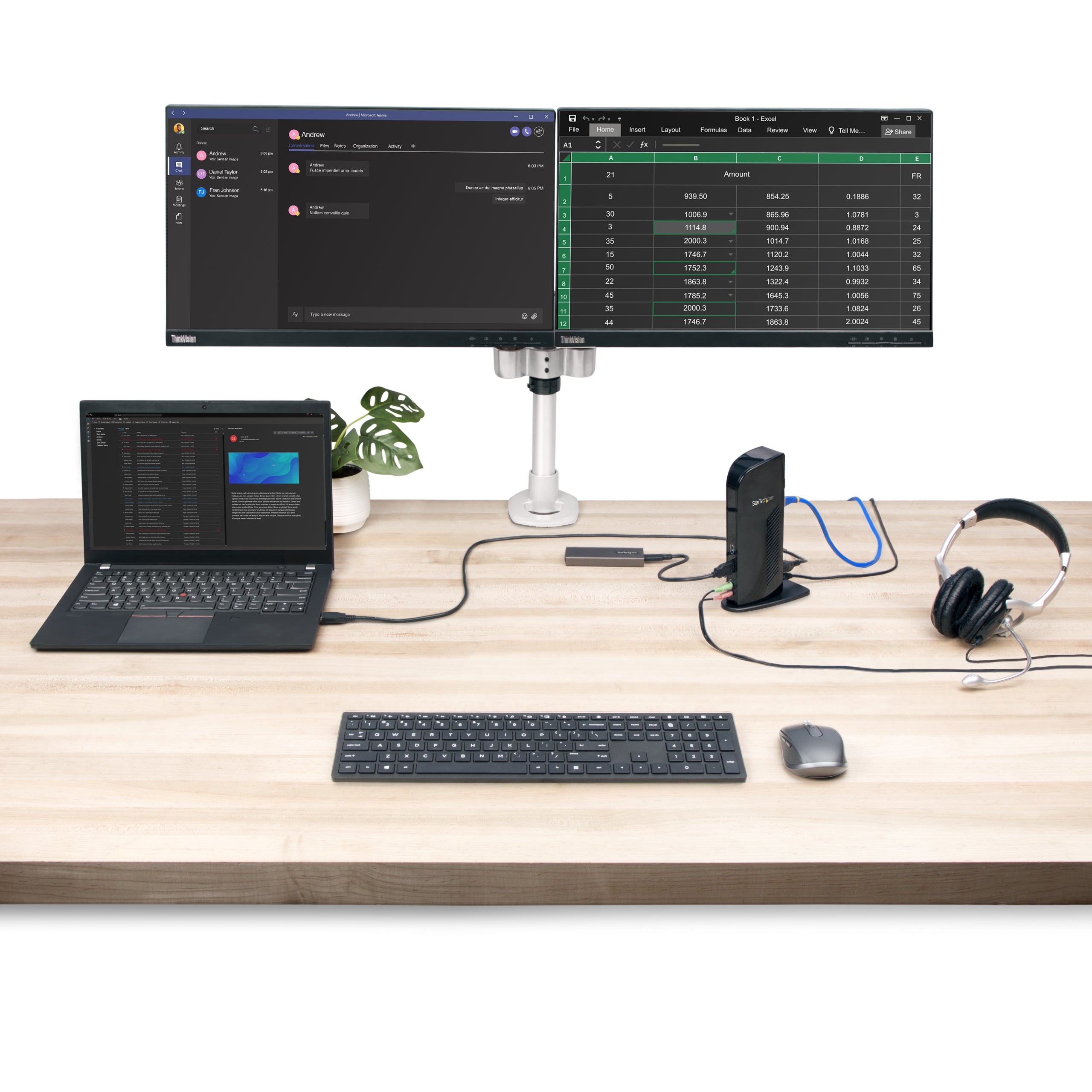

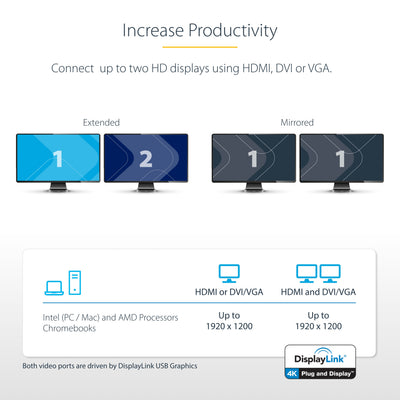

Display Adaptability

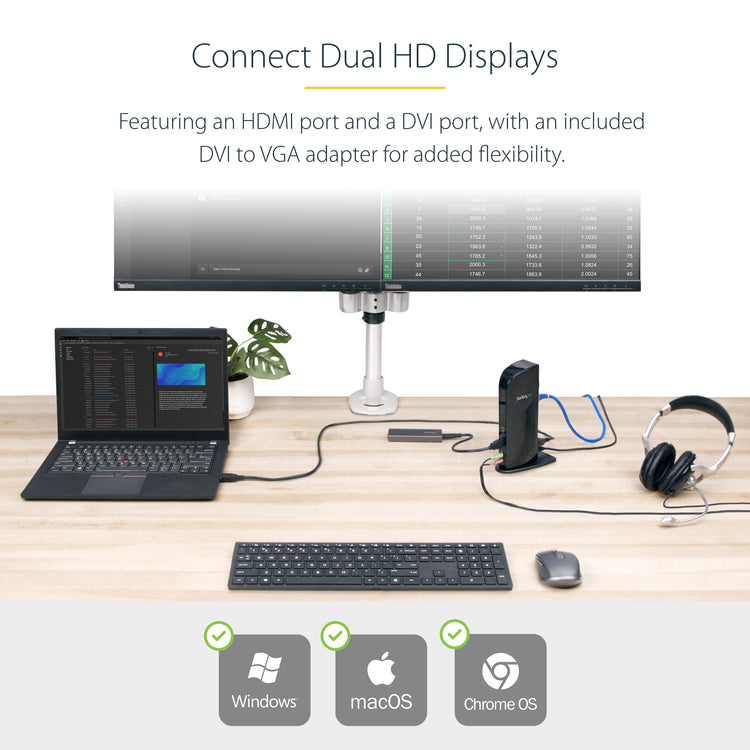

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.

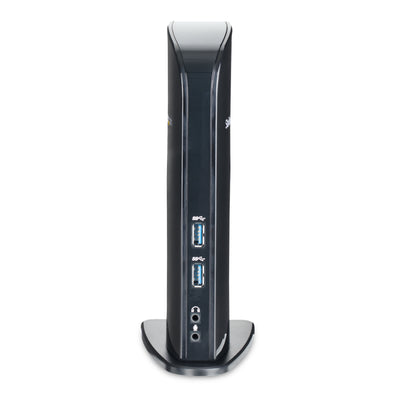

Integrated USB Hub

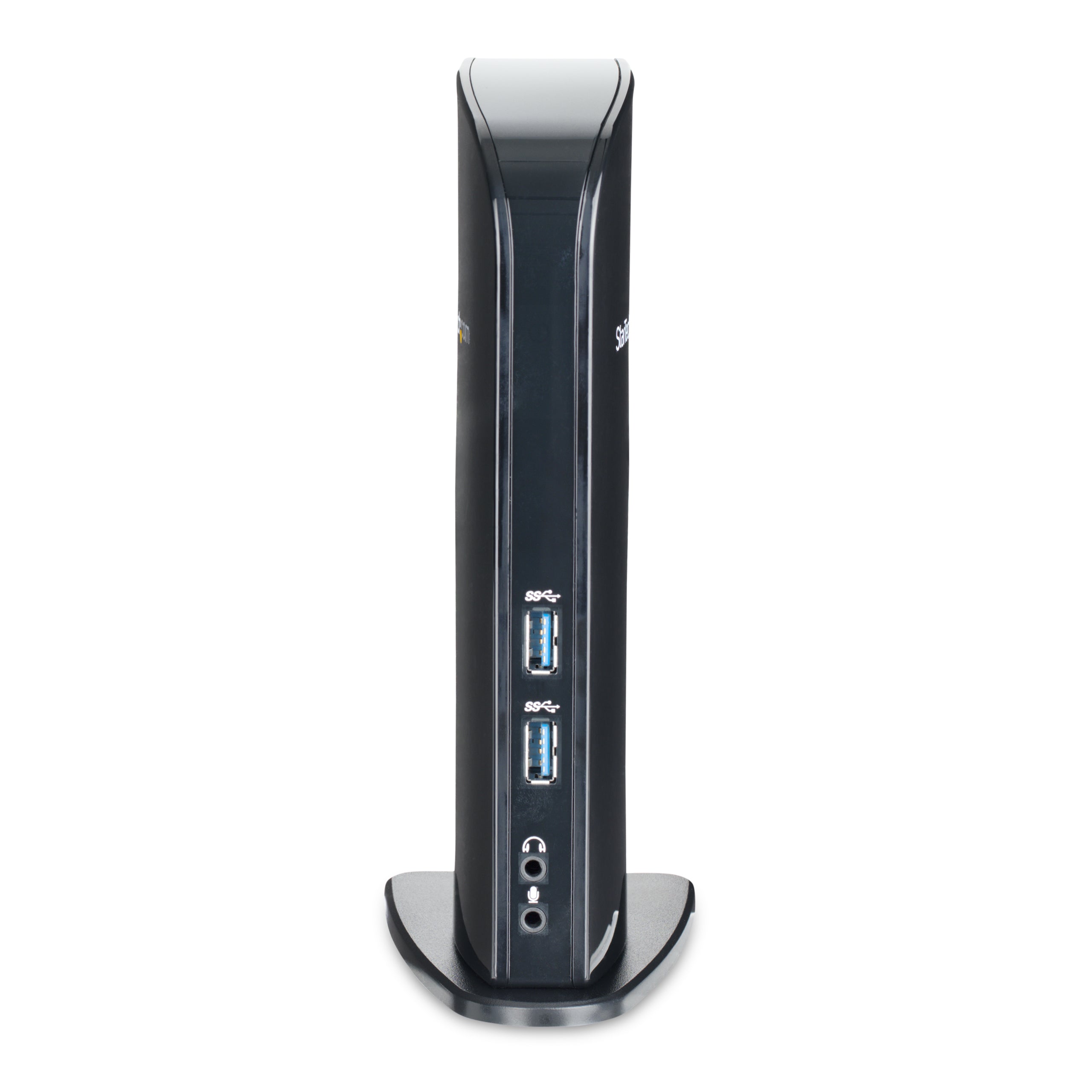

The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.

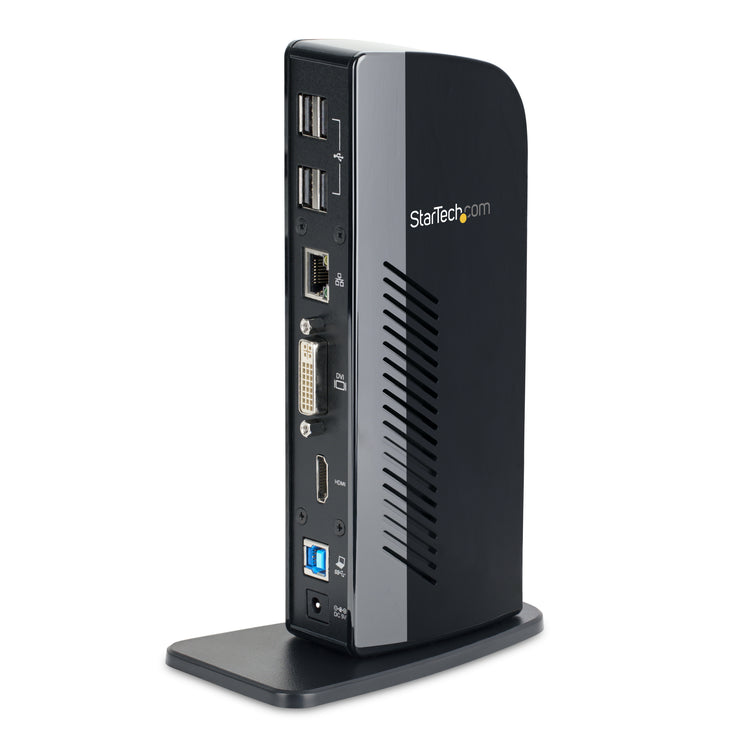

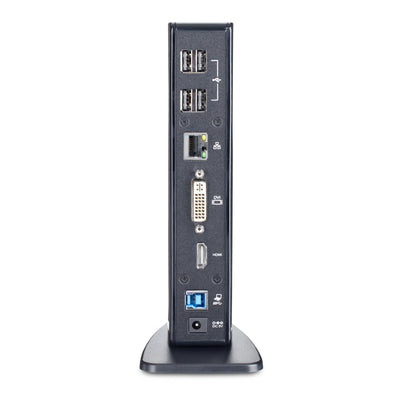

Versatile Design

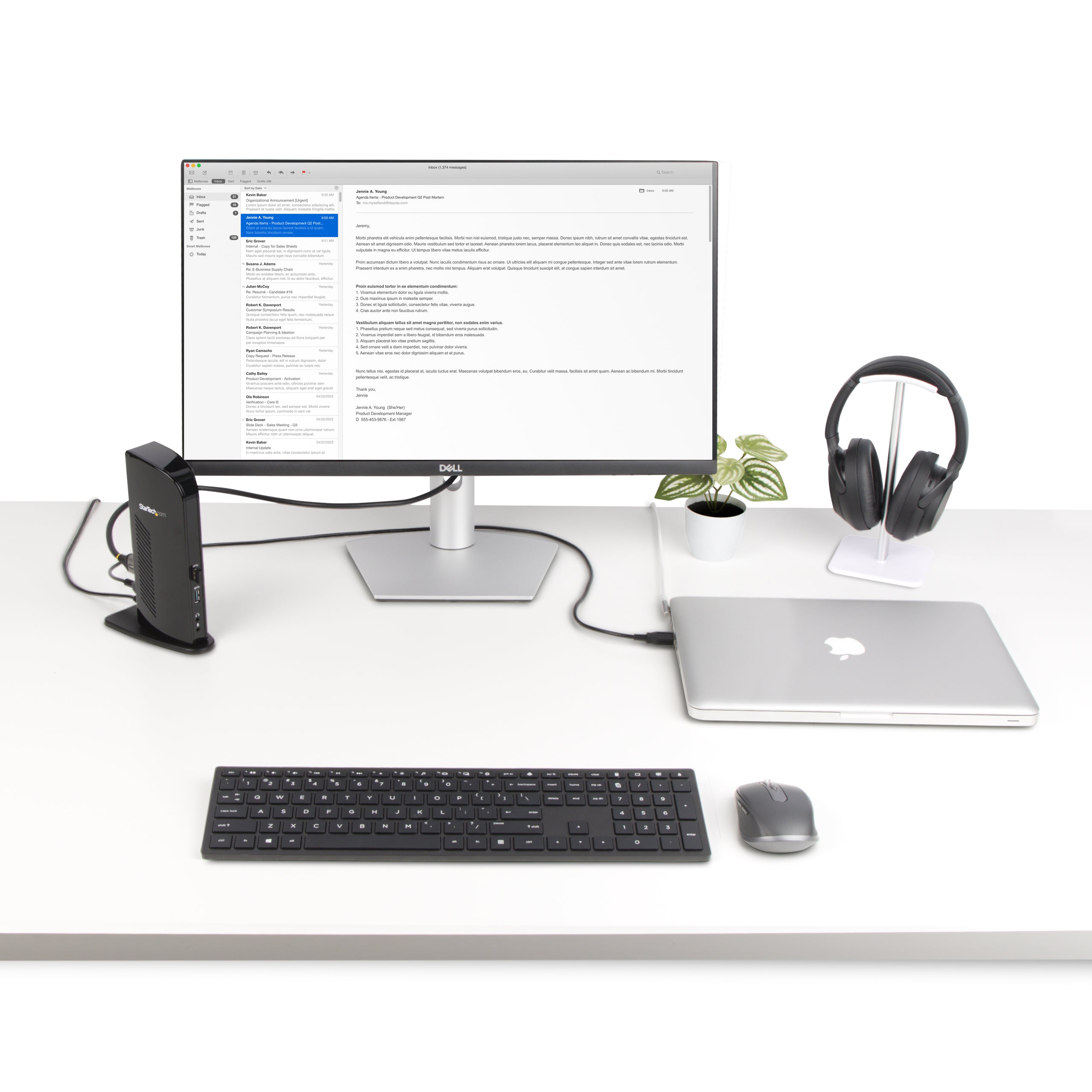

With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
StarTech.com’s laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.
Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.
Integrated USB Hub
The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.
Versatile Design
With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
StarTech.com’s laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
Video
Specs

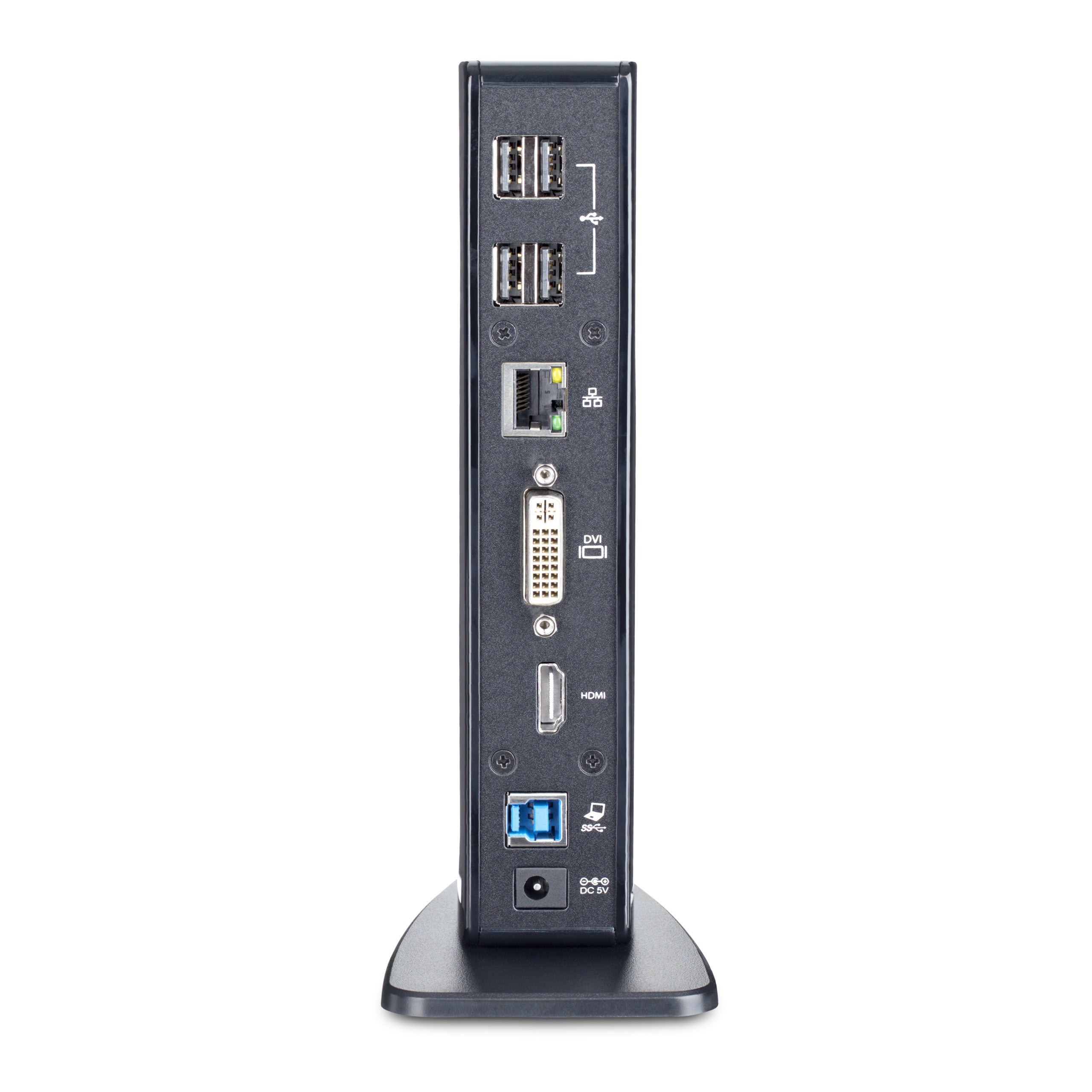

Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Host interface
Interface that enables a host controller to communicate with a driver.
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
DVI-I ports quantity
This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-I is DVI integrated, which means it can support digital and analog.
1
Microphone in
The socket where a microphone is connected to the device.
Combo headphone/mic port
Headphone outputs
Number of sockets /ports where headphones are connected.
1
Headphone connectivity
How headphones connect to a device e.g. wirelessly or via a cable and connector.
3.5 mm
USB connector type
The type of USB connector/port that this product has.
USB Type-A
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Performance
Card reader integrated
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
5 Gbit/s
Maximum digital resolution
1920 x 1200 pixels
Product colour
The colour e.g. red, blue, green, black, white.
Black
LED indicators
Power, USB
Housing material
What the casing of the product is made of.
Plastic
Brand compatibility
What other brands this brand can be used with.
Any brand
Certification
CE, FCC
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Input current
0.8 A
Output voltage
5 V
Output current
4 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
20 W
Power plug type
Type C
Compatible power plug types
AU, EU, JP, UK, US
Software
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Professional
Mac compatibility
Product can be used with Apple Mac software and/or hardware.
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported
ChromeOS
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
10 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 80 °C

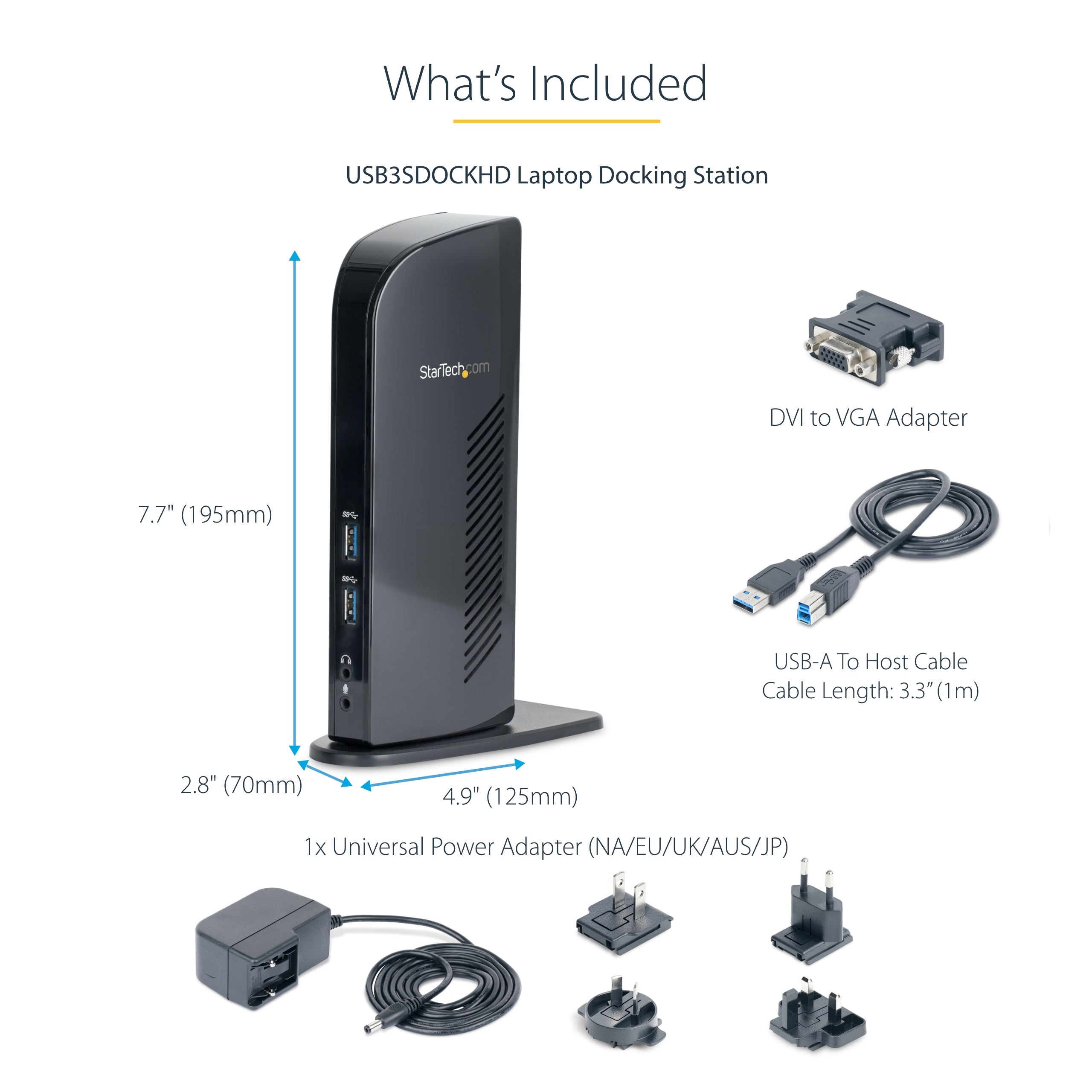

Weight & dimensions
Width
The measurement or extent of something from side to side.
70 mm
Depth
The distance from the front to the back of something.
125 mm
Height
The measurement of the product from head to foot or from base to top.
195 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
370 g
Packaging data
Package width
The distance from one side of the packaging to the other.
190 mm
Package depth
The distance from the front to the back of the packaging.
273 mm
Package height
The distance from the top to the bottom of the packaging.
109 mm
Package weight
Weight of the packaged product.
900 g

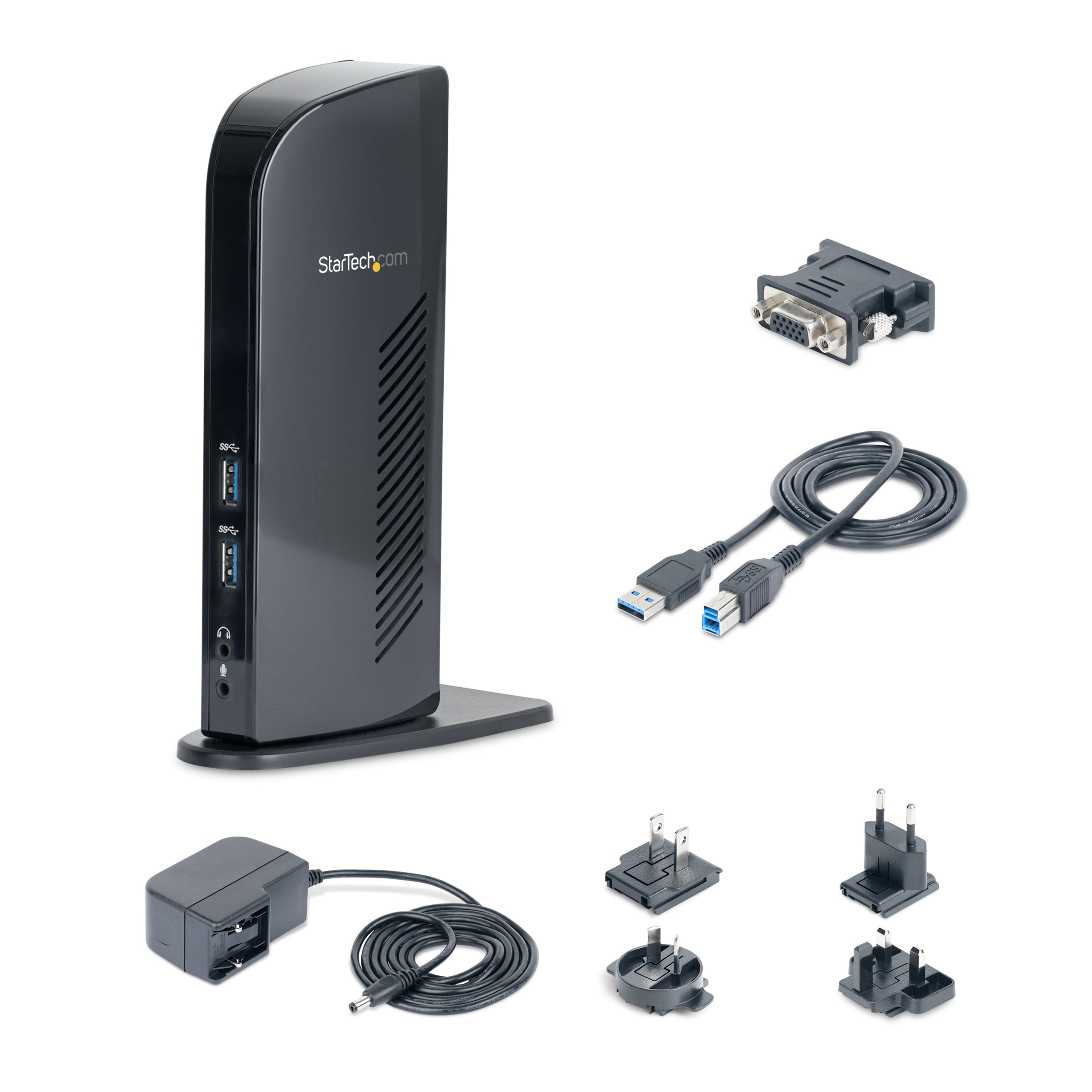

Packaging content
Cables included
USB
AC adapter included
Manual
Drivers included
Interface adapters included
DVI-I male - VGA female
Technical details
Compliance certificates
RoHS
Logistics data
Products per master (outer) case
6 pc(s)
Master (outer) case width
300 mm
Master (outer) case length
400 mm
Master (outer) case height
360 mm
Harmonized System (HS) code
84733020
Other features
Minimum system requirements
CPU: i3 Dual core 2.8GHz +
RAM: 2GB +
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
DisplayLink - DL-3900, VLI - VL810, Terminus - FE1.1, Realtek - RTL8211E
Number of microphone inputs
1
