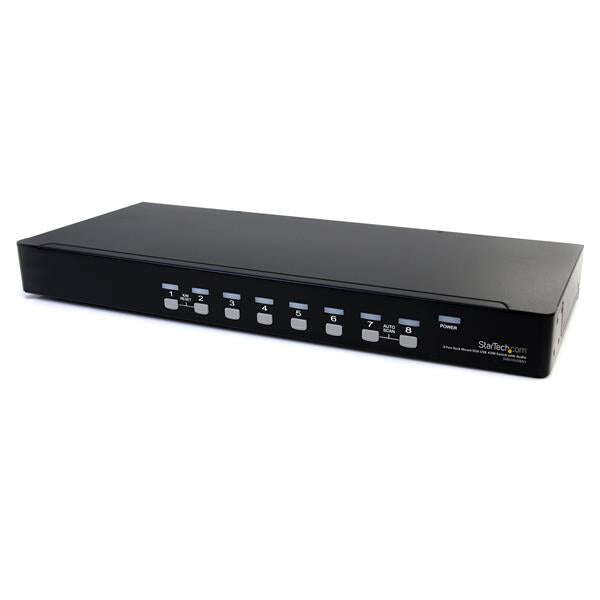

STARTECH .com KVM switch Rack mounting Black (SV831DUSBAU)
- Regular price
- 774.95$
- Sale price
- 774.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com SV831DUSBAU KVM switch Rack mounting Black
Brand:StarTech.com
Product name:8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included) - TAA
Product code:SV831DUSBAU
EAN/UPC:
0065030837248
0065030837248, 065030837248, 5052883870602

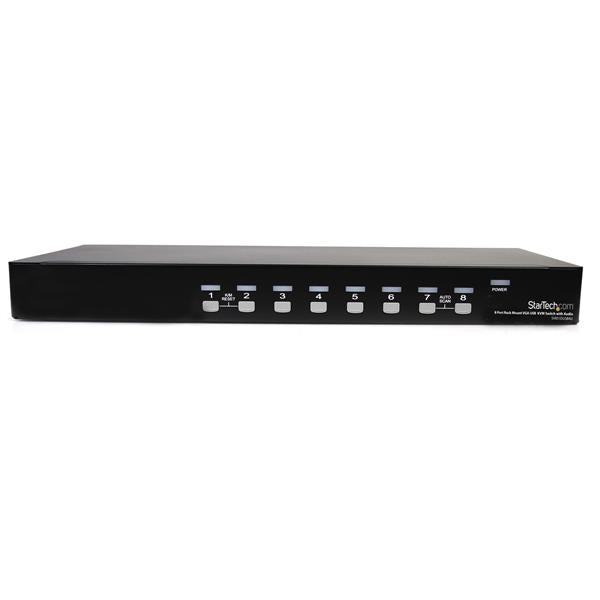

- Supports Hotkey and front panel push-button switching
- Identify and select computers by names assigned via the OSD menu
- OSD security allows each PC to be password protected
- Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
- Supported 4:3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768
- Auto-scan function automatically selects computer sequentially
- Cascade configuration expands system capability
- USB console interface
- Plug-and-play system configuration
- USB Keyboard and Mouse combo supported on one USB connection
Description
Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor
The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

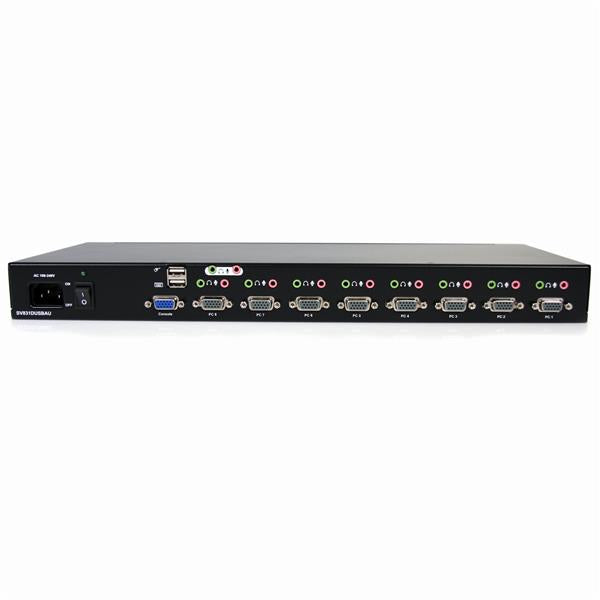

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.
To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The SV831DUSBAU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
15 ft Ultra Thin USB VGA 2-in-1 KVM Cable
The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.
Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.
To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The SV831DUSBAU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
15 ft Ultra Thin USB VGA 2-in-1 KVM Cable
Specs
Ports & interfaces
Number of computers controlled
The amount of computers controlled by this device.
8
Keyboard port type
The type of socket in the device for connecting a keyboard e.g. USB.
USB
Mouse port type
USB
Video port type
The type of socket in the device for connecting a video e.g. SCART.
VGA
Console ports
3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Console USB ports quantity
2
USB 2.0 ports quantity
USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
2
USB connector type
The type of USB connector/port that this product has.
USB Type-A
Headphone outputs
Number of sockets /ports where headphones are connected.
8
Number of microphone inputs
8
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Display
On Screen Display (OSD)
Power
Input voltage
The voltage (V) which is required to power the product.
110-240 V
Input current
1.8 A
Output voltage
12 V
Output current
4 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
48 W
Power plug type
Type M
Packaging data
Package width
The distance from one side of the packaging to the other.
598 mm
Package depth
The distance from the front to the back of the packaging.
263 mm
Package height
The distance from the top to the bottom of the packaging.
123 mm
Package weight
Weight of the packaged product in gram.
4,7 kg
Other features
Audio support
IP control
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
292 mm
Master (outer) case length
610 mm
Master (outer) case height
409 mm
Quantity per master (outer) case
3 pc(s)
Performance
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
1920 x 1440 pixels
Maximum analog resolution
1920 x 1440 pixels
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Daisy chain
Number of users
The number of people that use or can use this product.
1 user(s)
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Rack capacity
The spase that device fill in rack.
1U
Product color
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Steel
Cascadable
LED indicators
Yes
Certification
CE, FCC, UL
Sustainability
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
5 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
The measurement or extent of something from side to side.
540 mm
Depth
The distance from the front to the back of something.
180 mm
Height
The measurement of the product from head to foot or from base to top.
45 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
2,6 kg

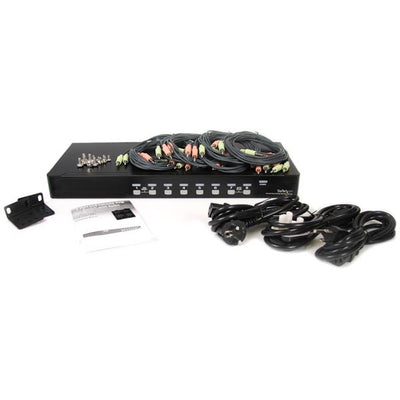

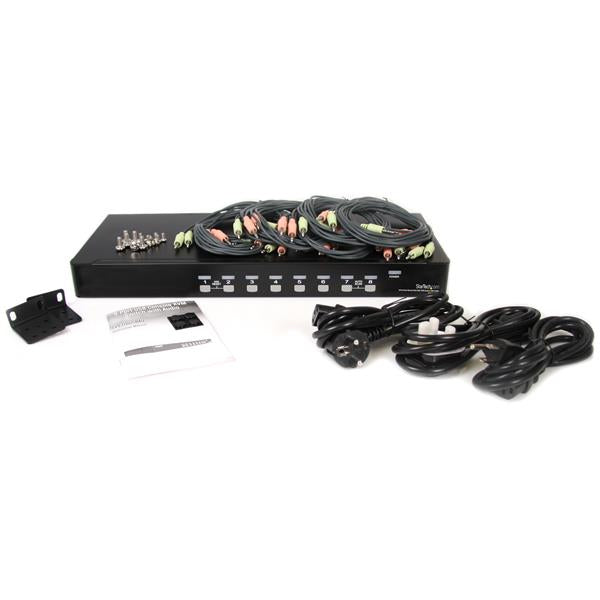

Packaging content
Cables included
AC
Manual
AC adapter included
Rubber feet
