STARTECH .com KVM switch Rack mounting Black (P4AD122-KVM-SWITCH)
- Regular price
- 773.95$
- Sale price
- 773.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com P4AD122-KVM-SWITCH KVM switch Rack mounting Black
Brand:StarTech.com
Product name:4-Port DisplayPort KVM Switch, Single 4K 60Hz Monitor, 6x USB Ports, Push-Button & Hotkey Switching, DisplayPort 1.2, OS Independent, TAA Compliant
Product code:P4AD122-KVM-SWITCH
EAN/UPC:
0065030903264
0065030903264, 065030903264
- FAST SWITCHING 4K 60HZ KVM: Control up to four DisplayPort-enabled desktops/workstations/servers from one mouse, keyboard, USB 5Gbps hub, and 4K 60Hz DisplayPort monitor; Ideal for CAD/CAM, video editing, and content creation applications
- MULTIPLE SWITCHING OPTIONS: Fast Switching via push-buttons or hotkeys with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer while controlling another
- UNIVERSAL COMPATIBILITY: TAA-Compliant KVM Switch provides BIOS/UEFI control and works with any operating system including Windows, macOS, ChromeOS, and Linux; No software required; Compatible with all hardware platforms such as Intel, AMD, and Apple
- DURABLE DESIGN: Metal housing helps prevent Electro-magnetic Interference (EMI); 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM; Included rubber feet protect the work surface and keep KVM in place during operation
- TECHNICAL SPECIFICATIONS: KVM Switch is DisplayPort 1.2 compliant, supporting resolutions up to 4K 60Hz, HDR10, and HDCP 1.4; Supports DisplayPort Audio and 3.5mm analog audio; 4x USB HID Ports; 2x USB 5Gbps Hub Ports; OS Independent
Description
Share a mouse, keyboard, USB 5Gbps hub, audio output device, and 4K 60Hz DisplayPort display between four DisplayPort-enabled computers
This DisplayPort KVM Switch enables users to switch between four desktops equipped with USB-A and DisplayPort. It facilitates sharing a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and four USB 2.0 devices.
High-Resolution 4K 60Hz Video
This KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. In addition, its support for High Dynamic Range (HDR) enhances contrast, brightness, color, and overall vibrancy.
Customizable Switching
This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.
Universal Compatibility
The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M1/M2/M3).
Reliable Performance
The rugged metal case helps prevent electromagnetic interference (EMI). 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.
Rackmount your KVM switch
If you'd like to mount this KVM switch to your server rack, we offer a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
This DisplayPort KVM Switch enables users to switch between four desktops equipped with USB-A and DisplayPort. It facilitates sharing a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and four USB 2.0 devices.
High-Resolution 4K 60Hz Video
This KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. In addition, its support for High Dynamic Range (HDR) enhances contrast, brightness, color, and overall vibrancy.
Customizable Switching
This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.
Universal Compatibility
The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M1/M2/M3).
Reliable Performance
The rugged metal case helps prevent electromagnetic interference (EMI). 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.
Rackmount your KVM switch
If you'd like to mount this KVM switch to your server rack, we offer a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
Specs
Ports & interfaces
Number of computers controlled
The amount of computers controlled by this device.
4
Keyboard port type
The type of socket in the device for connecting a keyboard e.g. USB.
USB
Mouse port type
USB
Video port type
The type of socket in the device for connecting a video e.g. SCART.
DisplayPort
DisplayPorts quantity
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
4
DisplayPort version
1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4
Console ports
3.5mm headphone, DisplayPort, USB A
Console USB ports quantity
4
Console DisplayPorts ports quantity
1
USB hub
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Audio connections
Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier.
Headphone outputs
Number of sockets /ports where headphones are connected.
4
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Display
Built-in display
A display which is part of the product, so you do not need to attach another display.
On Screen Display (OSD)
Sustainability
Sustainability compliance
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS, Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
The measurement or extent of something from side to side.
130 mm
Depth
The distance from the front to the back of something.
220 mm
Height
The measurement of the product from head to foot or from base to top.
44 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1 kg

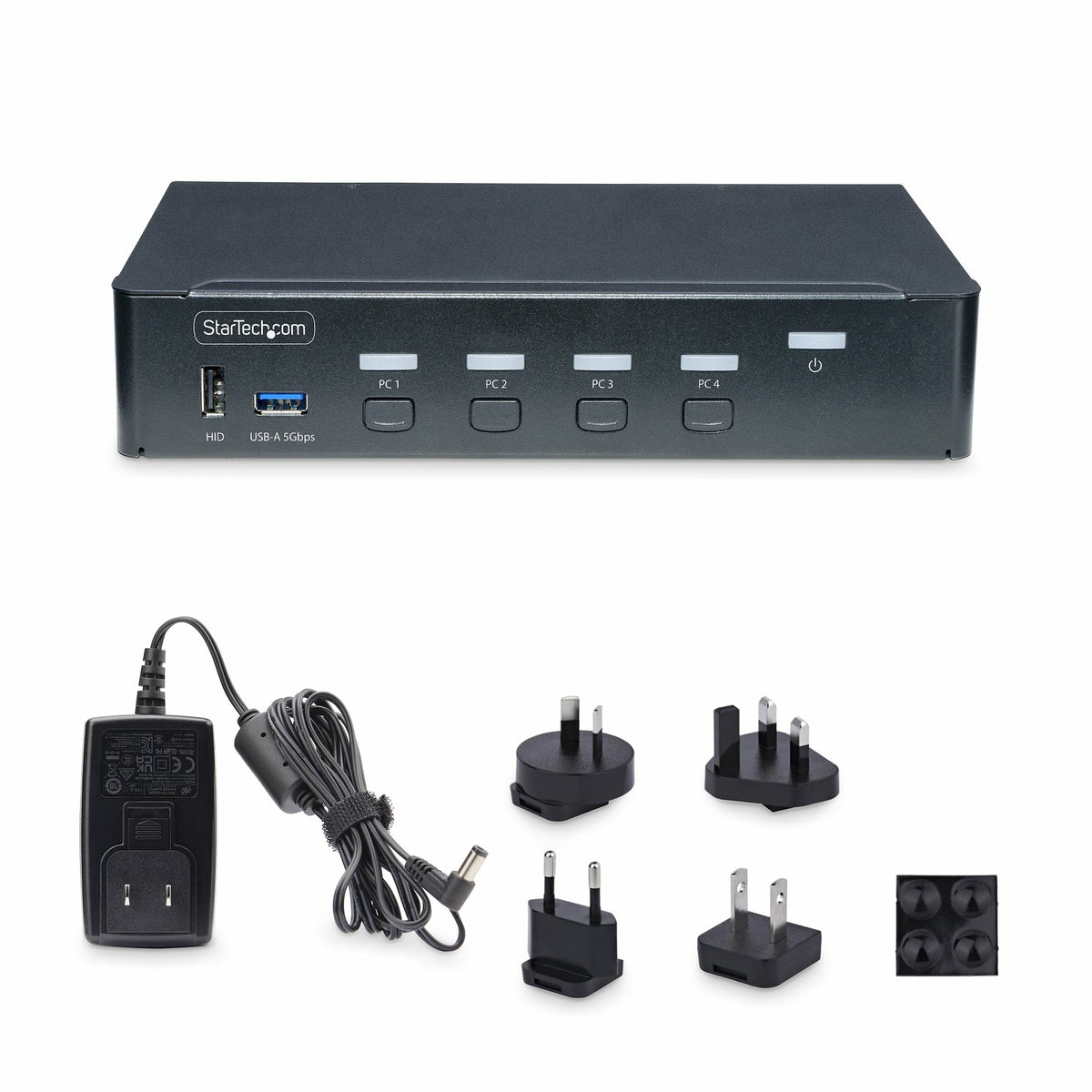

Packaging content
Quick installation guide
Rubber feet
Logistics data
Master (outer) case width
516 mm
Master (outer) case length
322 mm
Master (outer) case height
300 mm
Quantity per master (outer) case
6 pc(s)
Performance
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
4K Ultra HD
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
4096 x 2160 pixels
Data transfer rate (max)
5 Gbit/s
Scan interval
3,8,15,30 s
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
GL3523
Audio channels
2.0
HDCP version
1.4
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Product color
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Metal
LED indicators
Yes
Push button
Hot keys
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
130000 h
Power
Power source
What is providing power for the product e.g. mains electricity.
DC
Input voltage
The voltage (V) which is required to power the product.
100 - 240, 12 V
Input current
1 A
Output current
3 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
36 W
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US
Packaging data
Package width
The distance from one side of the packaging to the other.
297 mm
Package depth
The distance from the front to the back of the packaging.
246 mm
Package height
The distance from the top to the bottom of the packaging.
88 mm
Package weight
Weight of the packaged product in gram.
1,2 kg
Other features
Display resolution at frequency
Total number of pixels (horizontal and vertical) that can be displayed at a frequency
3840x2160 @ 60hz
3840x2160 @ 30hz
2560x1600 @ 60hz
2560x1600 @ 30hz
2560x1440 @ 60hz
2048x1536 @ 60hz
2048x1536 @ 30hz
1920x1440 @ 60hz
1920x1200 @ 60hz
1920x1080 @ 60hz
1680x1050 @ 60hz
1600x1200 @ 60hz
1600x1024 @ 60hz
1600x900 @ 60hz
1440x1080 @ 60hz
1366x768 @ 60hz
1360x768 @ 60hz
1280x1024 @ 60hz
1280x960 @ 60hz
1280x800 @ 60hz
1280x768 @ 60hz
1280x720 @ 60hz
1176x664 @ 60hz
1152x864 @ 60hz
1024x768 @ 60hz
800x600 @ 60hz
Color depth
10 bit
IP control
