STARTECH .com KVM switch Black (SV565HDIP)
- Regular price
- 1,083.95$
- Sale price
- 1,083.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com SV565HDIP KVM switch Black
Brand:StarTech.com
Product name:HDMI KVM Extender over IP Network - 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit - TAA
Product code:SV565HDIP
EAN/UPC:
0065030877947
0065030877947, 065030877947
- REMOTE ACCESS: HDMI KVM extender over IP controls a KVM Switch/Console or PC from up to 328ft (100 m) away over Cat5e/6 Ethernet cable or over IP-enabled local area network (LAN) for unlimited range
- 4K VIDEO QUALITY: HDMI transmitter & extender kit achieves ultra HD resolutions up to 3840 x 2160 4K at 30Hz supports large video signage display at remote locations; Mounting hardware incl.
- HDMI / 4K 30Hz 3840 x 2160 / USB 2.0 HID / OS Independent / 2 x 3.5mm Analog Audio + Mic / Digital 7.1 Surround Audio / EDID Passthrough / IP Routable/Switchable / 100m Max Direct Connection / 2yr War
- ADVANCED AUDIO & VIDEO: EDID passthrough transfers display capabilities to the video source, maximizing compatibility between devices; Digital 7.1 surround audio over HDMI offers theatre-grade sound
- VIDEO WALL SUPPORT: Connect receivers (sold separately) to distribute HDMI signal to multiple displays at remote location or combine source to create a 9x9 video wall; Configure using an intuitive GUI
Description
KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-Through
This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.
Supports UHD 4K 30Hz
The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.
Hassle-Free Installation
With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.
Versatile Configuration Options
The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.
For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).
SV565HDIP is backed by a 2-year warranty and free lifetime technical support.
This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.
Supports UHD 4K 30Hz
The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.
Hassle-Free Installation
With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.
Versatile Configuration Options
The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.
For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).
SV565HDIP is backed by a 2-year warranty and free lifetime technical support.
Specs
Ports & interfaces
Keyboard port type
The type of socket in the device for connecting a keyboard e.g. USB.
USB
Mouse port type
USB
Video port type
The type of socket in the device for connecting a video e.g. SCART.
HDMI
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
2
USB hub
USB 2.0 Type-A hub ports quantity
2
Audio connections
Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier.
Headphone outputs
Number of sockets /ports where headphones are connected.
8
Number of microphone inputs
2
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Display
Built-in display
A display which is part of the product, so you do not need to attach another display.
On Screen Display (OSD)
Power
Input voltage
The voltage (V) which is required to power the product.
100 - 240 V
Input current
0.6 A
Output voltage
12 V
Output current
1,5 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
18 W
External power adapter
Power plug type
Type M
Compatible power plug types
AU, EU, JP, UK
Packaging data
Package width
The distance from one side of the packaging to the other.
354 mm
Package depth
The distance from the front to the back of the packaging.
368 mm
Package height
The distance from the top to the bottom of the packaging.
80 mm
Other features
IP control
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
394 mm
Master (outer) case length
490 mm
Master (outer) case height
272 mm
Quantity per master (outer) case
6 pc(s)
Network
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
2
Performance
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
4K Ultra HD
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
3840 x 2160 pixels
Video bandwidth
30 Hz
Daisy chain
Maximum operating distance
The maximum distance from which you can operate the device.
100 m
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
ASPEED - AST1520
Audio channels
7.1
Design
Product color
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Steel
LED indicators
Yes
Hot keys
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
60000 h
Certification
CE, FCC, TAA, REACH
Sustainability
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
The measurement or extent of something from side to side.
117 mm
Depth
The distance from the front to the back of something.
130 mm
Height
The measurement of the product from head to foot or from base to top.
28 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
610 g

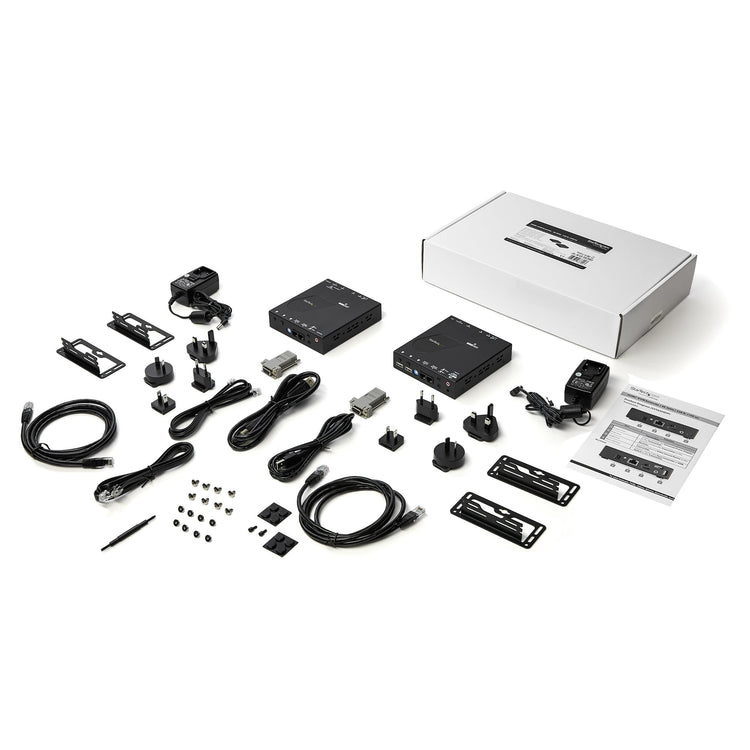

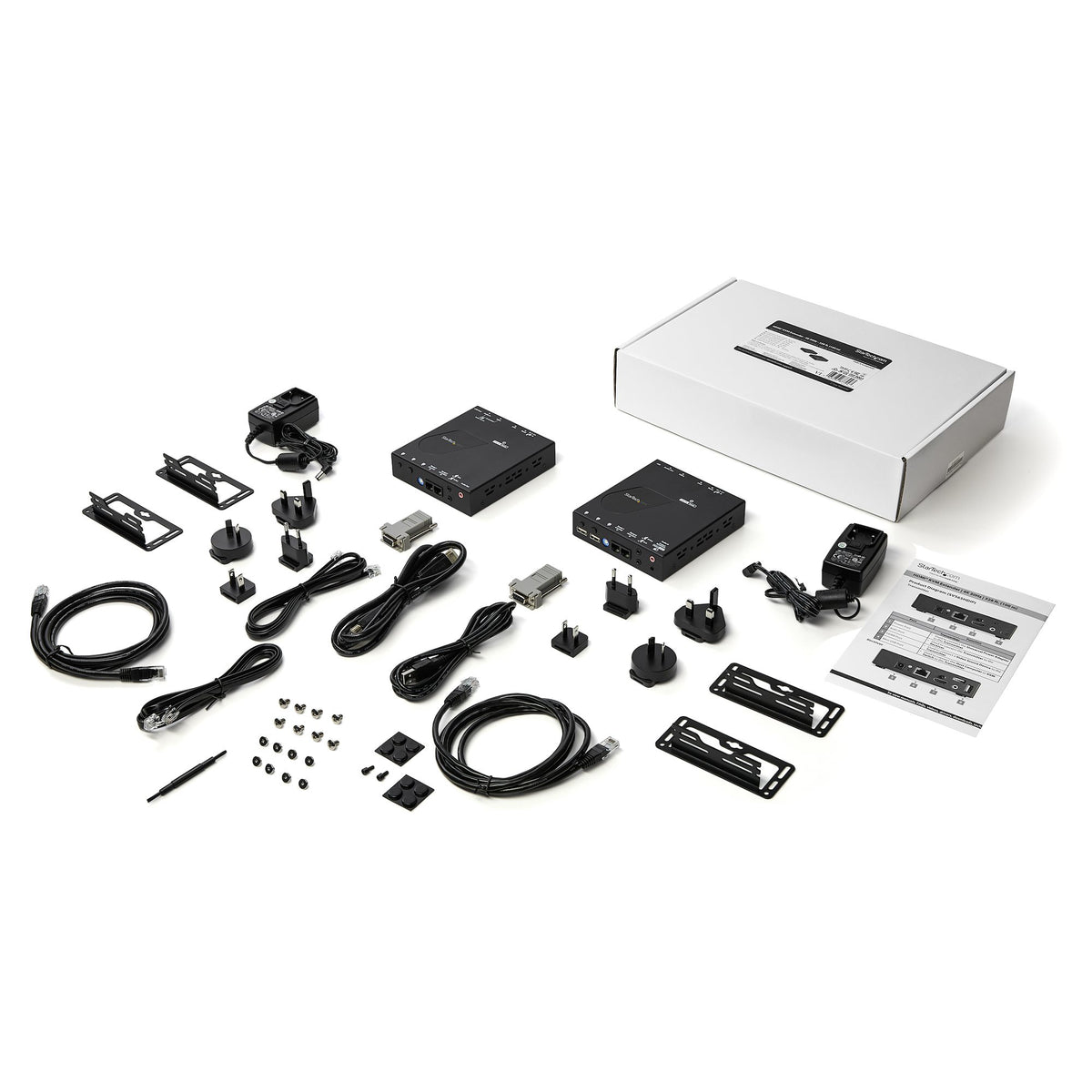

Packaging content
Cables included
HDMI, LAN (RJ-45), Phone (RJ-11), USB
Quick installation guide
AC adapter included
Rubber feet
