STARTECH .com KVM switch Black (SV231HDMIUA)
- Regular price
- 320.95$
- Sale price
- 320.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com SV231HDMIUA KVM switch Black
Brand:StarTech.com
Product name:2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub - TAA
Product code:SV231HDMIUA
EAN/UPC:
0065030837521
0065030837521, 065030837521, 0132017927497, 132017927497
- Supports push button and hotkey PC Switching
- Integrated USB 2.0 hub - Share USB peripherals between PCs
- Supports High Resolutions Digital video up to UXGA (1600x1200), WUXGA (1920x1200), and 1080p (1920x1080)
- No software drivers required; OS independent
- Supports Plug&Play operation
- Supports both HDMI® audio and 3.5mm analog audio
- Independent Audio switching
- Audible tone to indicate PC switching
- User-defined scan time intervals
Description
Share a keyboard, mouse and HDMI® monitor between 2 multimedia computers
The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Specs
Ports & interfaces
Number of computers controlled
The amount of computers controlled by this device.
2
Keyboard port type
The type of socket in the device for connecting a keyboard e.g. USB.
USB
Mouse port type
USB
Video port type
The type of socket in the device for connecting a video e.g. SCART.
HDMI
Console ports
3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity
4
Headphone outputs
Number of sockets /ports where headphones are connected.
3
Number of microphone inputs
3
Power
Input voltage
The voltage (V) which is required to power the product.
100 - 240, 12 V
Input current
0.8 A
Output current
1,5 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
18 W
Power plug type
Type M
Packaging data
Package width
The distance from one side of the packaging to the other.
188 mm
Package depth
The distance from the front to the back of the packaging.
252 mm
Package height
The distance from the top to the bottom of the packaging.
98 mm
Package weight
Weight of the packaged product in gram.
1,1 kg
Other features
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired

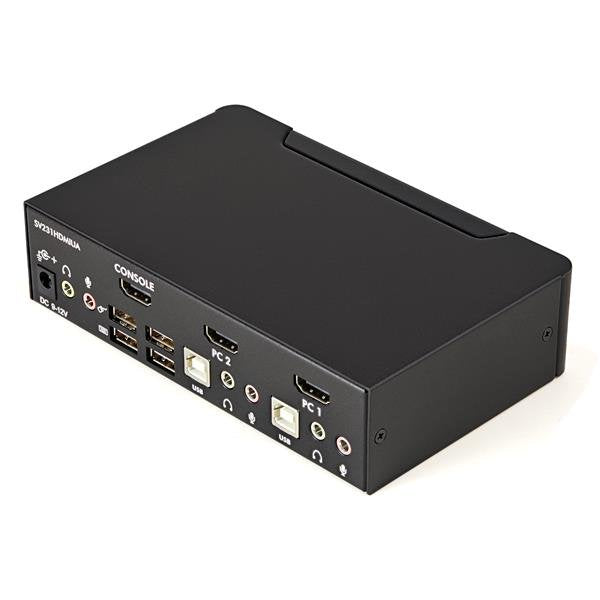

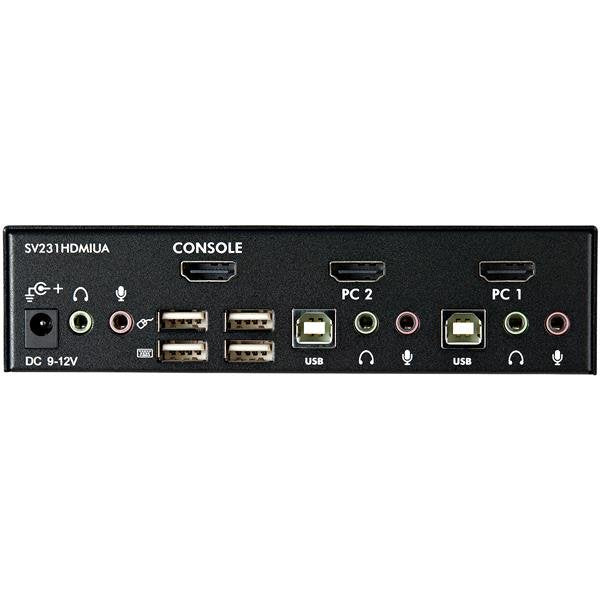

I/O ports
An interface on a device to which you can connect another device.
1x HDMI (F)
4x USB A (F)
6x 3.5mm (F)
2x USB B (F)
2x mini-HDMI (F)
Dimensions (WxDxH)
Dimensions of the product (Width x Depth x Height).
124,8 x 70 x 40 mm
Ports quantity
The number of ports or external interfaces to which other equipment can be connected.
2
Power requirements
AC 110 - 240 V
Performance
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
Full HD
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
1920 x 1200 pixels
Daisy chain
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Product color
The colour e.g. red, blue, green, black, white.
Black
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
126813 h
Certification
R0HS
Display
On Screen Display (OSD)
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
The measurement or extent of something from side to side.
125 mm
Depth
The distance from the front to the back of something.
70 mm
Height
The measurement of the product from head to foot or from base to top.
40 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
634 g

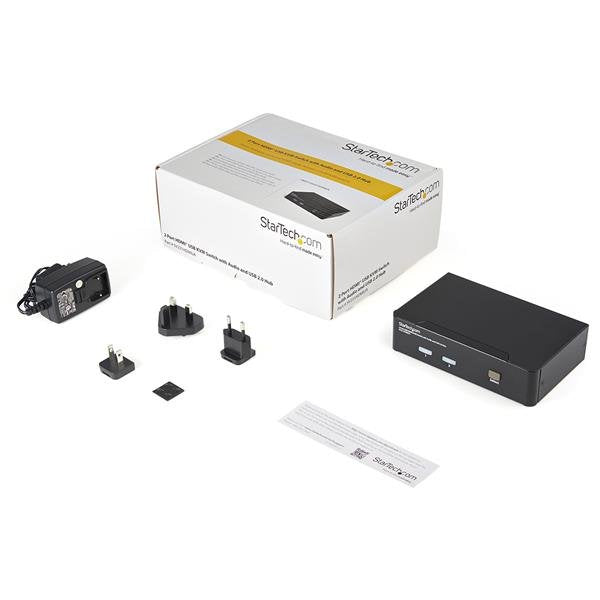

Packaging content
Manual
AC adapter included
Rubber feet
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
280 mm
Master (outer) case length
404 mm
Master (outer) case height
342 mm
Quantity per master (outer) case
6 pc(s)
