STARTECH .com KVM switch Black (SV231DVIUA)
- Regular price
- 269.95$
- Sale price
- 269.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

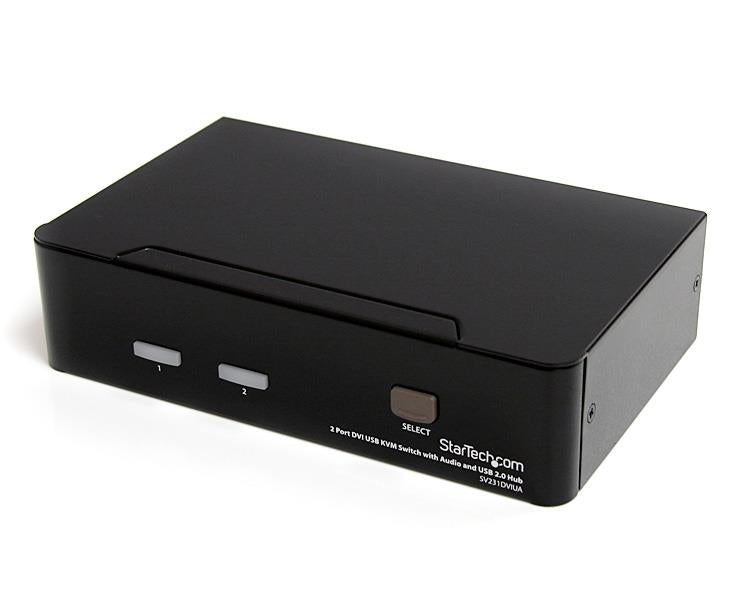

StarTech.com SV231DVIUA KVM switch Black
Brand:StarTech.com
Product name:2 Port DVI USB KVM Switch with Audio and USB 2.0 Hub - TAA
Product code:SV231DVIUA
EAN/UPC:
0065030842075
0065030842075, 065030842075, 0132017631738, 132017631738, 0650308420750, 650308420750
- Built-in USB 2.0 hub

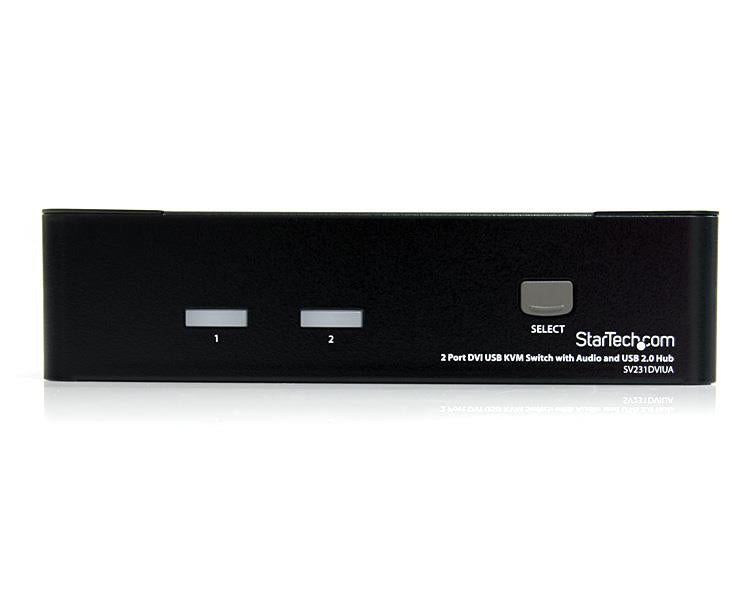

- Hot-key and front-panel push buttons for easy computer selection
- USB keyboard and mouse console connections
- Supports resolutions up to 1920x1200
- No software or drivers required
- Stereo audio and microphone support
- Independent/simultaneous audio channel and PC port selection
- HDCP Compliant
- OS independent
Description
Share keyboard, mouse, speakers and a DVI display between two multimedia computers
The SV231DVIUA 2-Port DVI USB KVM Switch lets you control two USB-enabled, DVI-capable computers from a single monitor and peripheral set (keyboard, mouse and speakers), and two additional USB peripherals connected through the built-in USB hub ports.
Featuring convenient hot-key and front panel push-button switching, and high-resolution support (up to 1920x1200), the DVI KVM Switch is perfect for controlling high-performance systems. Ideal for multimedia applications, this KVM switch supports audio and microphone switching either independently, or simultaneously when switching between computers for KVM control.
The DVI USB KVM also features an integrated USB 2.0 hub, which lets you share USB peripherals point as if they were connected directly to the slave computers.
This product is TAA compliant and is backed by a Startech.com 3 year warranty with lifetine technical support.
The SV231DVIUA 2-Port DVI USB KVM Switch lets you control two USB-enabled, DVI-capable computers from a single monitor and peripheral set (keyboard, mouse and speakers), and two additional USB peripherals connected through the built-in USB hub ports.
Featuring convenient hot-key and front panel push-button switching, and high-resolution support (up to 1920x1200), the DVI KVM Switch is perfect for controlling high-performance systems. Ideal for multimedia applications, this KVM switch supports audio and microphone switching either independently, or simultaneously when switching between computers for KVM control.
The DVI USB KVM also features an integrated USB 2.0 hub, which lets you share USB peripherals point as if they were connected directly to the slave computers.
This product is TAA compliant and is backed by a Startech.com 3 year warranty with lifetine technical support.
Specs
Ports & interfaces
Number of computers controlled
The amount of computers controlled by this device.
2
Keyboard port type
The type of socket in the device for connecting a keyboard e.g. USB.
USB
Mouse port type
USB
Video port type
The type of socket in the device for connecting a video e.g. SCART.
DVI-I

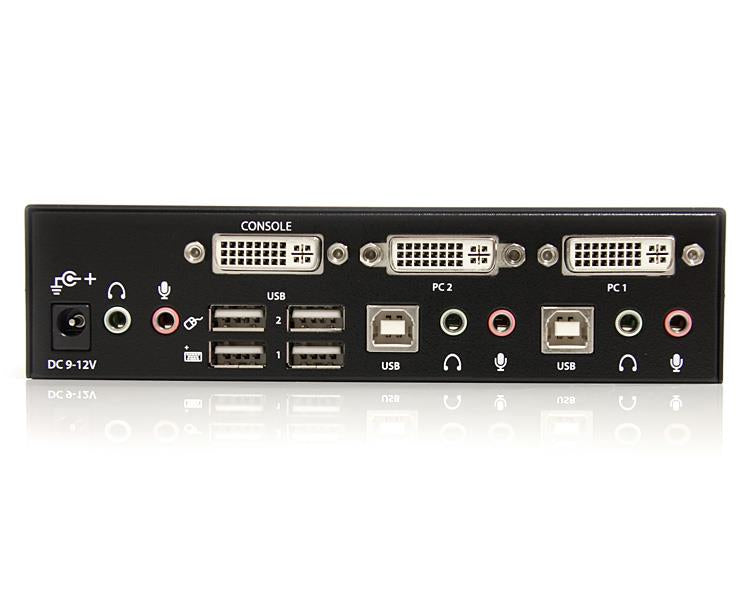

Console ports
3.5mm headphone, 3.5mm mic, DVI-I, USB A
Console USB ports quantity
4
Audio connections
Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier.
Headphone outputs
Number of sockets /ports where headphones are connected.
3
Number of microphone inputs
3
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Sustainability
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
The measurement or extent of something from side to side.
199 mm
Depth
The distance from the front to the back of something.
160 mm
Height
The measurement of the product from head to foot or from base to top.
40 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
650 g

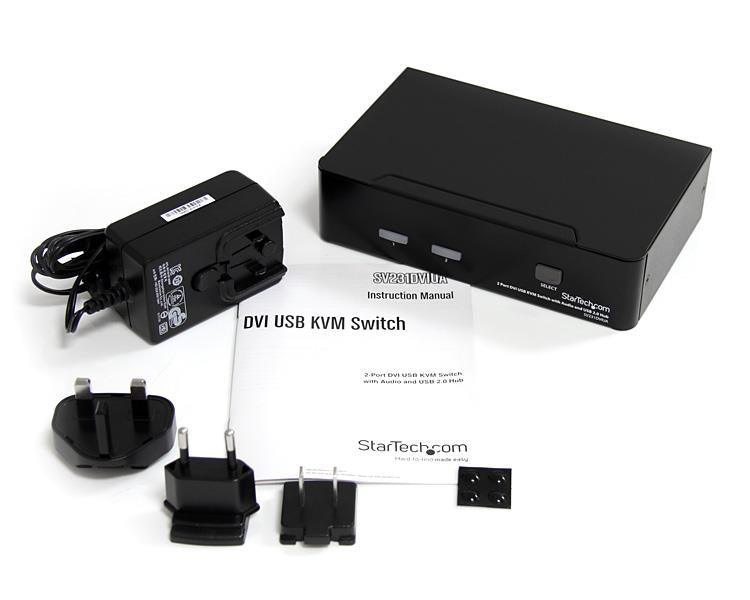

Packaging content
Manual
Rubber feet
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
314 mm
Master (outer) case length
399 mm
Master (outer) case height
260 mm
Quantity per master (outer) case
6 pc(s)
Performance
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
Full HD
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
1920 x 1200 pixels
Daisy chain
Number of users
The number of people that use or can use this product.
1 user(s)
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Product color
The colour e.g. red, blue, green, black, white.
Black
LED indicators
Yes
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
126397 h
Display
Built-in display
A display which is part of the product, so you do not need to attach another display.
Power
Input voltage
The voltage (V) which is required to power the product.
100 - 240 V
Input current
0.8 A
Output voltage
12 V
Output current
1,5 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
18 W
Power plug type
Type M
Compatible power plug types
EU, UK, US
Packaging data
Package width
The distance from one side of the packaging to the other.
188 mm
Package depth
The distance from the front to the back of the packaging.
243 mm
Package height
The distance from the top to the bottom of the packaging.
92 mm
Package weight
Weight of the packaged product in gram.
1,1 kg
