STARTECH .com KVM extender Transmitter & receiver (IH2006-KVM-EXTENDER)
- Regular price
- 507.95$
- Sale price
- 507.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

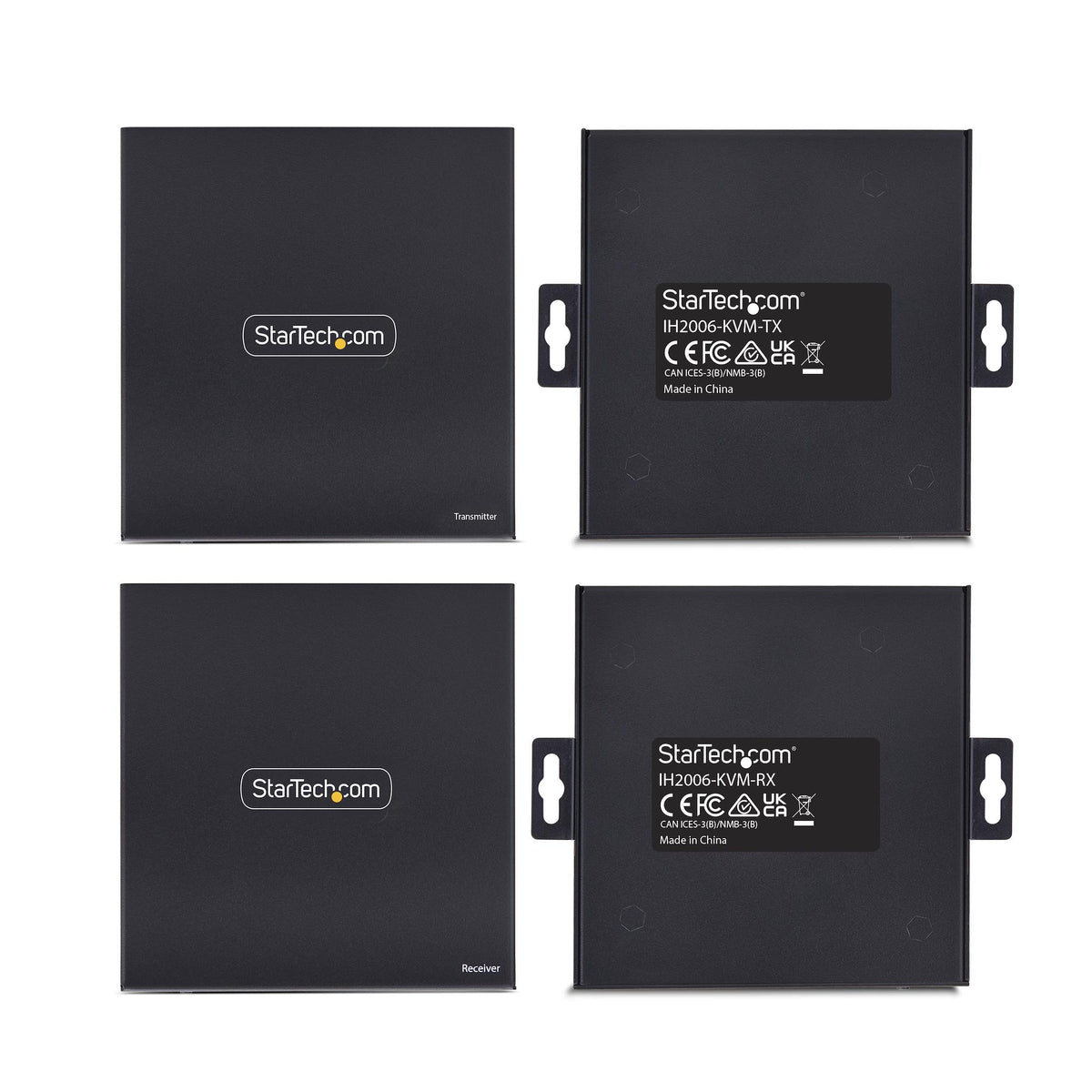

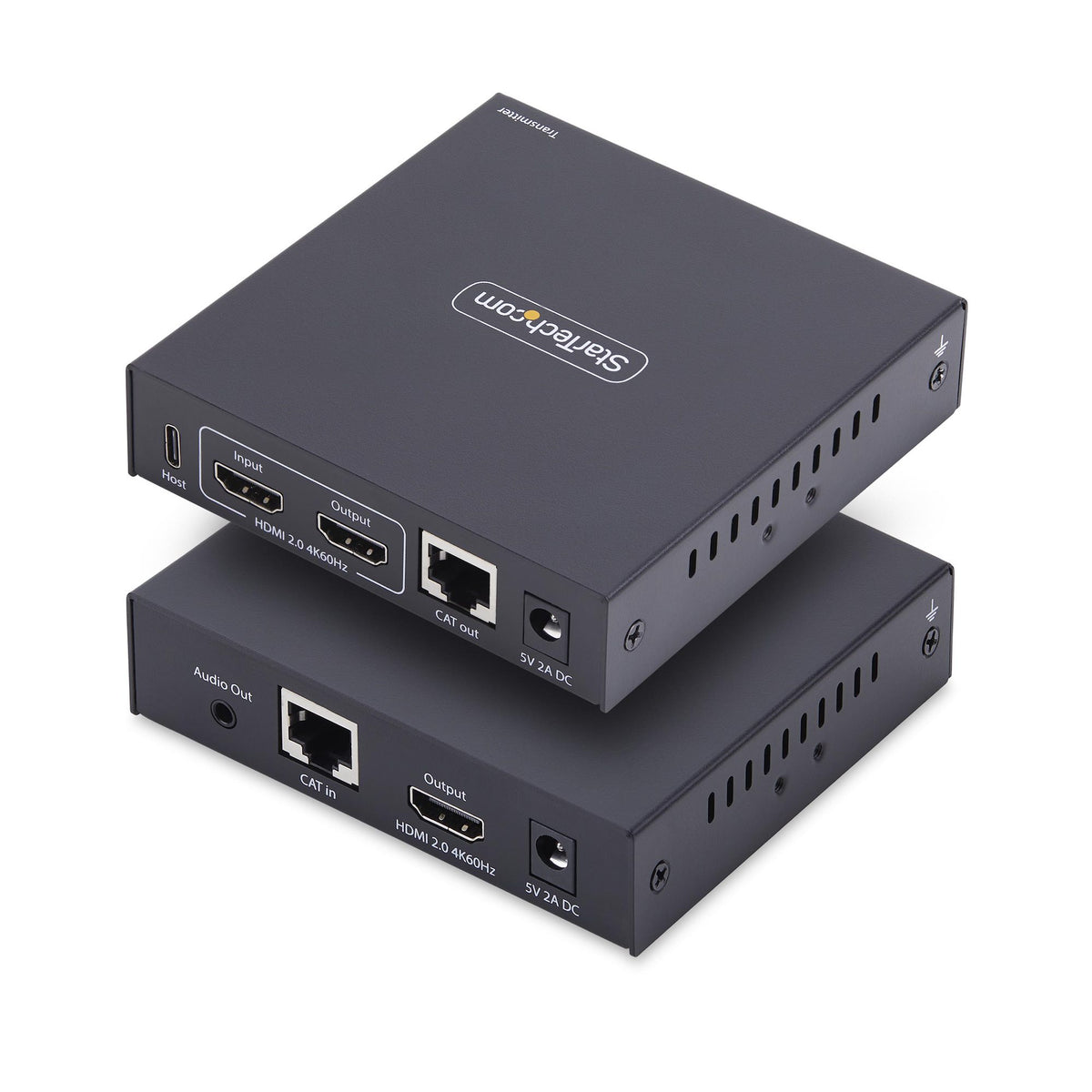

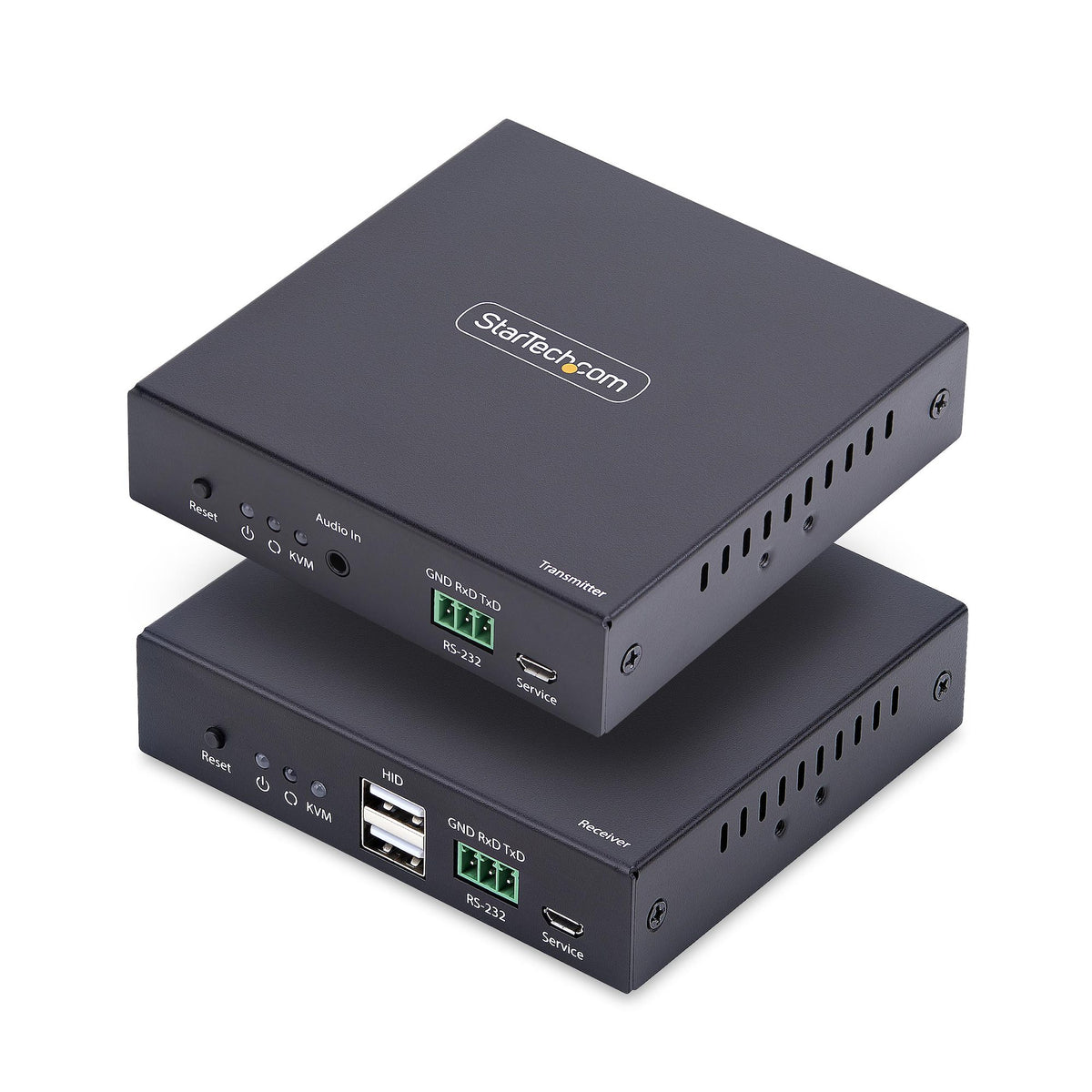

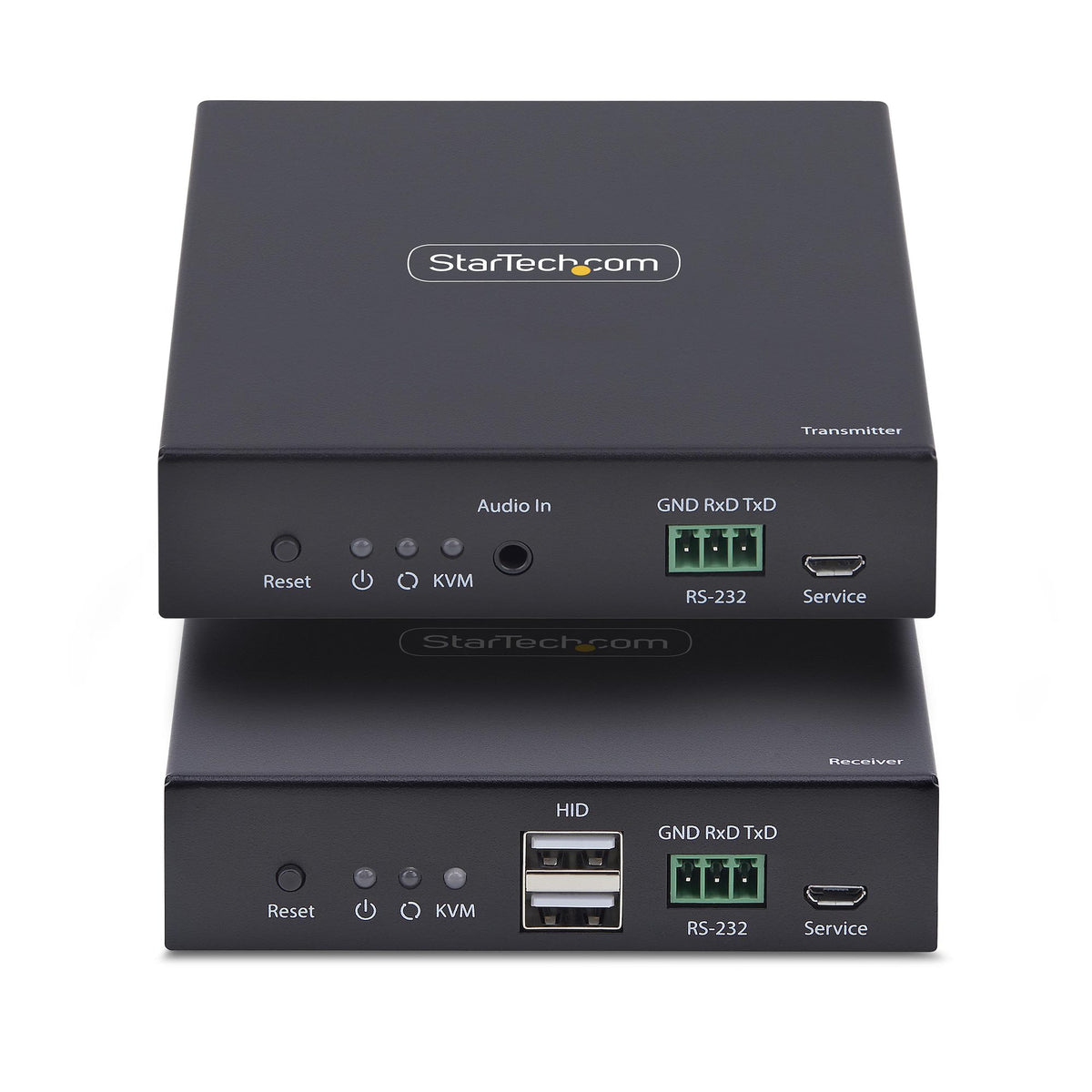

StarTech.com IH2006-KVM-EXTENDER KVM extender Transmitter & receiver
Brand:StarTech.com
Product name:HDMI KVM Extender Over IP Network, 4K 60Hz, Driverless, HDMI and USB Over Ethernet/CAT6, AVoIP, Transmitter and Receiver Kit, Includes Mounting Kits
Product code:IH2006-KVM-EXTENDER
EAN/UPC:
0065030911511
0065030911511, 065030911511
- AVoIP KVM EXTENDER: Remotely access and control a computer over a TCP/IP network using a keyboard, mouse, and 4K 60Hz HDMI monitor, while keeping the system secure from unauthorized access or physical damage
- NO DRIVERS OR SOFTWARE: IP Video Distribution kit requires no configuration to get it working; Compatible with any operating system including Windows, macOS and Linux, as well as all hardware platforms such as Intel, AMD, Snapdragon/ARM and Apple Silicon
- SCALABLE SETUP: Start with a point-to-point setup, then expand to a one-to-many setup by adding IP KVM receivers (sold separately), allowing your setup to grow with your business needs and ensuring a scalable, future-proof solution

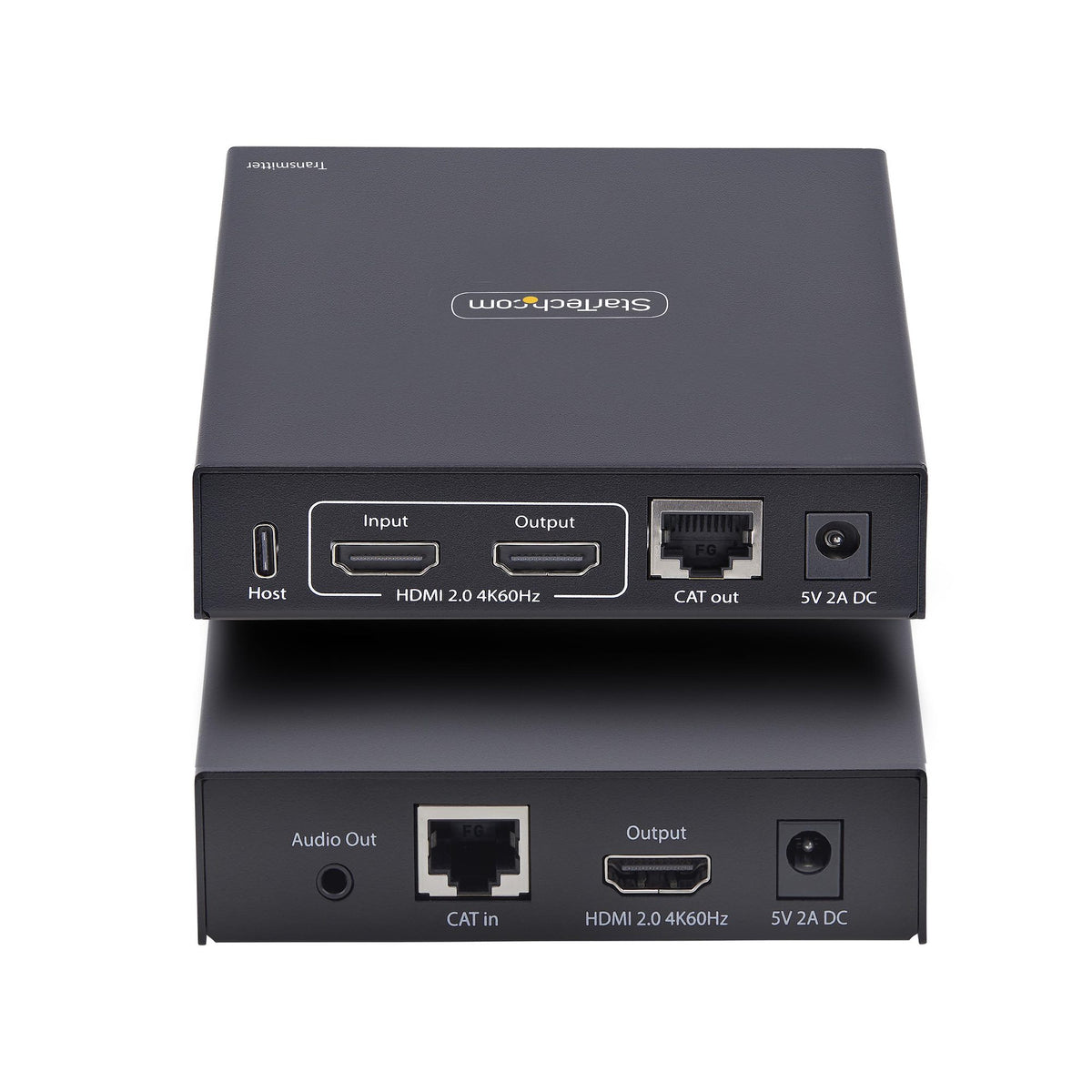

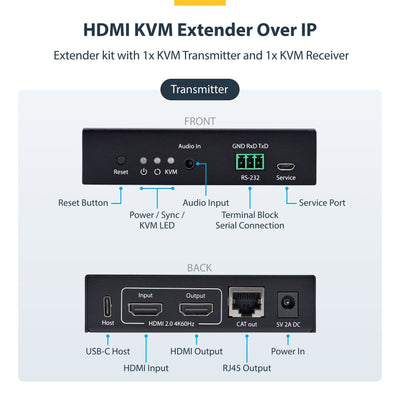

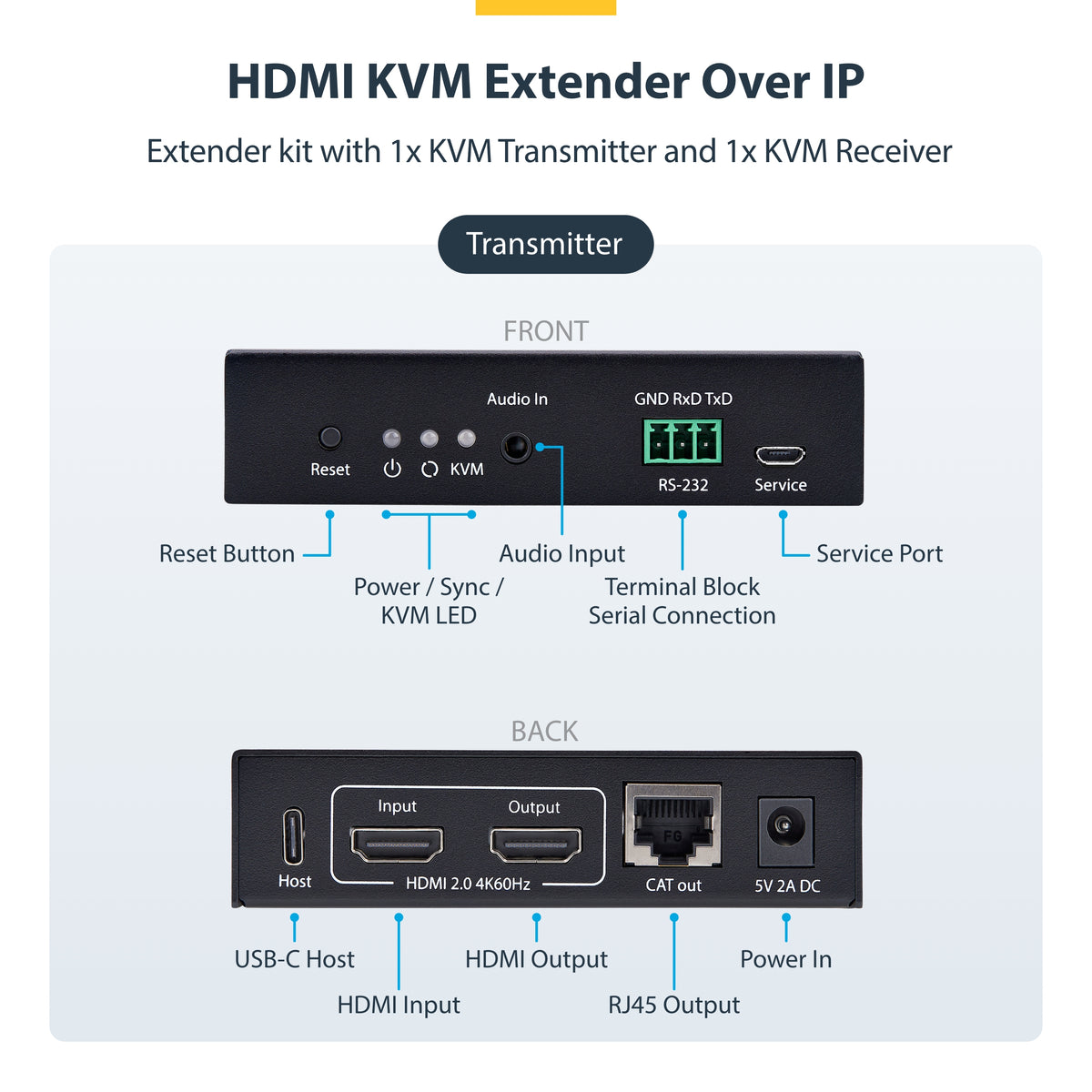

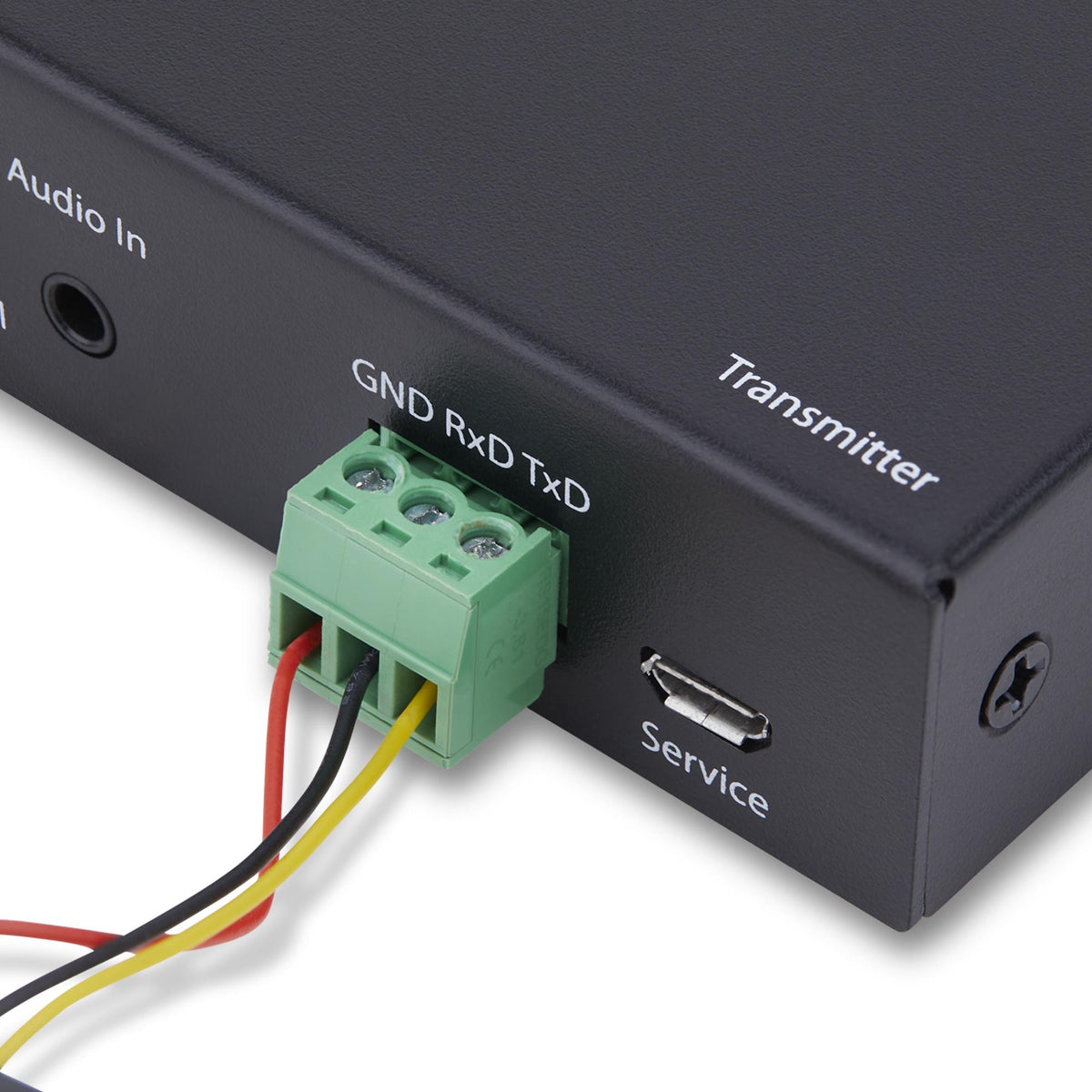

- LOCAL HDMI OUTPUT: IP KVM Transmitter features an HDMI output to connect a local display, allowing you to view the content without being at the receiver's location; Three-wire RS232 port and a 3.5mm audio passthrough port offer serial and audio extension
- SECURE & FLEXIBLE INSTALLATION: Durable metal housing with included mounting kits for wall or under-desk installation; Rubber feet prevent slipping for desktop use; Ideal for industrial and professional environments
Description
Control an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio
The AVoIP KVM Extender enables remote computer access over a TCP/IP network with a keyboard, mouse, and 4K 60Hz HDMI monitor, keeping systems secure from unauthorized access and physical damage.
Driver-Free Installation
The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.
Scalable, Flexible, and Future-Proof
Designed to grow with your business, the KVM extender supports both one-to-one and one-to-many configurations by adding IP KVM receivers (sold separately), ensuring a flexible and future-ready solution.
Professional-Grade Design
Each unit features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. A local HDMI output on the transmitter allows direct connection to a nearby display, while RS232 and 3.5mm audio passthrough ports enable serial and audio extension.
The AVoIP KVM Extender enables remote computer access over a TCP/IP network with a keyboard, mouse, and 4K 60Hz HDMI monitor, keeping systems secure from unauthorized access and physical damage.
Driver-Free Installation
The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.
Scalable, Flexible, and Future-Proof
Designed to grow with your business, the KVM extender supports both one-to-one and one-to-many configurations by adding IP KVM receivers (sold separately), ensuring a flexible and future-ready solution.
Professional-Grade Design
Each unit features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. A local HDMI output on the transmitter allows direct connection to a nearby display, while RS232 and 3.5mm audio passthrough ports enable serial and audio extension.
Video
Specs
Features
Type
Characteristics of the device.
Transmitter & receiver
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Cable types supported
Cat6
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Maximum digital resolution
3840 x 2160 pixels
Maximum refresh rate
60 Hz
On Screen Display (OSD)
Product color
The colour e.g. red, blue, green, black, white.
Black
LED indicators
Yes
Ports & interfaces
USB port type
USB Type-C
USB 2.0 ports quantity
USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
1
HDMI version
2.0
RS-232 ports
The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.
2
PC Audio in
The socket (port) for the PC audio input.
PC Audio out
Packaging data
Package width
The distance from one side of the packaging to the other.
240 mm
Package depth
The distance from the front to the back of the packaging.
176 mm
Package height
The distance from the top to the bottom of the packaging.
80 mm
Package weight
Weight of the packaged product in gram.
1,1 kg
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-20 - 60 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-30 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Logistics data
Master (outer) case width
380 mm
Master (outer) case length
270 mm
Master (outer) case height
420 mm
Quantity per master (outer) case
10 pc(s)

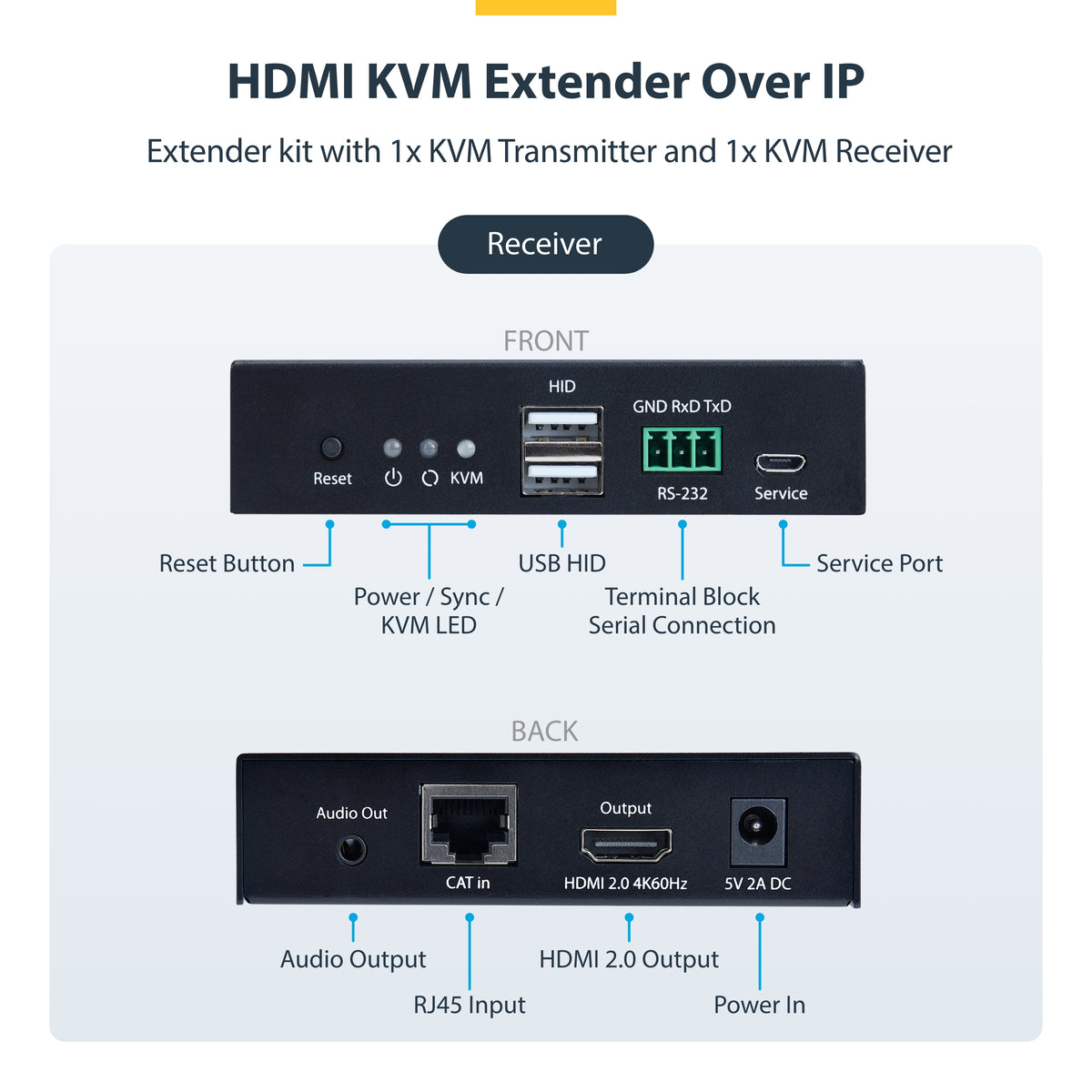

Transmitter
Transmitter video port type
HDMI
Transmitter local video port
Transmitter local video port type
HDMI
RJ-45 ports quantity (transmitter)
1
Transmitter Micro-USB ports quantity
1
Receiver
Receiver local video port type
HDMI
RJ-45 ports quantity (receiver)
1
Receiver Micro-USB ports quantity
1
Receiver USB Type-A ports quantity
2
Power
Power plug type
Type M
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Input current
0.3 A
AC adapter output voltage
5 V
AC adapter output current
2 A
Power consumption (transmitter) (max)
10 W
Power consumption (receiver) (max)
10 W
DC-in jack
The socket/plug where the DC electricity supply connects to the device.

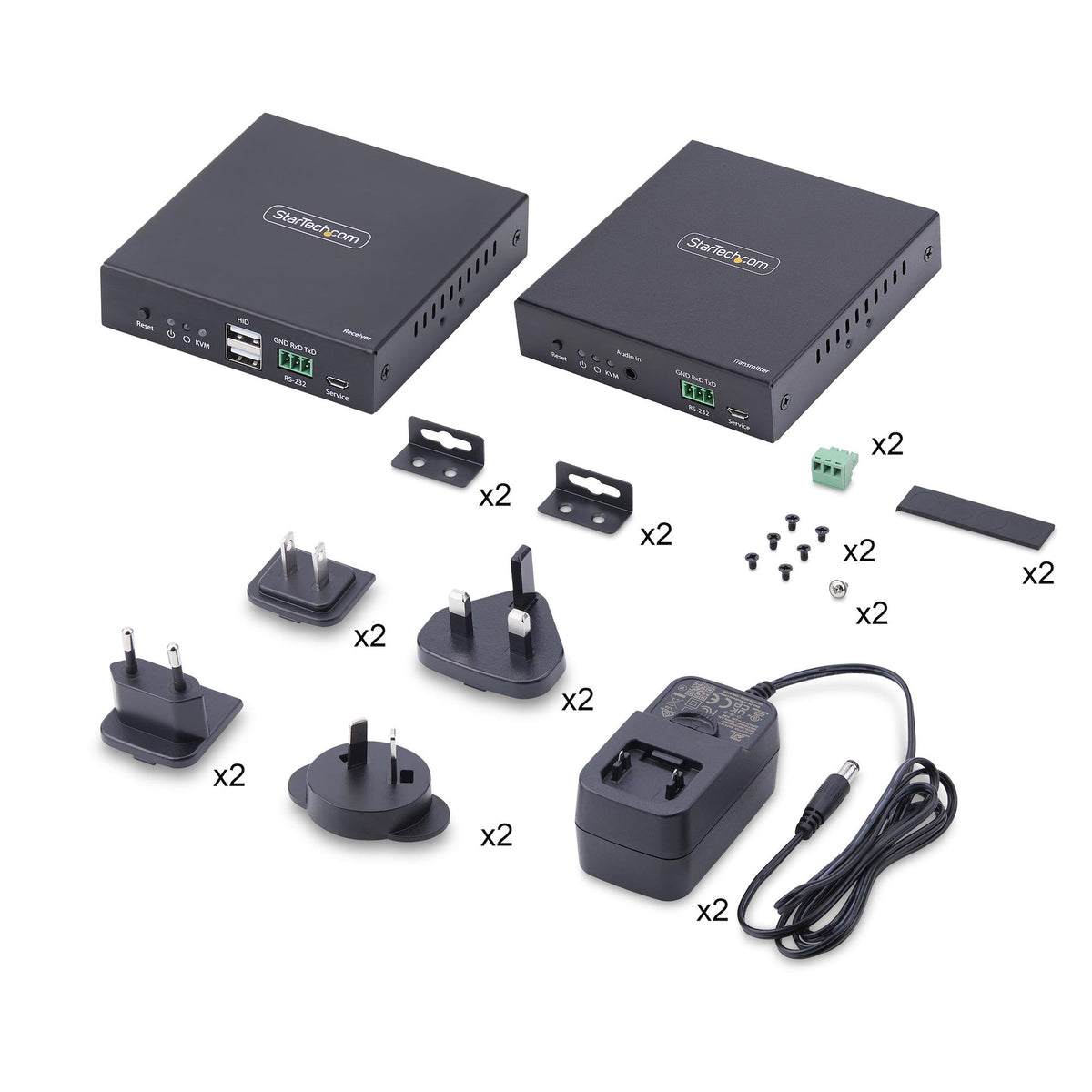

Packaging content
AC adapter included
Mounting bracket(s) included
Included power plug types
ANZ, EU, NA, UK
Other features
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
10000 h
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
Federal Communications Commission (FCC), RoHS
