STARTECH .com interface cards/adapter Internal M.2, SATA (PEXM2SAT32N1)
- Regular price
- 60.95$
- Sale price
- 60.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

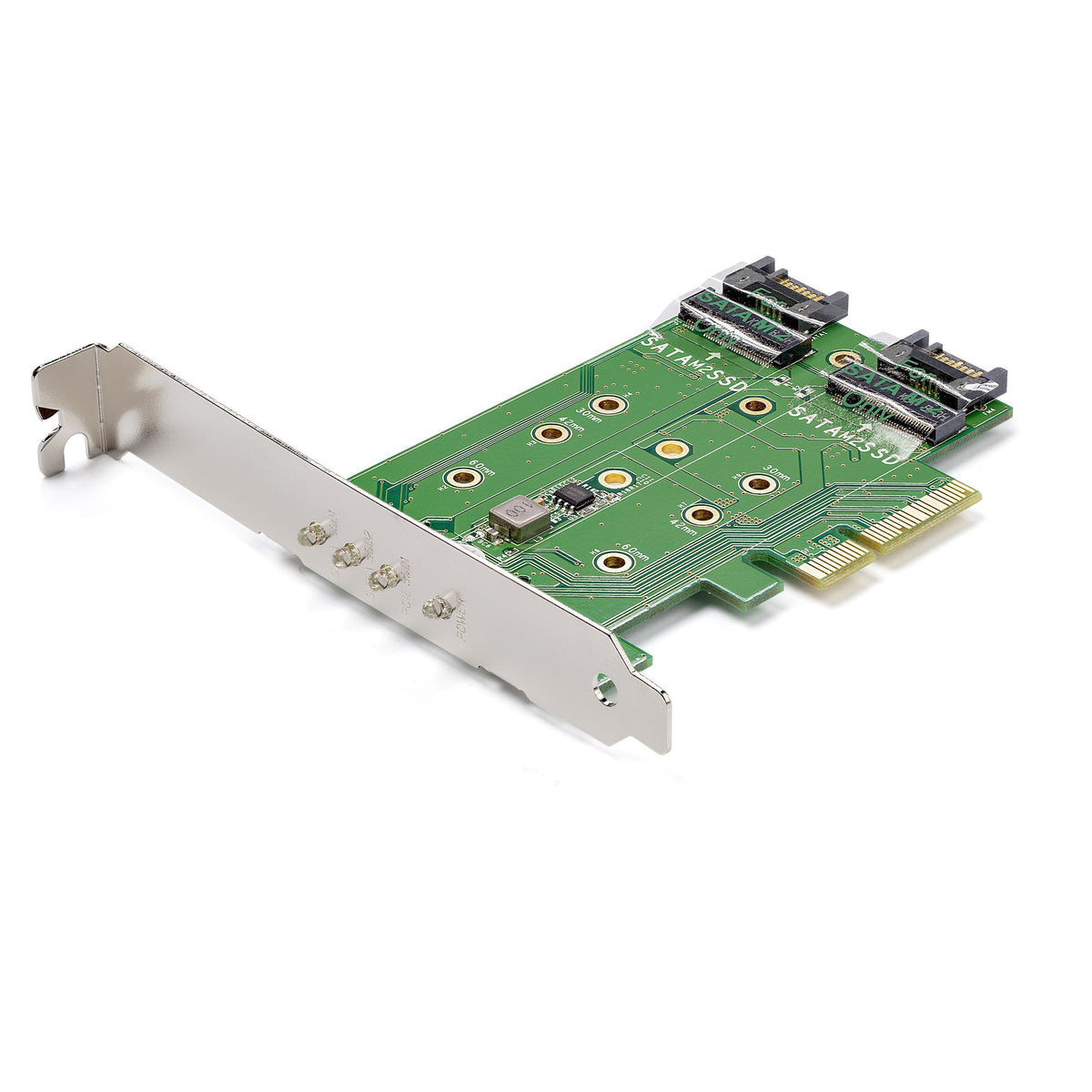

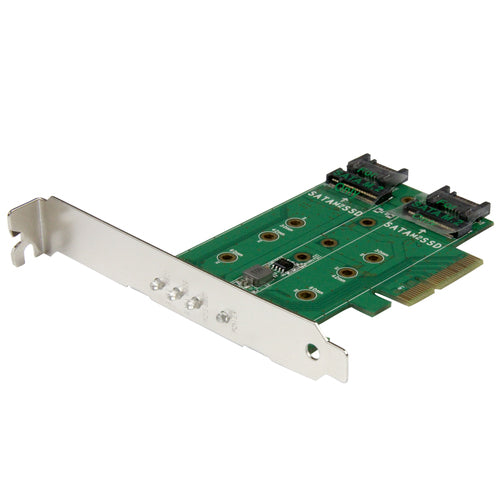

StarTech.com PEXM2SAT32N1 interface cards/adapter Internal M.2, SATA
Brand:StarTech.com

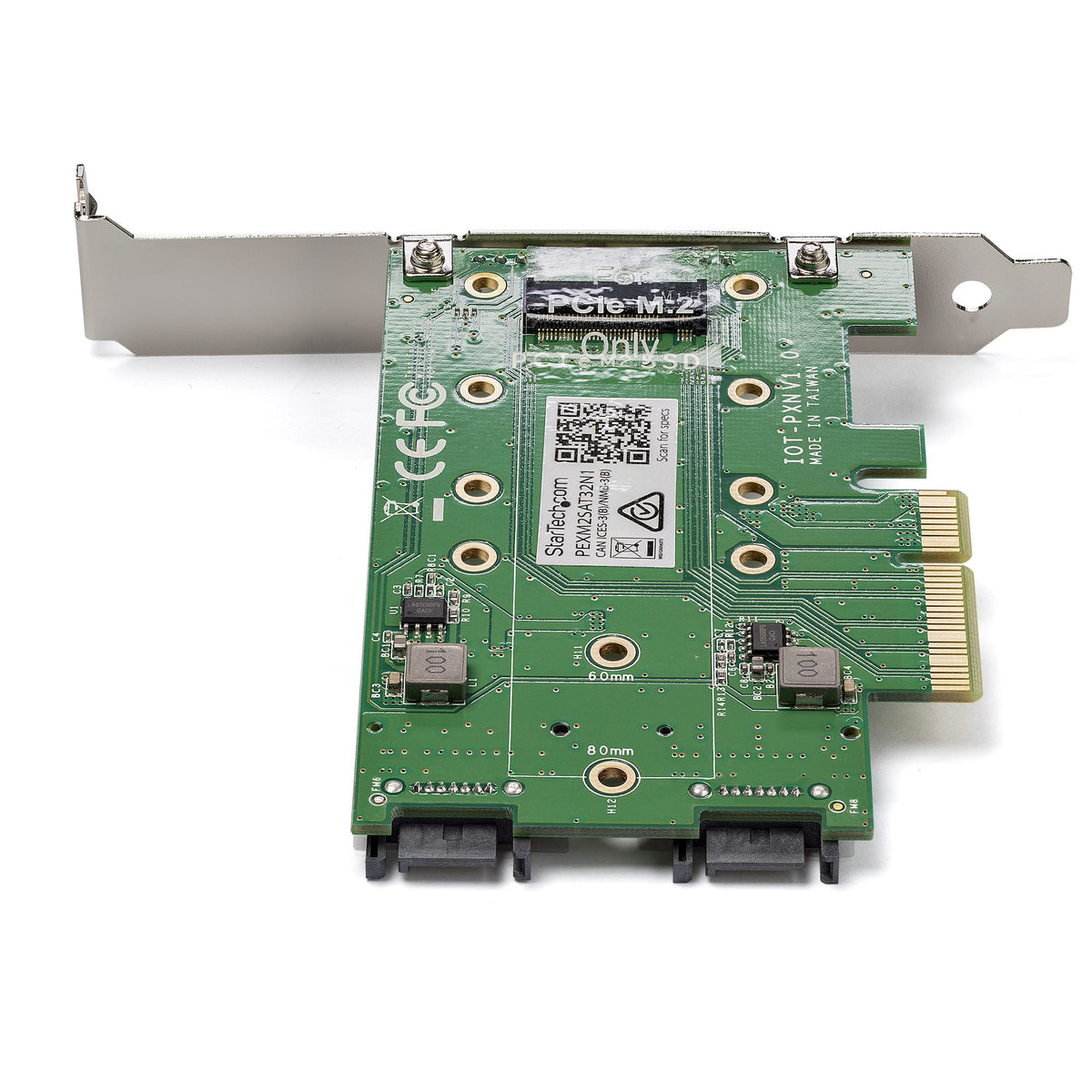

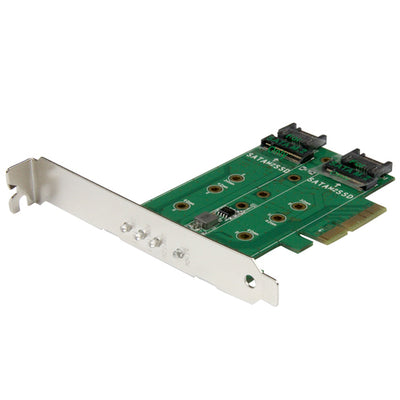

Product name:3-Port M.2 SSD (NGFF) Adapter Card - 1 x PCIe (NVMe) M.2, 2 x SATA III M.2 - PCIe 3.0 - TAA
Product code:PEXM2SAT32N1
EAN/UPC:
0065030865708
0065030865708, 065030865708
- INCREASED PRODUCTIVITY: The M.2 NVME card provides a platform for up to 3x M.2 SSDs (solid-state drives) to any computer that has a PCIe slot. It supports common M.2 SATA SSDs and newer high-performance M.2 PCIe drives

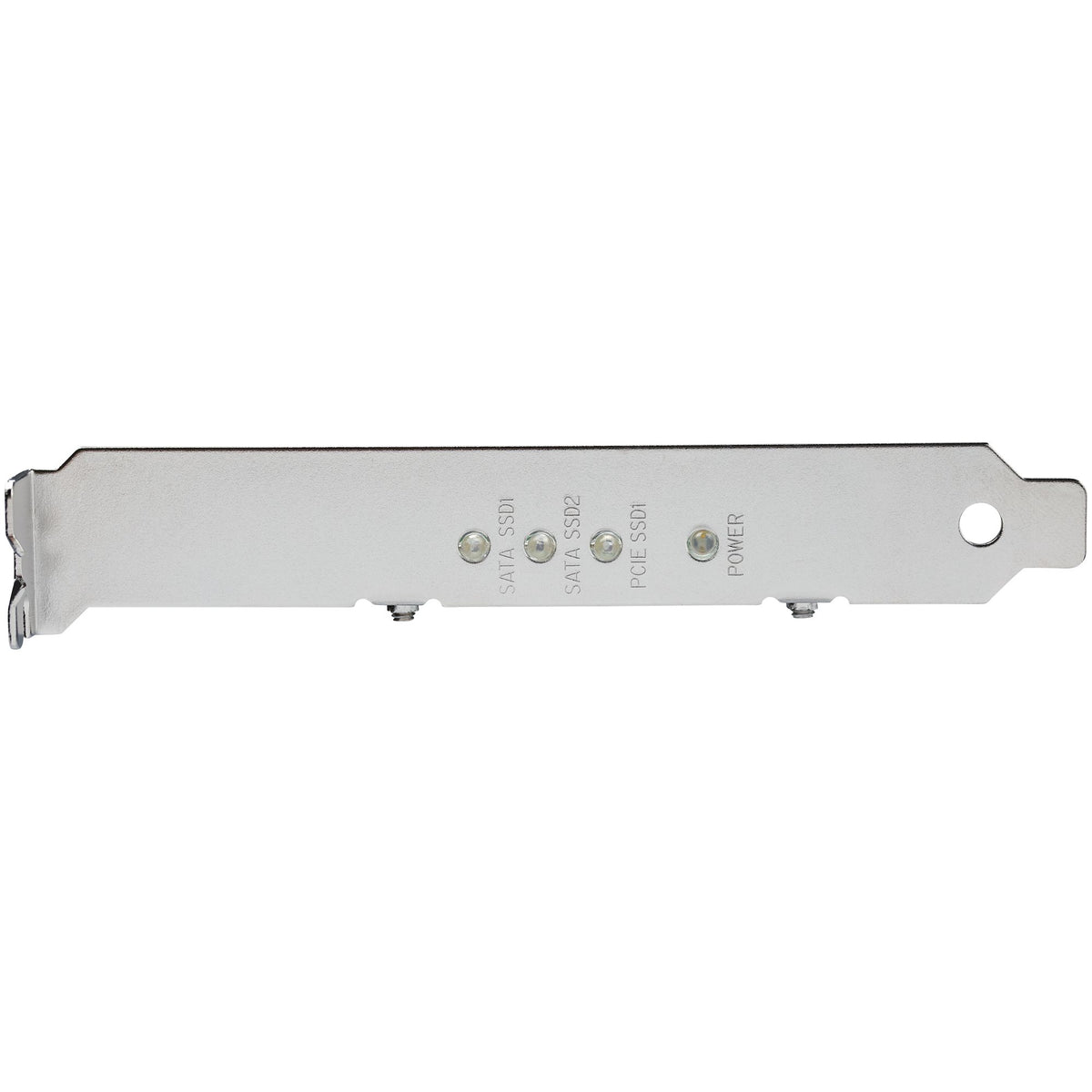

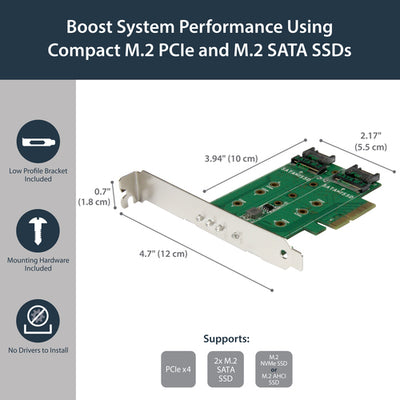

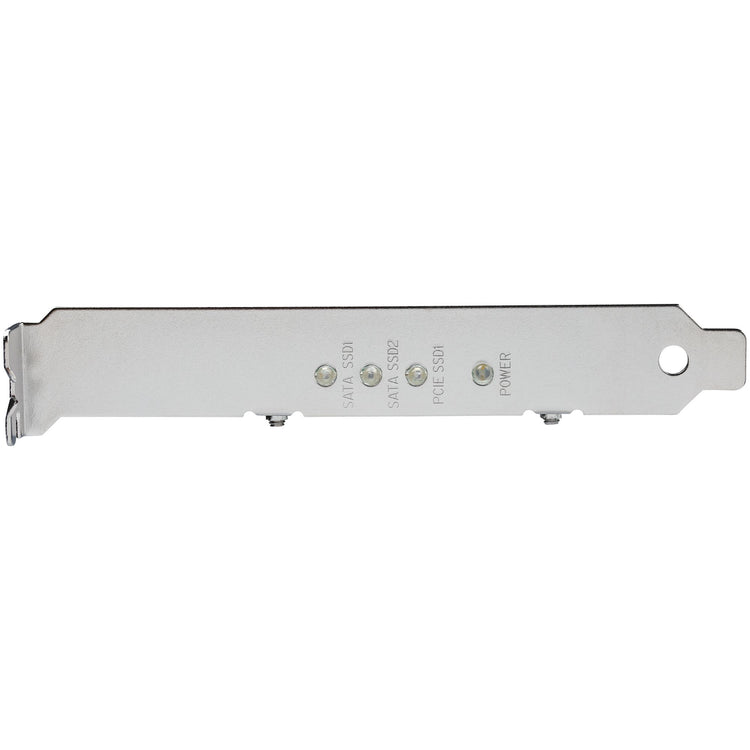

- BETTER PERFORMANCE: This 3-port PCIe M.2 adapter card works two M.2 SATA drives and a single NVMe M.2 drive with support for PCIe 3.0 x4 (40Gbps); Includes standard and low-profile brackets; Power and Activity LED Indicators
- MAXIMUM COMPATIBILITY: This PCIe M.2 adapter card features compatibility with M.2 SATA (B-Key) and M.2 NVMe (M-Key) drives; Supported drive sizes: 2280, 2260, 2242 and 2230; Compatible with PCIe x4 slot or greater
- HELPS WITH DATA RECOVERY: For your failed laptop with functioning M.2 drive, plug this M.2 SATA card to your desktop/workstation to recover your data; A pass-through SATA port connects to an additional drive for convenient data transfer or drive recovery
- THE IT PRO'S CHOICE: Designed and built for IT professionals, this TAA compliant 3-port PCIe M.2 adapter card is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
Description
Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card
This 3-port M.2 SSD adapter card is one of the only cards that supports both PCIe and SATA-based M.2 SSDs (solid-state drives). It’s a versatile way to expand the overall storage capacity of your desktop PC or server. Plus, because it supports a high-speed PCIe M.2 drive, you can increase the speed and performance of your computer.
Increase the storage of your desktop PC
If you need a simple and discreet way to expand your computer’s storage, then this card can help. The card provides a platform for adding up to three M.2 SSDs to virtually any computer that has a PCIe slot. It supports common M.2 SATA SSDs, as well as newer high-performance M.2 PCIe drives. Now, you have a simple and effective way to expand the storage of your computer, regardless of the M.2 drive types you are using.
Optimize your computer’s performance
When you couple this card with a PCI Express based M.2 drive, you can give your computer’s performance a noticeable speed boost. With support for PCI Express 3.0 (up to approximately 40Gbps), you can install the latest high-performance M.2 PCIe SSDs inside your computer. With faster performance, you can get more work done in less time.
Peace of mind, with simple and cost-effective data recovery
Due to their performance and size advantages, M.2 drives are commonly used in laptops. If your laptop has failed, but its M.2 drive is still functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes.
Leverage the size and speed of M.2 drives
This M.2 card lets you take advantage of the size and performance benefits of NGFF M.2 SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in small form-factor PCs and servers, or in tighter areas within your computer case.
Supports a wide range of drives

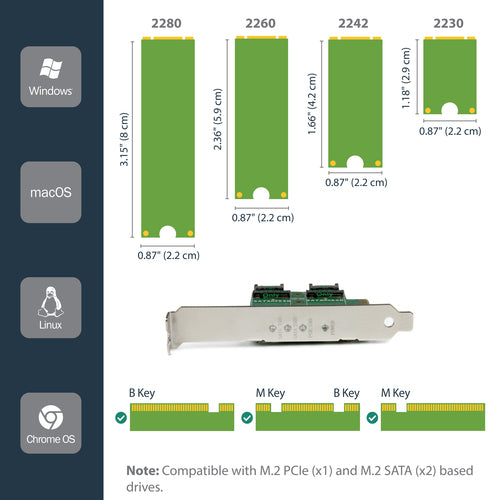

You can rest assured that your M.2 SSDs are compatible with the adapter card. It supports the most common drive sizes, including, 2280, 2260, 2242 and 2230.
The PEXM2SAT32N1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
This 3-port M.2 SSD adapter card is one of the only cards that supports both PCIe and SATA-based M.2 SSDs (solid-state drives). It’s a versatile way to expand the overall storage capacity of your desktop PC or server. Plus, because it supports a high-speed PCIe M.2 drive, you can increase the speed and performance of your computer.
Increase the storage of your desktop PC
If you need a simple and discreet way to expand your computer’s storage, then this card can help. The card provides a platform for adding up to three M.2 SSDs to virtually any computer that has a PCIe slot. It supports common M.2 SATA SSDs, as well as newer high-performance M.2 PCIe drives. Now, you have a simple and effective way to expand the storage of your computer, regardless of the M.2 drive types you are using.
Optimize your computer’s performance
When you couple this card with a PCI Express based M.2 drive, you can give your computer’s performance a noticeable speed boost. With support for PCI Express 3.0 (up to approximately 40Gbps), you can install the latest high-performance M.2 PCIe SSDs inside your computer. With faster performance, you can get more work done in less time.
Peace of mind, with simple and cost-effective data recovery
Due to their performance and size advantages, M.2 drives are commonly used in laptops. If your laptop has failed, but its M.2 drive is still functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes.
Leverage the size and speed of M.2 drives
This M.2 card lets you take advantage of the size and performance benefits of NGFF M.2 SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in small form-factor PCs and servers, or in tighter areas within your computer case.
Supports a wide range of drives
You can rest assured that your M.2 SSDs are compatible with the adapter card. It supports the most common drive sizes, including, 2280, 2260, 2242 and 2230.
The PEXM2SAT32N1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specs
Ports & interfaces
Host interface
Interface that enables a host controller to communicate with a driver.
PCIe
Output interface
The socket (port) where the output connectors are connected.
M.2, SATA
Expansion card form factor
Full-height / Low-profile
Expansion card standard
PCIe 3.0
SATA revision
3.0
Internal SATA ports quantity
2
Port multiplier
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Weight & dimensions

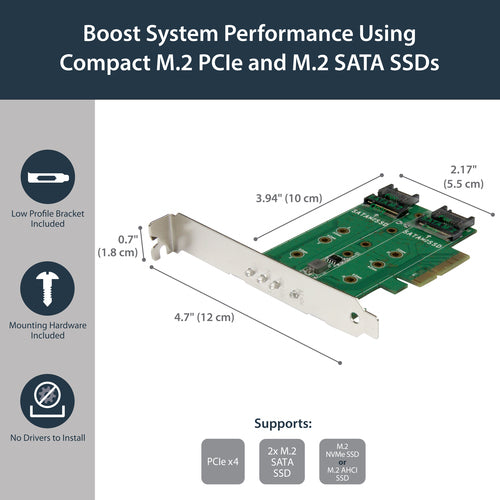

Width
The measurement or extent of something from side to side.
20 mm
Depth
The distance from the front to the back of something.
120 mm
Height
The measurement of the product from head to foot or from base to top.
120 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
65 g
Logistics data
Harmonized System (HS) code
84733020
Quantity per master (outer) case
100 pc(s)
Master (outer) case width
485 mm
Master (outer) case length
551 mm
Master (outer) case height
335 mm
Design
Internal
The product is built in.
LED indicators
Yes
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
50000 h
Certification
CE, FCC, TAA, REACH
Features
Data transfer rate (max)
6 Gbit/s
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
5 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-25 - 70 °C
Operating relative humidity (H-H)
20 - 80%

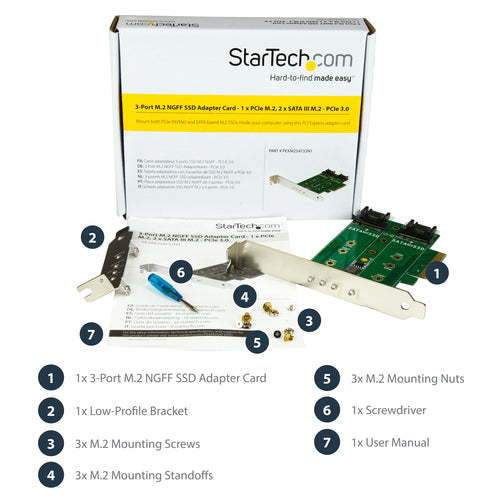

Packaging data

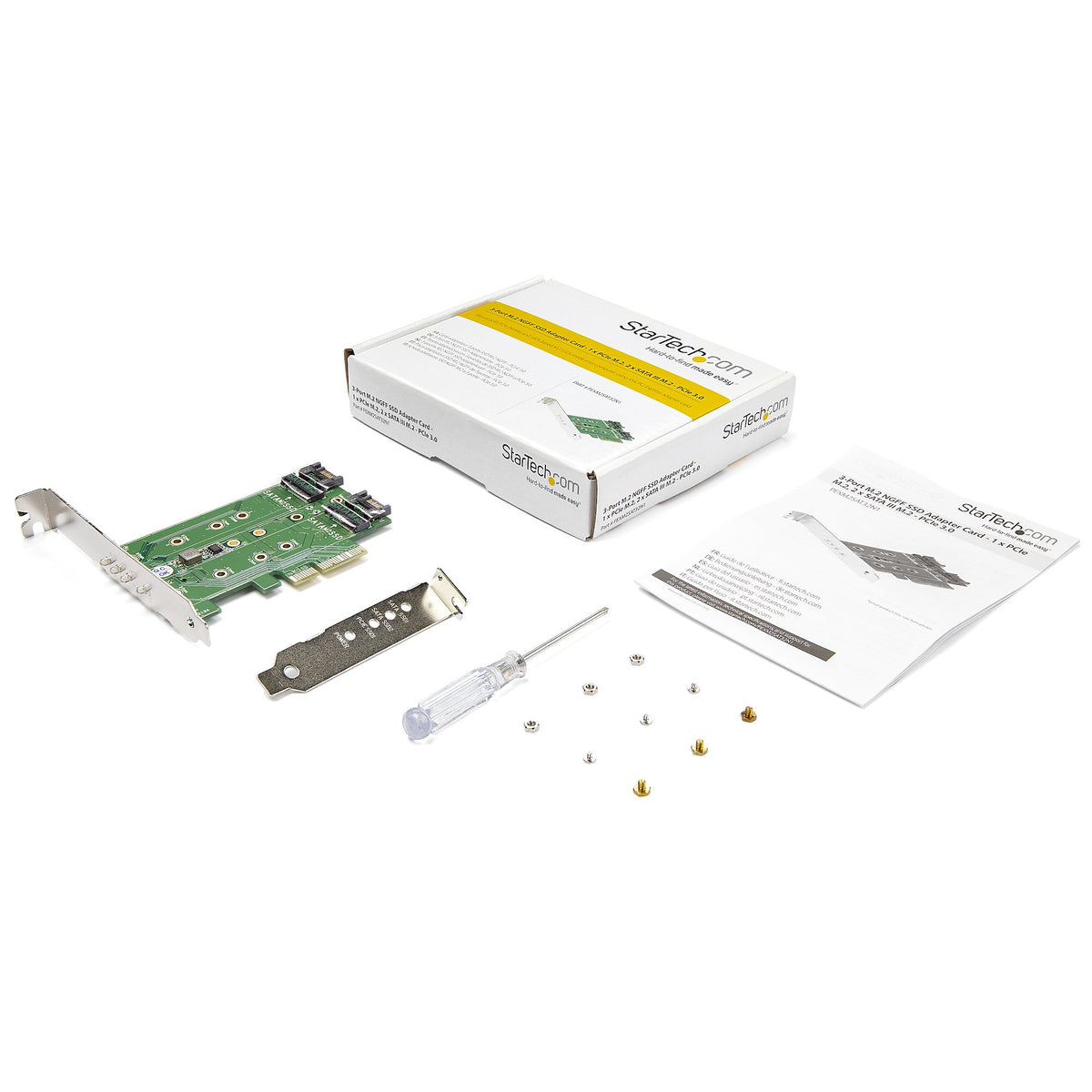

Mounting brackets included
Screws included
Quick installation guide
Package width
The distance from one side of the packaging to the other.
129 mm
Package depth
The distance from the front to the back of the packaging.
162 mm
Package height
The distance from the top to the bottom of the packaging.
33 mm
Package weight
Weight of the packaged product in gram.
127 g
