STARTECH .com interface cards/adapter Internal IEEE 1394/Firewire (PCI1394MP)
- Regular price
- 41.95$
- Sale price
- 41.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

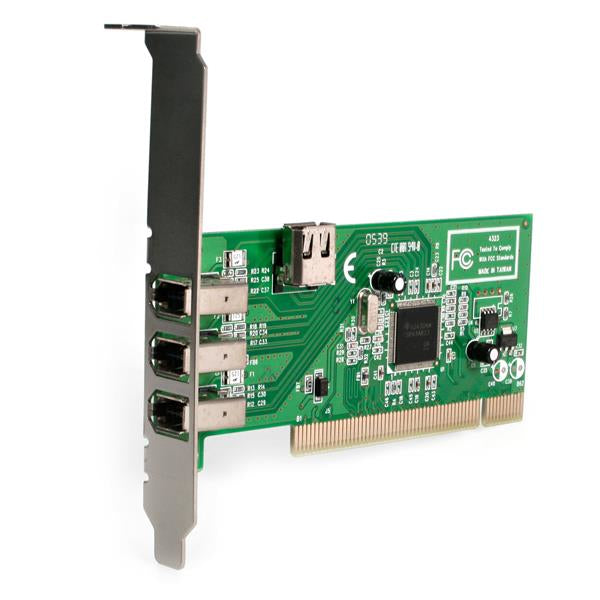

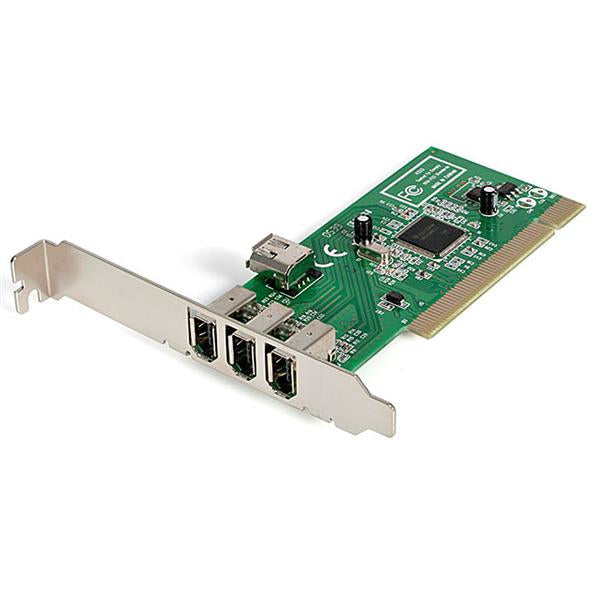

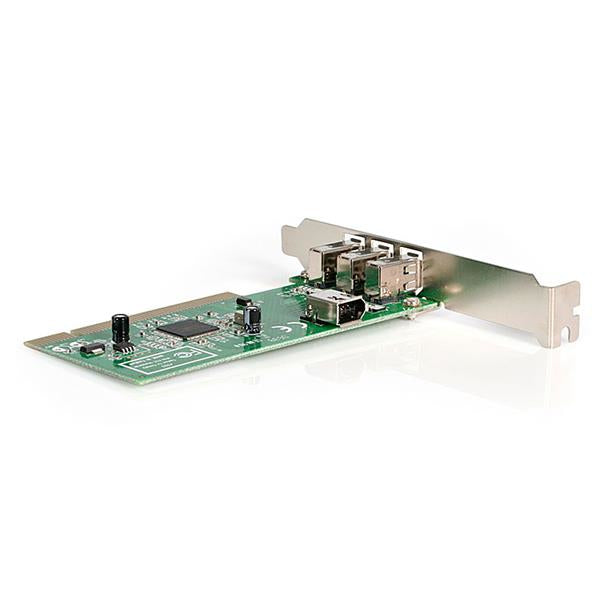

StarTech.com PCI1394MP interface cards/adapter Internal IEEE 1394/Firewire
Brand:StarTech.com
Product name:4 port PCI 1394a FireWire Adapter Card - 3 External 1 Internal - TAA
Product code:PCI1394MP
EAN/UPC:
0065030789950
0065030789950, 065030789950, 5054629071779

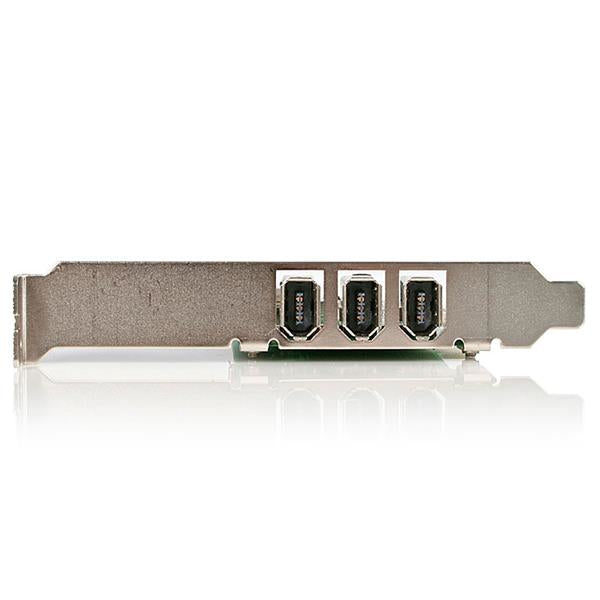

- 3 external, 1 shared internal FireWire400 port, with supported data transfer rates up to 400 Mbps
- Compliant with IEEE 1394a - 2000 as well as 1394-1995 standards

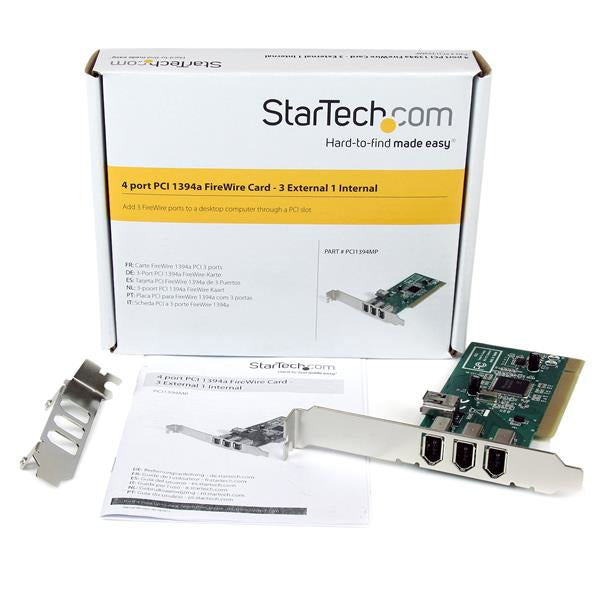

- Includes Low Profile installation bracket
- Plug-and-Play and hot-swap compatible
Description
Add 4 FireWire ports to a desktop computer through a PCI slot
This 4 Port (3 External/1 Internal) PCI 1394 FireWire Adapter Card lets you connect iPods, MP3 players, portable drives, digital camcorders and more to your desktop computer.
The FireWire adapter card supports hot-swapping, so you’ll be able to plug, unplug, and swap your FireWire peripherals with ease.
Guaranteed to work with both PCs and Macs, the 4 port PCI FireWire Adapter Card is backed by StarTech.com’s Lifetime Warranty and FREE LIFETIME tech support. Plus, the adapter provides both standard profile and low profile/half-height brackets for adapting to slimline or small form factor system applications.
Please Note: If you require digital video editing software, StarTech.com offers a complete FireWire kit with our PCI1394_4 card. This software is compatible with Windows operating systems only.
WHQL Certified - Designed to work with Microsoft Windows XP
This 4 Port (3 External/1 Internal) PCI 1394 FireWire Adapter Card lets you connect iPods, MP3 players, portable drives, digital camcorders and more to your desktop computer.
The FireWire adapter card supports hot-swapping, so you’ll be able to plug, unplug, and swap your FireWire peripherals with ease.
Guaranteed to work with both PCs and Macs, the 4 port PCI FireWire Adapter Card is backed by StarTech.com’s Lifetime Warranty and FREE LIFETIME tech support. Plus, the adapter provides both standard profile and low profile/half-height brackets for adapting to slimline or small form factor system applications.
Please Note: If you require digital video editing software, StarTech.com offers a complete FireWire kit with our PCI1394_4 card. This software is compatible with Windows operating systems only.
WHQL Certified - Designed to work with Microsoft Windows XP
Specs
Ports & interfaces
Host interface
Interface that enables a host controller to communicate with a driver.
PCI
Output interface
The socket (port) where the output connectors are connected.
IEEE 1394/Firewire
Firewire (IEEE 1394) ports
Number of IEEE 1394/FireWire ports (connecting interfaces) in the device. The IEEE 1394 interface is a serial bus interface standard for high-speed communications and isochronous real-time data transfer. It was developed in the late 1980s and early 1990s by Apple, who called it FireWire. The 1394 interface is comparable to USB though USB has more market share. Apple first included FireWire in some of its 1999 models, and most Apple computers since the year 2000 have included FireWire ports, though, as of 2013, only the 800 version (IEEE-1394b).
3
Internal FireWire ports quantity
1
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2019
Packaging data
Mounting brackets included
Manual
Package width
The distance from one side of the packaging to the other.
143 mm
Package depth
The distance from the front to the back of the packaging.
174 mm
Package height
The distance from the top to the bottom of the packaging.
32 mm
Package weight
Weight of the packaged product in gram.
122 g
Other features
Compliance industry standards
List of characteristics that describe methods of compliance to industry-defined standards for the product
IEEE 1394a, OHCI, PCI 2.1
Design
Internal
The product is built in.
Product color
The colour e.g. red, blue, green, black, white.
Green, Metallic
Certification
CE, UL, FCC, REACH, TAA, Microsoft WHQL Certified
Features
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Texas Instruments - TSB12LV26
Data transfer rate (max)
0,4 Gbit/s
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Weight & dimensions
Width
The measurement or extent of something from side to side.
18 mm
Depth
The distance from the front to the back of something.
123 mm
Height
The measurement of the product from head to foot or from base to top.
80 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
53 g
Logistics data
Harmonized System (HS) code
84733020
Quantity per master (outer) case
75 pc(s)
Master (outer) case width
352 mm
Master (outer) case length
686 mm
Master (outer) case height
318 mm
