STARTECH .com interface cards/adapter Internal Firewire 800 / 400 (PEX1394B3)
- Regular price
- 104.95$
- Sale price
- 104.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

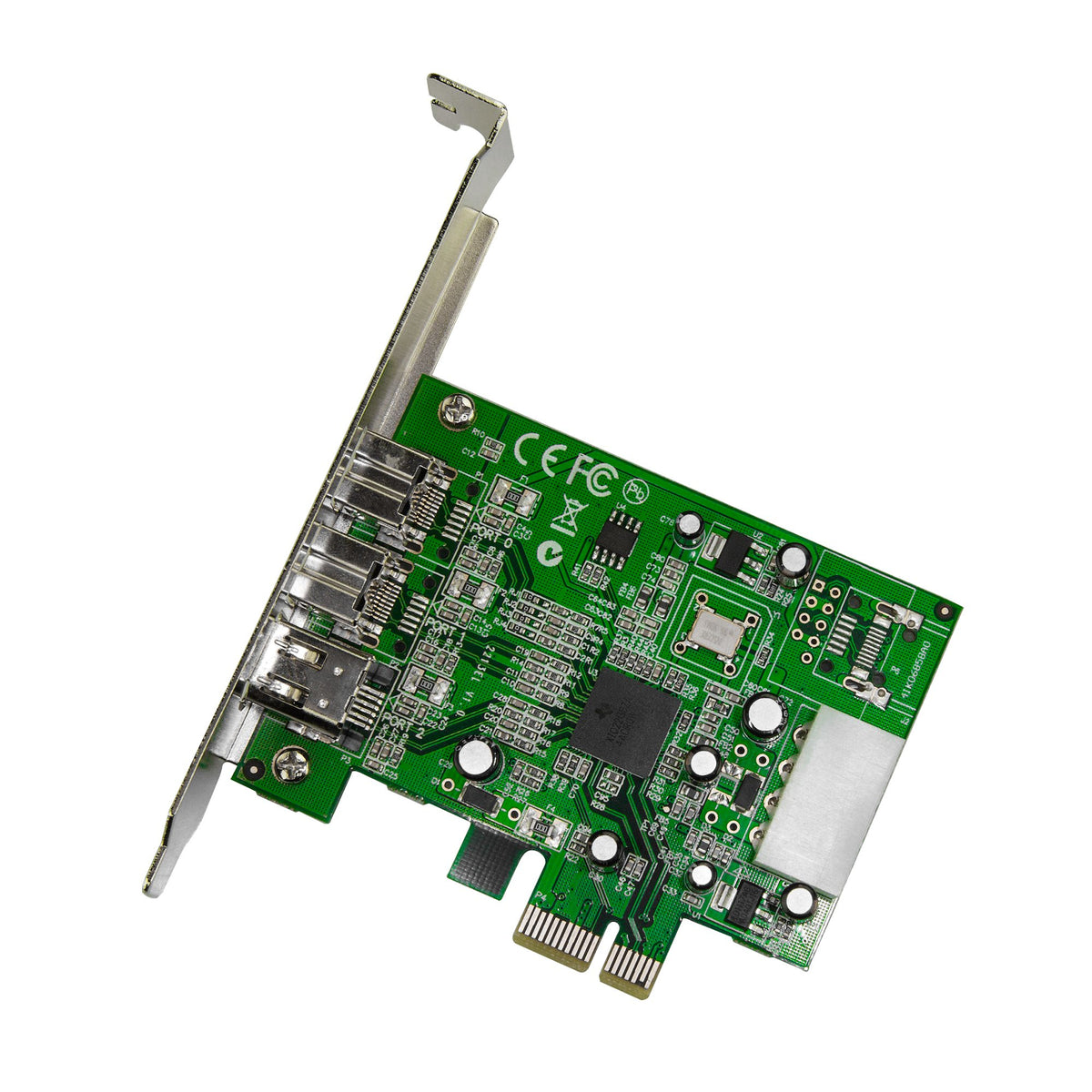

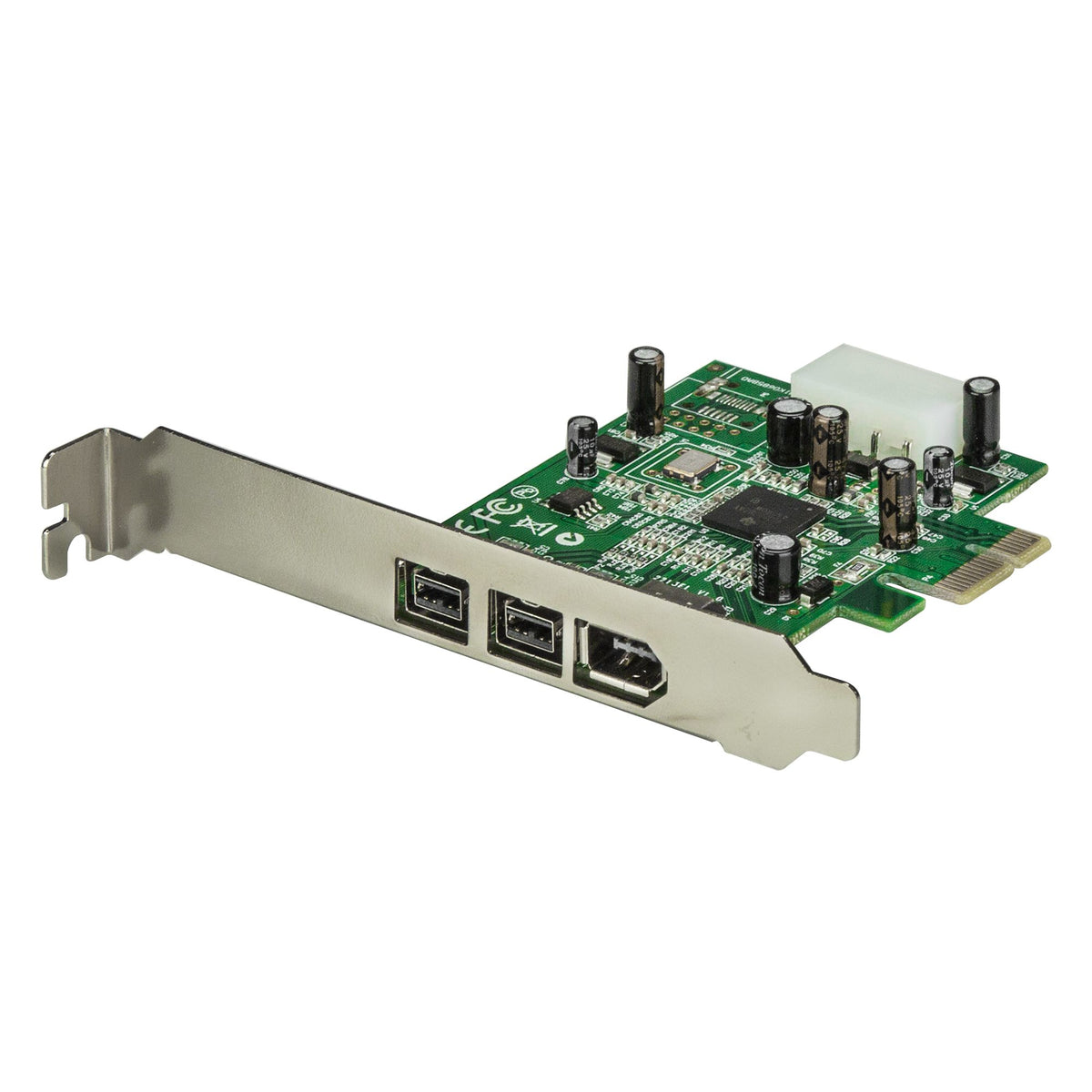

StarTech.com PEX1394B3 interface cards/adapter Internal Firewire 800 / 400
Brand:StarTech.com
Product name:3 Port 2b 1a 1394 PCI Express FireWire Card Adapter
Product code:PEX1394B3
EAN/UPC:
0065030825139
0065030825139, 065030825139, 7887117188363
Description
Add 2 native FireWire 800 ports to your computer through a PCI Express expansion slot

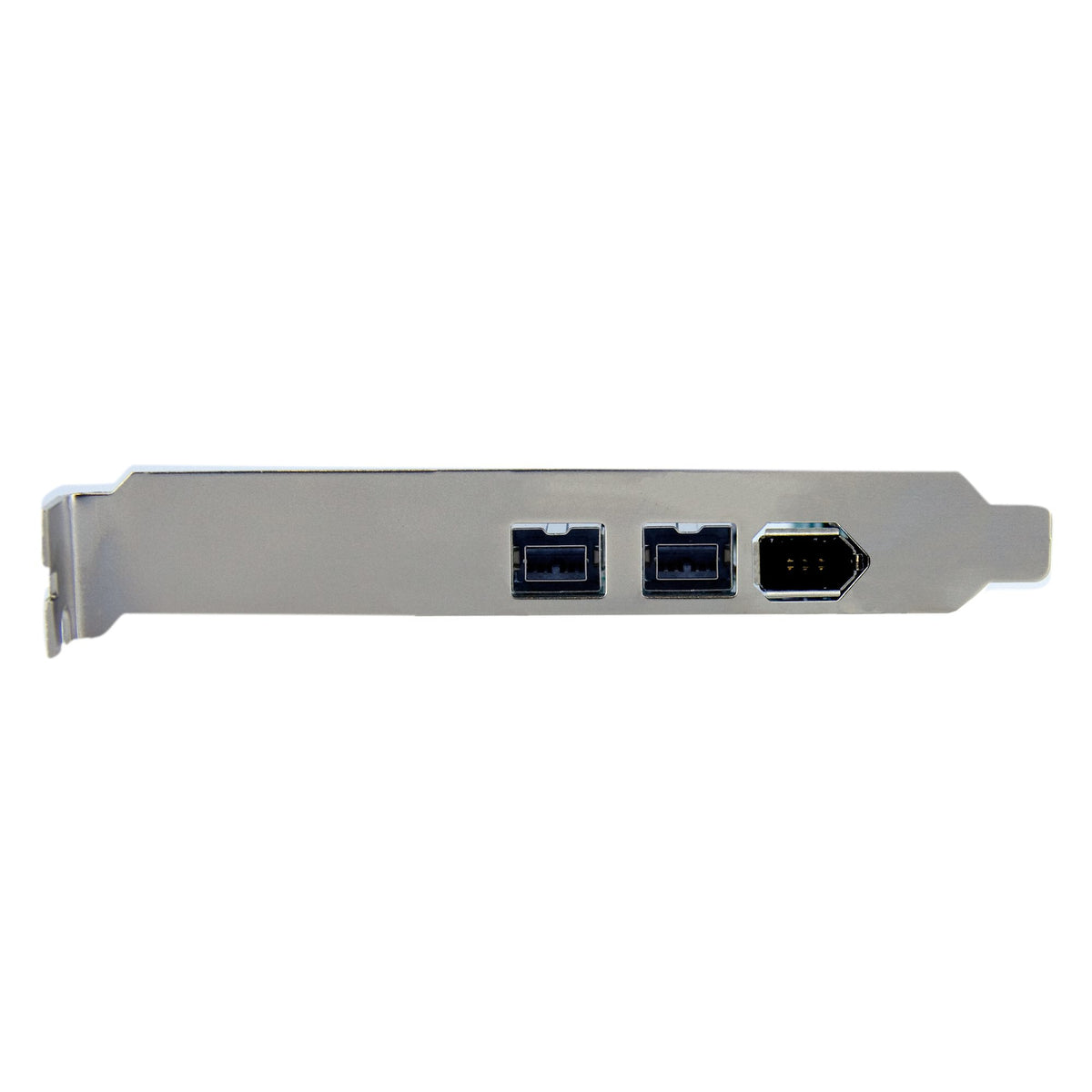

This 3 Port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2b, 1a card features a native (single chip) PCI Express chipset - resulting in faster, more reliable and cost effective performance than expansion cards that utilize a "bridge" chip.
The StarTech.com Advantage
This 3 Port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2b, 1a card features a native (single chip) PCI Express chipset - resulting in faster, more reliable and cost effective performance than expansion cards that utilize a "bridge" chip.
The StarTech.com Advantage
Specs
Ports & interfaces
Host interface
Interface that enables a host controller to communicate with a driver.
PCIe
Output interface
The socket (port) where the output connectors are connected.
Firewire 800 / 400
Expansion card standard
PCIe 1.1
FireWire 400 ports quantity
1
FireWire 800 ports quantity
2
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
Packaging data

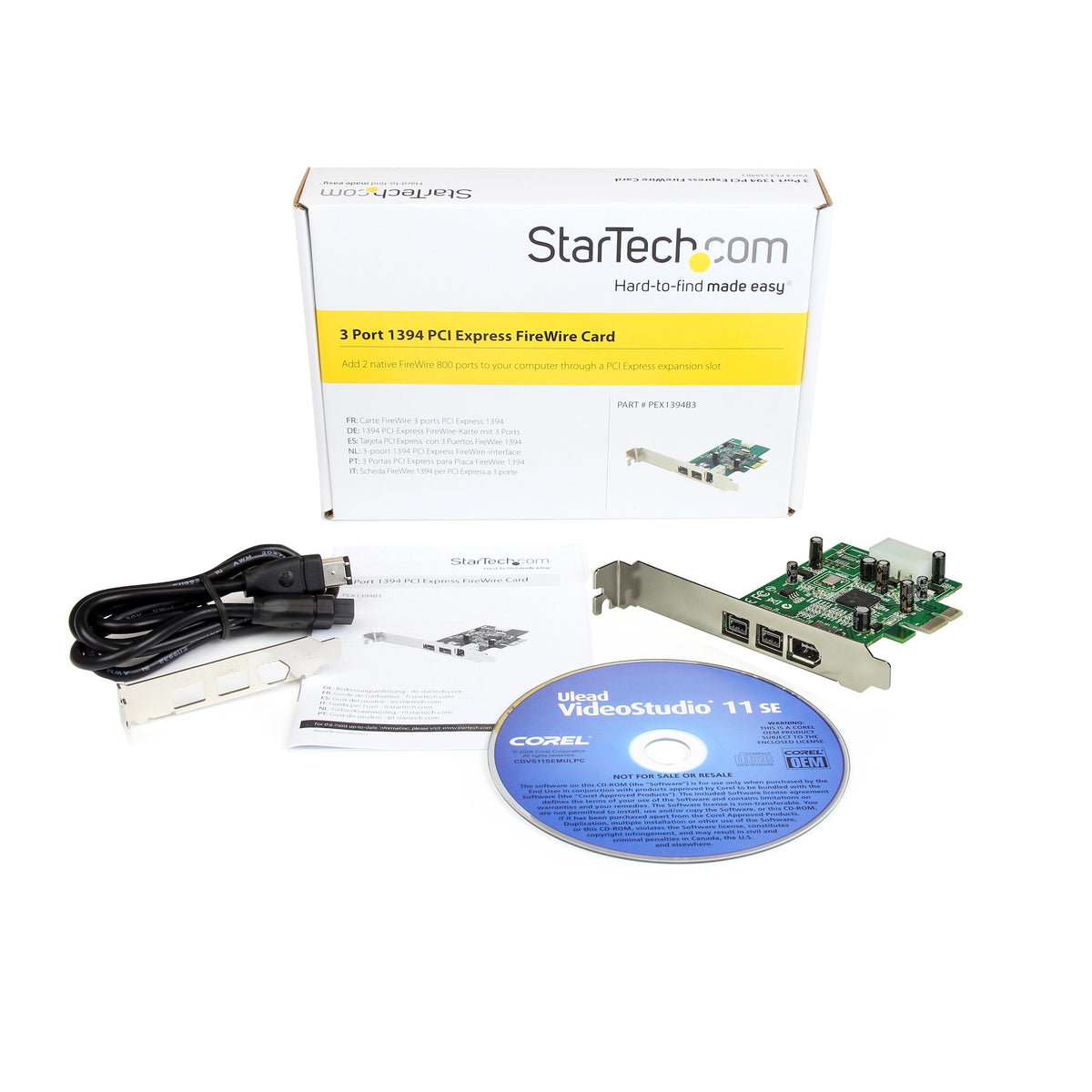

Cables included
FireWire
Mounting brackets included
Drivers included
Manual
Package width
The distance from one side of the packaging to the other.
148 mm
Package depth
The distance from the front to the back of the packaging.
213 mm
Package height
The distance from the top to the bottom of the packaging.
41 mm
Package weight
Weight of the packaged product in gram.
212 g
Design
Internal
The product is built in.
Product color
The colour e.g. red, blue, green, black, white.
Green
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
149905 h
Features
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Texas Instruments - XIO2213B
Data transfer rate (max)
0,8 Gbit/s
Technical details
Sustainability compliance
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
Weight & dimensions
Width
The measurement or extent of something from side to side.
18 mm
Depth
The distance from the front to the back of something.
85 mm
Height
The measurement of the product from head to foot or from base to top.
120 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
48 g
Logistics data
Harmonized System (HS) code
84733020
Quantity per master (outer) case
50 pc(s)
Master (outer) case width
355 mm
Master (outer) case length
681 mm
Master (outer) case height
317 mm
