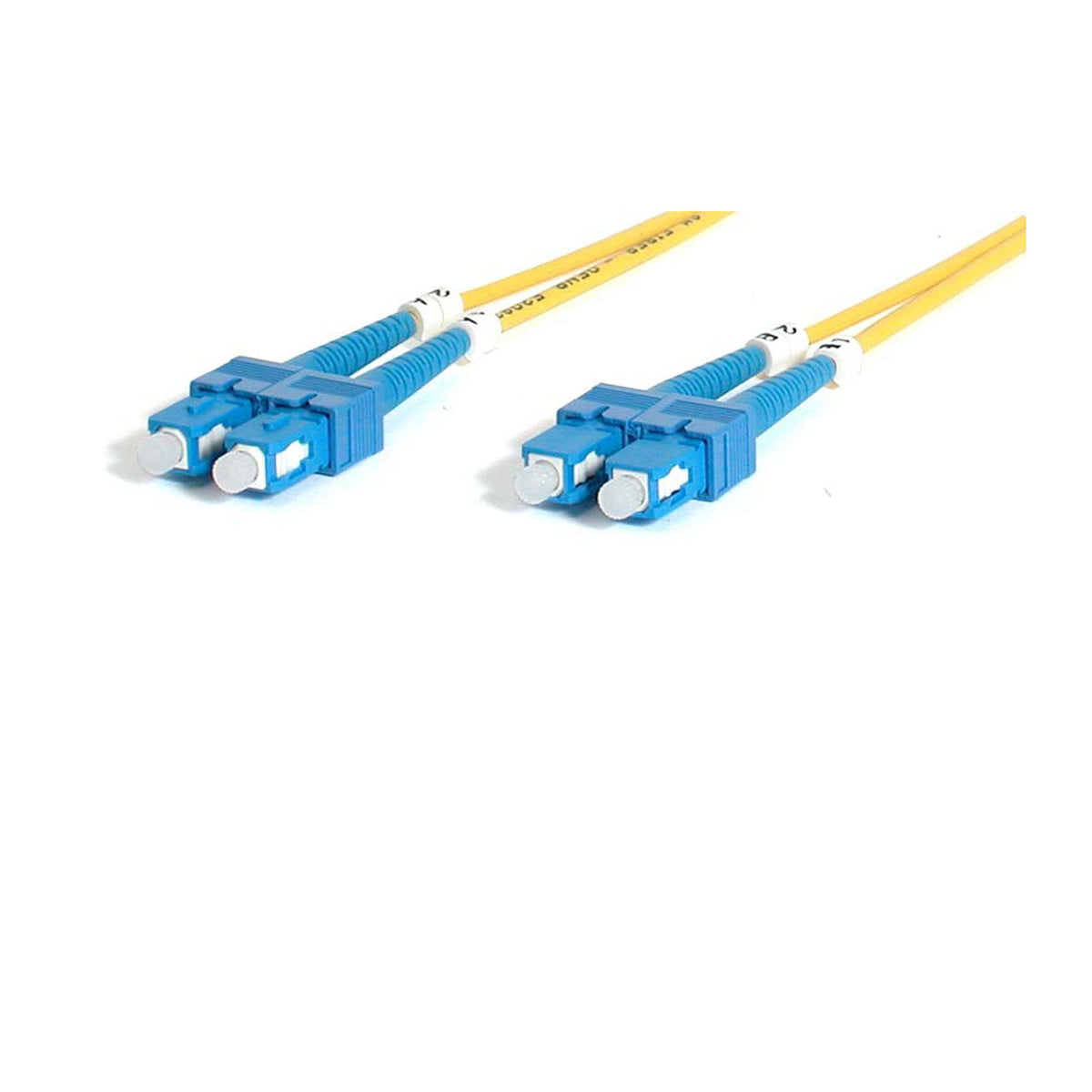

STARTECH .com InfiniBand/fibre optic cable 2 m SC Yellow (SMFIBSCSC2)
- Regular price
- 7.95$
- Sale price
- 7.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
StarTech.com SMFIBSCSC2 InfiniBand/fibre optic cable 2 m SC Yellow
Brand:StarTech.com
Product name:Fiber Optic Cable - Single-Mode Duplex 9/125 - LSZH - SC/SC - 2 m
Product code:SMFIBSCSC2
EAN/UPC:
0065030788281
0065030788281, 065030788281
- OS1 (9/125)
- LSZH (Low-Smoke, Zero-Halogen) cable jacket
- Attenuation loss meets or exceeds industry standards
- Molded connectors
Description
Connect fiber network devices for high-speed transfers with LSZH rated cable
The SMFIBSCSC2 2m SC to SC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.
This SC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire - an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
The SMFIBSCSC2 2m SC to SC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.
This SC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire - an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
Specs
Features
Cable length
How long the cable is.
2 m
Fiber optic type
The standardised properties of the fiber optic cable.
OS1
Connector 1
This is the first connector in the device.
SC
Connector 2
This is the second connector in the device.
SC
Connector 1 gender
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2 gender
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
Male
Product color
The colour e.g. red, blue, green, black, white.
Yellow
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Core diameter
The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.
9 µm
Cladding diameter
The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.
125 µm
Fiber mode structure
Single-mode
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
100 Gbit/s
Jacket material
Low smoke zero halogen (LSZH)
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-20 - 60 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Packaging data
Package width
The distance from one side of the packaging to the other.
198 mm
Package depth
The distance from the front to the back of the packaging.
153 mm
Package height
The distance from the top to the bottom of the packaging.
28 mm
Package weight
Weight of the packaged product in gram.
50 g
Logistics data
Master (outer) case width
350 mm
Harmonized System (HS) code
85447000
Master (outer) case length
245 mm
Master (outer) case height
170 mm
Quantity per master (outer) case
240 pc(s)
