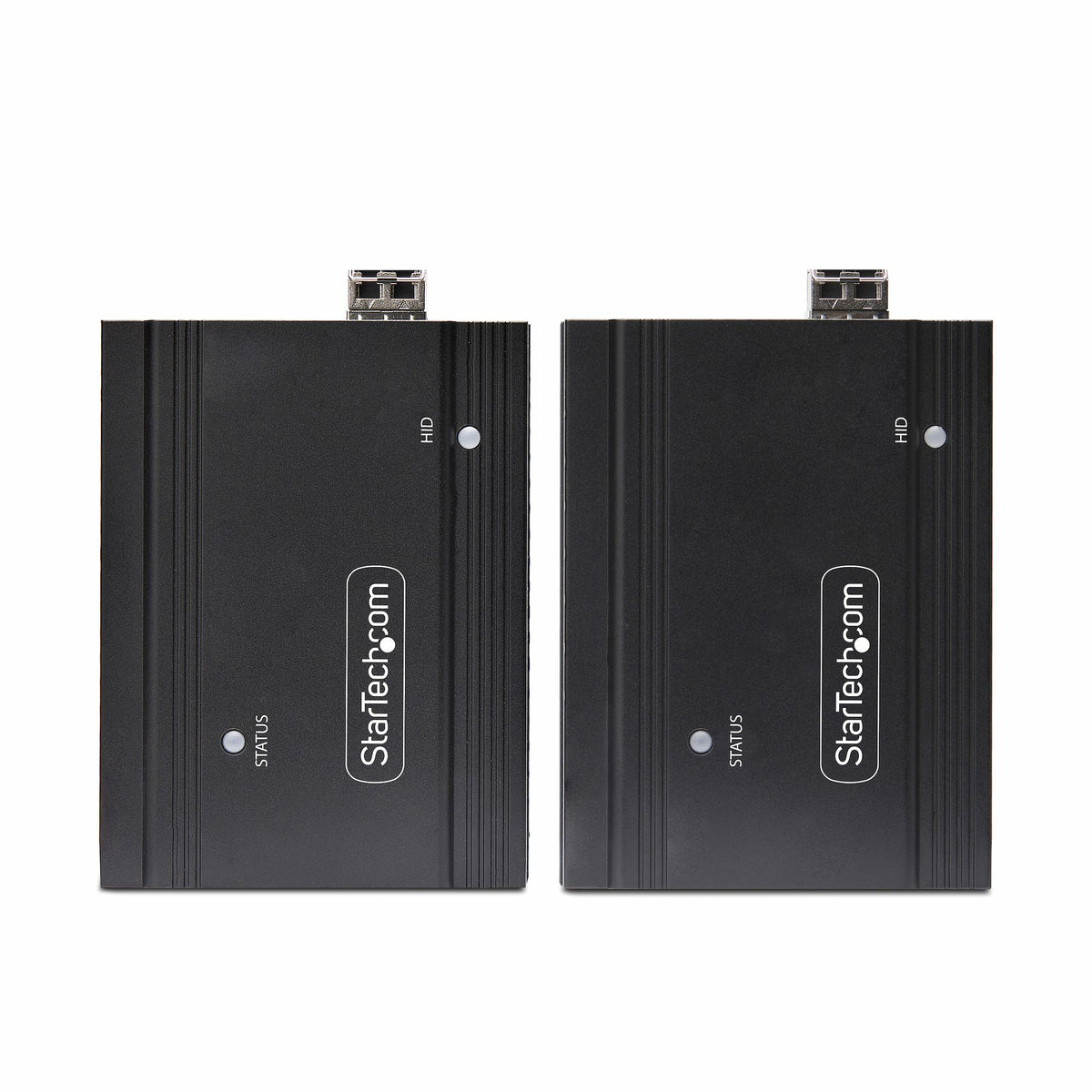

STARTECH .com FD121-KVM-EXTENDER KVM extender Transmitter & receiver (USB2EPR13F)
- Regular price
- 25.95$
- Sale price
- 25.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
StarTech.com FD121-KVM-EXTENDER KVM extender Transmitter & receiver
Brand:StarTech.com
Product name:DisplayPort KVM Extender over Fiber Optic, 4K 60Hz, Console Extender Kit, Up to 984ft/300m (Multi-mode) with Pre-installed SFP+ Modules, 3x USB HID - TAA
Product code:FD121-KVM-EXTENDER
EAN/UPC:
0065030901123
0065030901123, 065030901123
- FIBER OPTIC KVM EXTENDER: Control a KVM switch, console, or PC at a distance of up to 984ft (300m) away over multi-mode cabling using pre-installed SFP+ modules; Supports single-mode SFP+ modules (sold separately) to extend the range up to 1,640ft (500m)
- 4K 60HZ DISPLAYPORT VIDEO: Transmitter and receiver extension kit supports UHD resolutions up to 3840x2160 60Hz (4:4:4); EDID pass-through ensures optimal signal quality and compatibility by providing real-time display information; DP 1.2 compliant
- UNIVERSAL COMPATIBILITY: No drivers or software required and works with any operating system including Windows, macOS, and Linux; Point-to-point fiber connection means no network settings to configure or manage; SFP+ slots support MSA-compliant modules
- USB PERIPHERAL PORTS: USB HID ports allow users to connect a variety of peripherals, including mice, keyboards, or other input devices; Ideal for remote device control, flexible workstation setups, and collaborative multimedia environments
- DURABLE DESIGN: Durable steel housing and fiber extension method help prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the extender; Sturdy construction makes it ideal for installation in a variety of environments
Description
Control a DisplayPort-equipped computer or KVM switch up to 300m (985ft) away over fiber-optic cable

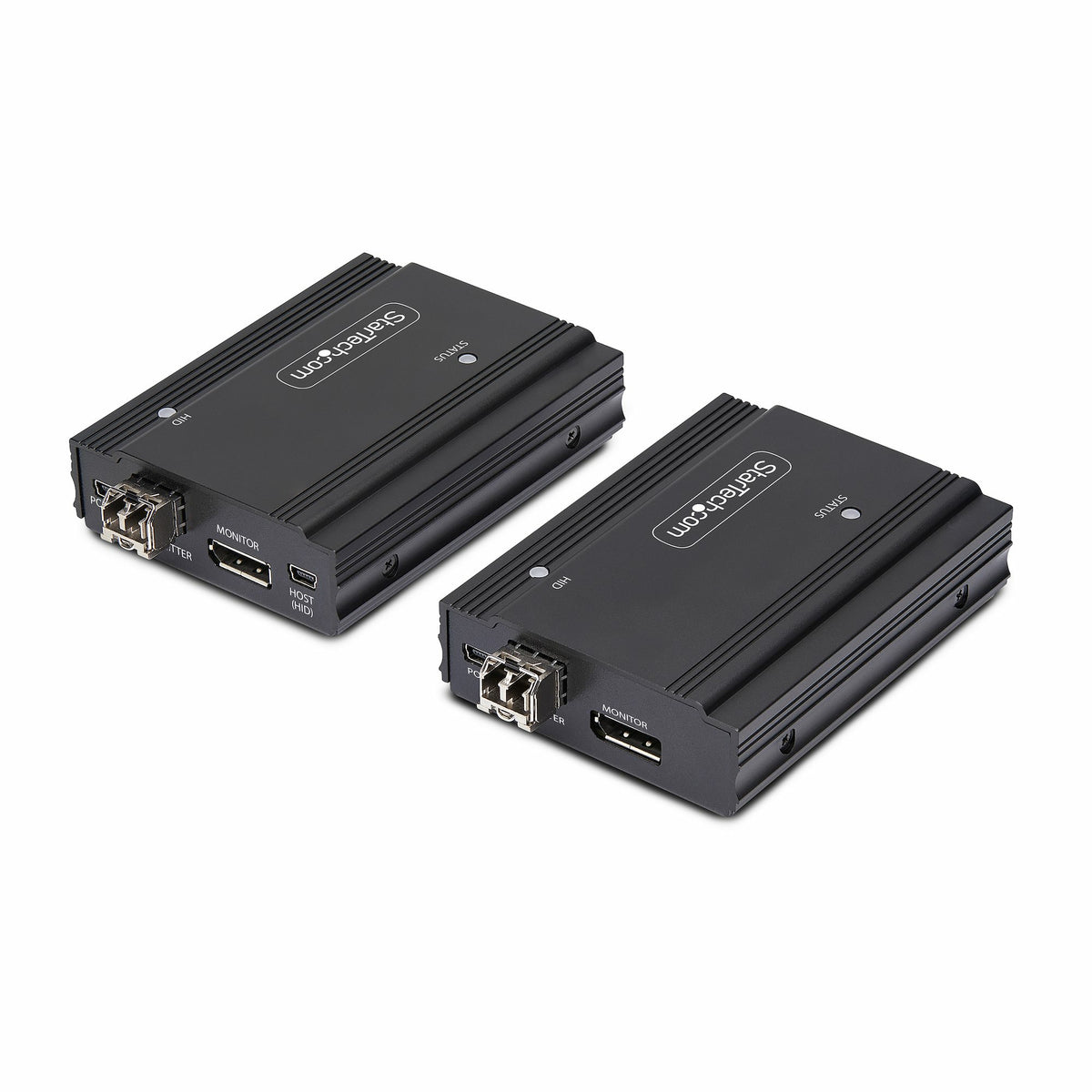

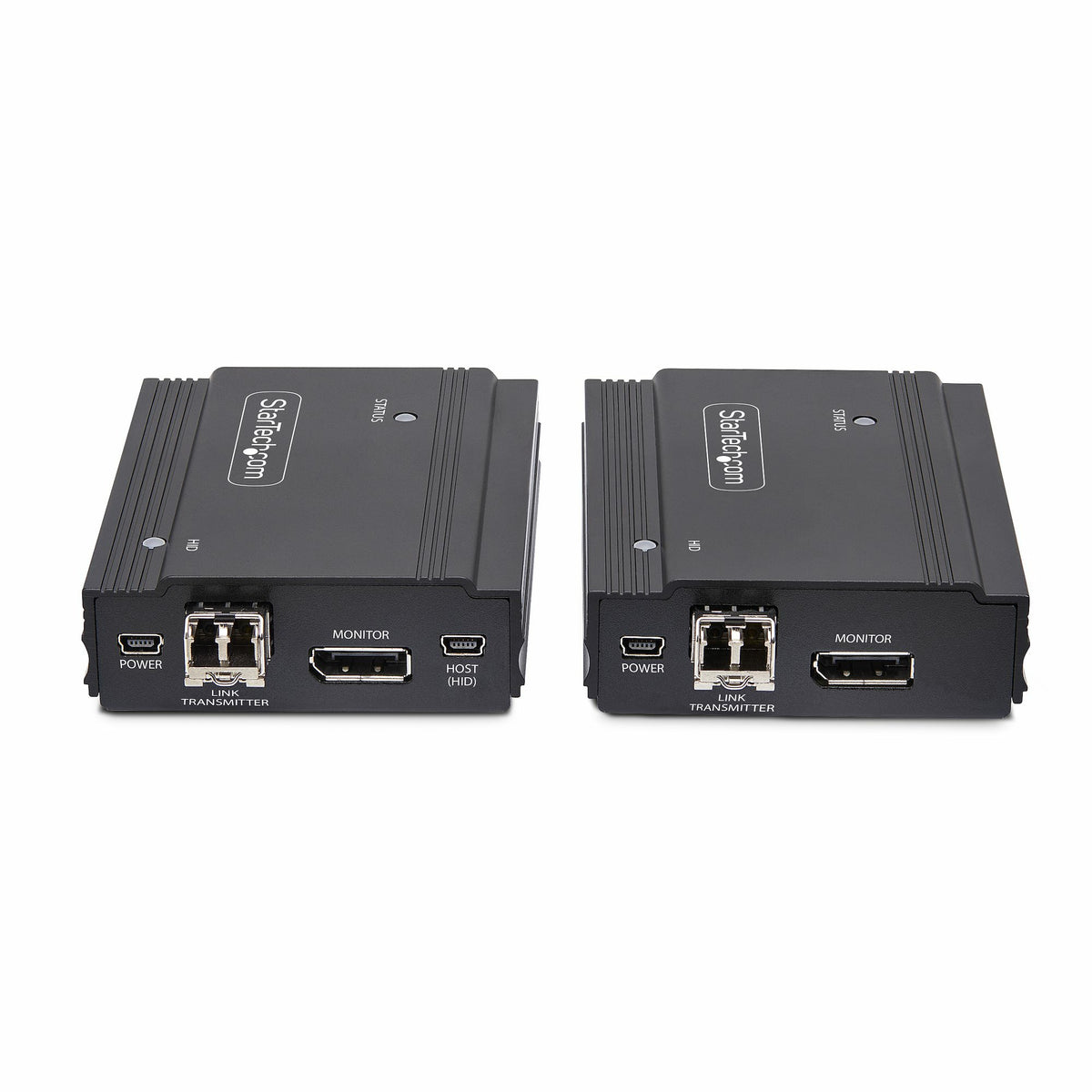

The Fiber Optic KVM Extender allows for control of a KVM switch, console, or PC from a distance of up to 984ft (300m).
4K 60Hz DisplayPort Video
The transmitter/receiver kit extends 4K 60Hz DisplayPort video, supporting UHD resolutions up to 3840x2160 at 60Hz (4:4:4). It is DP 1.2 compliant and includes EDID pass-through for real-time display information, ensuring optimal signal quality and compatibility.
Universal Compatibility
The KVM Console Extender does not require any drivers or software for installation. The point-to-point fiber connection eliminates the need for configuring or managing network settings. The extender is compatible with all operating systems, including Windows, macOS, and Linux. The SFP+ slots support both single and multi-mode MSA-compliant modules.
Built-In USB Hub

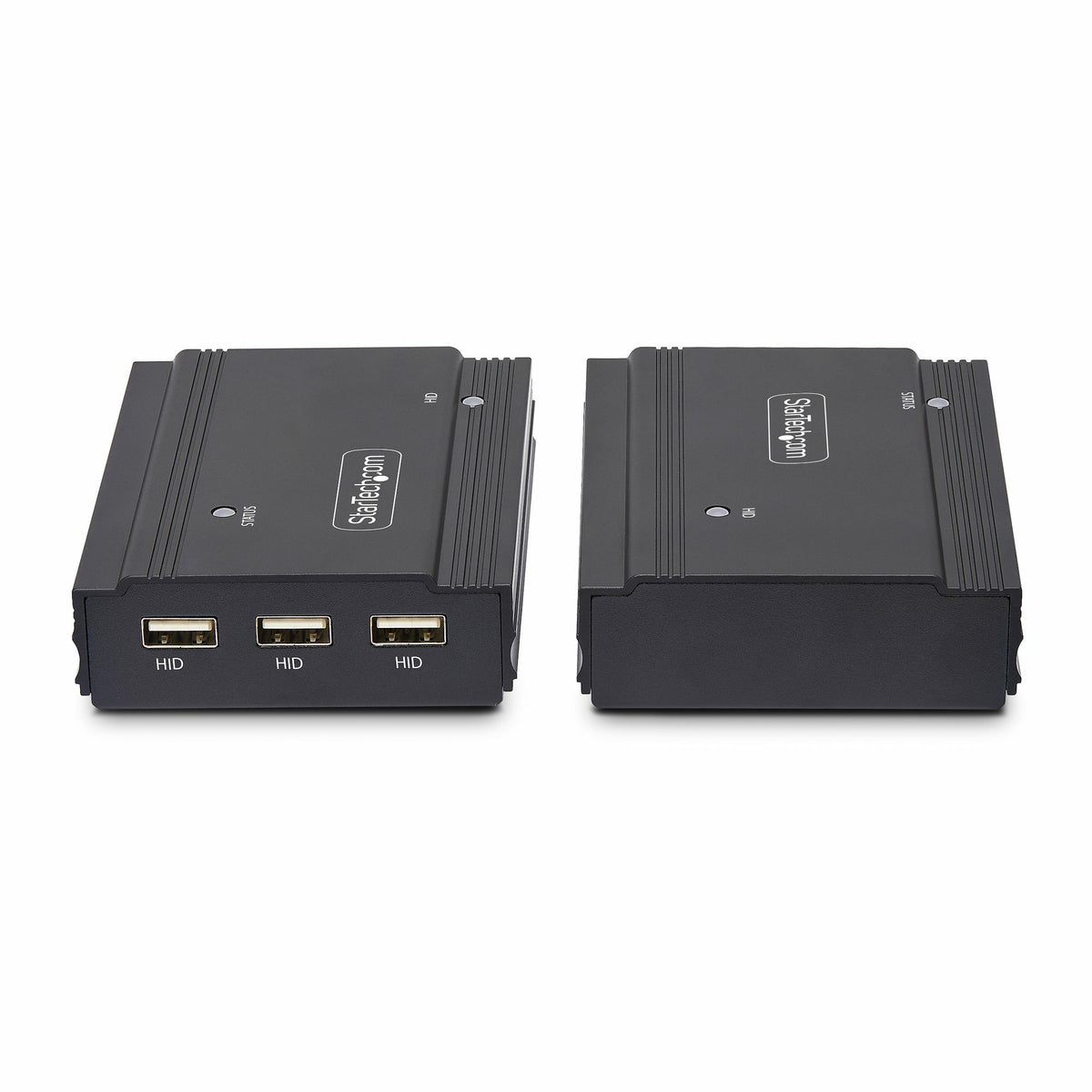

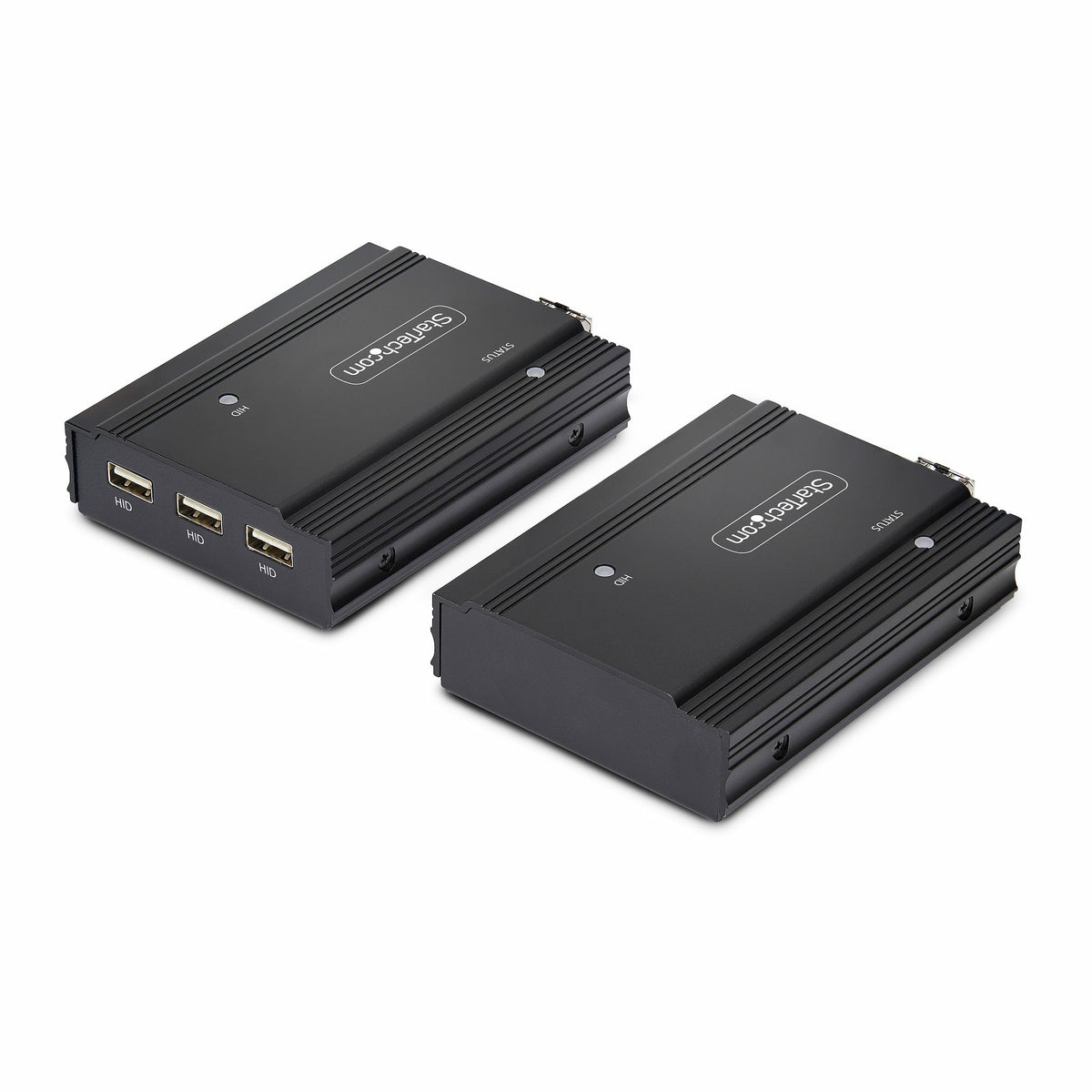

Three USB ports allow users to connect peripherals such as a mouse and keyboard, ideal for remote control of source devices, flexible workstation setups, and collaborative multimedia environments.
Durable Design
The extender has a sturdy steel chassis and uses fiber-optic extension to reduce electromagnetic interference (EMI), improving stability and ensuring long-term reliability. Its rugged design makes it suitable for installation in various environments.
The Fiber Optic KVM Extender allows for control of a KVM switch, console, or PC from a distance of up to 984ft (300m).
4K 60Hz DisplayPort Video
The transmitter/receiver kit extends 4K 60Hz DisplayPort video, supporting UHD resolutions up to 3840x2160 at 60Hz (4:4:4). It is DP 1.2 compliant and includes EDID pass-through for real-time display information, ensuring optimal signal quality and compatibility.
Universal Compatibility
The KVM Console Extender does not require any drivers or software for installation. The point-to-point fiber connection eliminates the need for configuring or managing network settings. The extender is compatible with all operating systems, including Windows, macOS, and Linux. The SFP+ slots support both single and multi-mode MSA-compliant modules.
Built-In USB Hub
Three USB ports allow users to connect peripherals such as a mouse and keyboard, ideal for remote control of source devices, flexible workstation setups, and collaborative multimedia environments.
Durable Design
The extender has a sturdy steel chassis and uses fiber-optic extension to reduce electromagnetic interference (EMI), improving stability and ensuring long-term reliability. Its rugged design makes it suitable for installation in various environments.
Specs
Features
Type
Characteristics of the device.
Transmitter & receiver
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
300 m
Maximum digital resolution
4096 x 2160 pixels
Maximum refresh rate
60 Hz
Supported resolutions
4096 x 2160 @ 60hz
3840 x 2160 @ 60hz
3440 x 1440 @ 60hz
3200 x 1800 @ 60hz
3072 x 1728 @ 60hz
2560 x 1440 @ 60hz
2048 x 1536 @ 60hz
1920 x 1200 @ 60hz
3840 x 1080 @ 60hz
1920 x 1080 @ 60hz
1760 x 990 @ 60hz
1680 x 1050 @ 60hz
1600 x 1200 @ 60hz
1600 x 900 @ 60hz
1440 x 900 @ 60hz
1366 x 768 @ 60hz
1280 x 1024 @ 60hz
1280 x 720 @ 60hz
1128 x 634 @ 60hz
1024 x 768 @ 60hz
800 x 600 @ 60hz
On Screen Display (OSD)
Product color
The colour e.g. red, blue, green, black, white.
Black
LED indicators
Yes
Weight & dimensions
Transmitter width
7,4 cm
Transmitter depth
10 cm
Transmitter height
2,8 cm
Transmitter weight
235 g
Receiver width
7,4 cm
Receiver depth
10 cm
Receiver height
2,8 cm
Receiver weight
235 g

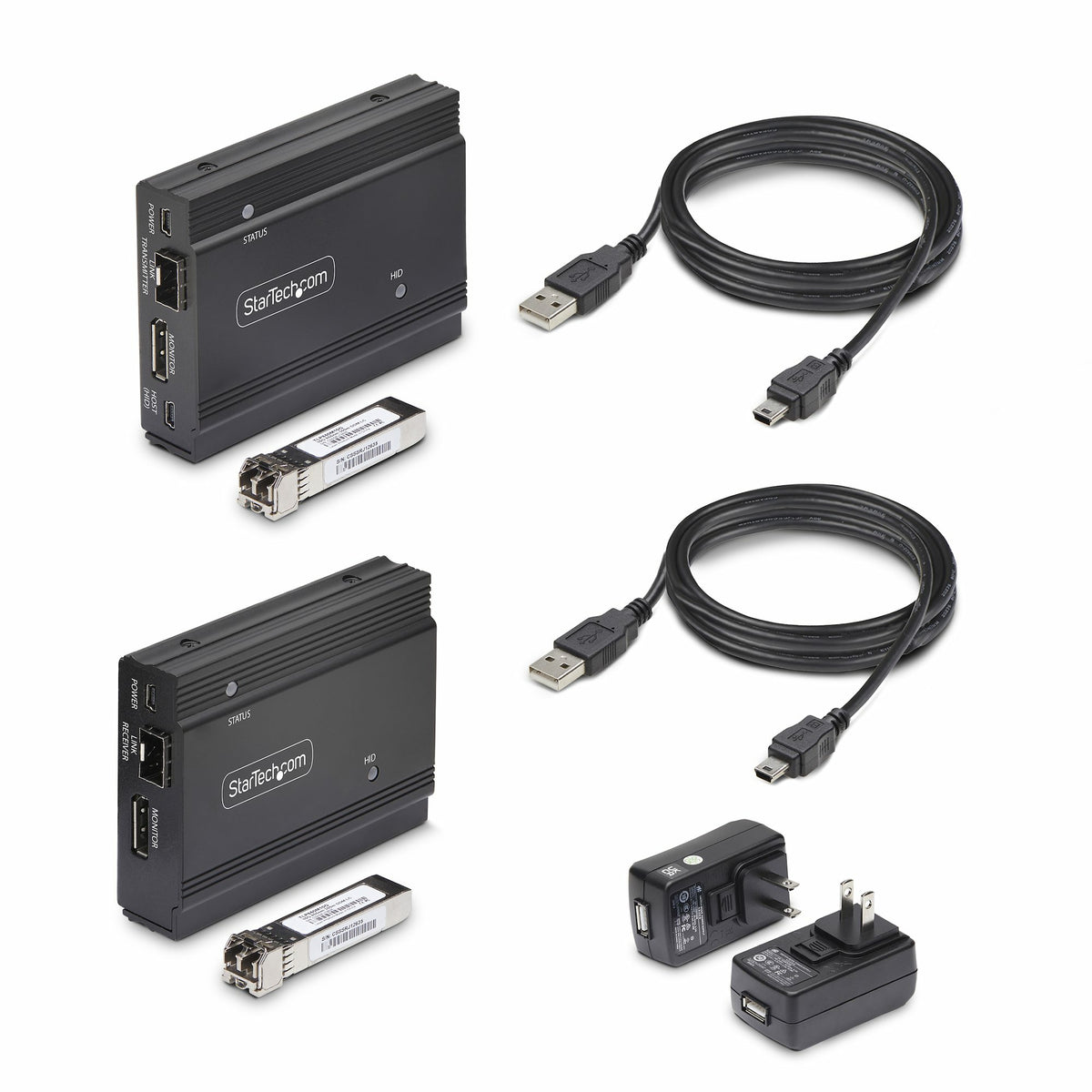

Packaging content
Cables included
Mini-USB
Quick installation guide
Included power plug types
ANZ, EU, NA, UK
Sustainability
Sustainability compliance
Logistics data
Master (outer) case width
420 mm
Master (outer) case length
328 mm
Master (outer) case height
265 mm
Quantity per master (outer) case
6 pc(s)
Transmitter
Transmitter local video port
Transmitter local video port type
DisplayPort
Number of displays supported
The number of displays that can be used with this product.
1
Transmitter Micro-USB ports quantity
1
Receiver
Receiver local video port type
DisplayPort
Receiver Micro-USB ports quantity
2
Ports & interfaces

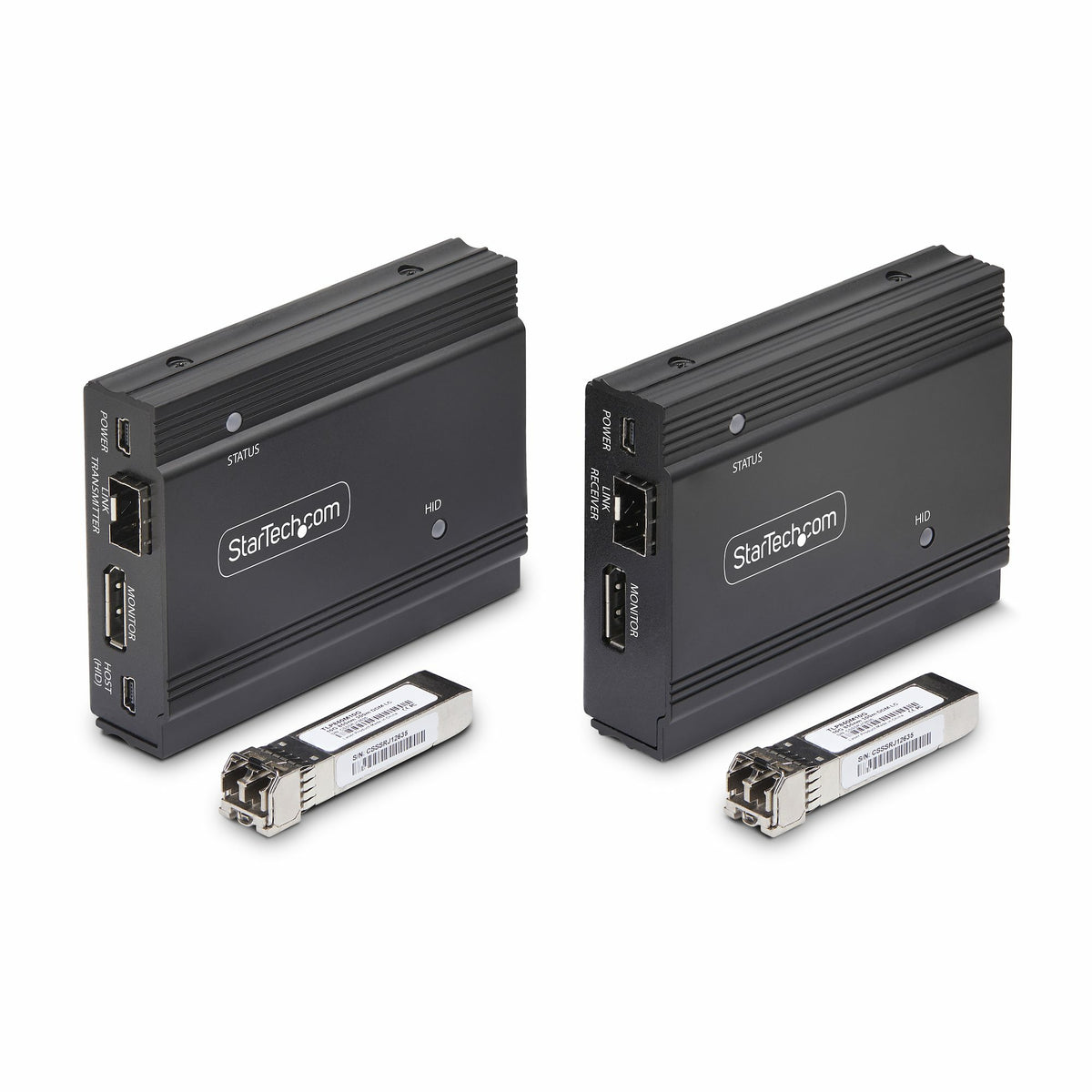

Installed SFP+ modules quantity
An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device.
2
USB 1.1 ports quantity
Number of USB 1.1 ports (connecting interfaces) in the device. USB 1.1 was released in August 1998, fixing problems identified in 1.0, mostly related to using hubs. USB 1.1 was the earliest revision that was widely adopted. Usually coloured white.
3
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Input current
0.3 A
AC adapter output voltage
5 V
AC adapter output current
2 A
Power consumption (transmitter) (max)
10 W
Power consumption (receiver) (max)
10 W
Packaging data
Package width
The distance from one side of the packaging to the other.
308 mm
Package depth
The distance from the front to the back of the packaging.
179 mm
Package height
The distance from the top to the bottom of the packaging.
72 mm
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Other features
Extended display identification data (EDID)
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
156000 h
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS, Trade Agreements Act (TAA)
