STARTECH .com DisplayPort cable 1,8 m mini DisplayPort Black (MDISPLPORT6)
- Regular price
- 21.95$
- Sale price
- 21.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

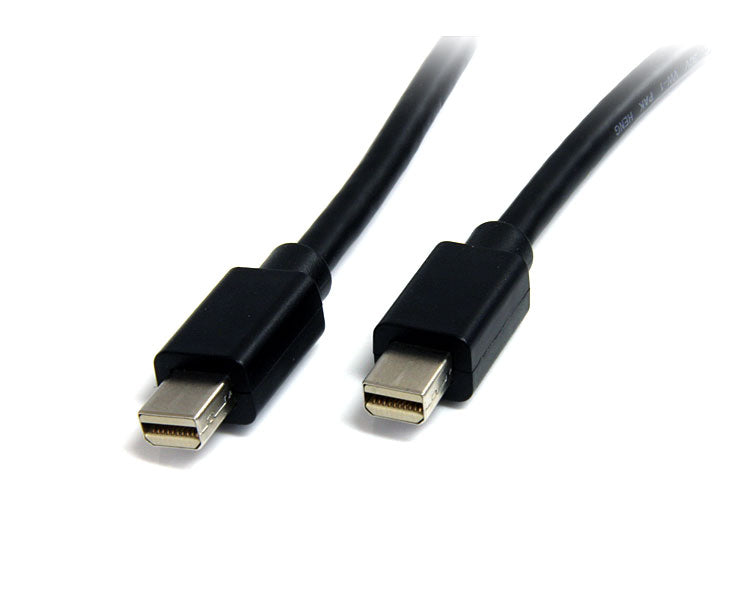

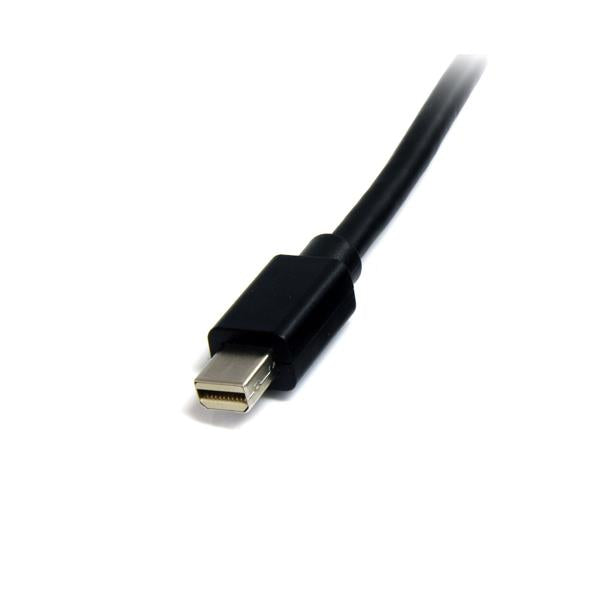

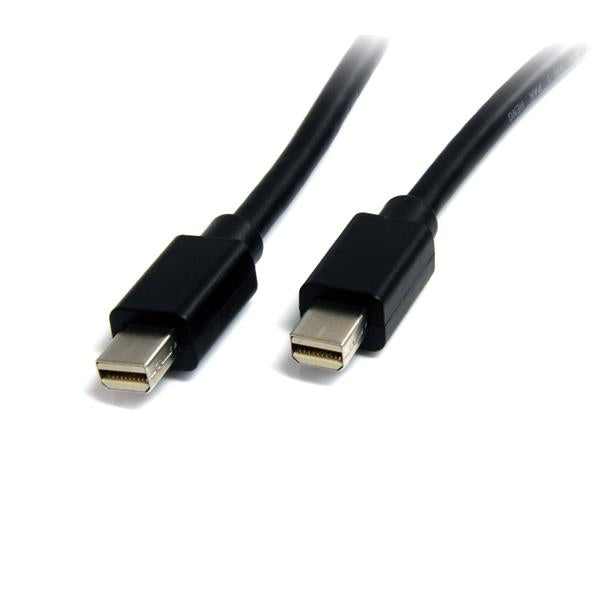

StarTech.com MDISPLPORT6 DisplayPort cable 1,8 m mini DisplayPort Black
Brand:StarTech.com
Product name:6ft (2m) Mini DisplayPort Cable, 8K 60Hz HDR10, Ultra HD 4K 120Hz Video, mDP 1.4 Cable for Monitors Displays, Mini DisplayPort Cord - M/M
Product code:MDISPLPORT6
EAN/UPC:
0065030838887
0065030838887, 065030838887

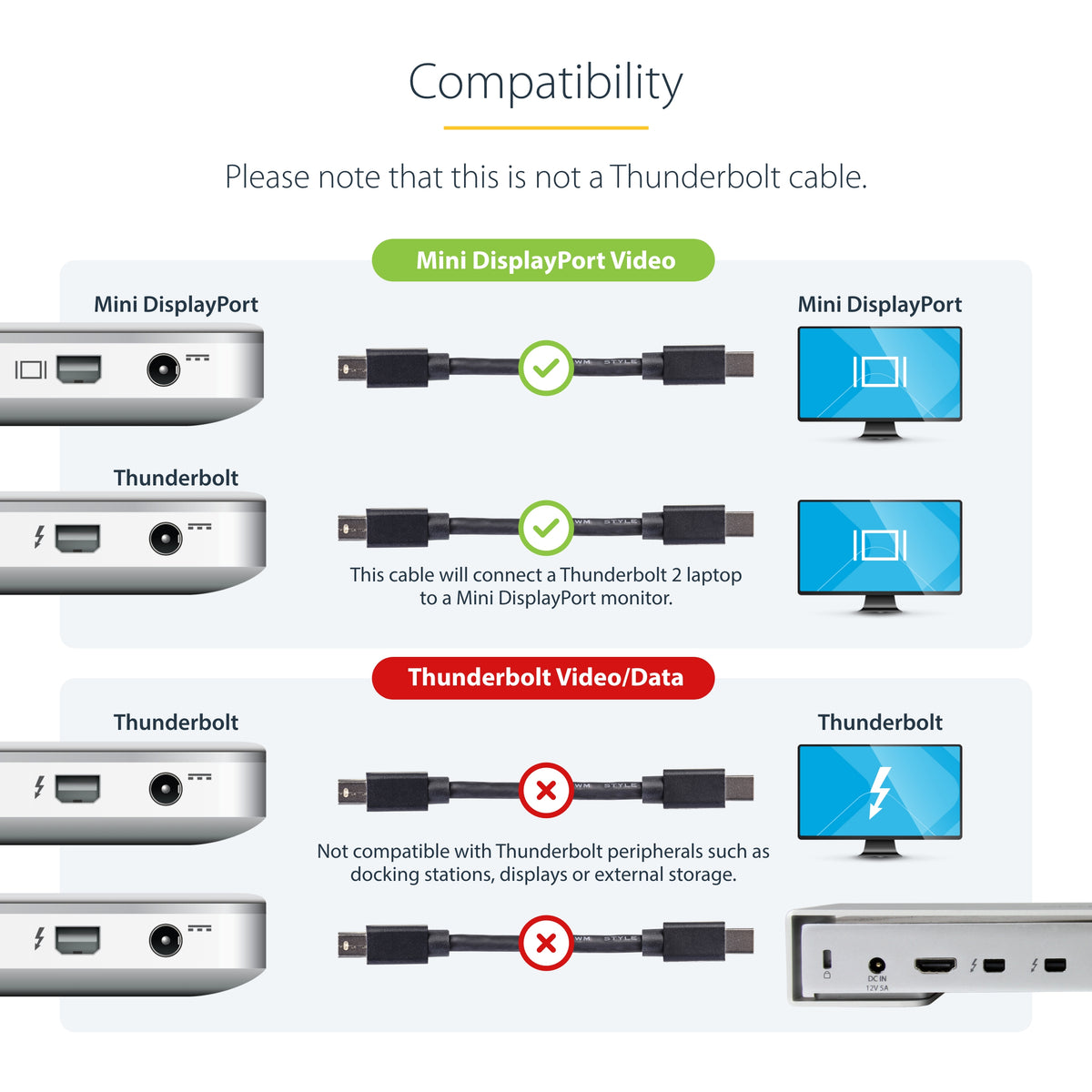

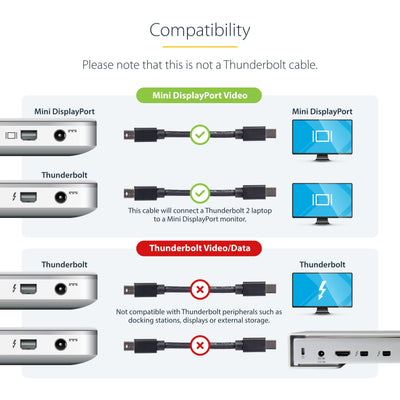

- COMPATIBILITY NOTE: This is not a Thunderbolt cable and is not compatible with Thunderbolt peripherals such as Docking Stations, Displays or External Enclosures; It can however be used to connect a Thunderbolt 2 laptop to a Mini-DisplayPort monitor
- HIGH PERFORMANCE: Mini DisplayPort 1.4 cable; 8K 60Hz (7680x4320p), 4K 120Hz (3840x2160p), 32.4Gbps bandwidth, HDR10, 32Ch Audio, MST, GTC for precise audio channel timing; future-proof your equipment by making it 8K ready
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevents fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding

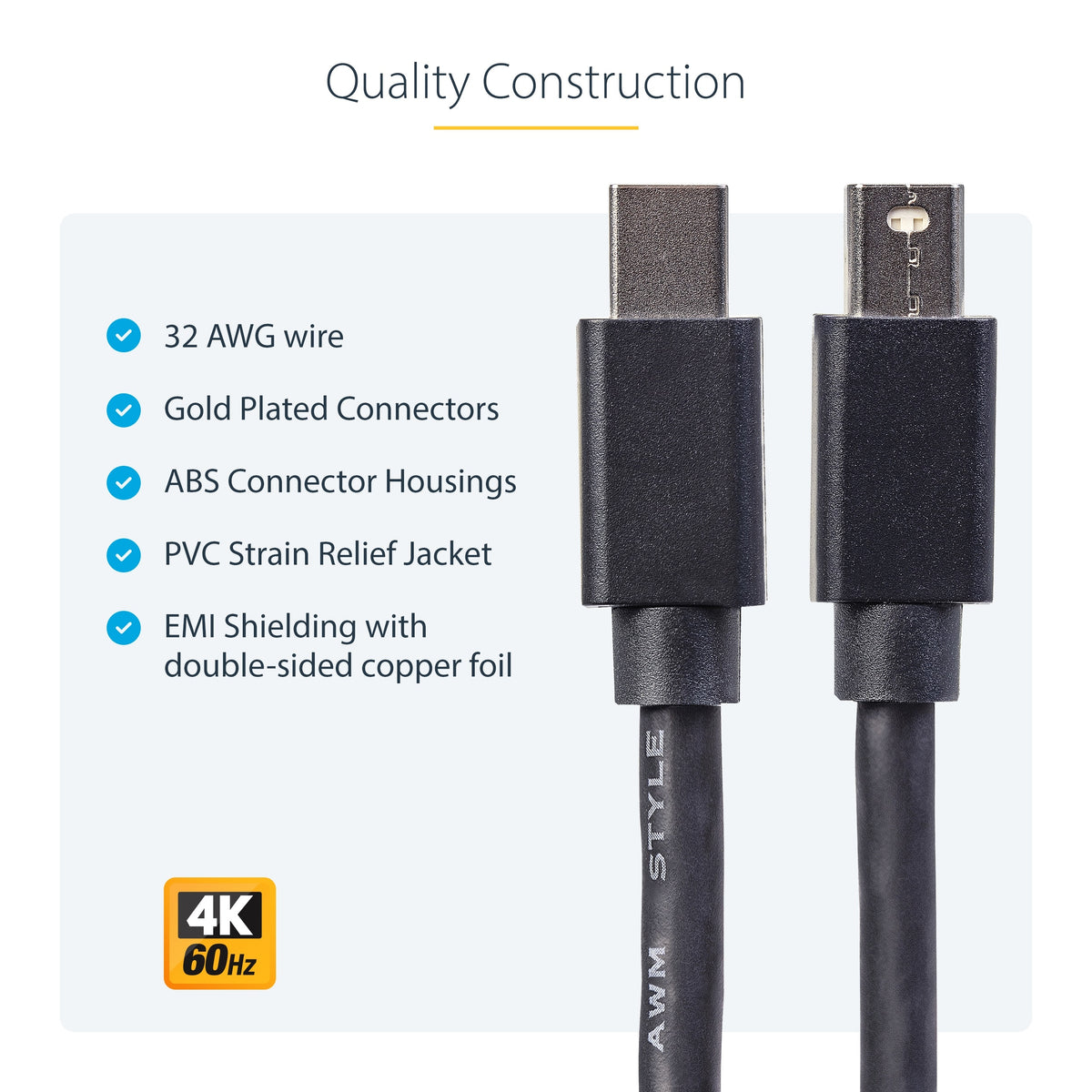

- QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity & reliability; Superior EMI shielding with double sided copper foil provides higher quality video and audio; mDP cable is Backward compatible with DP1.2 and DP1.1
- SPECS: 6 feet (1.8 m); Black Mini DP Cable; DisplayPort v1.4; mDP Male to mDP Male Cord; 32 AWG; PVC cable jacket, ABS connector shell; Shield: Al-Mylar foil with Braid; Protocols: HBR3, MST, GTC; Backed for Life
Description
Create a high-resolution 8k or 4k connection with HBR3 support between your Mini DisplayPort™-equipped laptop and monitor

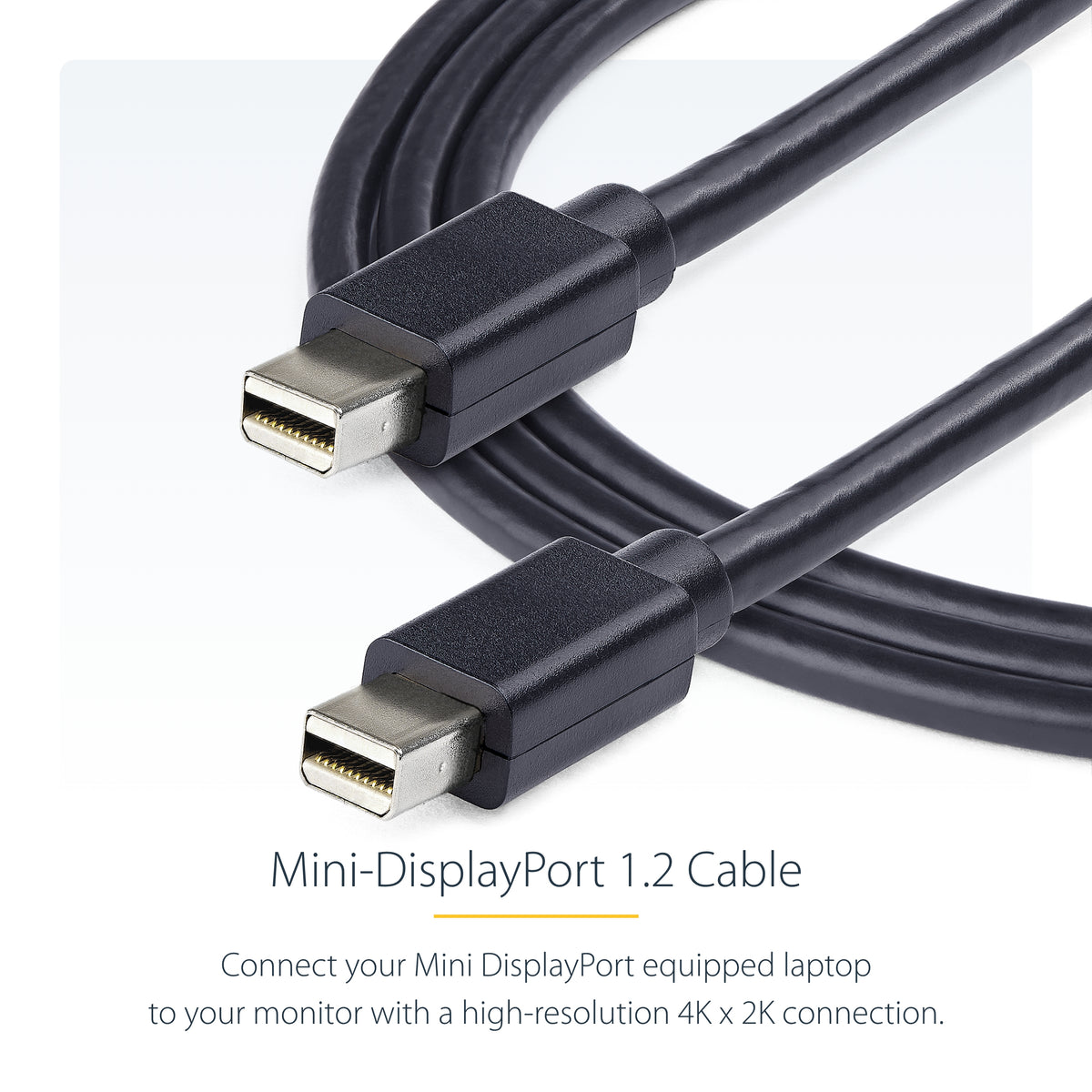

This Mini DisplayPort™ 1.4 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.
The mDP cable supports high resolutions of up to 8k (7680 x 4320) @ 60Hz with a maximum HBR3 bandwidth of 32.4 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
Ensures reliable performance and proper display of digitally protected content, with support for both HDCP and DPCP.
Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
Please note: This is not a Thunderbolt cable, and therefore does not work for Thunderbolt peripherals (displays, docks, drive enclosures, audio interfaces, etc).
This Mini DisplayPort™ 1.4 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.
The mDP cable supports high resolutions of up to 8k (7680 x 4320) @ 60Hz with a maximum HBR3 bandwidth of 32.4 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
Ensures reliable performance and proper display of digitally protected content, with support for both HDCP and DPCP.
Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
Please note: This is not a Thunderbolt cable, and therefore does not work for Thunderbolt peripherals (displays, docks, drive enclosures, audio interfaces, etc).
Specs
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
What the connector contacts are covered with (layer on top).
Nickel
DisplayPort version
1.2
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
3840 x 2400 pixels
Maximum refresh rate
60 Hz
Cable length
How long the cable is.
1,8 m
Connector 1
This is the first connector in the device.
mini DisplayPort
Connector 2
This is the second connector in the device.
mini DisplayPort
Connector 1 gender
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2 gender
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
Female
Product color
The colour e.g. red, blue, green, black, white.
Black
Cable rating
CMG (CM)
Cable shielding
The protective layer for the cable, typically made of plastic.
Aluminum mylar foil
Jacket material
Polyvinyl chloride (PVC)
AWG wire size
32
Bandwidth
21600 MB/s
Multi-Stream Transport (MST)
Number of conductors
19
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-20 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Operating relative humidity (H-H)
0 - 75%
Weight & dimensions
Cable diameter
The distance from one side of the cable to the other, with a straight line going through the middle of the cable.
4,8 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
62 g
Packaging data
Package width
The distance from one side of the packaging to the other.
220 mm
Package depth
The distance from the front to the back of the packaging.
200 mm
Package height
The distance from the top to the bottom of the packaging.
11 mm
Package weight
Weight of the packaged product in gram.
71 g
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Harmonized System (HS) code
84733080
Master (outer) case width
328 mm
Master (outer) case length
492 mm
Master (outer) case height
222 mm
Quantity per master (outer) case
60 pc(s)
