STARTECH .com console extender Console transmitter & receiver 480 Mbit/s (C15012-USB-EXTENDER)
- Regular price
- 322.95$
- Sale price
- 322.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com C15012-USB-EXTENDER console extender Console transmitter & receiver 480 Mbit/s
Brand:StarTech.com
Product name:150m (492ft) USB 2.0 Extender over Cat5e/Cat6 Ethernet Cable, Externally Powered USB Extender via RJ45/Network Cable, USB Over Ethernet Cable Extender/Adapter
Product code:C15012-USB-EXTENDER
EAN/UPC:
0065030893176
0065030893176, 065030893176
- ULTRA LONG RANGE USB EXTENDER: Extend a USB 2.0 connection up to 492 ft (150 m) over an Ethernet cable (CAT5e, CAT6, or higher) with data transfer rates up to 480Mbps; Power, Link & Activity status LEDs; For Webcams and USB peripherals

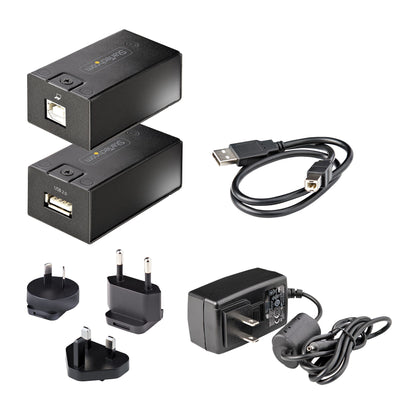

- POWERED USB EXTENDER KIT: The USB extender over Cat5/Cat6 cable (RJ45) includes a power adapter for the Receiver while the Transmitter is bus-powered. The Receiver's USB port provides 5V 500mA
- DURABLE & COMPACT: Durable metal construction for high wear and tear environments; Transmitter & Receiver each feature the same small form factor 1.3 x 1x 2.65 in (32 x 25 x 67.3 mm); Rubber feet help prevent sliding; 2 ft (61 cm) USB host cable included
- PLUG-AND-PLAY: The extender features driverless installation and is compatible w/ major operating systems incl. Windows, macOS, Linux; Compatible with USB 2.0/1.1/1.0; Point-to-Point, Does not work through network/LAN equipment (router, switch, etc.)
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA USB 2.0 extender kit is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
Description
Connect a remote USB 2.0 device to your computer over long distances
Extend a USB 2.0 connection up to 492 ft (150 m) with this USB Extender Kit. Connect the transmitter to the receiver, using existing Ethernet cabling that is Cat5e or better (e.g., Cat 6, 6a, etc.). No software or configuration is required. Conveniently control remote USB devices in warehouses, classrooms, board rooms, and other long-range application environments.
Overcome Distance Limitations
This USB Extender Kit enables you to exceed the limitations posed by traditional USB cable lengths, to establish long-range USB connections. Use this kit for a wide variety of applications such as remote surveillance and monitoring with a webcam (up to 1080p resolution), controlling machines at a distance, remote printing, connecting retail barcode scanners, and many other applications. In addition, the remote unit is connected to a power source, using the included power adapter, for applications requiring USB bus power.
Rugged Durability

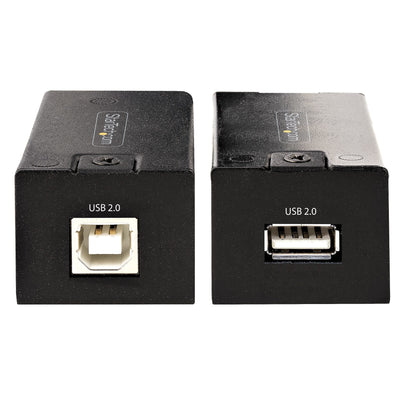

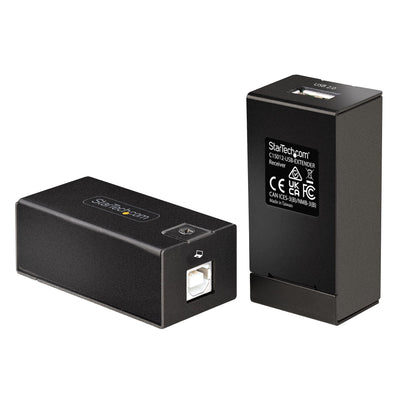

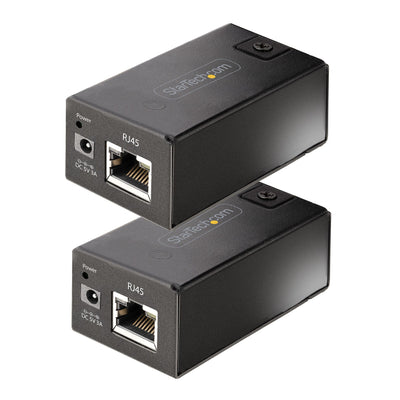

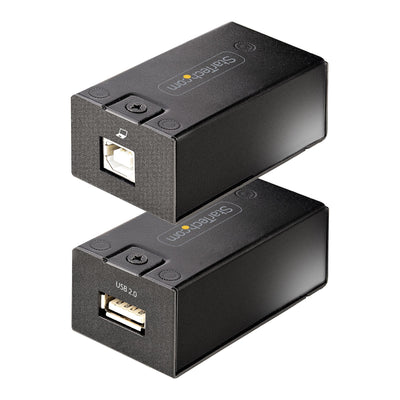

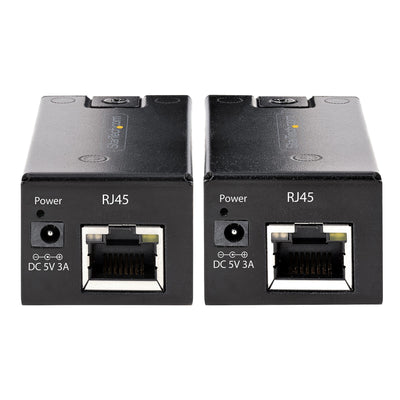

The local and remote units feature a metal exterior for extra protection and longevity in harsher environments. With dimensions of only 1.3 x 1.0 x 2.65 in (32.2 x 25.4 x 67.3 mm), both units are very compact, allowing for installations in tight spaces.
Ease of Use
The USB over Ethernet cable extender kit is compatible with any operating system and does not require any additional software to work. Set up the units by connecting them on a point-to-point connection, using your existing Ethernet cabling (Cat5e or better). This kit is not compatible with network switches and routers. The Extender is compatible with USB 2.0, USB 1.1, and USB 1.0 peripherals.
The C15012-USB-EXTENDER is TAA compliant and backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Extend a USB 2.0 connection up to 492 ft (150 m) with this USB Extender Kit. Connect the transmitter to the receiver, using existing Ethernet cabling that is Cat5e or better (e.g., Cat 6, 6a, etc.). No software or configuration is required. Conveniently control remote USB devices in warehouses, classrooms, board rooms, and other long-range application environments.
Overcome Distance Limitations
This USB Extender Kit enables you to exceed the limitations posed by traditional USB cable lengths, to establish long-range USB connections. Use this kit for a wide variety of applications such as remote surveillance and monitoring with a webcam (up to 1080p resolution), controlling machines at a distance, remote printing, connecting retail barcode scanners, and many other applications. In addition, the remote unit is connected to a power source, using the included power adapter, for applications requiring USB bus power.
Rugged Durability
The local and remote units feature a metal exterior for extra protection and longevity in harsher environments. With dimensions of only 1.3 x 1.0 x 2.65 in (32.2 x 25.4 x 67.3 mm), both units are very compact, allowing for installations in tight spaces.
Ease of Use
The USB over Ethernet cable extender kit is compatible with any operating system and does not require any additional software to work. Set up the units by connecting them on a point-to-point connection, using your existing Ethernet cabling (Cat5e or better). This kit is not compatible with network switches and routers. The Extender is compatible with USB 2.0, USB 1.1, and USB 1.0 peripherals.
The C15012-USB-EXTENDER is TAA compliant and backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Specs
Technical details
Type
Characteristics of the device.
Console transmitter & receiver
Data transfer rate
Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.
480 Mbit/s
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
150 m
Product colour
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Metal
LED indicators
Power
Cable types supported
Cat5e, Cat6
Compliance certificates
CE, RoHS
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Ports & interfaces
USB 2.0 Type-A ports quantity
1
USB 2.0 Type-B ports quantity
1
RJ-45 ports quantity
2
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Weight & dimensions
Width
The measurement or extent of something from side to side.
67 mm
Depth
The distance from the front to the back of something.
32 mm
Height
The measurement of the product from head to foot or from base to top.
25 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
173 g
Package width
The distance from one side of the packaging to the other.
220 mm
Package depth
The distance from the front to the back of the packaging.
194 mm
Package height
The distance from the top to the bottom of the packaging.
60 mm
Package weight
Weight of the packaged product.
173 g
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Packaging content
Cables included
USB Type-A to USB Type-B
AC adapter included
Power
Power source type
What the power source is.
DC
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
15 W
Input voltage
The voltage (V) which is required to power the product.
100 - 240 V
Input current
0.6 A
Output voltage
5 V
Output current
3 A
Power plug type
Type H
Logistics data
Master (outer) case width
400 mm
Master (outer) case length
400 mm
Master (outer) case height
278 mm
Products per master (outer) case
12 pc(s)
