STARTECH .com cable gender changer DB-9 USB 2.0 A Blue, Transparent (ICUSB232SM3)
- Regular price
- 41.95$
- Sale price
- 41.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

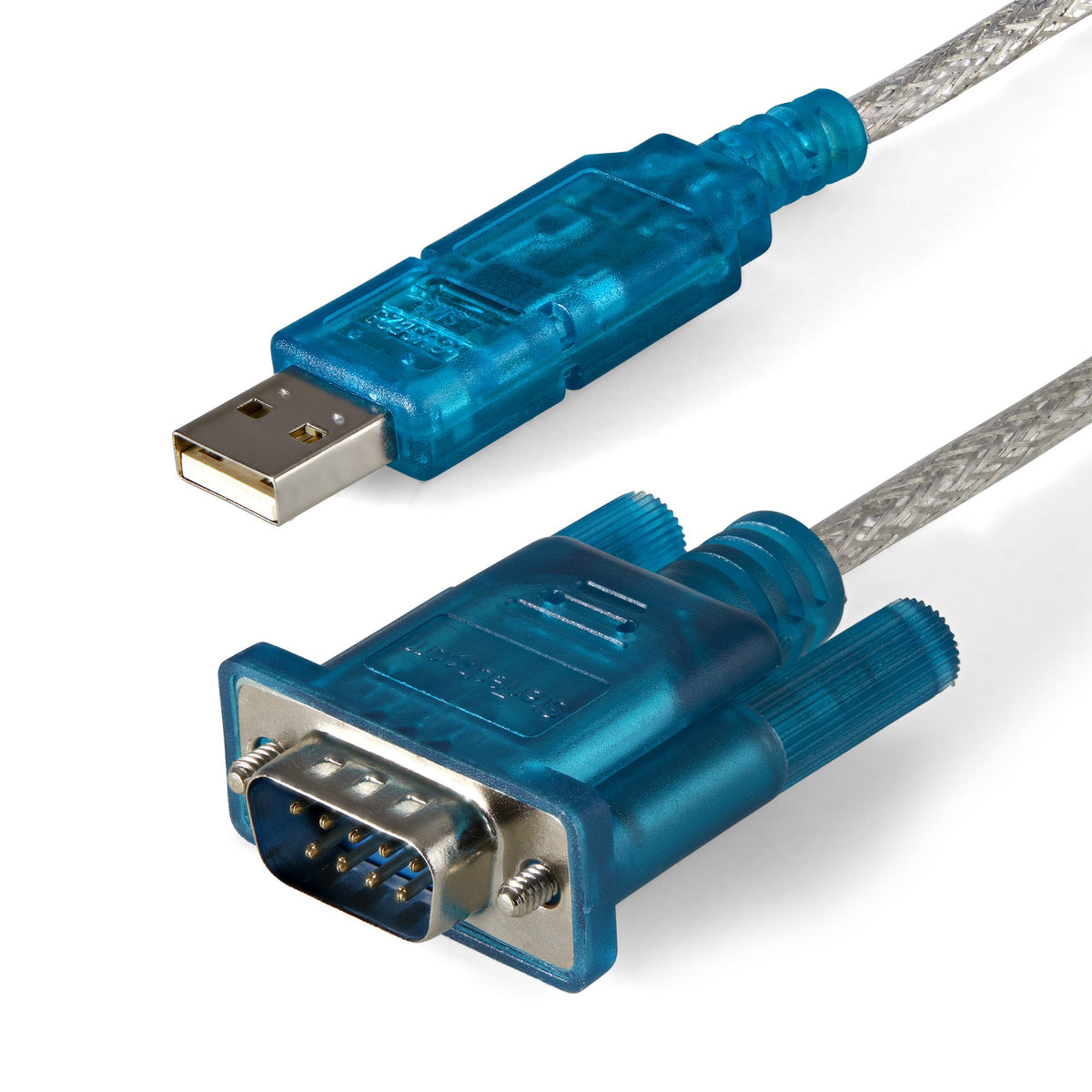

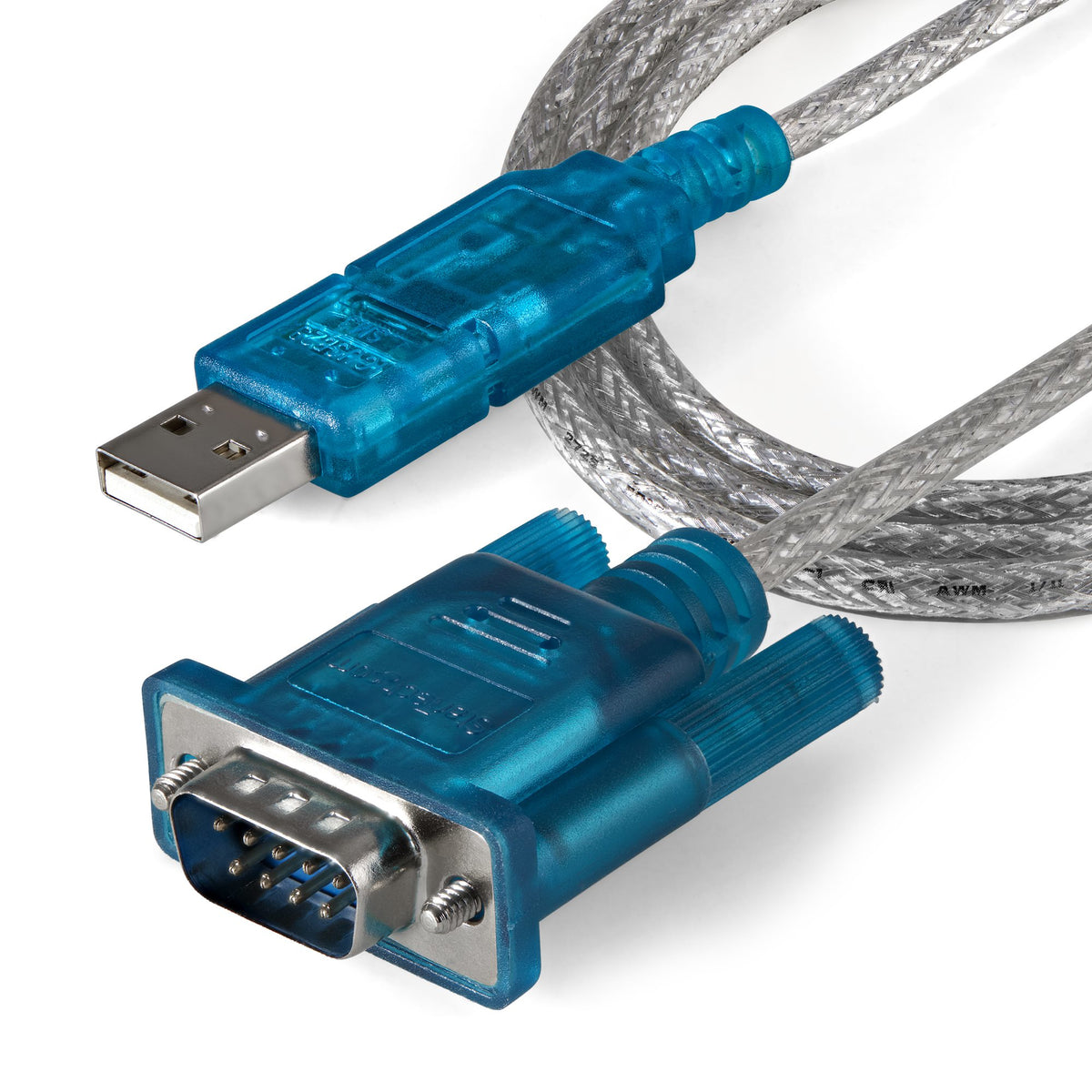

StarTech.com ICUSB232SM3 cable gender changer DB-9 USB 2.0 A Blue, Transparent
Brand:StarTech.com
Product name:3ft (91cm) 1-Port USB to RS232 DB9 Serial Adapter Cable, USB to Serial Adapter Cable - M/M
Product code:ICUSB232SM3
EAN/UPC:
0065030842440
0065030842440, 065030842440, 0777786328856, 777786328856, 0088020610584, 088020610584

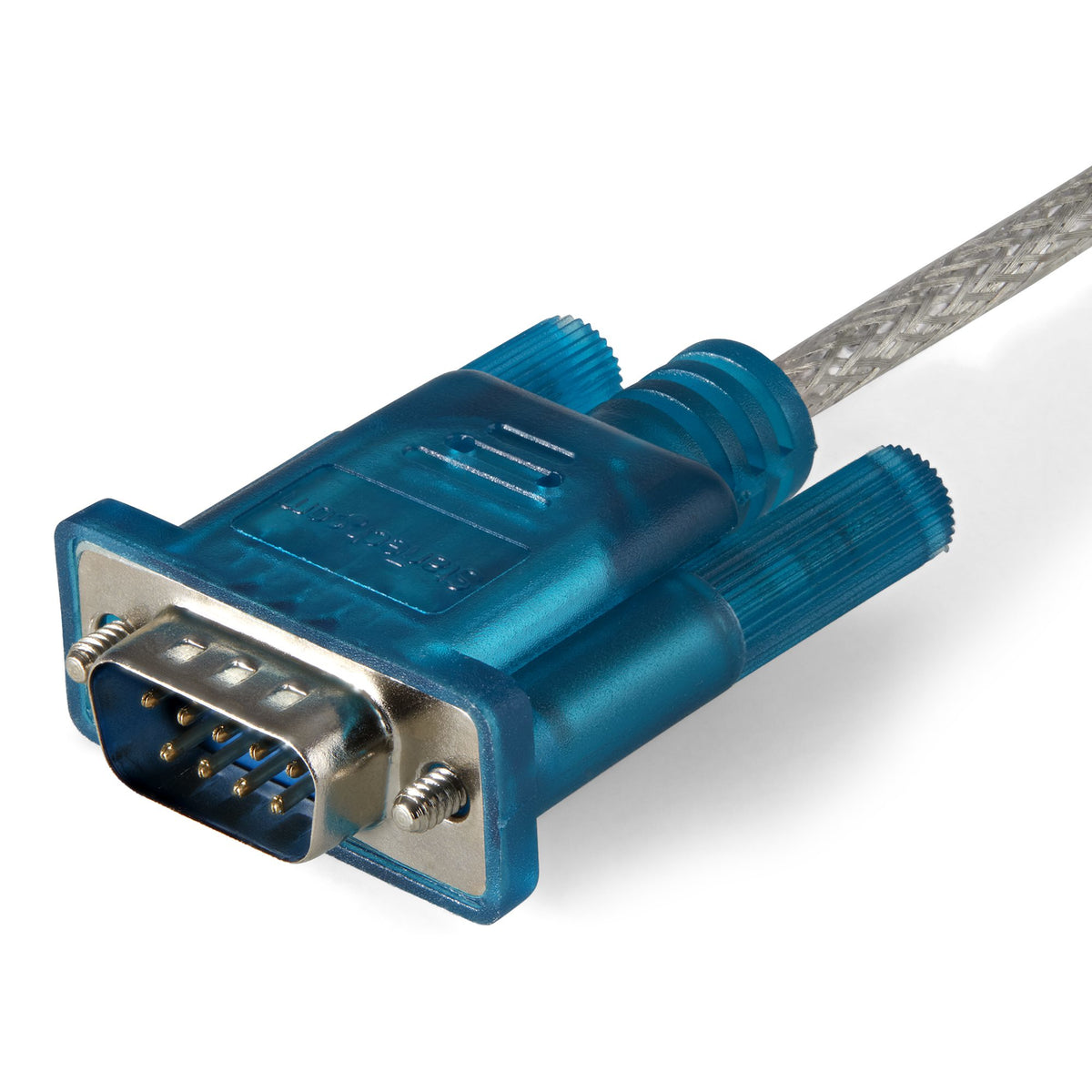

- ADD LEGACY FUNCTIONALITY: The USB to Serial (DB9) adapter lets you connect DB9 RS232 serial devices to your device through an available USB port, as though the computer offered a DB9M connector

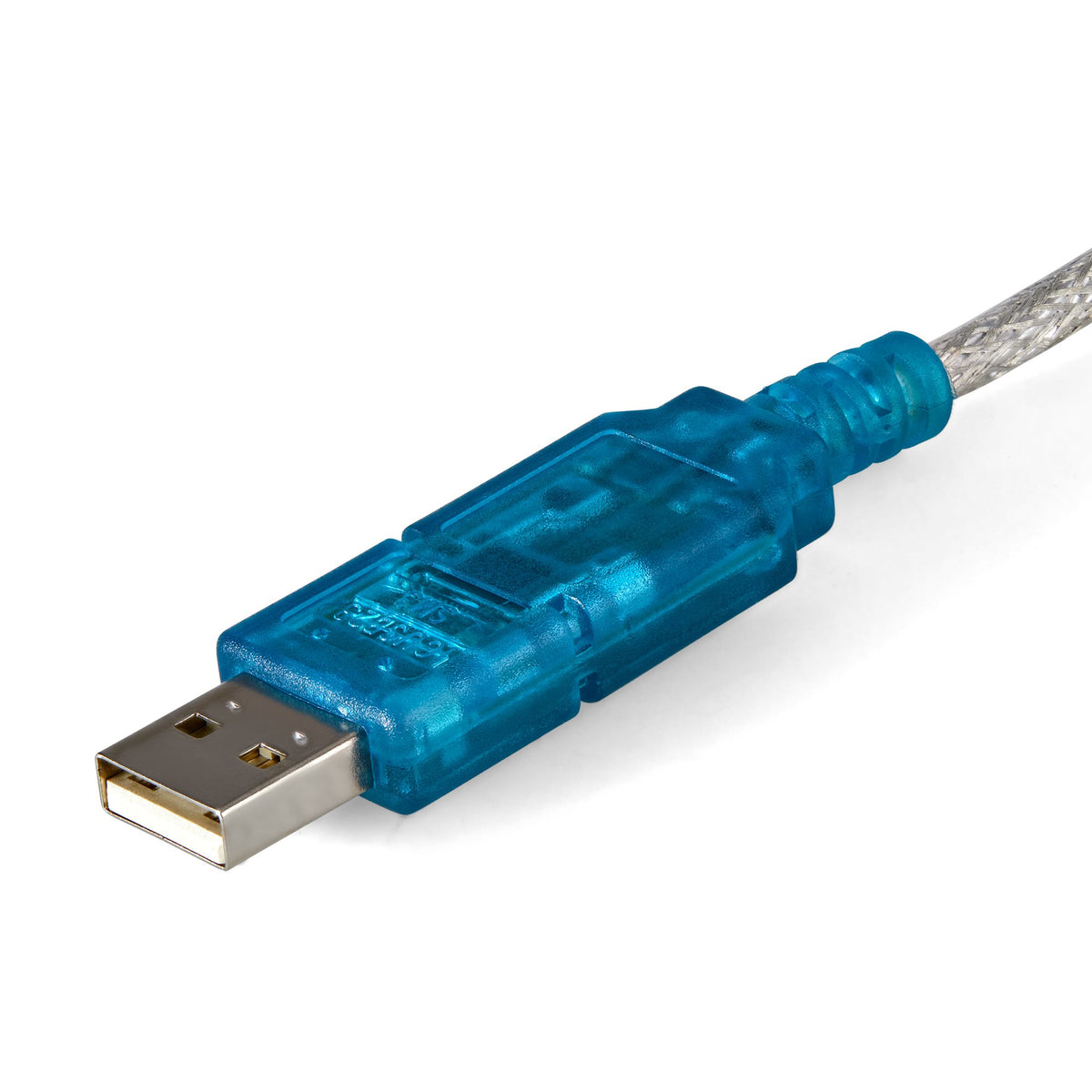

- UNIQUE CONVERTER CHIP: Unlike typical USB to serial cables where the conversion takes place at the DB9 end, this USB to serial RS232 adapter features a converter chip on the USB end
- OVERCOME DISTANCE LIMITATIONS: Converting at the USB source overcomes the 15ft (4.6m) technical limit of USB cables; this USB to RS232 adapter cable allows for a much greater serial DB-9 extension cable
- MAXIMUM COMPATIBILITY: Simple to install and use, this USB serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals
- TECH SPECS: 3 feet (91 cm); Prolific PL2303GC Chipset; Max Baud Rate: 921.6 Kbps; 192 Bytes FIFO
Description
Add an RS232 serial port to your laptop or desktop computer through USB
The ICUSB232SM3 3ft USB to Serial Adapter Cable lets you connect DB9 RS232 serial devices to your Mac® or PC laptop or desktop computer through an available USB port, as though the computer offered an onboard DB9M connector.
Unlike typical USB to serial converter cables where the conversion takes place at the DB9 end, the StarTech.com ICUSB232SM3 features a converter chip on the USB end. Converting at the USB source overcomes the 15ft. technical limit of USB cables, allowing for a much greater serial DB-9 extension cable (50ft.+ is possible depending on the application) if necessary.
Simple to install and use, this USB to Serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The ICUSB232SM3 3ft USB to Serial Adapter Cable lets you connect DB9 RS232 serial devices to your Mac® or PC laptop or desktop computer through an available USB port, as though the computer offered an onboard DB9M connector.
Unlike typical USB to serial converter cables where the conversion takes place at the DB9 end, the StarTech.com ICUSB232SM3 features a converter chip on the USB end. Converting at the USB source overcomes the 15ft. technical limit of USB cables, allowing for a much greater serial DB-9 extension cable (50ft.+ is possible depending on the application) if necessary.
Simple to install and use, this USB to Serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Specs
Ports & interfaces
Connector 1
This is the first connector in the device.
DB-9
Connector 2
This is the second connector in the device.
USB 2.0 A
Connector 1 gender
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2 gender
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
Male
Cable length
How long the cable is.
0,9 m
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 60 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 80 °C
Relative humidity
0 - 65%
Weight & dimensions
Width
The measurement or extent of something from side to side.
35 mm
Depth
The distance from the front to the back of something.
914 mm
Height
The measurement of the product from head to foot or from base to top.
15 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
56 g
Logistics data
Quantity per master (outer) case
100 pc(s)
Master (outer) case width
583 mm
Master (outer) case length
367 mm
Master (outer) case height
303 mm
Performance
Product color
The colour e.g. red, blue, green, black, white.
Blue, Transparent
Housing material
What the casing of the product is made of.
Plastic
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Prolific - PL2303HXD
Baud rate
921,6 Kbit/s
FIFO (First In, First Out)
192 B
Compatible operating systems
List of desktop operating systems tested as compatible with this product.
Windows CE 4.2, 5.2, Vista, 7, 8, 8.1, 10, 11
Windows Server 2003, 2008 R2, 2012, 2016, 2019
macOS 10.6 to 10.15, 11.0, 12.0, 13.0
Linux 2.4.x+
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Certification
CE, FCC
Packaging content
Quantity per pack
1 pc(s)
Packaging data
Package width
The distance from one side of the packaging to the other.
201 mm
Package depth
The distance from the front to the back of the packaging.
110 mm
Package height
The distance from the top to the bottom of the packaging.
33 mm
Package weight
Weight of the packaged product in gram.
70 g
